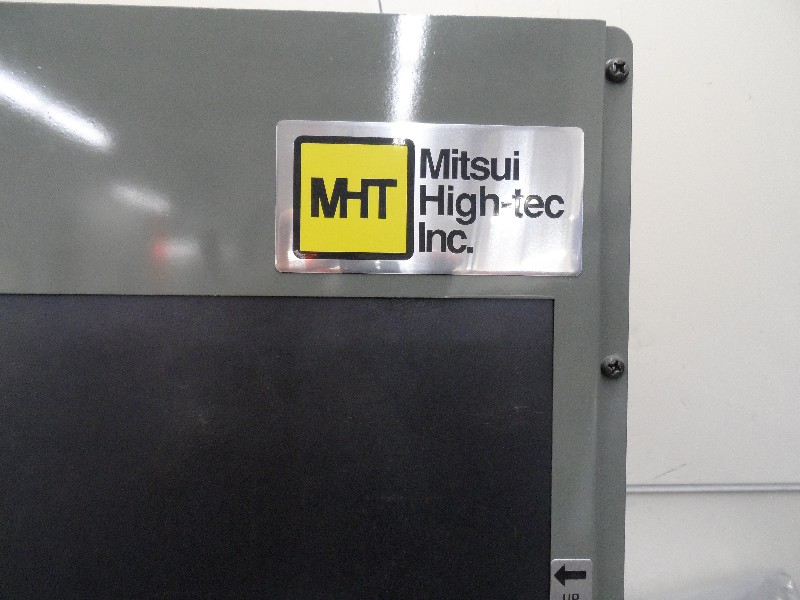

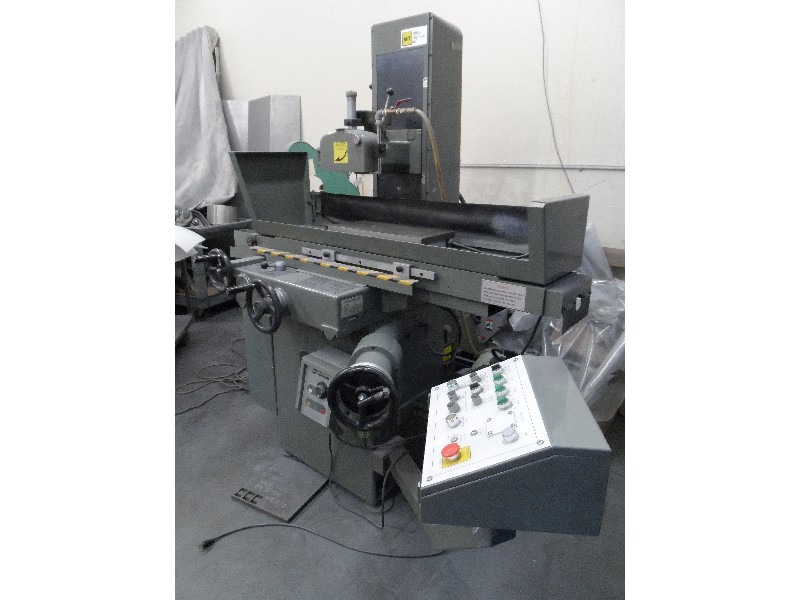

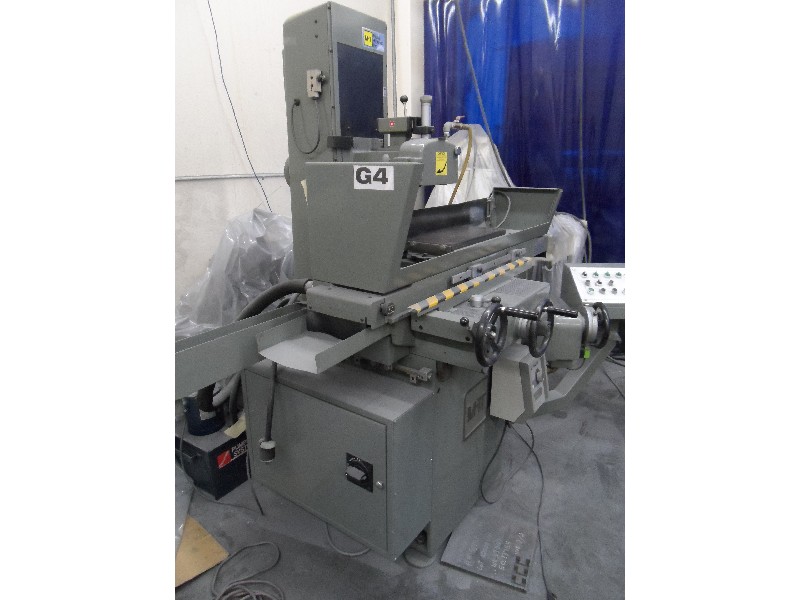

MITSUI HI-TEC MODEL MSG-818HM SUPER PRECISION THREE AXIS HYDRAULIC SURFACE GRINDER.

MITSUI HI-TEC MODEL MSG-818HM "SUPER PRECISION" THREE AXIS HYDRAULIC SURFACE GRINDER.

Stock Number: 1203

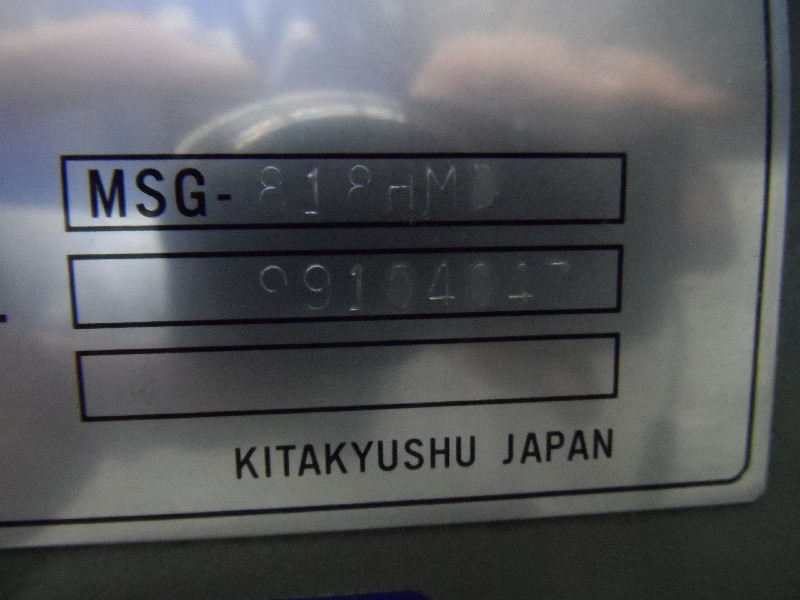

MITSUI MSG-808HM

Age: 1999

Condition: EXCELLENT




Click to view larger photo

SpecificationDescription
WORKING SURFACE OF TABLE8" x 18"
SURFACE GROUND - MAXIMUM9 1/2" x 20"
DIST BETWEEN TABLE SURFACE & SPINDLE CENTERMAX 22 1/2"
RANGE - LONGITUDINAL20"
RANGE - CROSS (AUTOMATIC)9 1/2"
RANGE - CROSS (MANUAL)10"
RANGE - VERTICAL16"
LONGITUDINAL FEEDS - INFINITELY VARIABLE5 - 68 FPM
AUTO CROSSFEED TO TABLE PER STROKE0.02" - 0.05" IPM
AUTO VERTICAL FEED INCREMENTS, TEN STEPS.0001" - .001"
RAPID CROSSFEED RATE2 - 17 IPM
ELEVATING HANDWHEEL GRADUATIONS0.0002"
CROSSFEED HANDWHEEL GRADUATIONS00008"
CROSSFEED VERNIER0.0001"
APPROXIMATE WEIGHT3,490 LBS.

Equipped With:
AUTOMATIC INCREMENTAL DOWNFEED

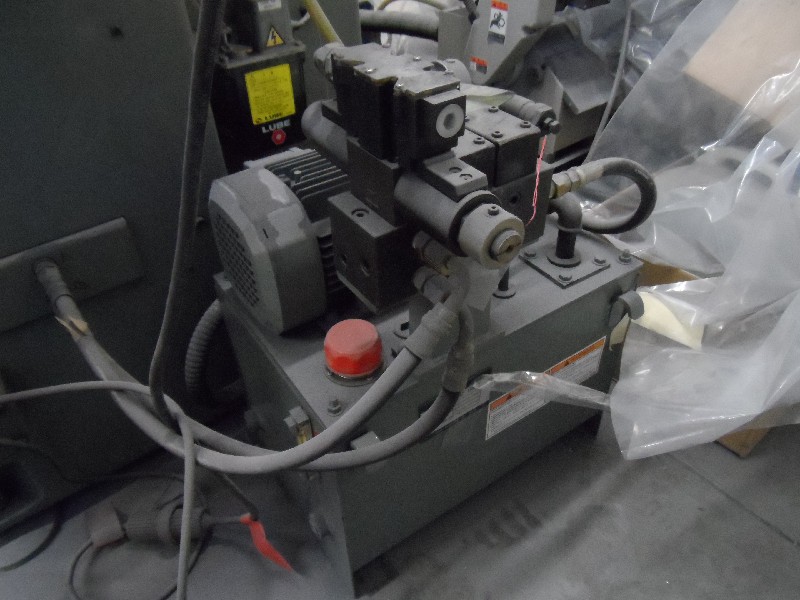

HYDRAULIC LONGITUDINAL & POWER CROSSFEEDS
BALL BEARING TABLE WAYS
HARDENED AND GROUND WAYS (REMOVABLE) ON TABLE, CARRIAGE/SADDLE, & COLUMN

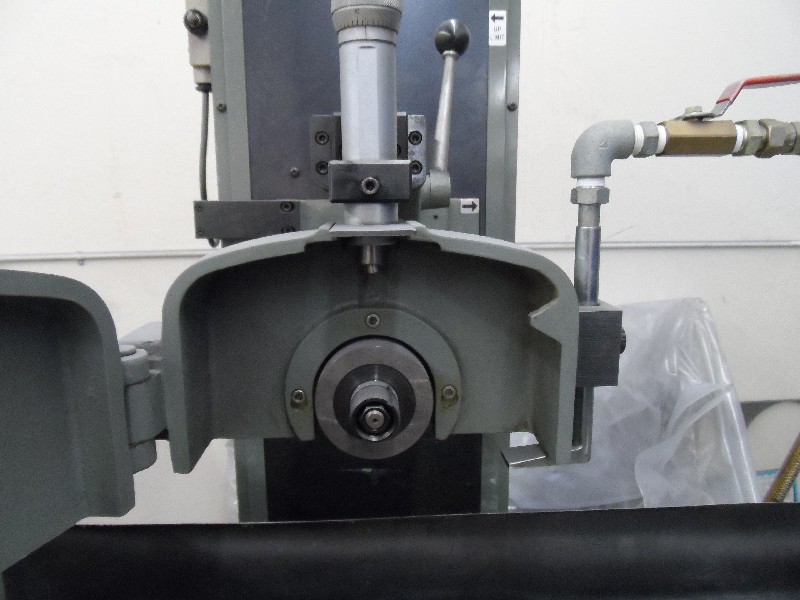

OVER THE WHEEL DIAMOND DRESSER
AUTOMATIC LUBRICATION SYSTEM
8" x 3/4" x 1 1/4" GRINDING WHEEL
1.5 kw / 3 / 60 / 200-220 SUPER PRECISION SPINDLE

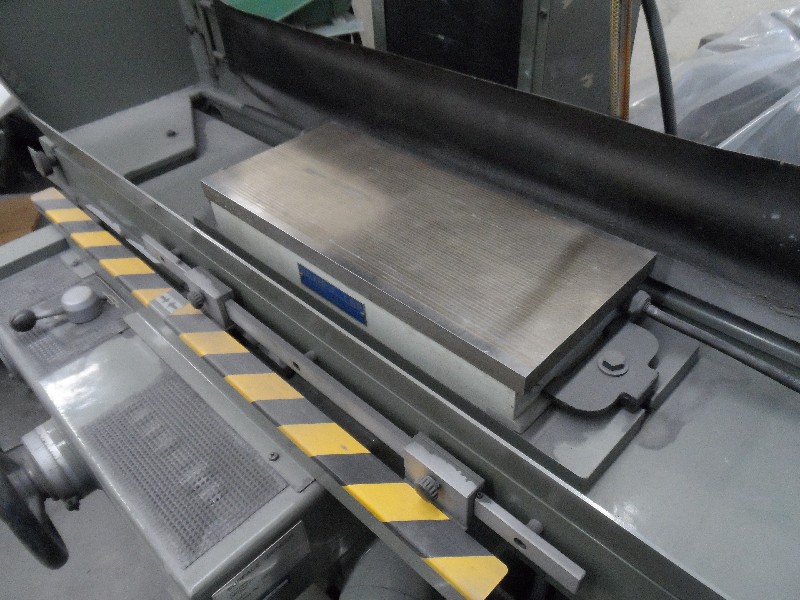

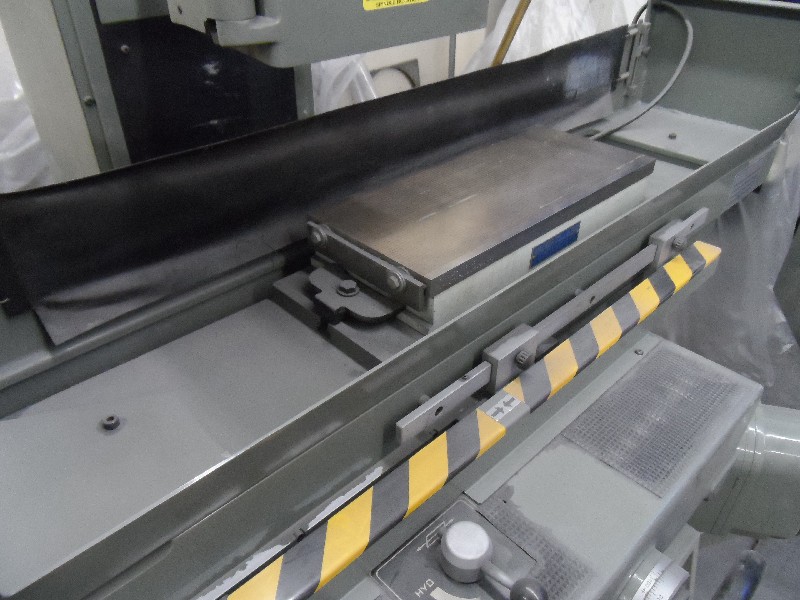

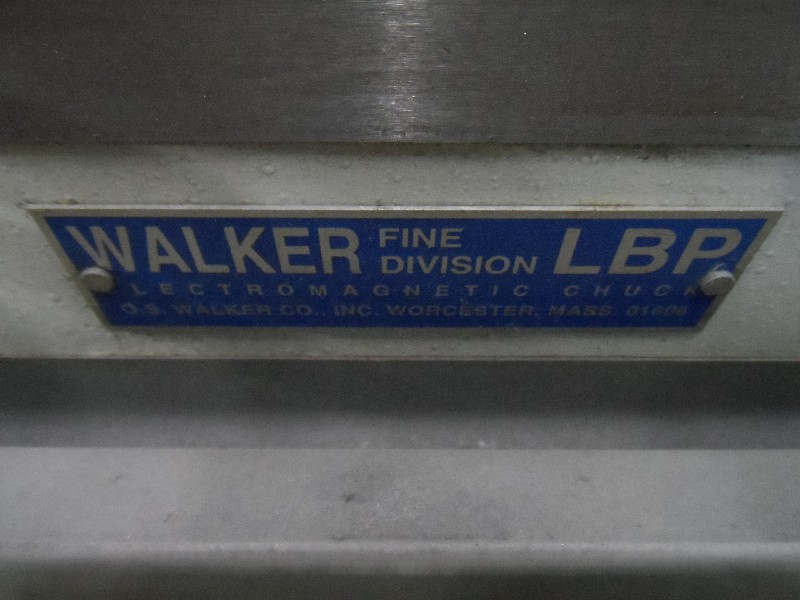

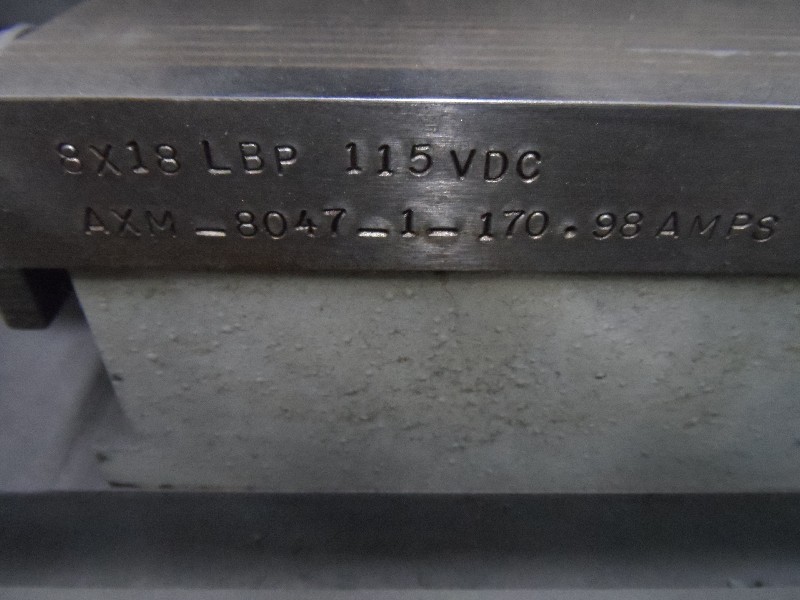

WALKER 818 LBP FINE POLE ELECTROMAGNETIC CHUCK
WALKER CHUCK CONTROL
