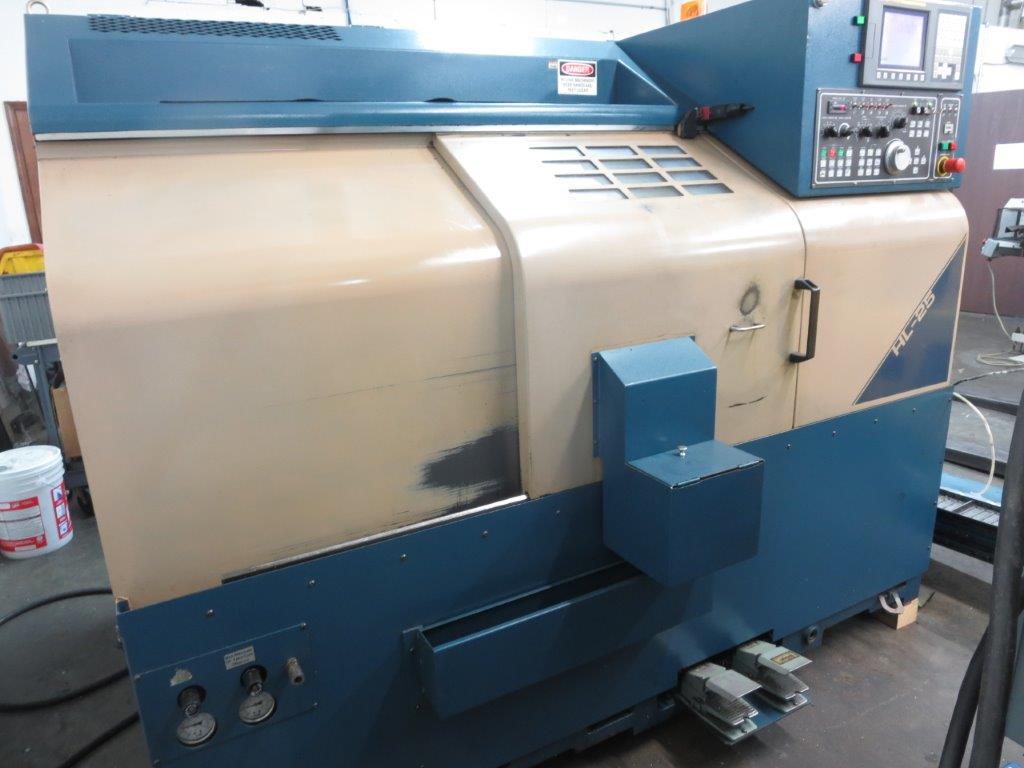

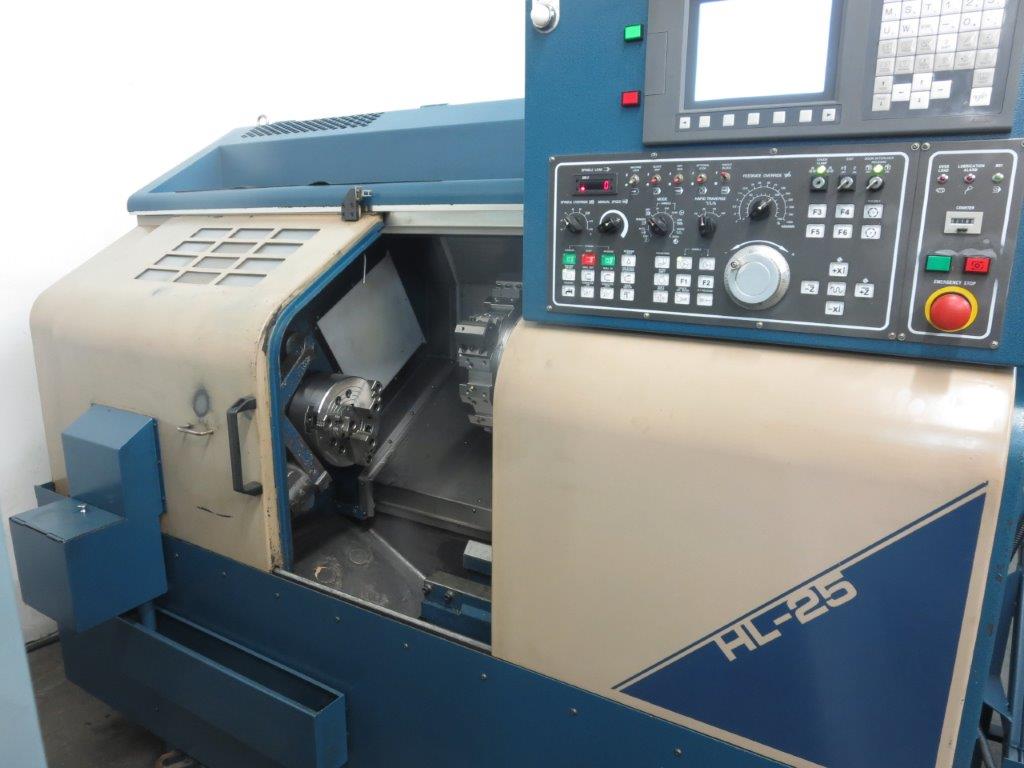

FEMCO HL-25 CNC LATHE w/ 8" CHUCK

FEMCO HL-25 CNC LATHE w/ 8" CHUCK

Stock Number: 1226

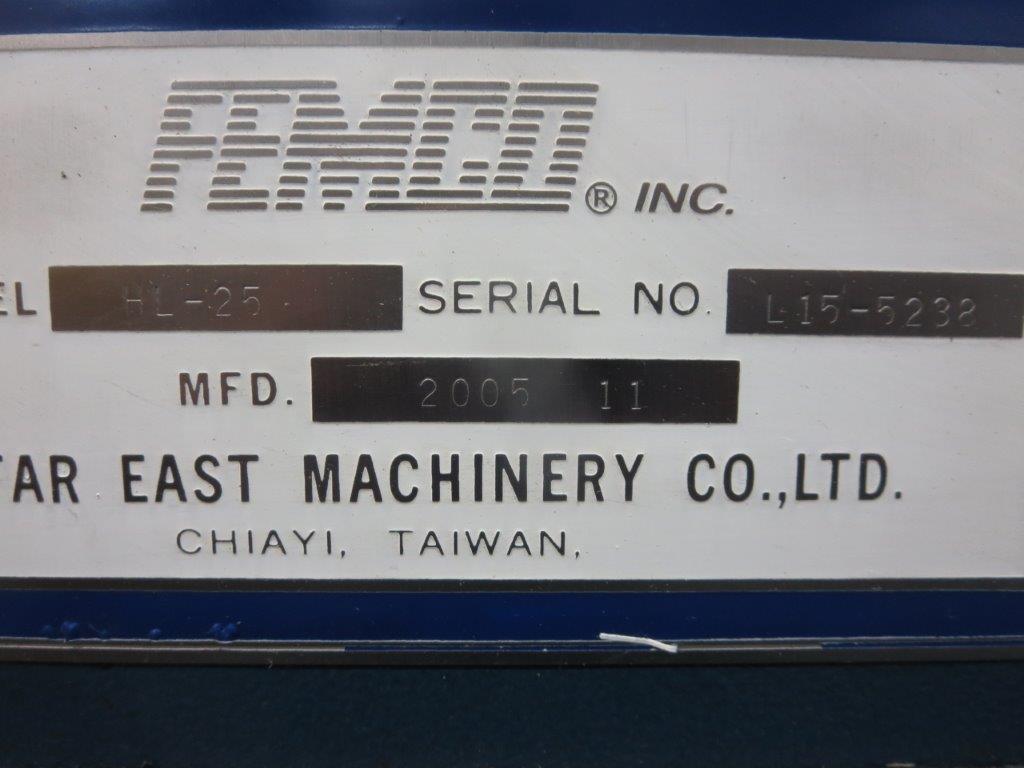

FEMCO HL-25 CNC LATHE w/ 8" CHUCK  S/N: L15-5238  YEAR: 2005

Condition: USED



Click to view larger photo

SPECIFICATIONSDESCRIPTION
SWING OVER BED17.72"
MAXIMUM TURNING DIAMETER9.84"
TURNING LENGTH23.62"
DISTANCE BETWEEN CENTERS25.59"
SPINDLE NOSE TYPEA2-6
SPINDLE BORE DIAMETER2.4"
SPINDLE SPEED - MAX4800 RPM
TOOL TURRET POSITIONS - SERVO12
X-AXIS TRAVEL5"
Z-AXIS TRAVEL24.8"
X-AXIS RAPID TRAVERSE RATE787.4 IPM
Z-AXIS RAPID TRAVERSE RATE945 IPM
TAILSTOCK QUILL DIAMETER2.76"
TAILSTOCK QUILL TRAVEL3.94"
TAILSTOCK QUILL TAPERMT #4
MAIN SPINDLE MOTOR15 / 20 HP
MACHINE WEIGHT7,500 LBS.

Equipped With:

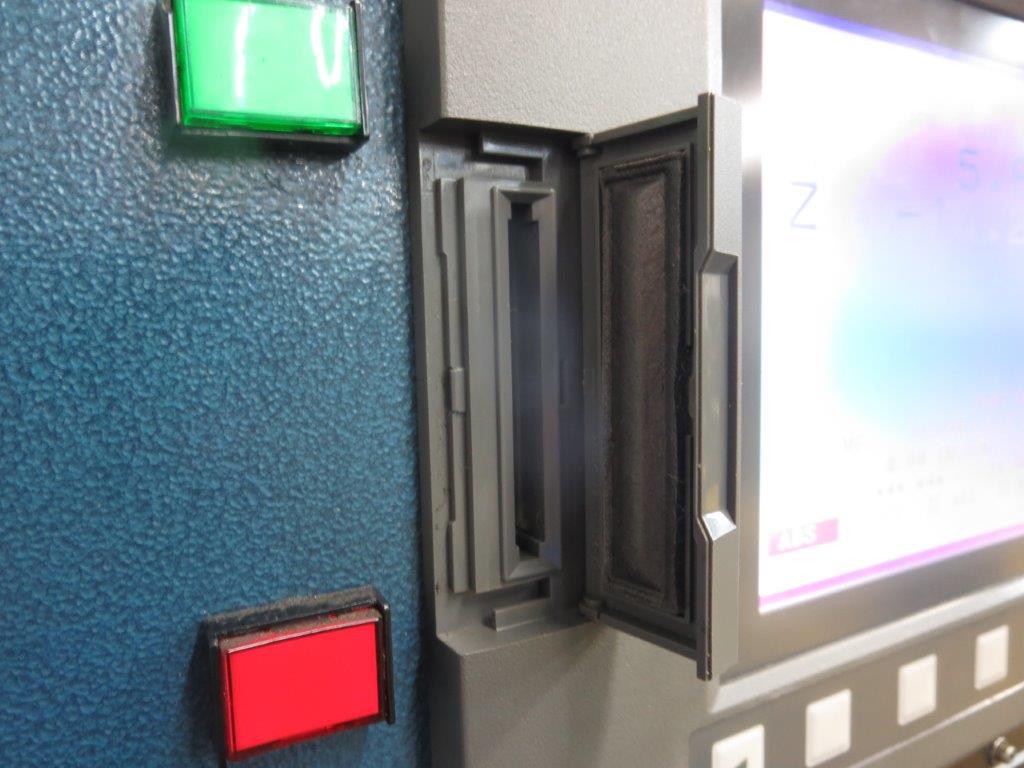

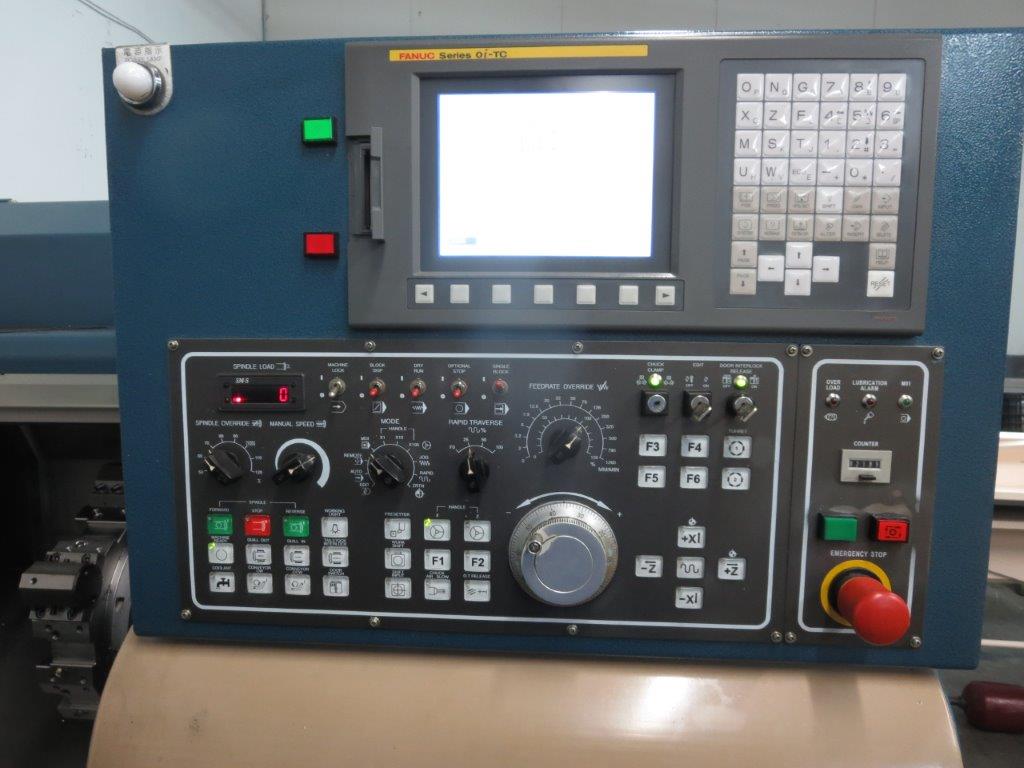

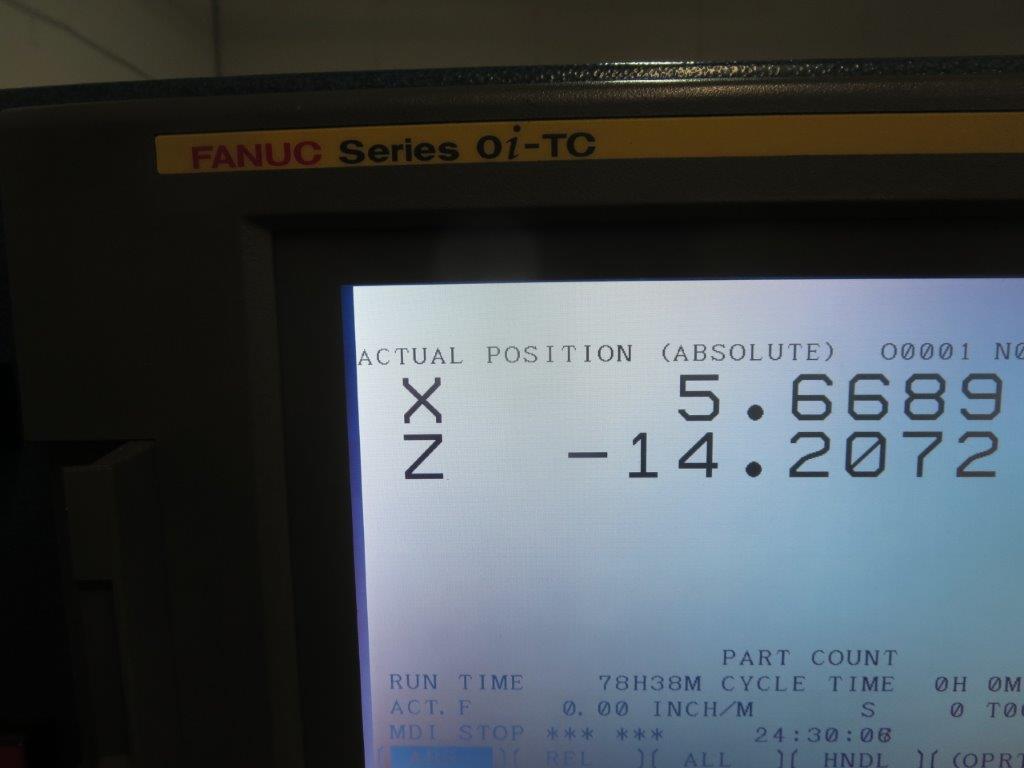

* FANUC Oi-TC CONTROL

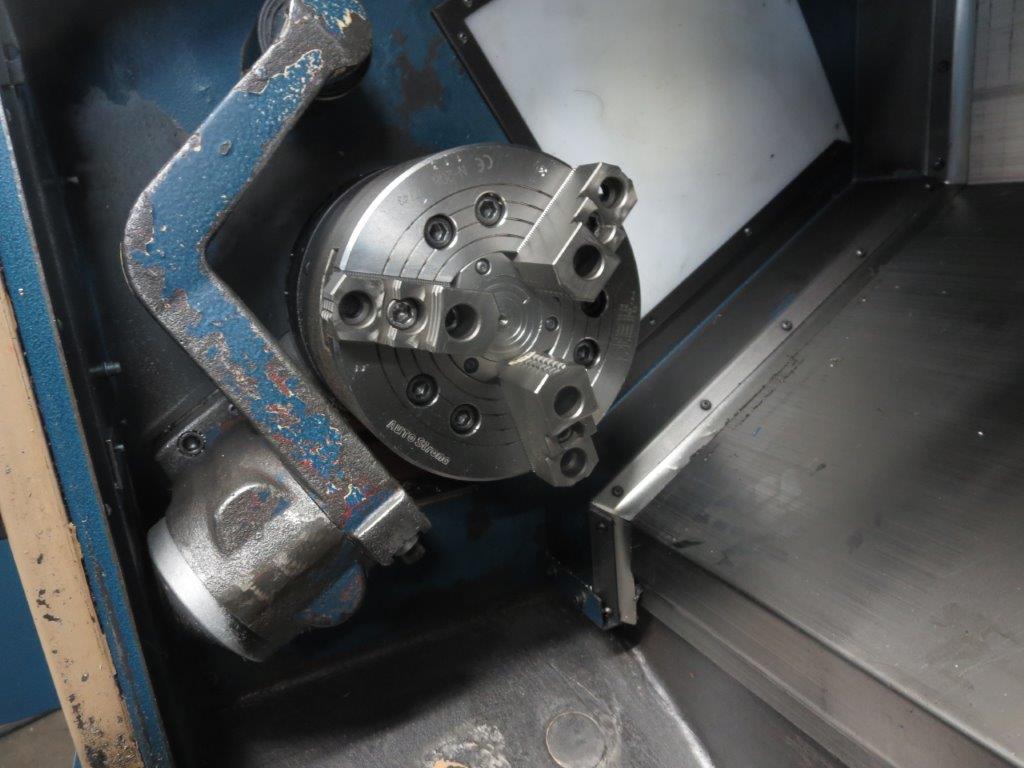

* 8" 3 JAW CHUCK

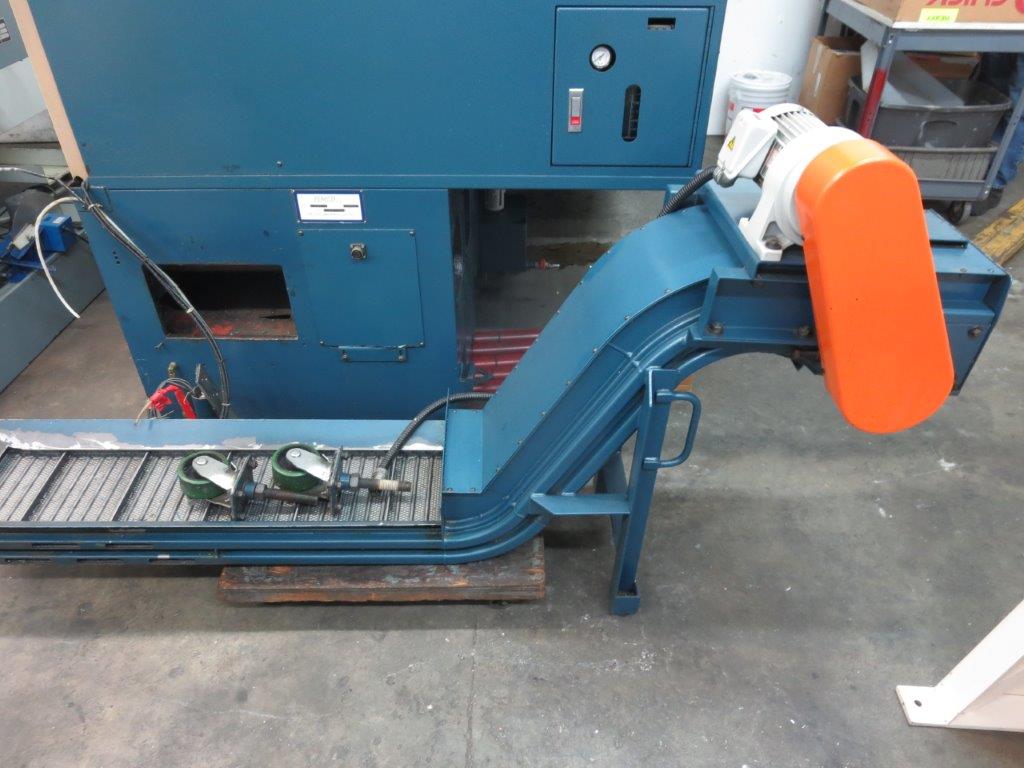

* CHIP CONVEYOR - RIGHT END DISCHARGE

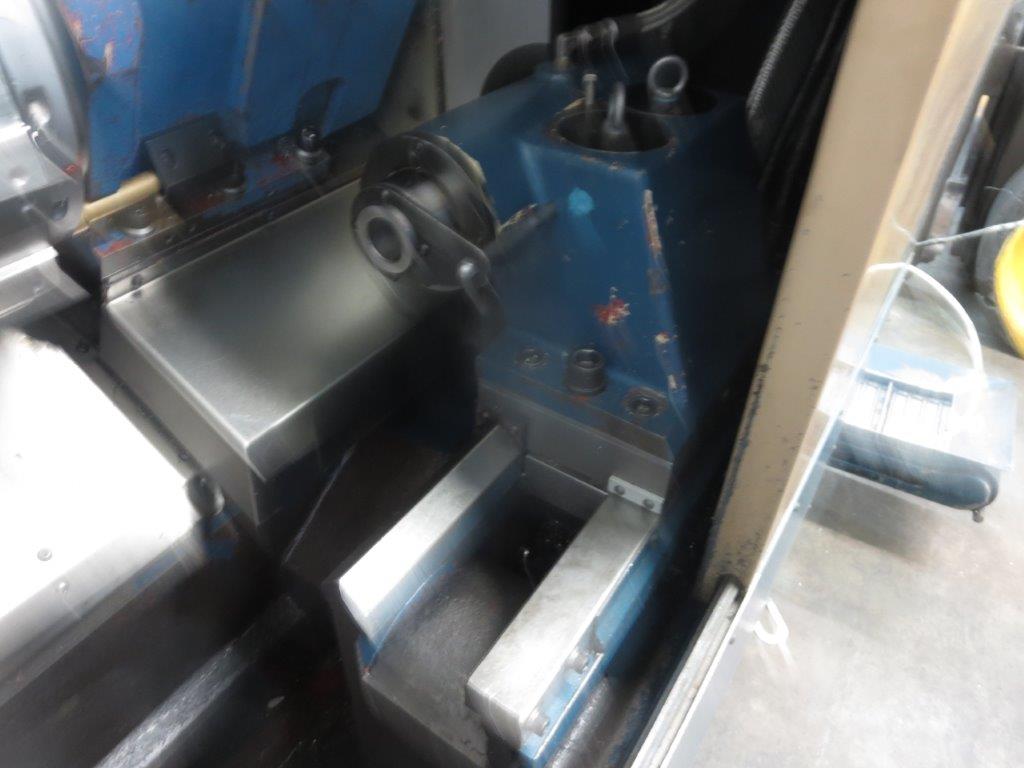

* TAILSTOCK W/ PROGRAMMABLE - QUILL

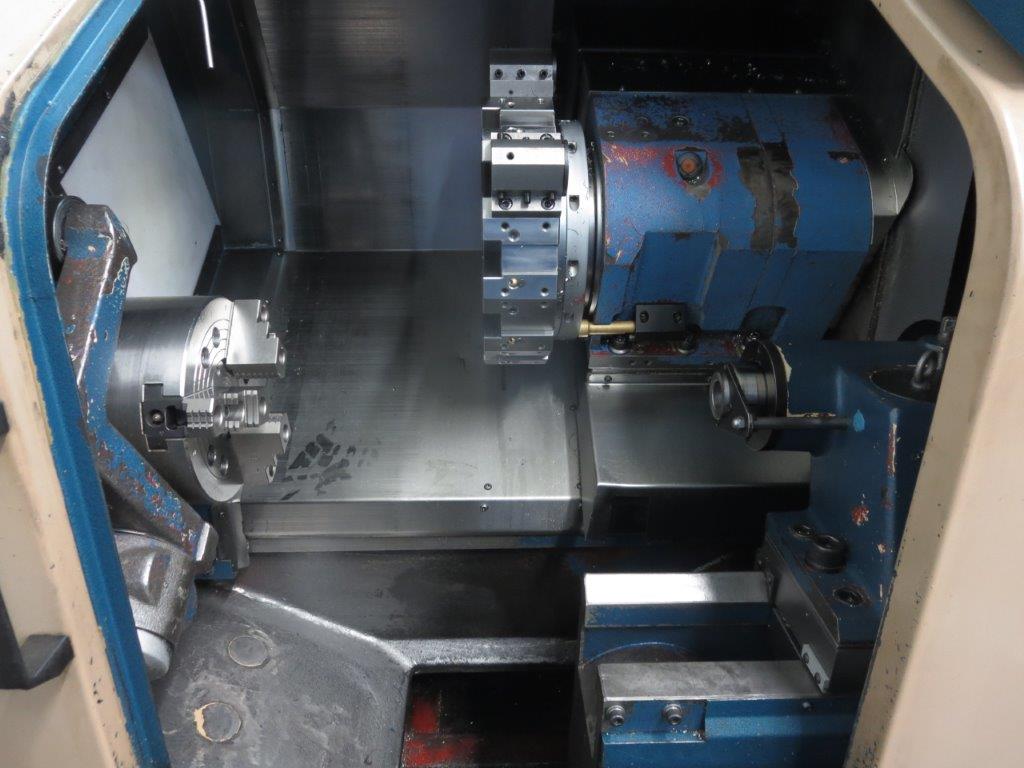

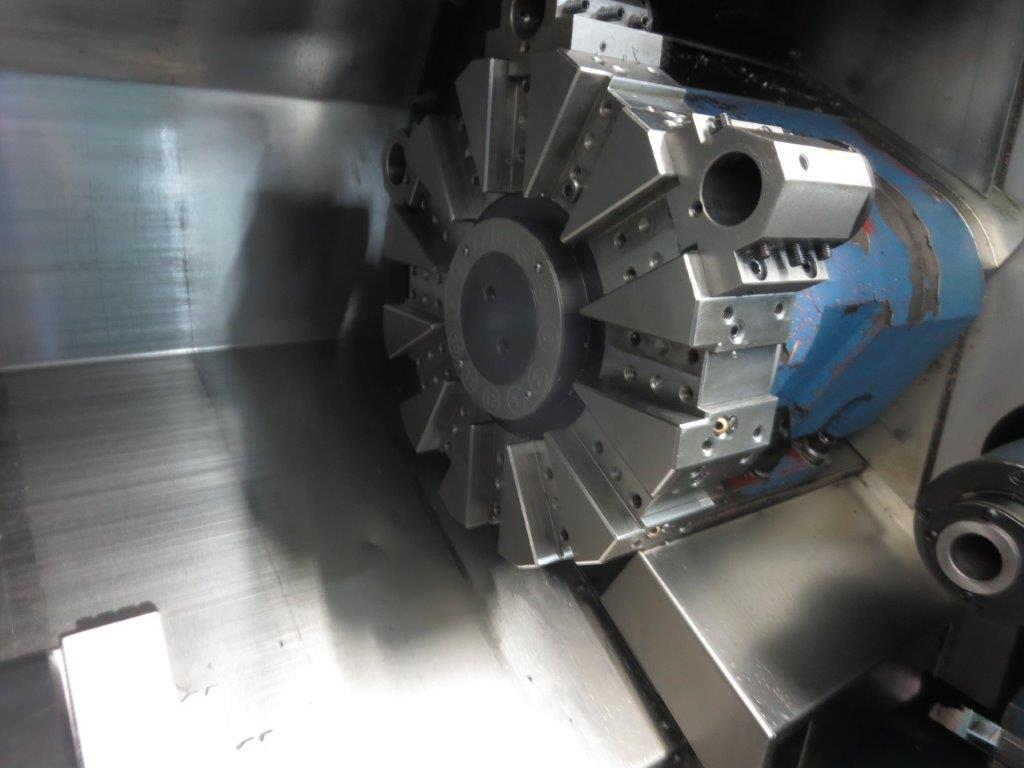

* 12 STATION QUICK INDEX SERVO TOOL TURRET

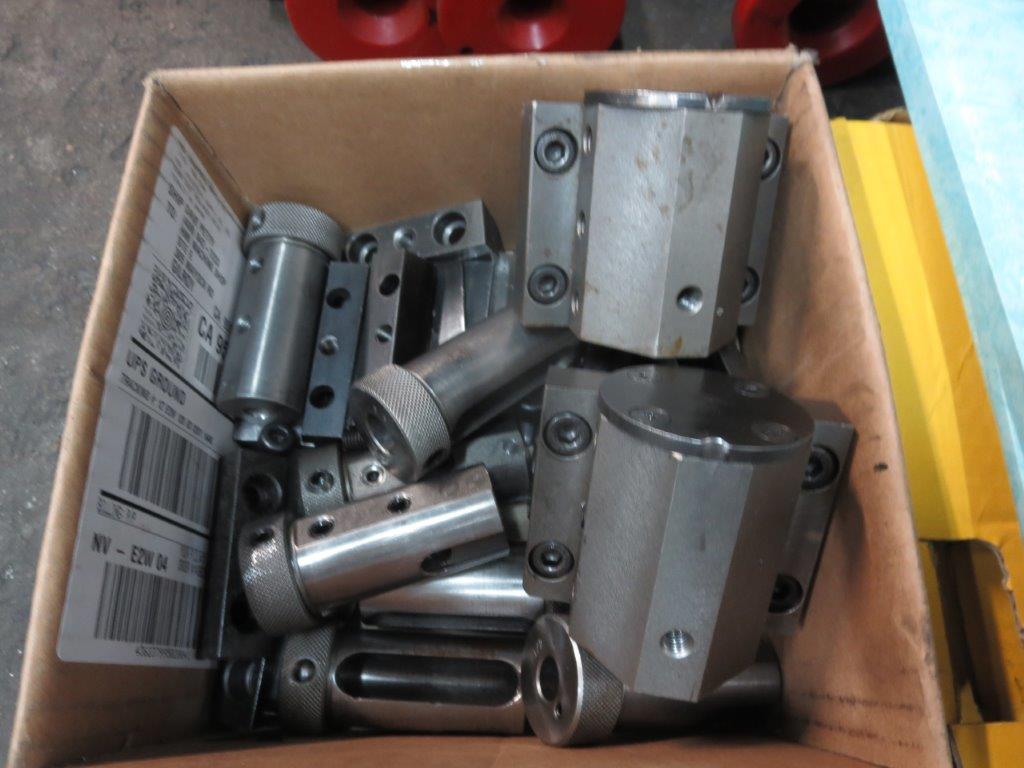

* TURRET TOOL BLOCKS & BUSHINGS

* F.O.B: FREMONT, CA (PREP & LOADING INCLUDED)
*TERMS: DUE IN FULL PRIOR TO SHIPMENT
*WARRANTY: SOLD AS-IS, PER BUYER INSPECTION UNDER POWER
*NOTE: TOOL SETTER & PARTS CATCHER ARE NOT FUNCTIONAL ON THIS MACHINE WHICH IS WHY they are not listed in the "equipped with" section. Machine is priced accordingly.
