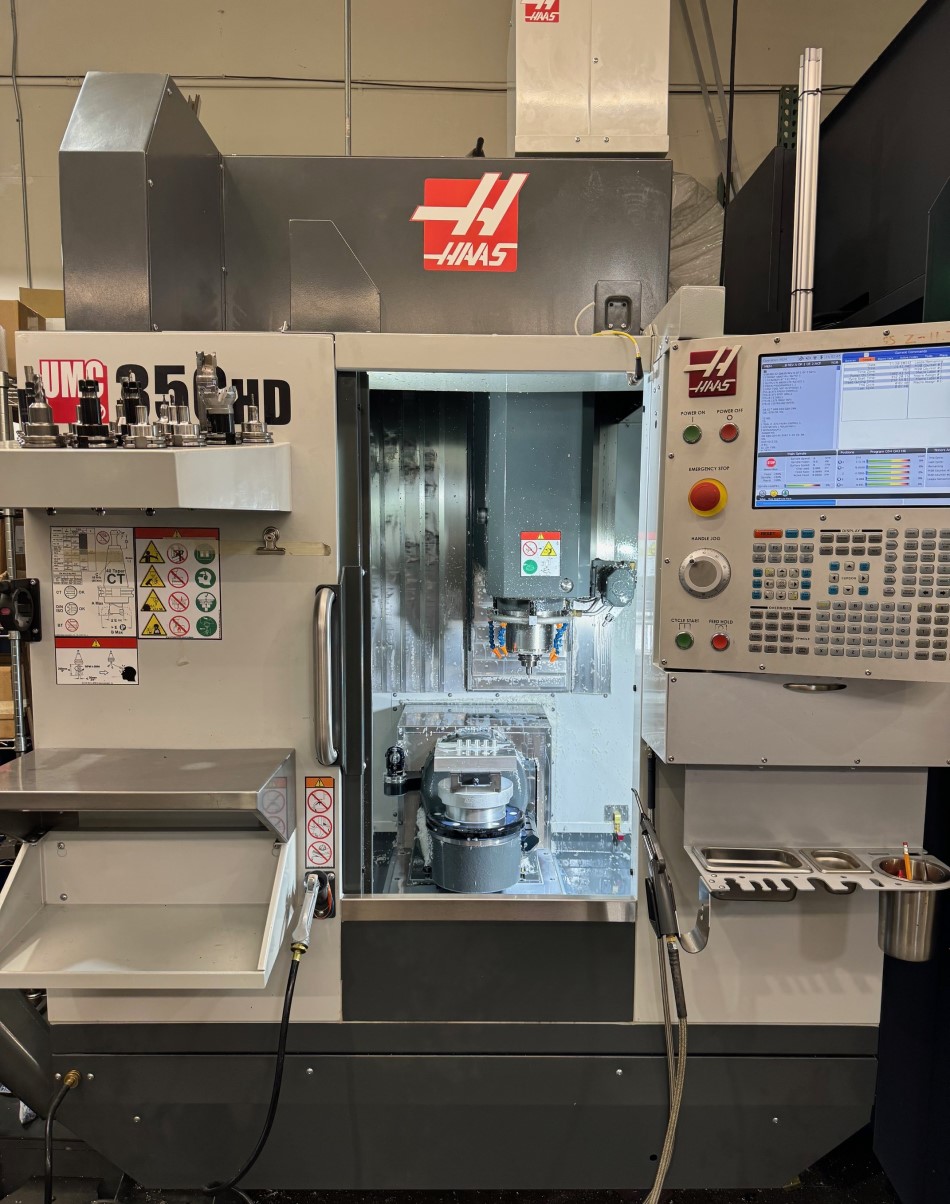

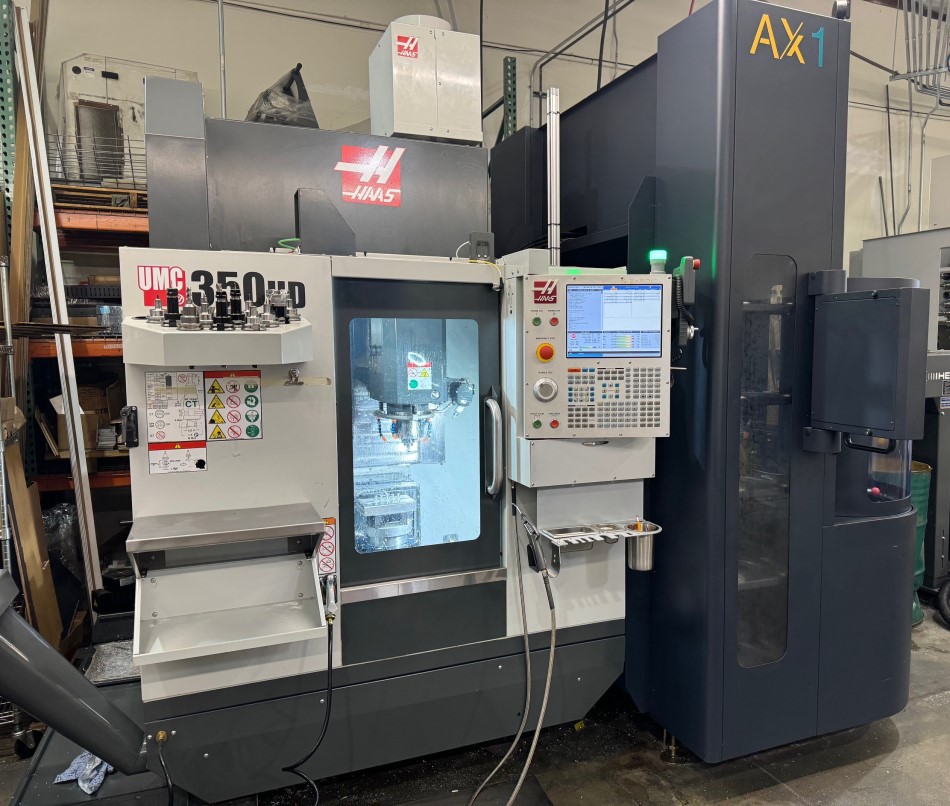

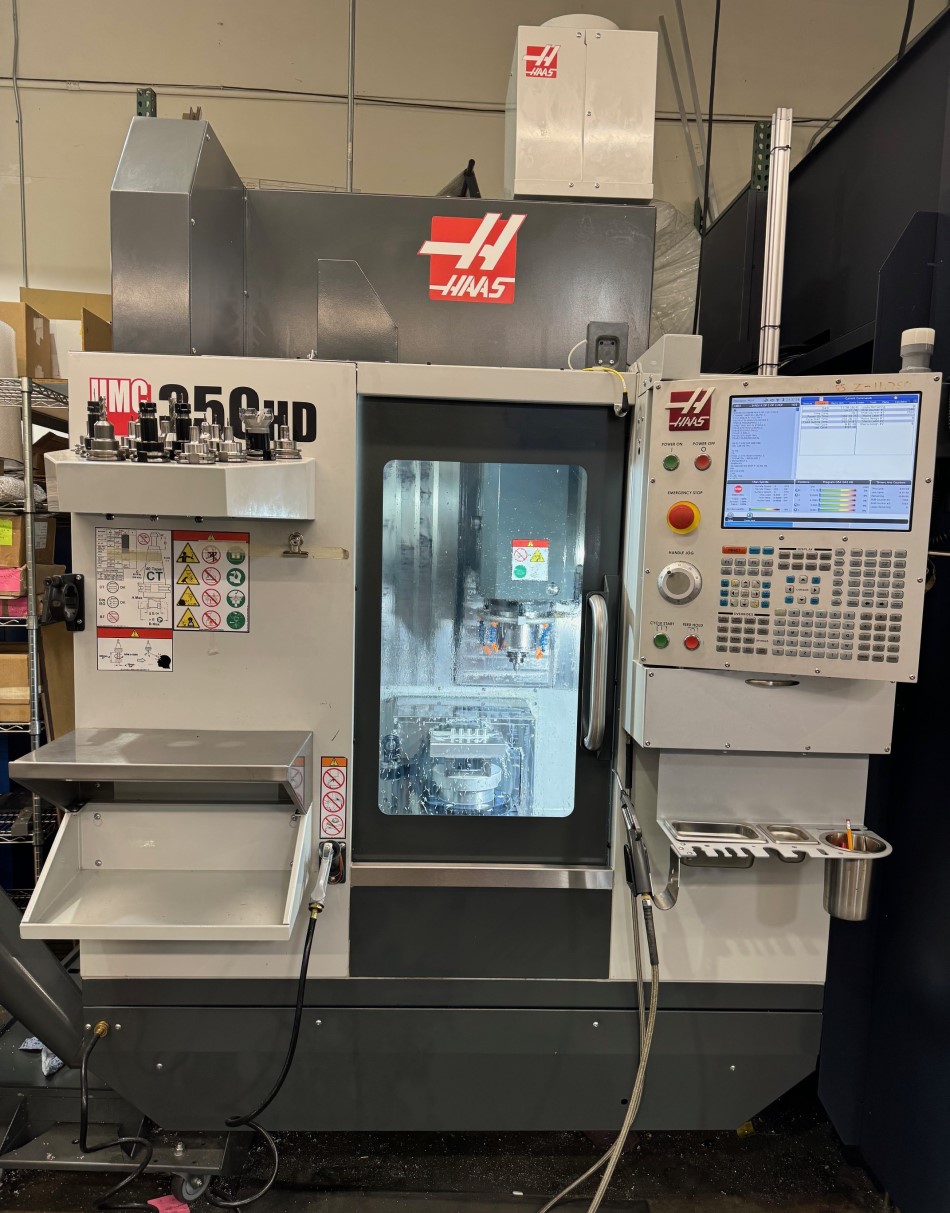

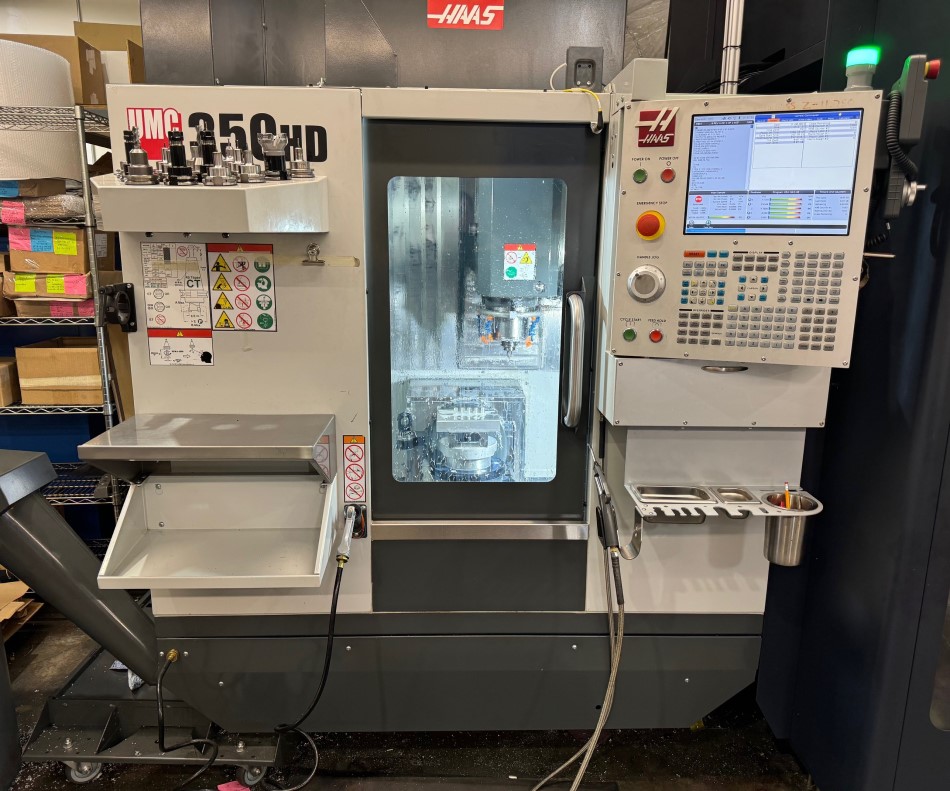

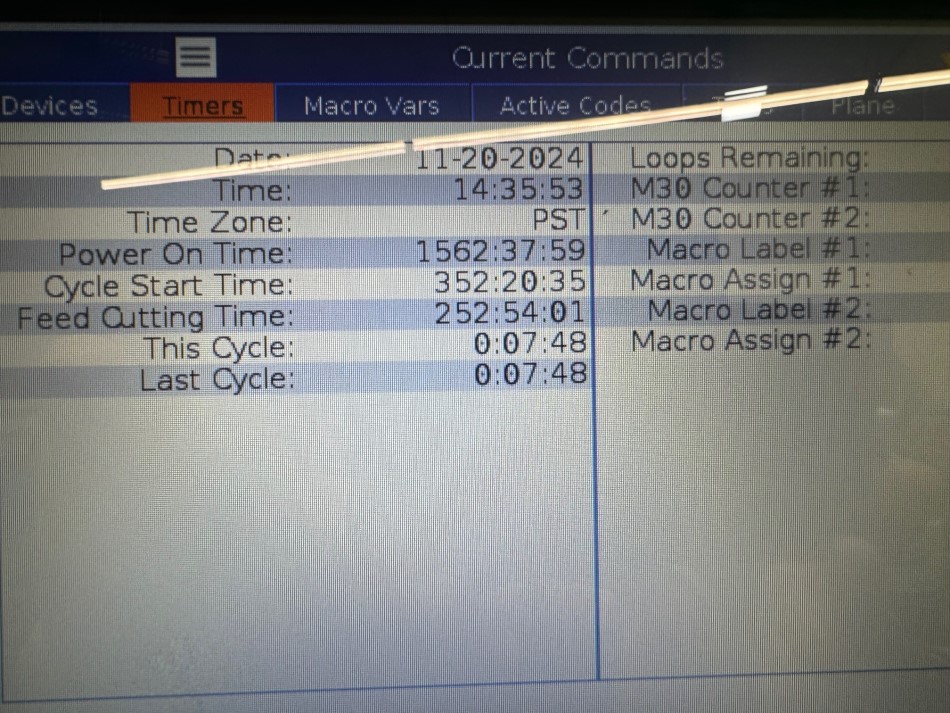

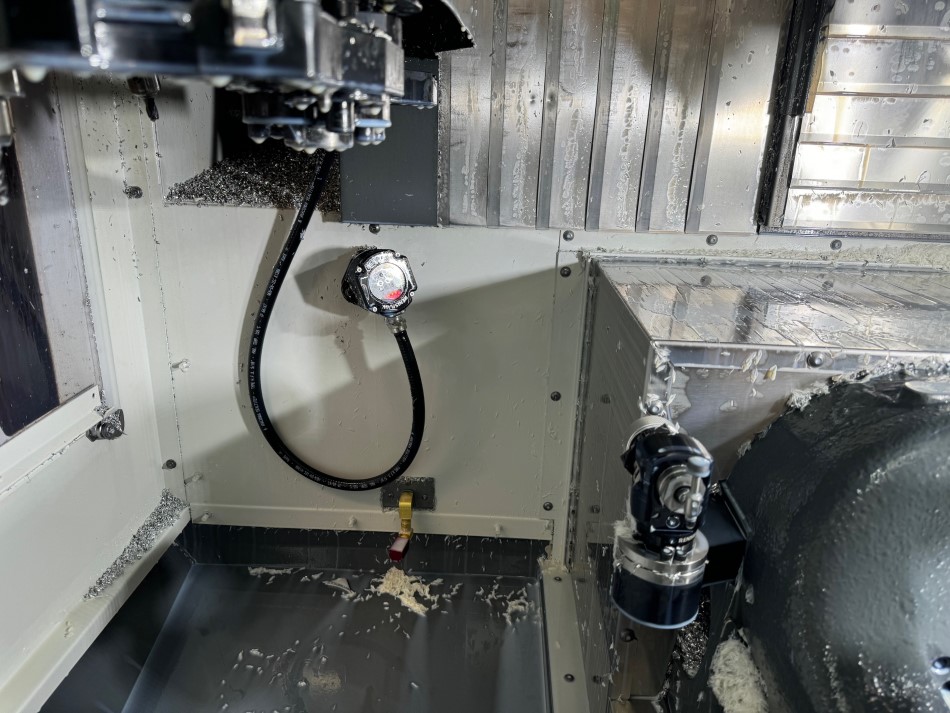

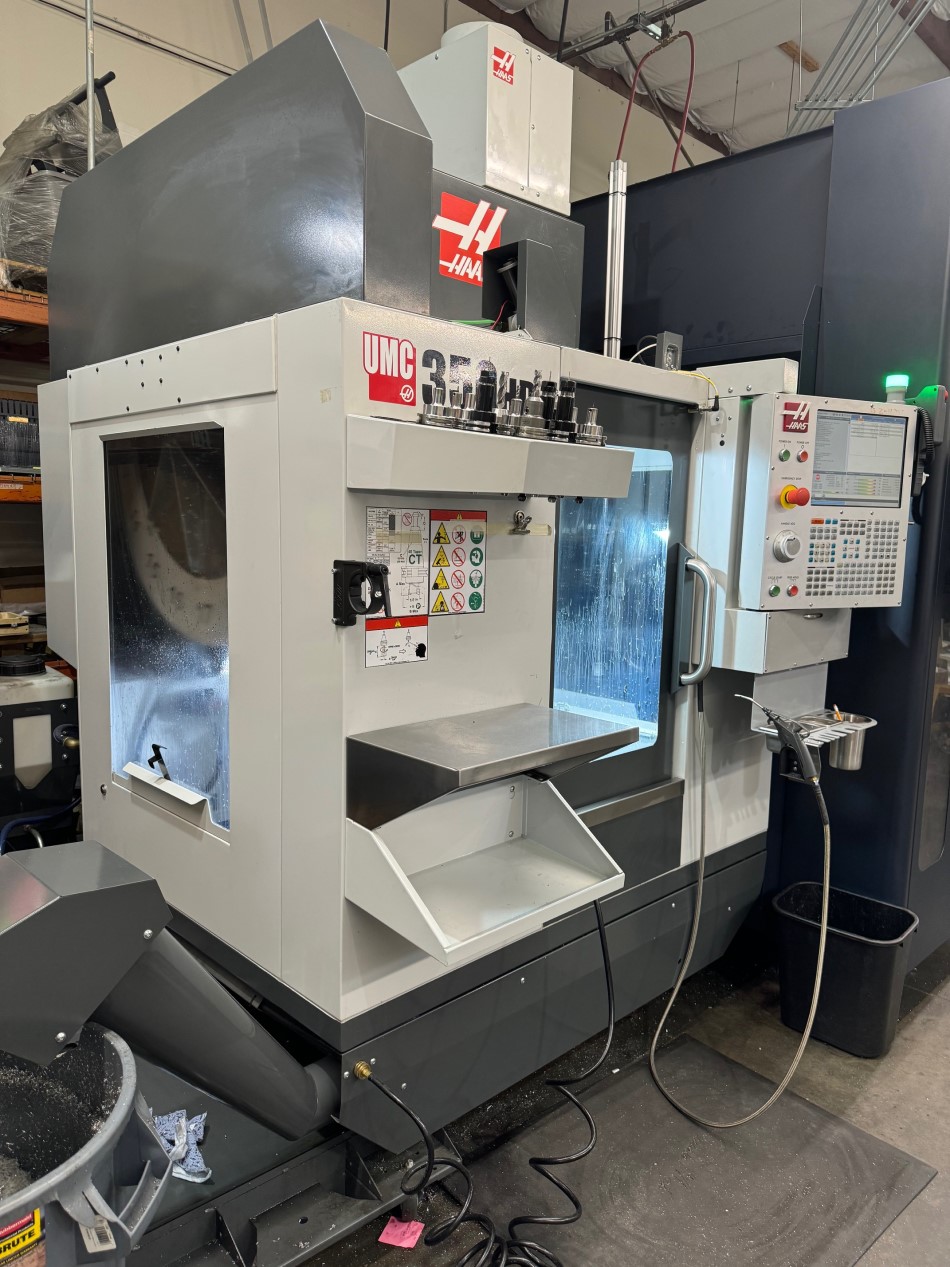

Click to view larger photo
| SPECIFICATIONS: | |
|---|---|
| TRAVELS X, Y, Z | 15" x 14" x 12" |

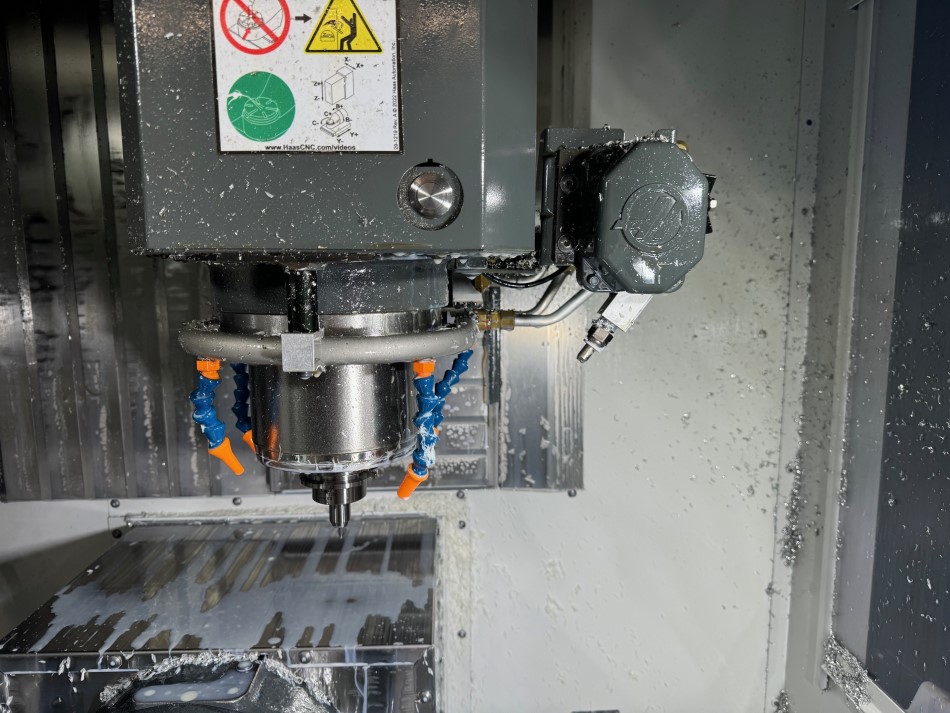

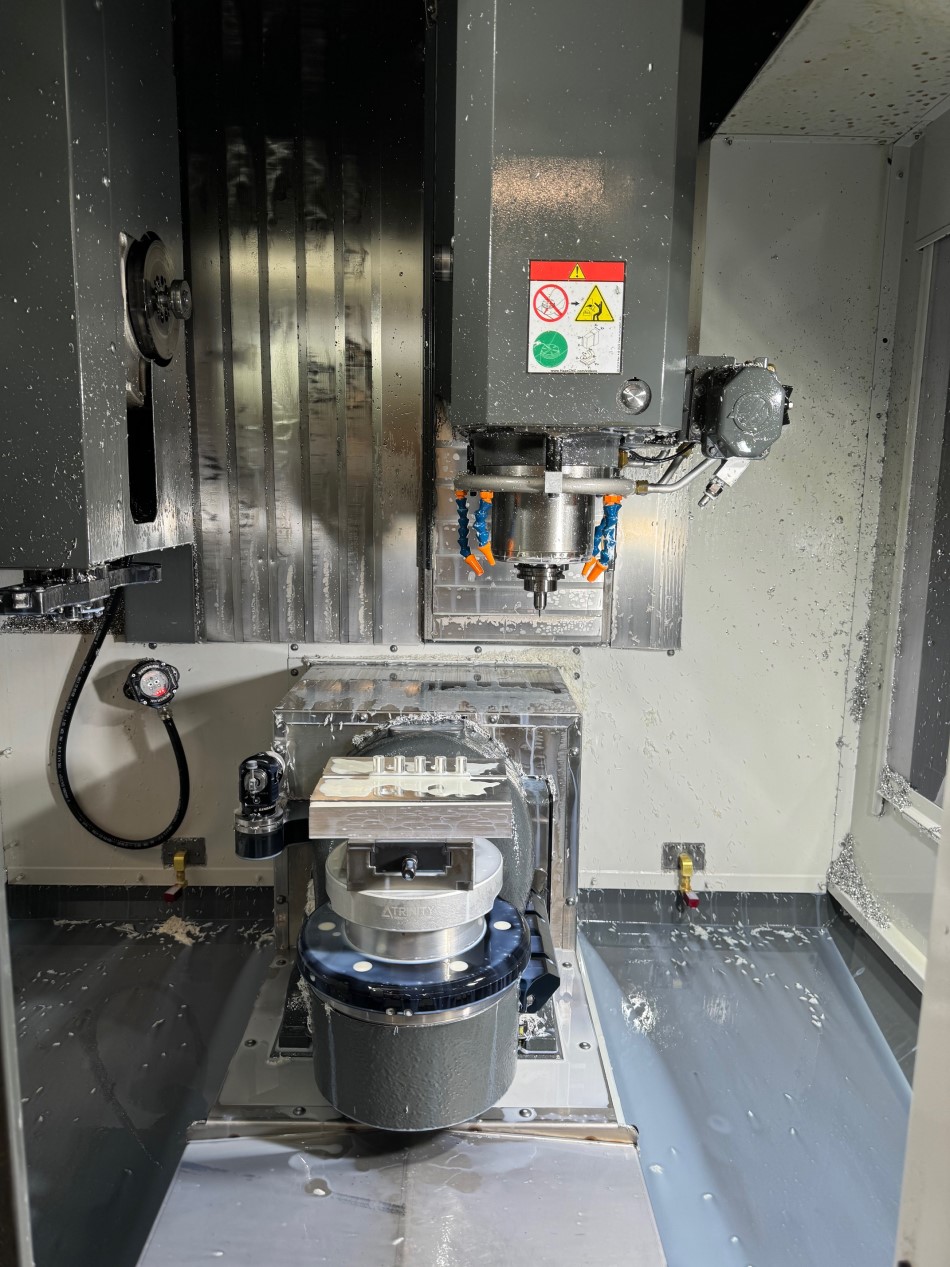

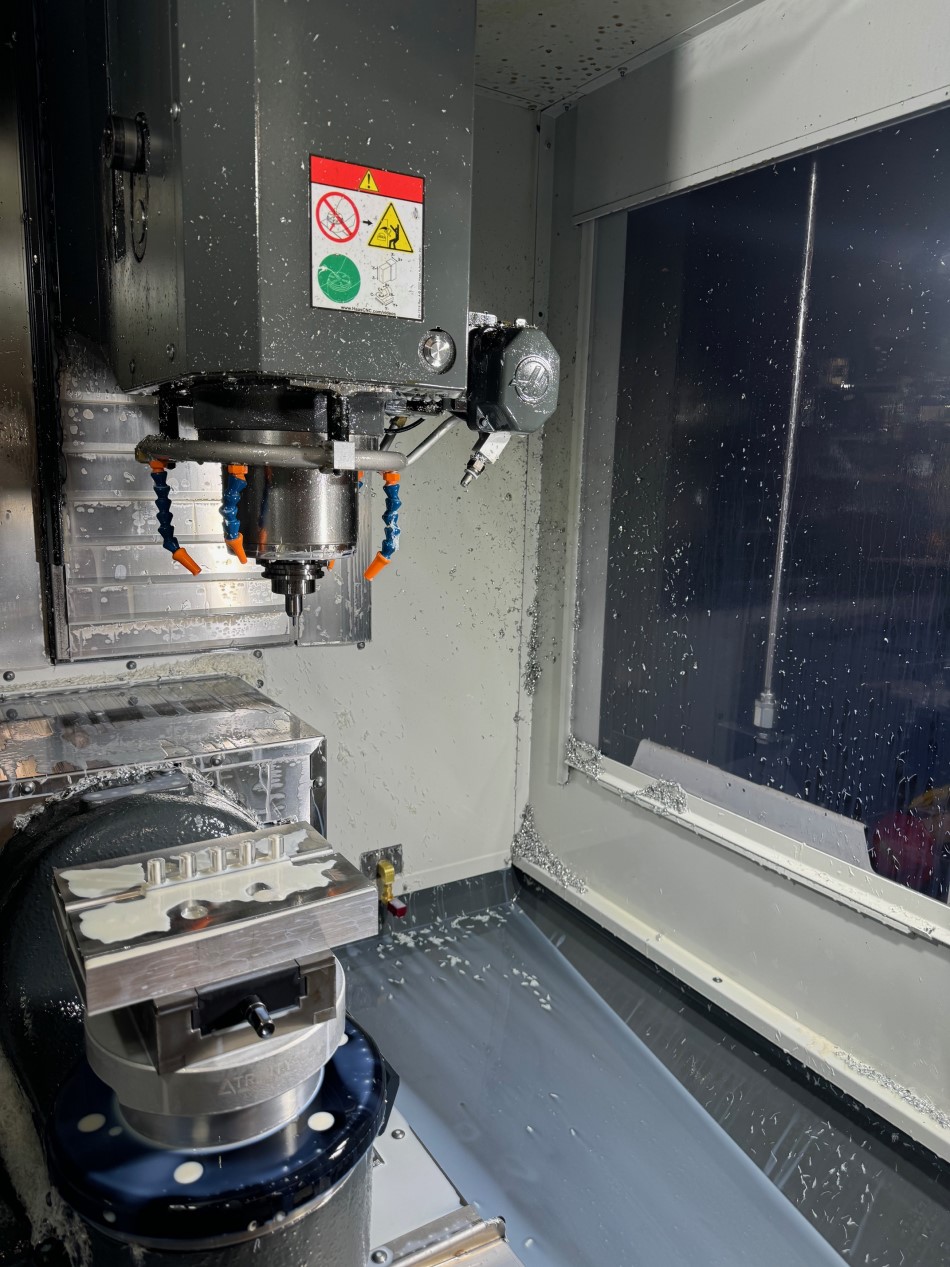

| SPINDLE SPEED | 15,000 RPM / INLINE DIRECT DRIVE |
| TAPER | CAT-40 |
| SPINDLE | 15HP |
| SPINDLE NOSE TO PLATTER | 4" - 16" |

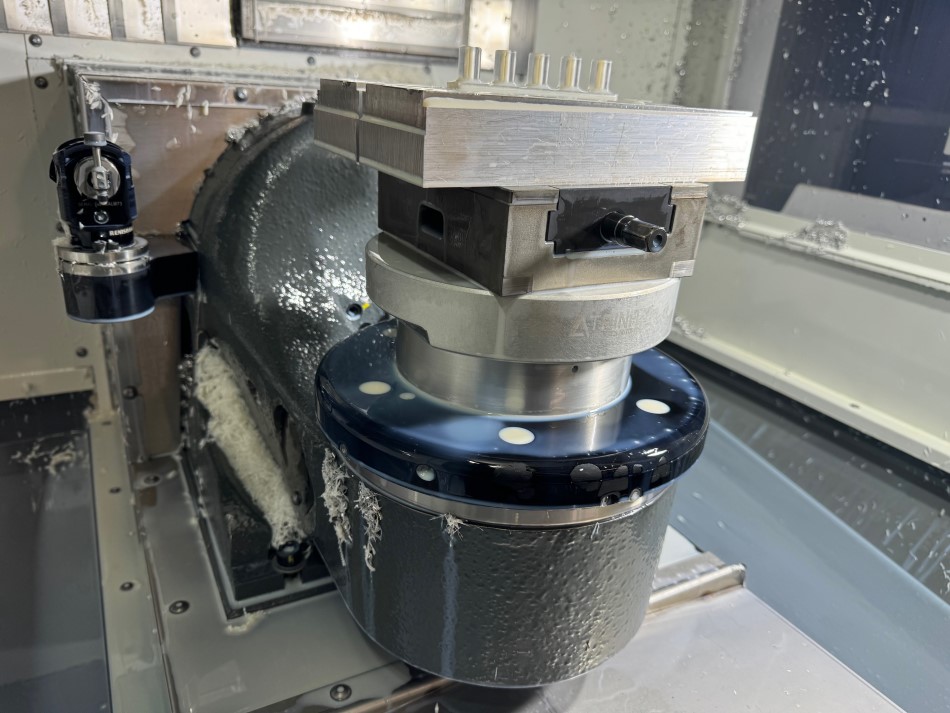

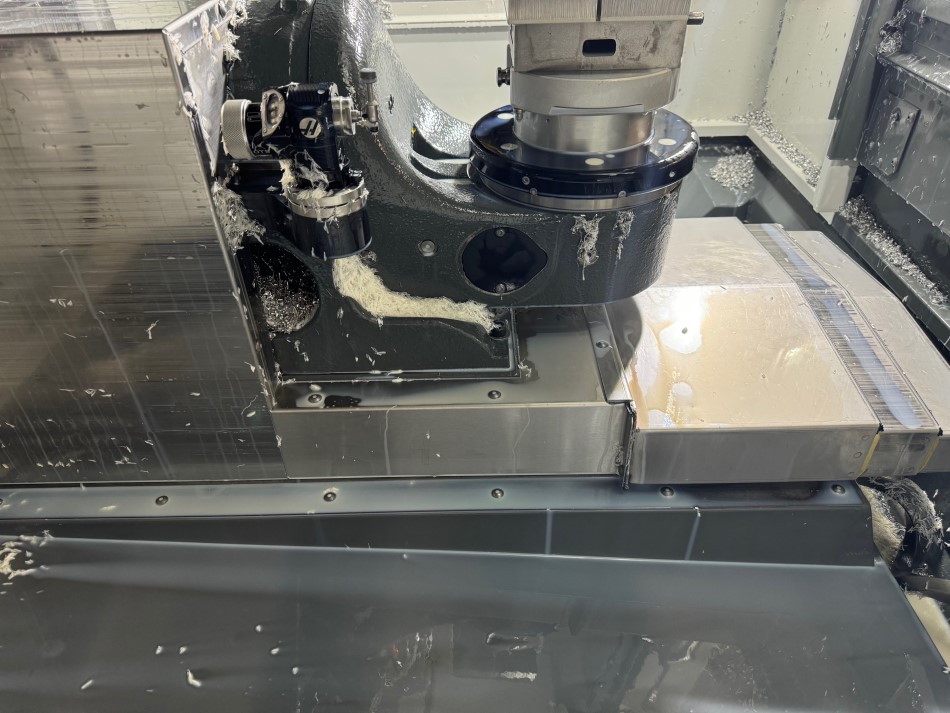

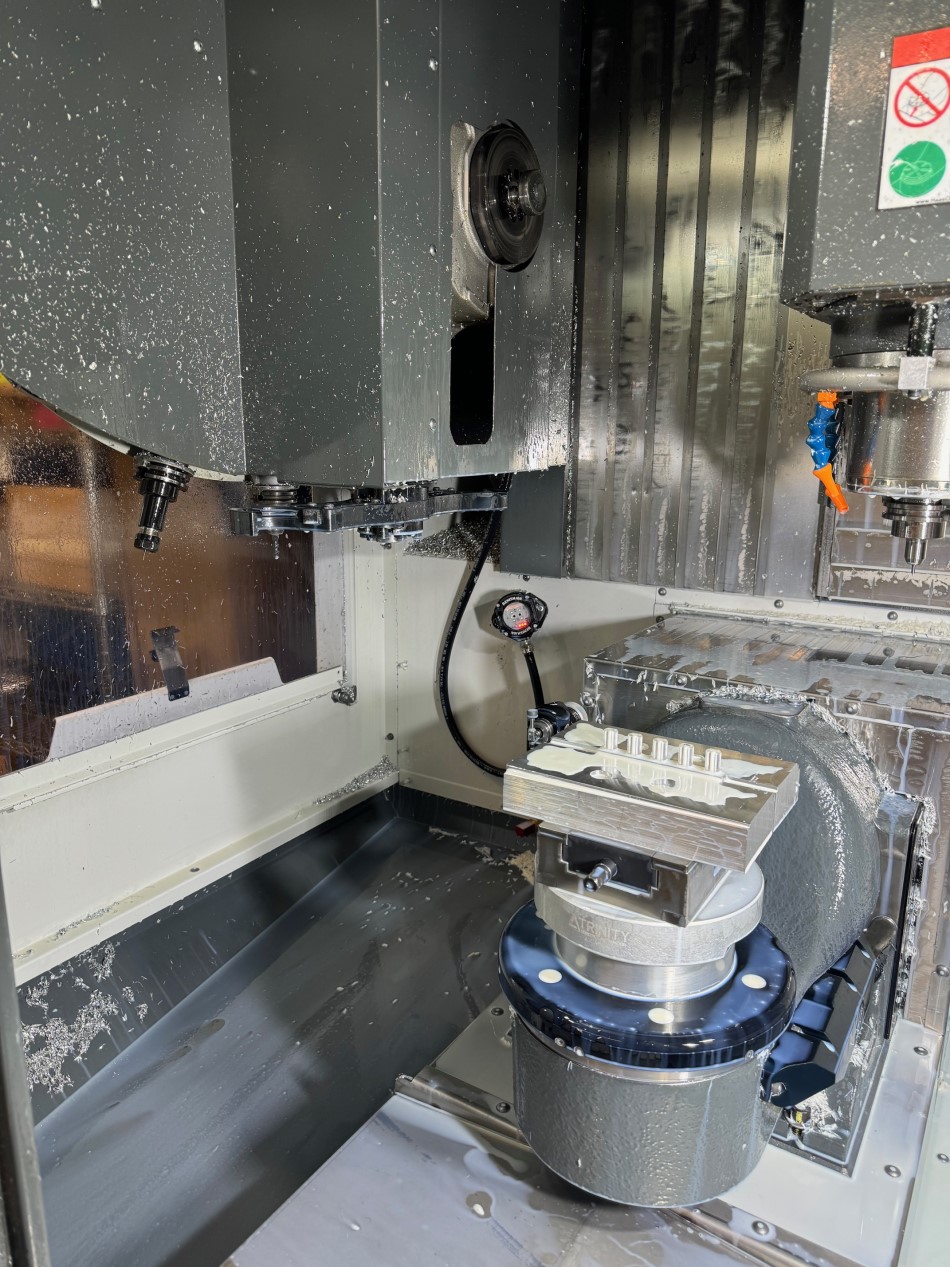

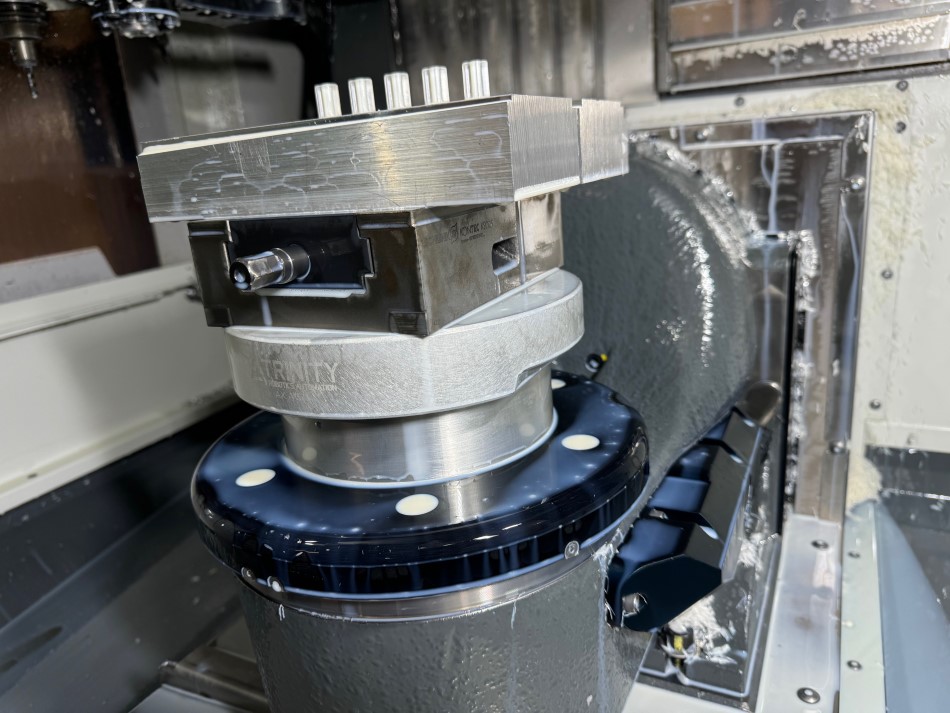

| B AXIS TILT - TRAVEL | 120 TO -45 DEGREES |
| B AXIS TILT - MAX SPEED | 80 DEGREES/SEC |
| B AXIS TILT - MAX TORQUE | 300 FT-LBF / BRAKE TORQUE: 425 FT LBF |
| C AXIS ROTATION - TRAVEL | 360 DEGREES |
| C AXIS ROTATION - MAX SPEED | 100 DEGREE / SEC |
| C AXIS ROTATION - MAX TORQUE | 210 FT LBF / BRAKE TORQUE: 200 FT LBF |
| C AXIS ROTATION - MAX PART SWING | 14.5" |
| PLATTER: | |
| PLATTER DIAMETER | 9.1" (230mm) |
| MAX WEIGHT ON PLATTER | 100 LBS |

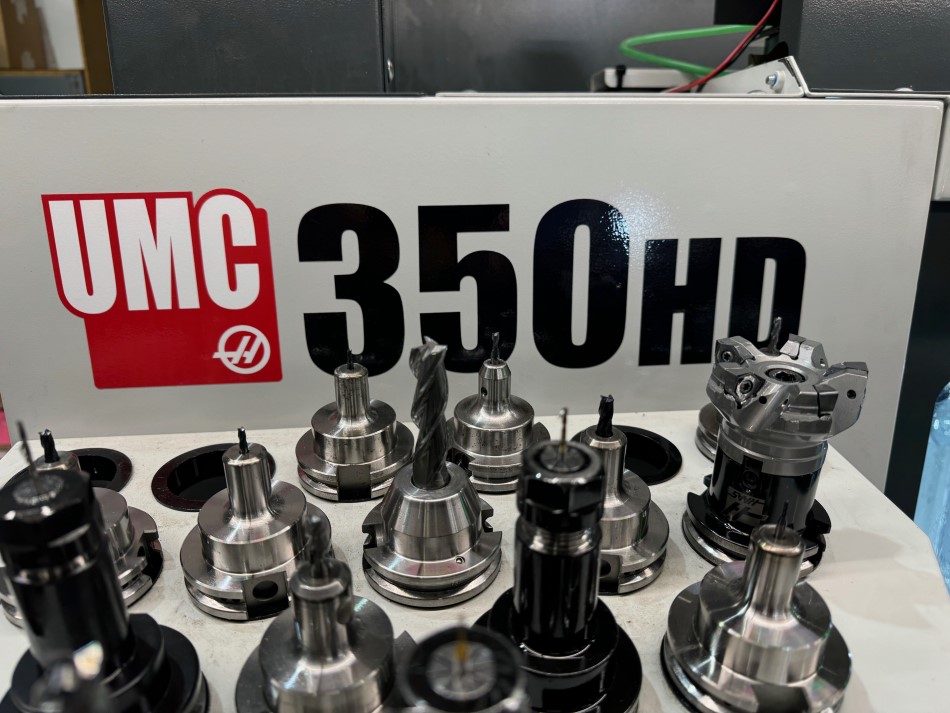

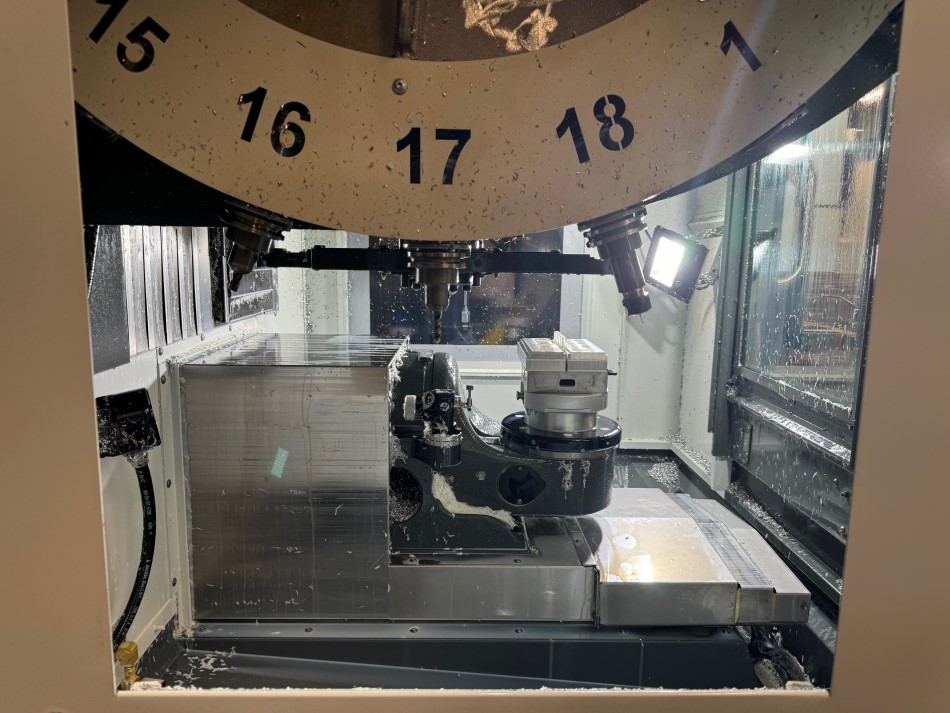

| TOOL CHANGER CAPACITY | 18+1 |
| MAX TOOL DIAMETER | 2.5" / MAX TOOL LENGTH 7" |
| TOOL TO TOOL TIME | CHIP TO CHIP TIME 1.6 SEC (AVG) |
| RAPIDS ON X, Y, Z | 2400 IPM |
| MAX CUTTING | 1200 IPM |
| COOLANT TANK | 55 GALLON |
| WEIGHT | 6420 LBS |
| POWER | 220V / 3 PHASE / 40 AMP FULL LOAD |

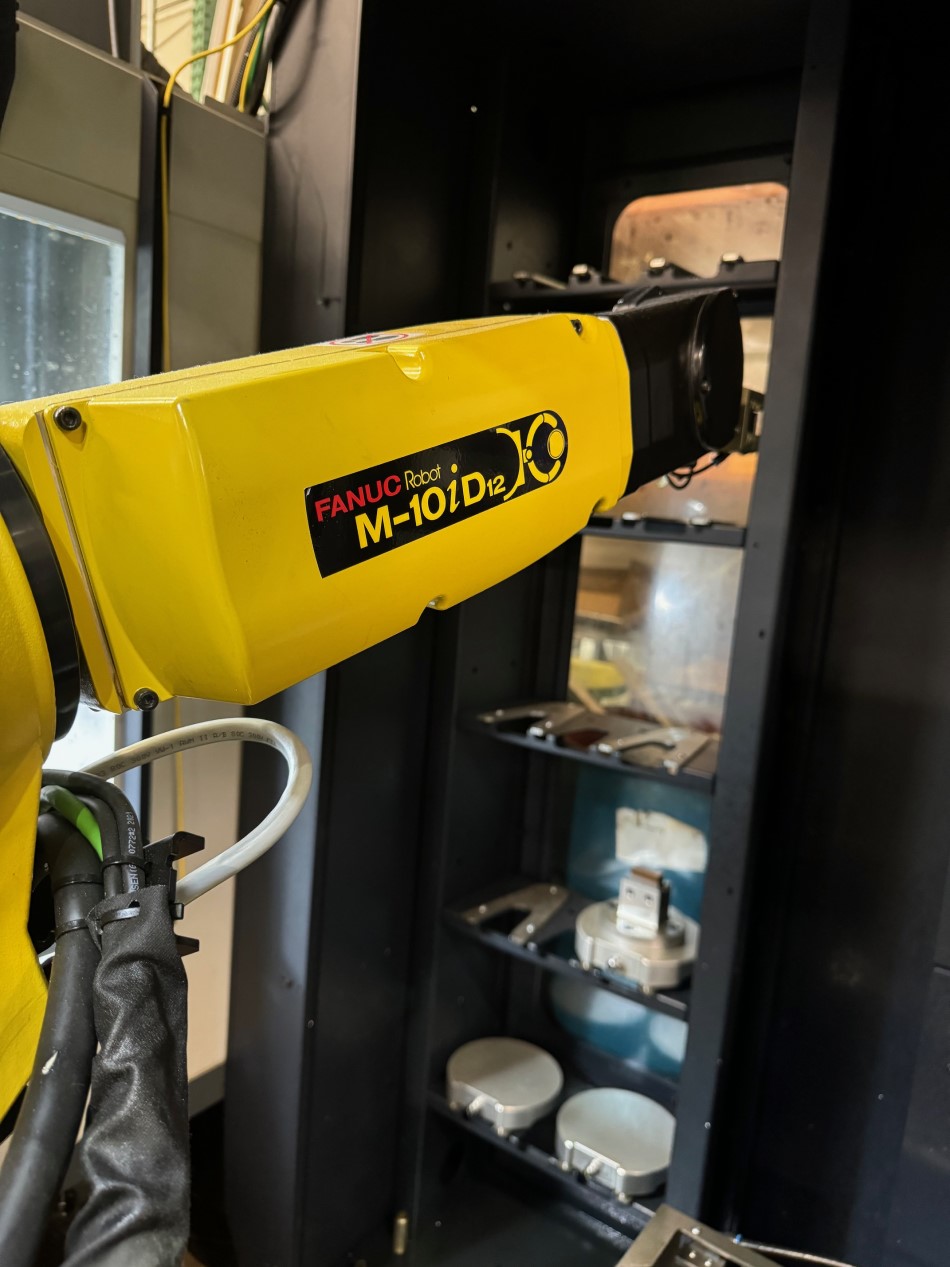

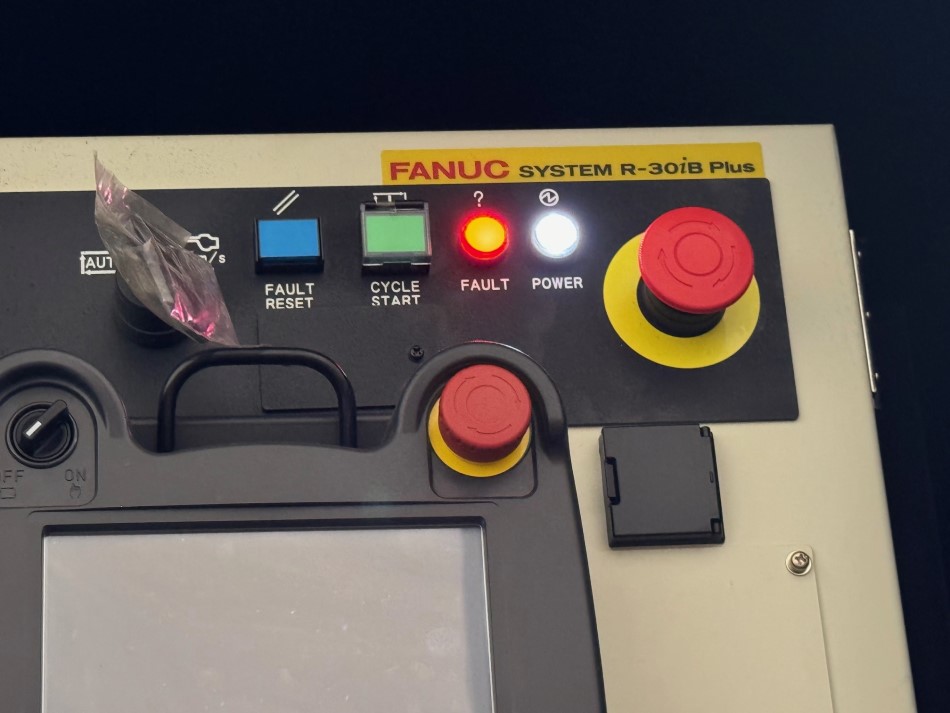

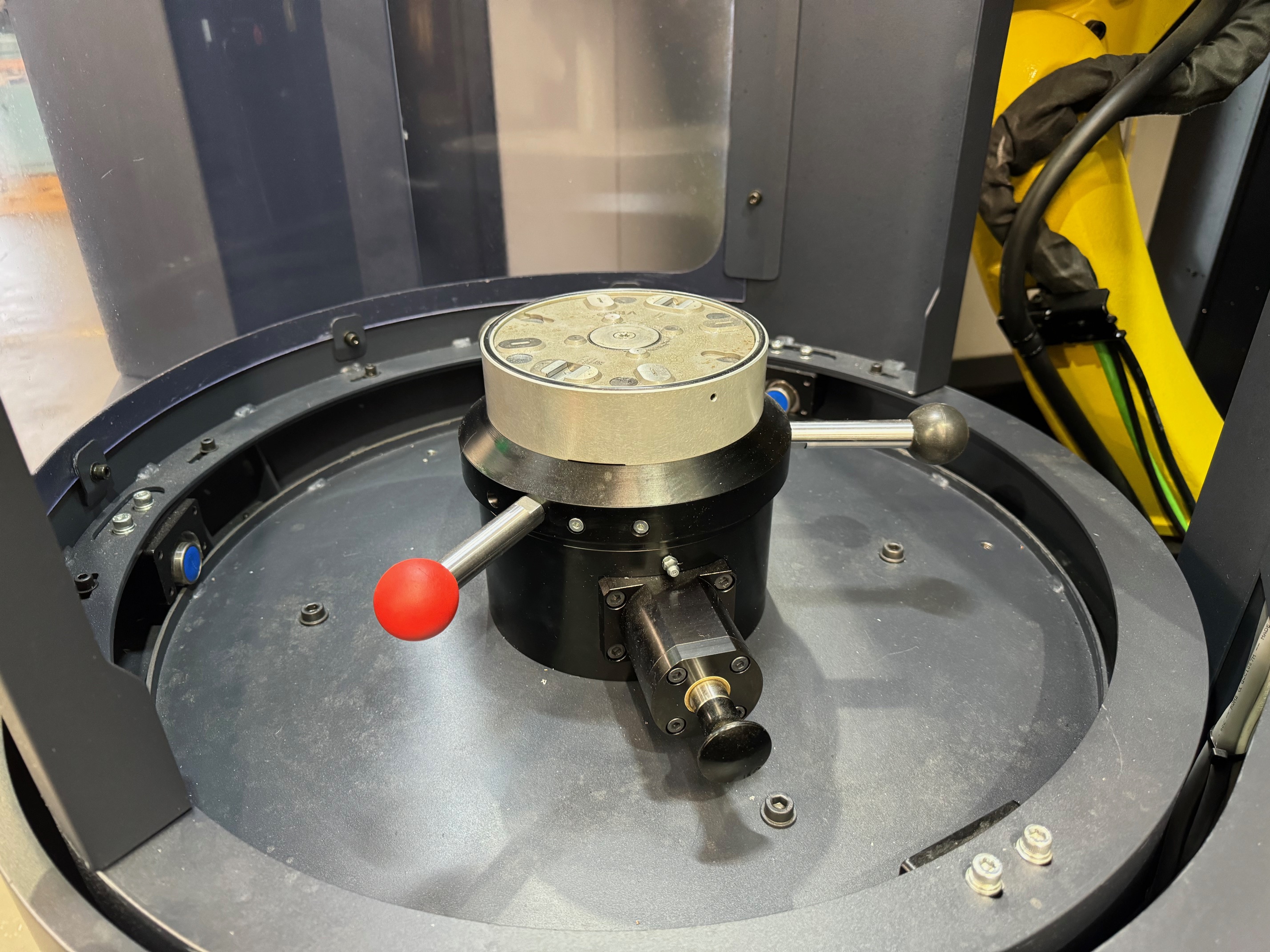

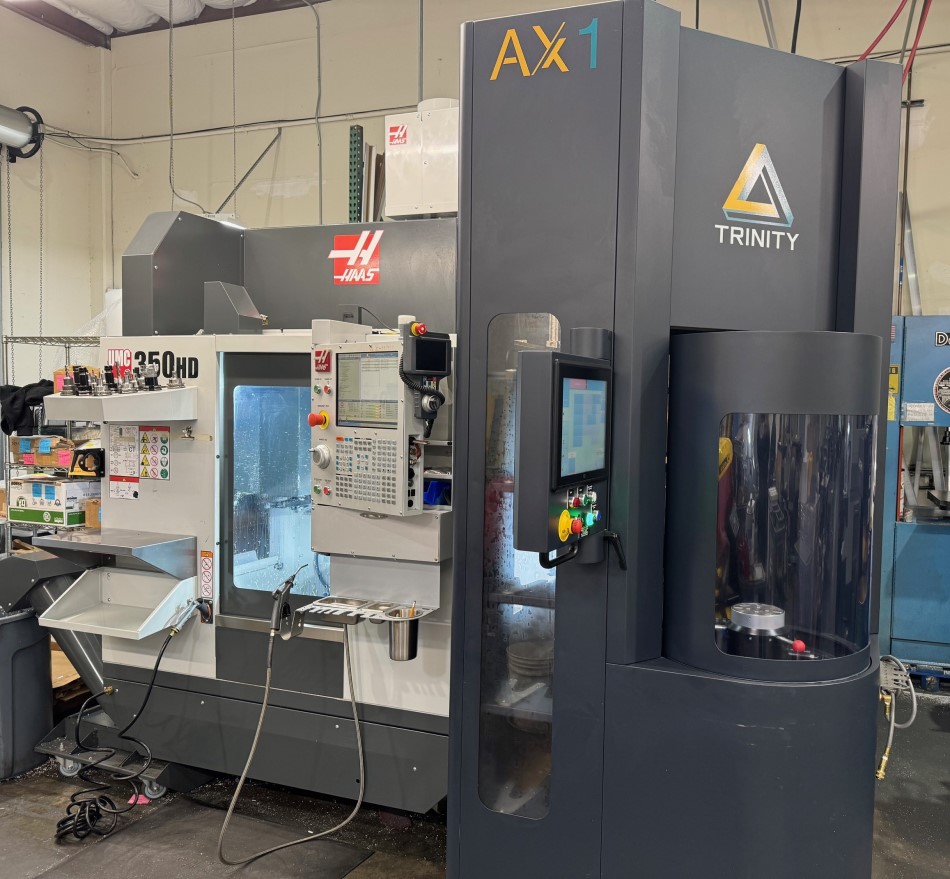

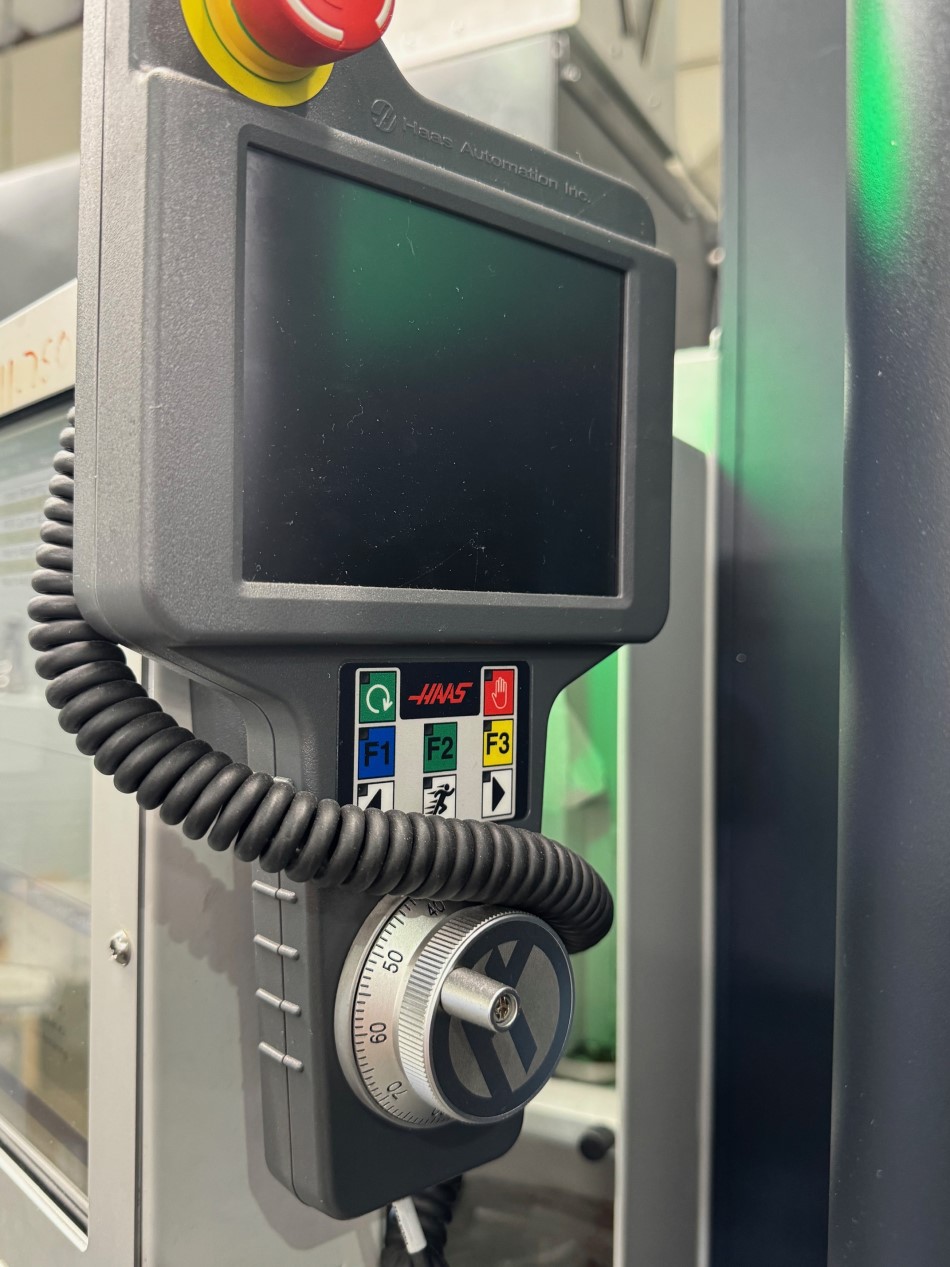

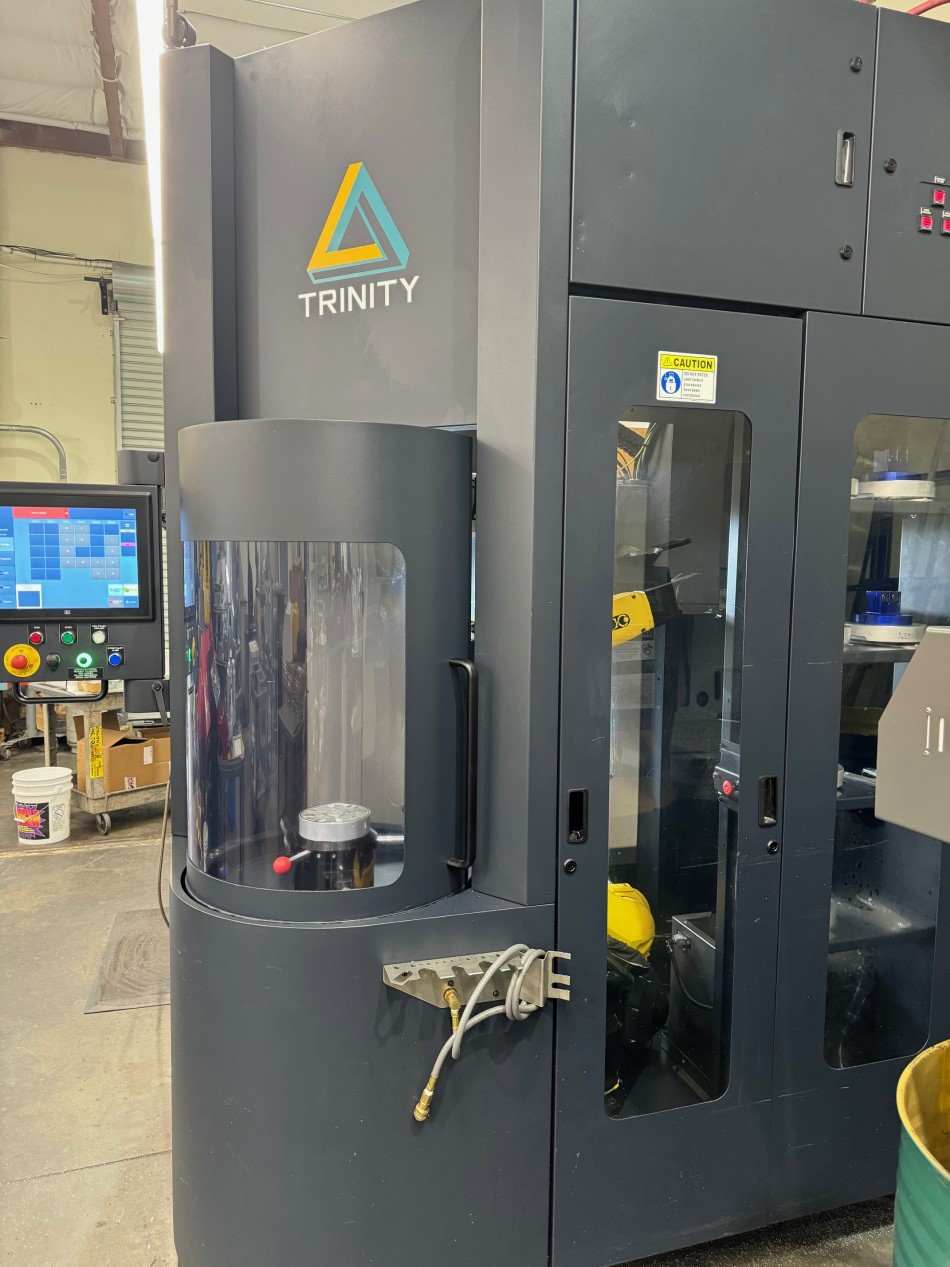

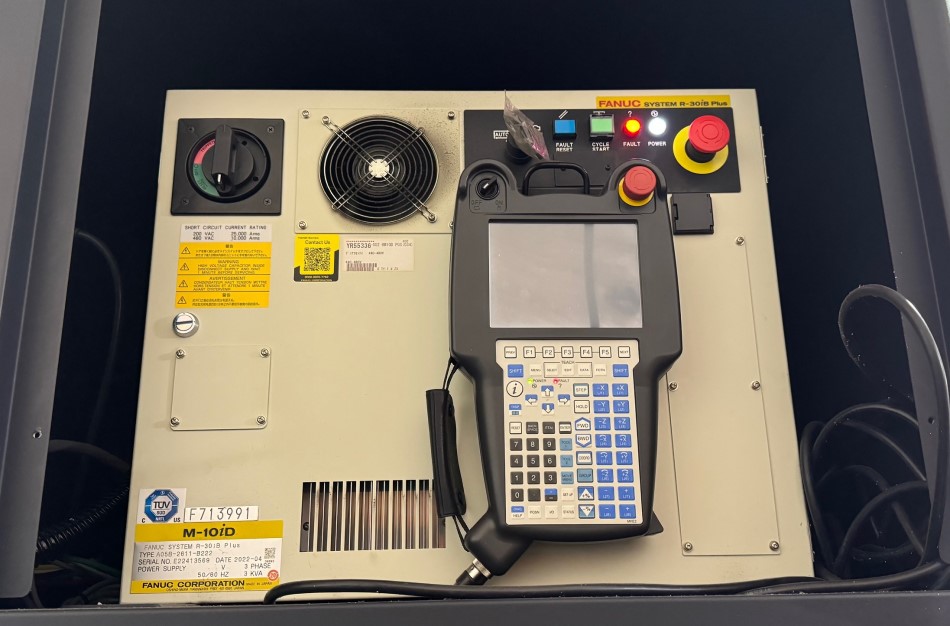

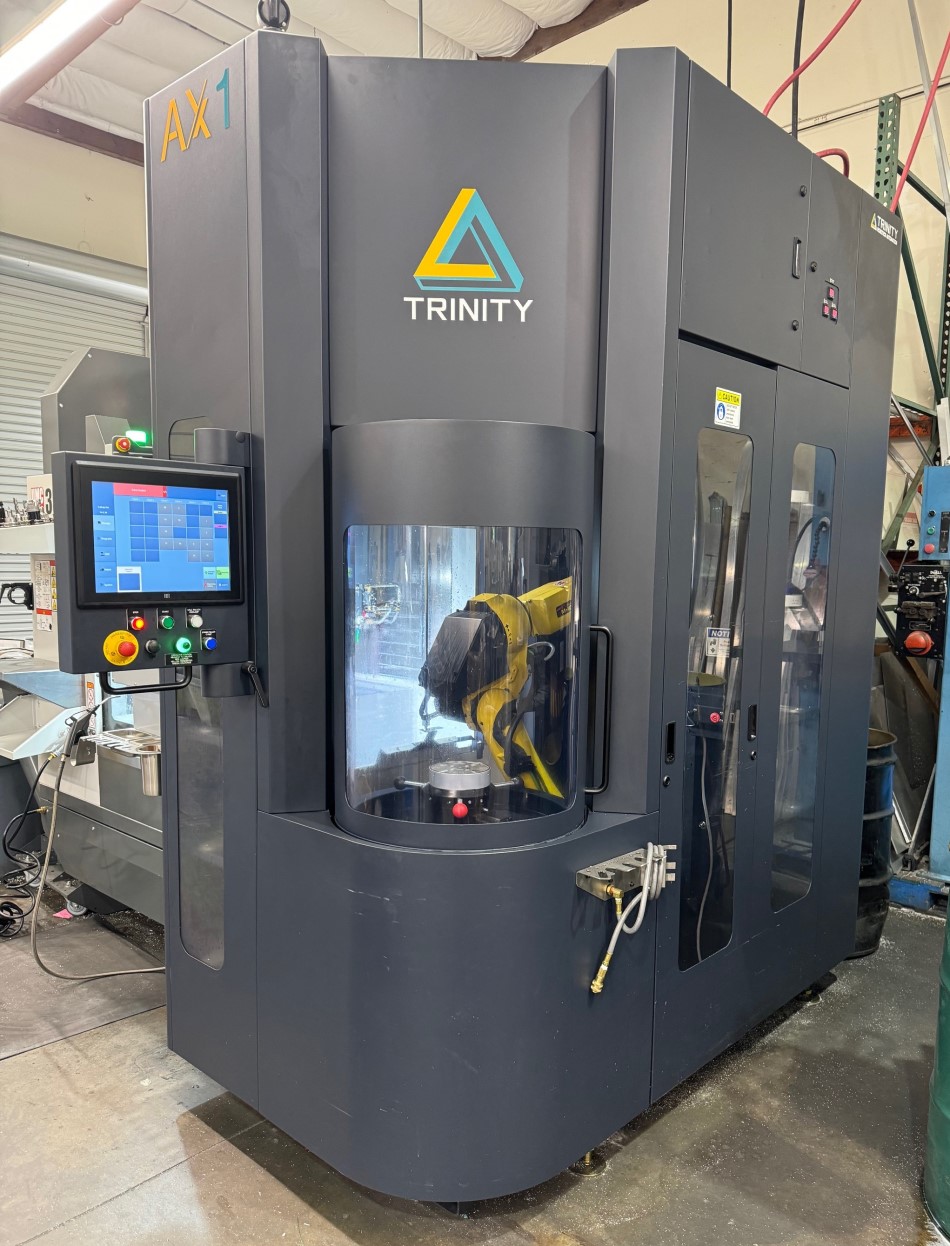

EQUIPPED WITH:
|
