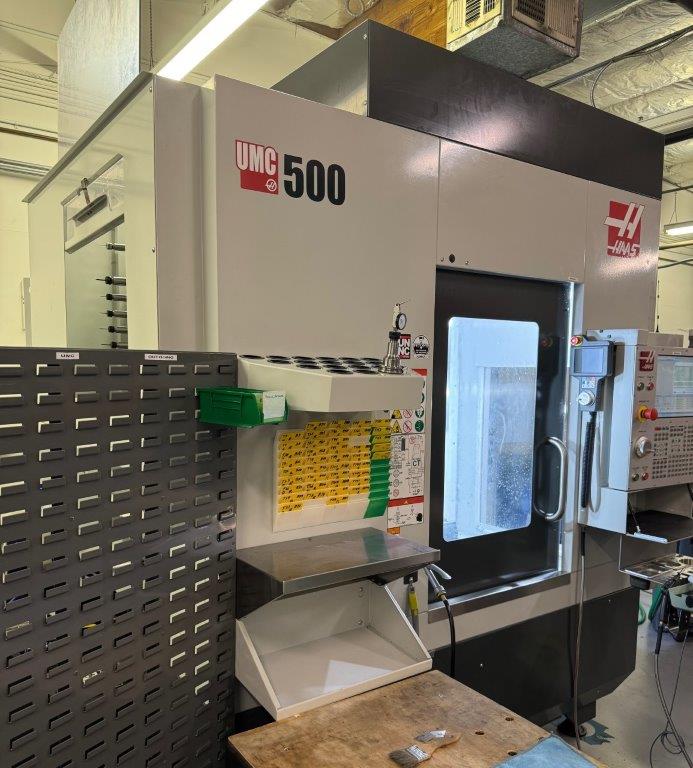

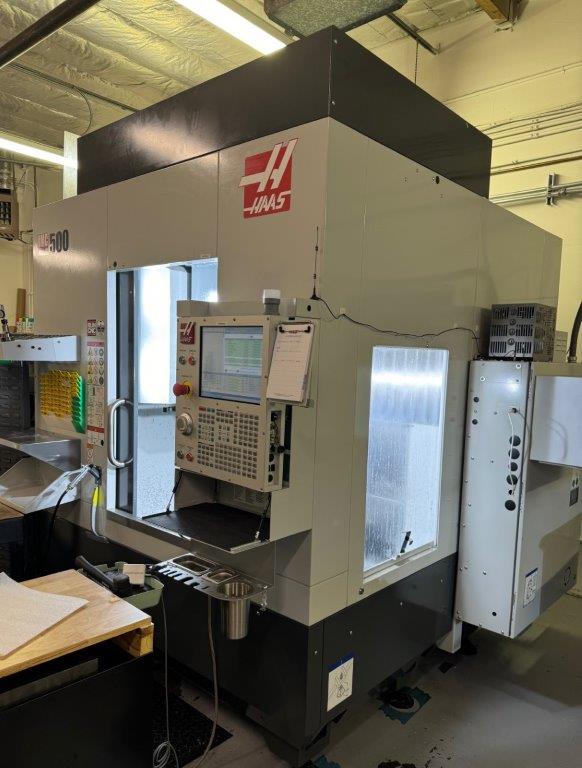

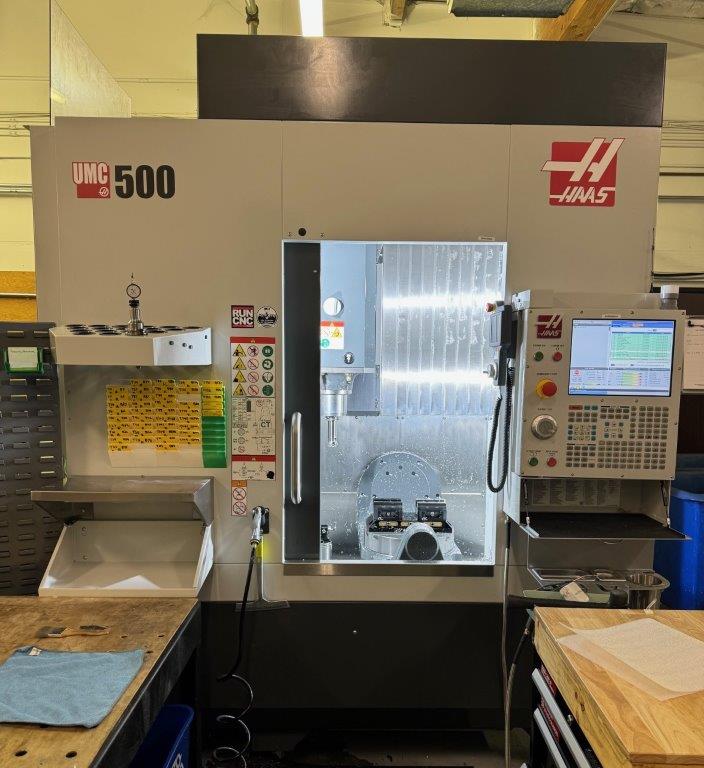

Click to view larger photo

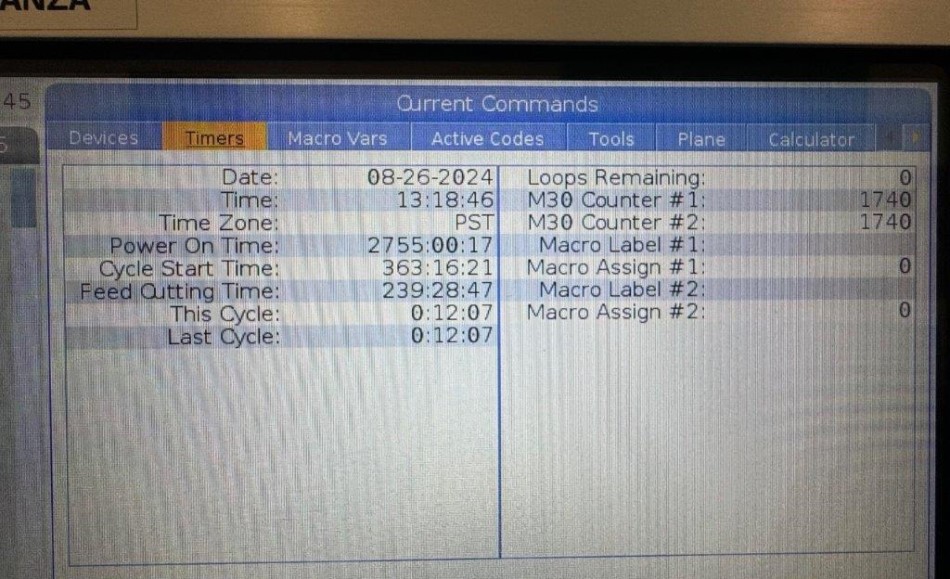

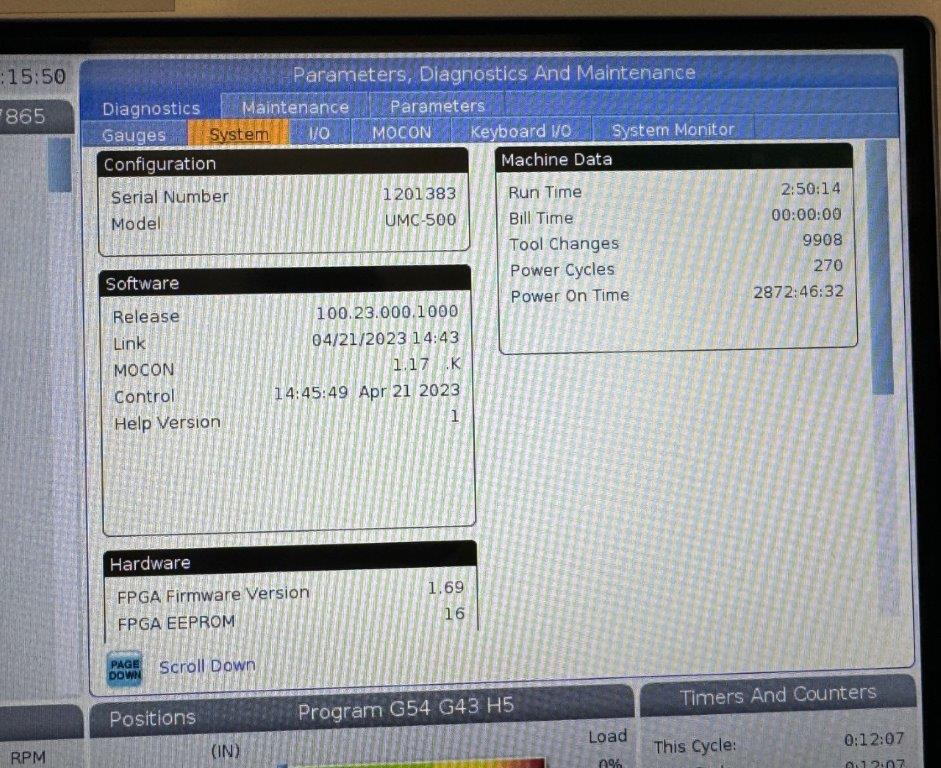

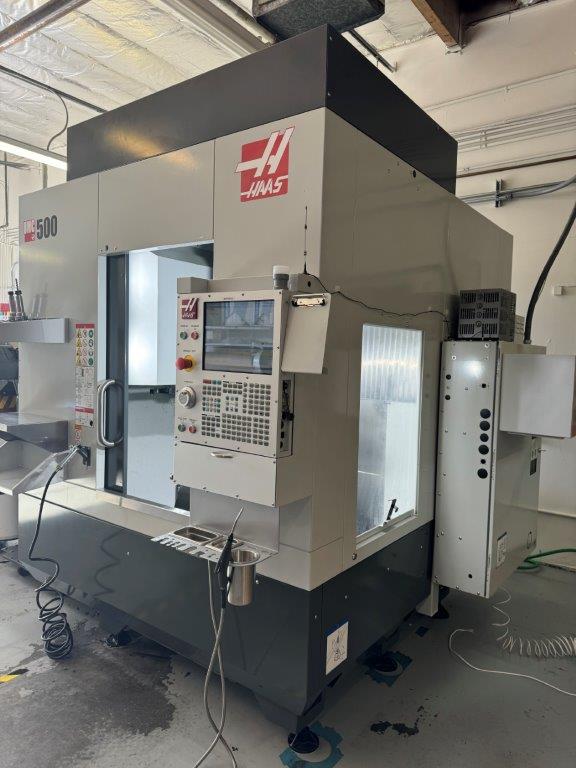

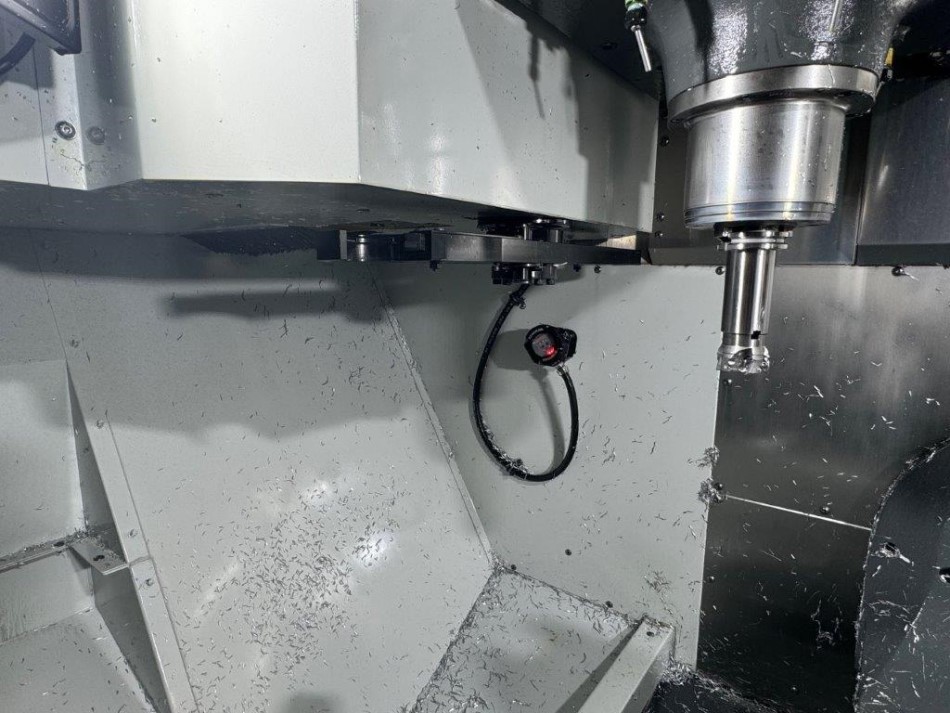

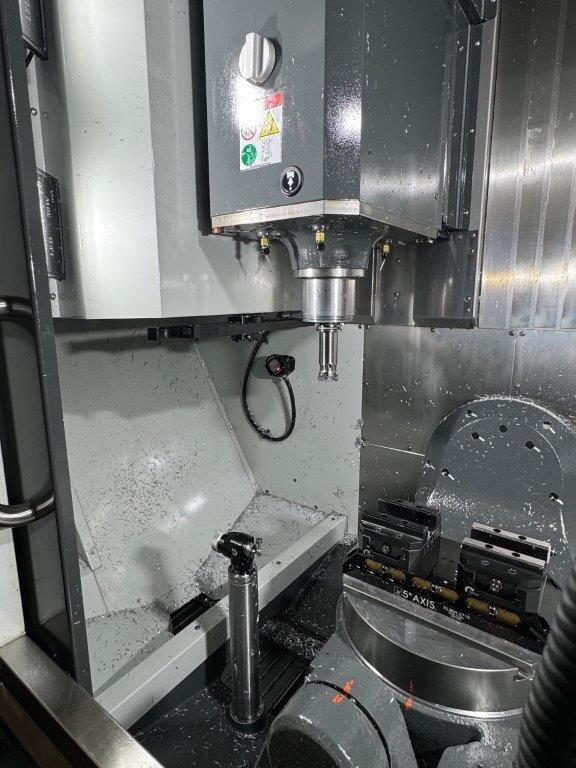

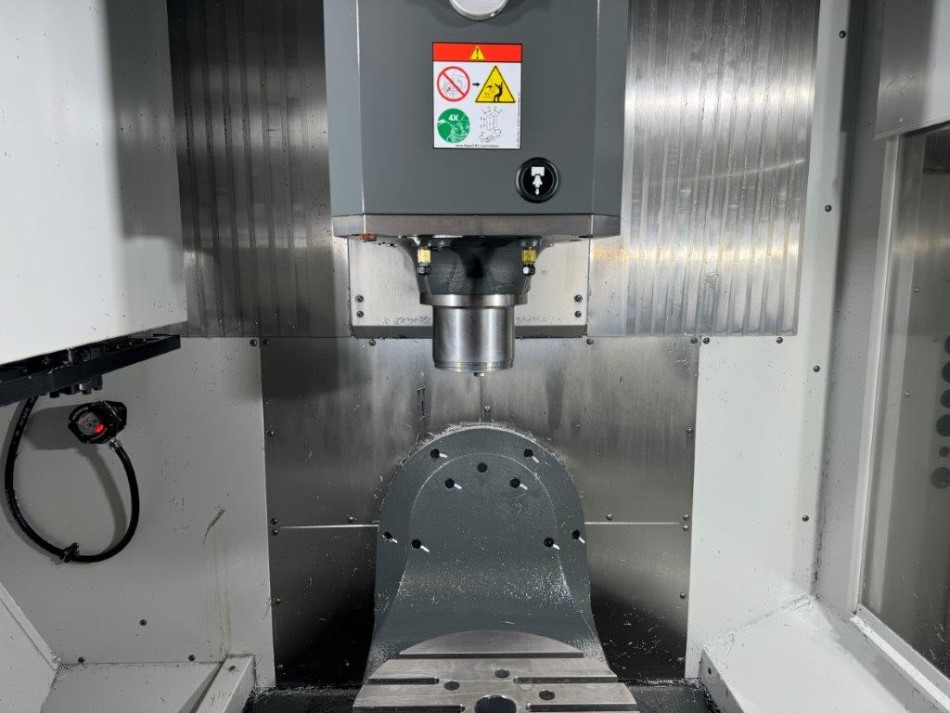

| SPECIFICATIONS: | |
|---|---|
| X AXIS | 24 in. |
| Y AXIS | 16 in. |
| Z AXIS | 16 in. |
| SPINDLE SPEED | 15,000 RPM / INLINE DIRECT DRIVE |
| TAPER | CAT-40 / MAX RATING: 30 HP |
| MAX TORQUE | 90 FT LBF @2000 RPM |
| FEED RATES - MAX CUTTING | 650 IPM |
| FEEDRATES - RAPIDS X, Y, Z | 900 IPM |

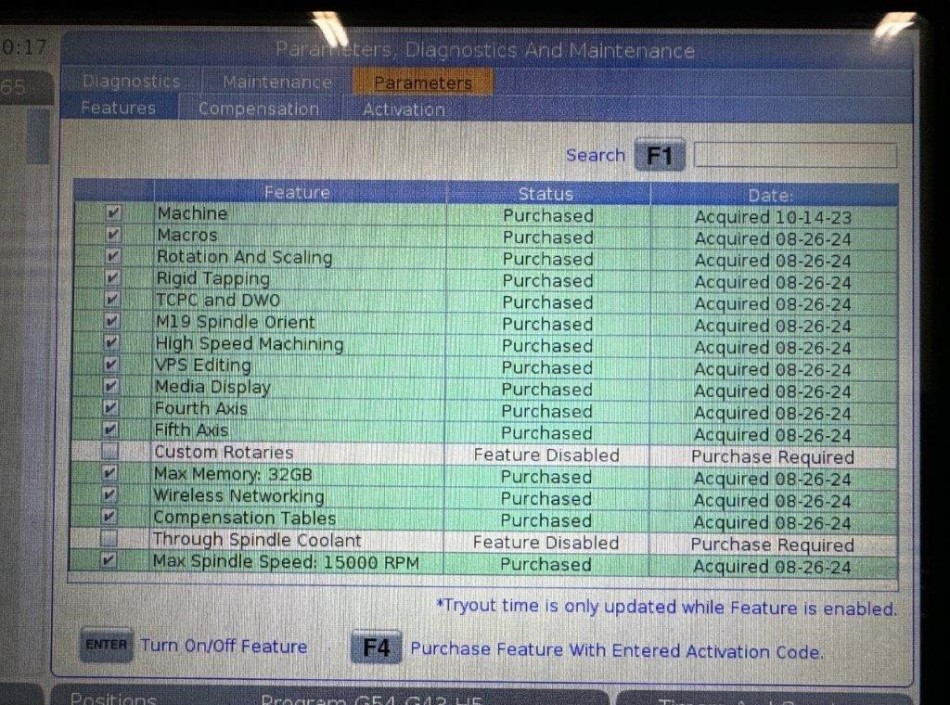

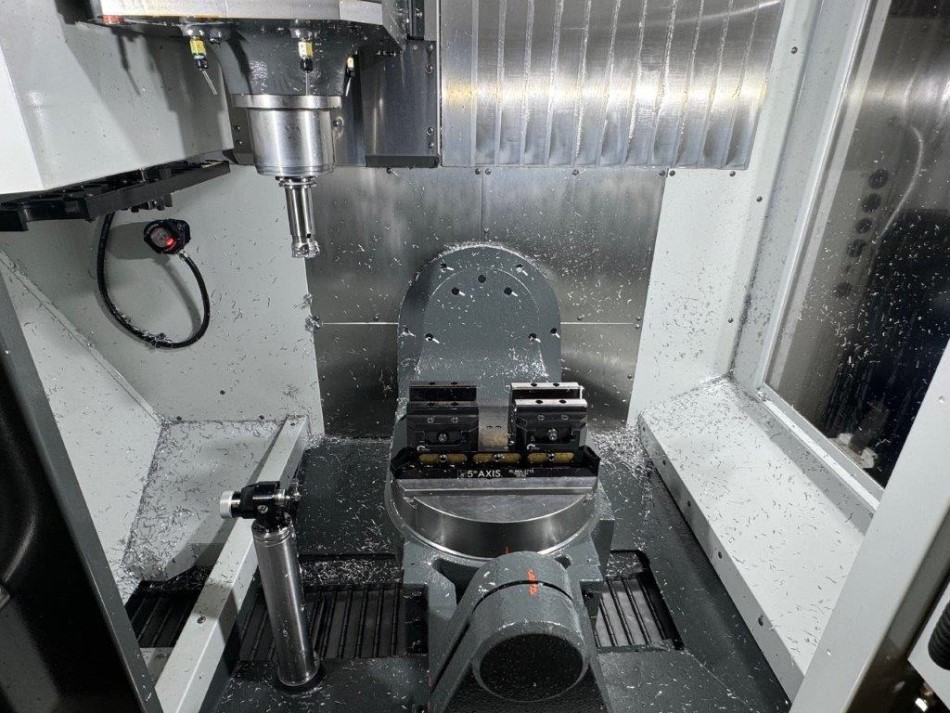

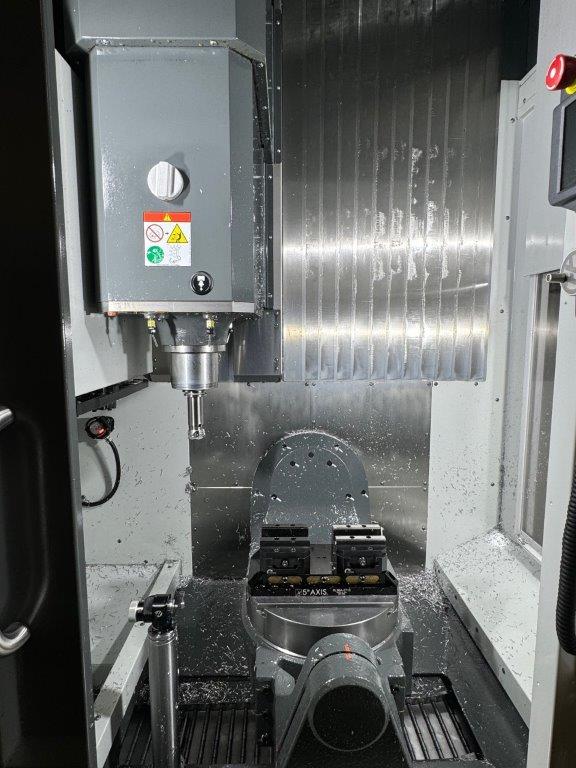

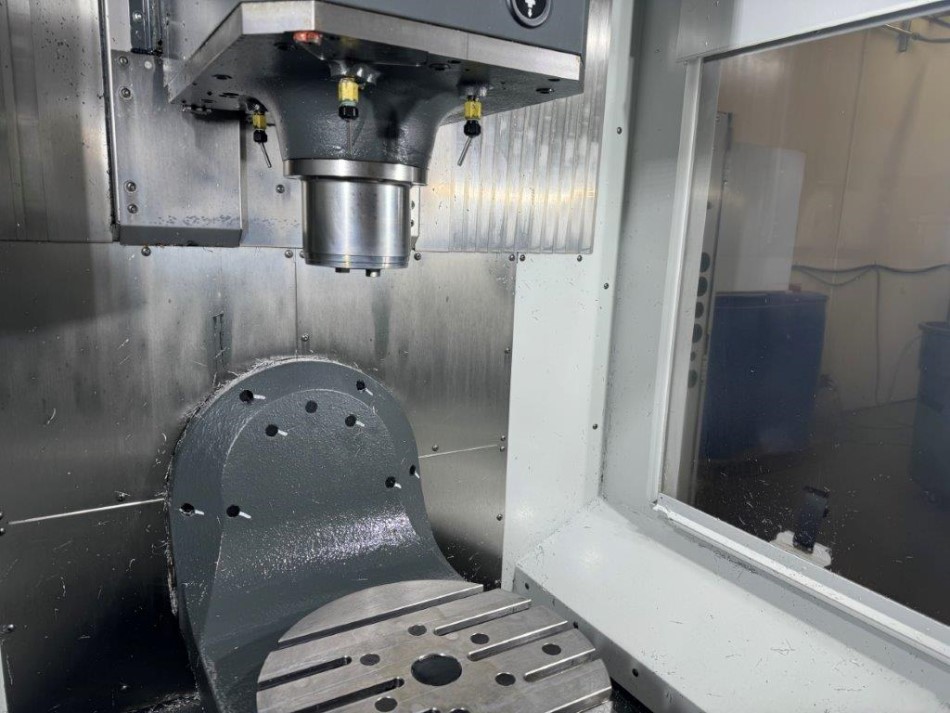

| B AXIS TILT - TRAVEL | 120 TO -35 DEGREES / MAX SPEED: 50 DEGREES / SEC |
| B AXIS TILT - MAX TORQUE | 1854 FT-LBF / BRAKE TORQUE: 2000 FT LBF |
| C AXIS ROTATION: | |
| TRAVEL: | 360 DEGREES |
| MAX SPEED | 50 DEGREE / SEC |
| MAX TORQUE | 1854 FT LBF |
| BRAKE TORQUE | 900 FT LBF |
| MAX PART SWING | 18.0 in. |

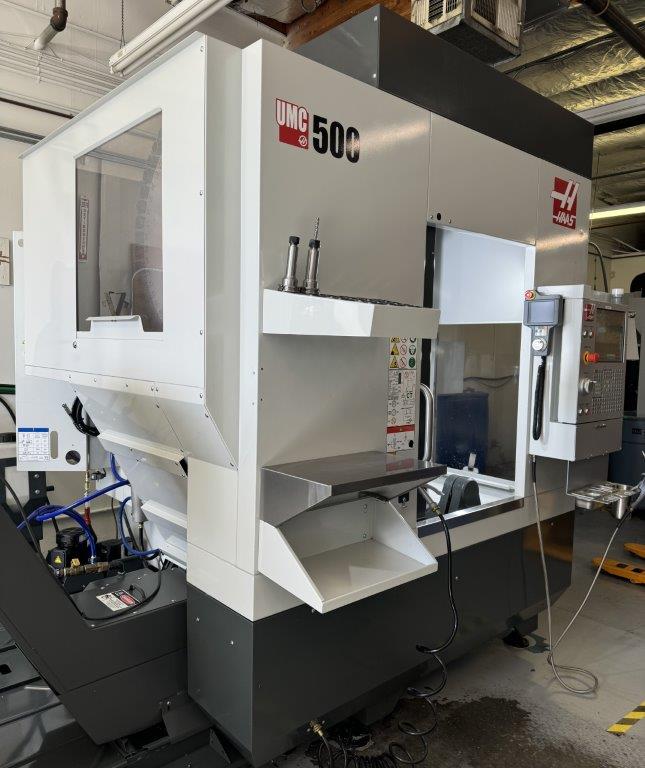

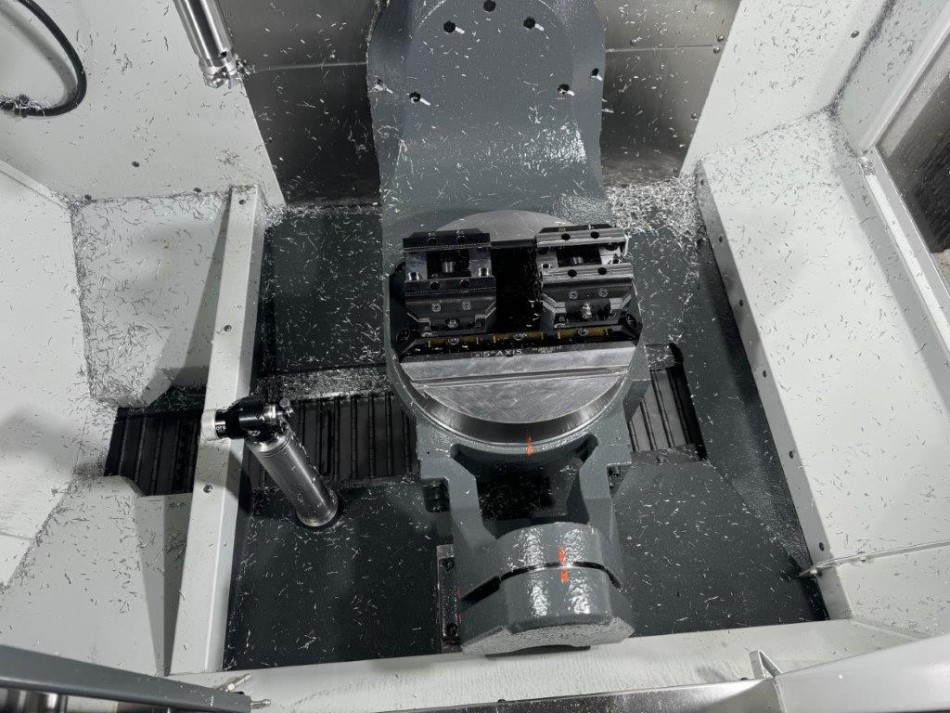

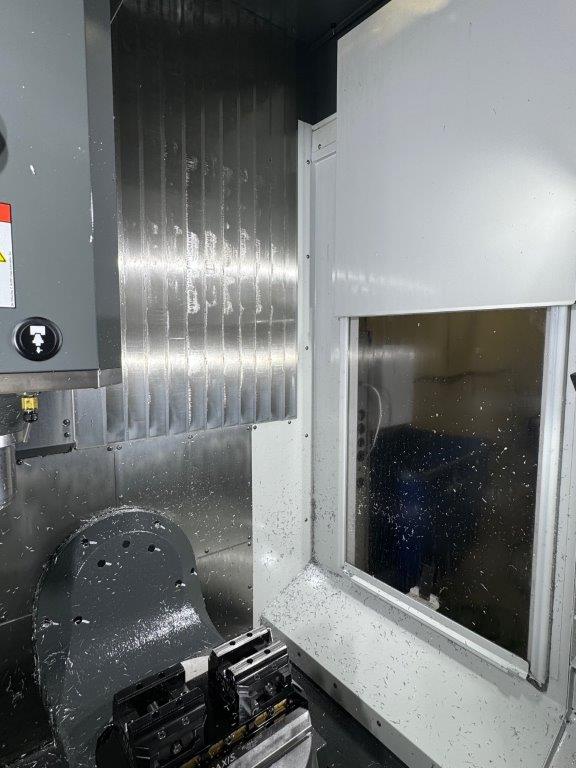

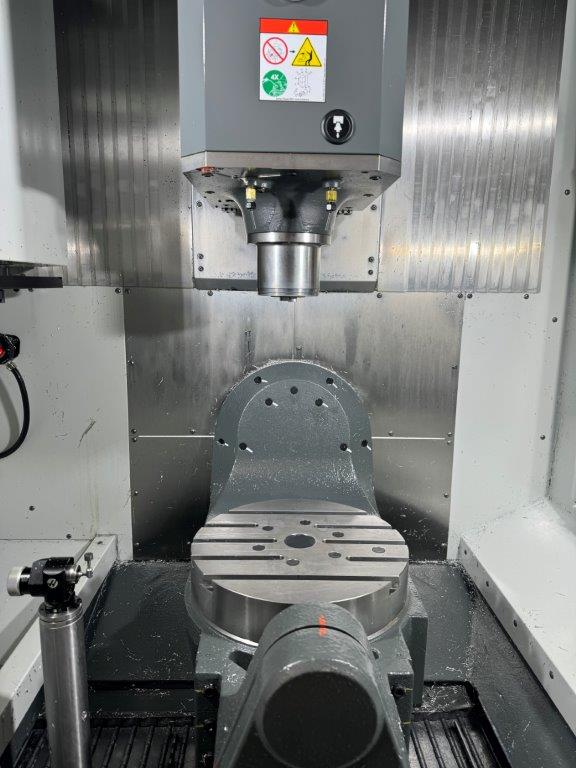

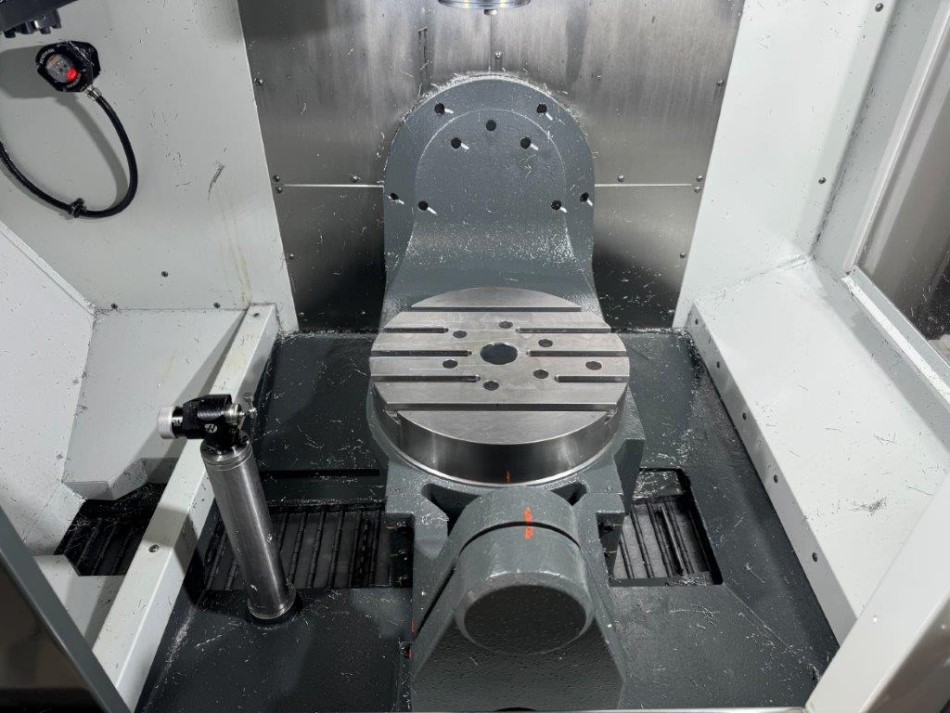

| PLATTER | |
| PLATTER DIAMTER | 15.70 in. |
| T-SLOTS | 5 |
| MAX WEIGHT ON PLATTER | 500 LBS |

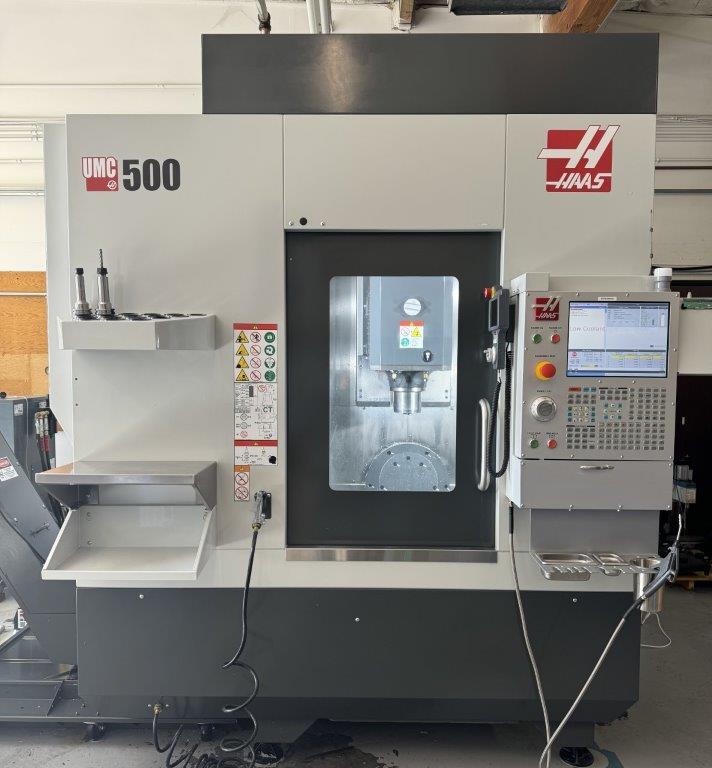

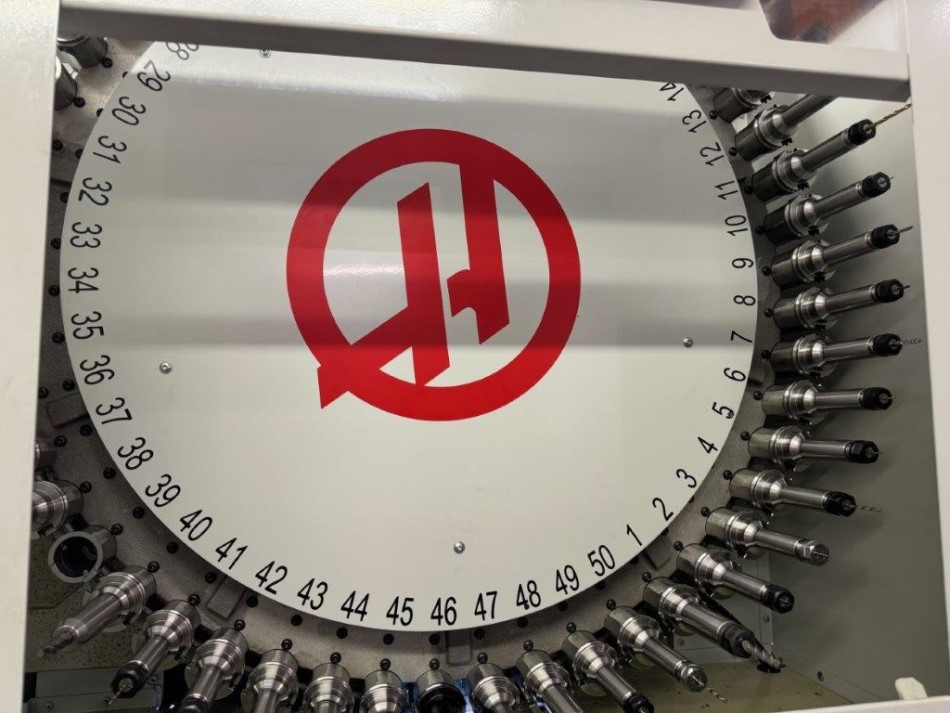

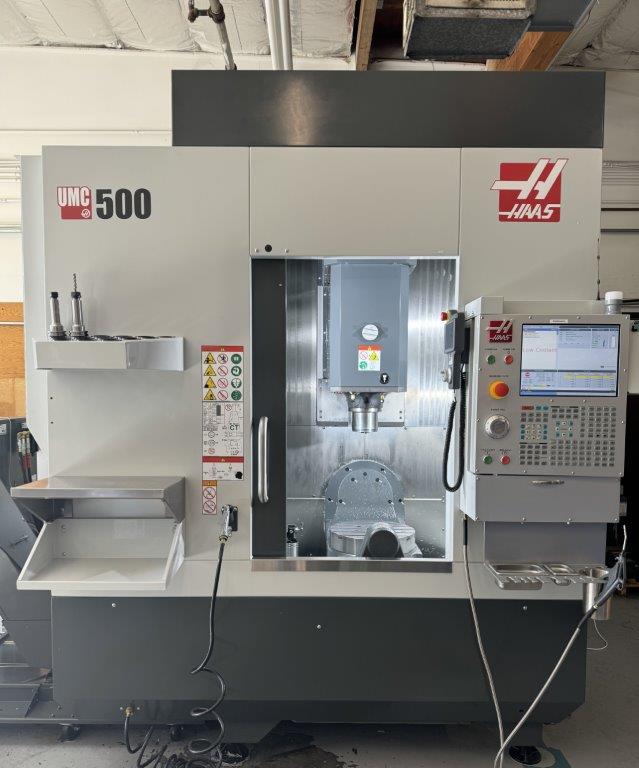

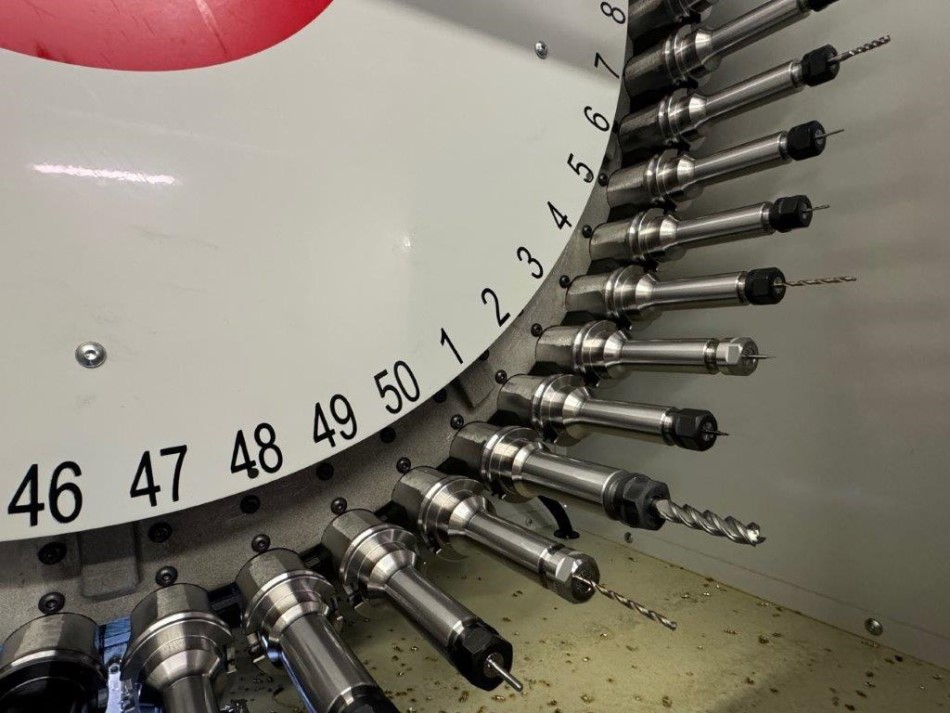

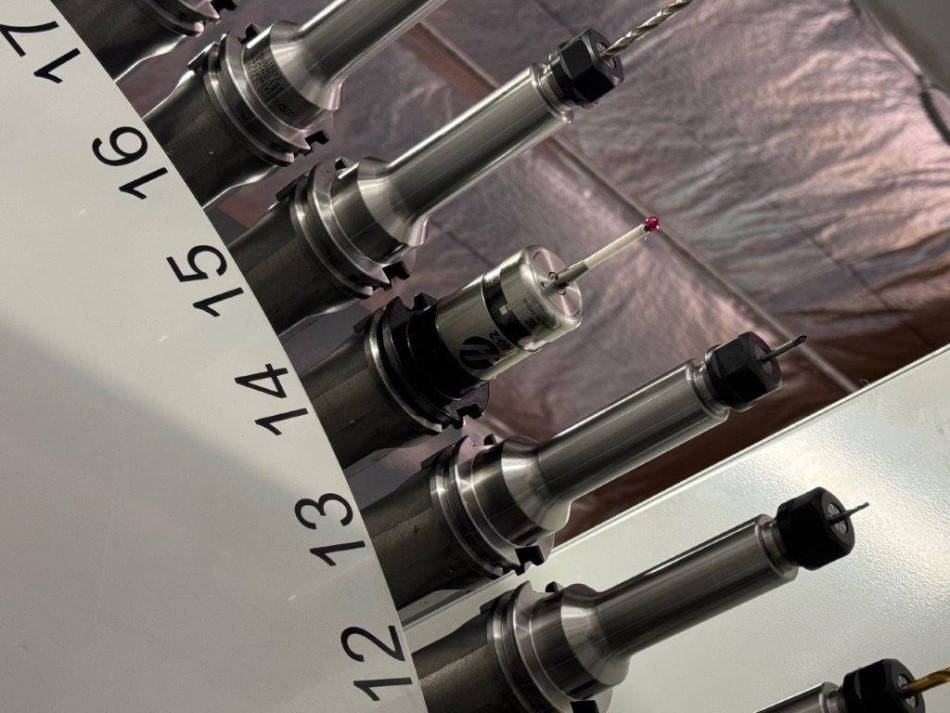

| TOOL CHANGER CAPACITY | 30+1 |
| SPINDLE NOSE TO PLATTER | 4 in. - 20 in. |
| MAX TOOL DIAMETER | 2.5 in. |
| MAX TOOL LENGTH FROM GAGE LINE | 12 in. |
| MAX TOOL WEIGHT | 12 LBS |
| TOOL TO TOOL TIME | 2.8 SEC (AVG) |
| CHIP TO CHIP TIME | 3.6 SEC (AVG) |

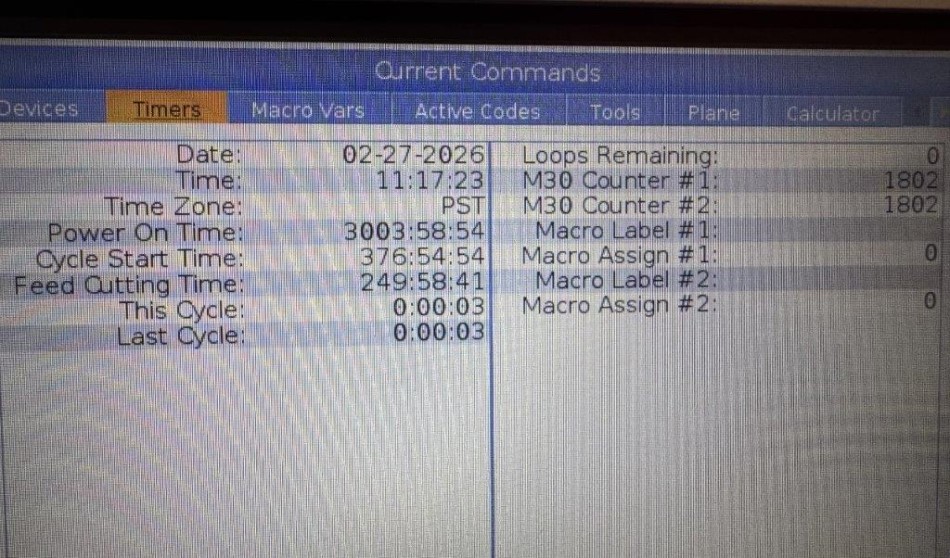

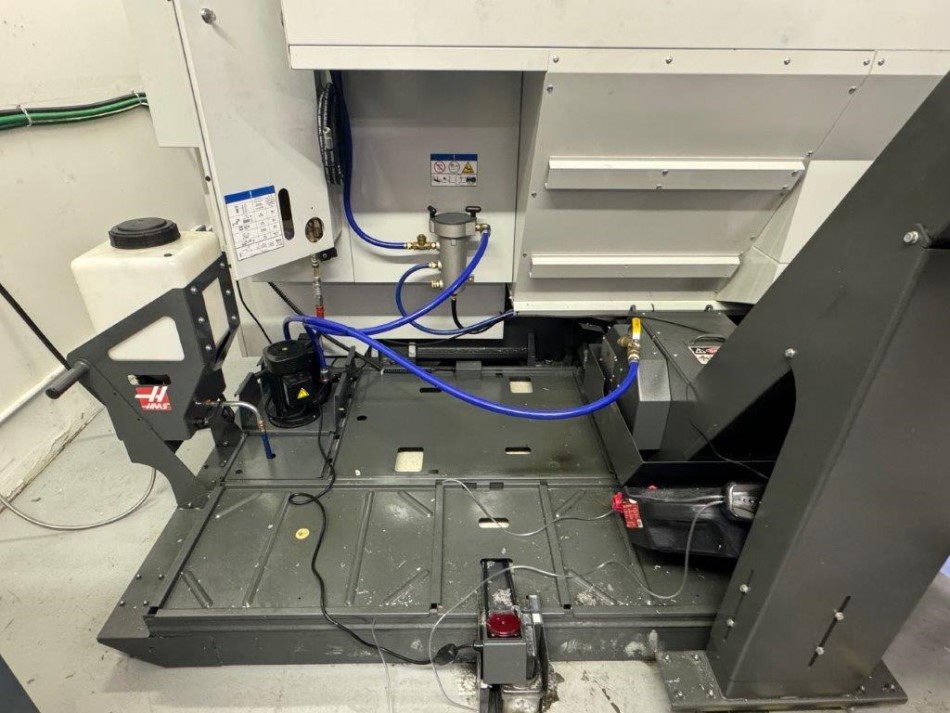

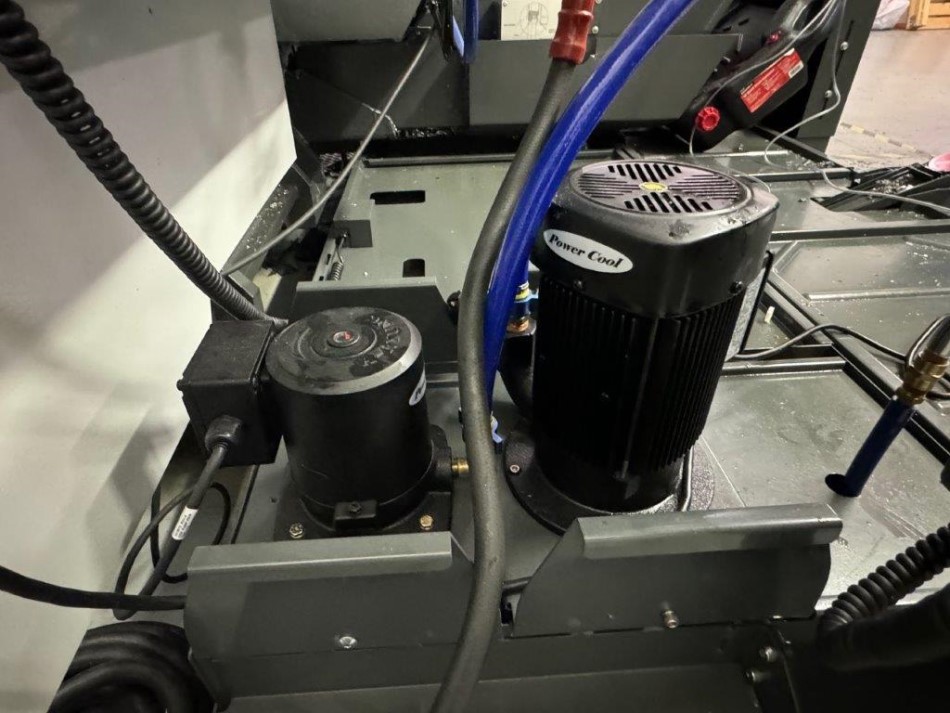

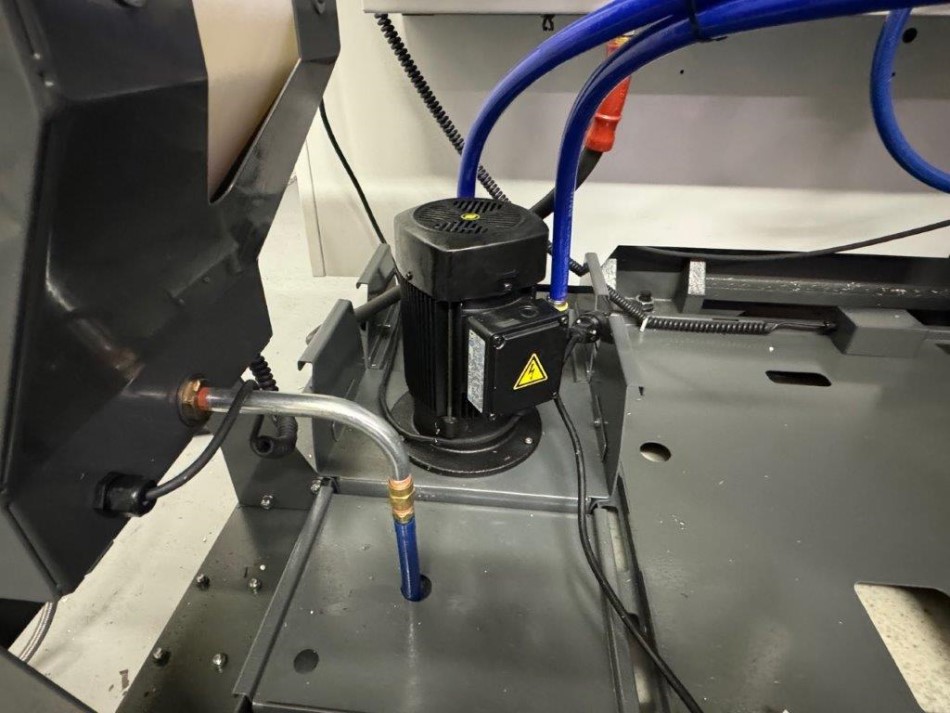

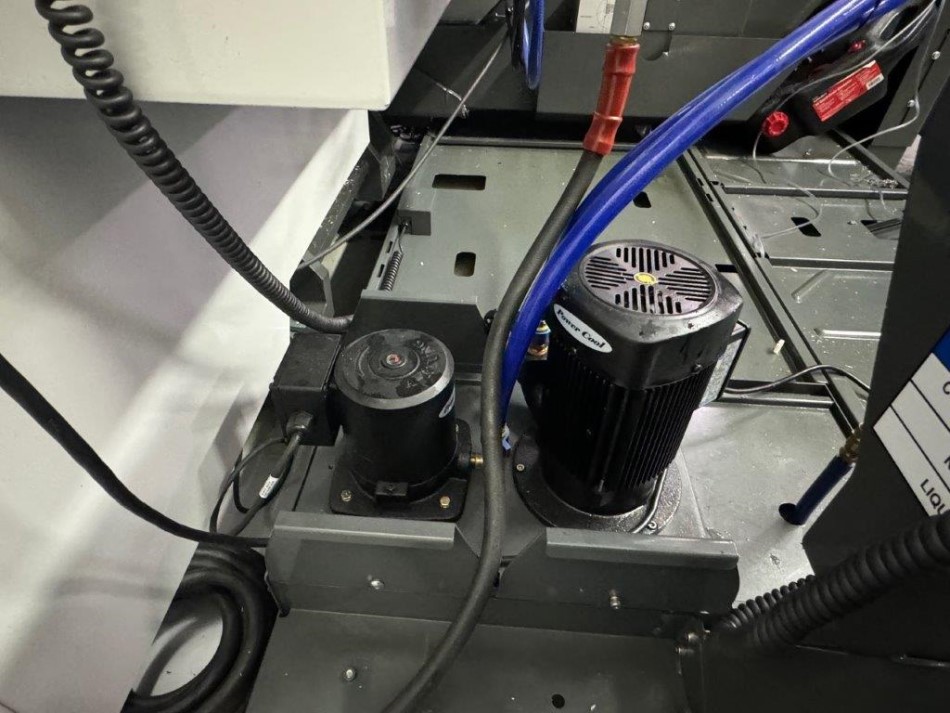

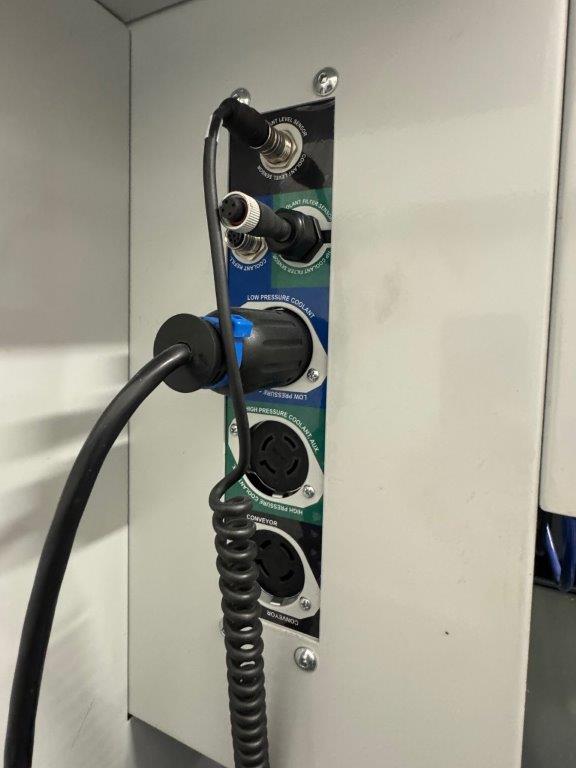

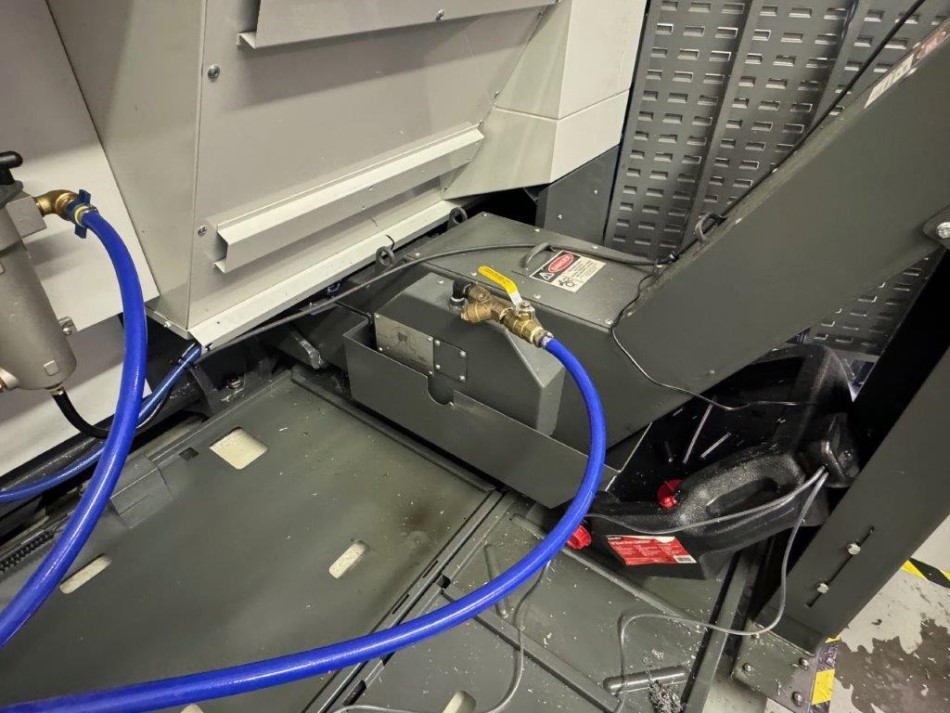

| COOLANT TANK | 95 GALLON |
| WEIGHT | 11,900 LBS. |

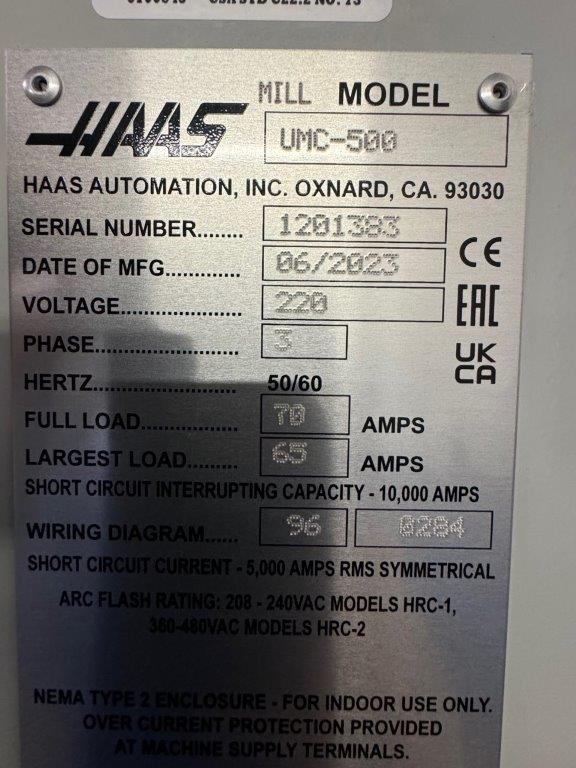

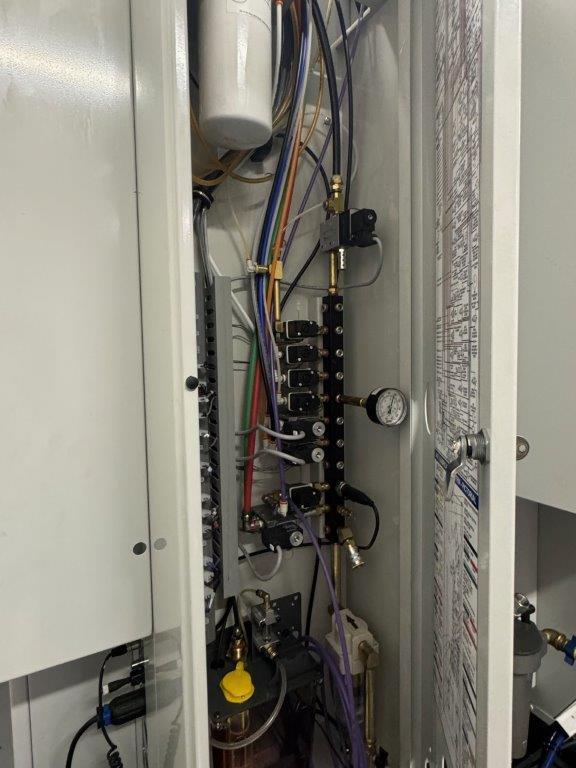

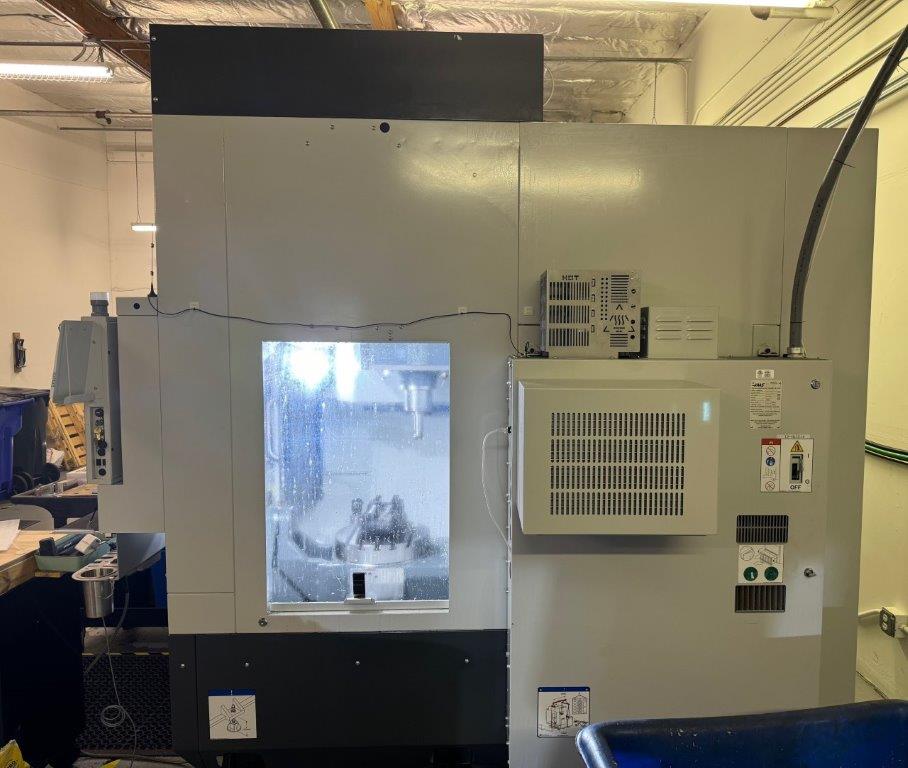

| POWER | 220V / 3 PHASE / 70 AMP |

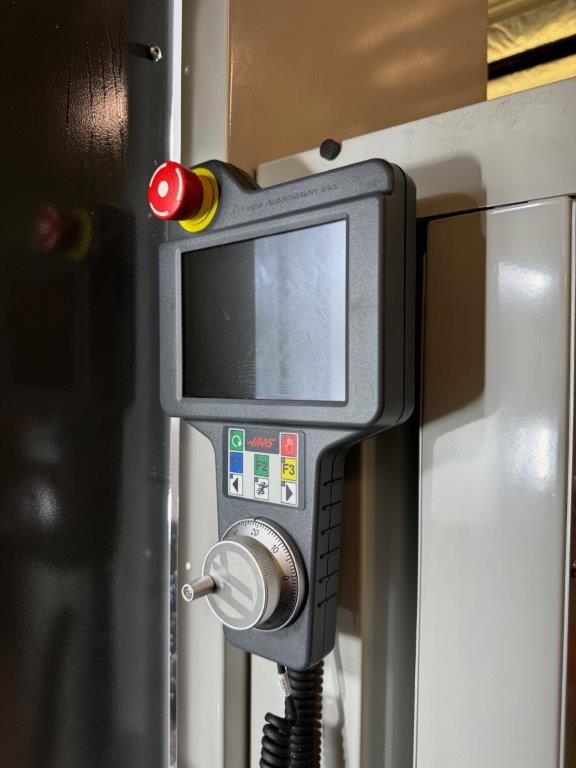

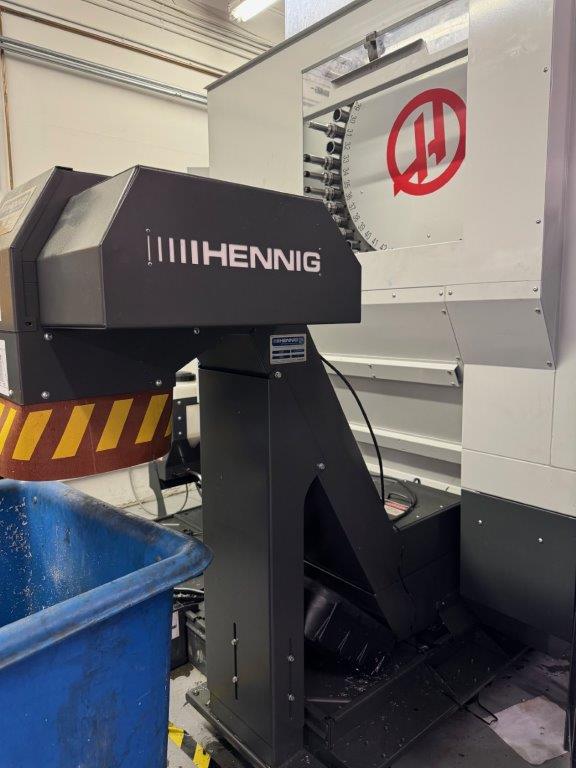

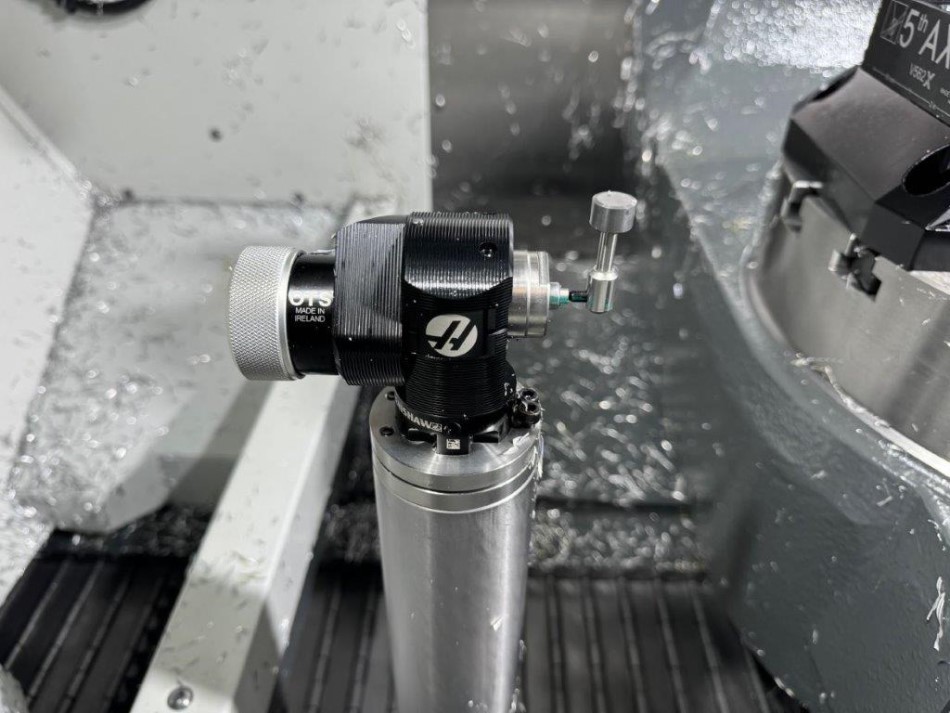

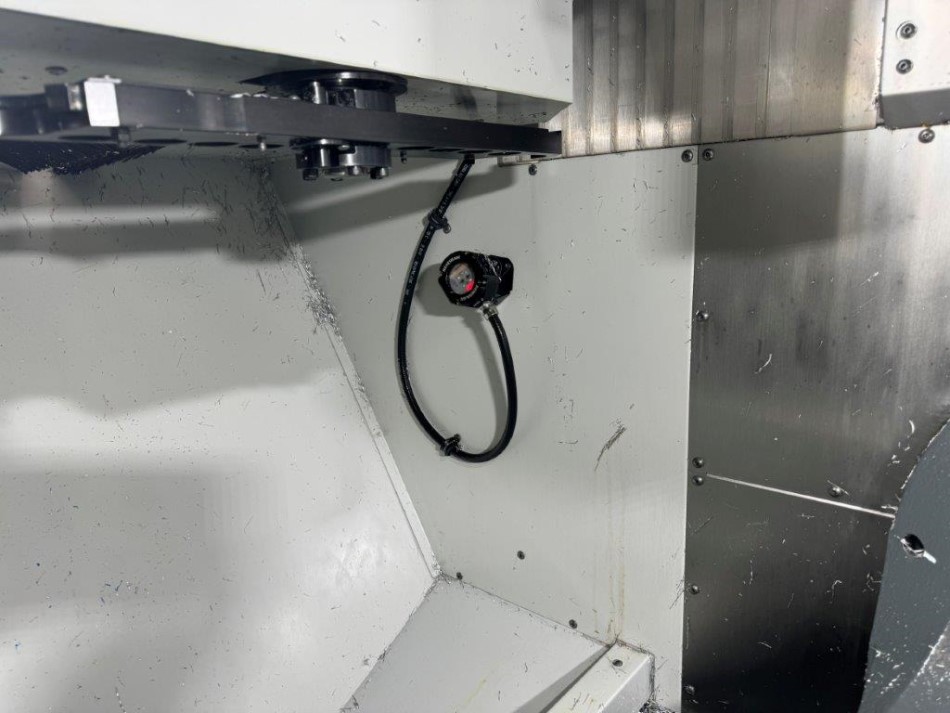

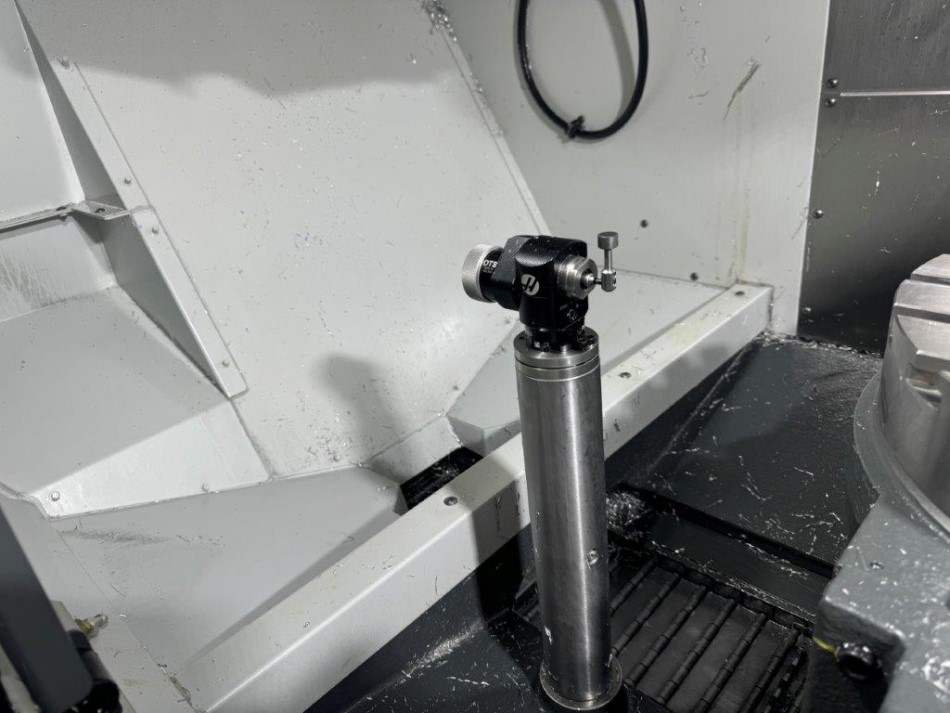

EQUIPPED WITH:
|
