| Specification | Description |
|---|---|

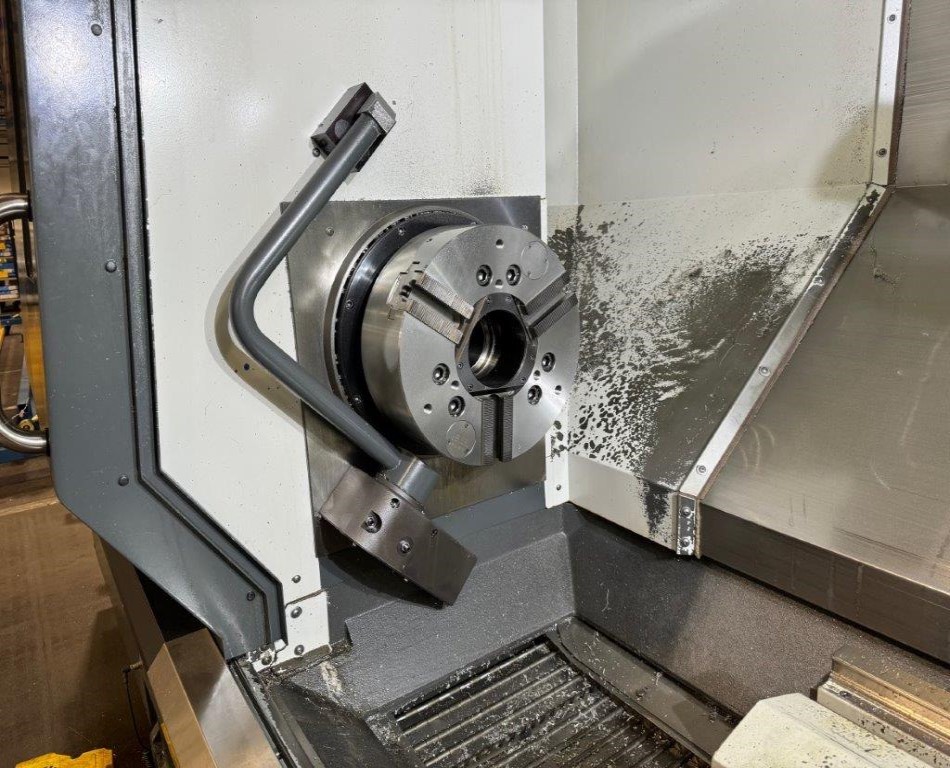

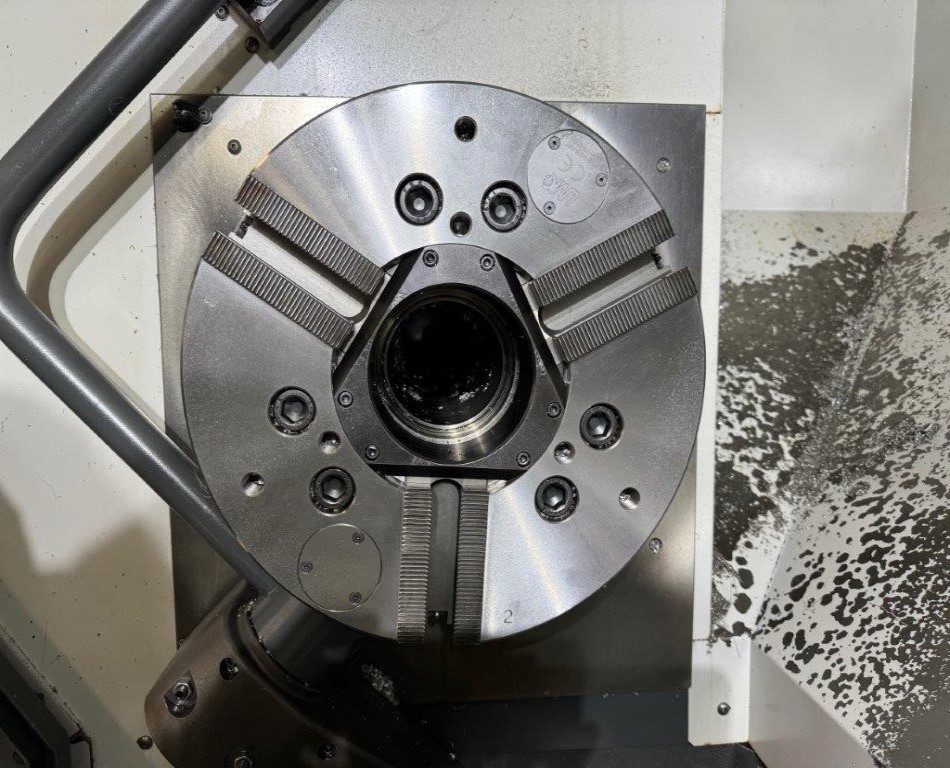

| CHUCK SIZE | 15" |
| MAXIMUM PART SWING | 35.5" |
| MAXIMUM CUTTING DIAMETER | 25.5" |
| MAXIMUM MACHINING LENGTH | 44" |

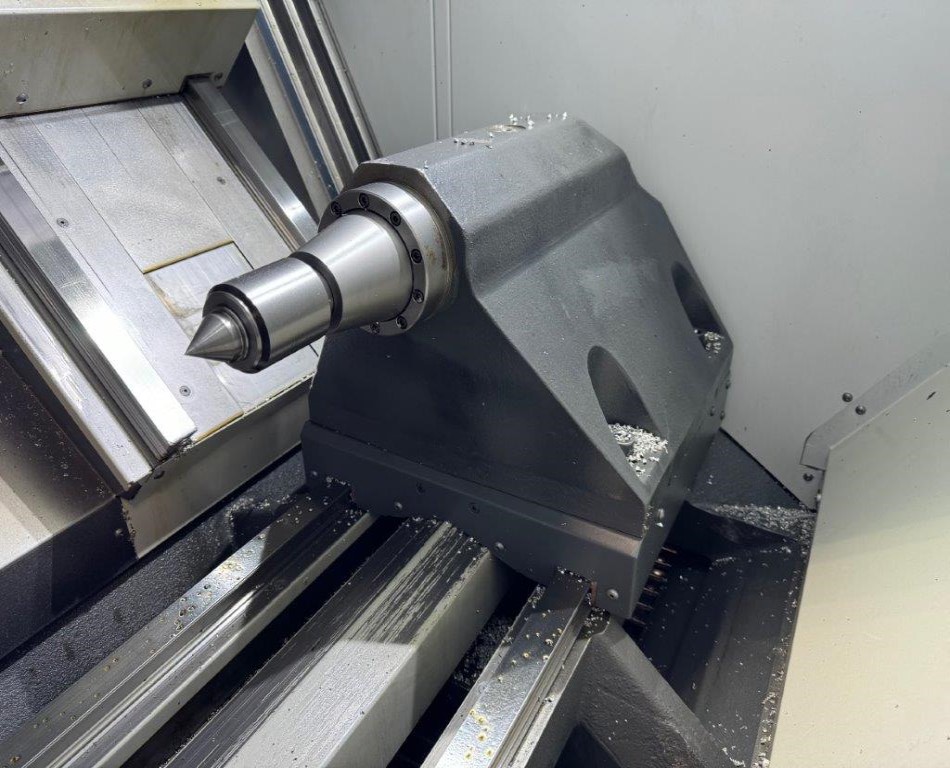

| DISTANCE BETWEEN CENTERS | 46" |
| X-AXIS TRAVEL | 17" |
| Z-AXIS TRAVEL | 44" |
| SPINDLE MOTOR | 40 HP |
| SPINDLE SPEED | 2400 RPM |
| SPINDLE NOSE / SPINDLE BORE | A2-8 |
| DRIVE SYSTEM | 2 SPEED GEAR BOX |

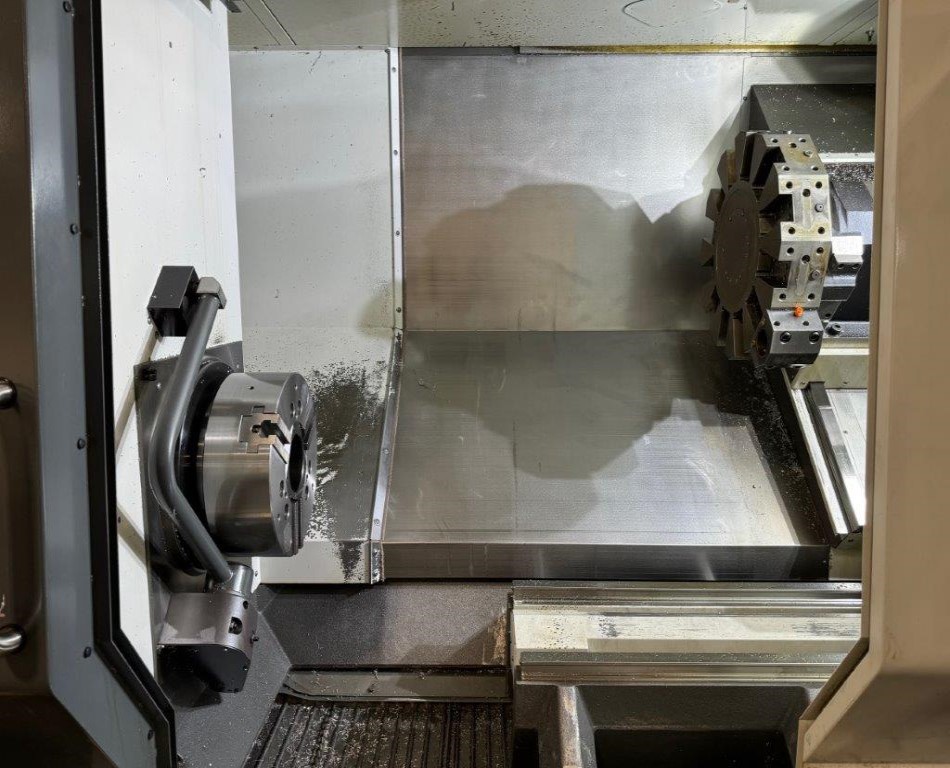

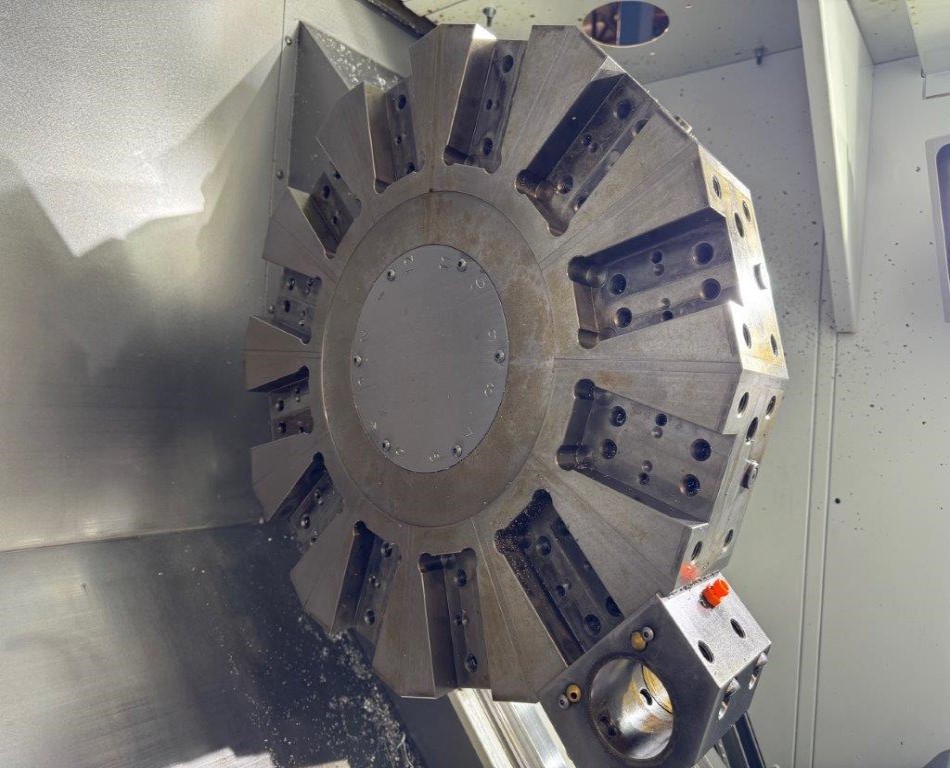

| TURRET TYPE | 12 POSITION TURRET |
| RAPIT TRAVERSE | 710 IPM |
| DIMENSIONS | 131" x 79" x 83" |
| WEIGHT-SHIPPING | 21,200 LBS |
Equipped With:
