| Specification | Description |
|---|---|

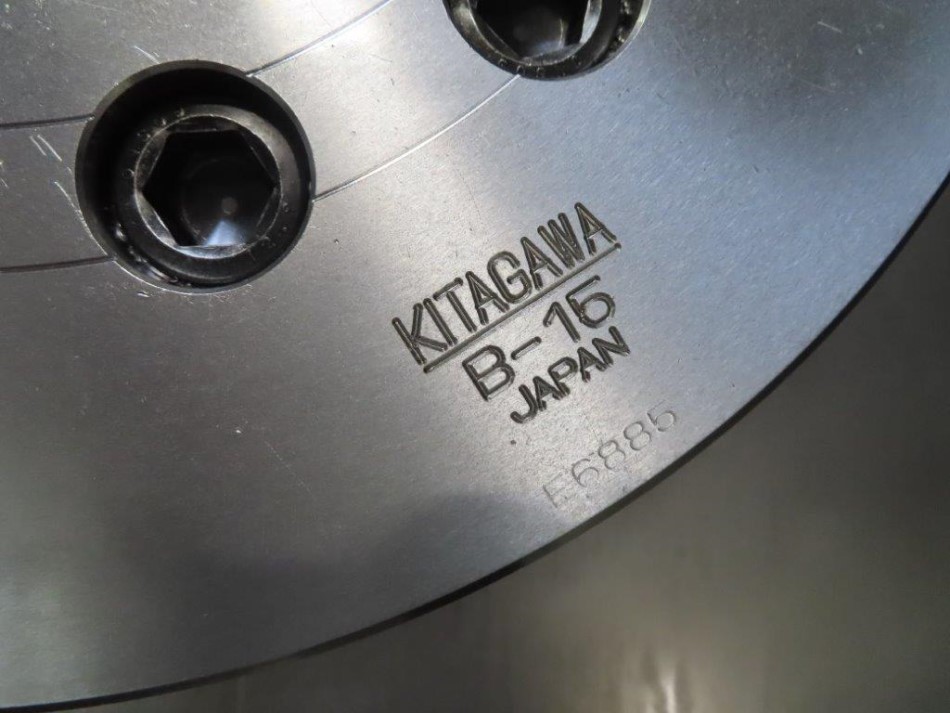

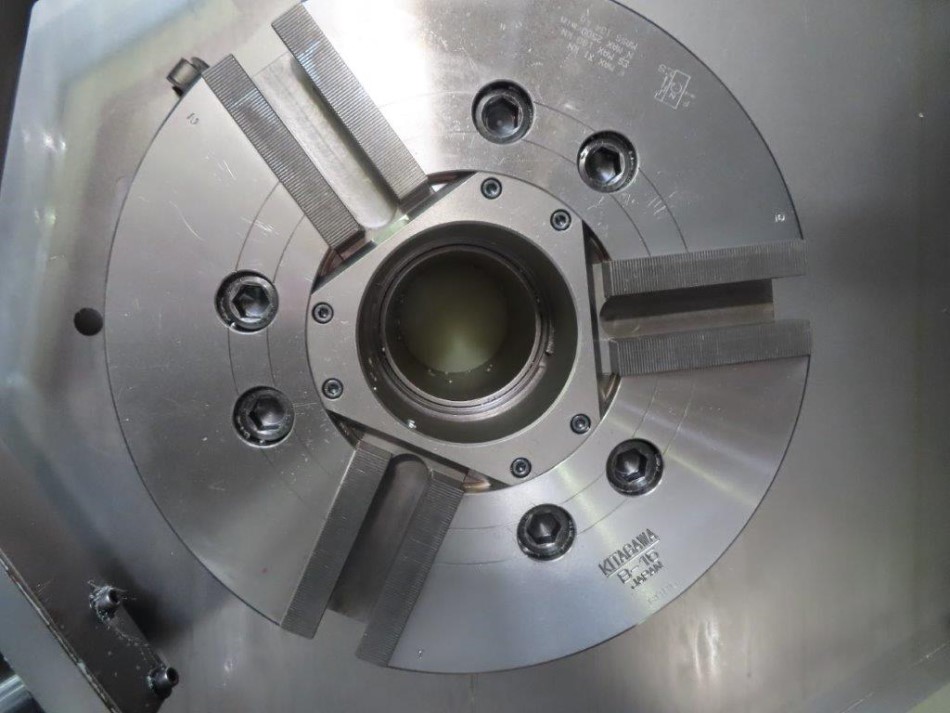

| CHUCK SIZE | 15" |
| MAX SWING | 40" |
| MAX TURNING DIAMETER | 25.5" |
| MAX TURNING LENGTH | 44" |
| SPINDLE NOSE | A2-8 |
| BAR CAPACITY | 4" |
| X AXIS TRAVEL | 17" |
| Z AXIS TRAVEL | 44" |
| RAPID TRAVERSE RATES X | 710 IPM |
| SPINDLE SPEEDS | 2400 RPM |

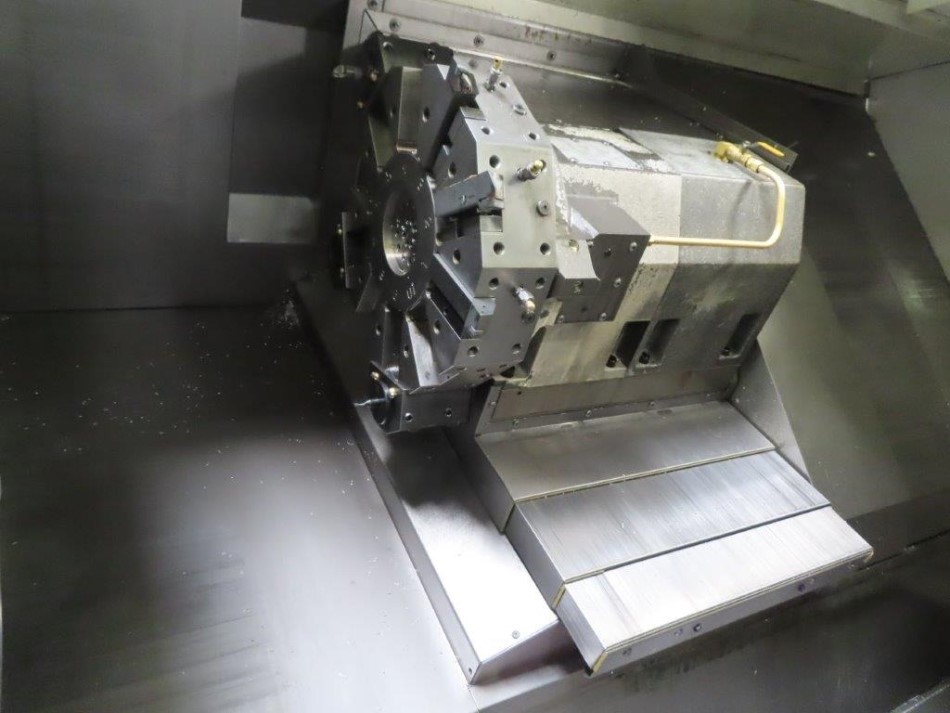

| TURRET TOOL STATIONS | 10 |
| MAIN MOTOR DRIVE | 40 HP |
| WEIGHT | 25,000 LBS. |
| DIMENSIONS | 170" x 102" x 80" |

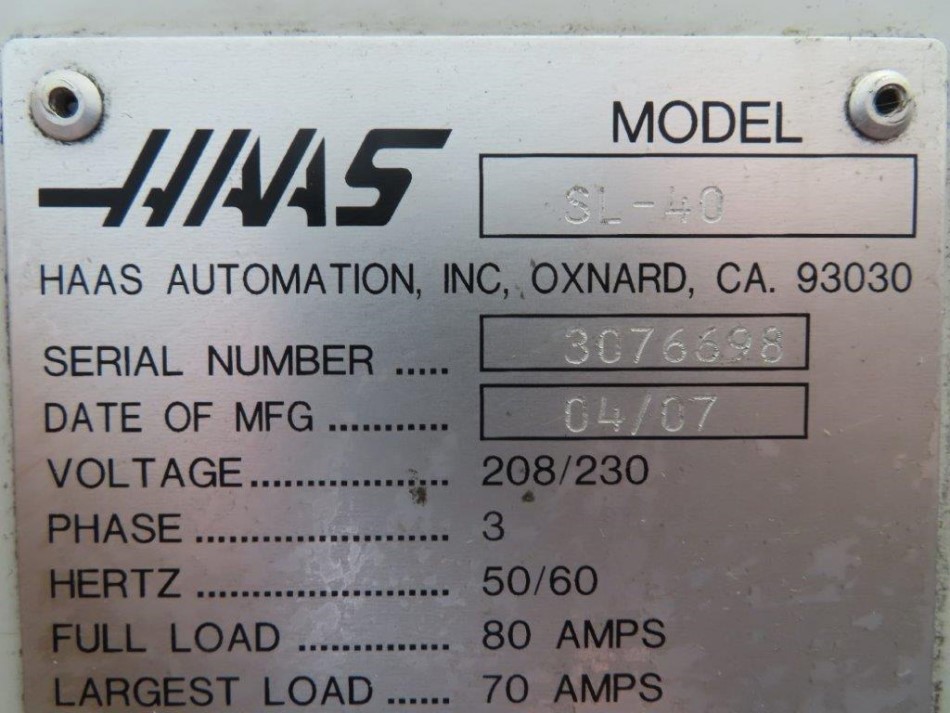

| POWER | 220V / 3 PHASE / 60HZ |
Equipped With:
