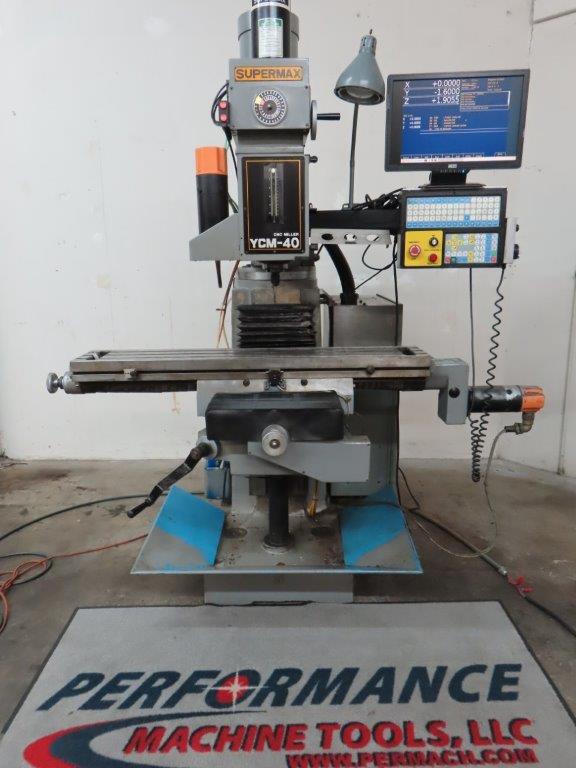

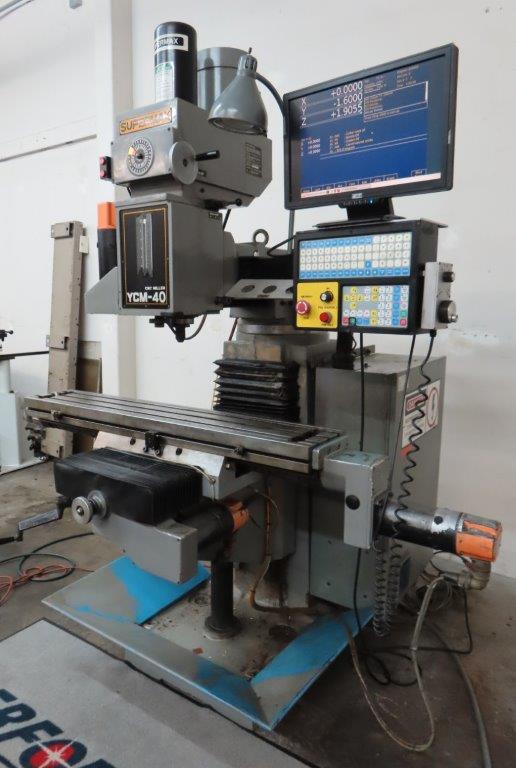

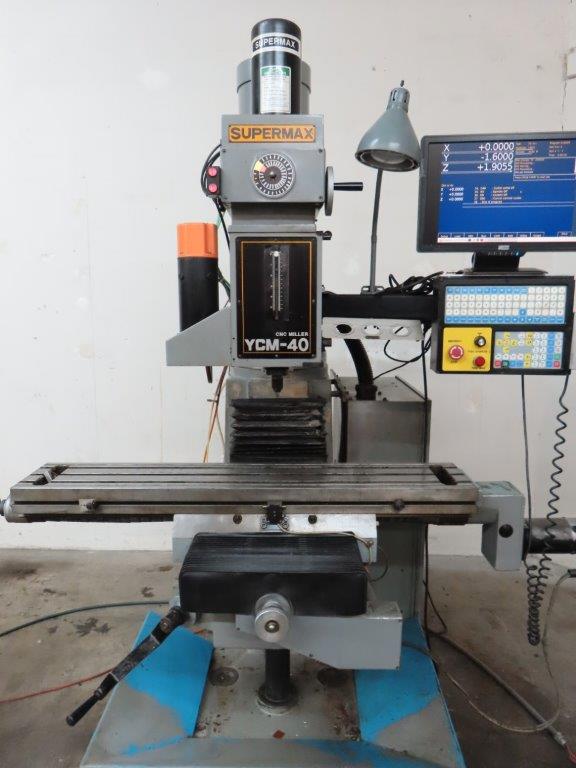

Click to view larger photo
| SPECIFICATIONS: | |
|---|---|
| TABLE | 9" x 49" |
| TABLE TRAVEL | 15.5" x 28" |
| SPINDLE TAPER NST | #40 |
| SPINDLE MOTOR | 3 HP VARI-SPEED |
| SPINDLE RPM | 60-4200 |
| QUILL TRAVEL | 5" |
| KNEE TRAVEL | 16" |
| SPINDLE TO TABLE TOP | 4-1/8" - 20-1/4" |
| POWER | 220V / 3 PHASE |
| WEIGHT | 3500 LBS. |
| DIMENSIONS | 90" x 80" x 90" |
EQUIPPED WITH:

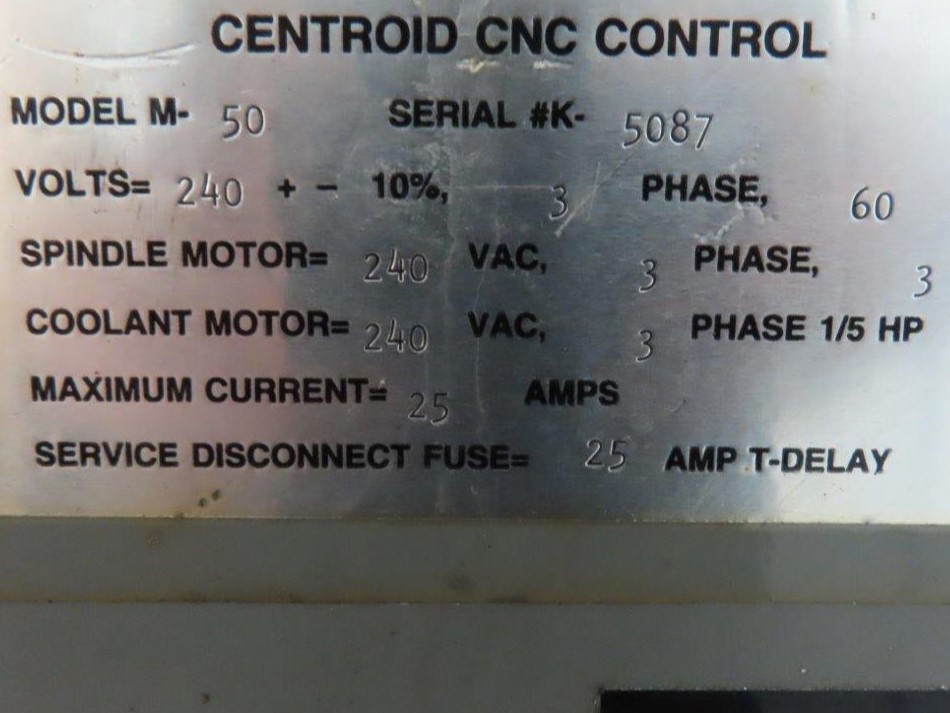

• CENTROID M-50 CNC CONTROL UPGRADED IN 2013 TO CNC11-D SOFTWARE
• FANUC G-CODE COMPATIABLE
• FULL 3D GRAPHICS
• USB CAPABILITY
• PRECISION GROUND WAYS
• AUTOMATIC LUBE

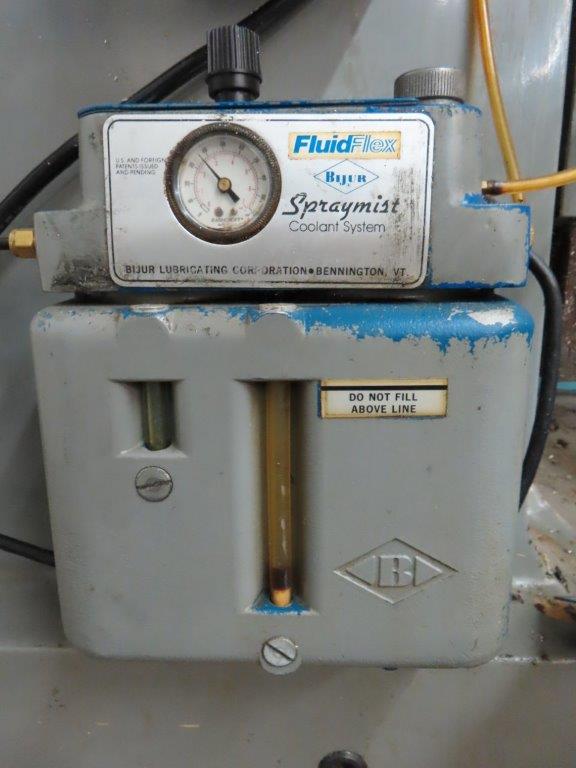

• MIST COOLANT SYSTEM
• AUTOMATIC POWERDRAWBAR

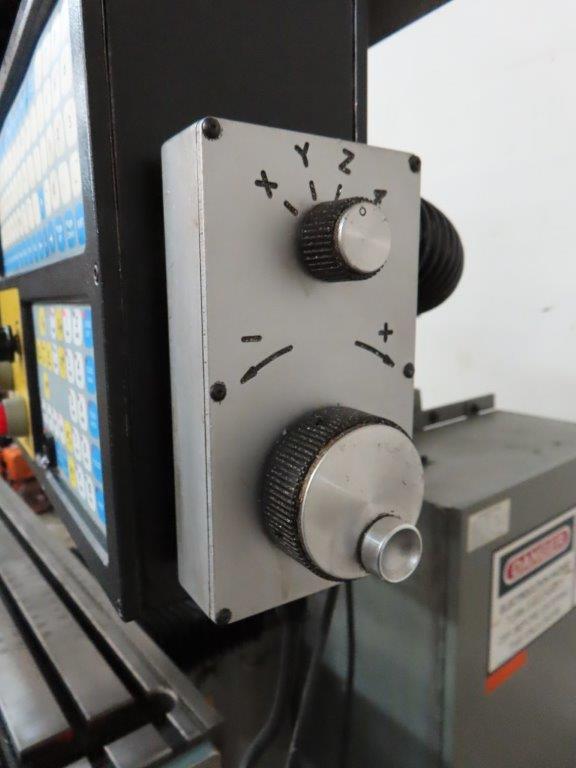

• MPG-MANUAL PULSE GENERATOR

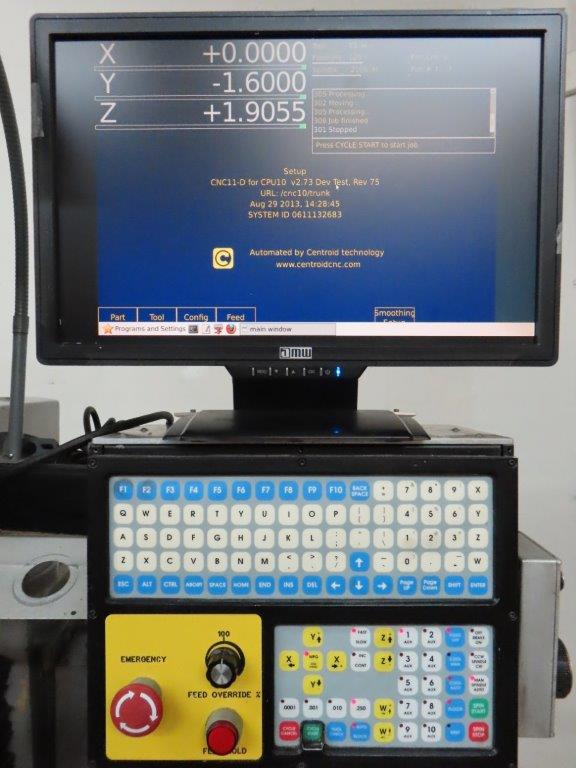

• 15” COLOR FLAT SCREEN MONITOR
• LIGHT
