| FEATURES: | |
|---|---|
| SWING OVER BED | 17" |
| SWING OVER CROSS SLIDE | 9.84" |
| CENTER DISTANCE | 33.46" |

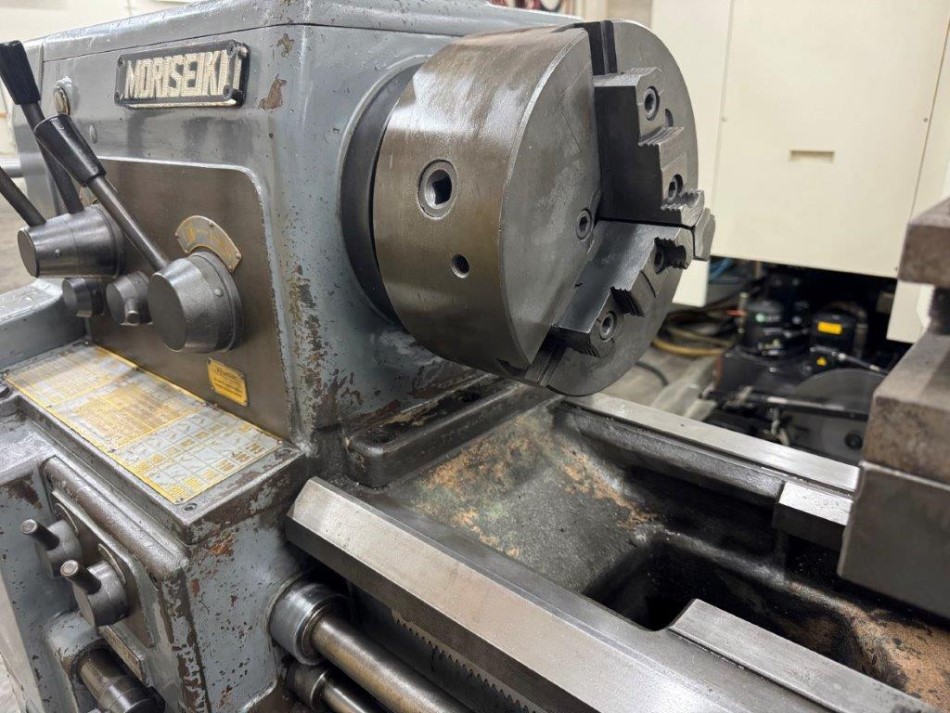

| SPINDLE NOSE | D1-6 CAMLOCK |
| HOLE THRU SPINDLE | 2" |
| NUMBER OF SPINDLE SPEEDS | 12 |
| SPINDLE SPEED RANGE | 32 to 1800 RPM |
| CROSS SLIDE TRAVEL | 10" |
| COMPOUND REST TRAVEL | 5.9" |

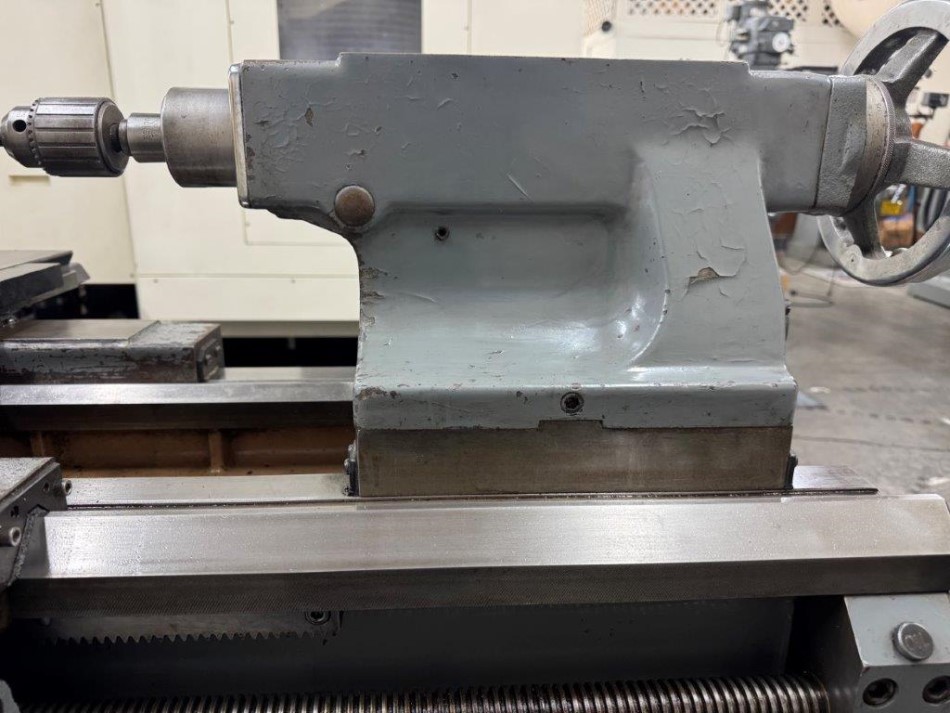

| TAILSTOCK STROKE | 6" |
| TAILSTOCK | MT#4 |

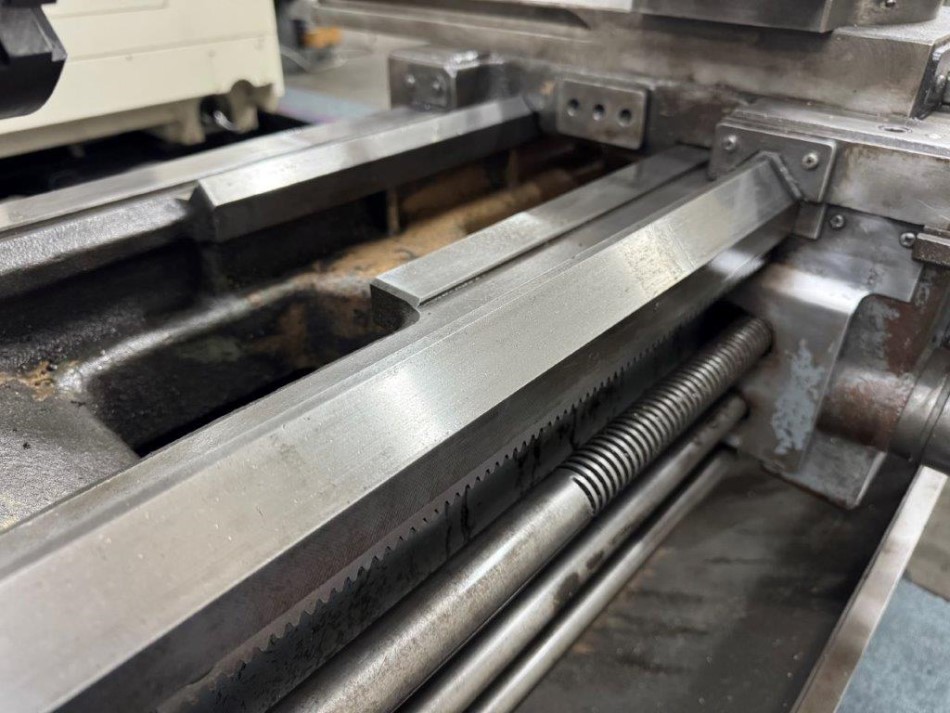

| BED WIDTH | 13.85" |
| TOTAL BED LENGTH | 74" |
| SPINDLE MOTOR | 5 HP |
| FLOOR SPACE REQ | 87" X 42” |
| WEIGHT: | 4,500 LBS |

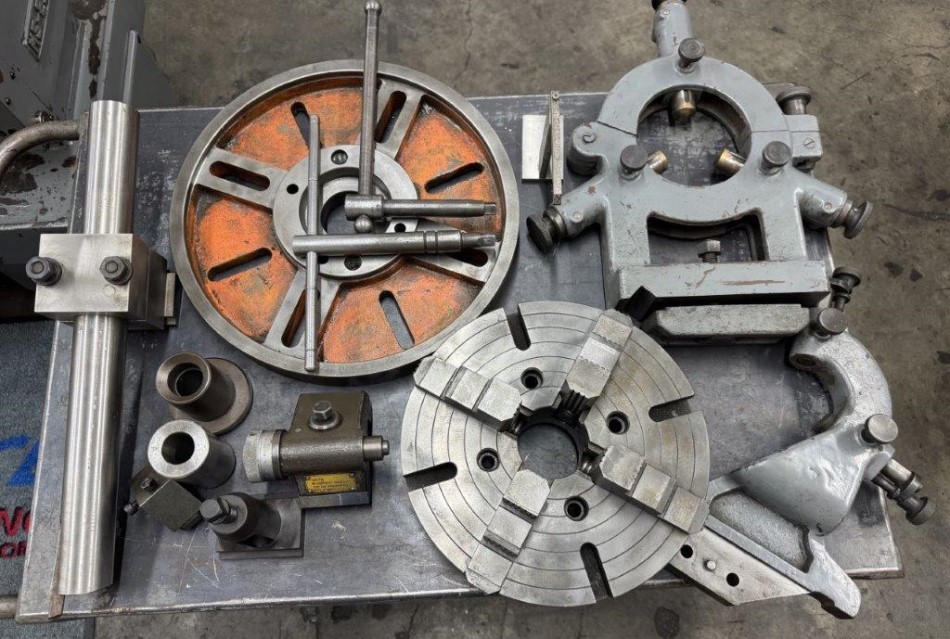

EQUIPPED WITH:
