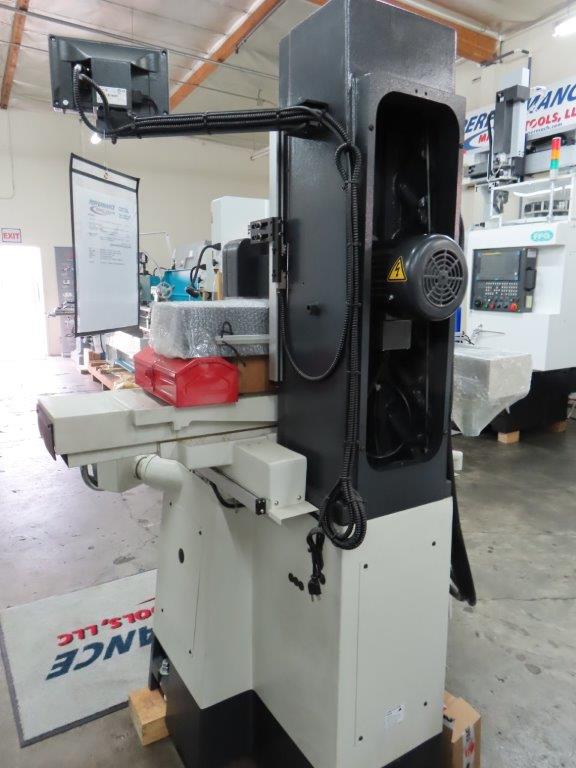

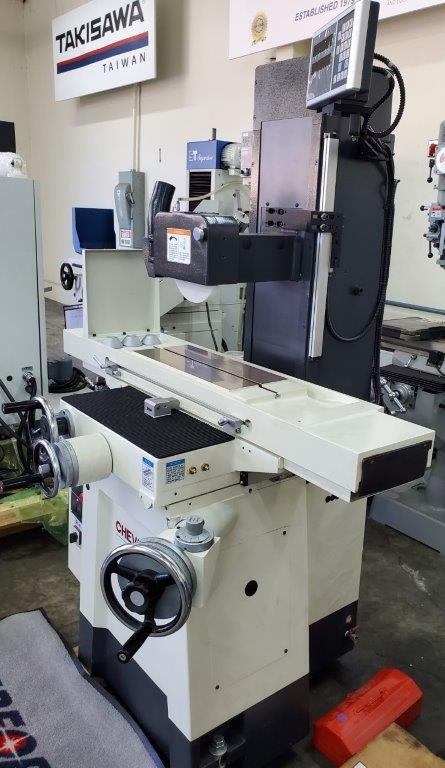

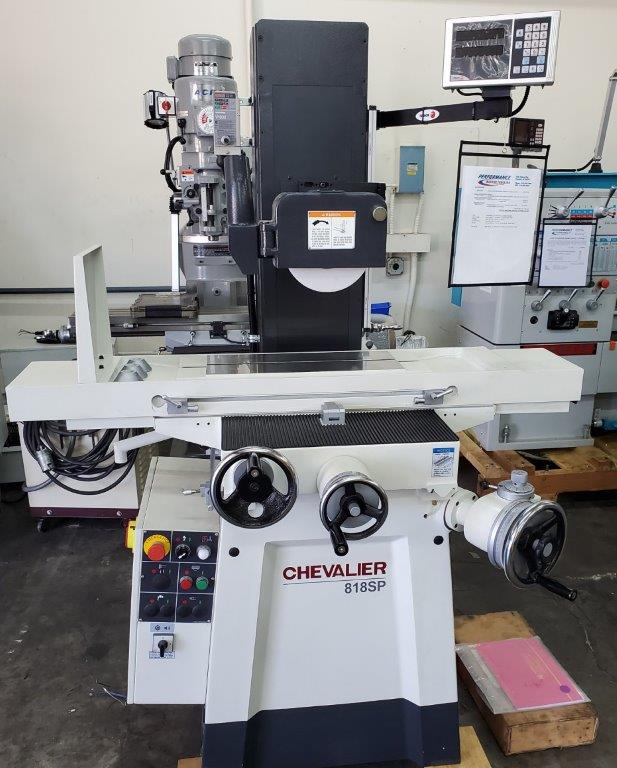

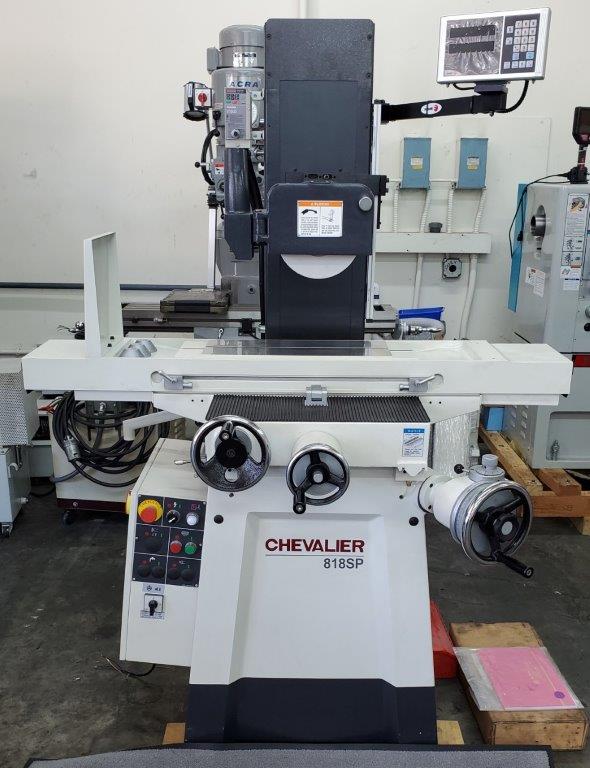

Click to view larger photo
| SPECIFICATIONS: | |
|---|---|
| TABLE SIZE 818SP | 8" x 18" |
| MAXIMUM GRINDING GRINDING LENGTH (LONGITUDINAL) 618SP & 818 SP | 20" |
| MAXIMUM GRINDING WIDTH (CROSSFEED) 818SP | 9" |
| DOWNFEED HANDWHEEL PER GRADATION | 0.0001" |
| DOWNFEED HANDWHEEL PER REVOLUTION | 0.050" |
| DOWNFEED HANDWHEEL. MICROFEED | 0.000050" |
| CROSSFEED HANDWHEEL PER GRADATION | 0.001" |
| CROSSFEED HANDWHEEL PER REVOLUTION | 0.200" |
| CROSSFEED HANDWHEEL MICROFEED (OPTIONAL) | 0.000050" |
| GRINDING SPINDLE DRIVE SPEED | 60HZ / 3450 RPM |
| GRINDING SPINDLE DRIVE POWER RATING | 2 HP / 1.5KW |
| MAXIMUM DISTANCE BETWEEN SPINDLE CENTER TO TABLE SURFACE | 20" |
| GRINDING WHEEL DIAMETER | 8" |
| GRINDING WHEEL WIDTH | 1/2" (MAX. 1") |
| GRINDING HOLE SIZE | 1-1/4" |
| APPROXIMATE NET WEIGHT OF MACHINES 818SP | 2310 LBS. |
| VOLTAGE (UNLESS OTHERWISE SPECIFIED WHEN PLACING ORDER) | 230V |
ACCESSORIES:
#B09-0103 - CHEVALIER PERMANENT Magnetic Chuck 8" x 18"
Coolant & Dust Suction System: #B17-0106H-Combination coolant & dust collector w/magnetic Separator (9 g.)

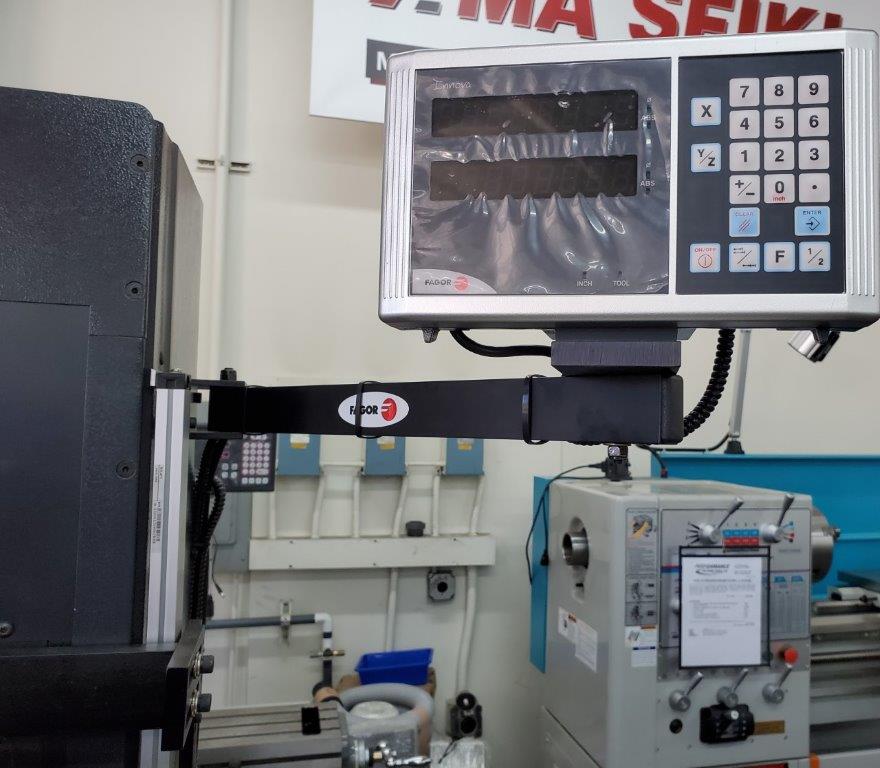

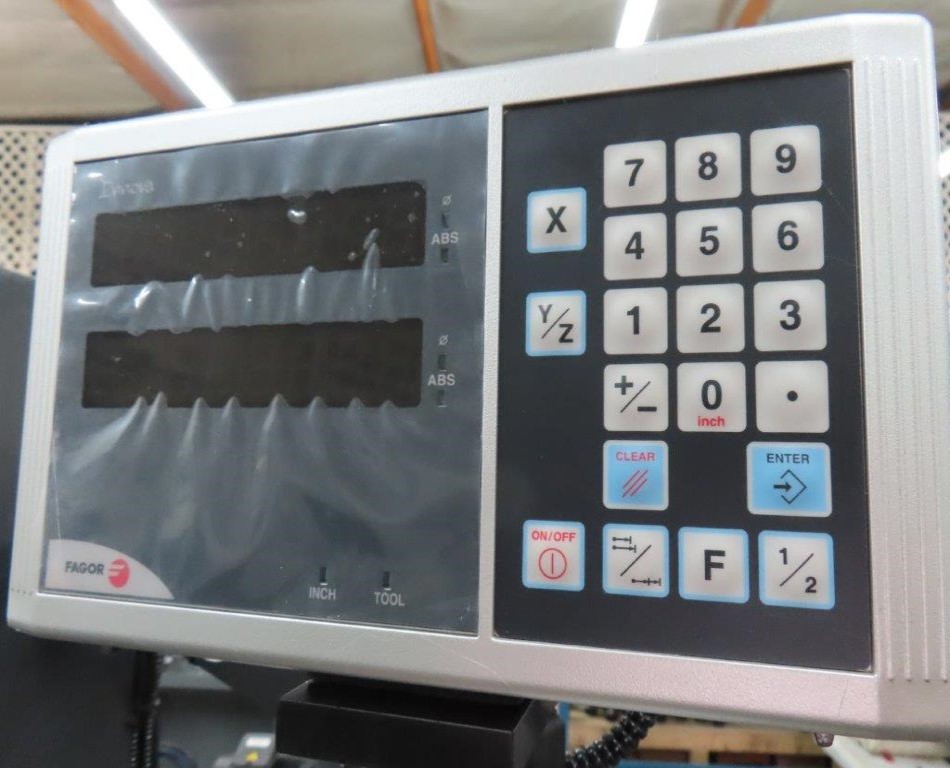

FAGOR Digital Readout System: #BL45-0119-F2-Cross and elevating DRO (612/618/818SP). Double Axis

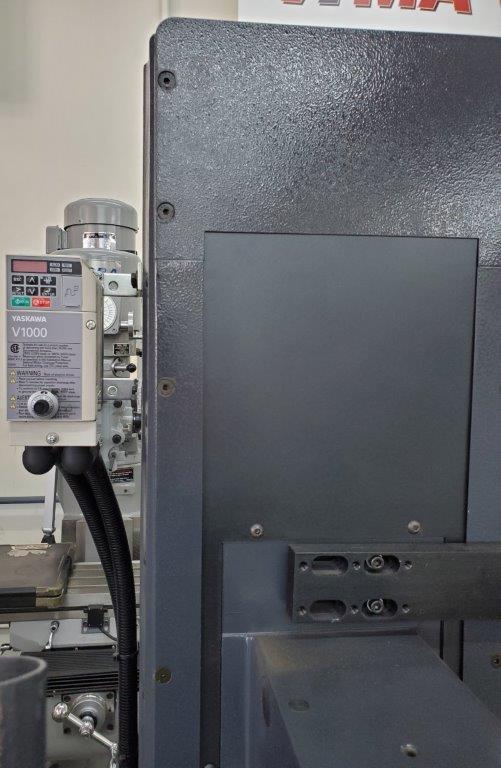

Frequency Controls: #BL48-0101-Variable spindle speeds by A.C. frequency control, 230V (must be installed at the factory)
