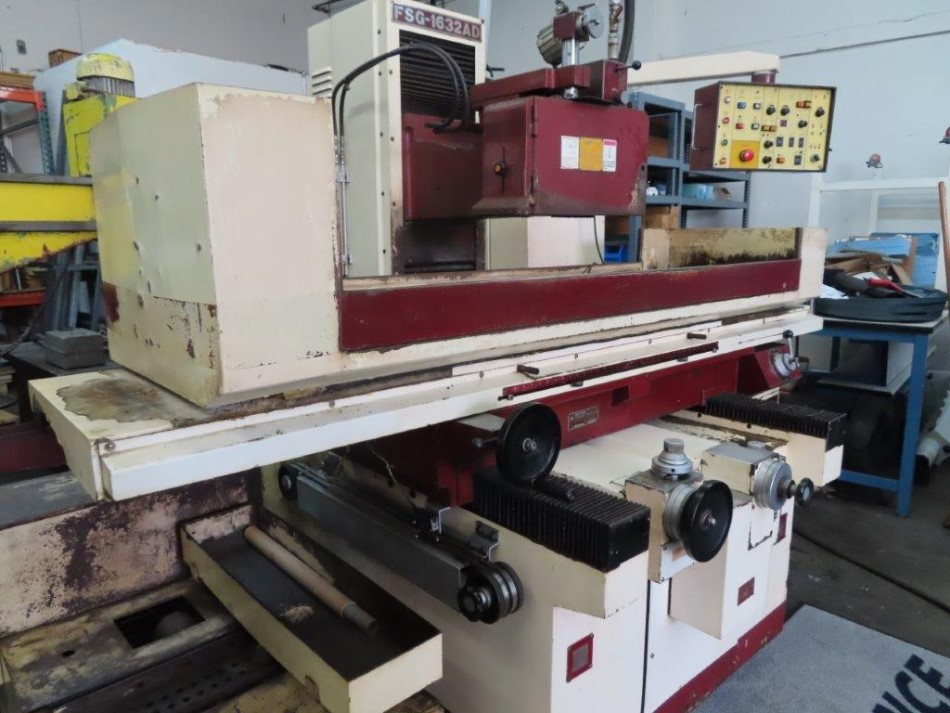

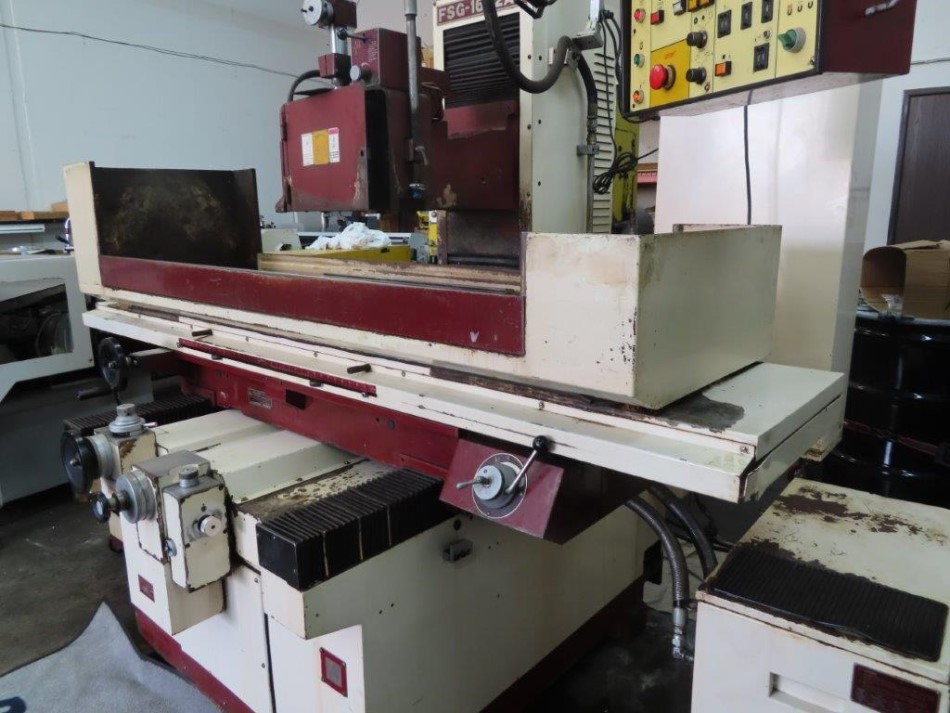

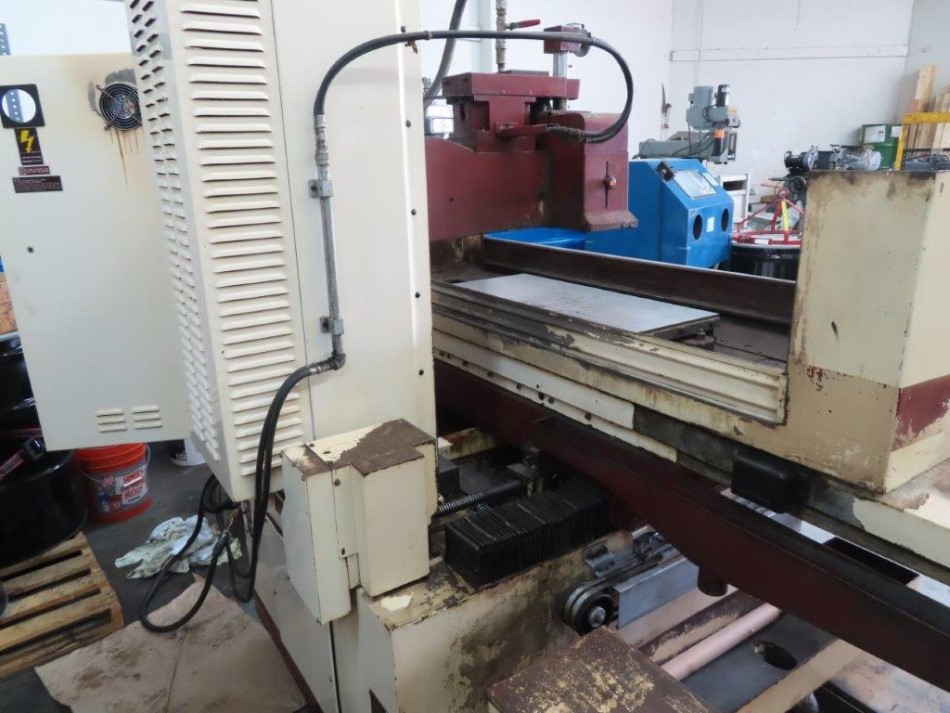

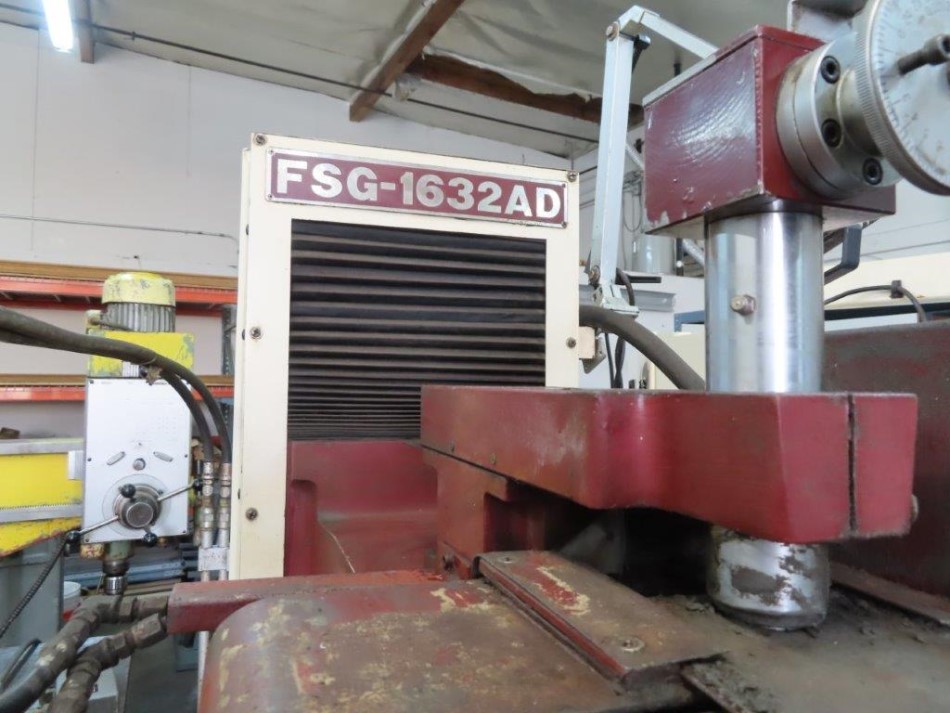

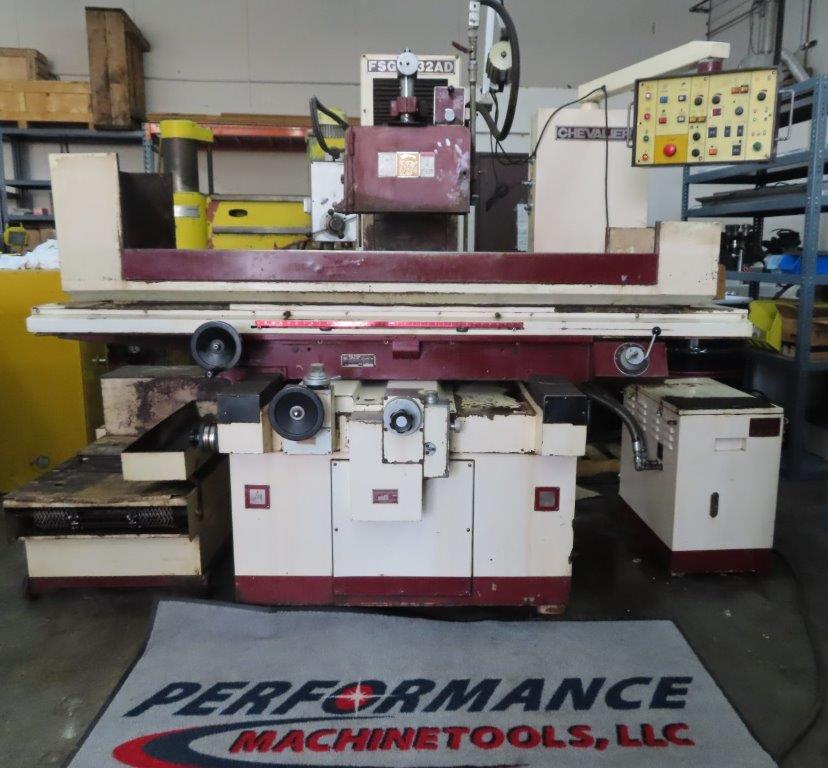

CHEVALIER FSG-1632AD PRECISION HYDRAULIC SURFACE GRINDER - BUILT: 1991
Stock Number: 517
Mfg: CHEVALIER
Click to view larger photo
| SPECIFICATIONS: |
| CHUCK SIZE |
16" x 32" |
| MAXIMUM TRAVEL - LENGTH |
33-3/8" |
| MAXIMUM TRAVEL - WIDTH |
18" |
| GRINDING SPINDLE |
5 HP / 1750 RPM |
| WHEEL SIZE |
14" x 2" x 5" |
| FLOOR SPACE |
104" x 72" x91" |
| WEIGHT |
6,400 LBS. |
| ELECTRICS |
220 / 3 / 60 |
FEATURES:
- FULL 3 AXIS AUTOMATIC OPERATION with SERVO DOWNFEED
- AUTO PLUNGE / SLICING TO 4.9 in. DEEP
- WHEELHEAD RAISES UP AND PARKS TABLE AT END OF CYCLE
- NEEDLE BEARING ANTI-FRICTION WAYS - ALL AXES
- MICRO DOWNFEED & CROSS FEED
INCLUDING:

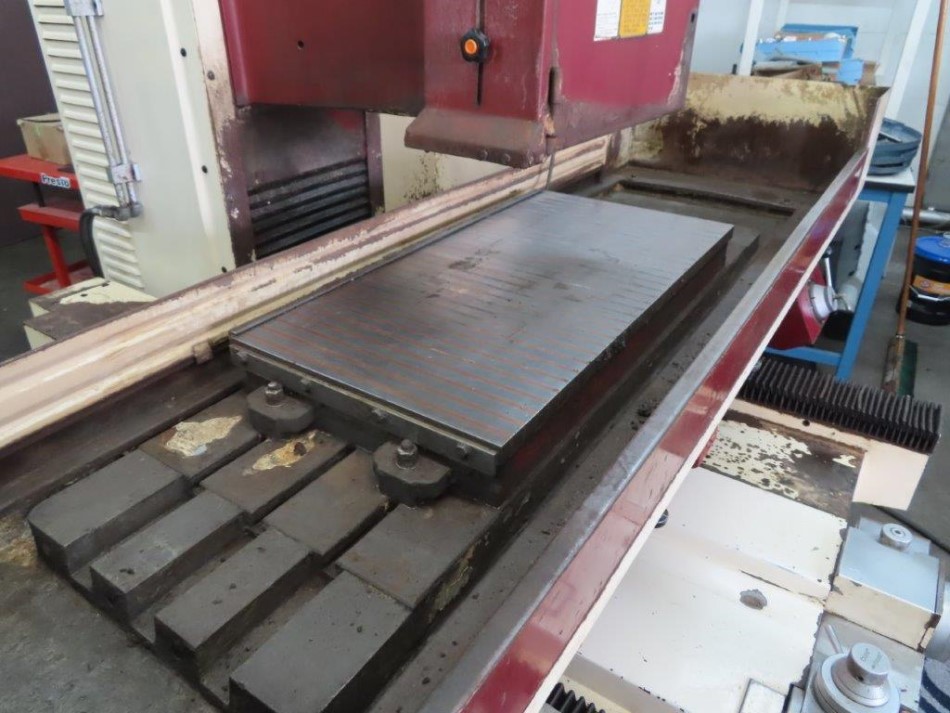

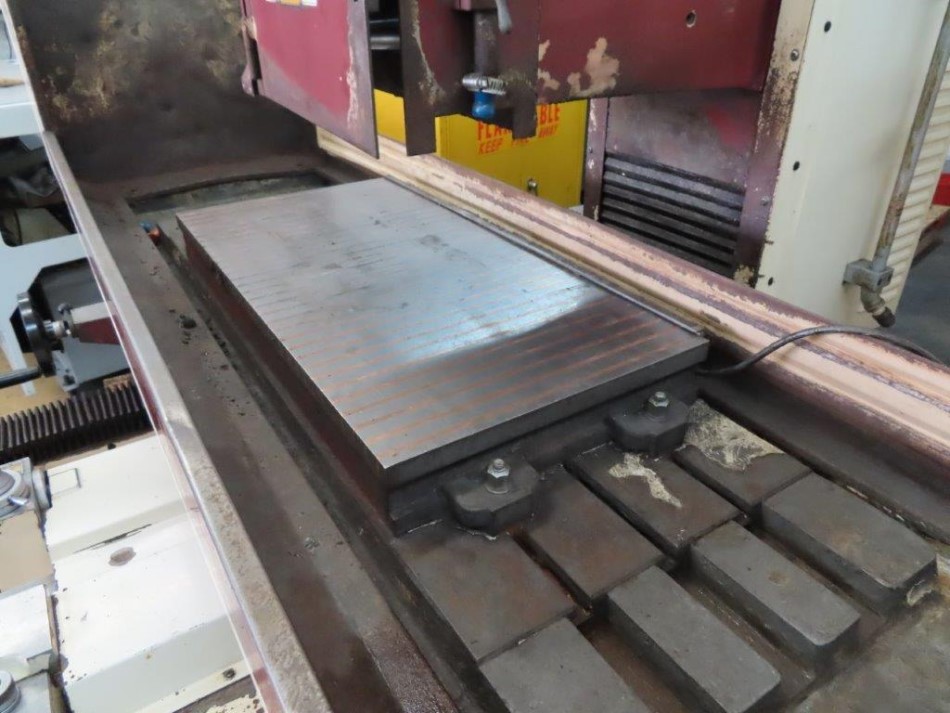

- ELECTROMAGNETIC CHUCK – 16” x 32”

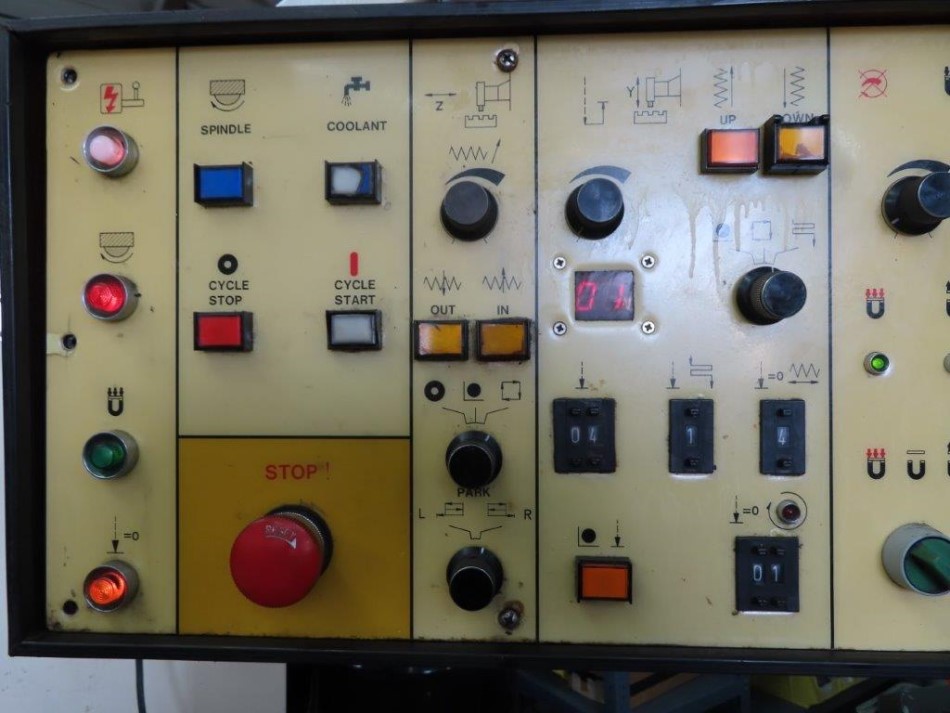

- CHUCK CONTROL WITH VARIABLE HOLDING AND DEMAGNETIZING

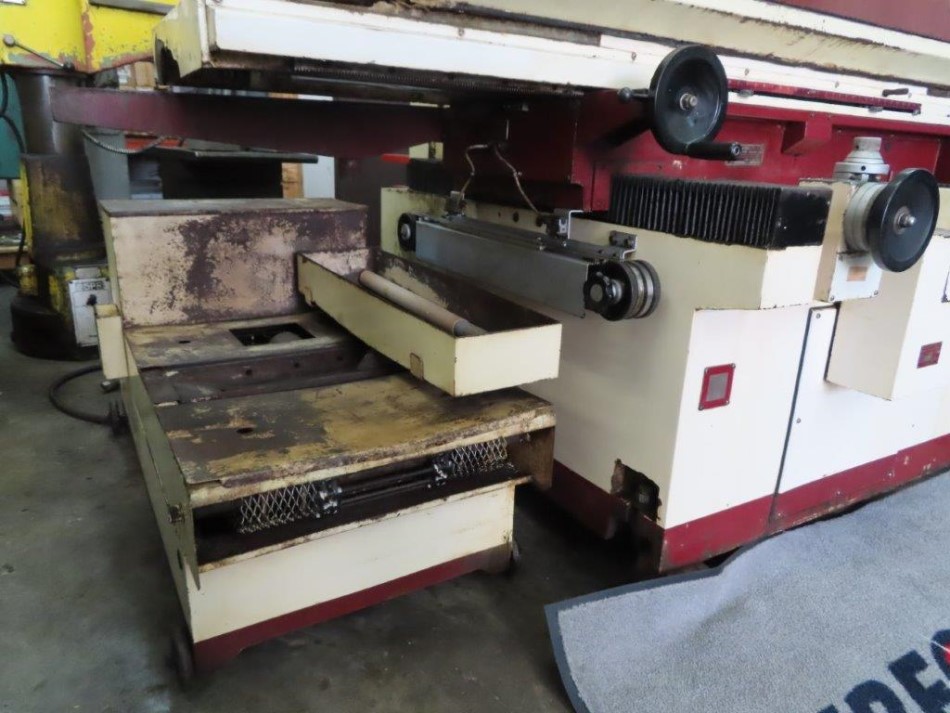

- COOLANT TANK WITH AUTO PAPER FILTER

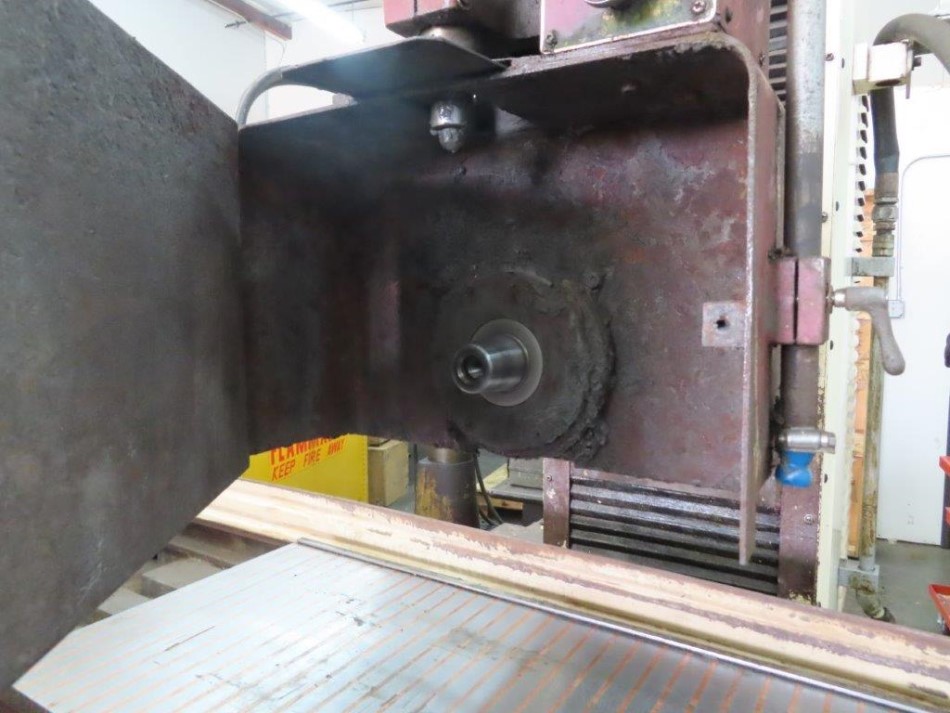

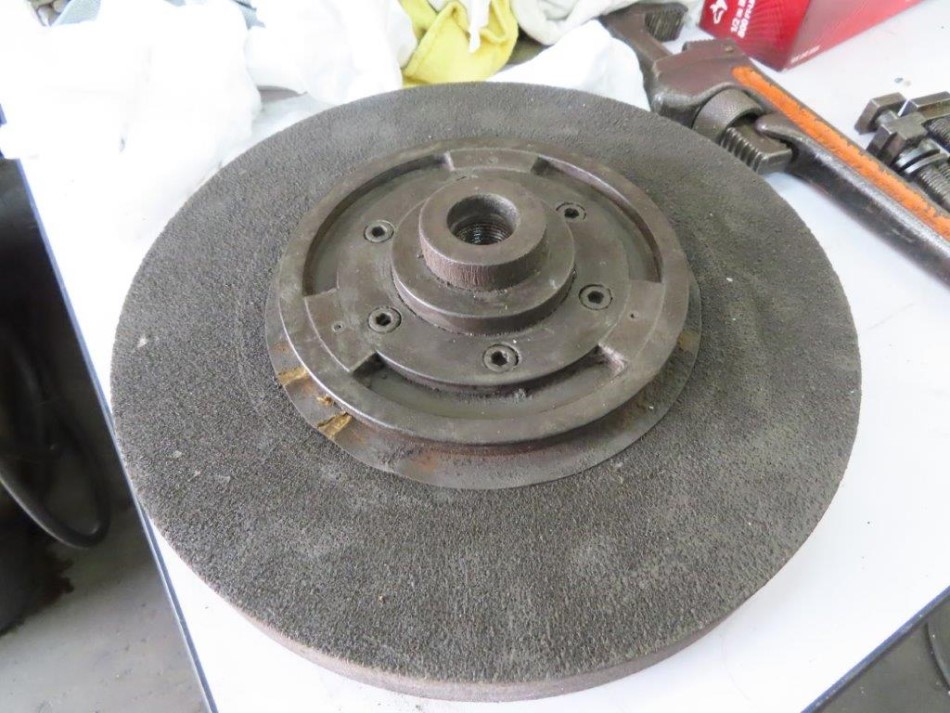

- GRINDING WHEEL HUB & WHEEL
- WORKLIGHT

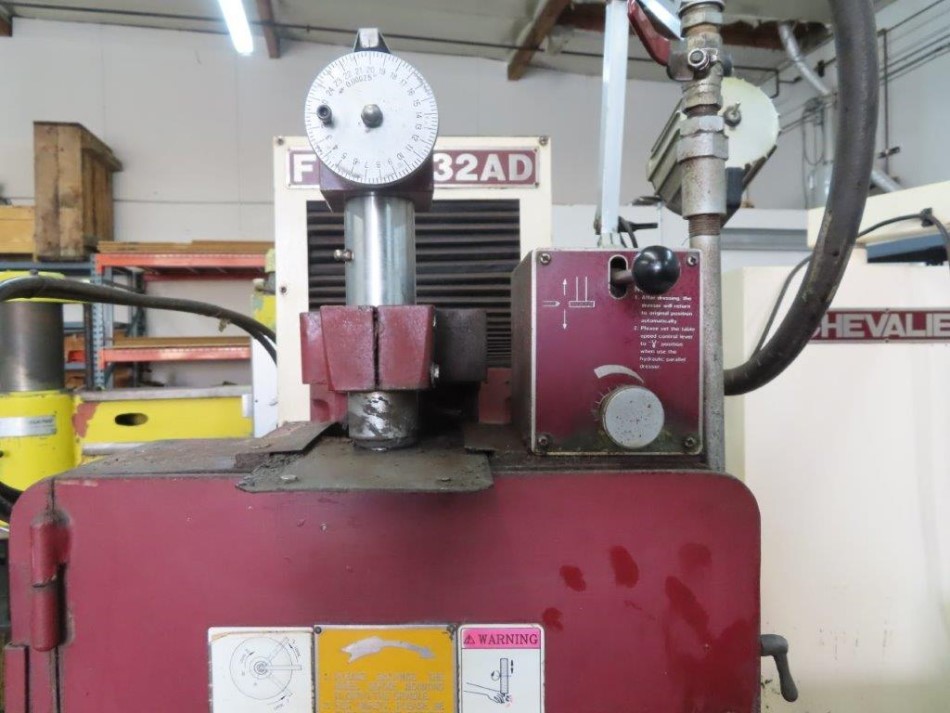

- DRESSER - OVERWHEEL
- NOTE: Under power in our Fremont showroom. Video available.
PERFORMANCE MACHINE TOOLS, INC.
3305 EDISON WAY
FREMONT, CA 94538
510.249.1000
510.249.9265
