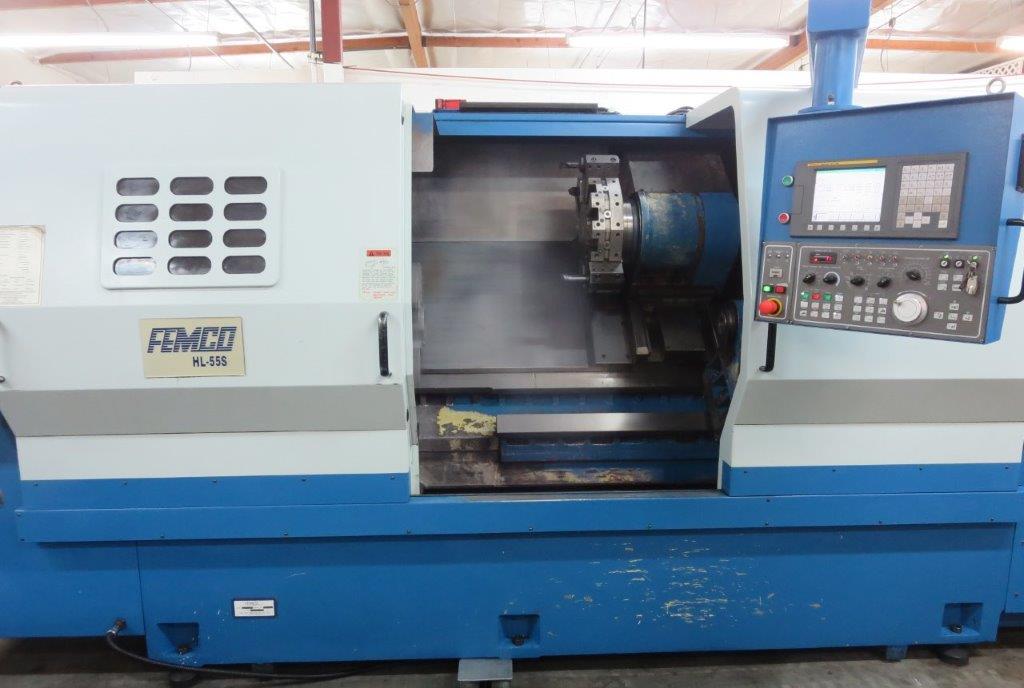

FEMCO HL-55/110 w/ 18" CHUCK

FEMCO HL-55/110 w/ 18" CHUCK

Stock Number: 1224

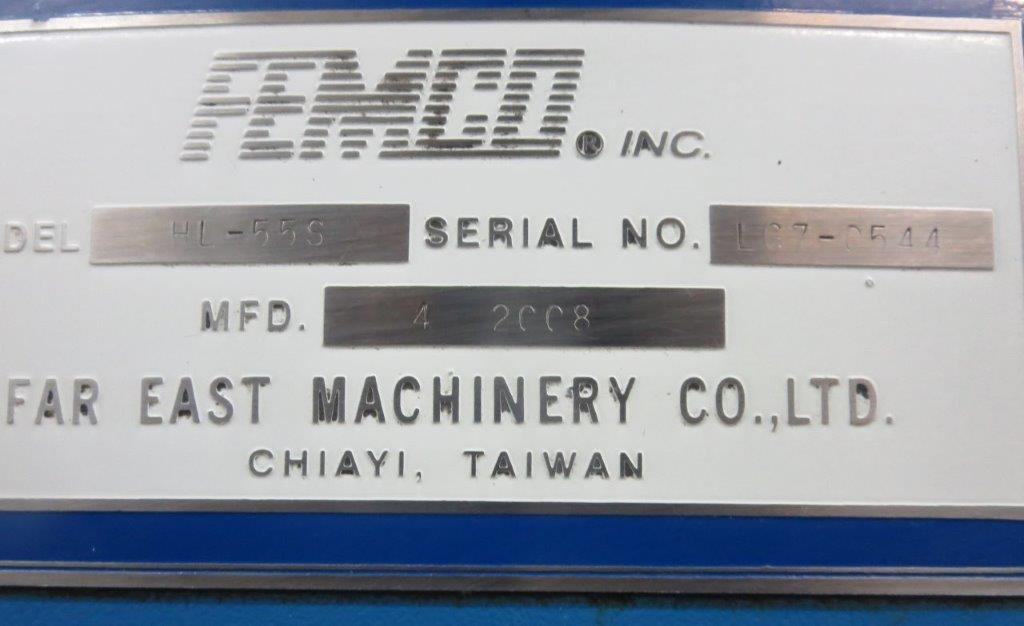

FEMCO HL-55/110 w/ 18" CHUCK  S/N: LG70544  YEAR: 2008

Condition: USED



Click to view larger photo

SPECIFICATIONSDESCRIPTION
CHUCK / BAR18" / 4.52"
SPINDLE NOSEA2-11
HOLE THRU SPINDLE5.12"
MAX TURN DIAMETER24.21"
SWING OVER BED28.62"
CENTER DISTANCE47.24"
MAX TURN LENGTH42"
SLANT BED45°
X TRAVEL13.4"
Z TRAVEL43.31"
MAX RPM2500
SPINDLE MOTOR (2 GEAR RANGE)35 HP
TOOL TURRET12 STATION
TURNING TOOLS OD / ID1" / 2"
RAPIDS-X630 IPM
RAPIDS-Z787 IPM
TAILSTOCK5MT
WEIGHT17,500 LBS.
FOOTPRINT182 x 81 x 84

Equipped With:
* HEAVY DUTY SLANT BED, BOX WAY CONSTRUCTION
* FULL ENCLOSURE + FLOOD COOLANT + WORKLIGHTS

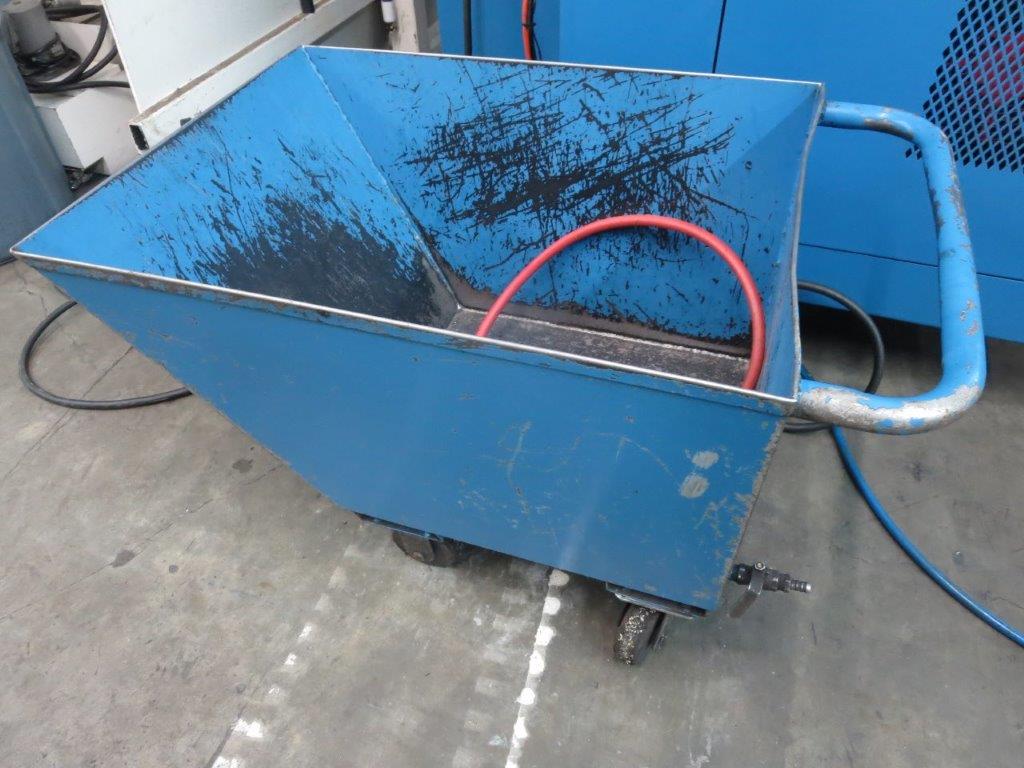

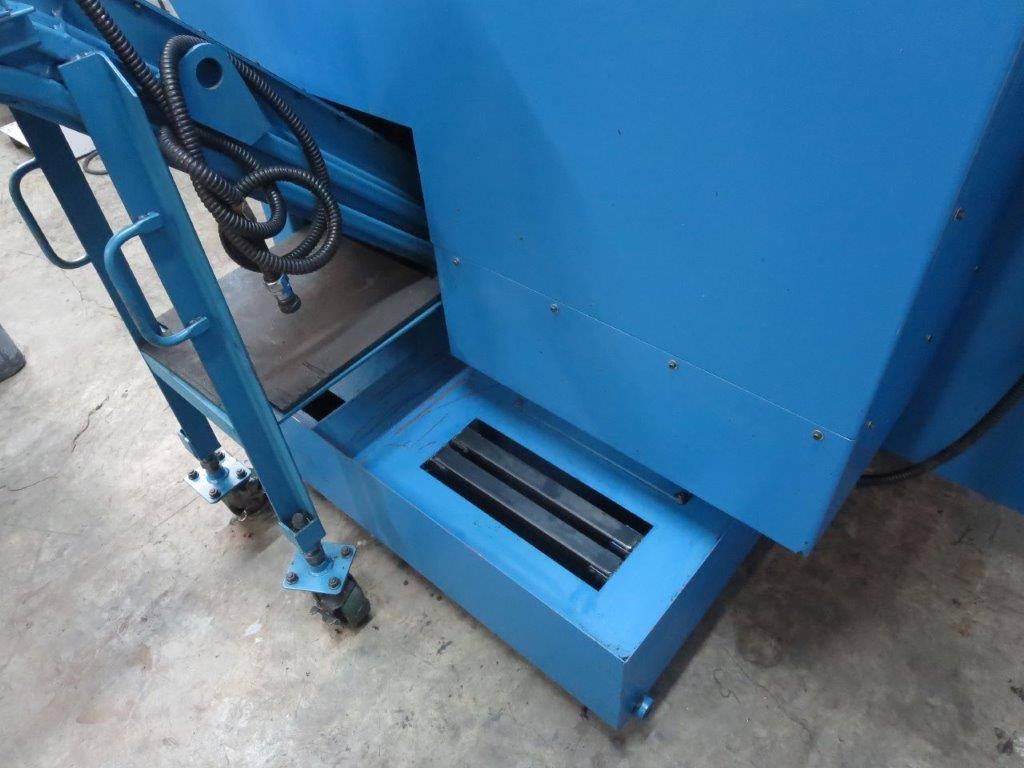

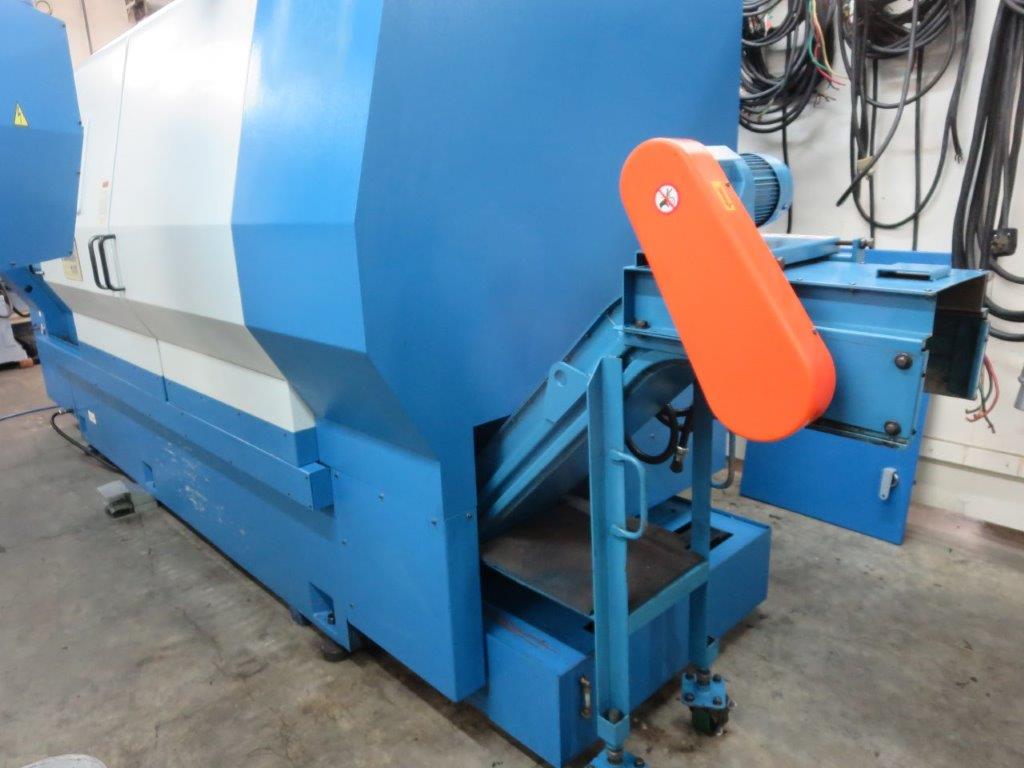

* CHIP / CONVEYOR
* BOX WAY DESIGN

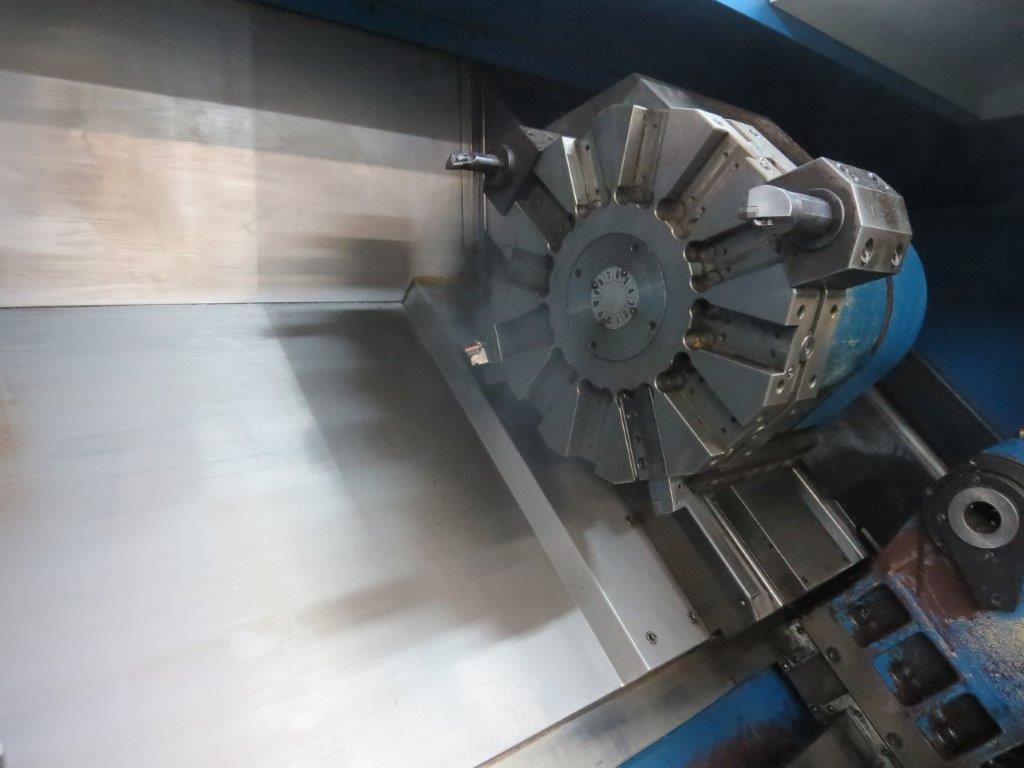

* 12 STATION TURRET

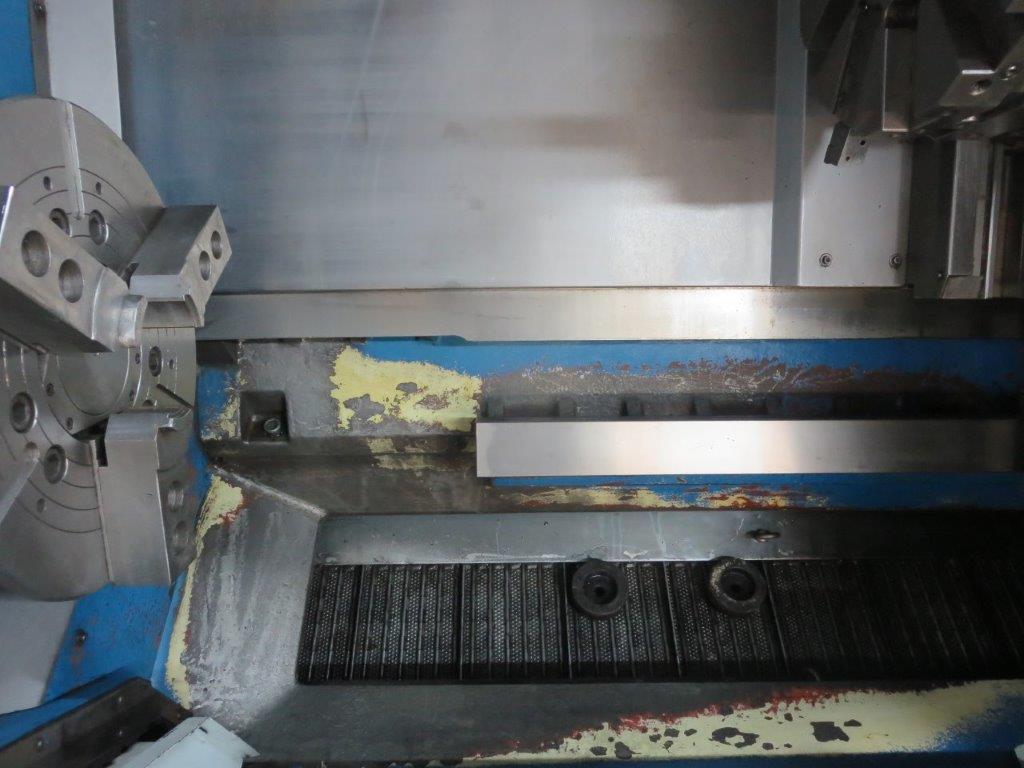

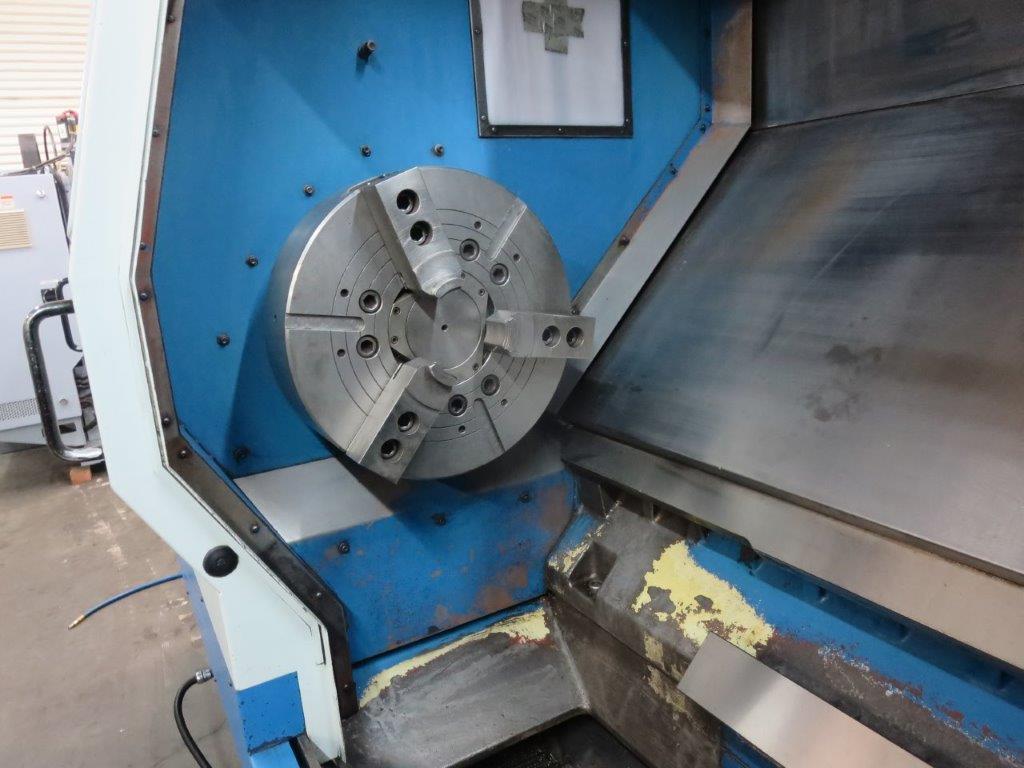

* 18" 3 JAW - STRONG BRAND CHUCK
* AUTO LUBE

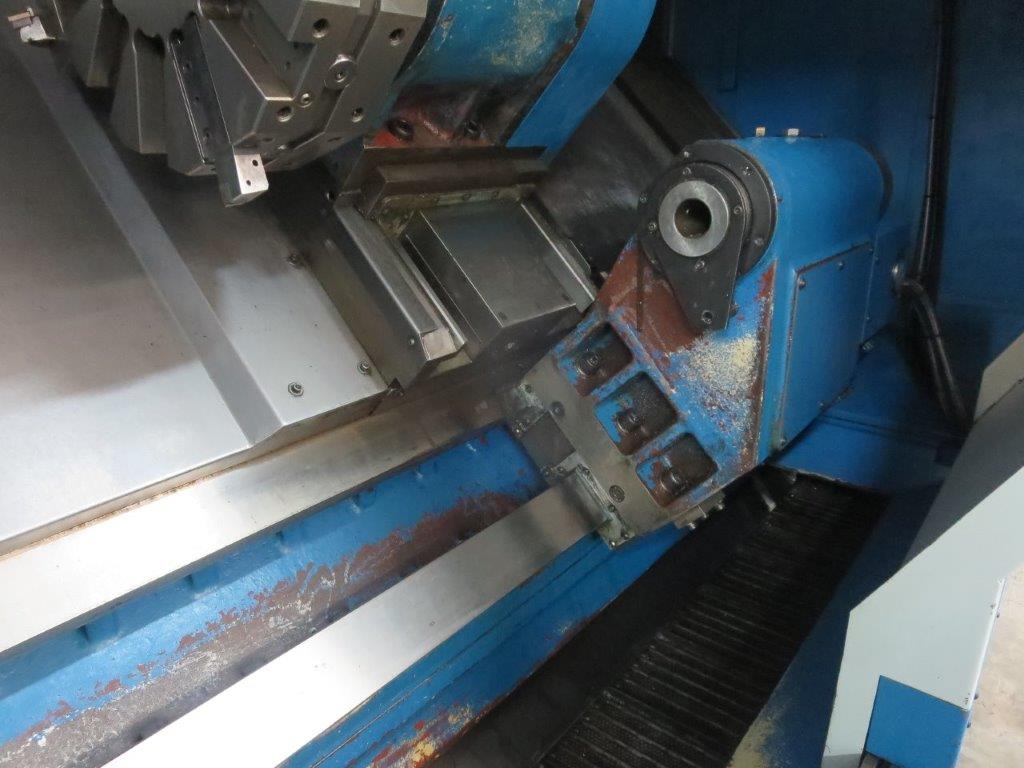

* PROGRAMMABLE TAILSTOCK-BODY & QUILL & CLAMPING
* STANDARD TURRET TOOLING

* F.O.B: FREMONT, CA (PREP & LOADING INCLUDED)
*TERMS: DUE IN FULL PRIOR TO SHIPMENT
*WARRANTY: SOLD AS-IS, PER BUYER INSPECTION UNDER POWER
