| Specification | Description |
|---|---|

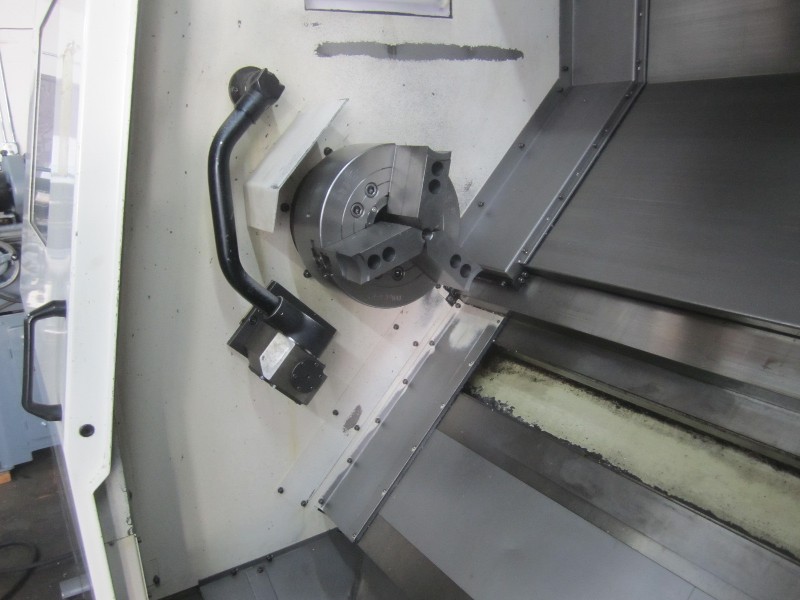

| CHUCK SIZE | 12" |
| MAXIMUM SWING | 23.62" |
| MAXIMUM CUTTING DIAMETER | 14.9" |
| MAXIMUM MACHINING LENGTH | 48" (LONG BED VERSION) |
| BAR CAPACITY | 3.1" |
| X-AXIS TRAVEL | 11" |
| Z-AXIS TRAVEL | 50" |
| SPINDLE MOTOR | 30 HP |
| SPINDLE SPEED | 25 - 3200 RPM (2 SPD GEAR BOX) |
| SPINDLE NOSE / SPINDLE BORE | A2-8 |

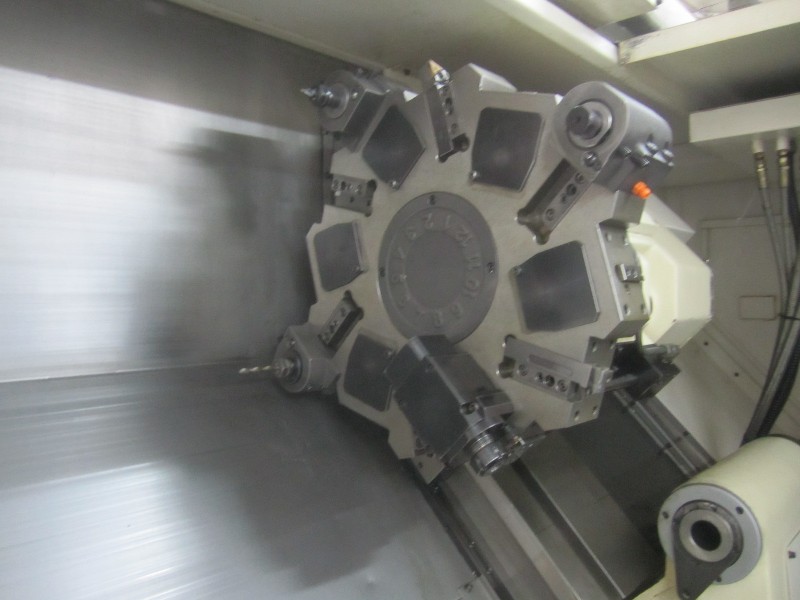

| TOOL TURRET TYPE | 12 POSITION TURRET |

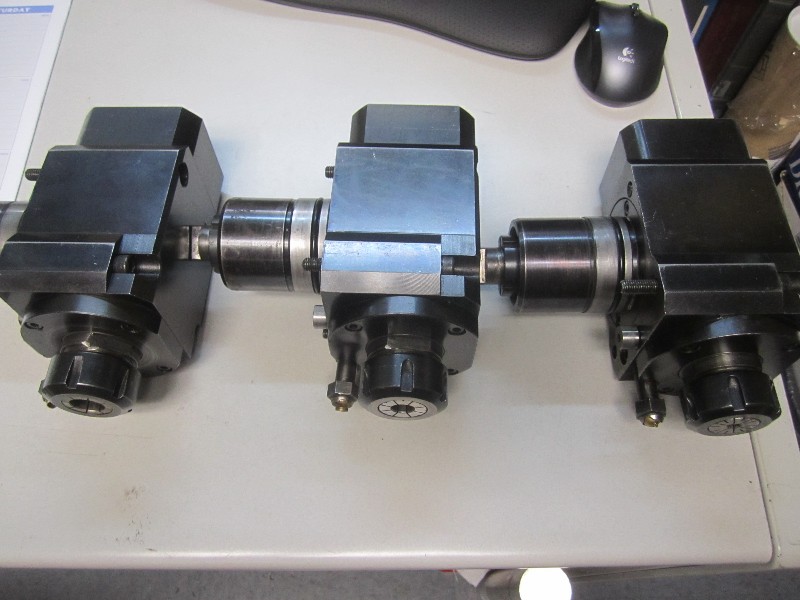

| MILLING SPINDLE ON TURRET | 5 HP / 3000 RPM |
| STANDARD CUTTING TOOL | 1" |
| BORING BAR SIZE | 2" |
| RAPID TRAVERSE | 708 IPM |

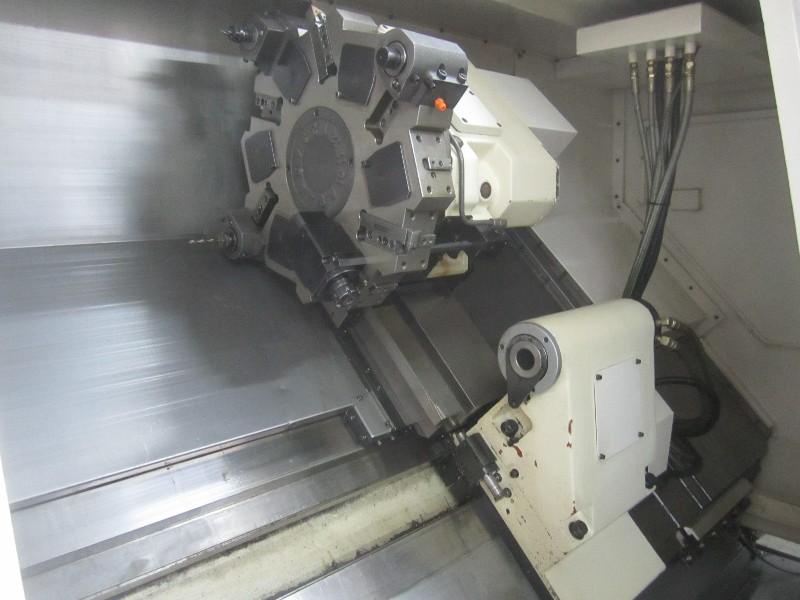

| TAILSTOCK QUILL STROKE | 4.72" |
| TAPER OF TAILSTOCK QUILL | MT#5 |
| DIMENSIONS | 157" x 74" x 84" H |
| WEIGHT | 23,000 LBS. |
