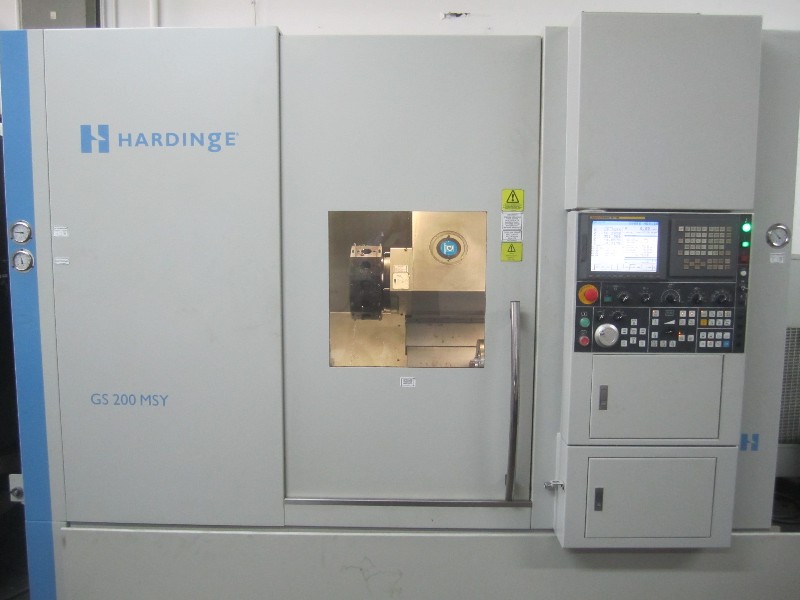

HARDINGE GS200MSY CNC LATHE WITH LIVE TOOL & SUB SPINDLE

HARDINGE GS200MSY CNC LATHE WITH LIVE TOOL & SUB SPINDLE

Stock Number: 1126

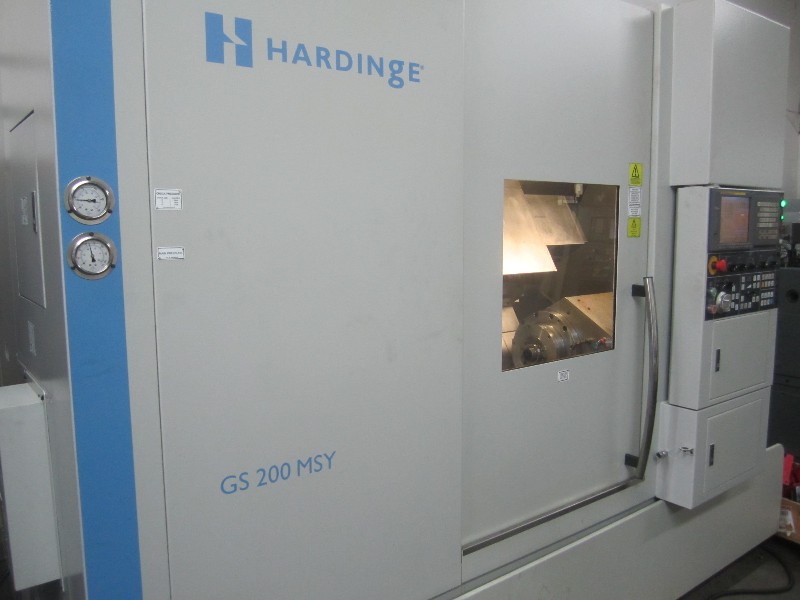

HARDINGE GS200MSY

Age: 2008

Condition: EXCELLENT




Click to view larger photo

SpecificationDescription
SWING OVER BED24.4"
SWING OVER CARRIAGE21.6"
MAX CUTTING DIAMETER15"
DISTANCE BETWEEN SPINDLES33.8"
CHUCK SIZE MAIN/SUB SPINDLE8" / 6"
X TRAVEL8.58"
Y TRAVEL2.00"
Z TRAVEL23.6"
MAX BAR CAPACITY2.56"
MAX MACHINING LENGTH21.3"
MAIN SPINDLE SPEED45-4,500 RPM
SUB SPINDLE SPEED60-6,000 RPM
SPINDLE NOSE/BOREA2-6 / 2.99"
SPINDLE MOTOR MAIN/SUB20 HP / 10 HP
SPINDLE INDEXING.001 DEGREE
TURRET POSITIONS12
LIVE TOOL RPM4,000
RAPID TRAVERSE RATES X / Z1,181 IPM
ELECTRICS208 / 3 / 60
APPROXIMATE DIMENSIONS118" x 78" x 72"

Equipped With:
8" CHUCK MAIN SPINDLE

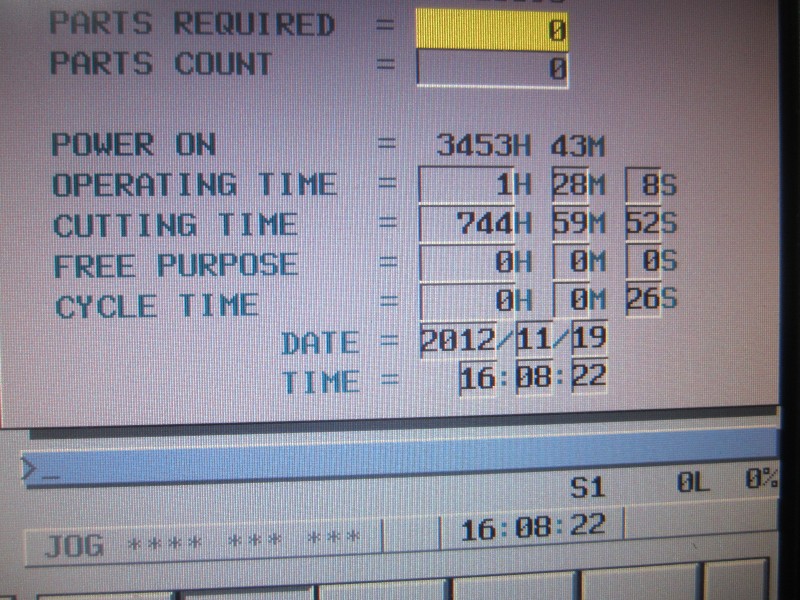

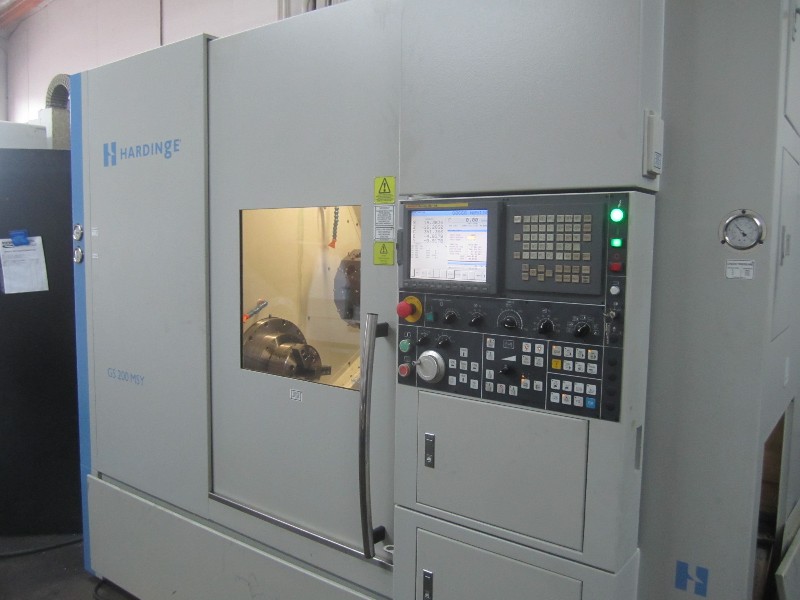

FANUC 18iTB CONTROL WITH MANUAL GUIDE i
FULL "C" AXIS ON BOTH SPINDLES

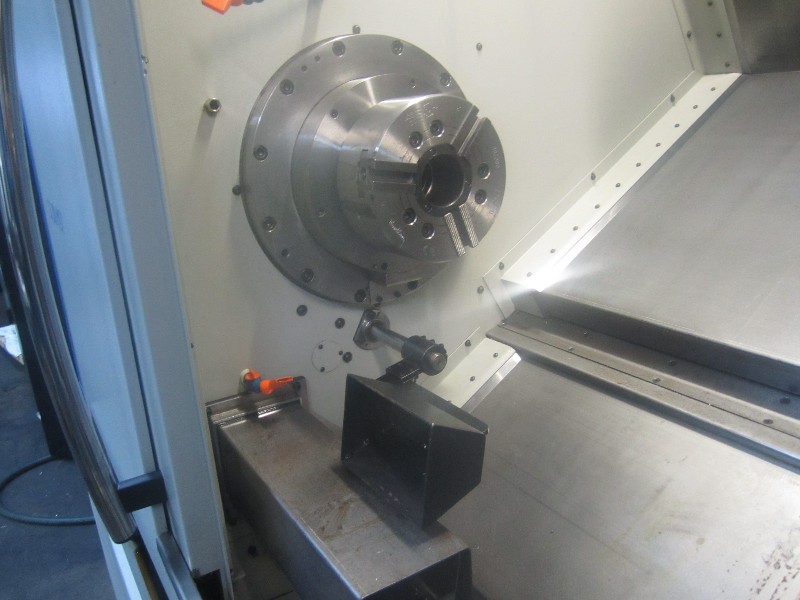

6" SUB SPINDLE CHUCK - WITH PART EJECTION

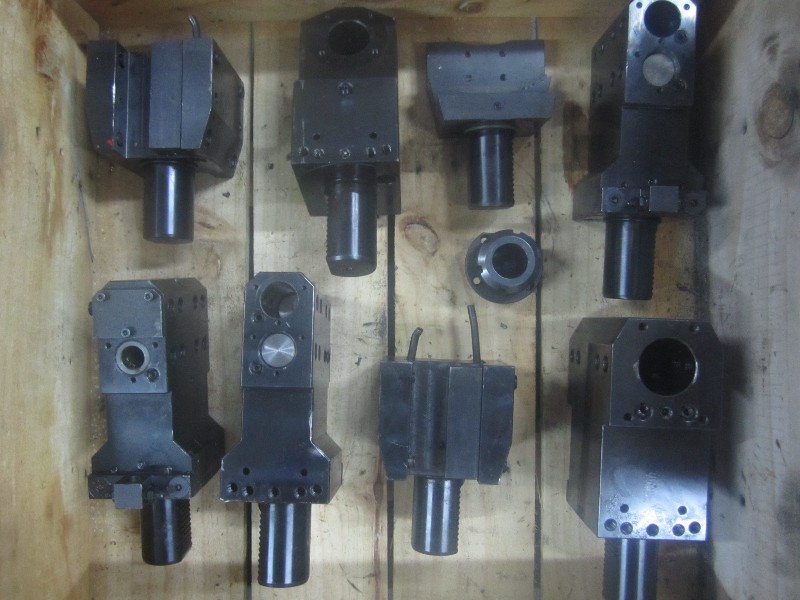

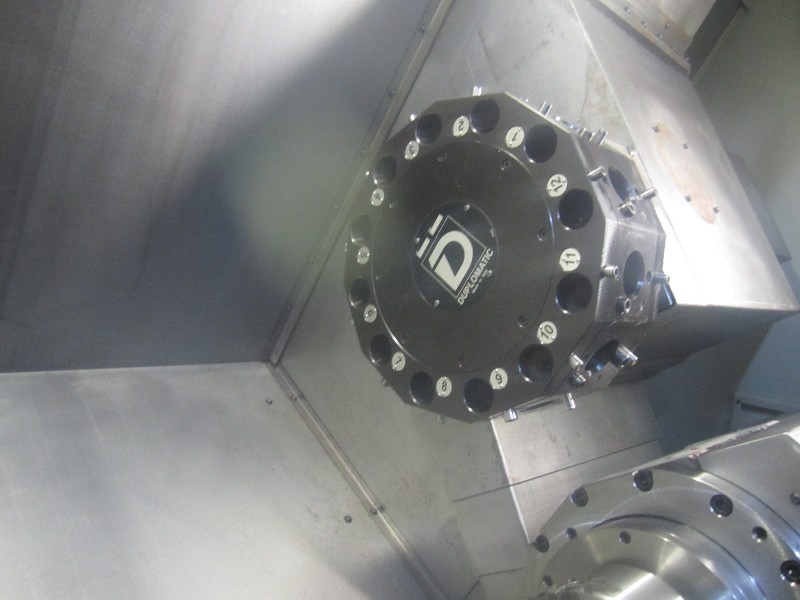

12 STATION DUPLOMATIC LIVE TOOL TURRET - VDI-40 HOLDERS
AUTOMATIC TOOL PRESETTER
RIGID TAPPING ON BOTH SPINDLES / LIVE TOOLING
LINEAR WAY CONSTRUCTION WITH GREASE LUBRICATION

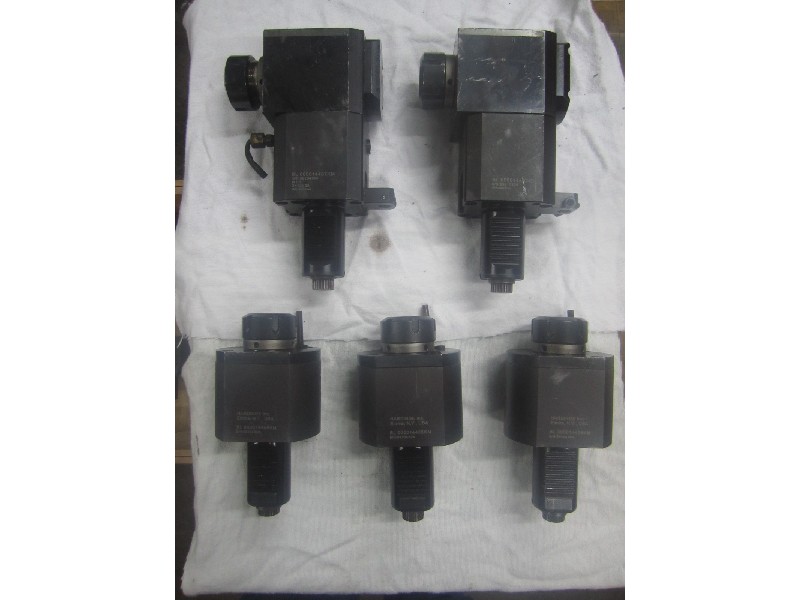

(3) AXIAL & (2) RADIAL LIVE TOOL HOLDERS
"Y" AXIS TRAVERSE
PARTS CATCHER & PARTS DISCHARGE CONVEYOR
CHILLER FOR MAIN & SUB SPINDLES
INTEGRAL WINDINGS ON BOTH MAIN & SUB-SPINDLES
5C COLLET NOSE FOR MAIN SPINDLE
