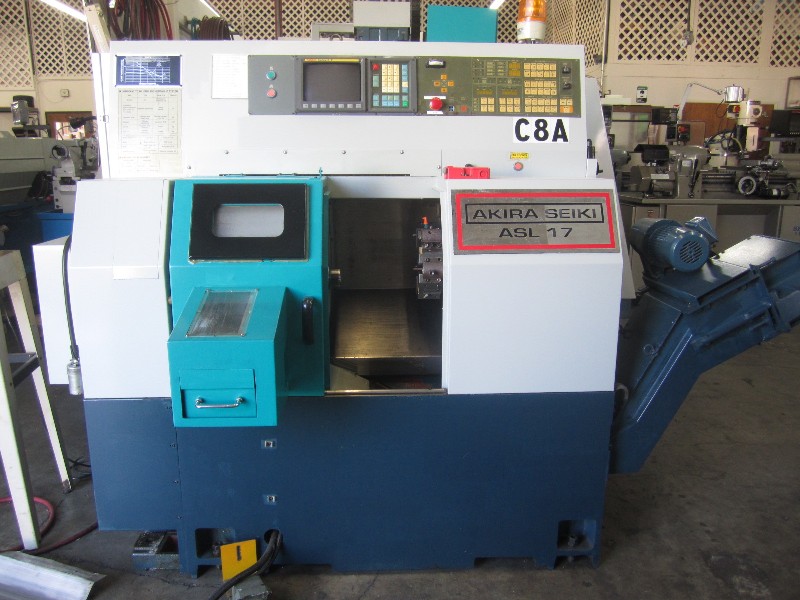

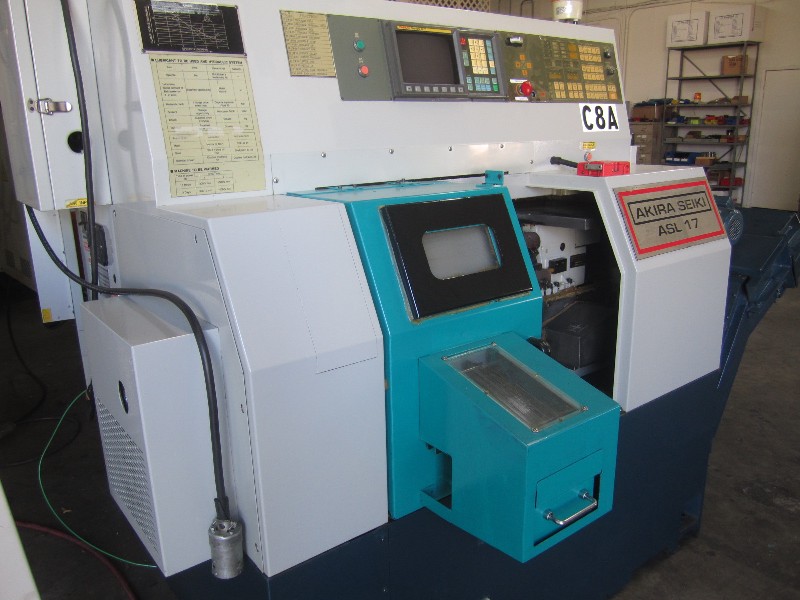

AKIRA SEIKI ASL-17 CNC LATHE

AKIRA SEIKI ASL-17 CNC LATHE

Stock Number: 1024

AKIRA-SEIKI ASL-17

Age: 1998

Condition: GOOD




Click to view larger photo

SpecificationDescription
CHUCK DIAMTER/ BAR CAPACITY6" / 1.7"
SWING OVER BED14"
MAX. MACHINING DIAMETER9"
MAX. MACHINING LENGTH13"
X-AXIS TRAVEL5'
Z-AXIS TRAVEL14"
SPINDLE SPEED30-6000 RPM
SPINDLE NOSEA2-5
# OF TOOL POSITIONS8
RAPID FEED RATE: X AXIS1200 IPM
RAPID FEED RATE: Z AXIS1300 IPM
MAIN MOTOR15 HP PEAK
DIMENSIONS69" LONG, 97" WITH CHIP CONVEY
 63" DEEP
WEIGHT6200 LBS.


Equipped With:
FANUC OT CNC CONTROL
5C COLLET NOSE

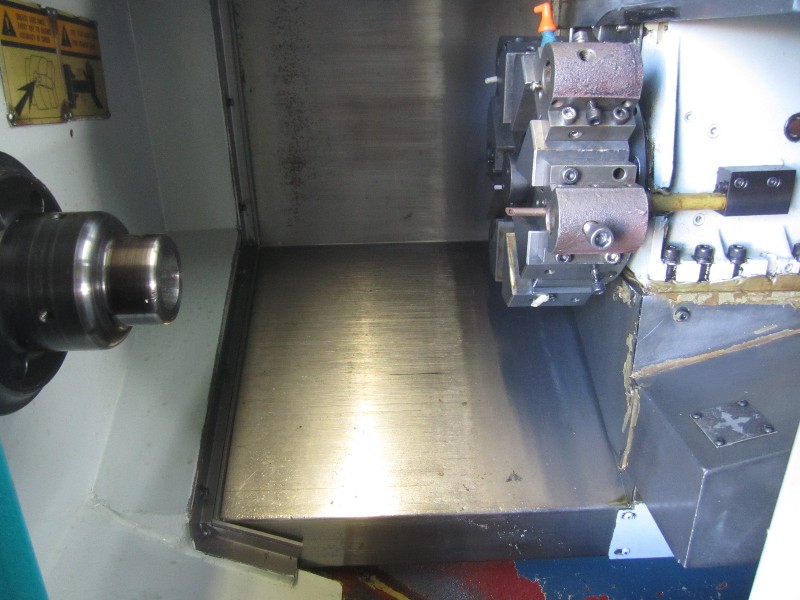

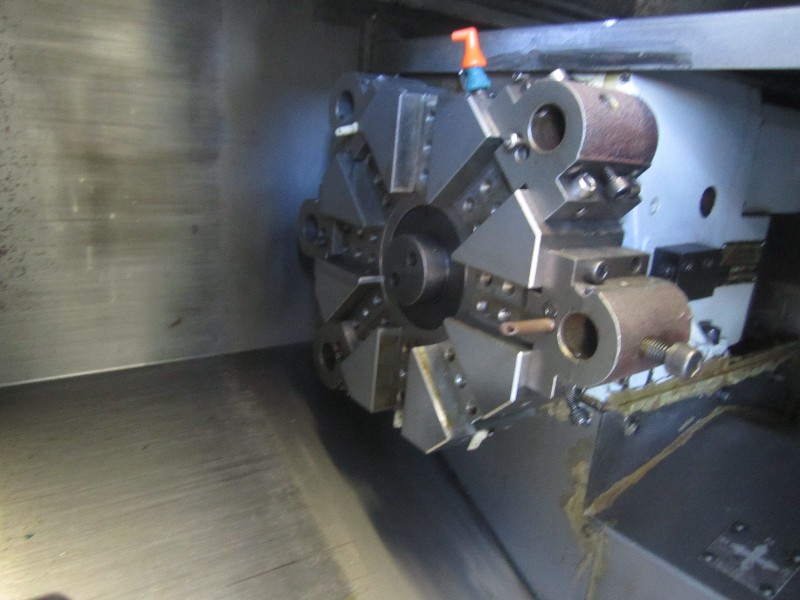

8 STATION TURRET
BASIC TURRET TOOLING PLUS MISC. TOOL HOLDERS
ALL AVAILABLE MANUALS
ALL AVAILABLE TOOLING

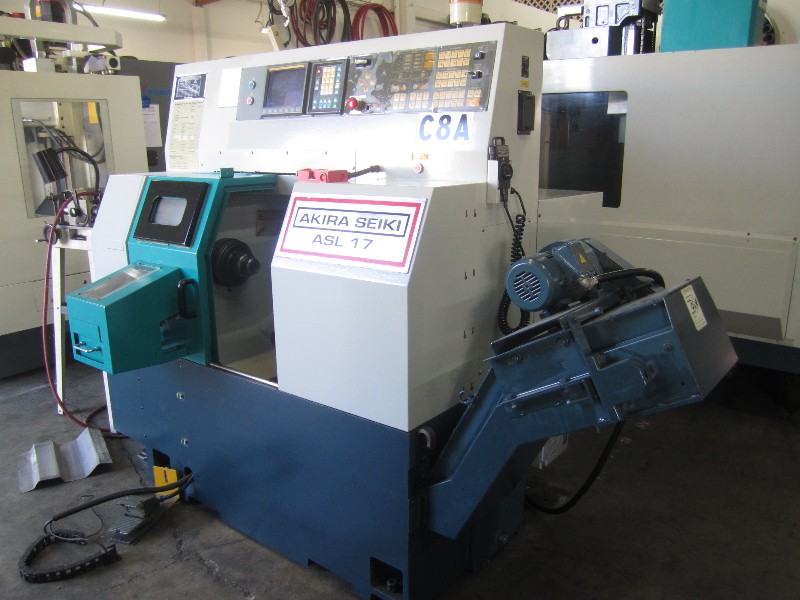

CHIP CONVEYER
NO TAILSTOCK
