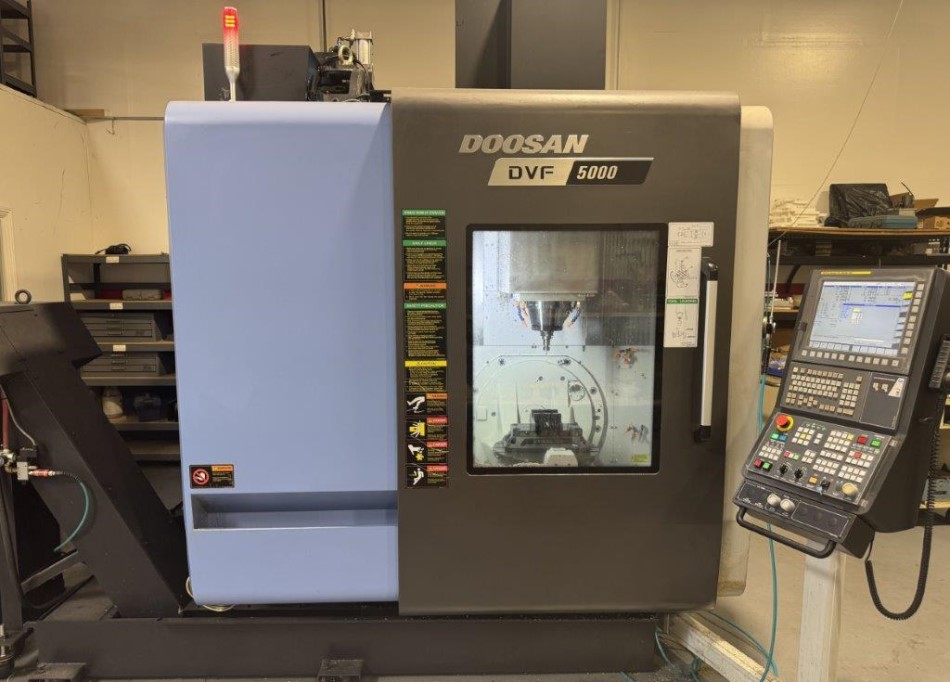

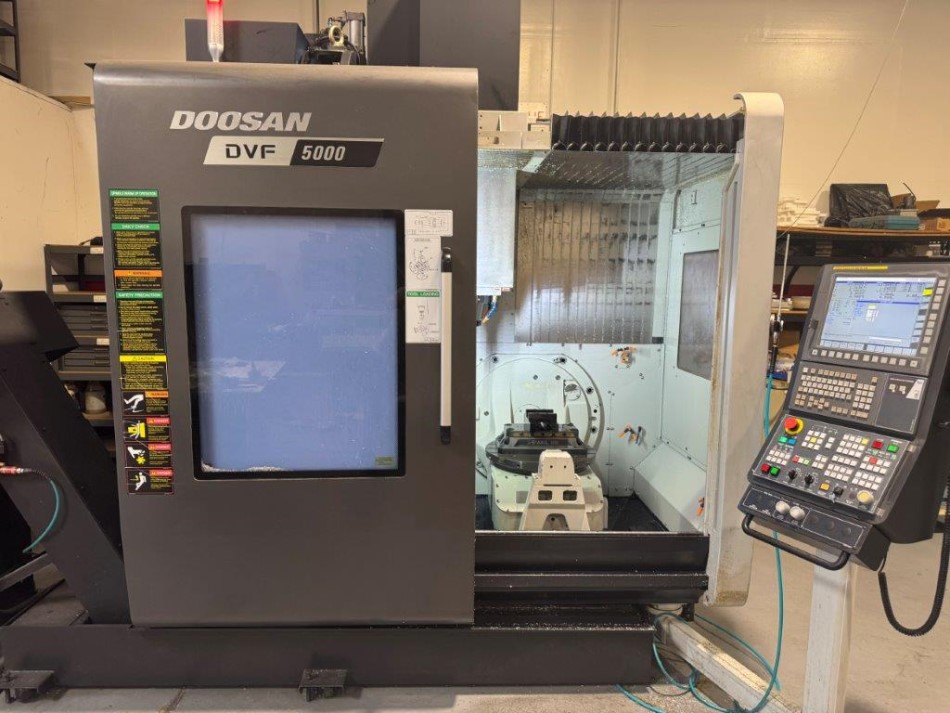

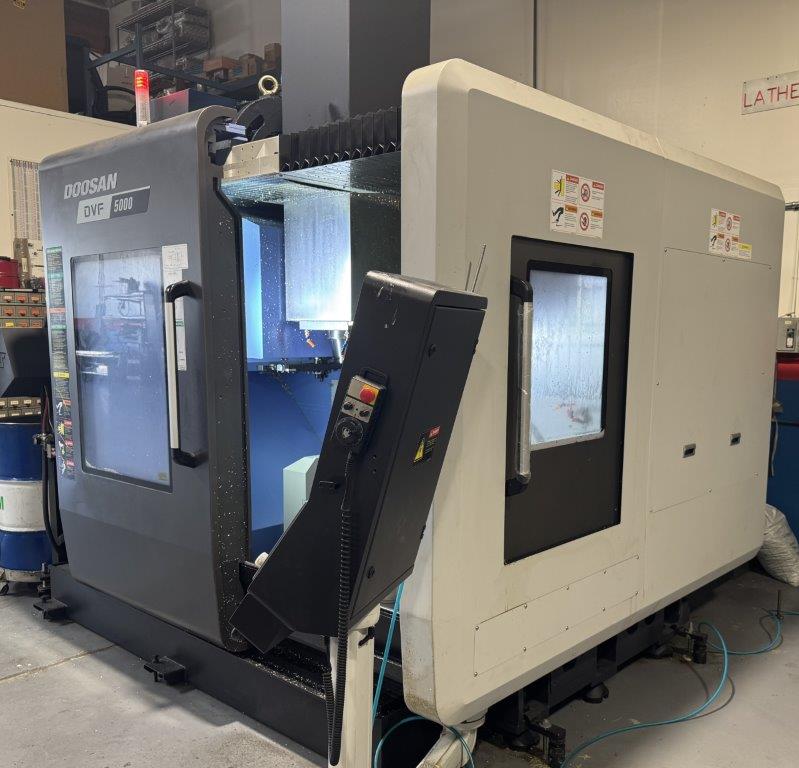

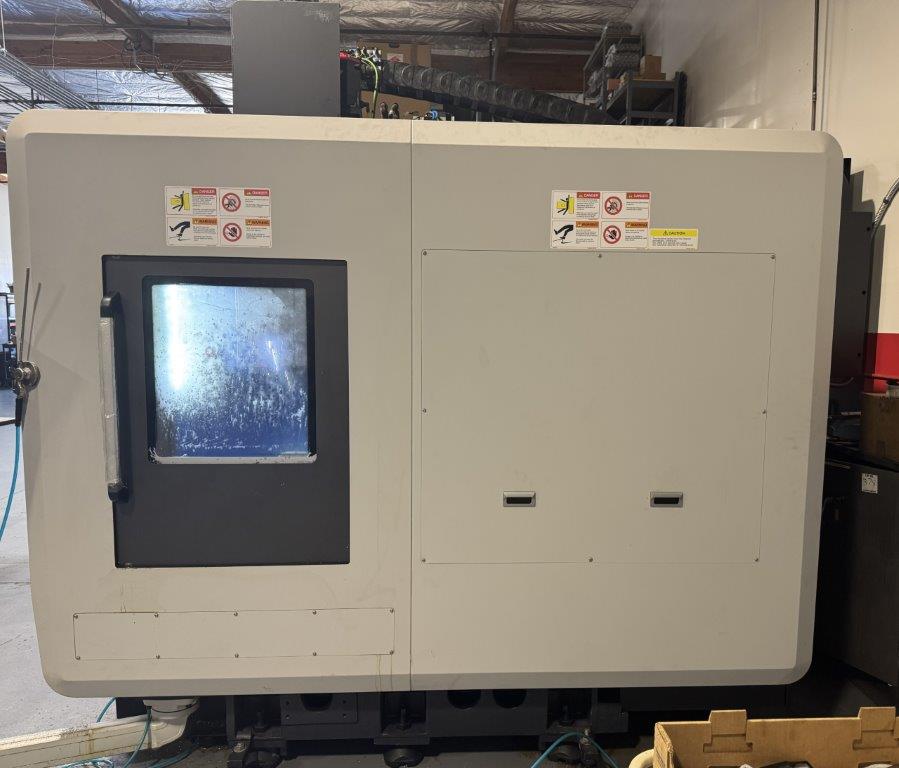

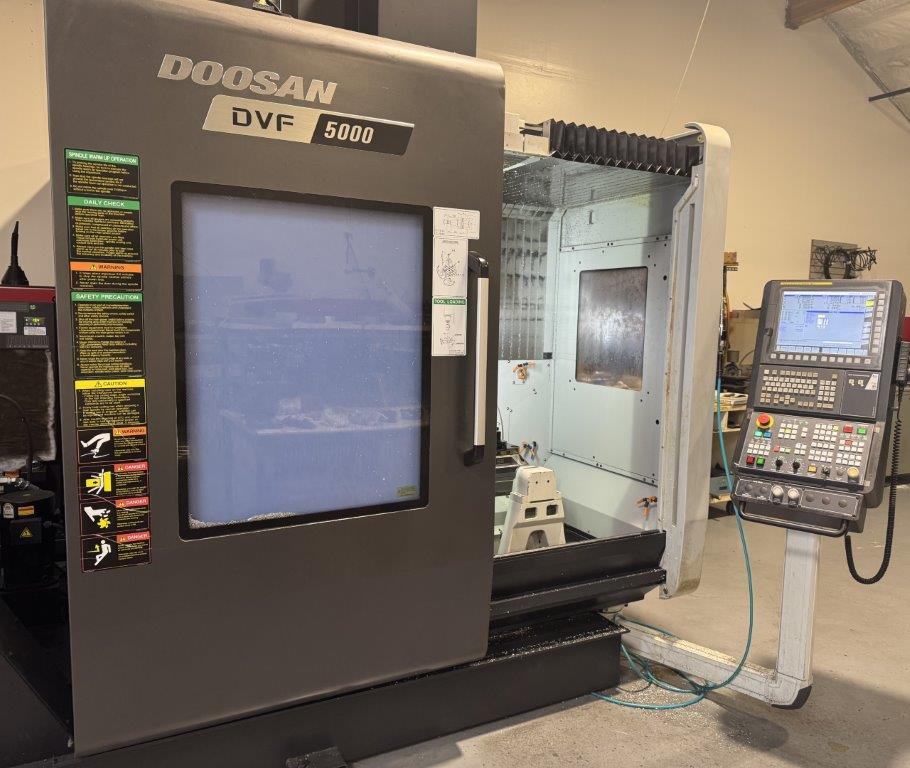

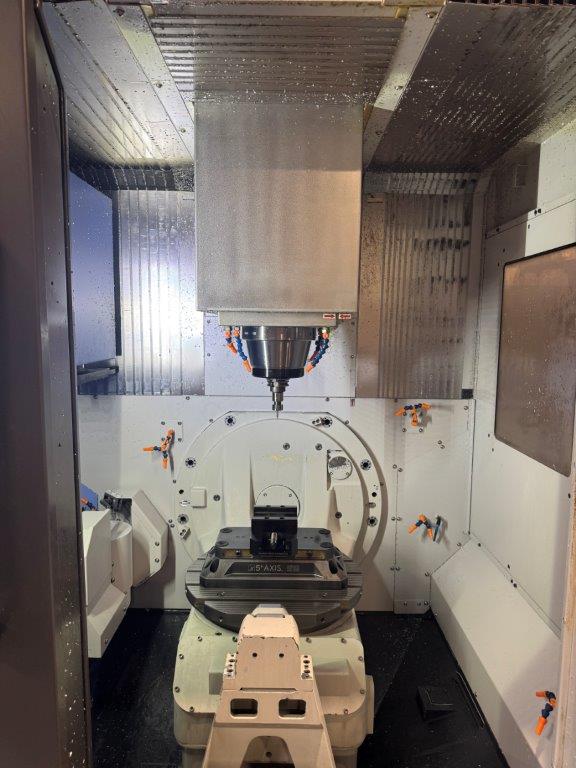

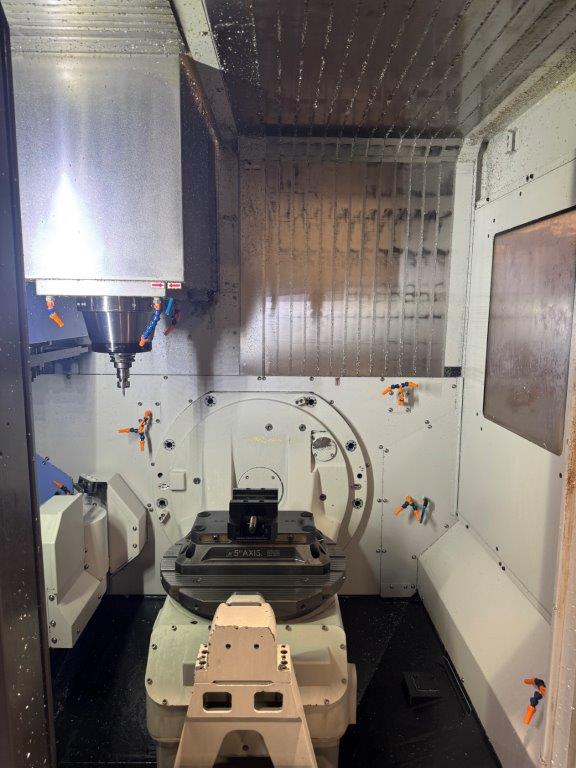

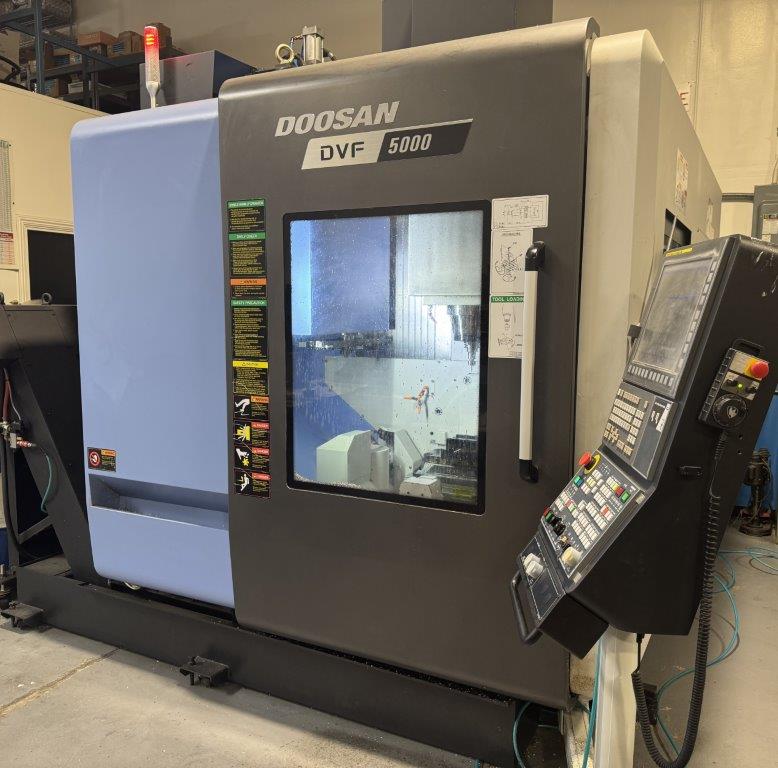

DOOSAN DVF-5000 5 AXIS MACHINING CENTER - YEAR: 2022

DOOSAN DVF-5000 5 AXIS MACHINING CENTER - YEAR: 2022

Stock Number: 619

Mfg: DOOSAN



Click to view larger photo

SPECIFICATIONS:
X AXIS TRAVEL 24.6 in.
Y AXIS TRAVEL 17.7 in.
Z AXIS TRAVEL 15.7 in.

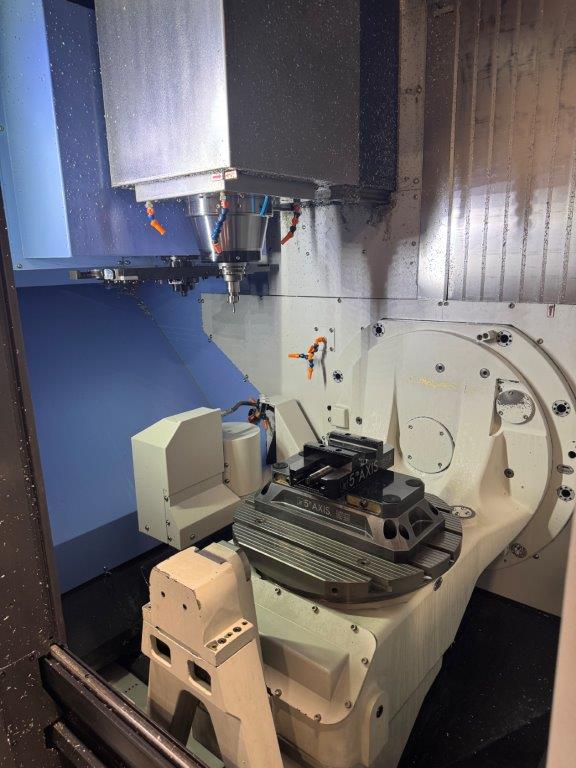

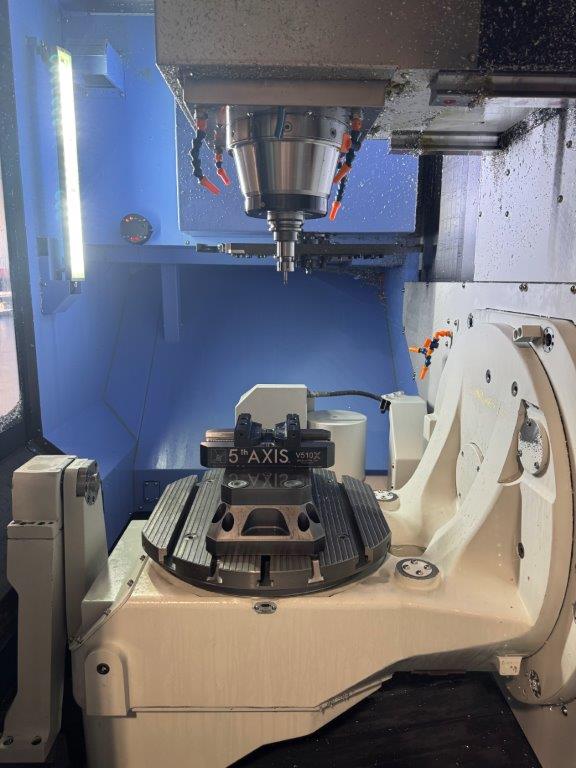

B AXIS TRAVEL +110 DEG /-30 DEG
C AXIS TRAVEL 360 DEG
TABLE 19.68 IN (500mm)T SLOT TABLE
MAX WORK PIECE DIAMTER 21.65 IN
MAX WORK PIECE HEIGHT 17.71 IN
MAX TABLE LOAD 882 LBS
SPINDLE NOSE to TABLE TOP 5.9 IN - 21.65 IN

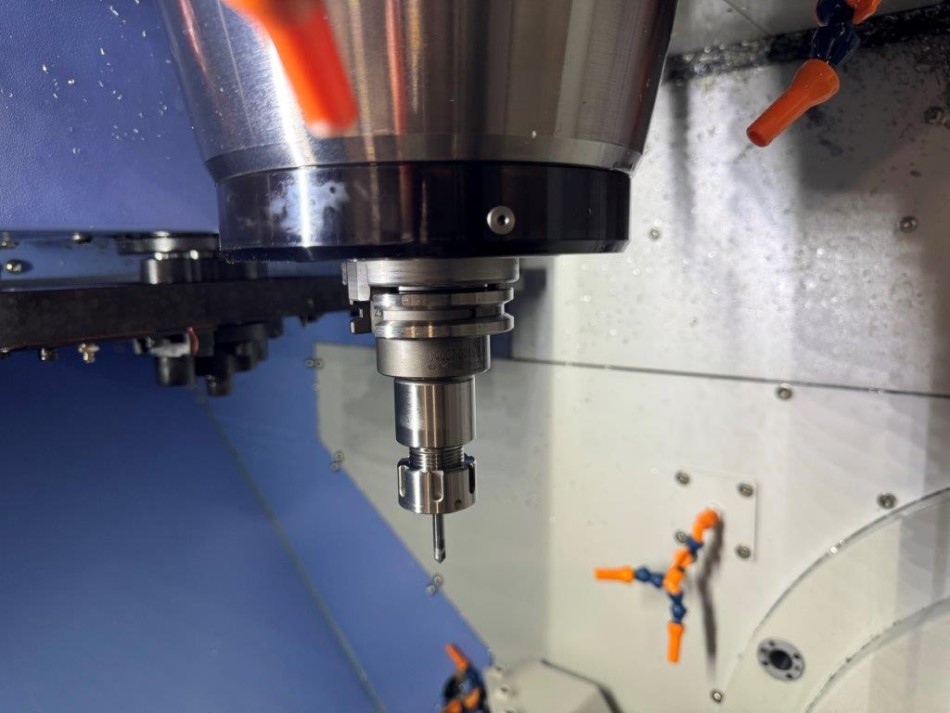

SPINDLE TAPER CAT #40 / BIG PLUS
SPINDLE SPEED 18,000 RPM
SPINDLE MOTOR 30 HP

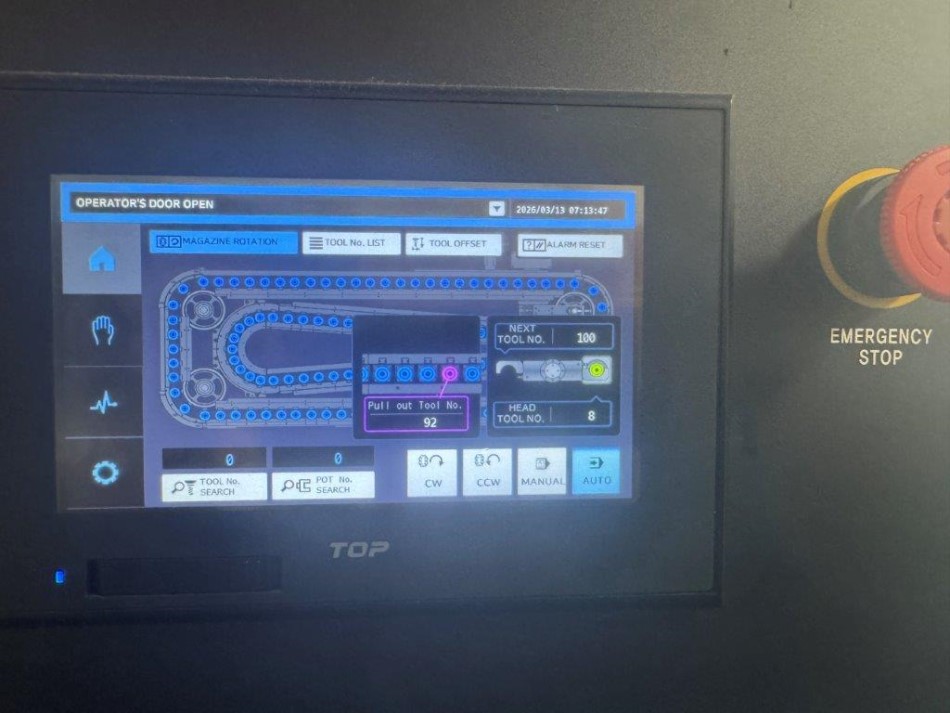

NUMBER OF TOOL POSITIONS 120
TOOL CHANGE Time T-T, C-C 1.3 sec / 5.3 sec
RAPID TRAVERSE RATES (X,Y,Z) 1575 IPM
MAX CUTTING FEED RATE 787 IPM
POWER 205-235V / 3 ph / 170 amp at 220V
MACHINE HEIGHT 114 IN
Floor Space Required 114 IN x 87 IN
WEIGHT 15,534 LBS.

EQUIPPED WITH:

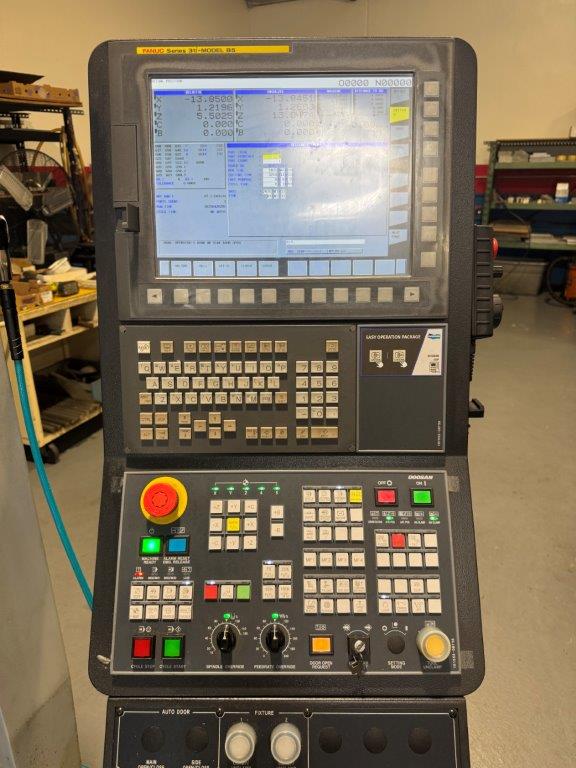

  • FANUC F31I-B5 CONTROL, AICC II 600 BLOCK LOOK AHEAD, 1GB DATA SERVER
  • 5 AXIS SIMULTANEOUSLY CONTROLLED AXES, ABSOLUTE ROTARY ENCODERS ON B & C AXES AND ABSOLUTE GLASS SCALES ON XYZ AXES
  • SPINDLE CHILLER

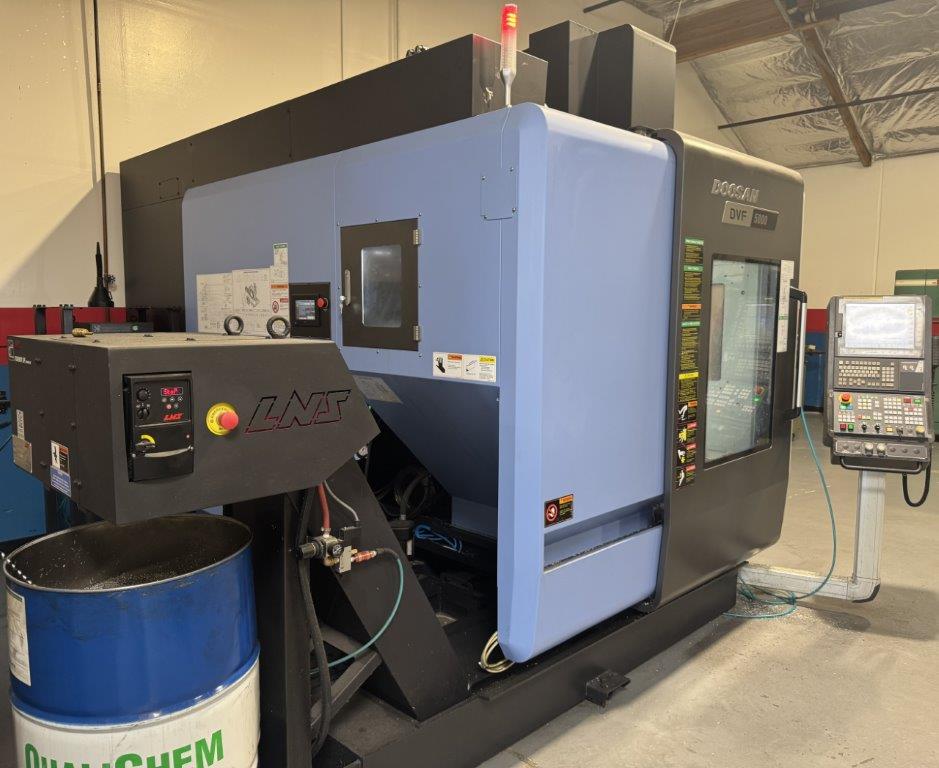

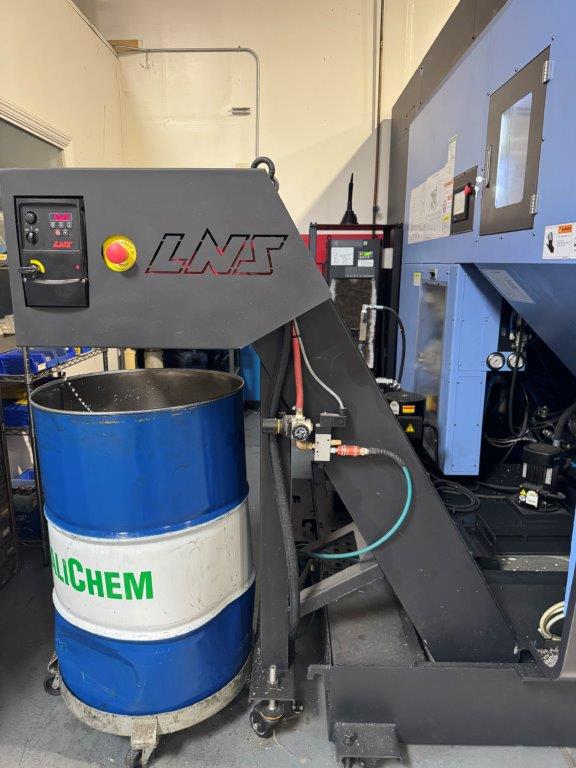

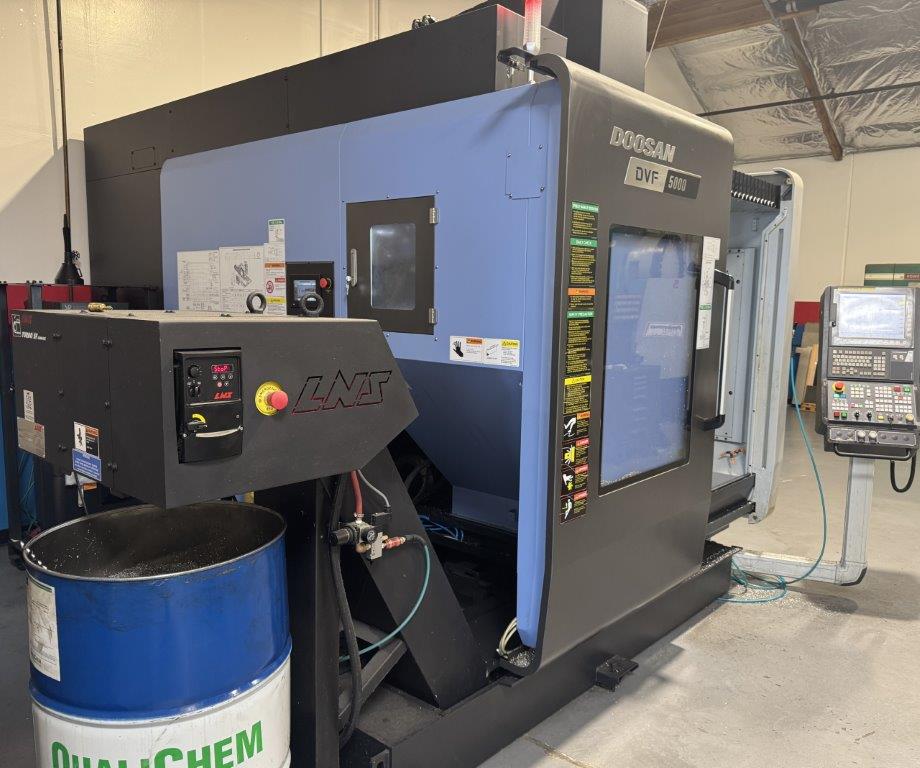

  • LNS TURBO SUPER FINE CHIP CONVEYOR

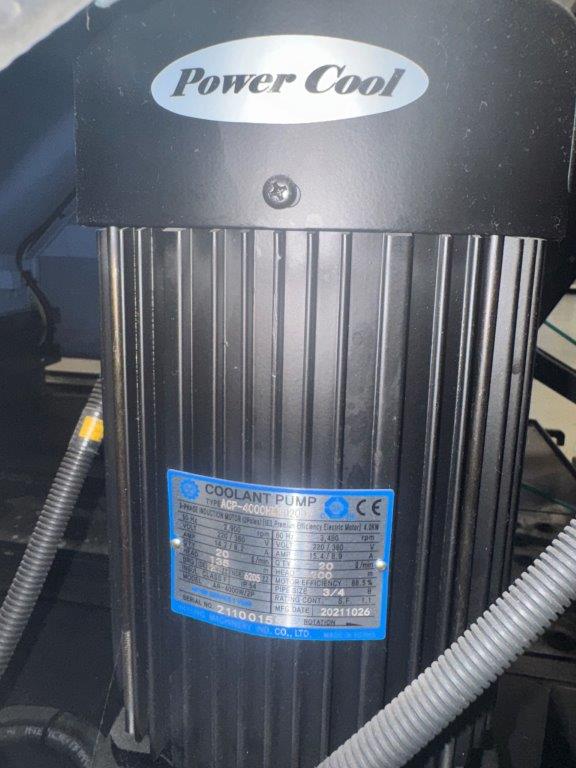

  • COOLANT THRU SPINDLE AT 230 PSI
  • RENISHAW RMP600 STRAIN GAUGE SPINDLE PROBE, CAT-40 TOOL SHANK
  • RENISHAW AXISET CALIBRATION ARTIFACT WITH MAGNETIC BASE
  • RENISHAW CAT-40 TOOL SETTER MASTER
  • SPINDLE PROBE CALIBRATION RING WITH 2” ID
  • COOLANT TANK – 92 GALLONS

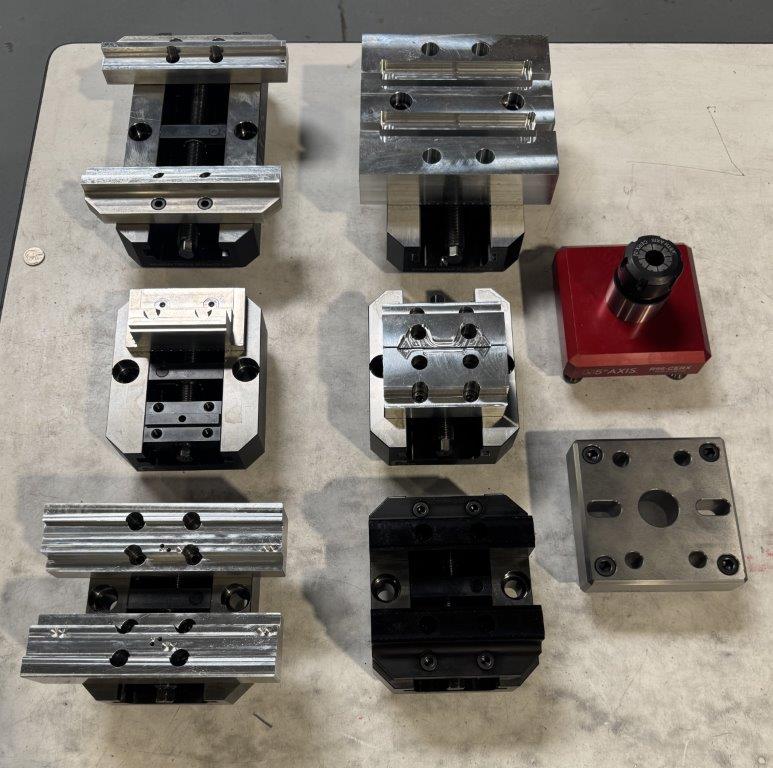

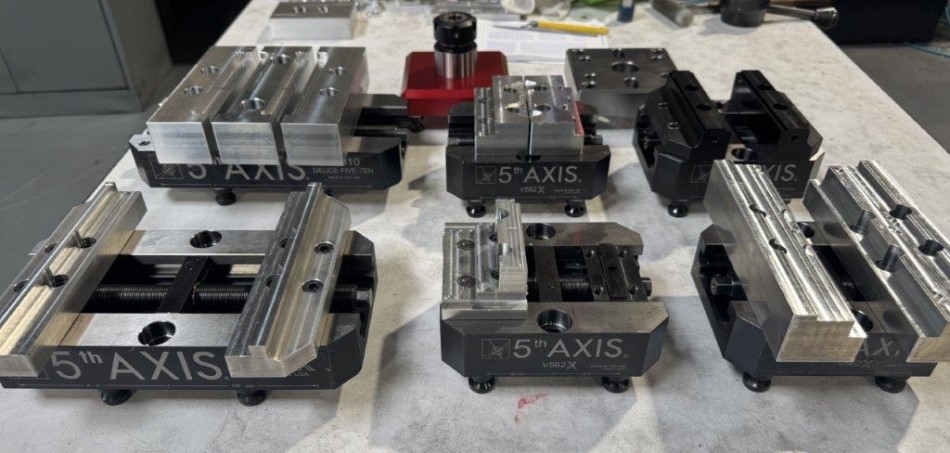

  • (7) 5TH AXIS VISES
  • M19 Spindle Orientation  and MACROS
  • 120 TOOL HOLDERS (MOSTLY LYNDEX BRAND)

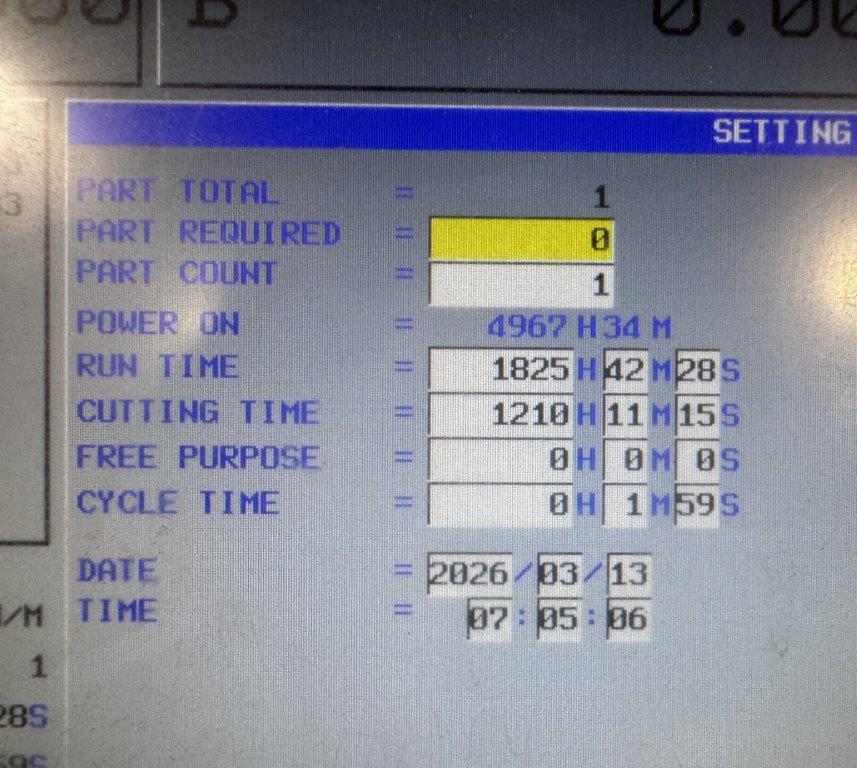

  • HOURS: POWER ON: 4967 / RUN TIME: 1825 / CUT TIME: 1210
