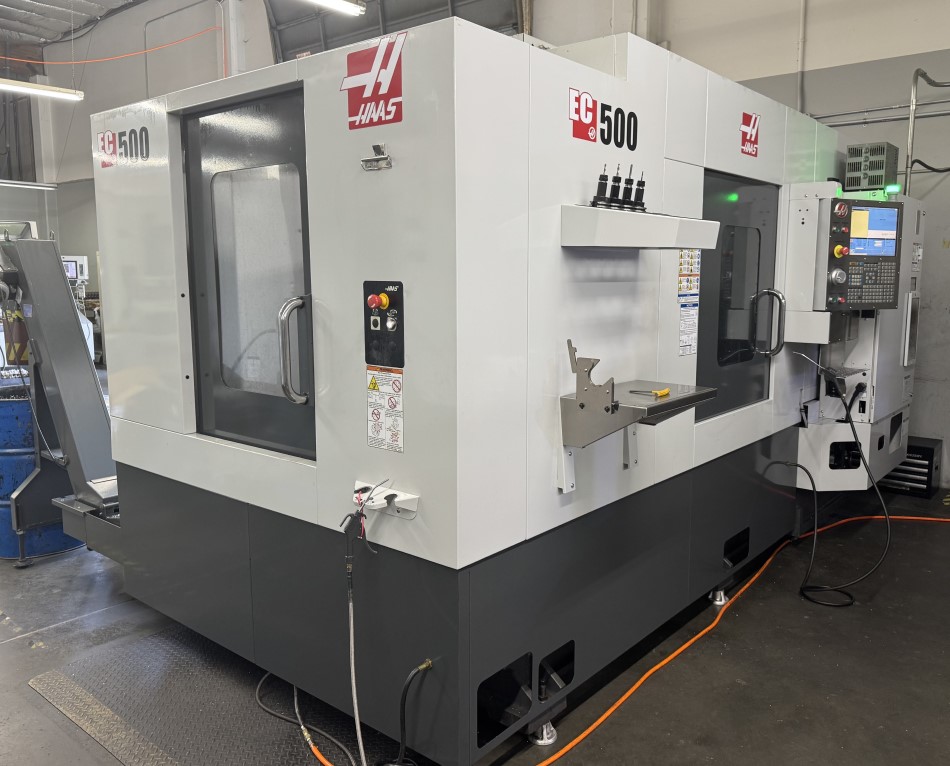

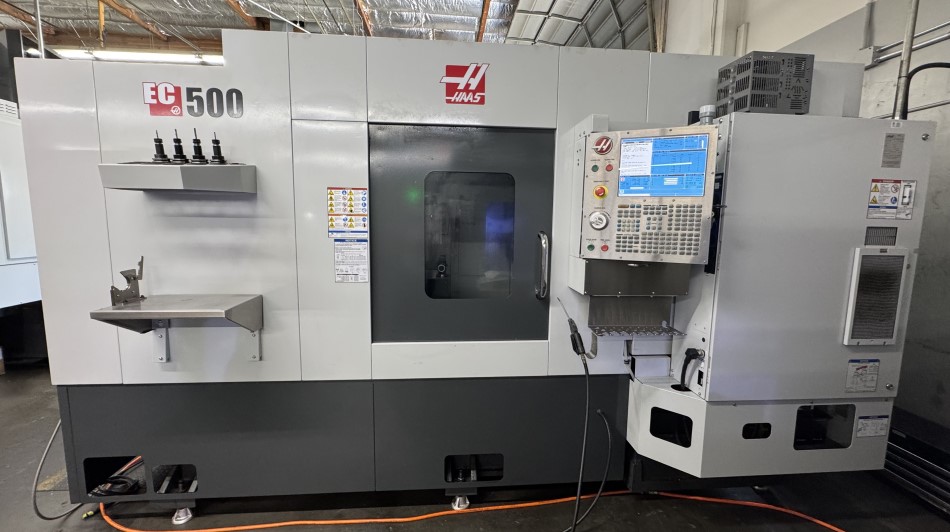

Click to view larger photo
| SPECIFICATIONS: | |
|---|---|

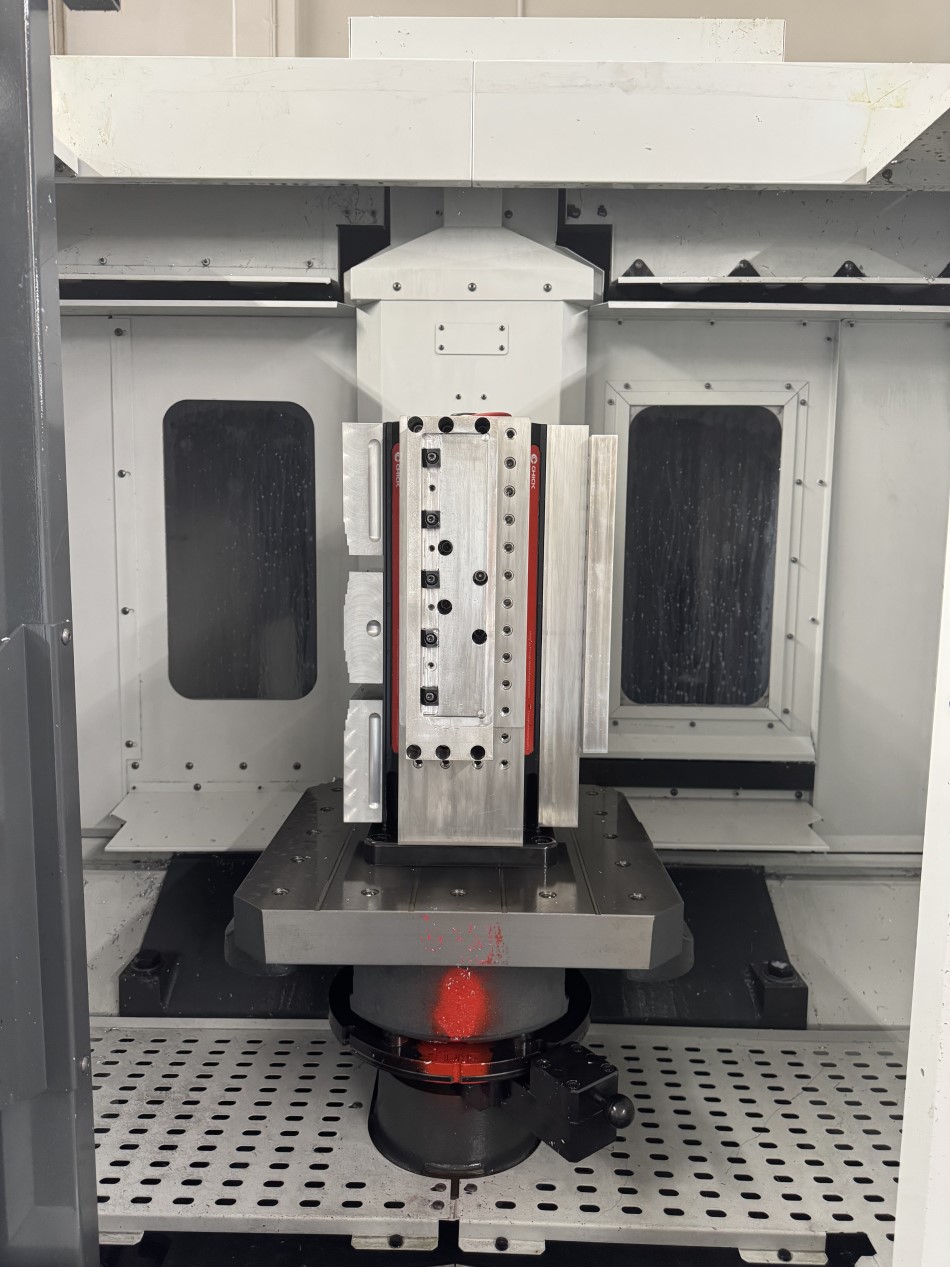

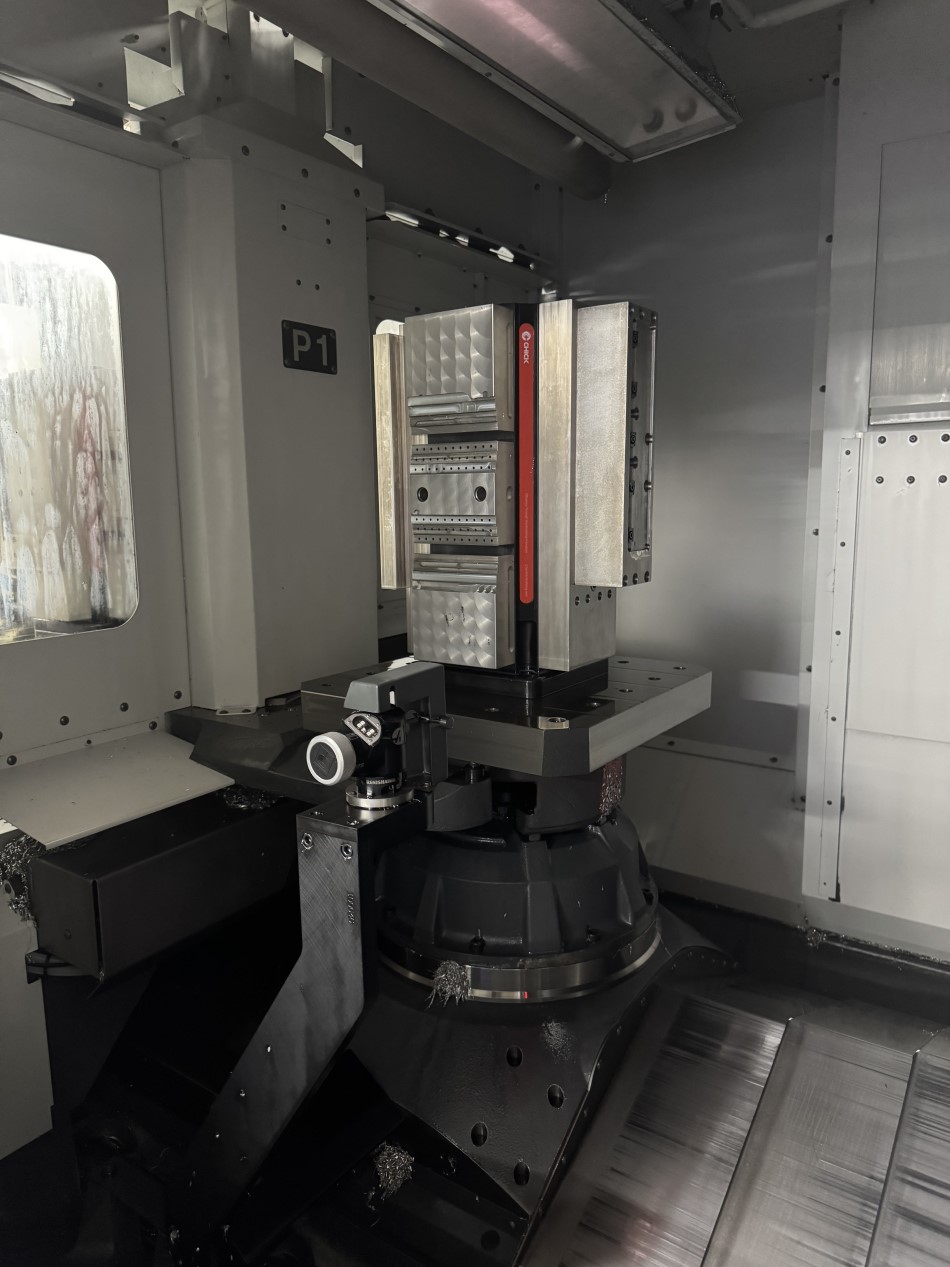

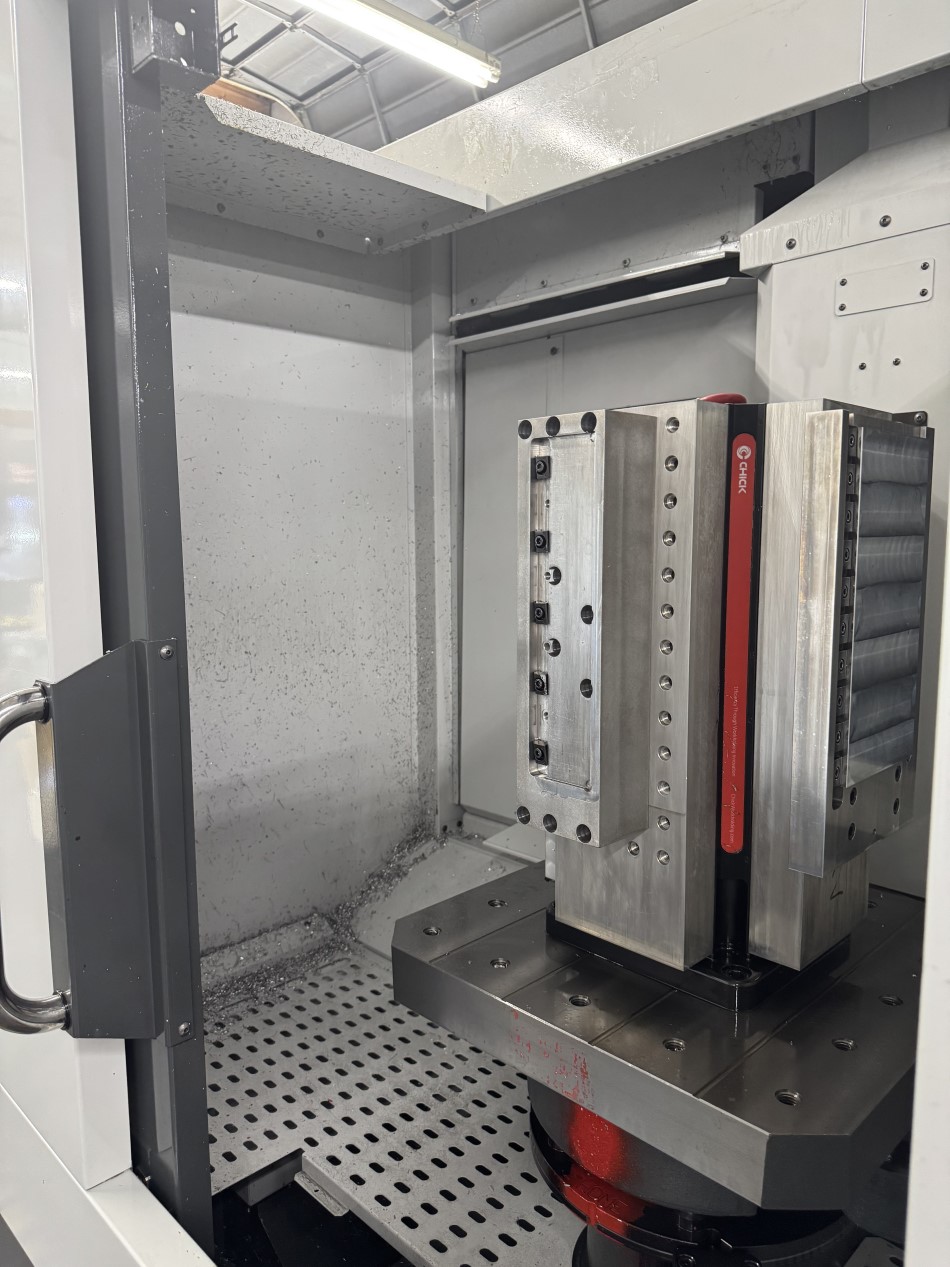

| PALLET SIZE | 19.69" x 19.69" |
| PALLET INDEXING | FULL 4TH |
| NUMBER OF PALLETS | 2 |
| X, Y, Z AXIS TRAVELS | 32" x 20" x 28" |
| MAX PALLET LOAD | 880 LBS |
| MAX PART DIAMETER | 29.5" |
| MAX PART HEIGHT | 36.5" |
| PALLET CHANGE TIME | 15 SECONDS |
| SPINDLE SPEED | 12,000 RPM / DIRECT DRIVE |
| SPINDLE TAPER | CAT-40 |
| MAIN MOTOR | 30 HP |
| RAPID TRAVERSE RATE | 1400 IPM |
| CUT FEED RATE | 833 IPM |

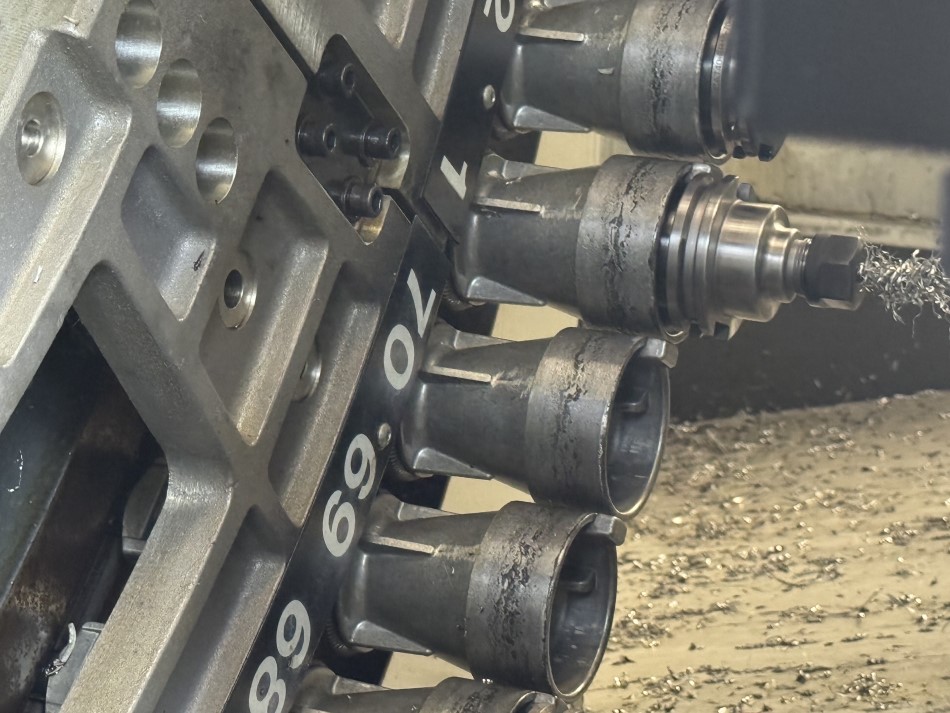

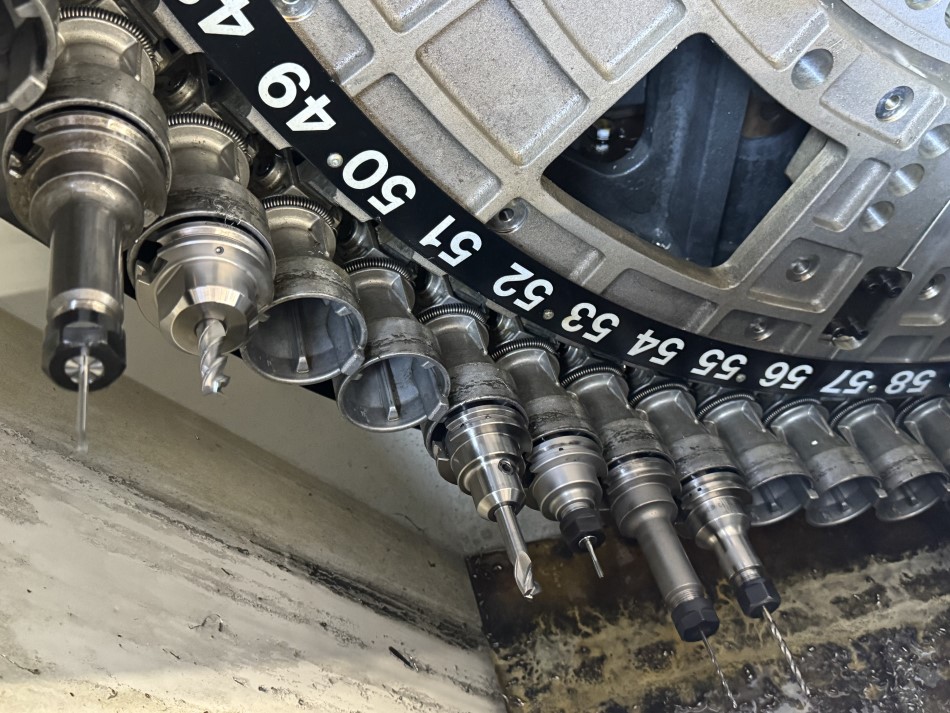

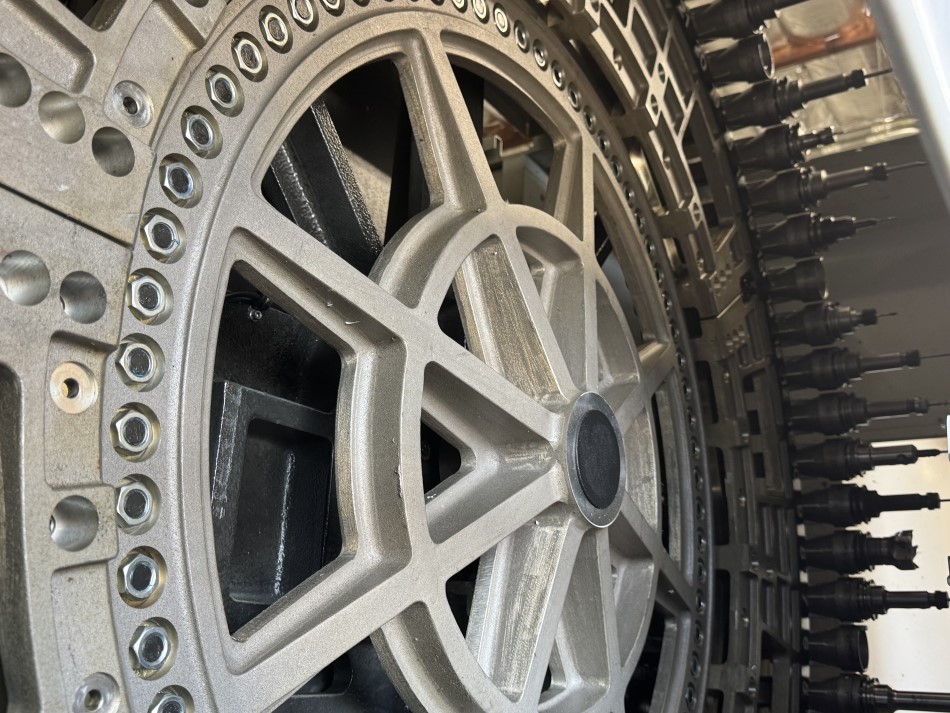

| TOOL STORAGE | 70 |
| TOOL CHANGE TIME | 28.5 SEC T-T |
| MAXIMUM TOOL DIAMETER | 2.5" |
| MAX TOOL DIAMETER ADJACENT POCKET EMPTY | 5" |
| MAX TOOL LENGTH | 12" |
| MAX TOOL WEIGHT | 12 LB |
| TOTAL FLOOR SPACE REQ | 202" x 100" x 100" |
| MACHINE WEIGHT | 20,120 LBS |

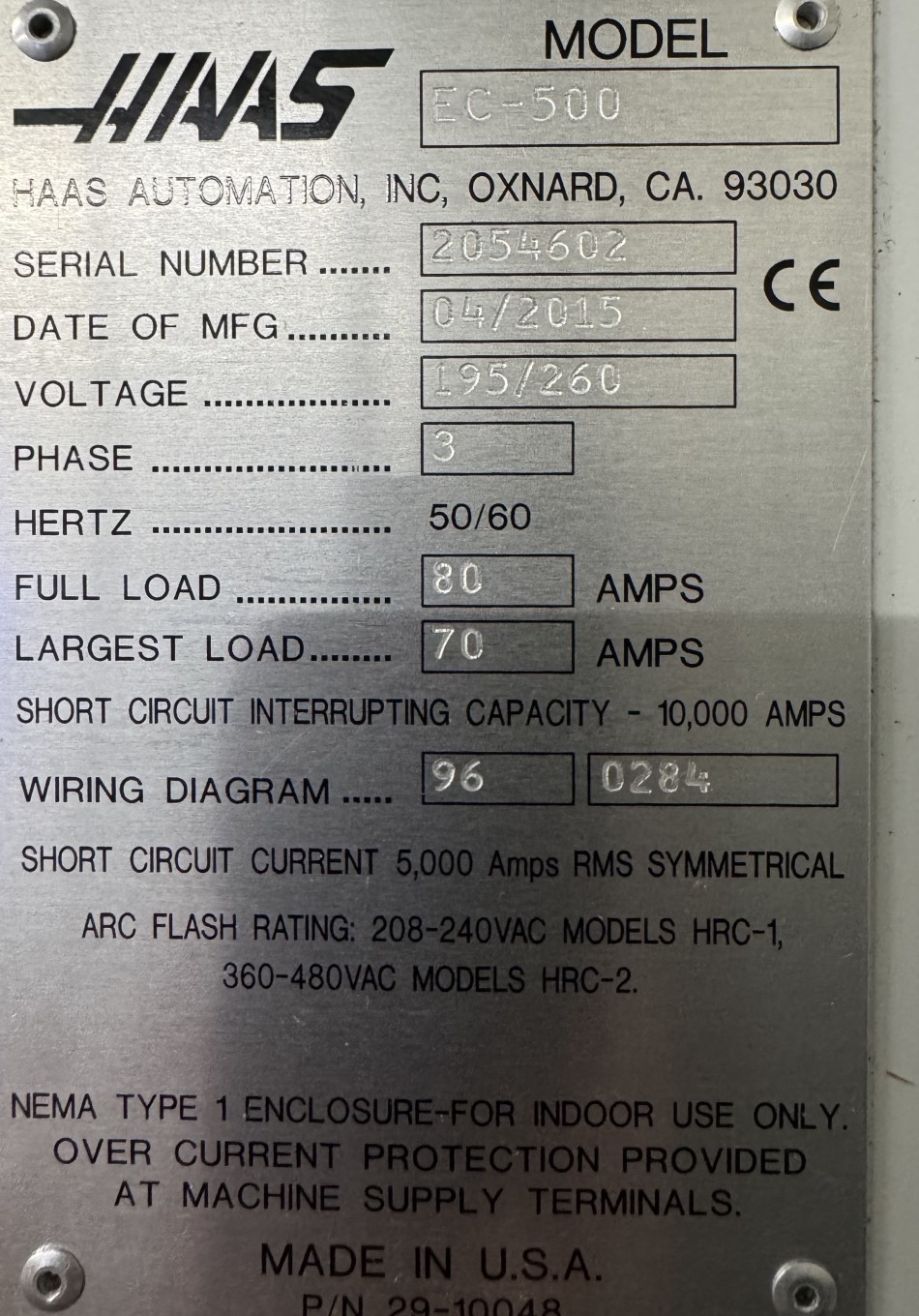

| POWER | 220V / 3 PHASE / 50KVA |
EQUIPPED WITH:
