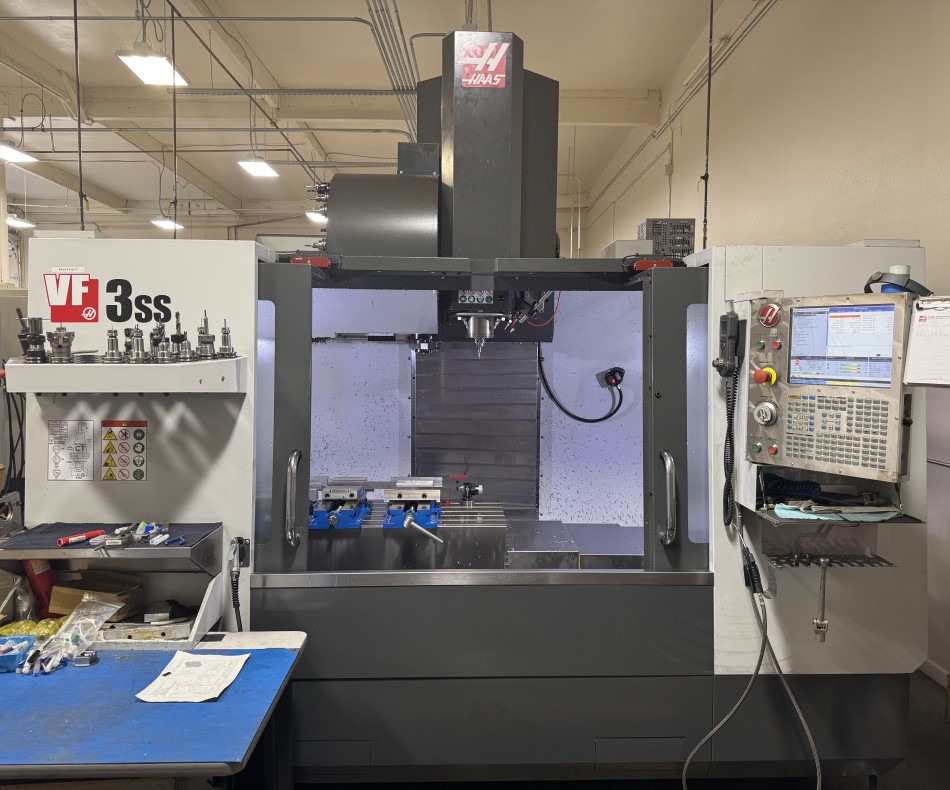

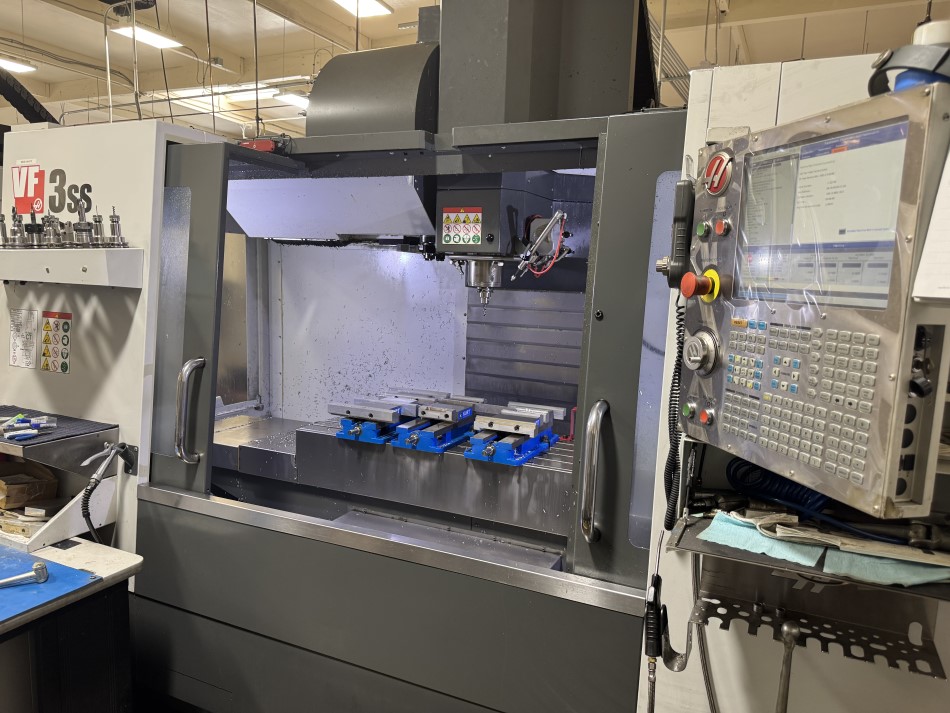

HAAS VF-3SS VERTICAL MACHINING CENTER - BUILT: 9-2016

HAAS VF-3SS VERTICAL MACHINING CENTER - BUILT: 9-2016

Stock Number: 597

Mfg: HAAS



Click to view larger photo

SPECIFICATIONS:

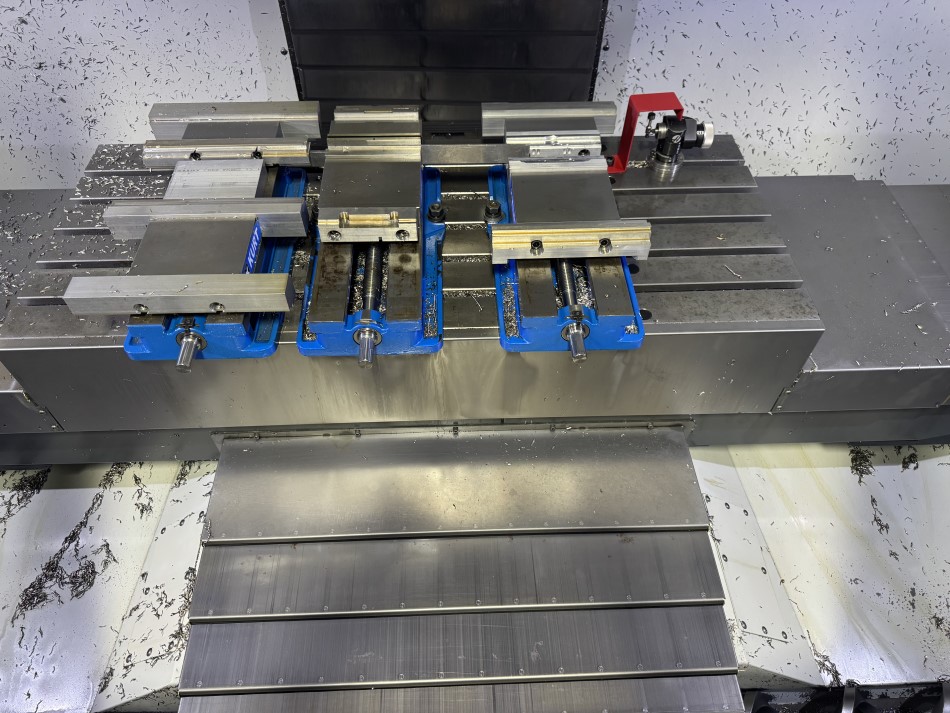

TABLE WORKING SURFACE 48" x 18"
TABLE TRAVELS 40" x 20" X 25"
MAX WEIGHT ON TABLE 1750 lbs
RAPID TRAVERSE RATE, ALL AXES 1400 IPM

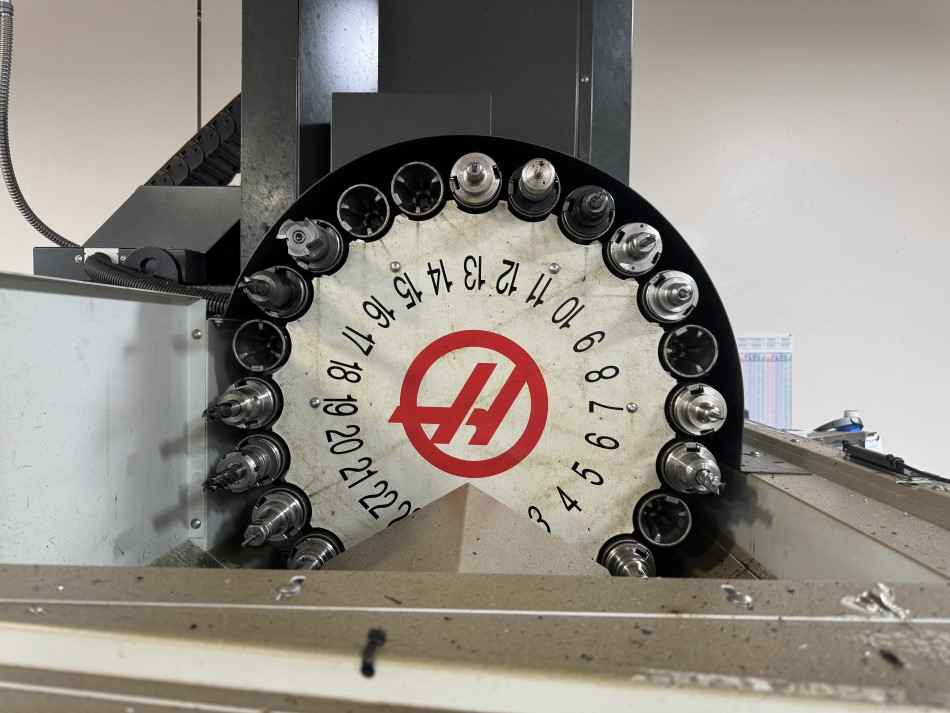

TOOL CHANGER ARM STYLE 30 + 1
SPINDLE HORSEPOWER 30 HP
SPINDLE SPEEDS RANGE 12,000 RPM / INLINE DIRECT DRIVE
SPINDLE TAPER #40 CAT
OVERALL DIMENSIONS 110" x 118" x 117"
APPROXIMATE WEIGHT - NET 12,500 LBS.

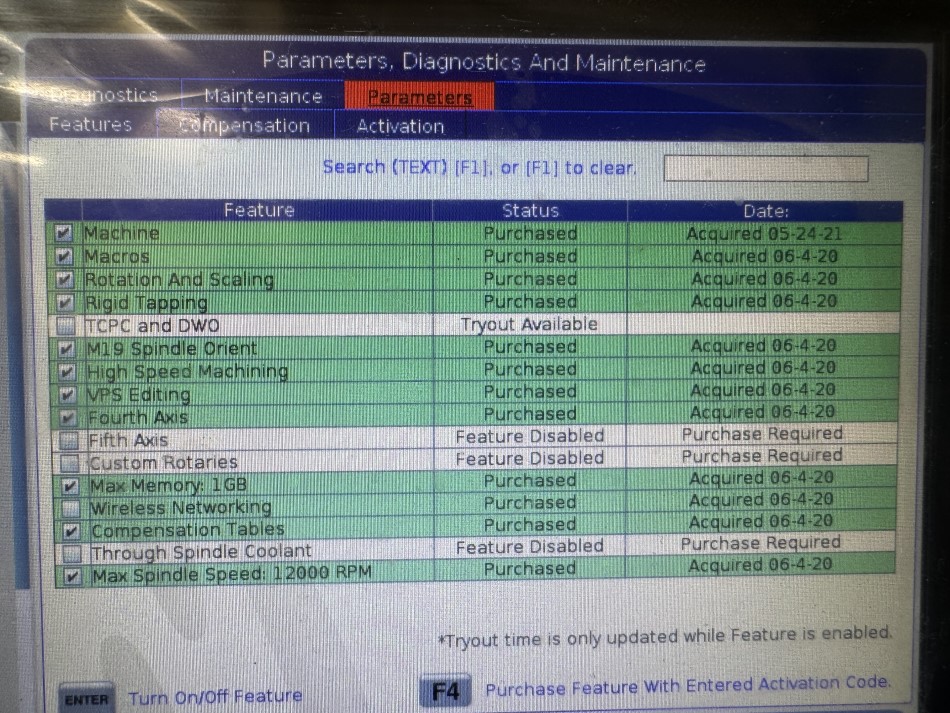

EQUIPPED WITH:

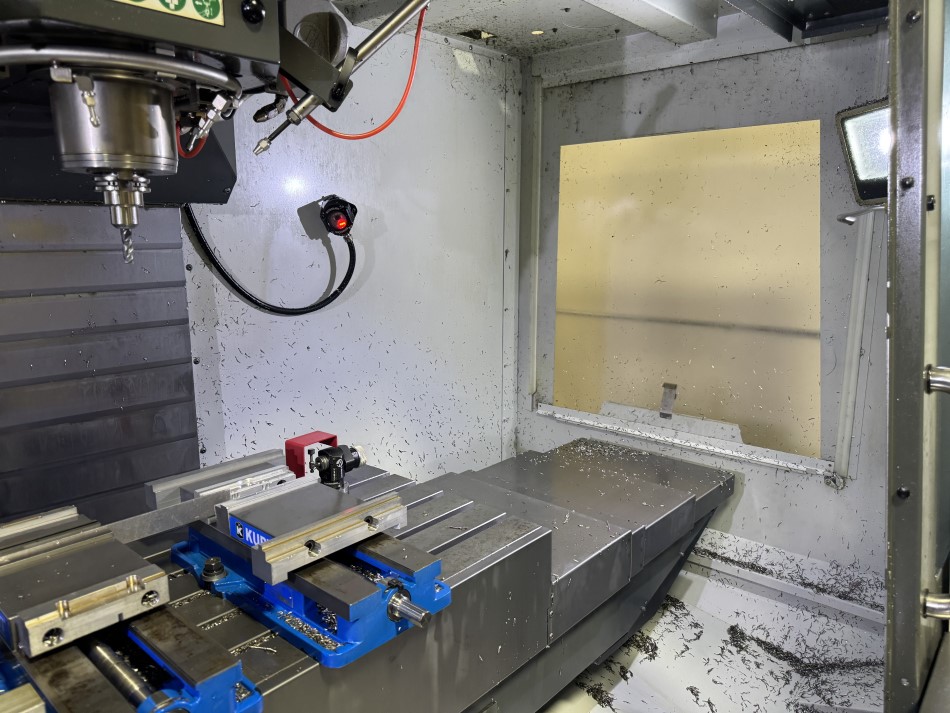

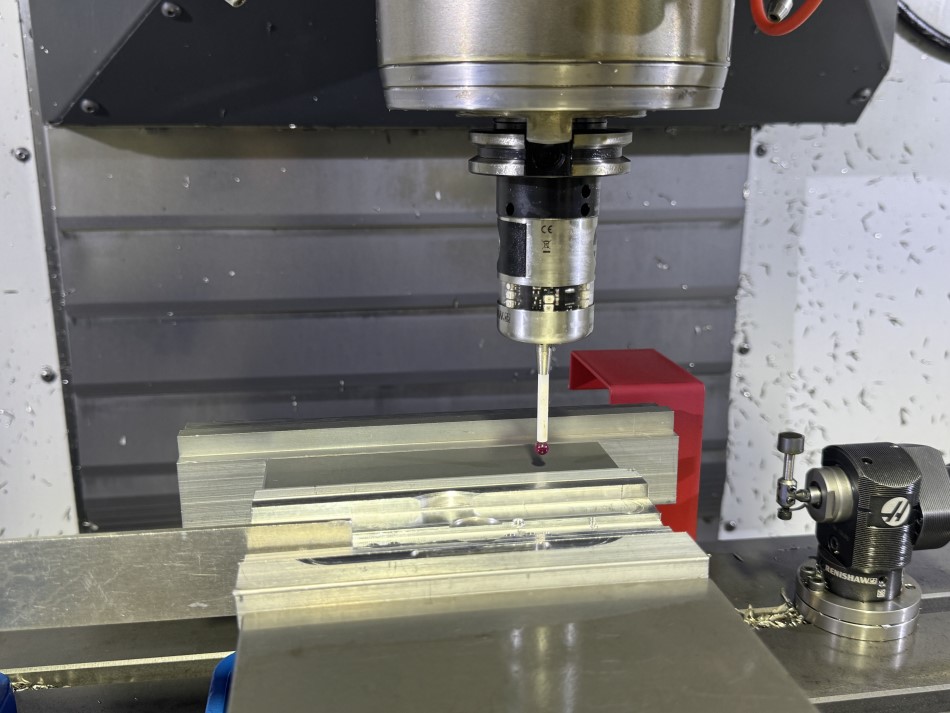

  • WIPS Renishaw Part Probe and Tool Probe
  • 4th AXIS DRIVE
  • HIGH SPEED MACHINING
  • RIGID TAPPING
  • CHIP AUGER
  • MACROS
  • ROTATION and SCALING
  • M19 SPINDLE ORIENTATION
  • VPS EDITING
  • ETHERNET
  • PROGRAMMABLE COOLANT NOZZLE
  • REMOTE JOG HANDLE, MACRO SOFTWARE
  • INTUITIVE PROGRAMMING SYSTEM
  • WIRELESS NETWORKING
  • COMPENSATION TABLES
  • 1GB MEMORY / MEDIA DISPLAY

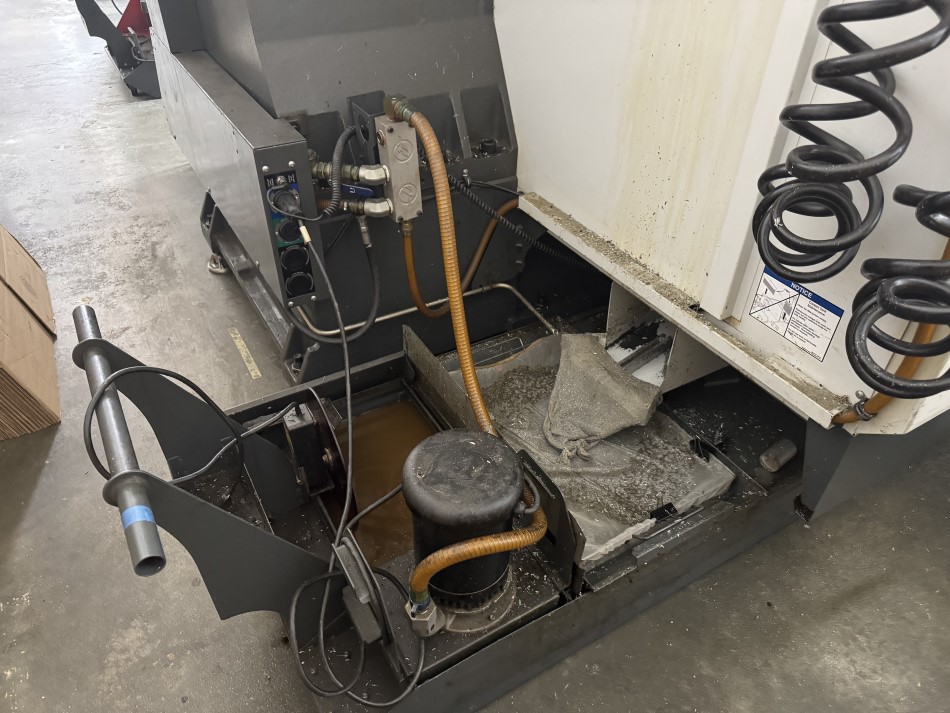

  • COOLANT TANK with 55 GALLON CAPACITY

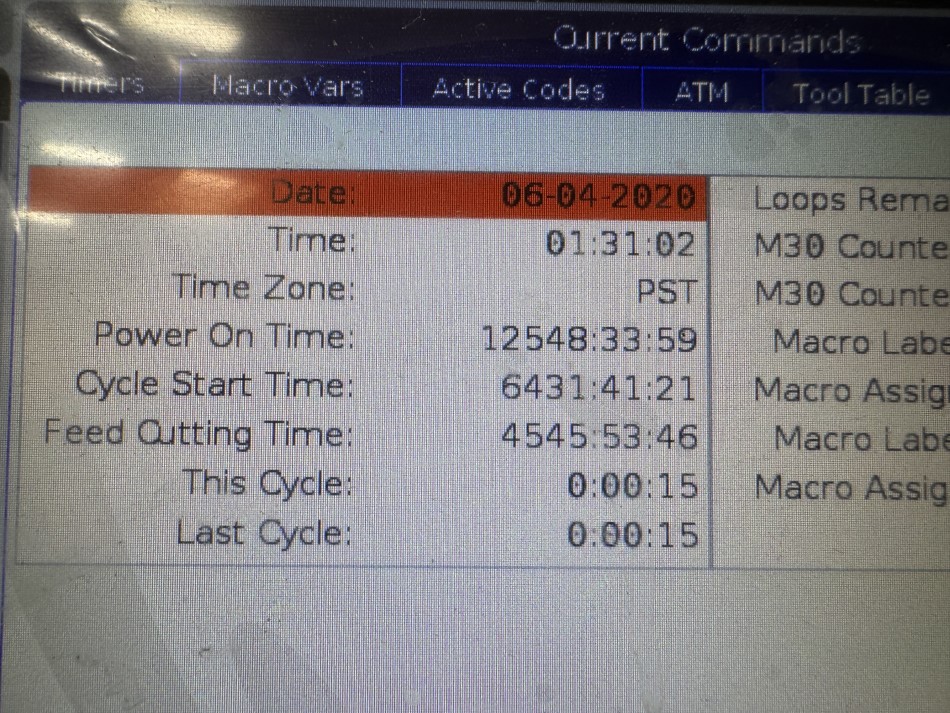

  • Hours: Power: 12548  /  Cycle Start: 6431  /  Feed Cutting: 4545
