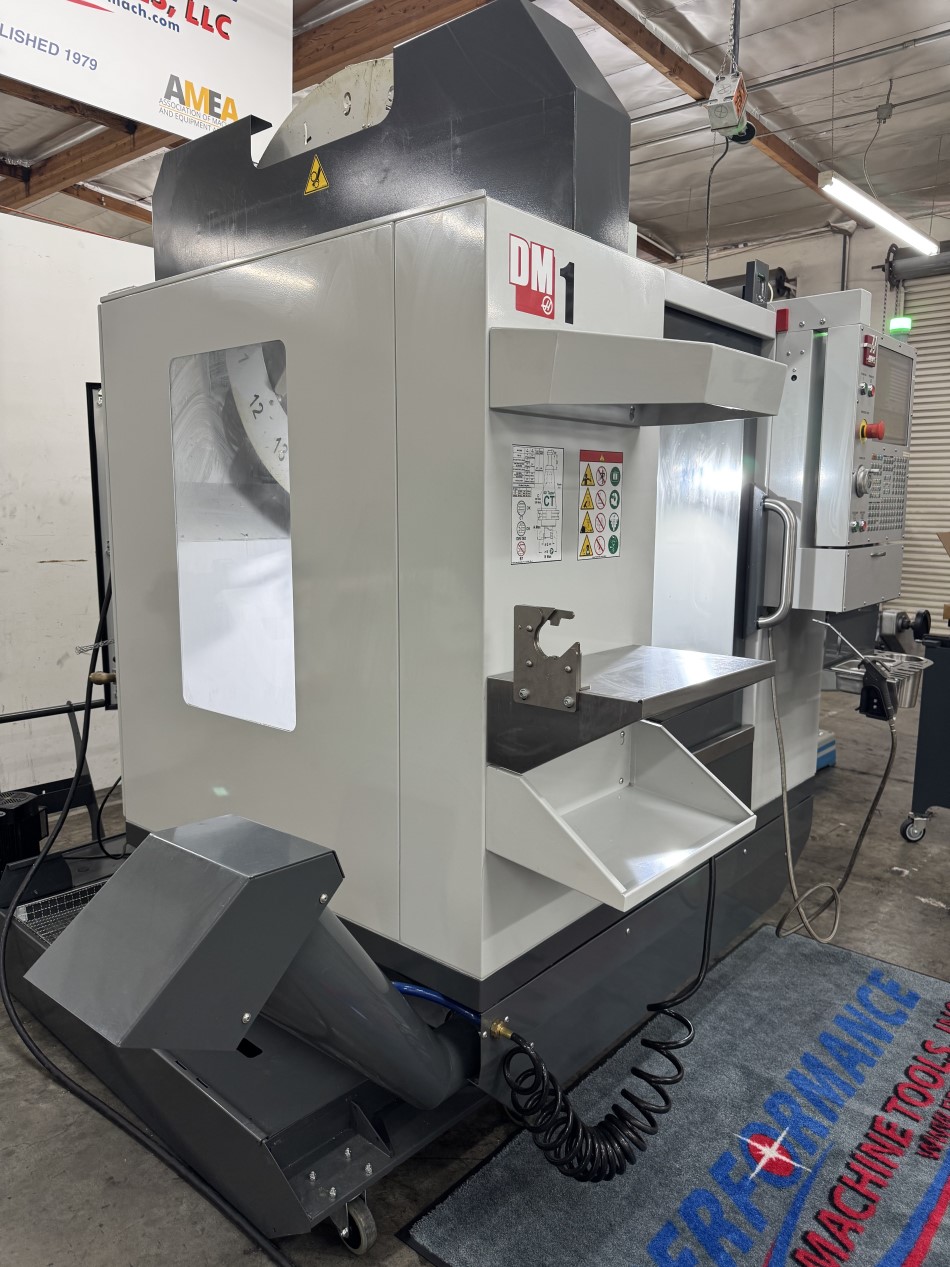

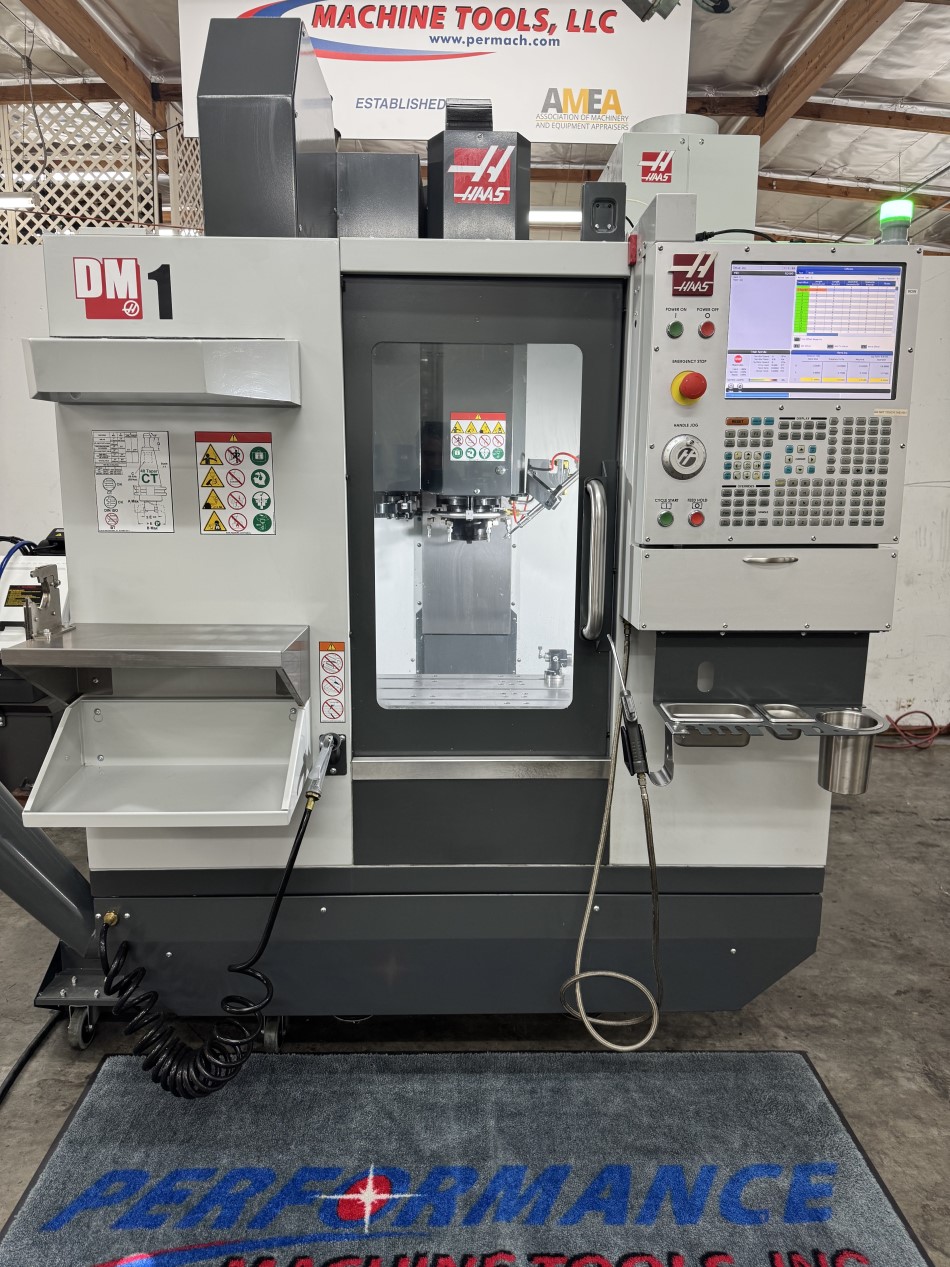

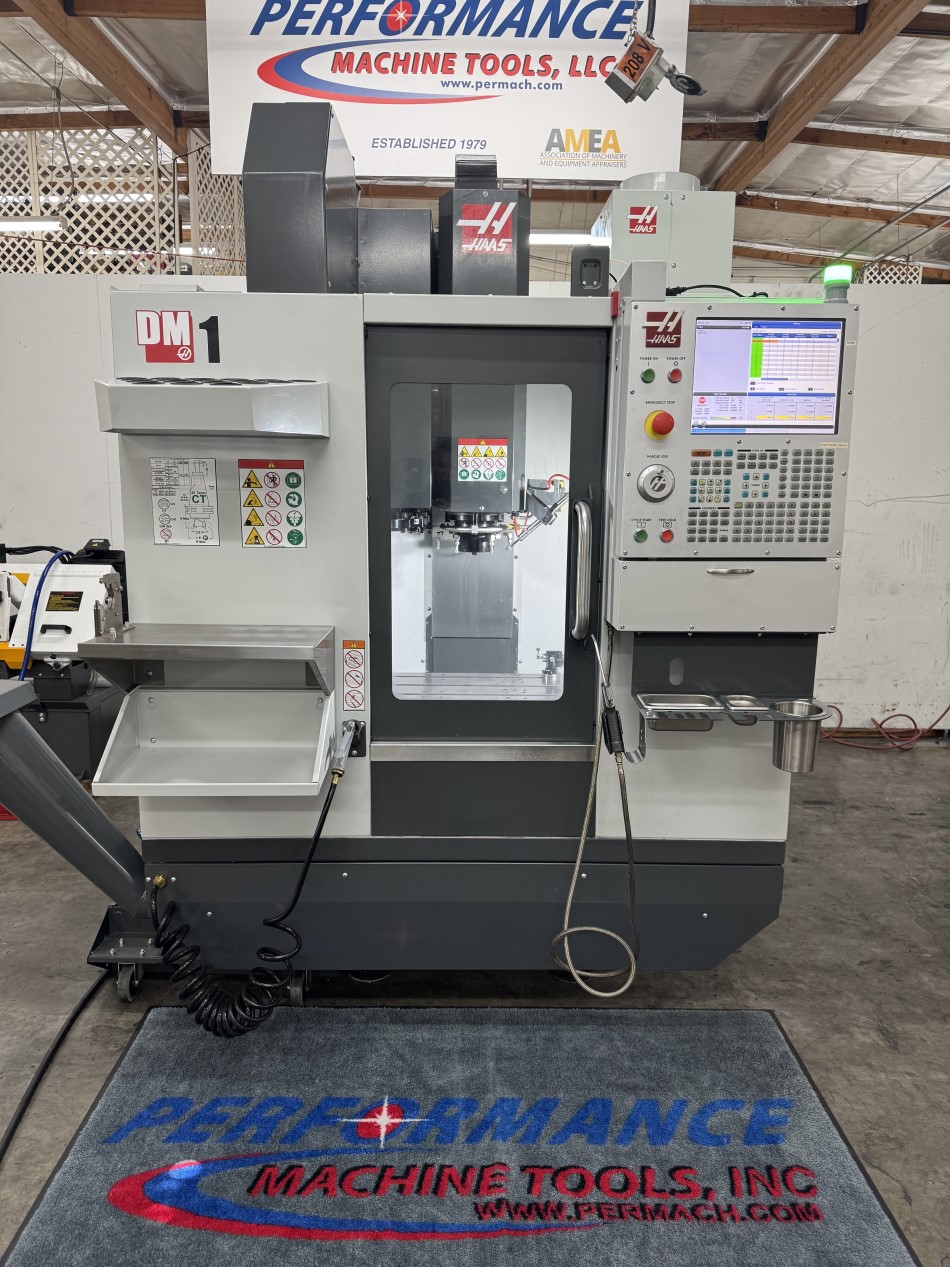

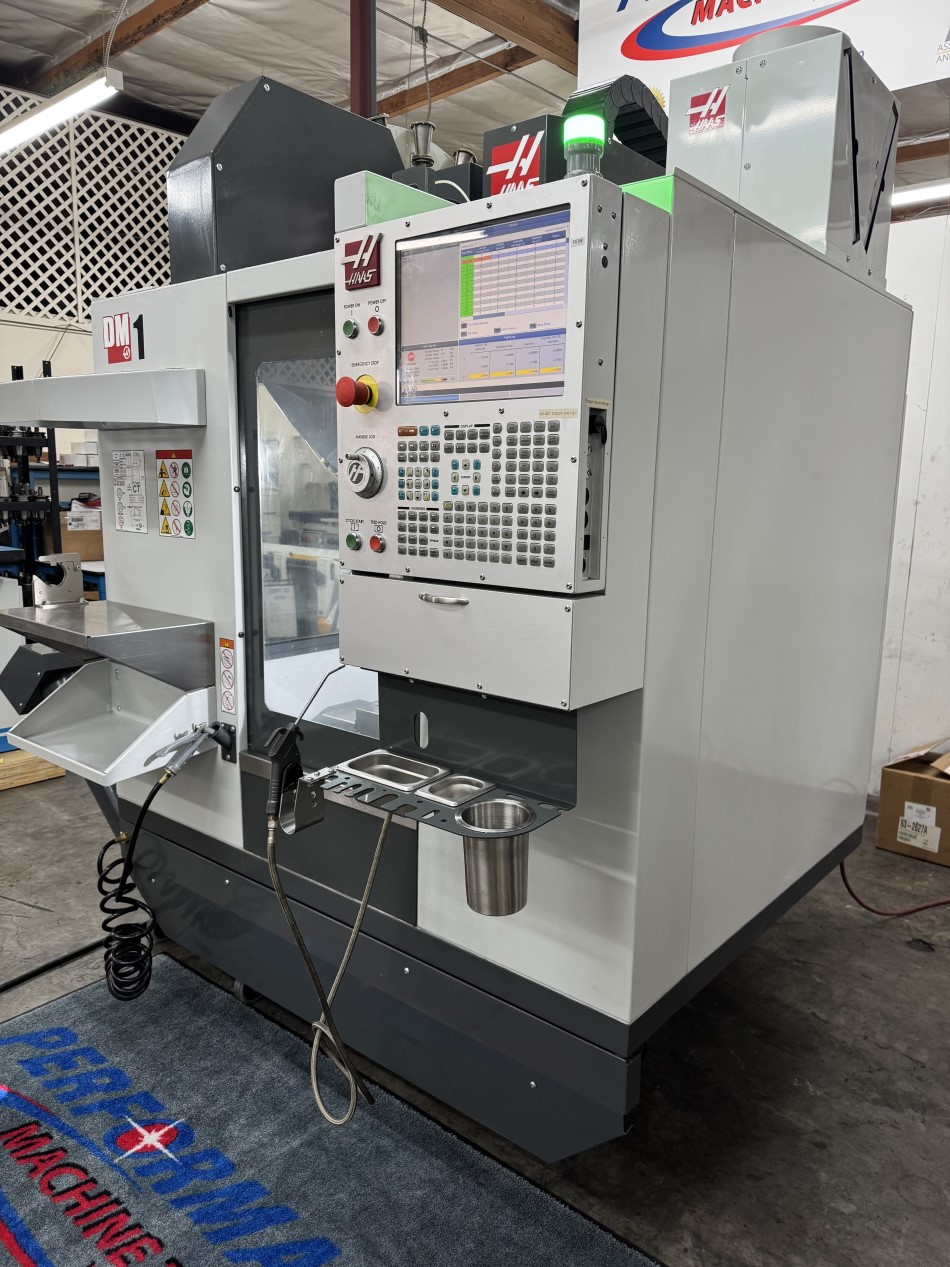

HAAS DM-1 VERTICAL MACHINING CENTER-YEAR: 2019
Stock Number: 595
Mfg: HAAS
Click to view larger photo
| SPECIFICATIONS: |
| X AXIS TRAVEL |
20 in. |
| Y AXIS TRAVEL |
16 in. |
| Z AXIS TRAVEL |
15.5 in. |

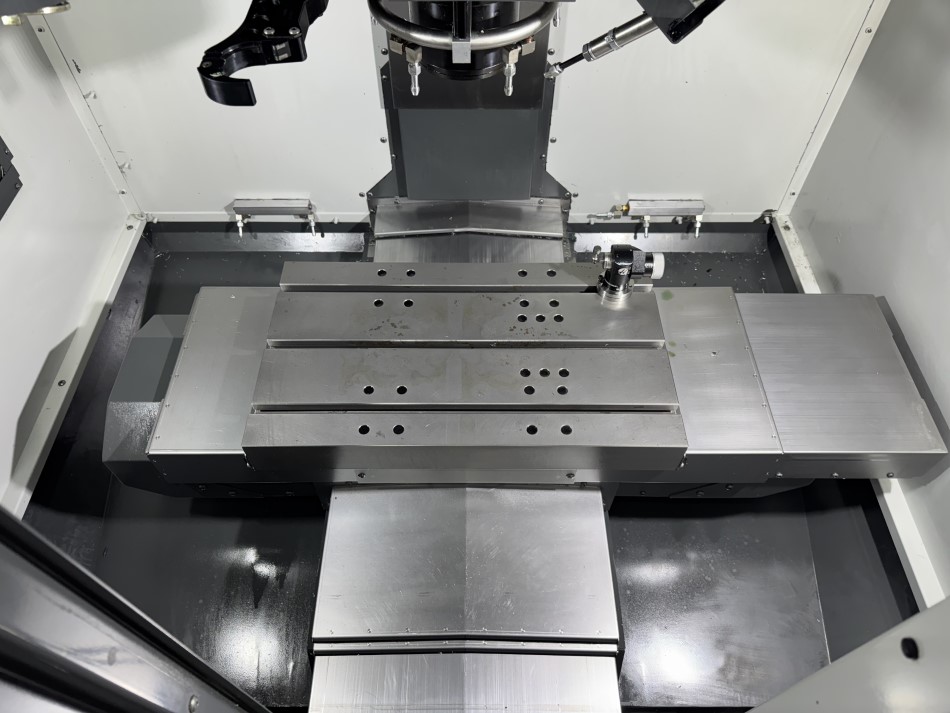

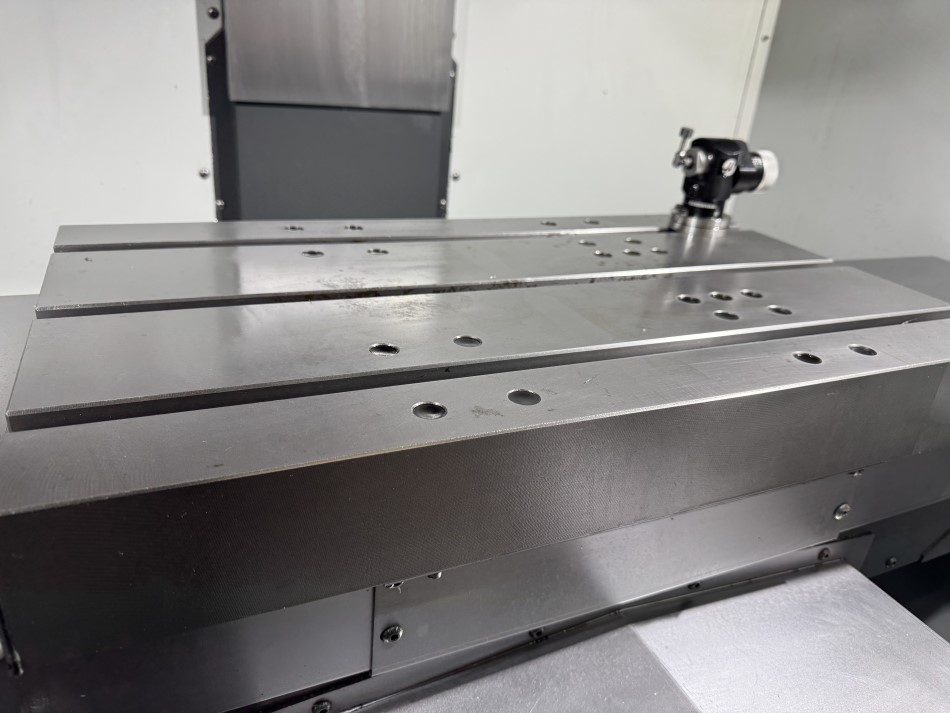

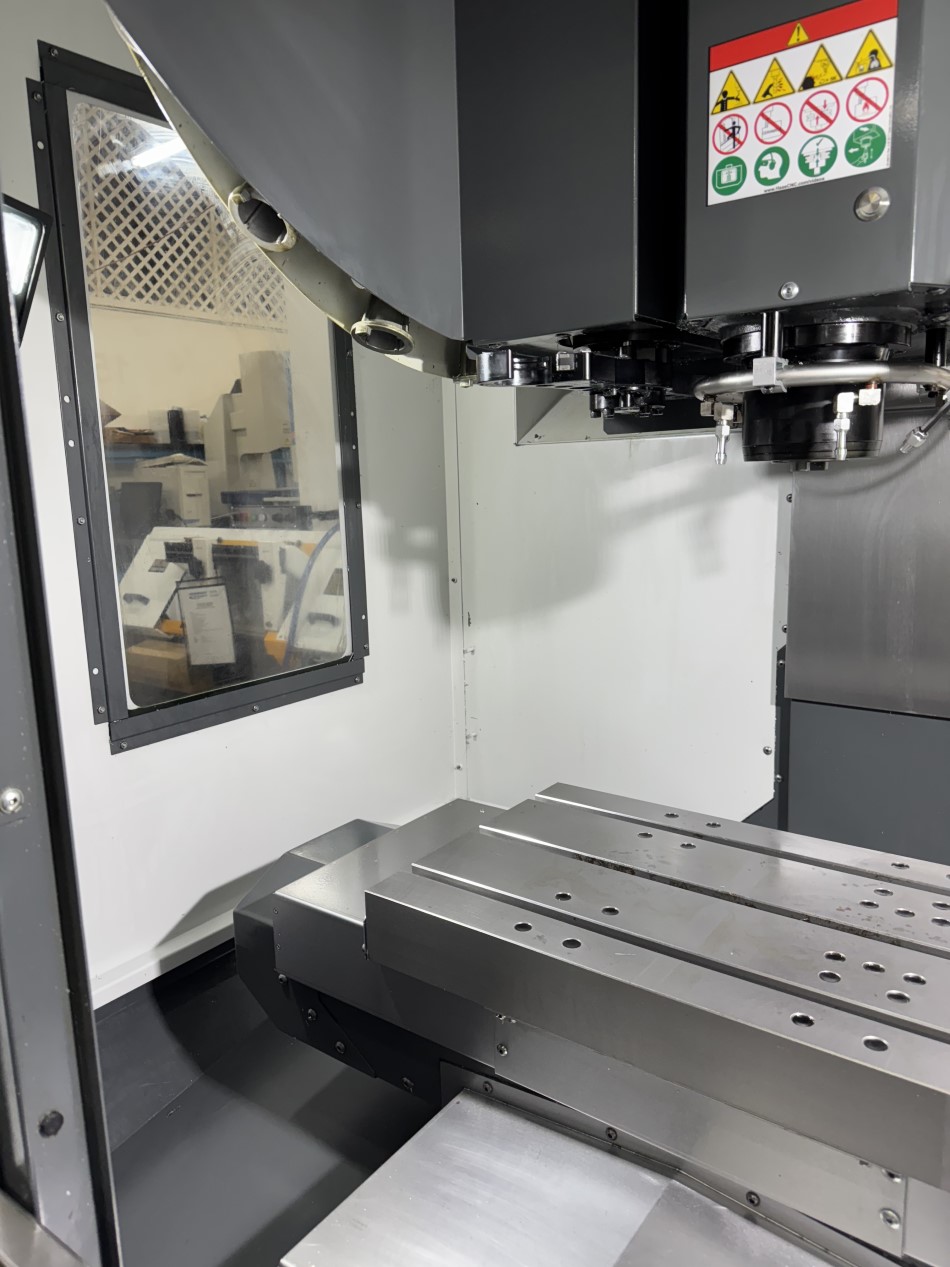

| TABLE |
26 in. x 15 in. |
| TABLE LOAD |
500 LBS |
| SPINDLE NOSE TO TABLE TOP |
6" - 21.5" |
| SPINDLE TAPER |
CAT #40 |
| SPINDLE SPEED - INLINE DIRECT DRIVE |
15,000 RPM |
| TAPPING SPEED |
5,000 RPM |
| SPINDLE MOTOR |
15 HP |

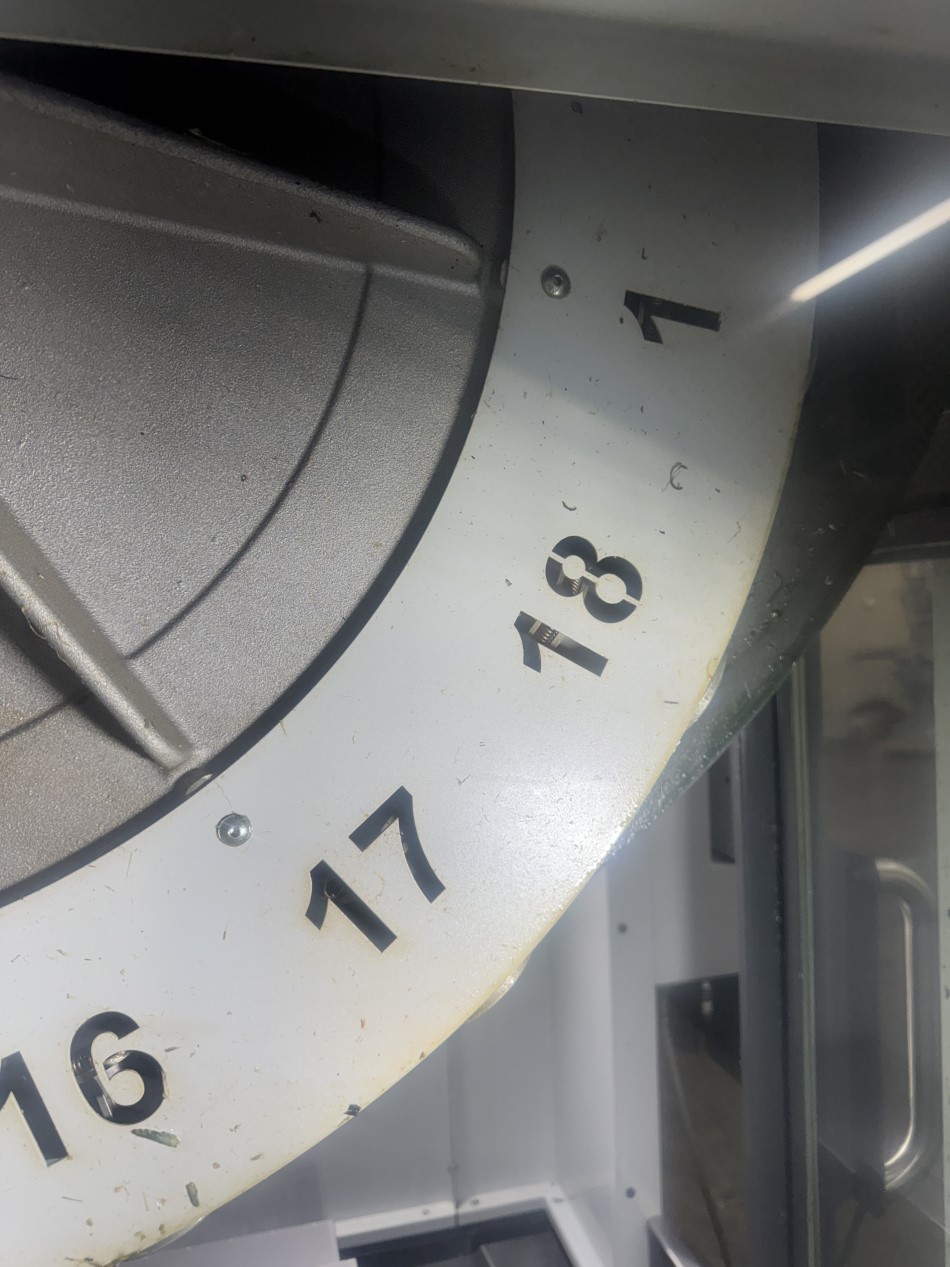

| NUMBER OF TOOL POSITIONS |
18 |
| TOOL CHANGE TIME T-T, C-C |
1.75 SEC / 2 SEC |
| RAPID TRAVERSE RATES (X, Y, Z) |
24000 IPM |
| MAX CUTTING FEED RATE |
1200 IPM |
| POWER |

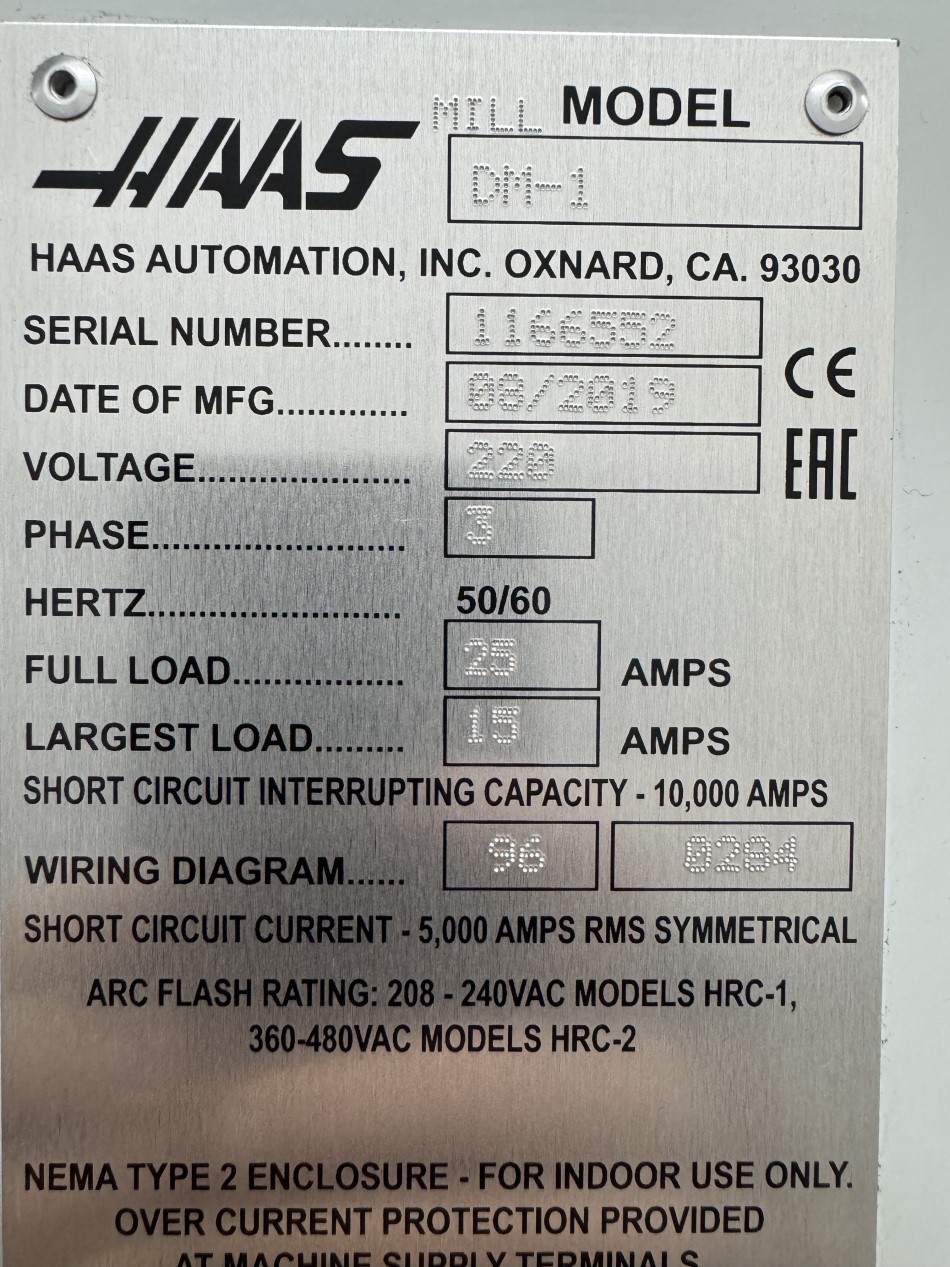

208-240V / 3 ph |
| WEIGHT |
5150 LBS. |
EQUIPPED WITH:

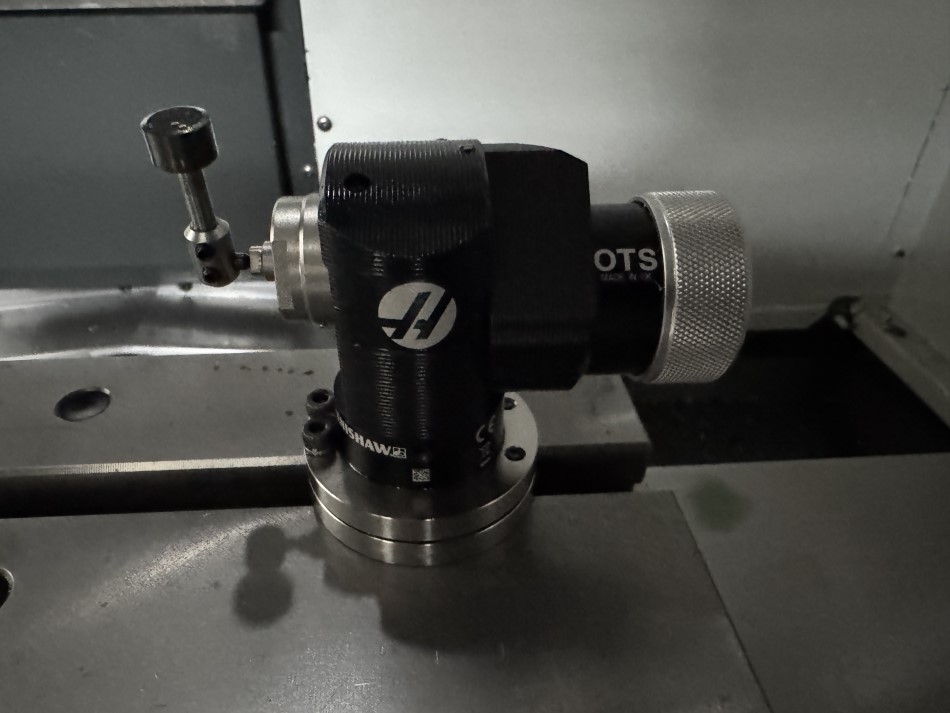

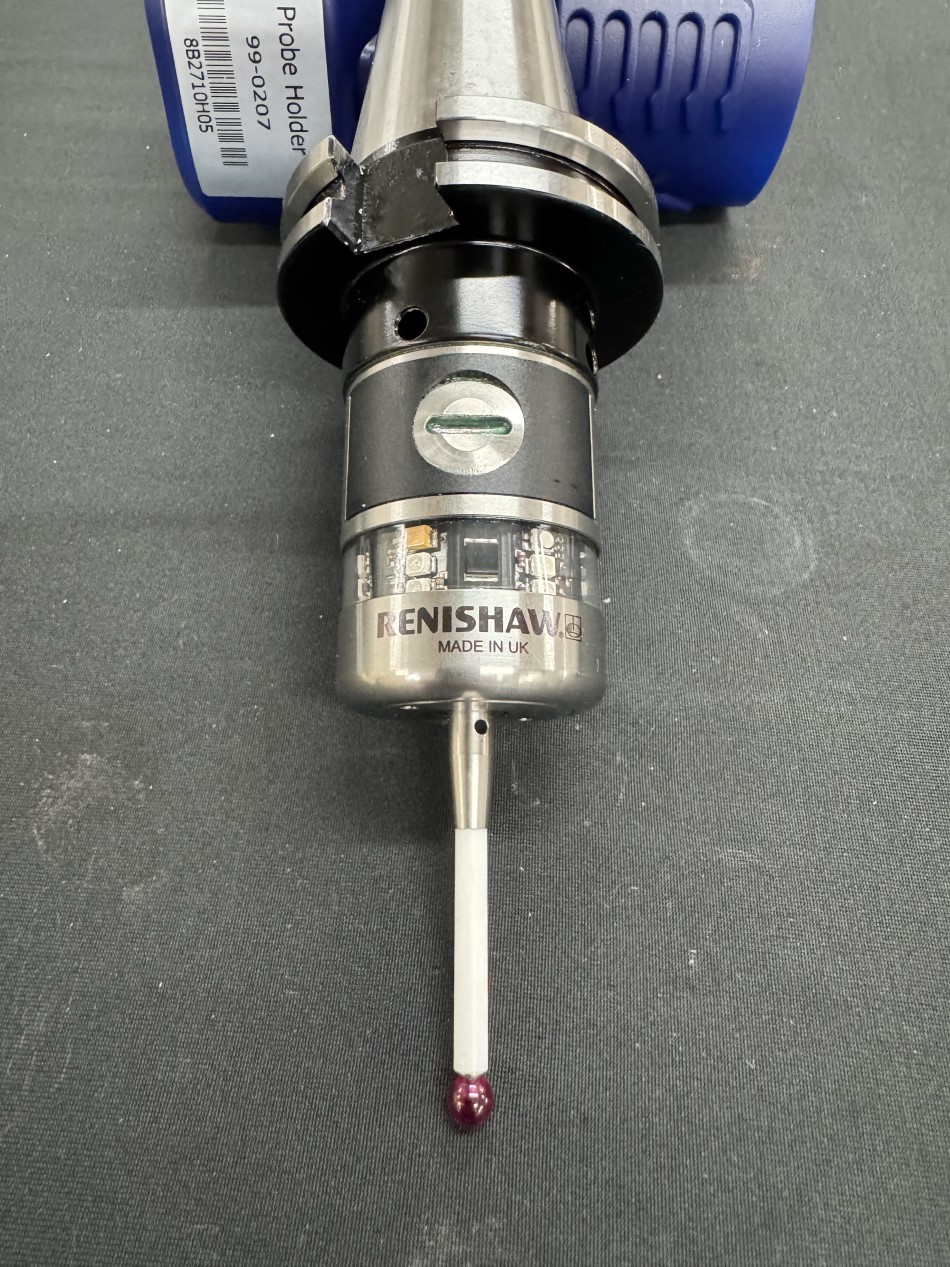

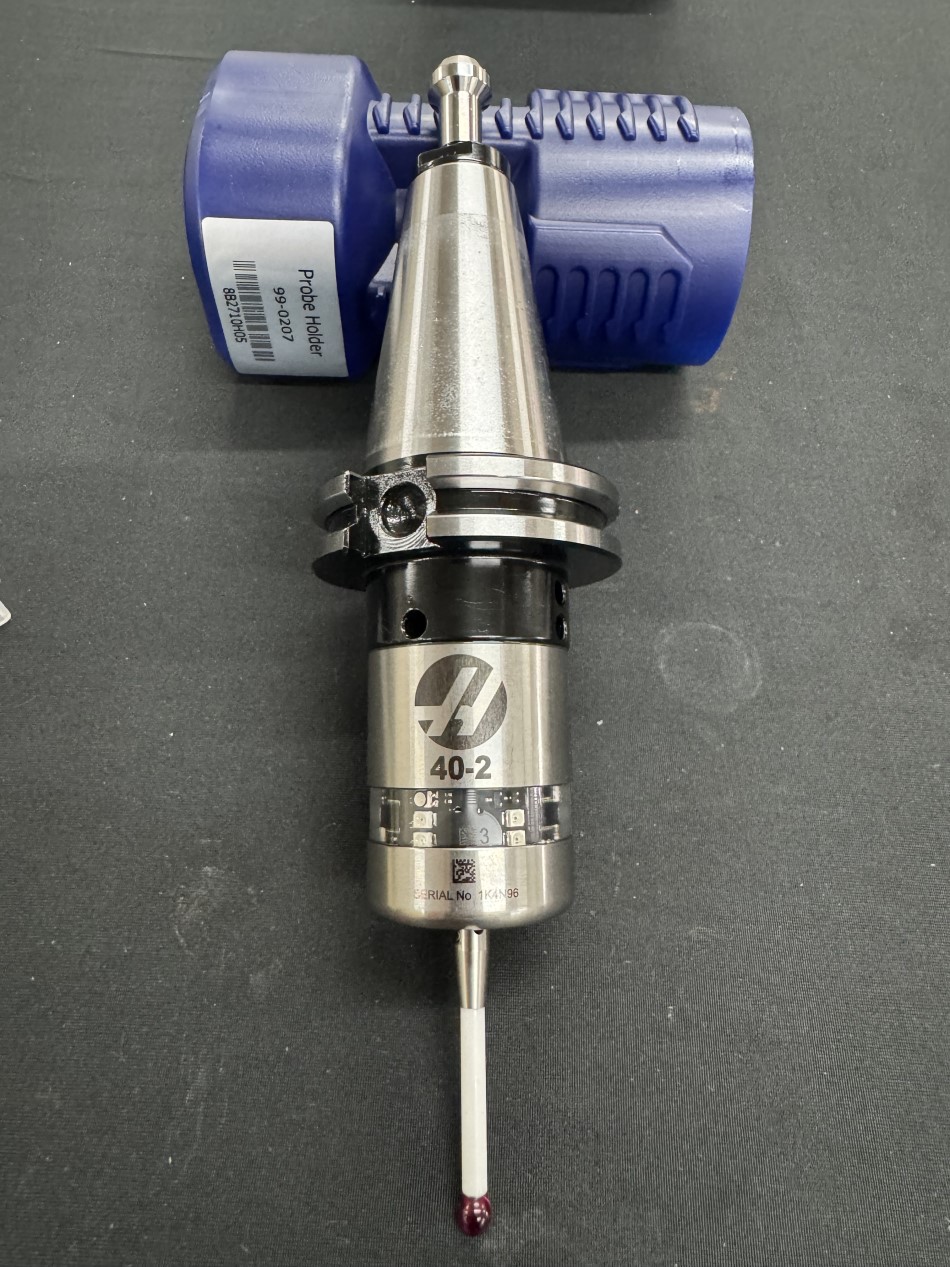

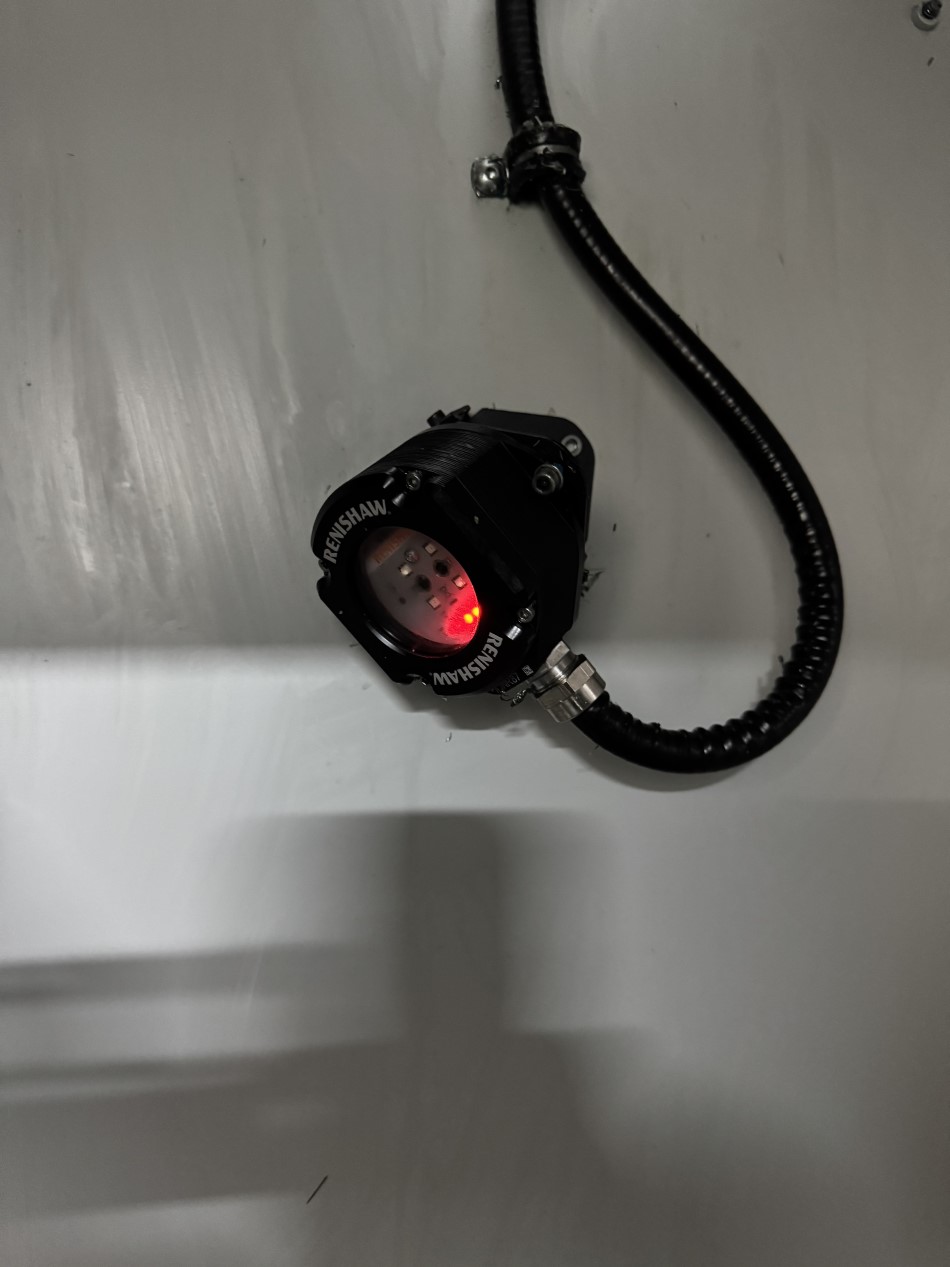

- WIPS ~ Renishaw part probe and tool probe package
- 15K RPM Spindle Upgrade, Inline Direct Drive

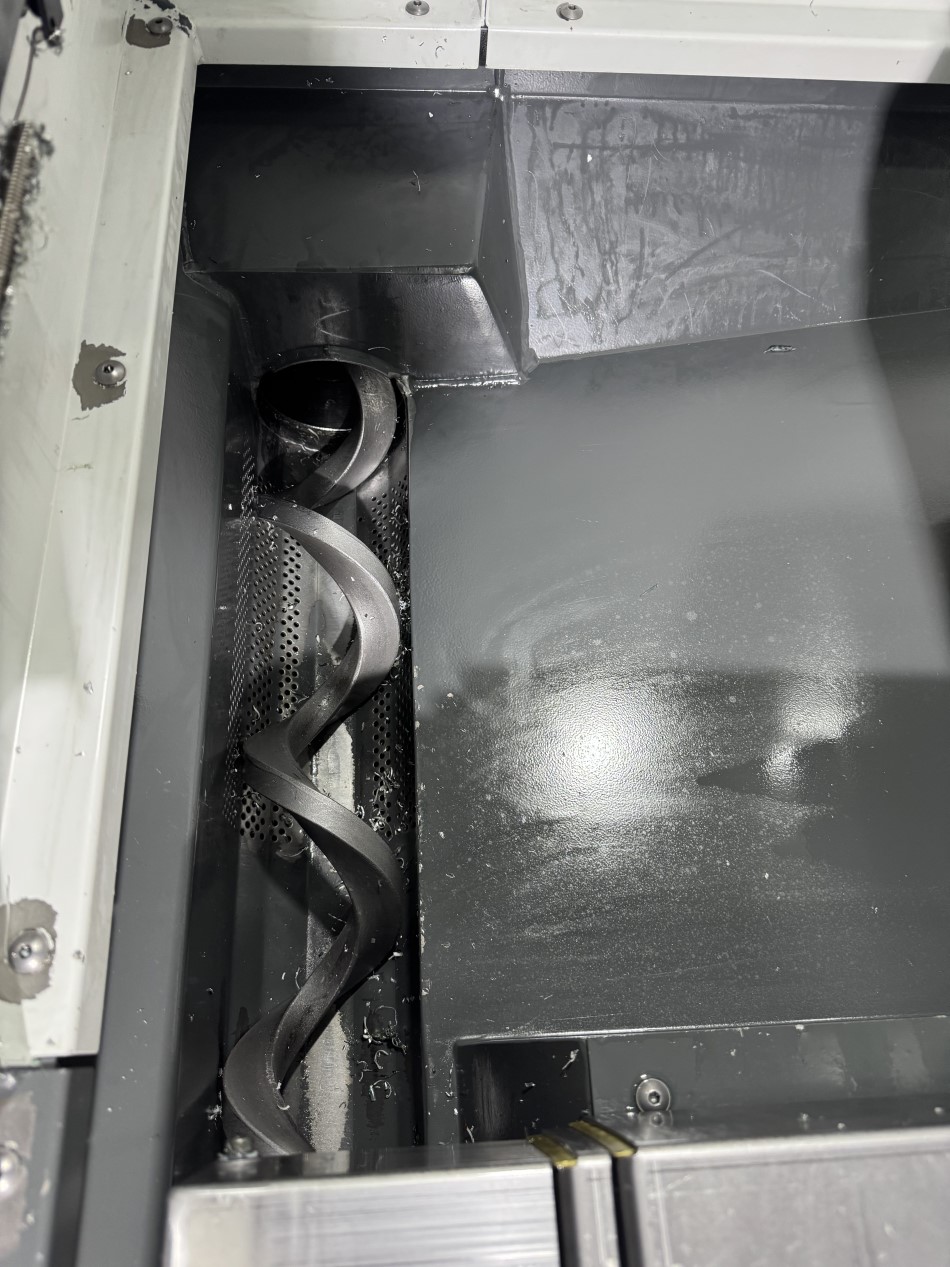

- CHIP AUGER
- 15” COLOR LCD MONITOR / 1GB MEMORY STD.

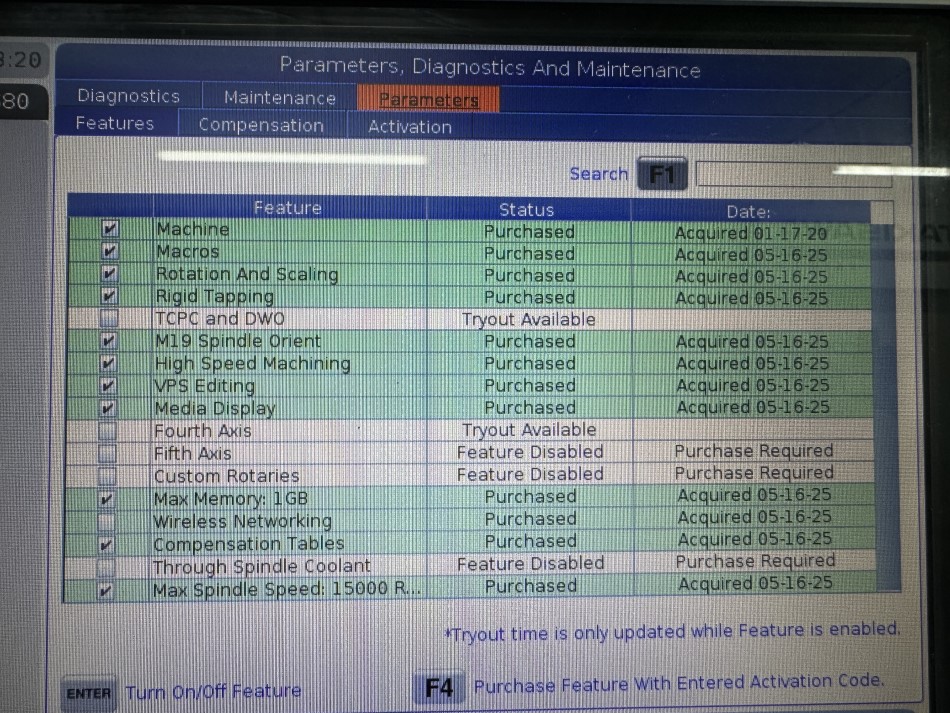

- HIGH SPEED MACHINING
- ENCLOSURE EXHAUSE SYSTEM
- M19 SPINDLE ORIENTATION
- USER MACROS
- COORDINATE ROTATION & SCALING
- VPS (Visual Part Programing System) EDITING
- MEDIA DISPLAY, MAX MEMORY 1GB, WIRELESS NETWORKING… Std.
- COMPENSATION TABLES

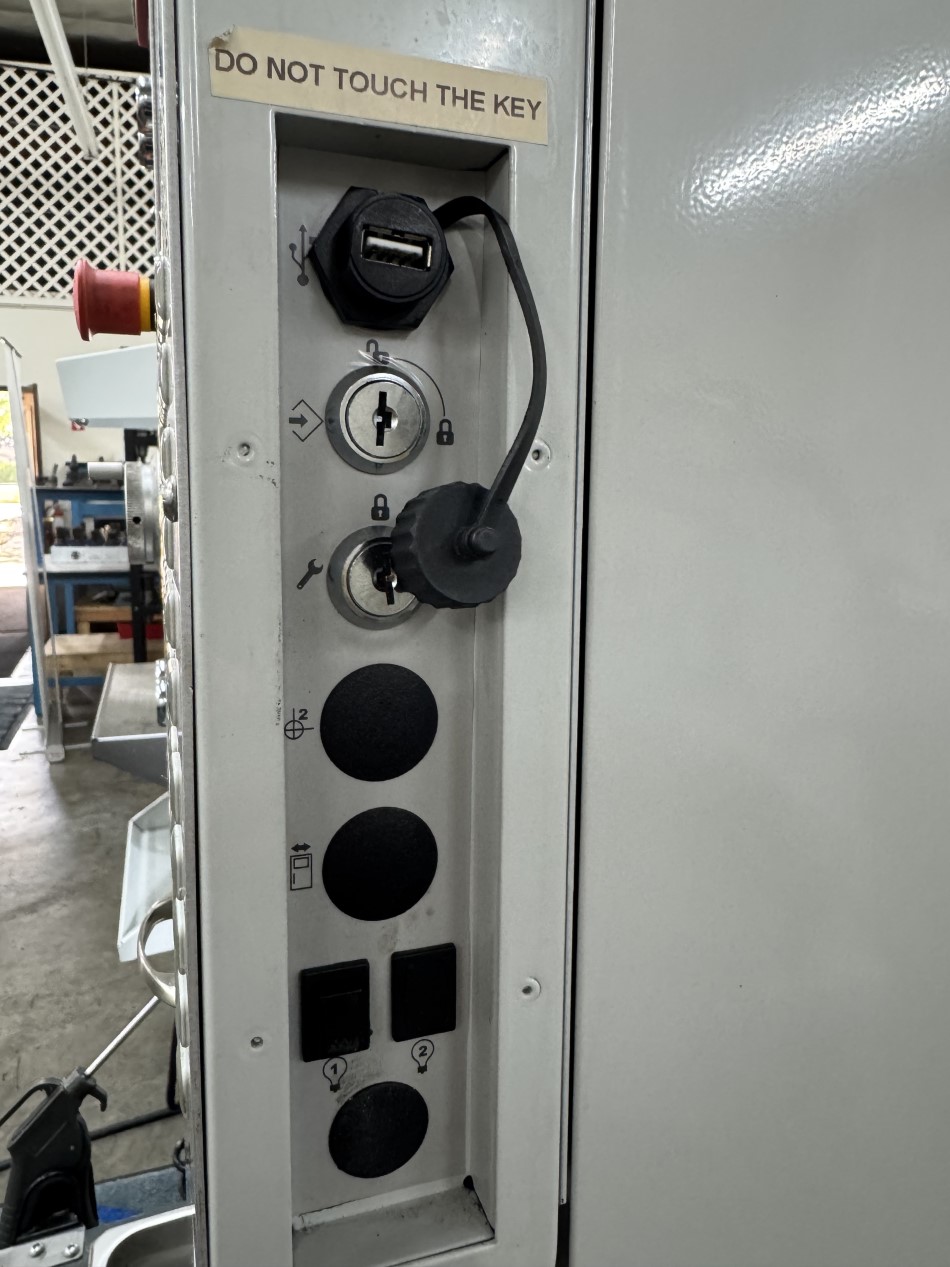

- USB DRIVE / RS-232 PORT

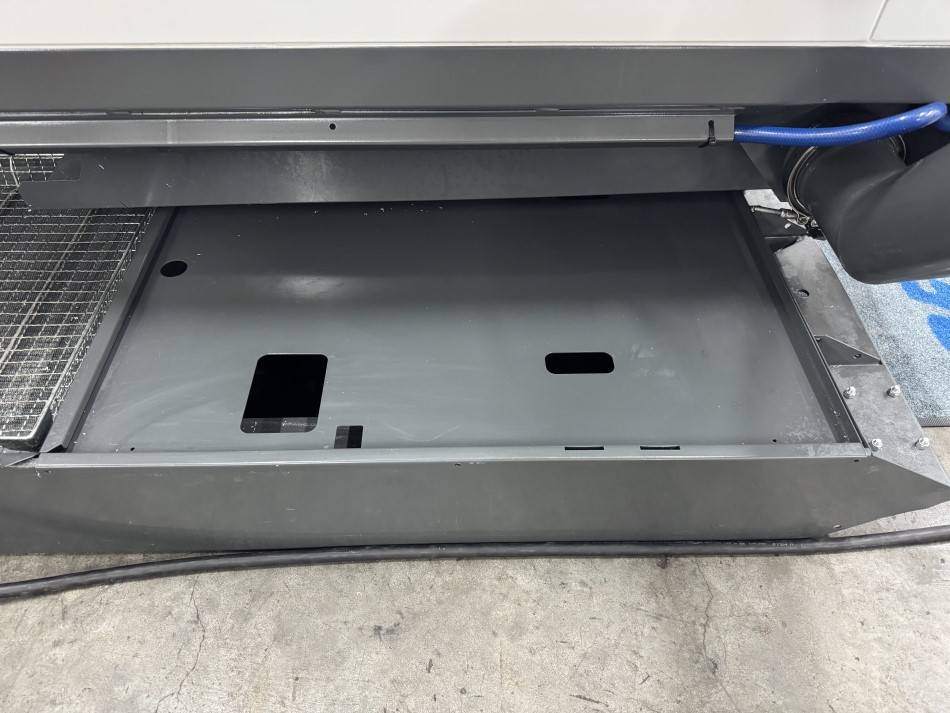

- COOLANT TANK / COOLANT PUMP KIT – ¾ HP
- RIGID TAPPING / WORK LIGHT
- TOOL RACK / MANUALS

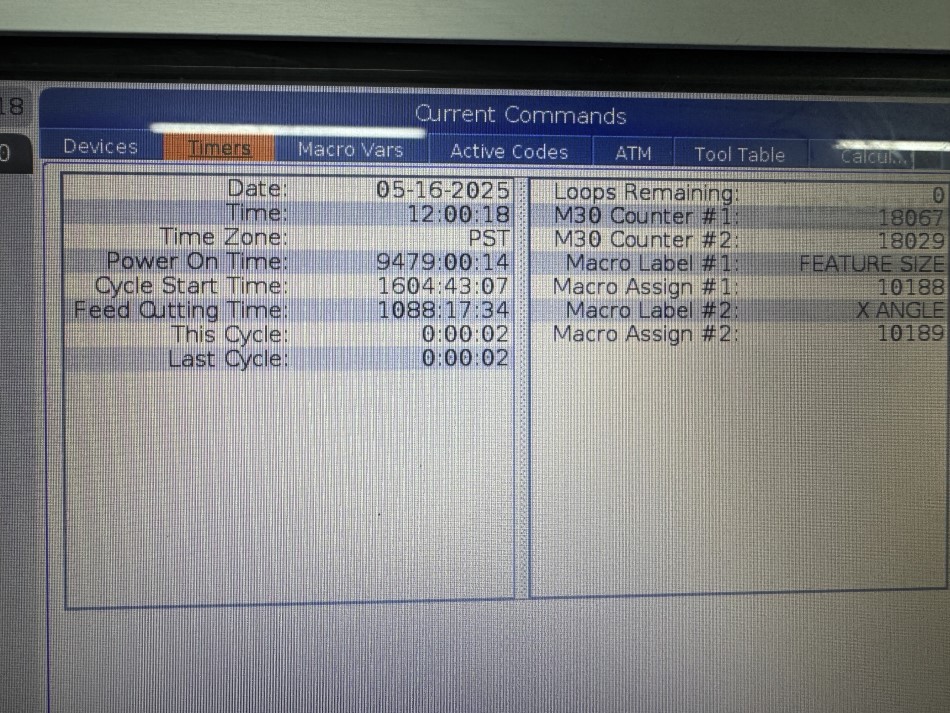

- Hours: Power on: 9474 / Feed Cutting: 1088 / Cycle Start: 1604
|
