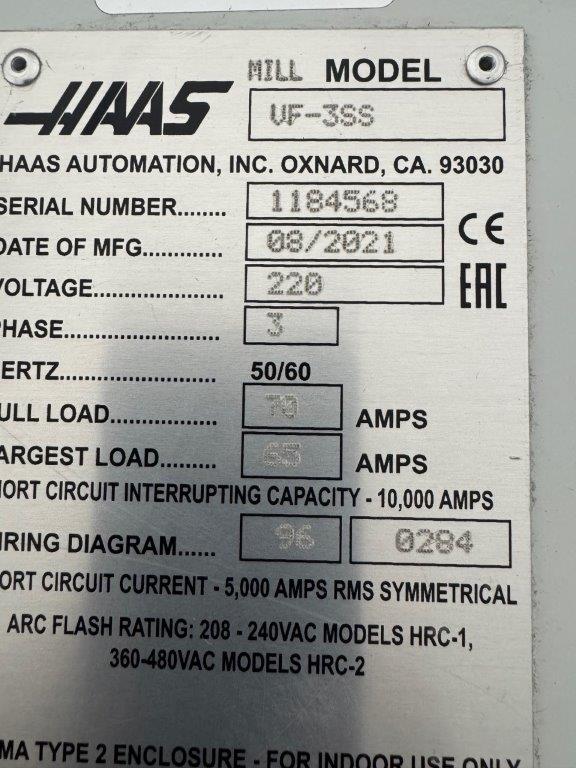

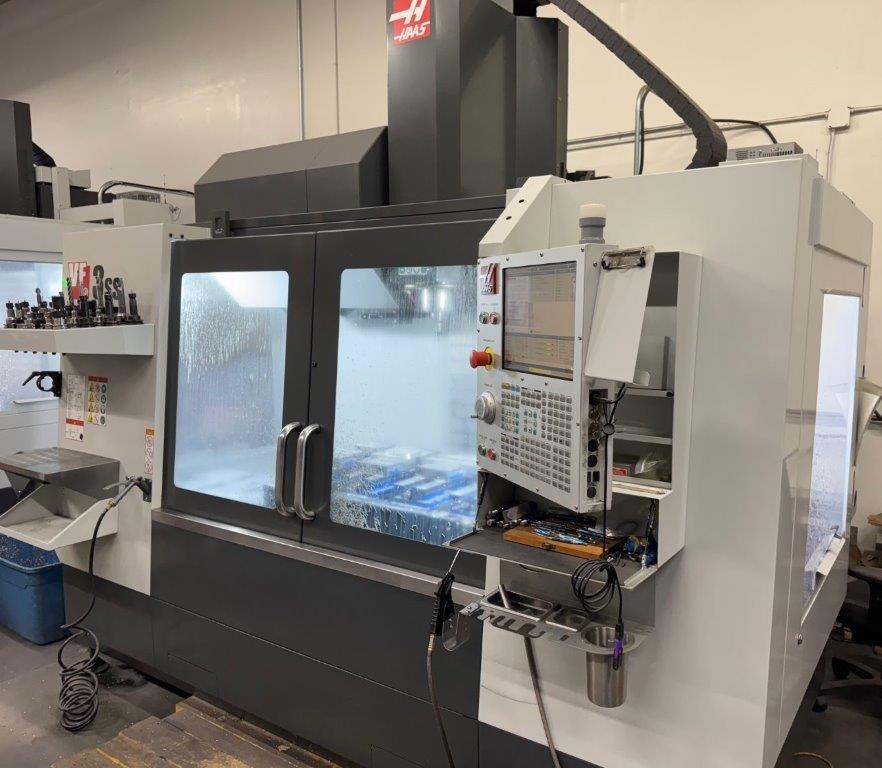

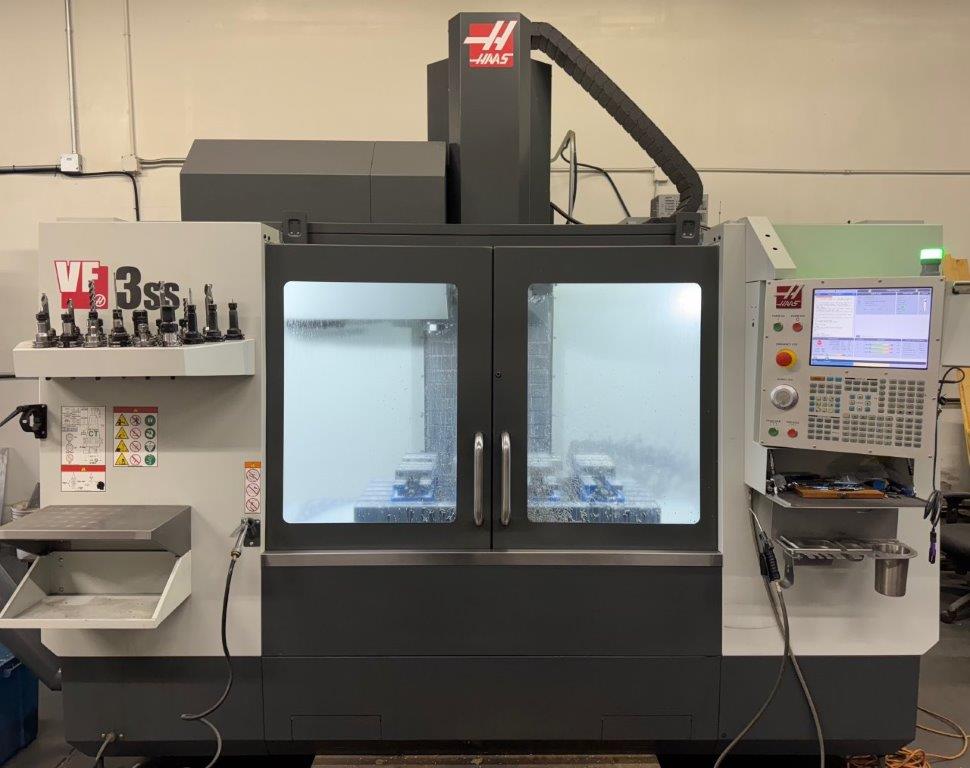

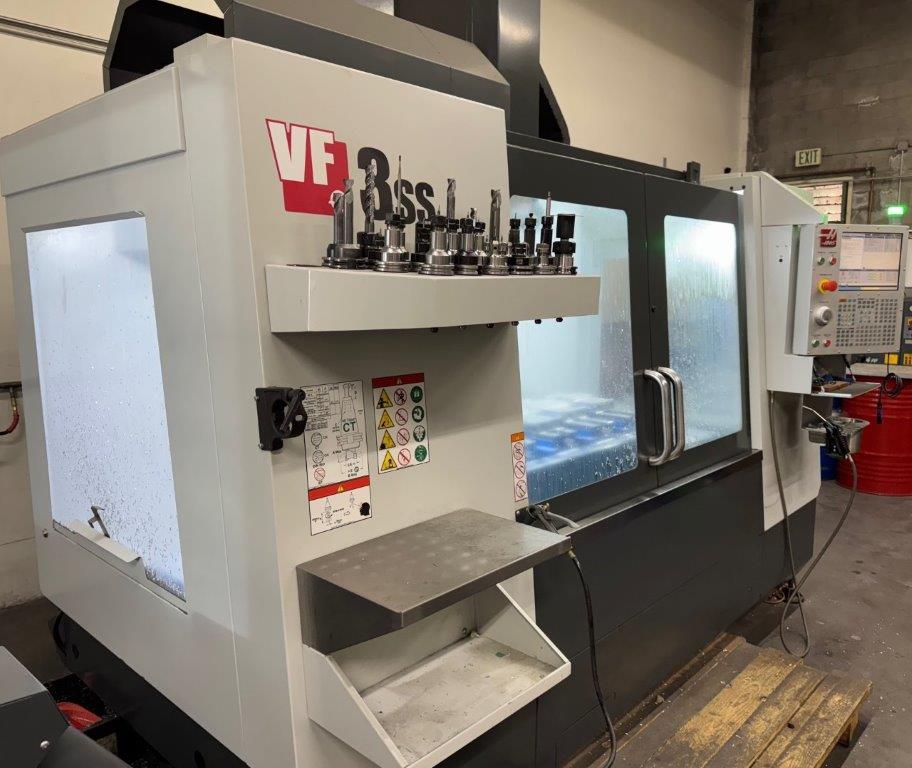

HAAS VF-3SS VERTICAL MACHINING CENTER - BUILT: 8/2021

HAAS VF-3SS VERTICAL MACHINING CENTER - BUILT: 8/2021

Stock Number: 589

Mfg: HAAS



Click to view larger photo

SPECIFICATIONS:

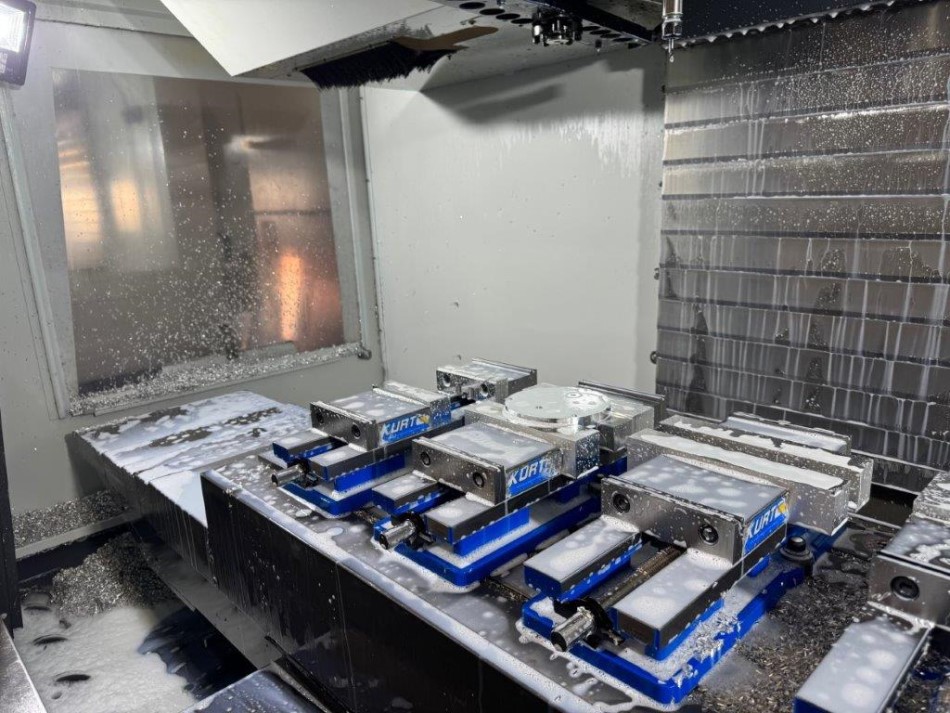

TABLE WORKING SURFACE 48" x 18"
TABLE TRAVELS 40" x 20" X 25"
MAX WEIGHT ON TABLE 1750 lbs
RAPID TRAVERSE RATE, ALL AXES 1400 IPM

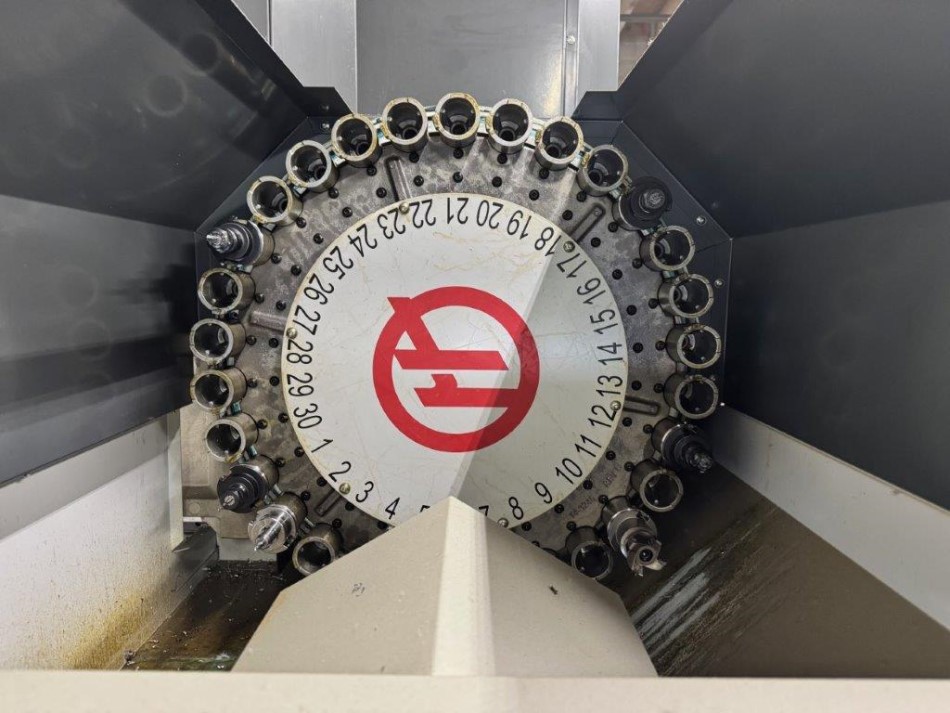

TOOL CHANGER ARM STYLE 30 + 1
SPINDLE HORSEPOWER 30 HP

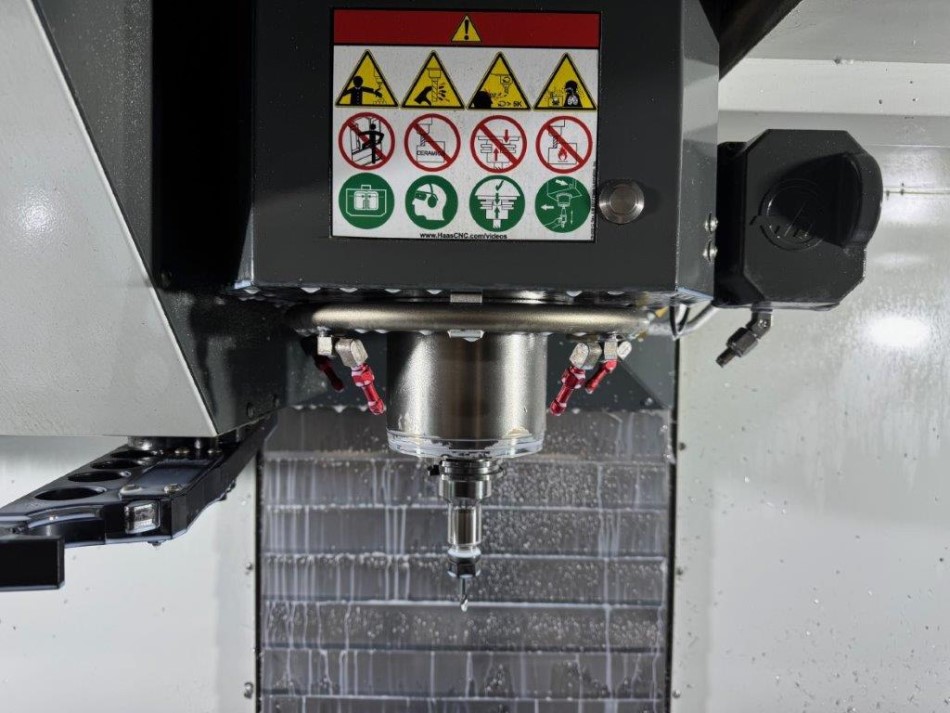

SPINDLE SPEEDS RANGE 12,000 RPM / INLINE DIRECT DRIVE
SPINDLE TAPER #40 CAT
OVERALL DIMENSIONS 110" x 118" x 117"
APPROXIMATE WEIGHT - NET 12,500 LBS.

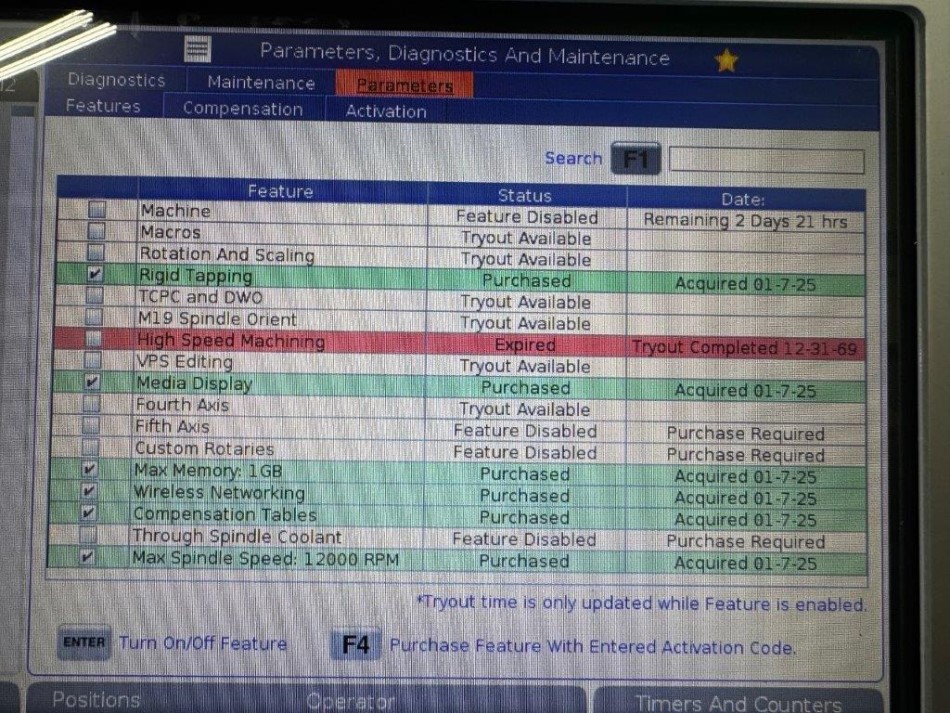

EQUIPPED WITH:

  • RIGID TAPPING

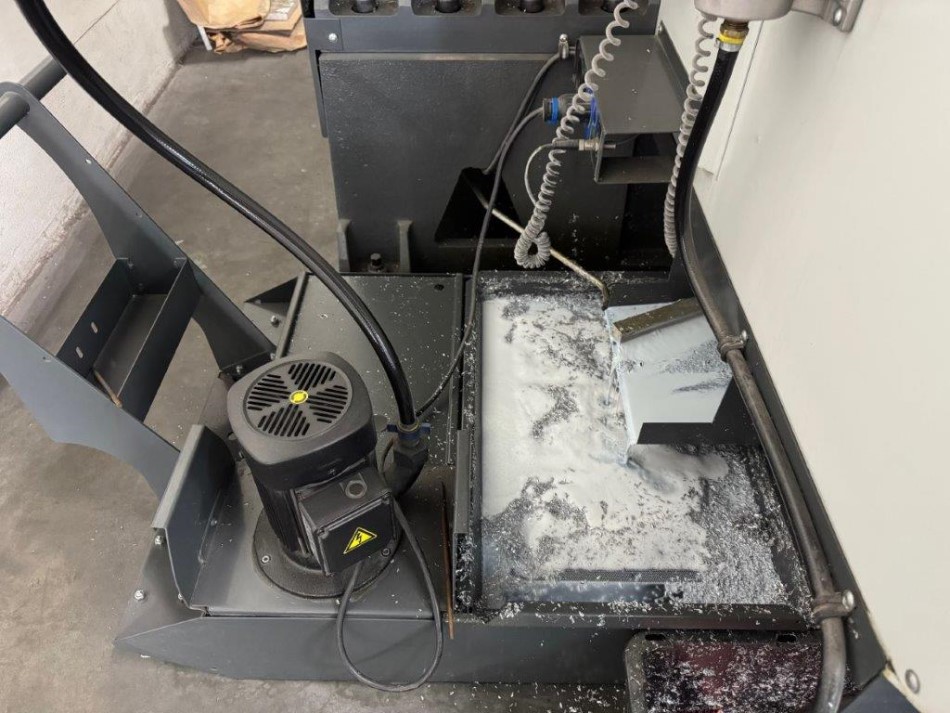

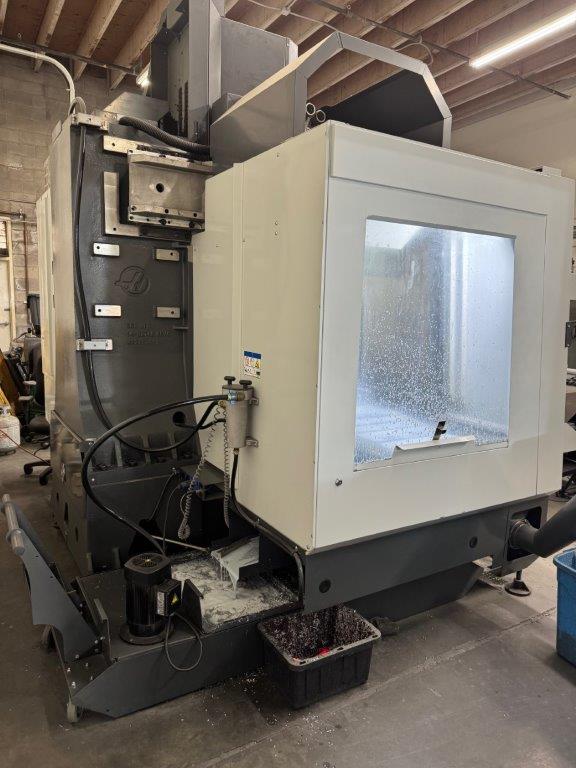

  • CHIP AUGER
  • ETHERNET

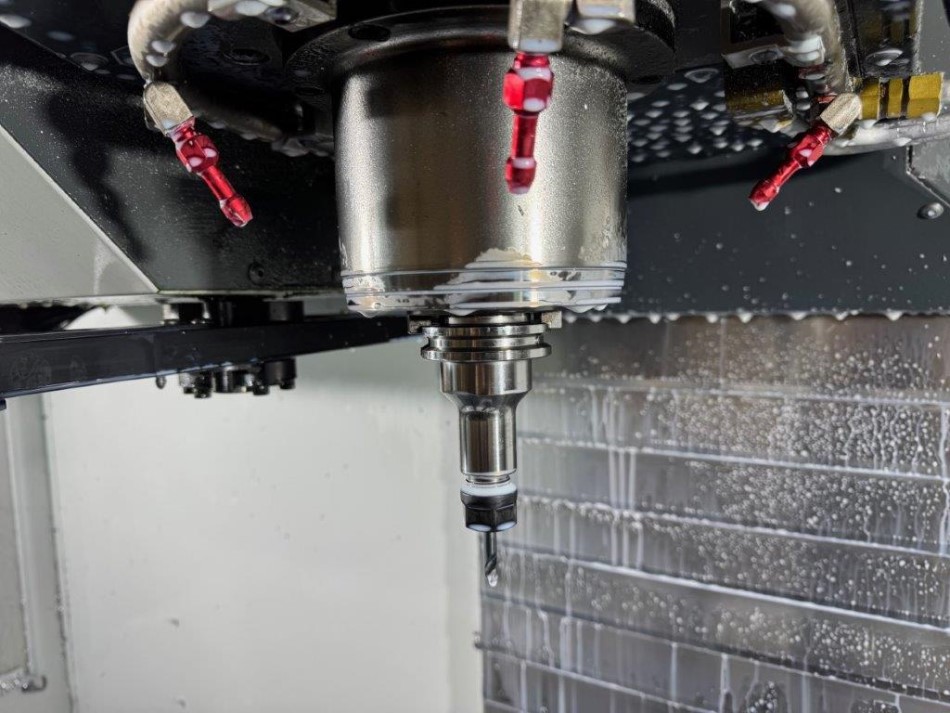

  • PROGRAMMABLE COOLANT NOZZLE

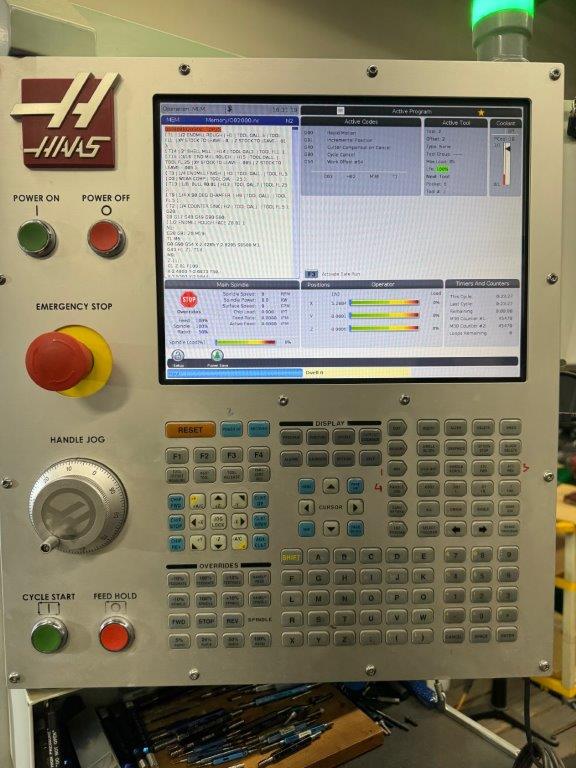

  • REMOTE JOG HANDLE, MACRO SOFTWARE
  • COORDINATE ROTATION & SCALING
  • INTUITIVE PROGRAMMING SYSTEM
  • WIRELESS NETWORKING
  • COMPENSATION TABLES
  • 1GB MEMORY  /  MEDIA DISPLAY
  • COOLANT TANK with 55 GALLON CAPACITY

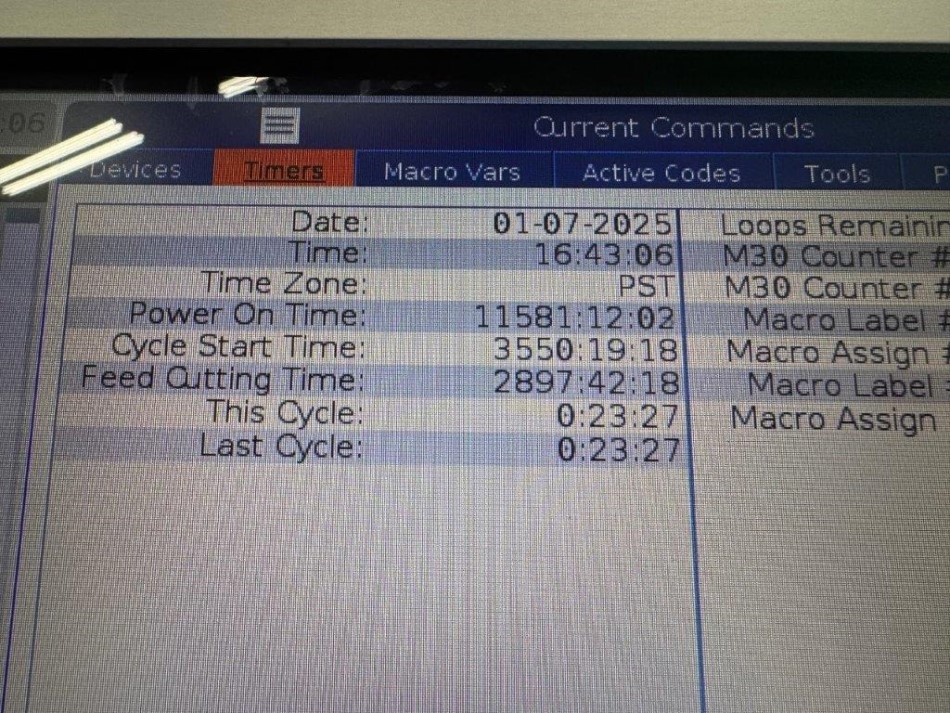

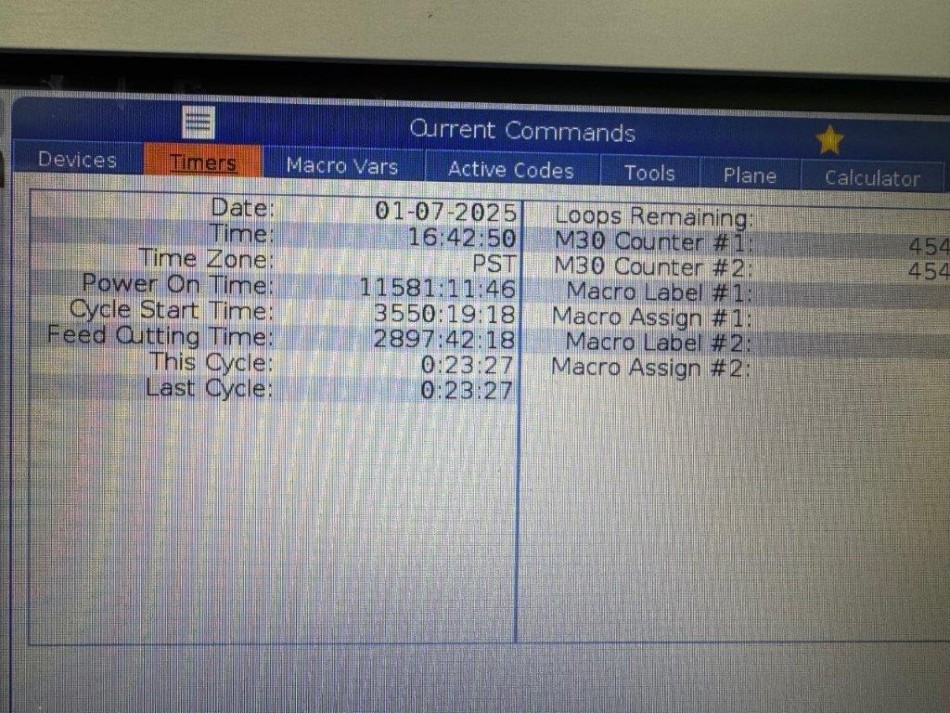

  • Hours: Power: 11581  /  Cycle Start: 3550  /  Feed Cutting: 2897
