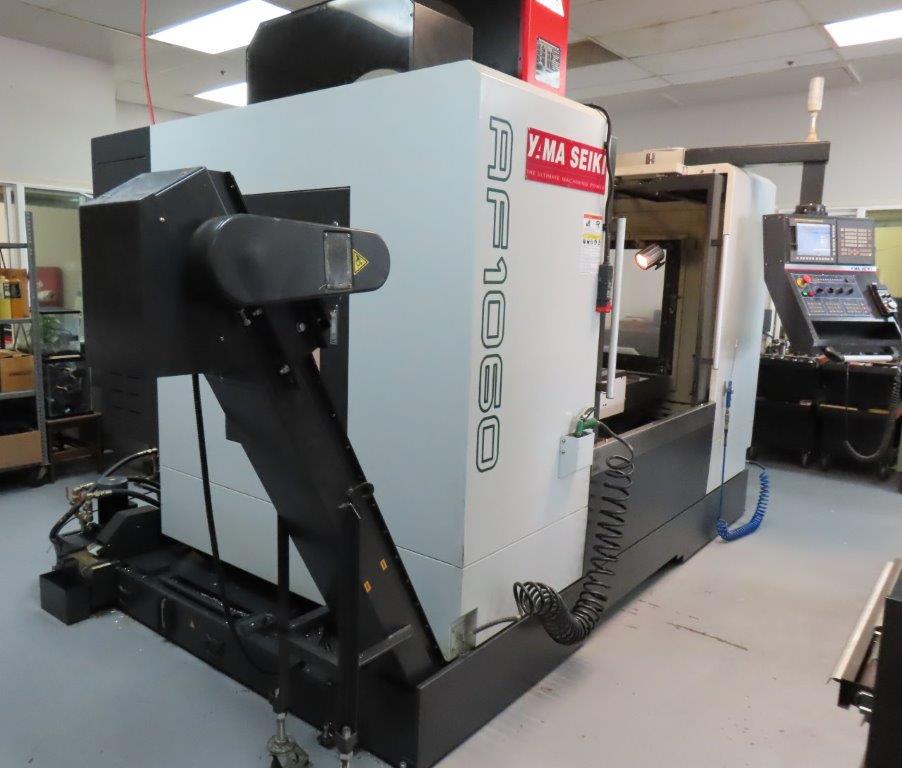

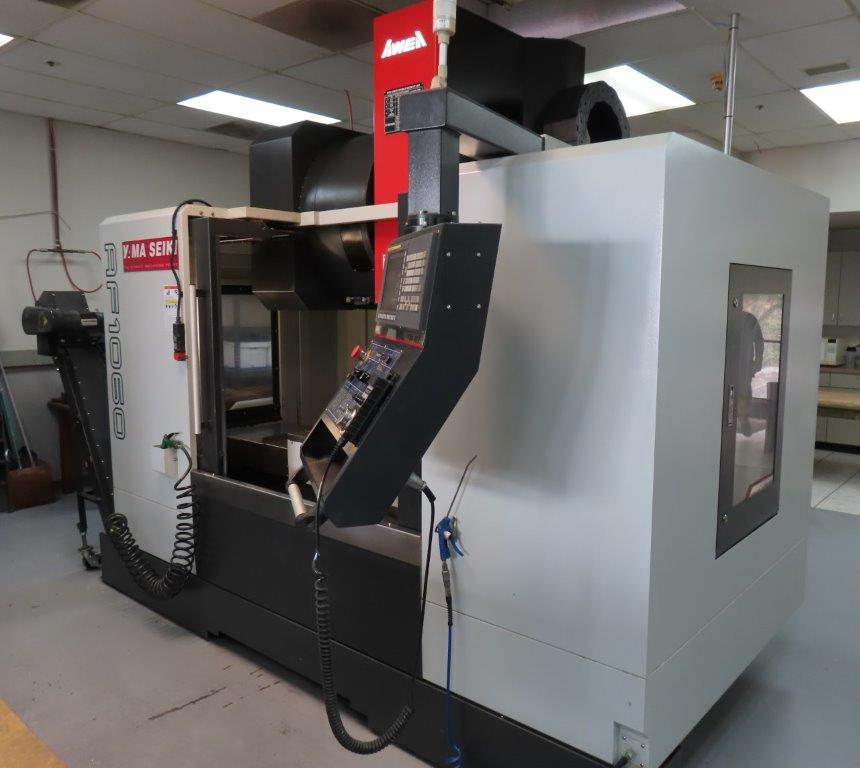

Click to view larger photo
| SPECIFICATIONS: | |
|---|---|

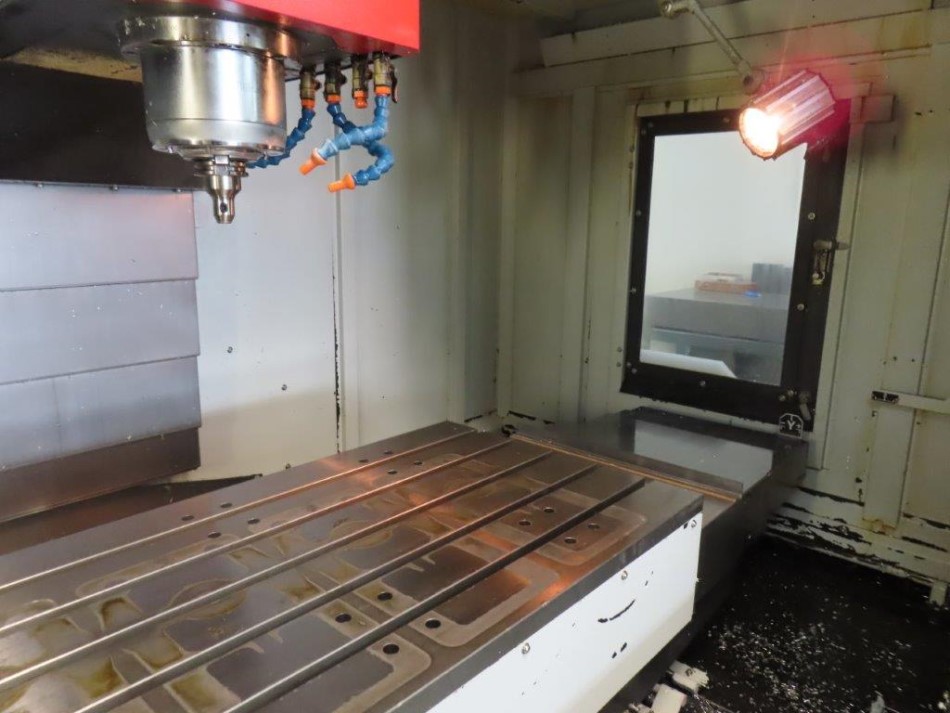

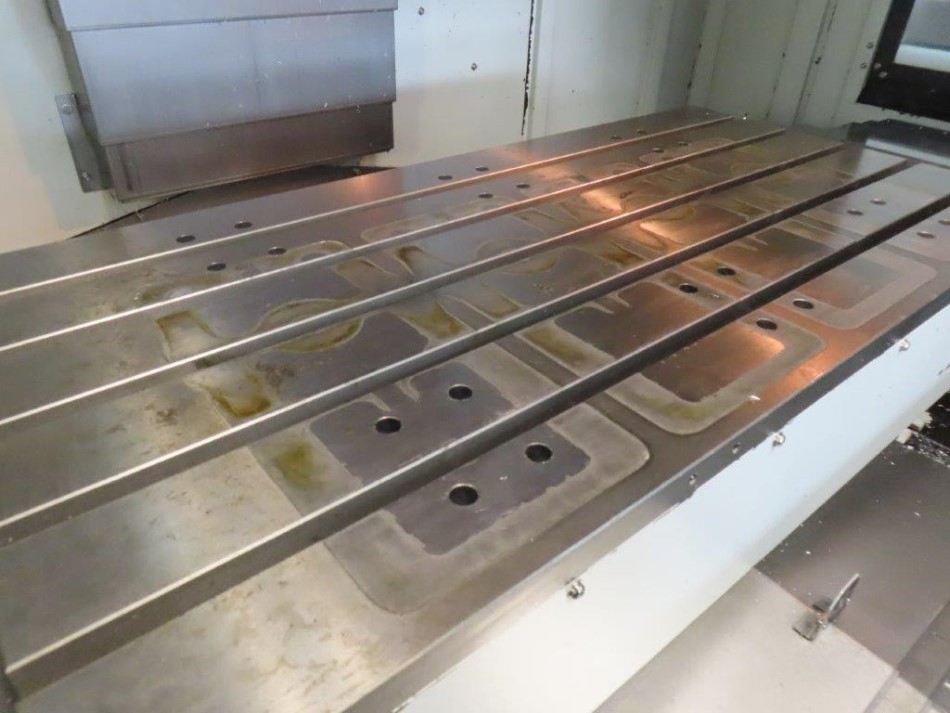

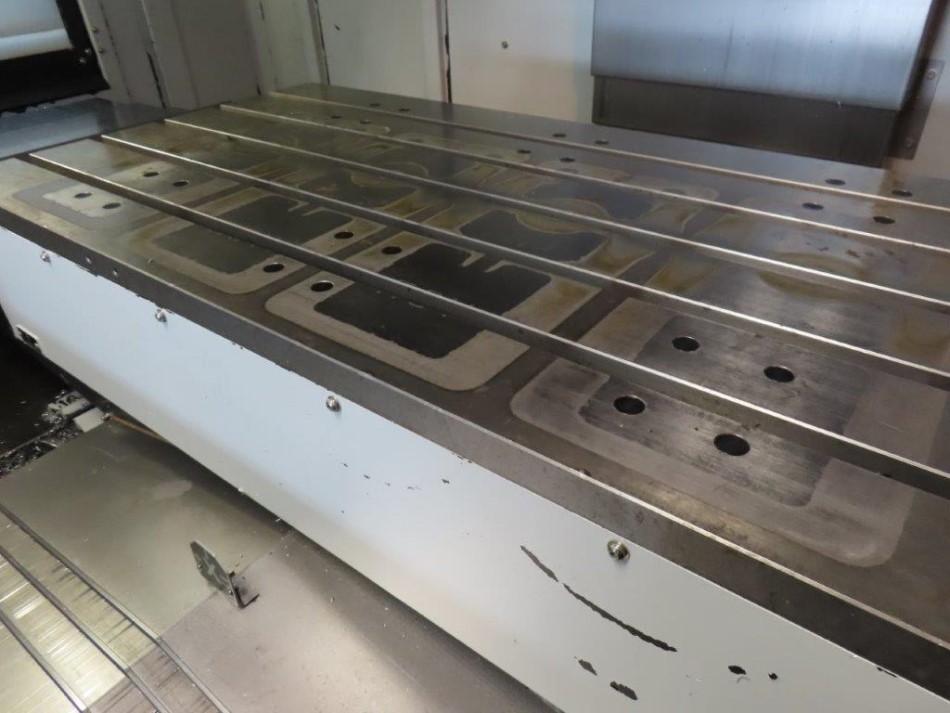

| TABLE WORKING SURFACE | 47" x 23.6" |
| TABLE LOAD CAPACITY | 1,540 LBS. |
| TRAVELS (X, Y, Z) | 41.7" x 23.6" x 23.6" |
| SPINDLE CENTER TO COLUMN | 31.49" |
| SPINDLE NOSE TO TABLE TOP | 3.93" - 27.55" |
| RAPID TRAVERSE RATE, X&Y | 1890 IPM |

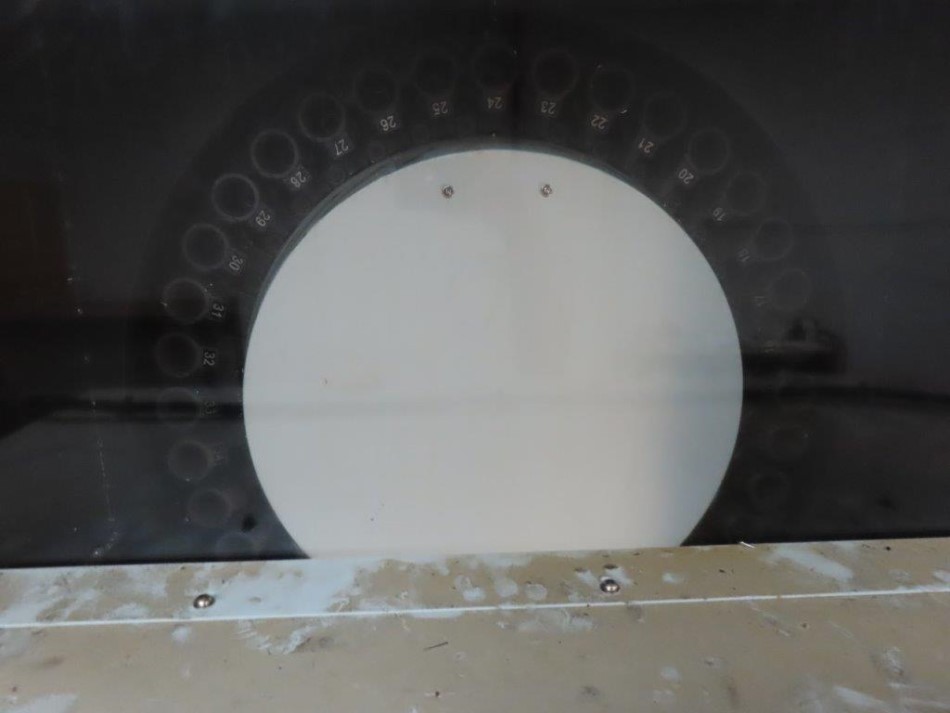

| TOOL CHANGER ARM STYLE | 36 |
| TOOL CHANGE TIME | 1.6 SEC TOOL TO TOOL |
| SPINDLE HORSEPOWER | 40 HP (PEAK RATING) |
| SPINDLE SPEEDS RANGE | 15,000 RPM (DIRECT DRIVE) |
| SPINDLE TAPER | CAT-40 |
| WAY SYSTEM | LINEAR |
| FLOOR SPACE DIMENSIONS | 143" x 112" x 100" |
| APPROXIMATE WEIGHT - NET | 15,400 LBS. |
EQUIPPED WITH:
