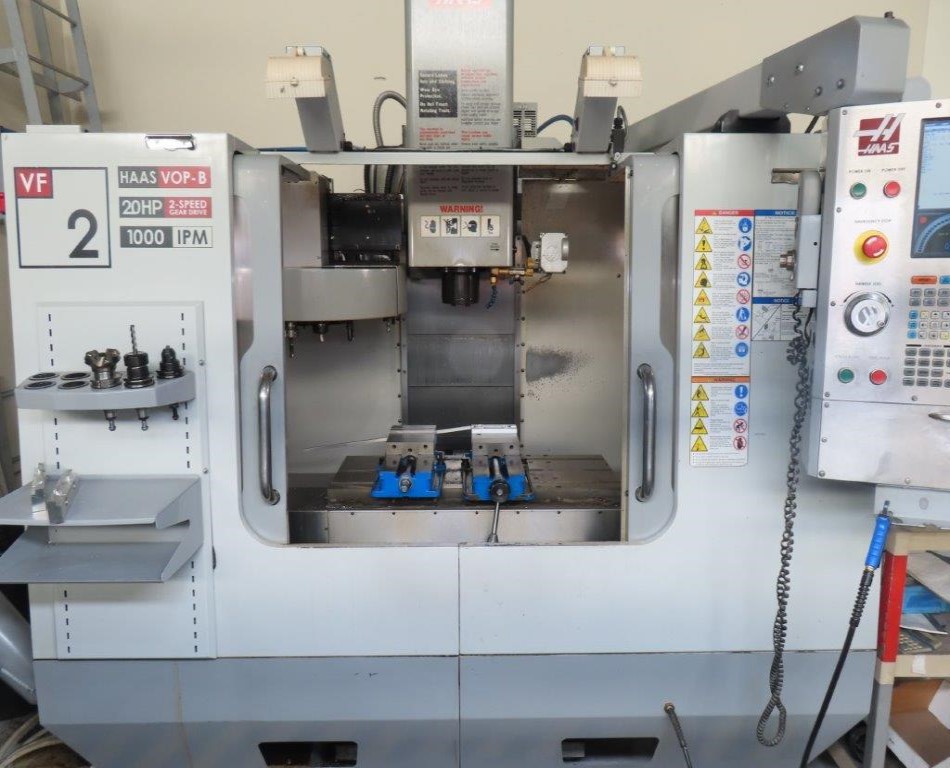

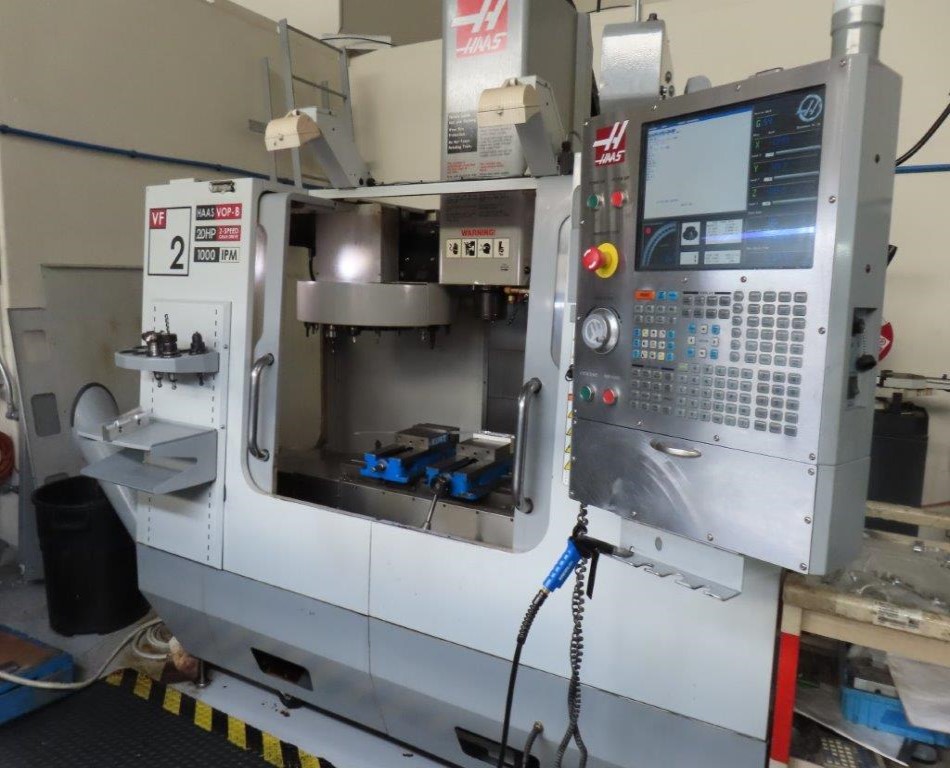

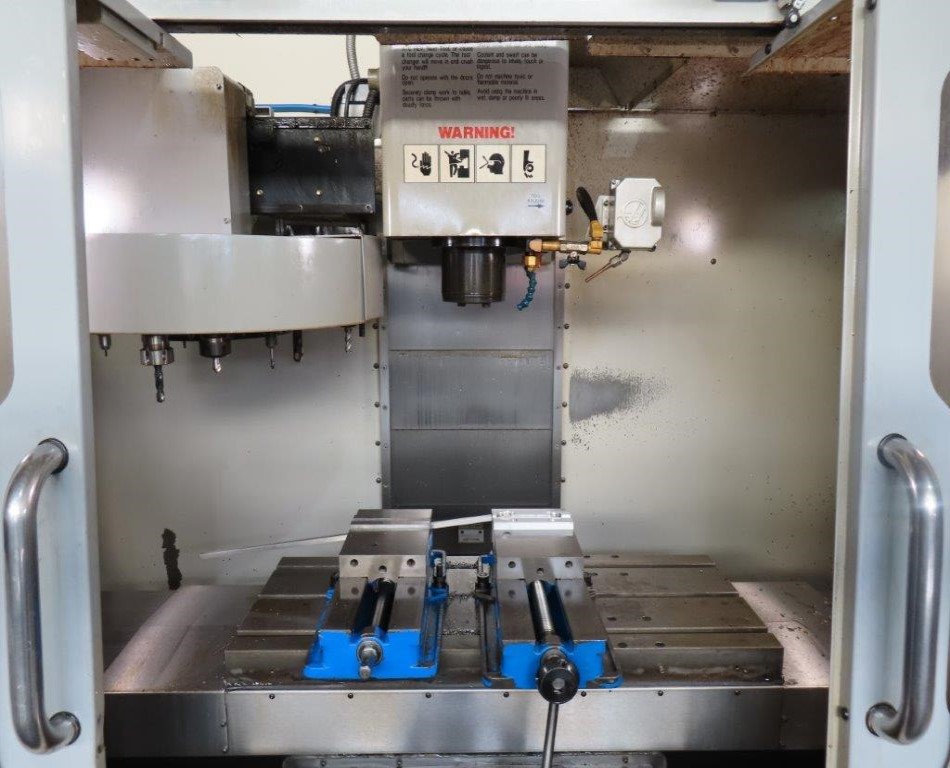

Click to view larger photo
| SPECIFICATIONS: | |
|---|---|
| TABLE SIZE | 36 in. x 14 in. |
| MAXIMUM TABLE LOAD | 3000 LBS. |
| SPINDLE NOSE TO TABLE TOP | 4 in. - 24 in. |
| X-AXIS TRAVEL | 30 in. |
| Y-AXIS TRAVEL | 16 in. |
| Z-AXIS TRAVEL | 20 in. |
| RAPID TRAVERSE RATE - ALL AXES | 1000 IPM |
| CUTTING FEED RATE | 0.1 - 500 IPM |

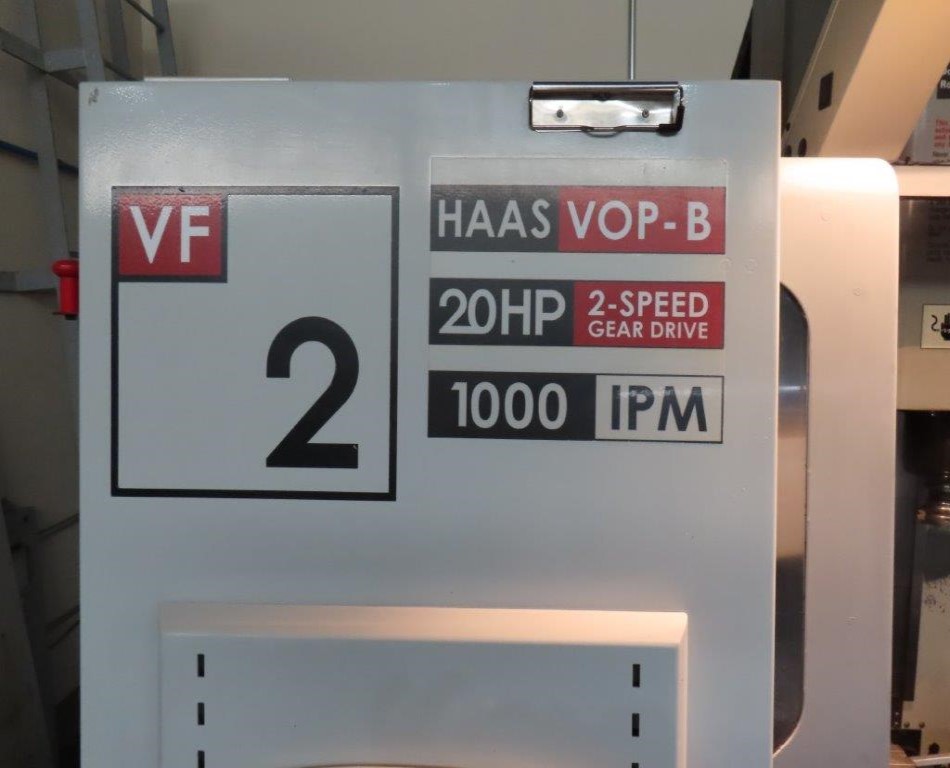

| SPINDLE SPEEDS | 7500 (2 SPEED GEAR BOX) |
| SPINDLE TAPER | CT 40 |
| SPINDLE MOTOR (VECTOR DRIVE) | 20 HP AC |

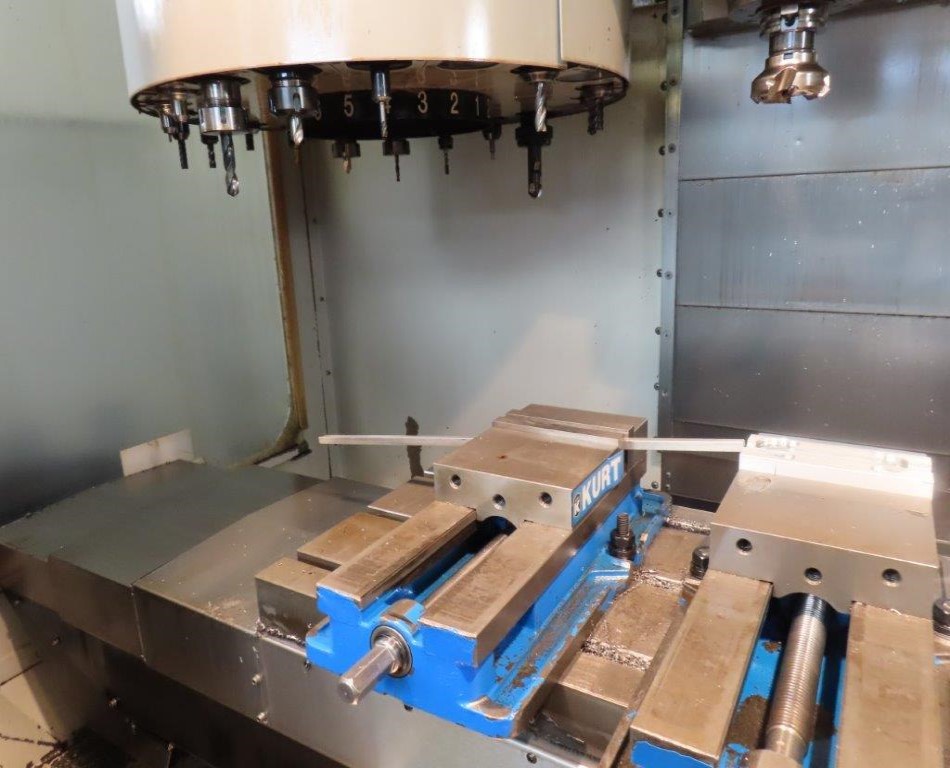

| TOOL CHANGER CAPACITY | 20 |
| MAXIMUM TOOL WEIGHT | 12 LBS. |
EQUIPPED WITH:
