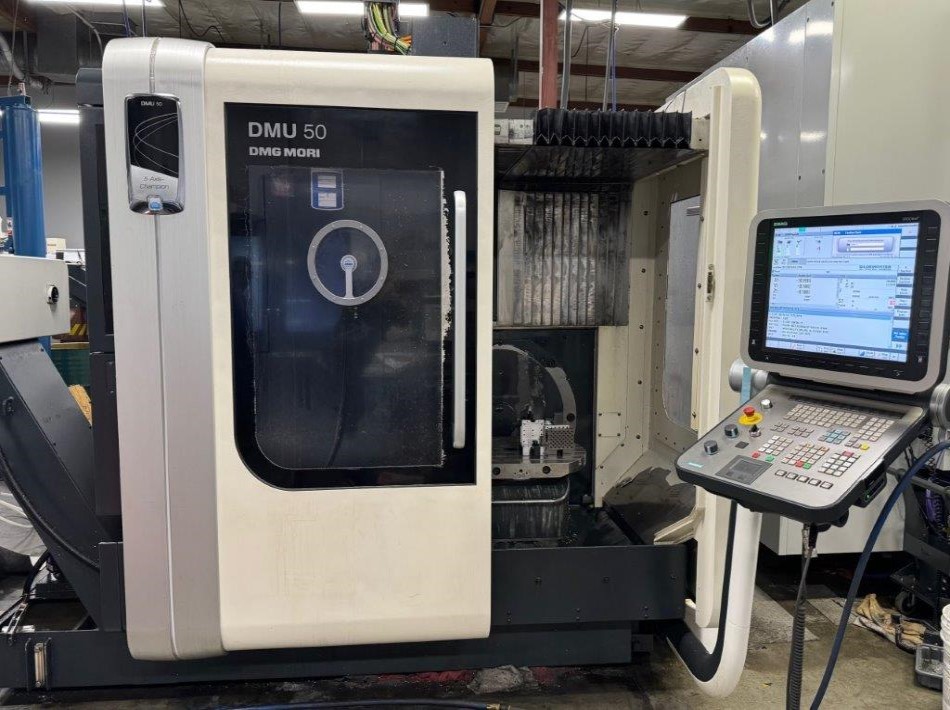

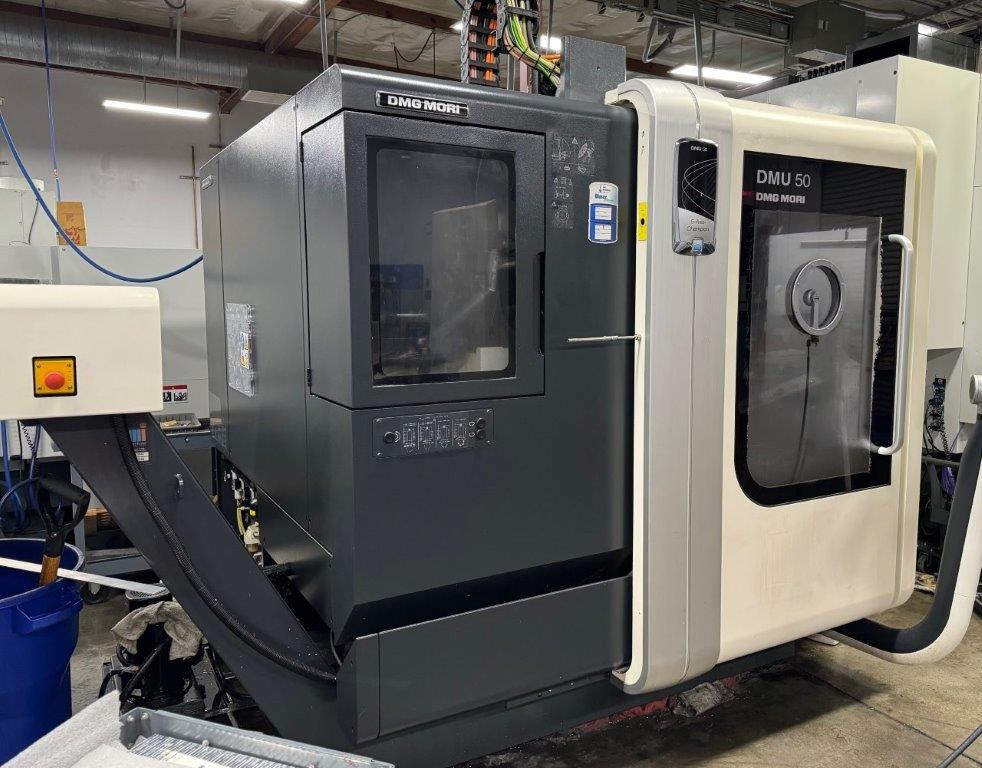

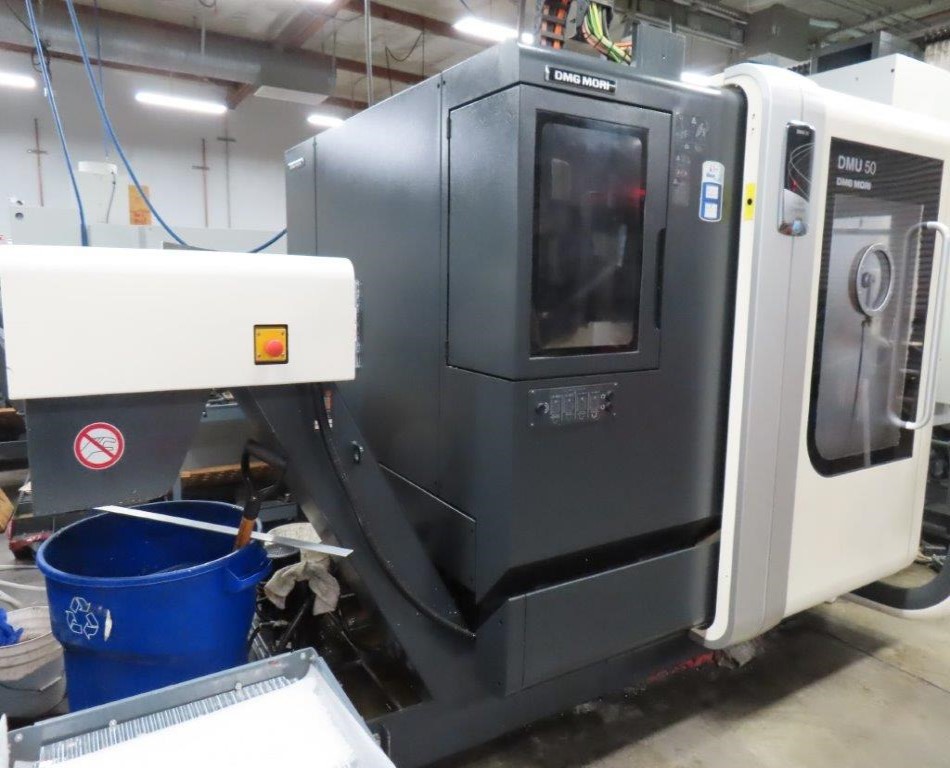

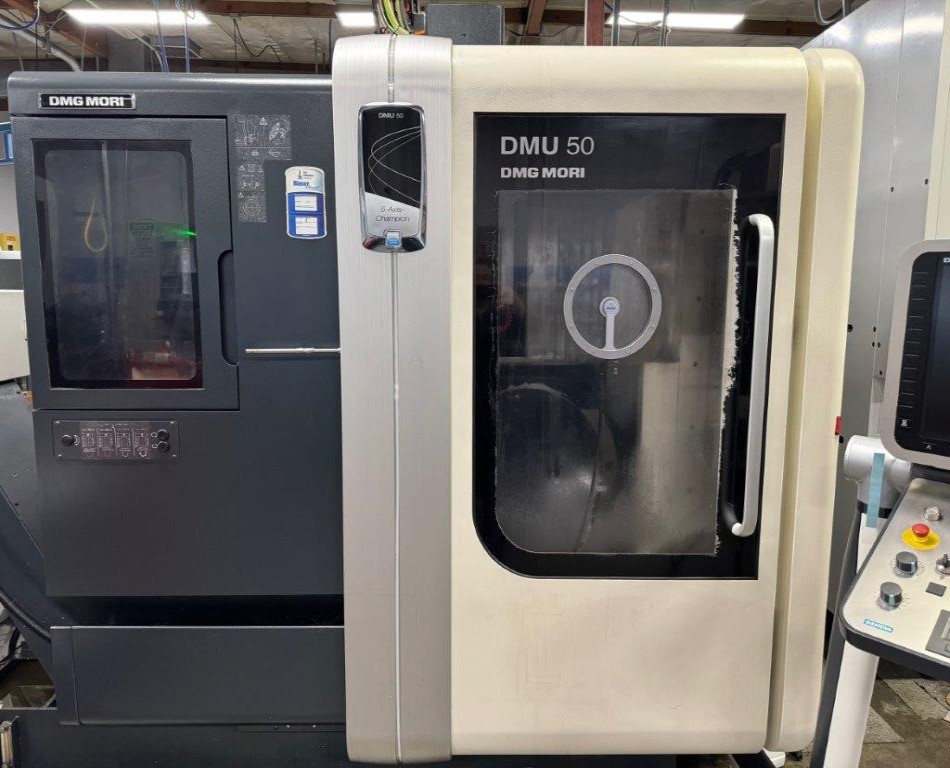

DMG DMU 50 FIVE AXIS MACHINING CENTER
YEAR: 2015
Stock Number: 556
Mfg: DMG DMU
Click to view larger photo
| SPECIFICATIONS: |
| PALLET SIZE |
27.6" x 19.7" |
| X, Y, Z AXIS TRAVELS |
19.7" x 17.7" x 15.7" |

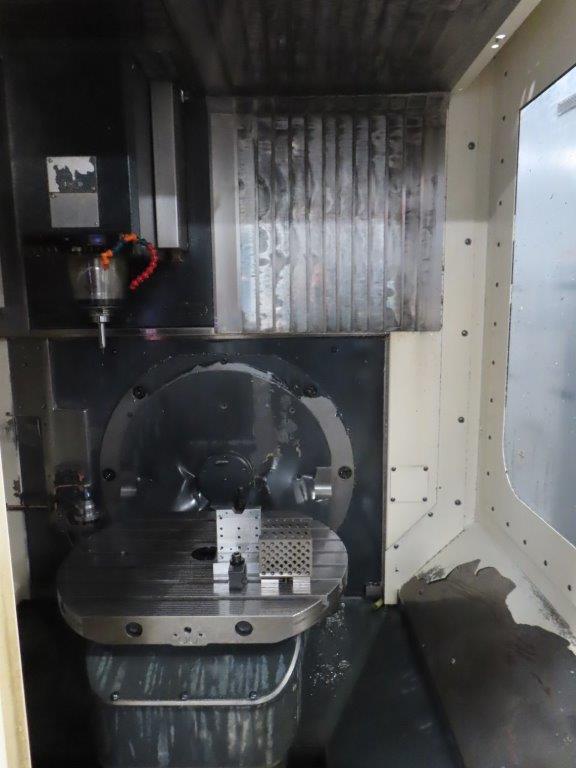

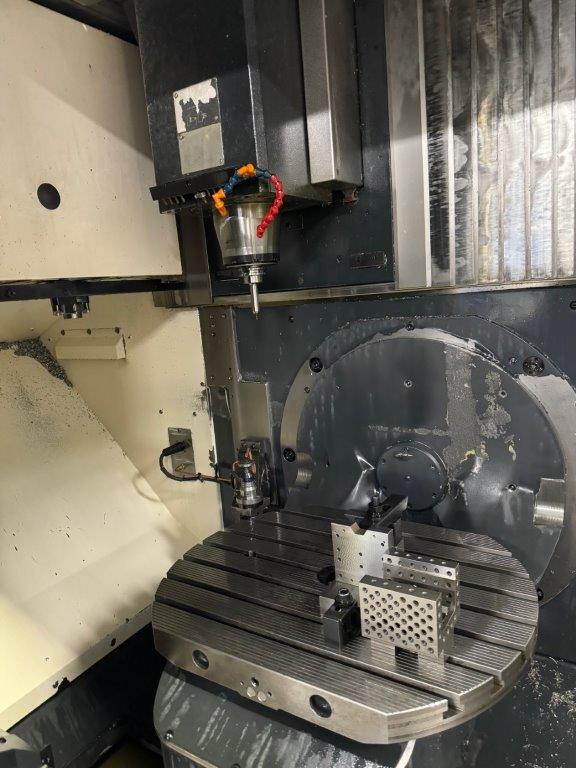

| B AXIS ROTARY |
-5 + 110 DEGREES |
| A AXIS ROTATION |
360 |
| MAX TABLE LOAD |
800 LBS |
| RAPID TRAVERSE |
1181 IPM |
| SPINDLE SPEED |
14,000 RPM |
| SPINDLE TAPER |
CAT -40 |
| MAIN MOTOR |
30 HP |
| TOOL STORAGE |
30 |
| MACHINE WEIGHT |
12,166 LBS |
| POWER |
220V / 3 PHASE / 50KVA |
EQUIPPED WITH:

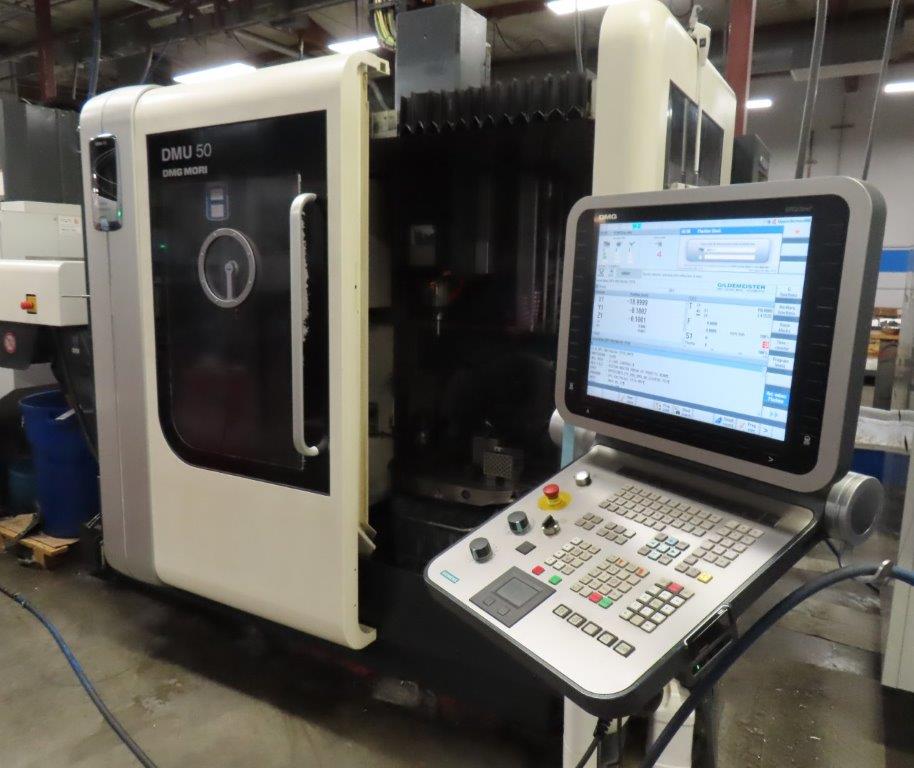

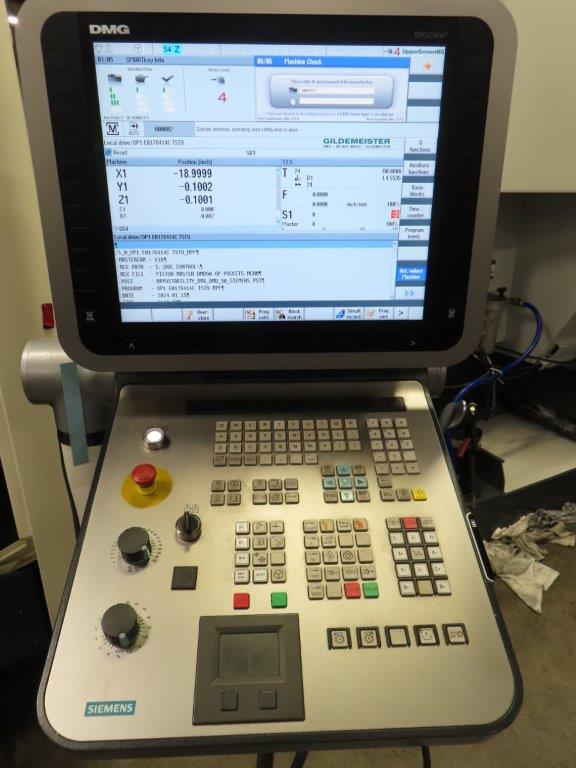

- SIEMENS CNC S840D Ergoline
- FULL 5 AXIS
- COOLANT AIR BLAST CHANGEOVER
- THROUGH SPINDLE COOLANT SYSTEM (separate type)

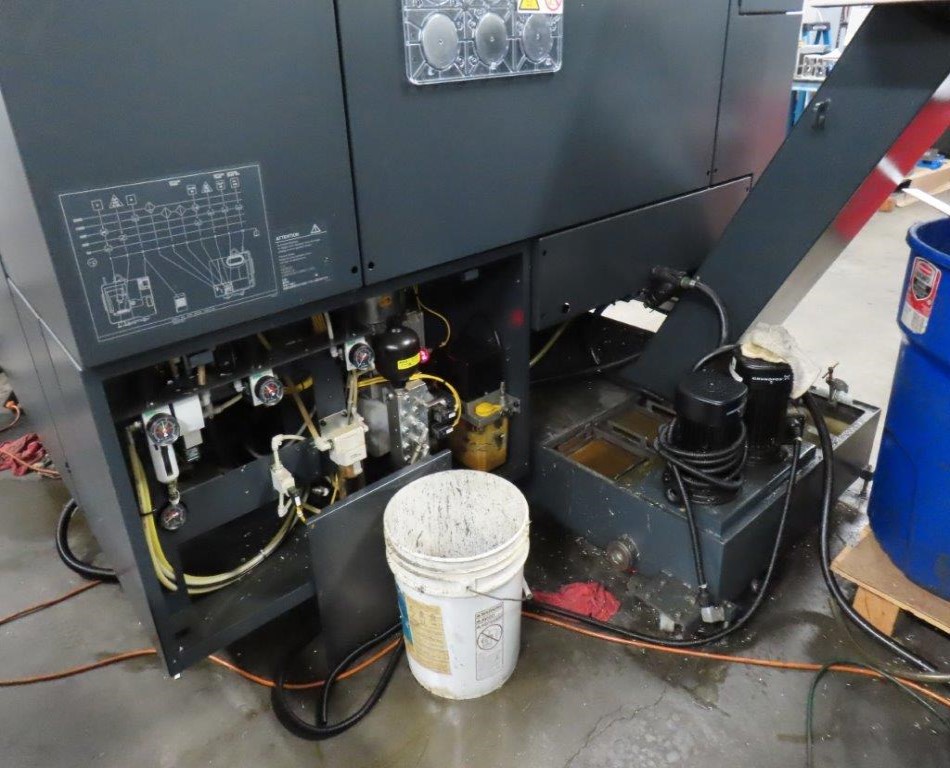

- CHIP CONVEYOR, hinge belt MAYFRAN, left side, includes integral coolant tank.

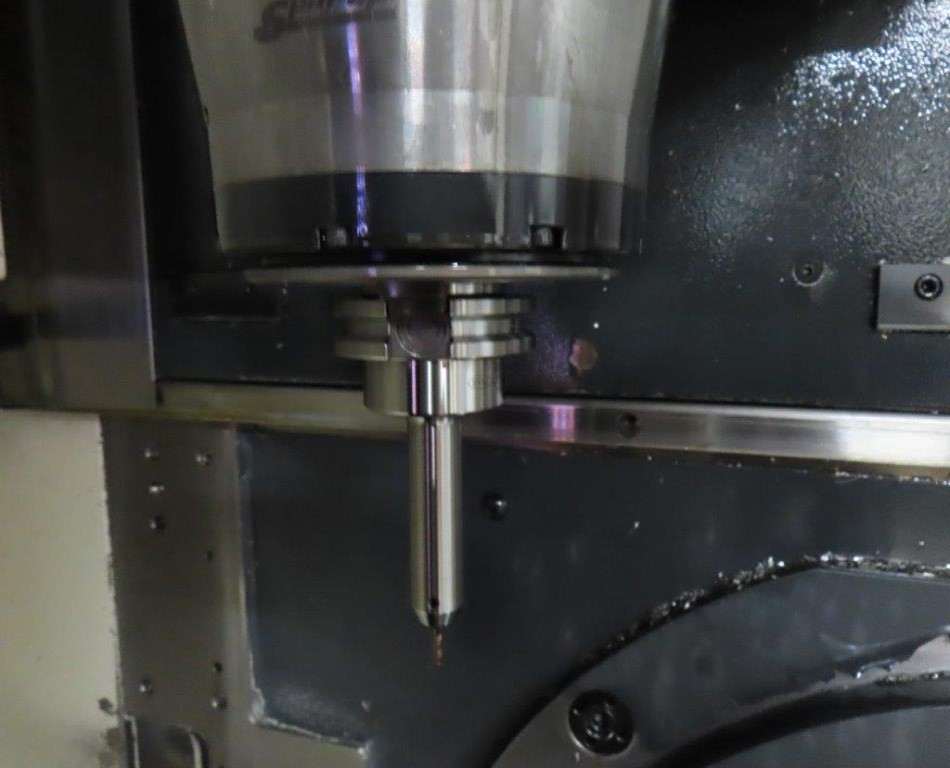

- Renishaw Spindle probe, optical signal. Transmission type touch sensor.

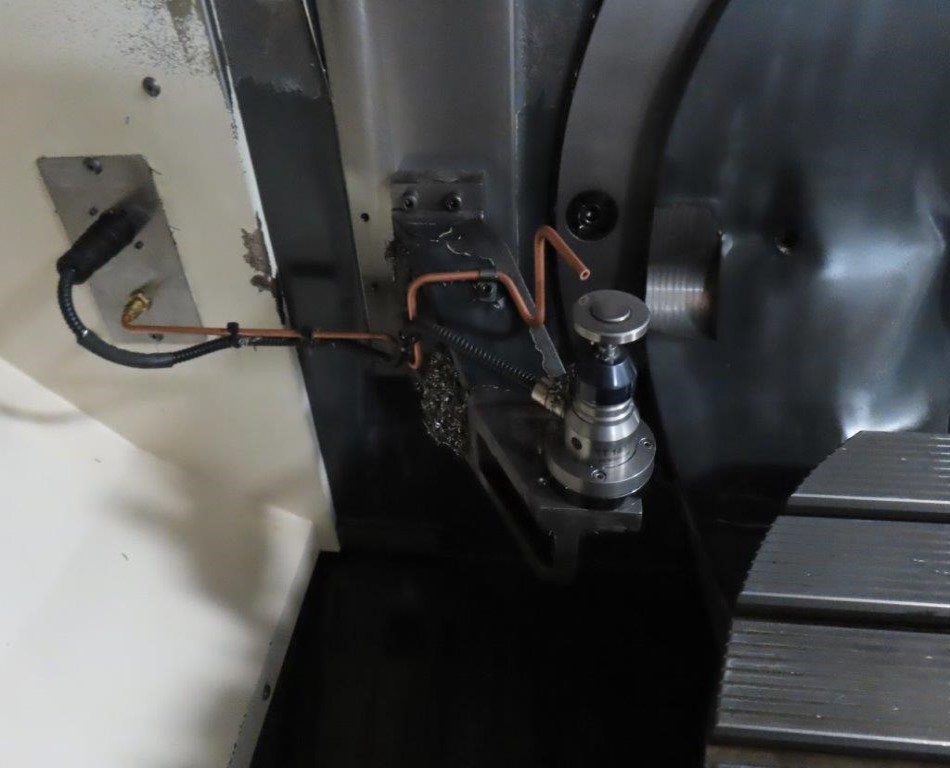

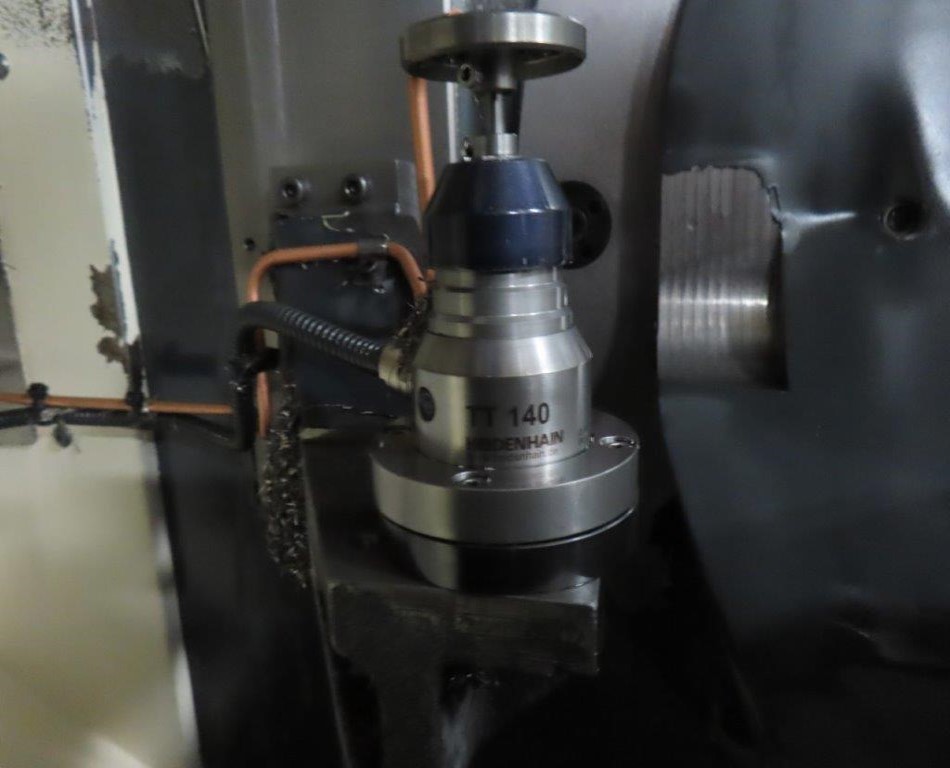

- In machine measuring system (table) & touch sensor (Heidenhain)
- Rotary Window
- Manual Pulse Generator
- High pressure coolant – ATS CoolJet 70-36FC – mounted chiller.
- Transformer: Federal Pacific TTX40T40MS.
- RIGID TAPPING
- COOLANT SYSTEM
- HELICAL INTERPOLATION / SPINDLE ORIENTATION
