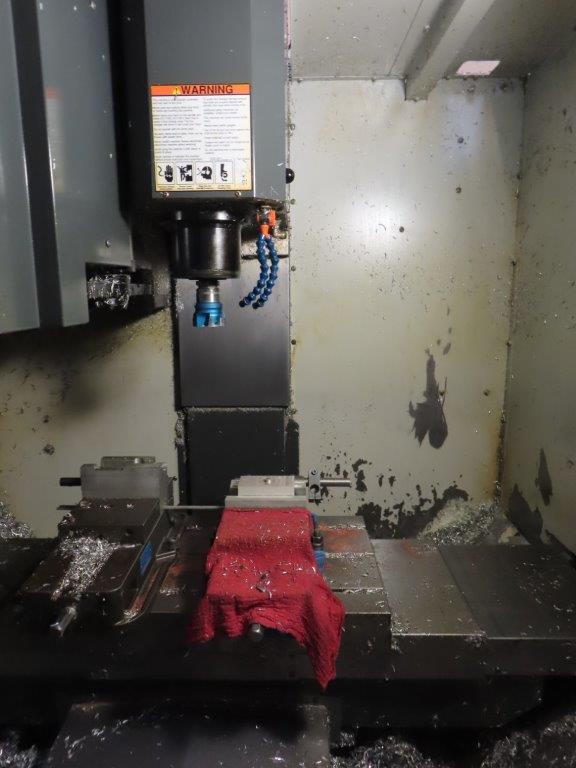

Click to view larger photo
| SPECIFICATIONS: | |
|---|---|
| X-AXIS TRAVEL | 20" |
| Y-AXIS TRAVEL | 16" |
| Z-AXIS TRAVEL | 15.5" |
| TABLE | 26" x 15" |
| TABLE LOAD | 250 LBS |
| SPINDLE TAPER | BT #30 |
| SPINDLE SPEED | 12,000 RPM |
| MAX TAPPING SPEED | 5000 RPM |
| SPINDLE MOTOR | 15 HP |

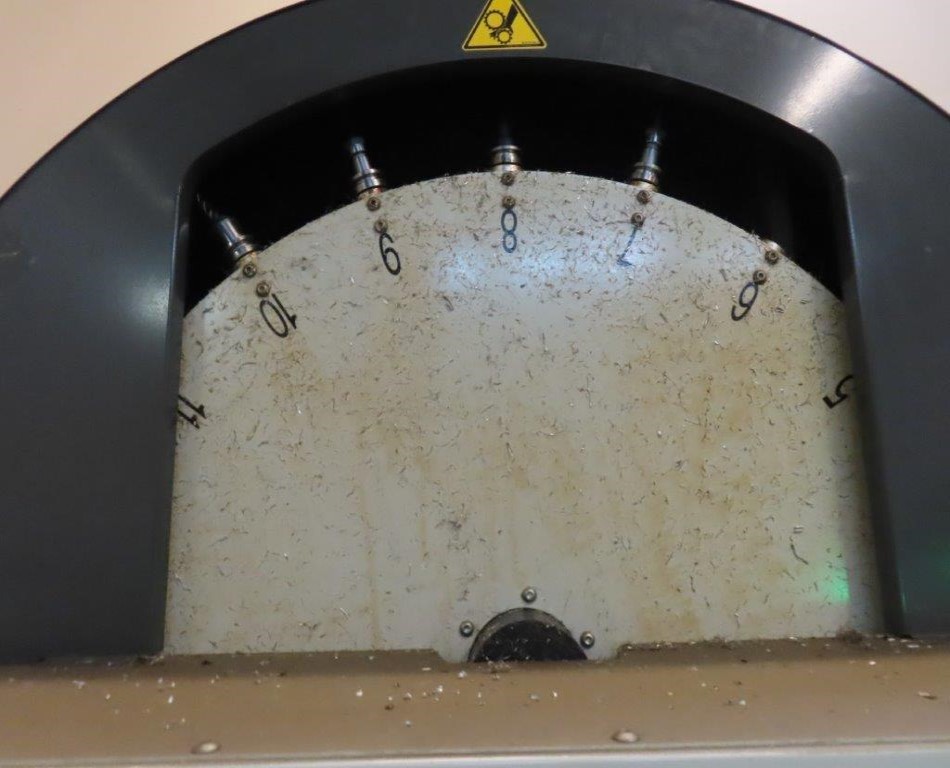

| NUMBER OF TOOL POSITIONS | 20 |
| TOOL CHANGE TIME (CHIP - CHIP) | 1.8 SEC |
| RAPID TRAVERSE RATES | 2400 IPM |
| WEIGHT | 5500 LBS |
EQUIPPED WITH:
