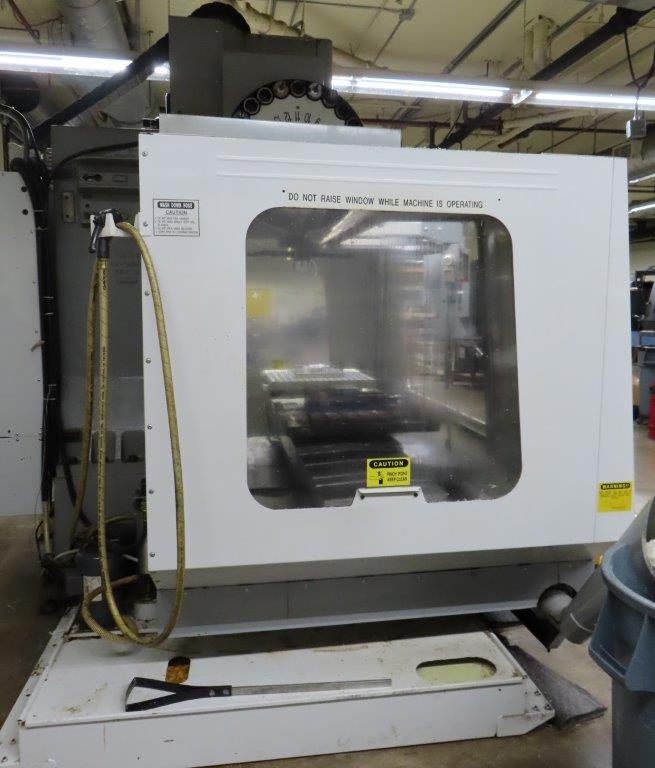

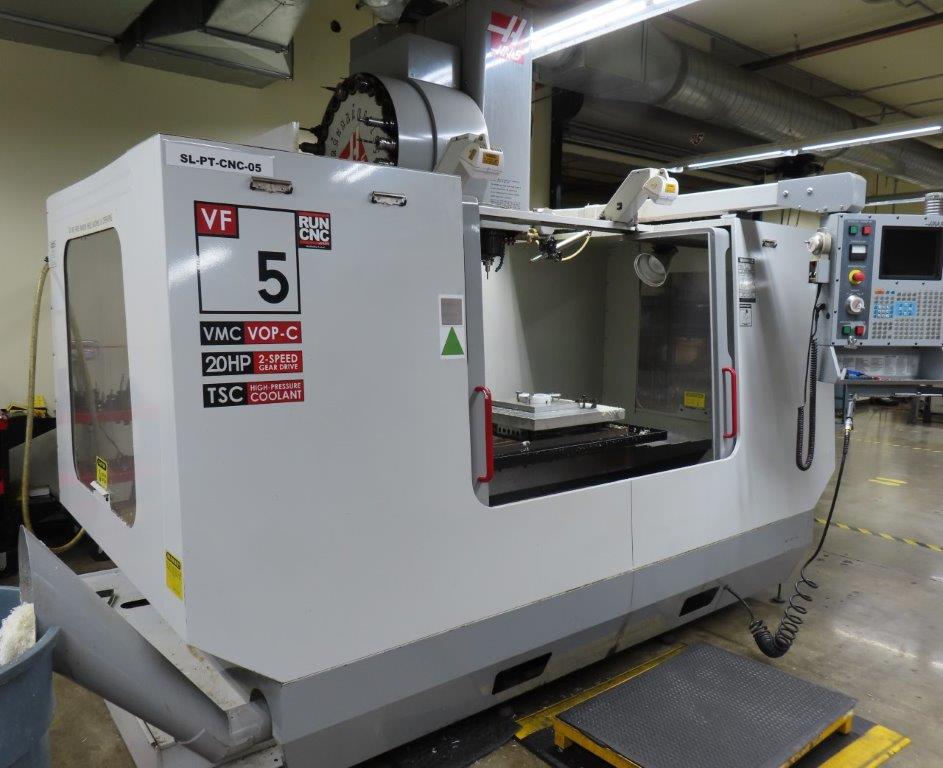

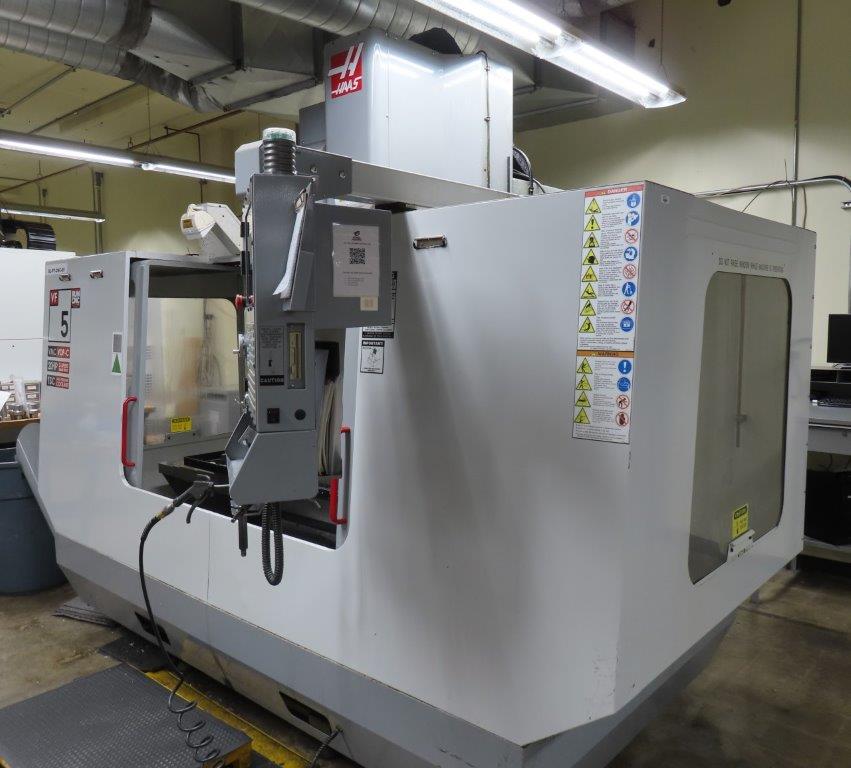

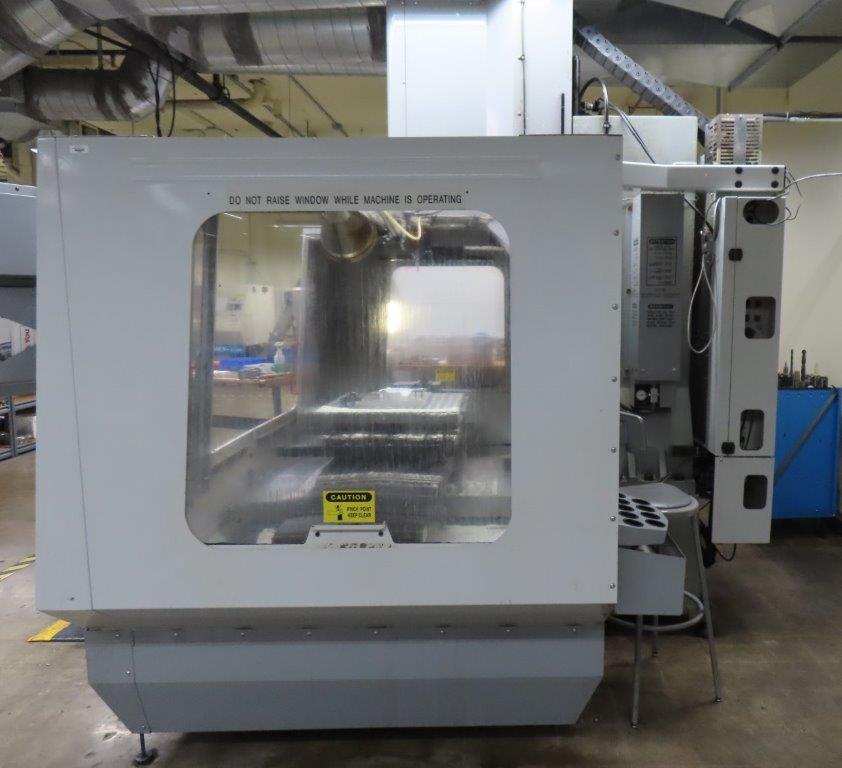

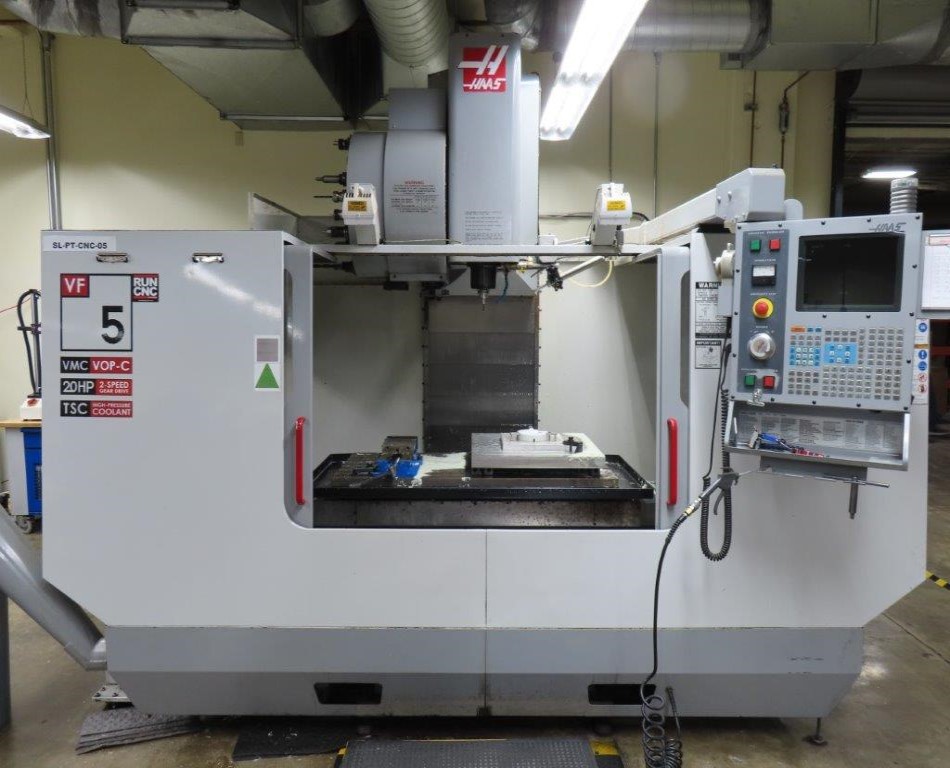

Click to view larger photo
| SPECIFICATIONS: | |
|---|---|

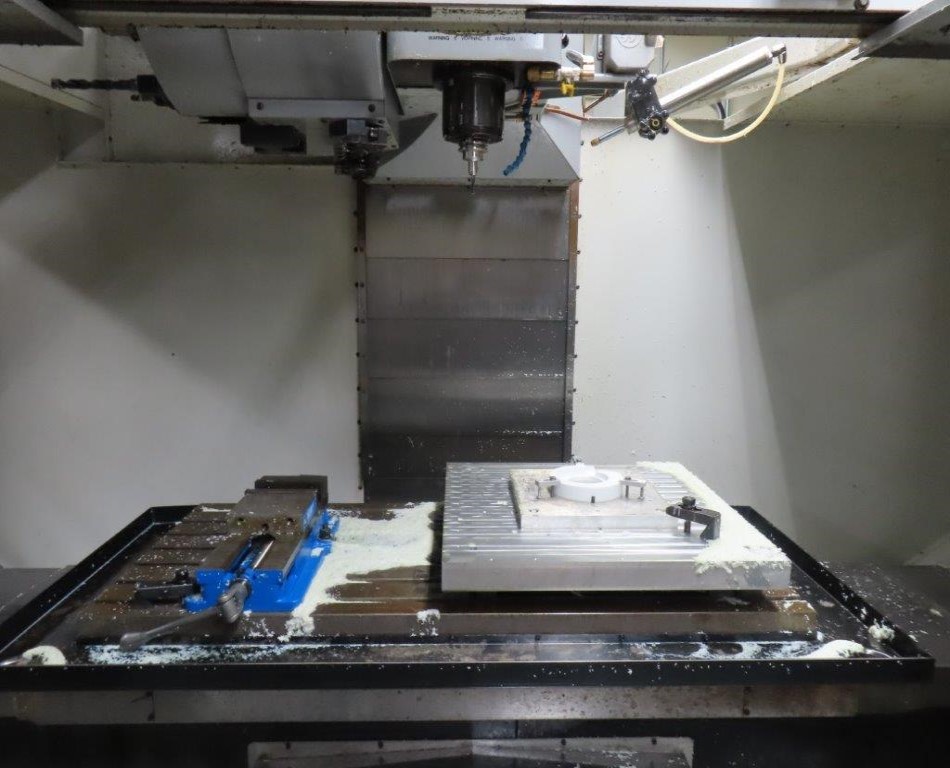

| TABLE WORKING SURFACE | 62" x 23" |
| TABLE LOAD CAPACITY | 4000 LBS |
| LONGITUDINAL TRAVEL (X-AXIS) | 50" |
| CROSS TRAVEL (Z-AXIS) | 25" |
| RAPID TRAVERSE RATE, ALL AXES | 12000 IPM |
| TOOL STORAGE CAPACITY | 24 SIDE MOUNT |
| SPINDLE HORSEPOWER | 20HP |
| SPINDLE SPEEDS RANGE | 7500 RPM (2 SPD GREAR) |
| SPINDLE TAPER | CAT-40 |
| WAY SYSTEM | LINEAR GUIDEWAY |
| APPROXIMATE WEIGHT - NET | 15,150 LBS |
EQUIPPED WITH:
