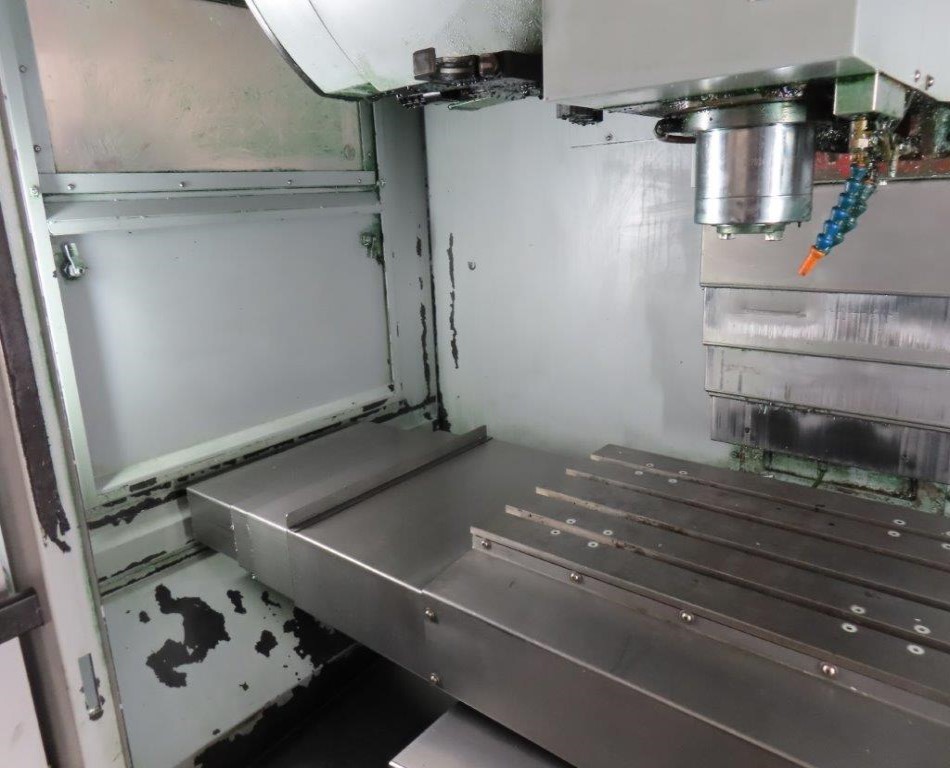

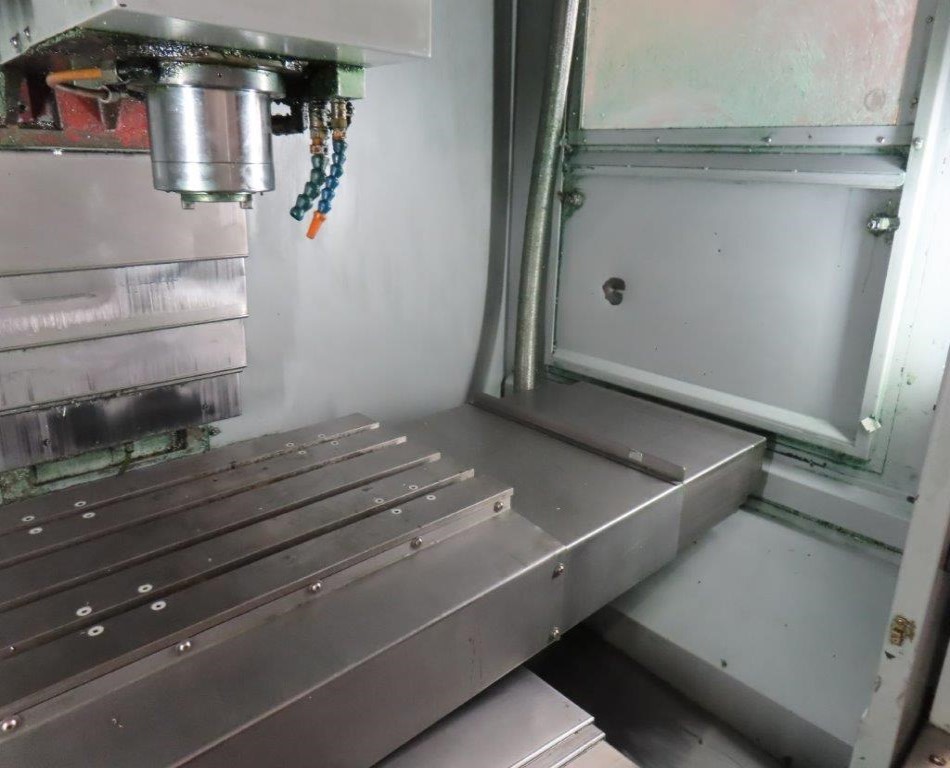

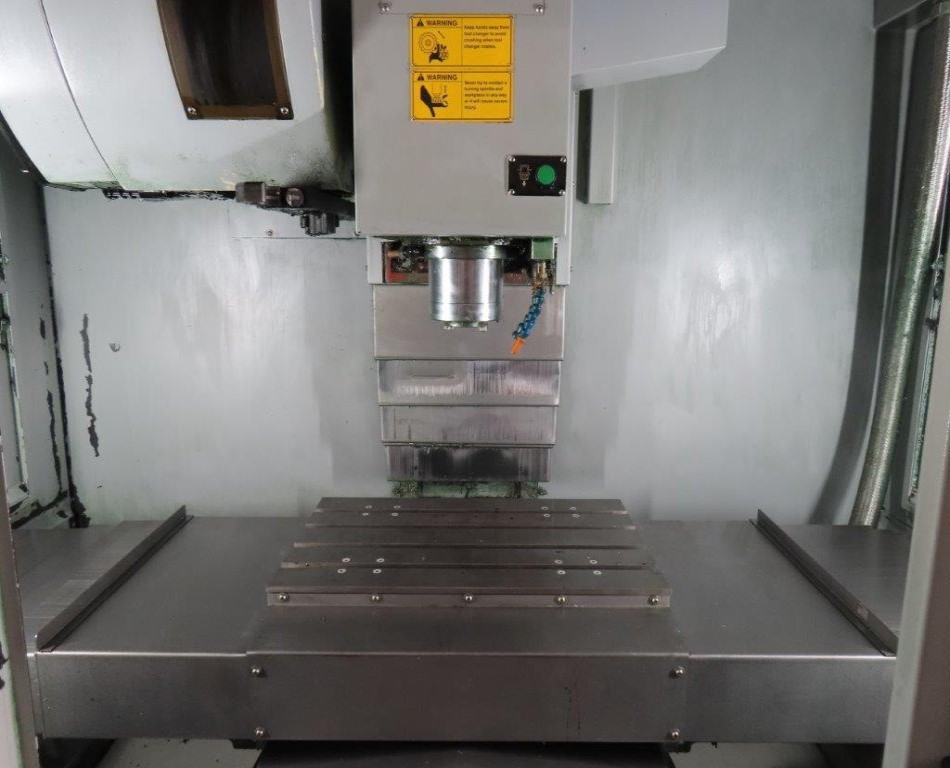

Click to view larger photo
| SPECIFICATIONS: | |
|---|---|
| TRAVELS | 24" x 15.75" x 17.7" |
| TABLE | 25.5" x 15.75" |
| DISTANCE FROM SPINDLE NOSE TO TABLE TOP | 5.1" - 22.8" |
| TABLE LOAD CAPACITY | 882 LBS |
| RAPIDS | 1417 IPM |
| TAPER | CAT-40 |
| TOOL CHANGER | 24 SIDE MOUNT |
| TOOL CHANGE TIME | 1.7 SEC (TOOL TO TOOL) |
| SPINDLE RPM | 12,000 |
| MAIN MOTOR | 15HP |
| MAX TOOL LENGTH | 11.8" |
| MAX TOOL WEIGHT | 15 LBS |
| WEIGHT | 9,900 LBS |
EQUIPPED WITH:
PERFORMANCE MACHINE TOOLS, INC.
3305 EDISON WAY
FREMONT, CA 94538
510.249.1000
510.249.9265
rob@permach.com
