| SPECIFICATIONS: | |
|---|---|
| TRAVELS | 22" x 25.2" x 25.2" |
| PALLET SIZE | 15.75" x 15.75" |
| TOOL CAPACITY | 133 |
| SPINDLE | CAT-40 |
| SPINDLE RPM | 14,000 |
| PALLET CAPACITY | 880 LBS. |
| SPINDLE MOTOR | 50HP DUTY RATED, 30HP CONTINUOUS |
| PALLET INDEXING | FULL 4TH |
| RAPID TRAVERSE | 2362 IPM |
| DIMENSTIONS | 167" x 107" x 107" (MACHINE ONLY) |
| WEIGHT | 20,000 LBS |
| POWER | 460V / 3 PHASE / 60HZ / 42KVA |
EQUIPPED WITH:
RIGID TAP
JIS Retention Knob
Makino Professional 6 Control
DD Motor Rotary Table
Pallet Clam confirmation function
Automatic grease supply device
Random Pallet Selection
CHIP Conveyor: left discharge, scraper type
Secondary Filter for through spindle coolant
Automatic door lock
Vision BTS (Broken Tool Sensor)
User memory 2GB program memory and 1GB Data center.
RENISHAW OMPT400 and NC4S Probe System
COOLANT THRU SPINDLE at 300 PSI

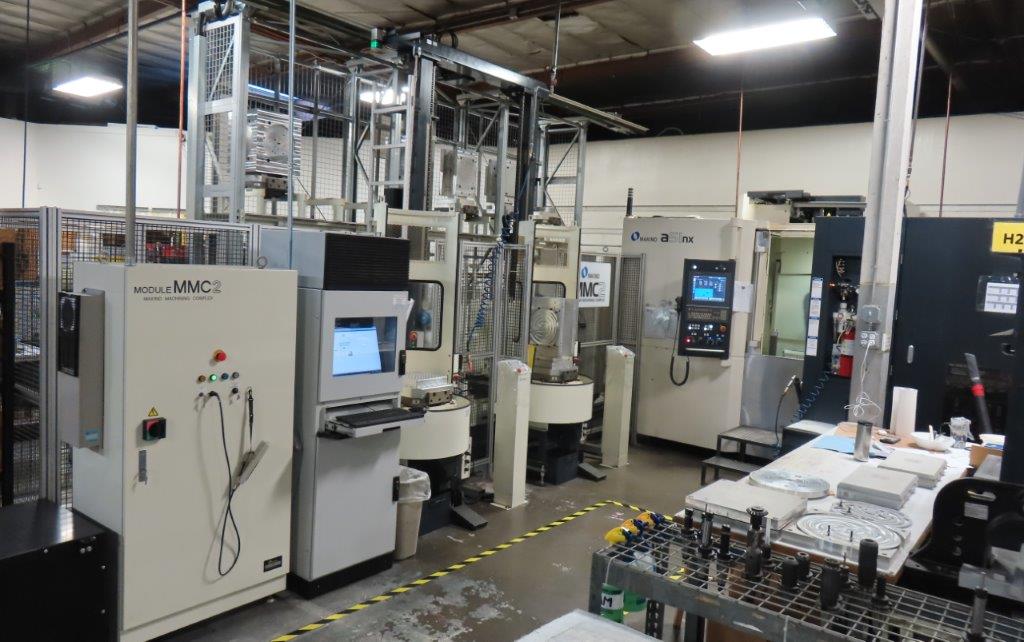

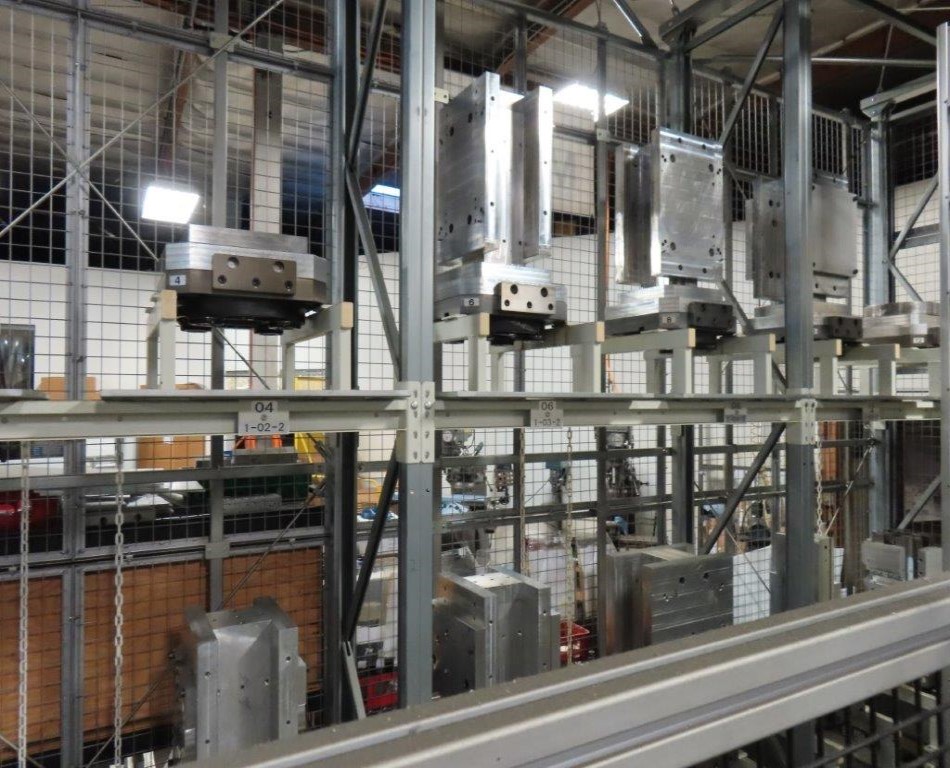

MMC2 (6x2) pallet stockers (Makino Machining Complex)
(2) WSS Stations with ten pallets. And MAS-A5 Cell Controller.
12 Pallets in total included.
