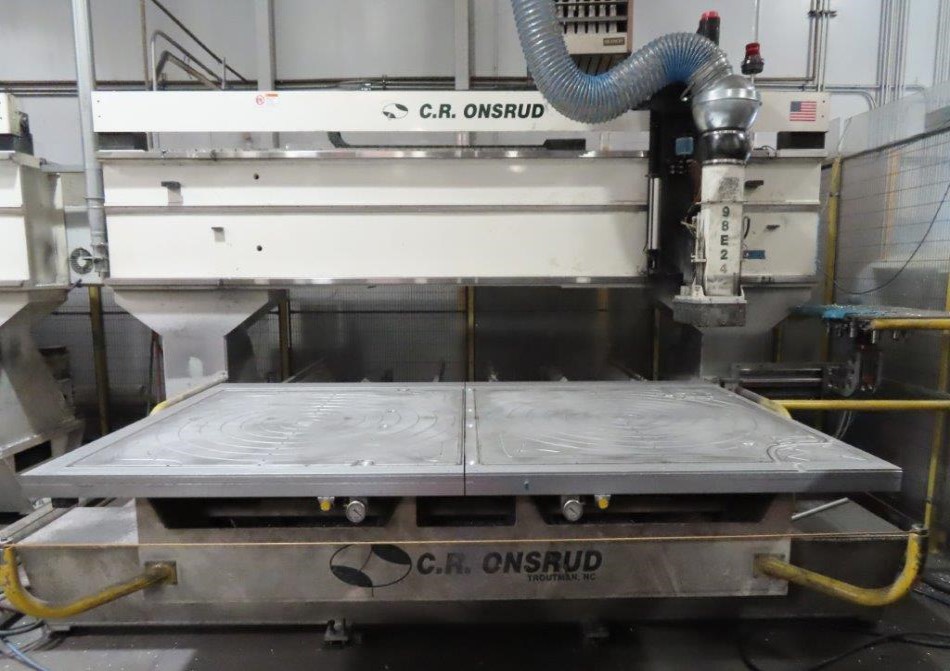

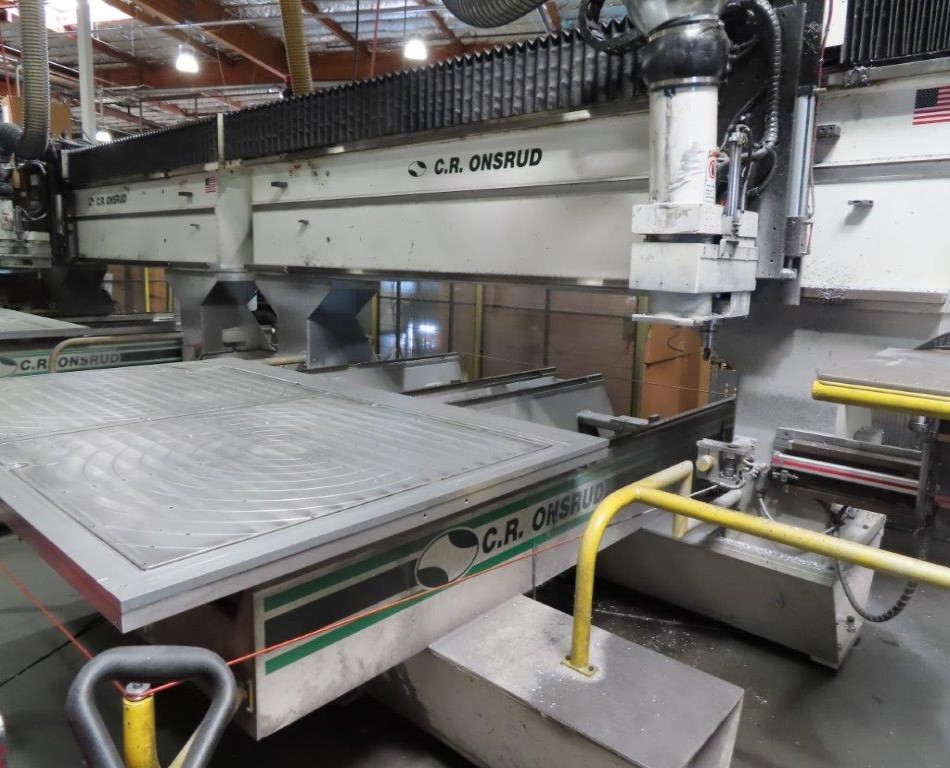

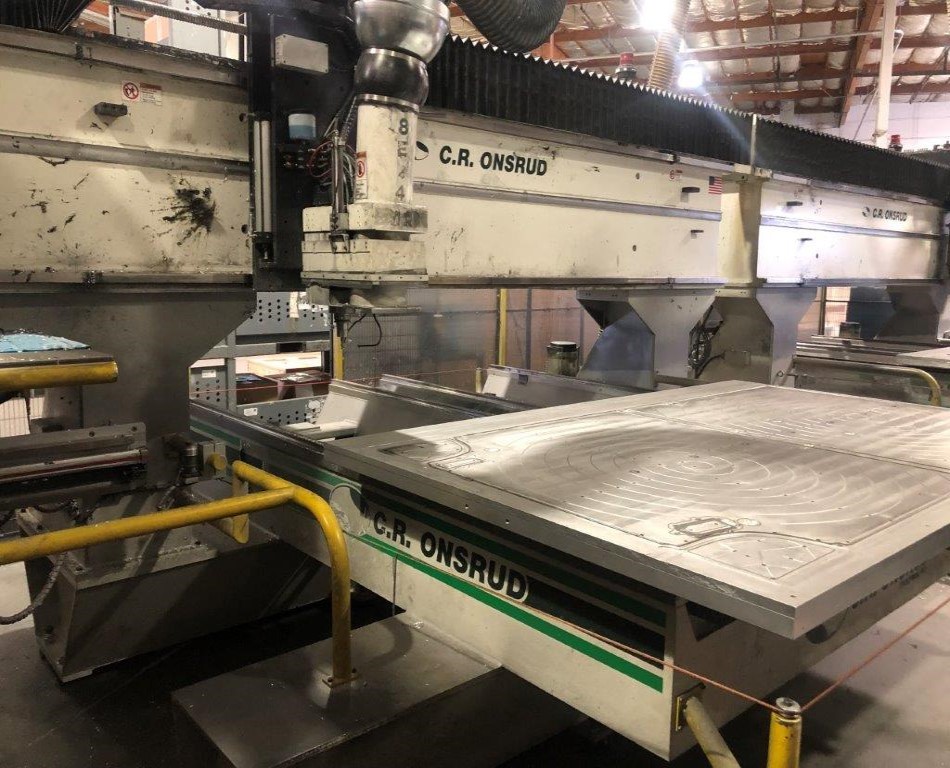

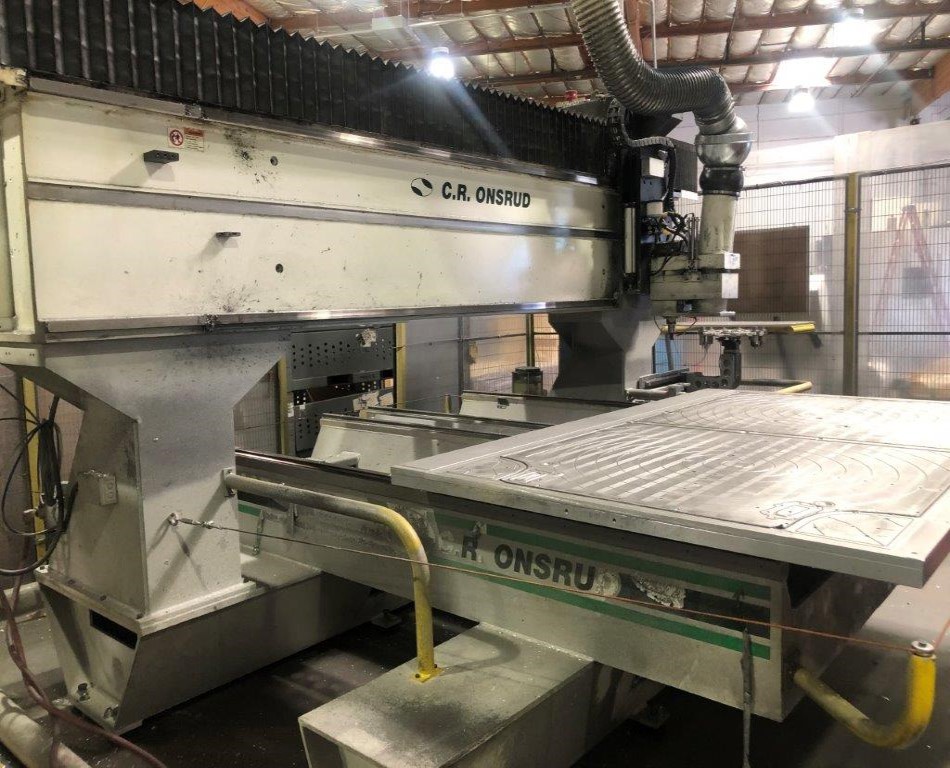

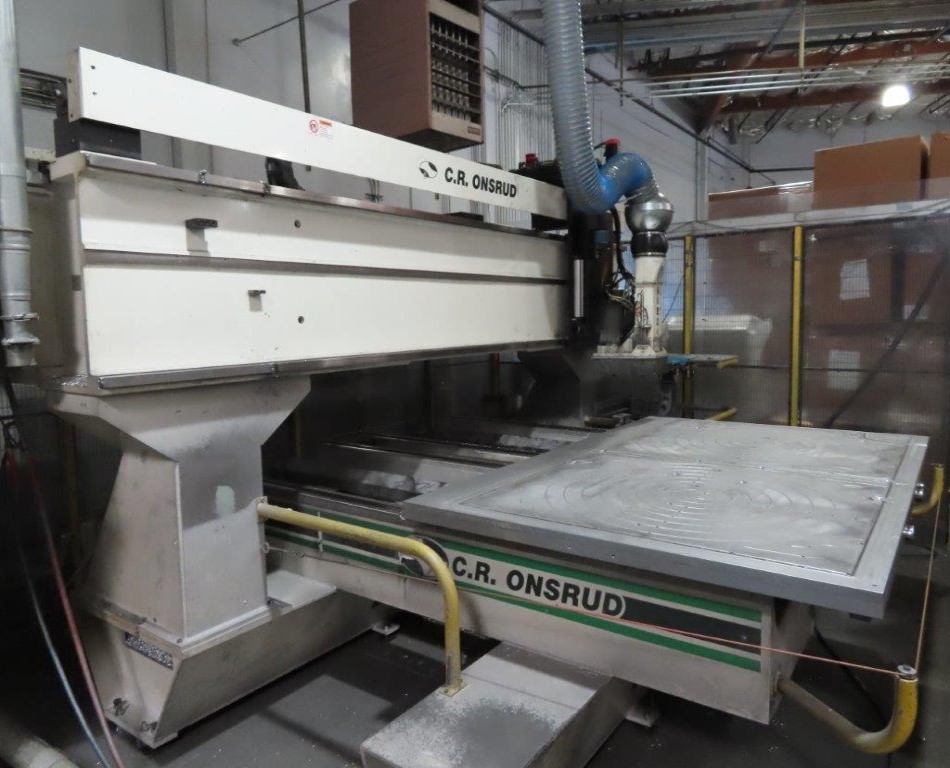

C.R. ONSRUD-CNC ROUTER~4 Machines
Years: 2015 and 2016
Stock Number: 547
Mfg: C.R ONRUD
Click to view larger photo
| SPECIFICATIONS: |
| TABLE WORKING SURFACE |
60" x 96" |
| TRAVELS (X, Y, & Z) |
82" x 164" x 12" |
| Z CLEARANCE |
14" |
| FEED RATES, ALL AXES |
3000 IPM |
| RAPID TRAVERSE RATE, ALL AXES |
5600 IPM |

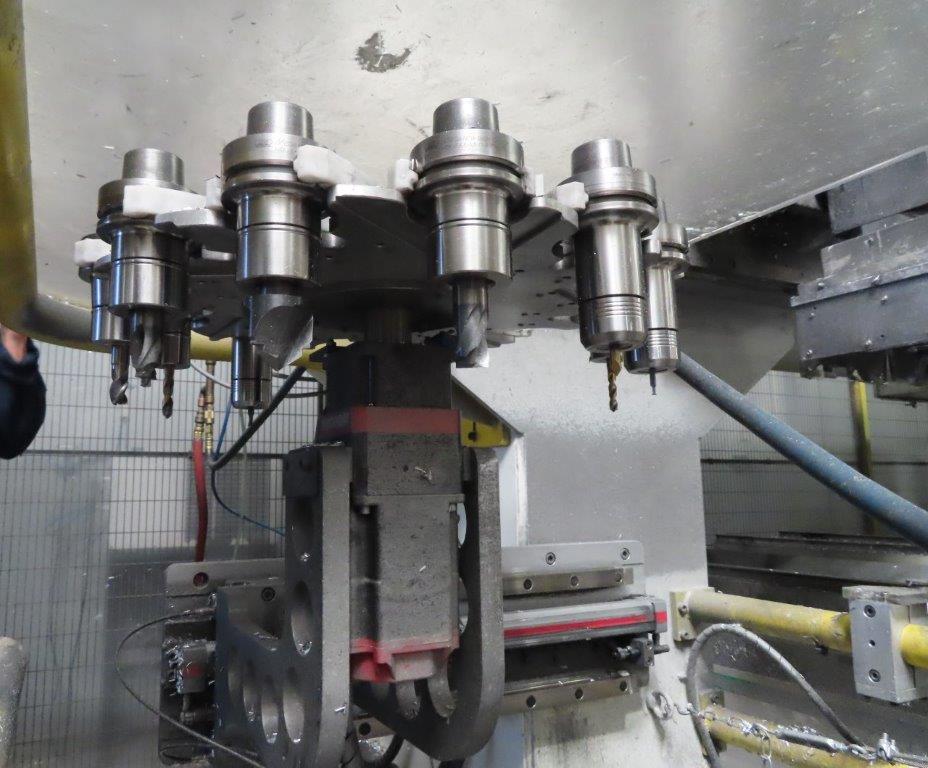

| TOOL CHANGERS |
12 |
| SPINDLE HORSEPOWER |
18 HP |
| SPINDLE SPEEDS RANGE |
24,000 RPM |

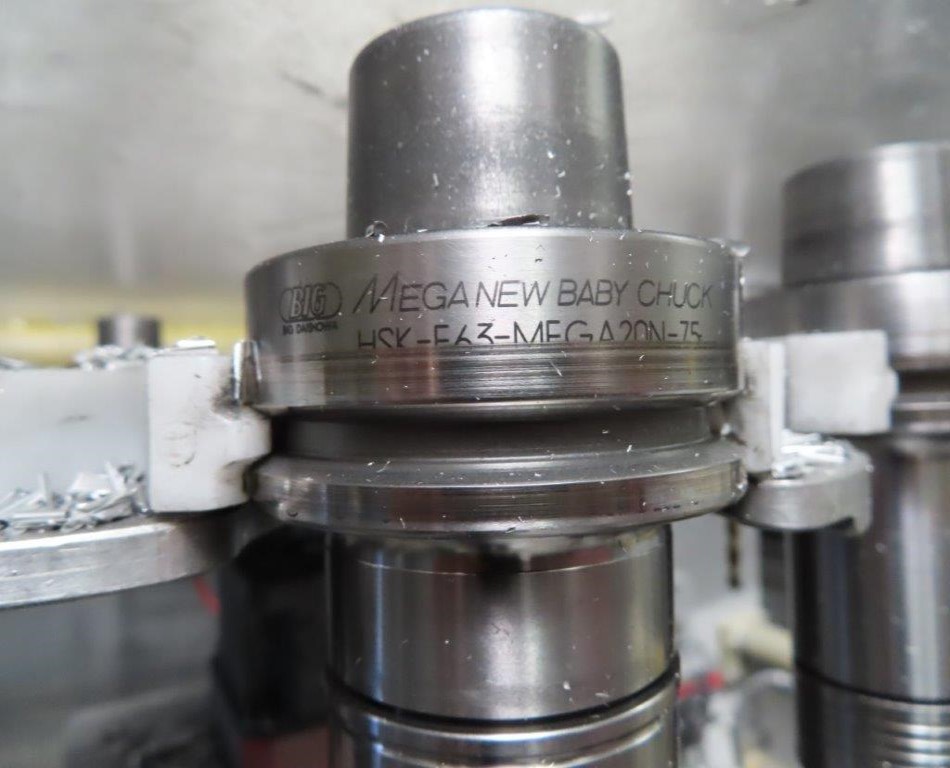

| SPINDLE TAPER |
HSK-63F |
| WAY SYSTEM |
LINEAR GUIDEWAY |
| OVERALL DIMENSIONS |
12" x 20" |
| POWER |
440V / 3 PHASE / 60HZ |
EQUIPPED WITH:

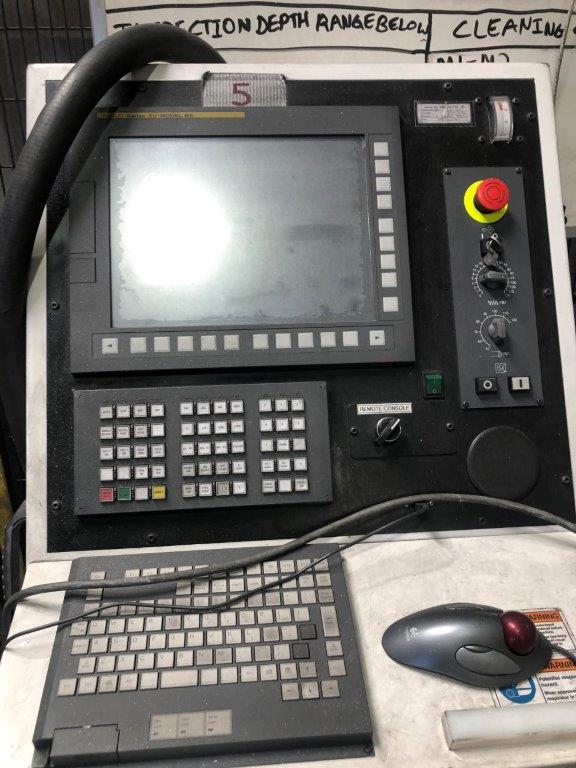

- FANUC 31i Model B5 with integrated PC interface
- Auto Grease Lubrication
- Hand Held Remote Jog Pendant
- Remote Start Stop Station
- Vector Inverted RIGID TAP
- Custom Chip Guard sheetmetal
- Renishaw copmbo kit OMP400-2-OTS
- HSKF63 Shank for OMP400

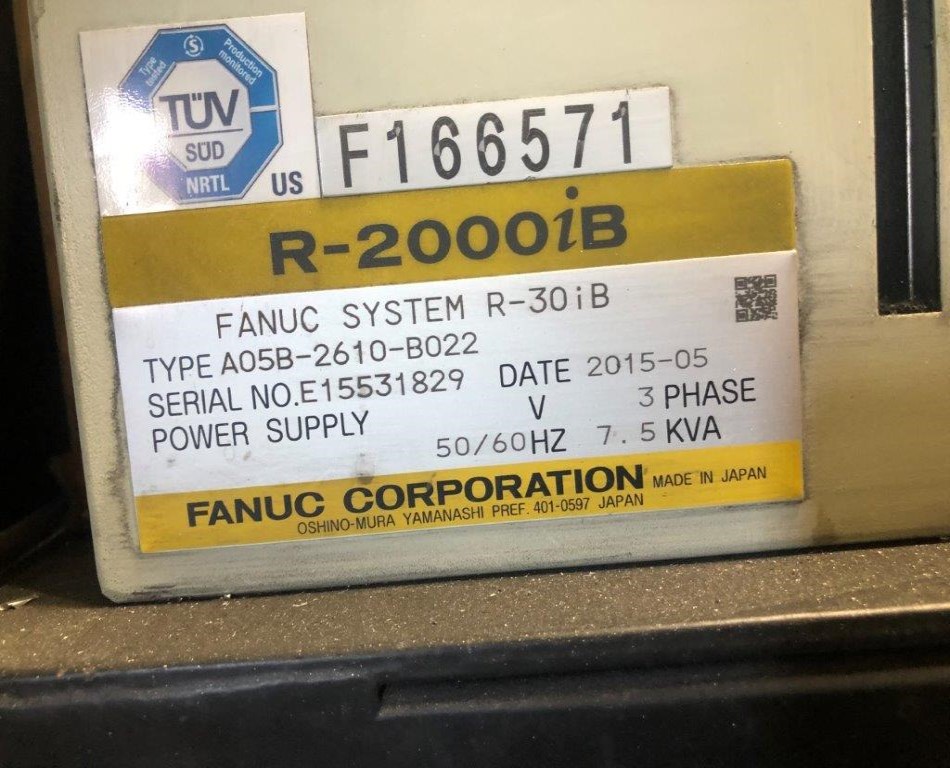

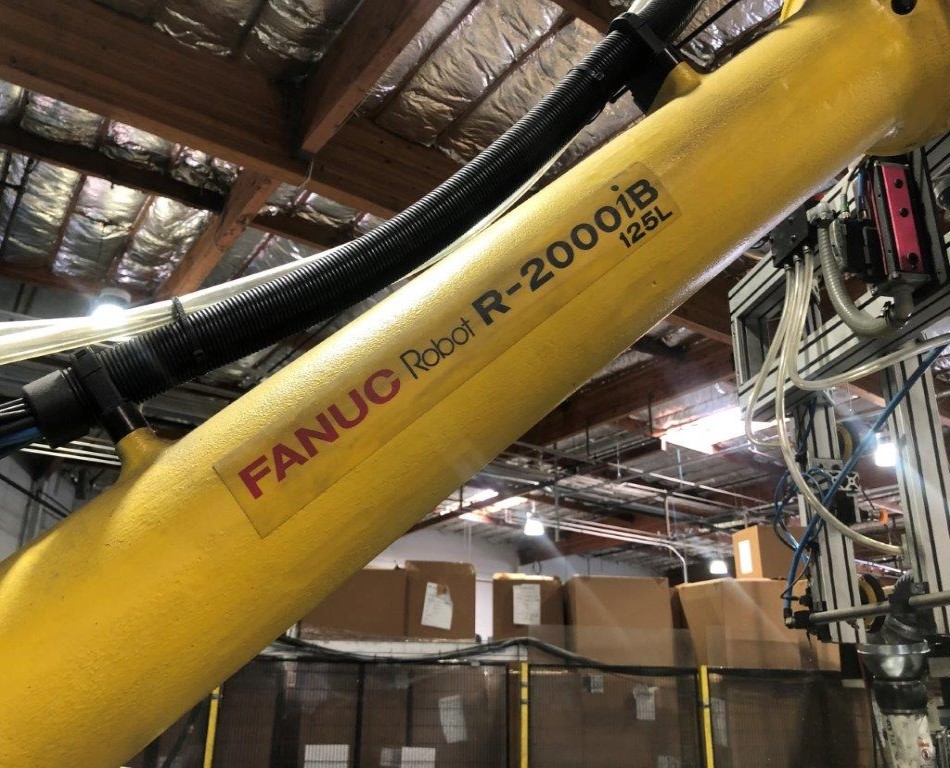

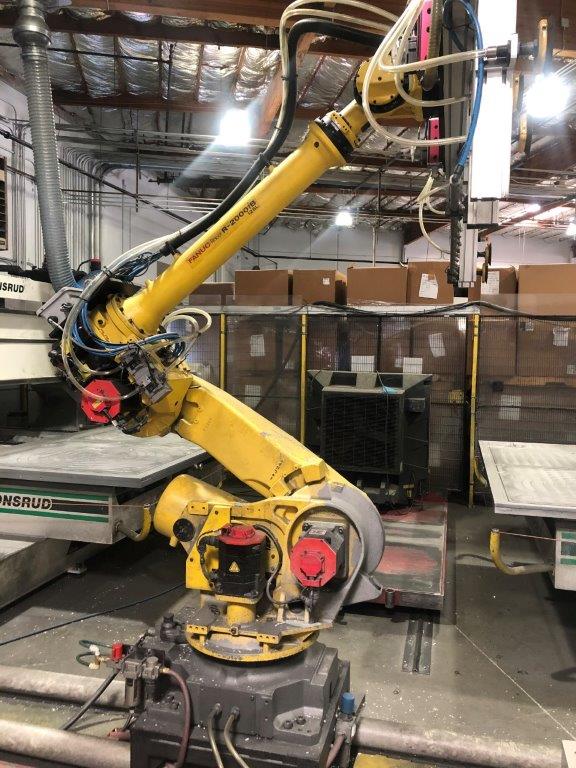

- PLUS: FANUC ROBOT R-2000iB 125L. System: R-30iB. Year 2015
- NOTE: Machine new price in 2015 at $327,000.

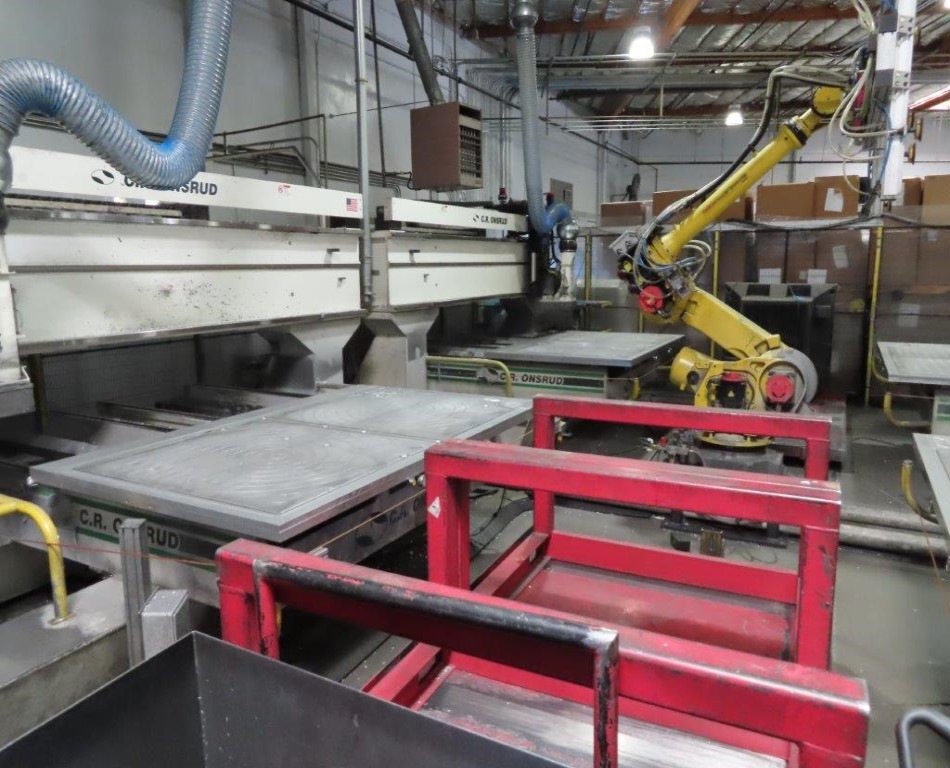

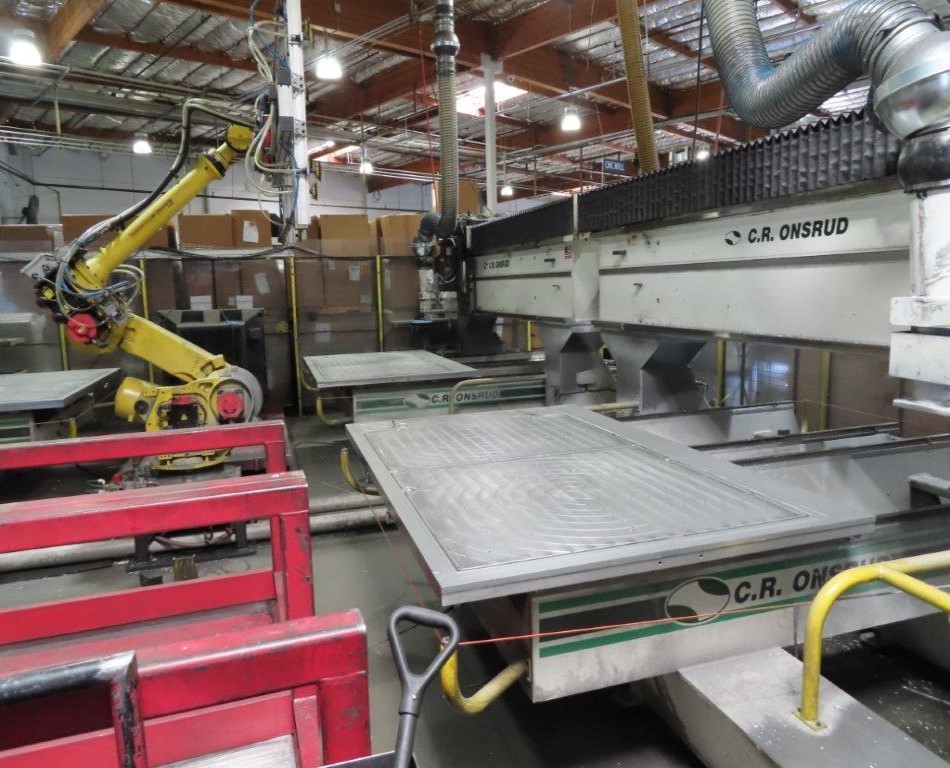

- NOTE: 4 Machines are together with Fanuc Robot loading them.
