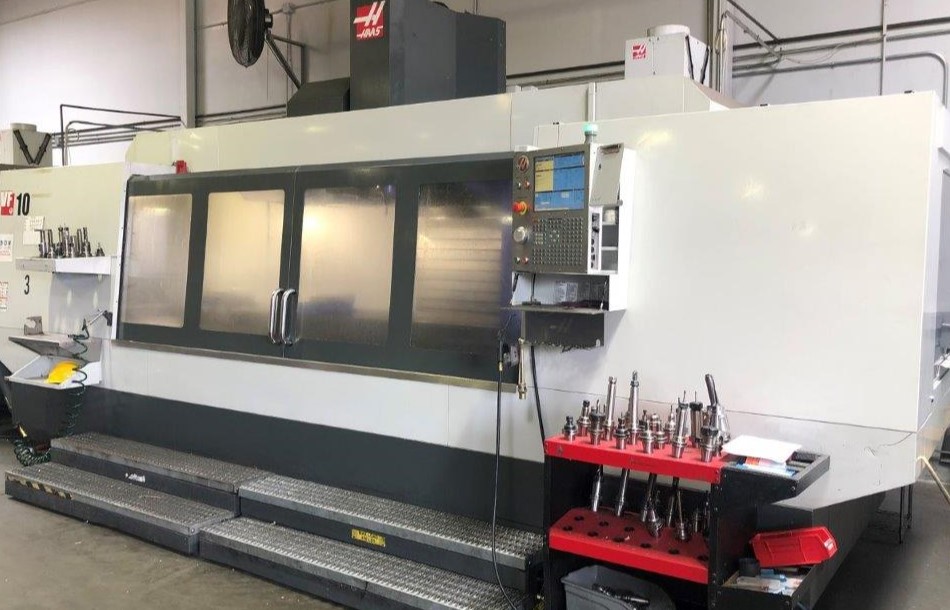

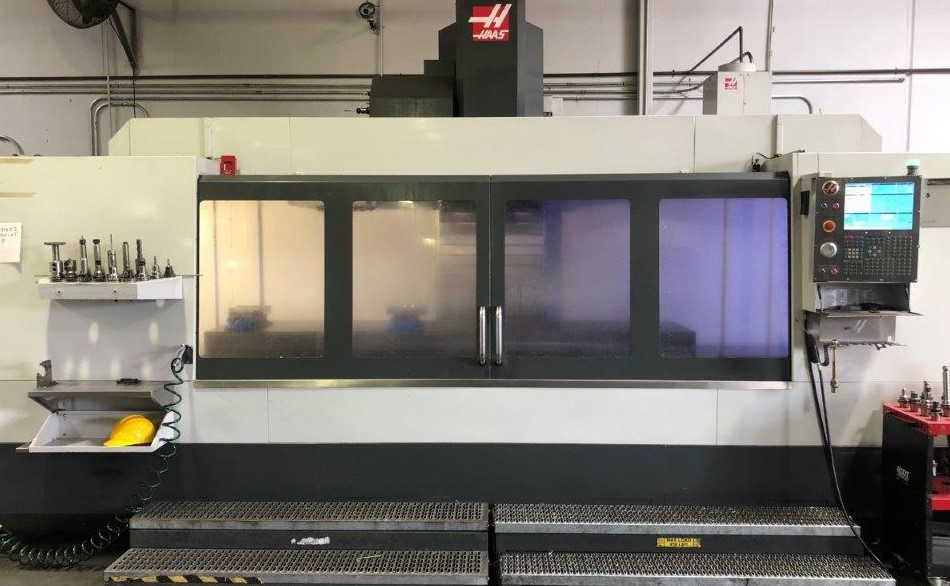

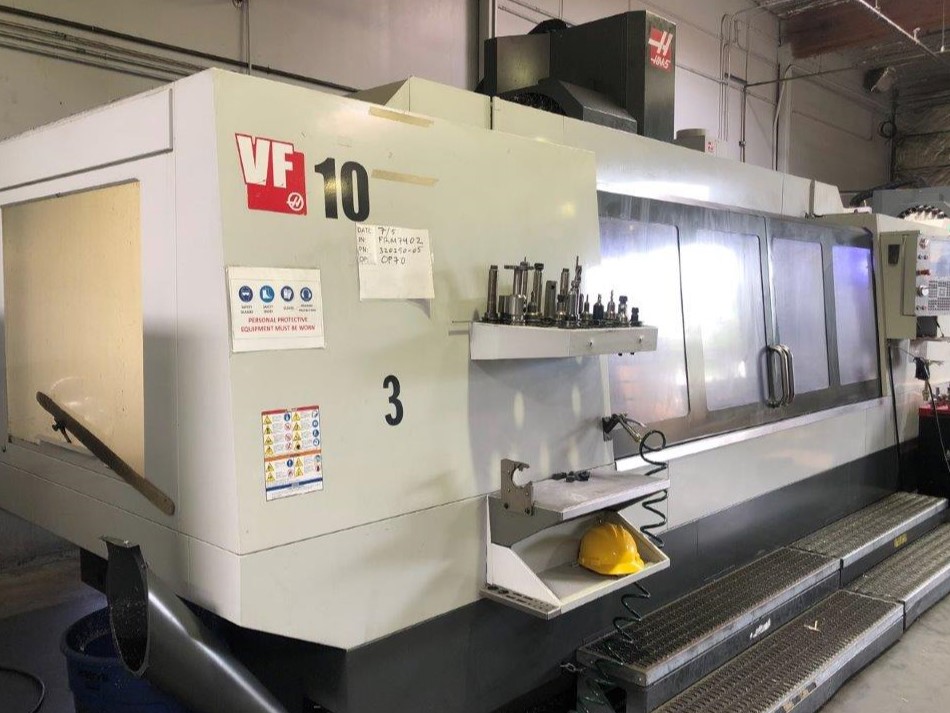

Click to view larger photo
| SPECIFICATIONS: | |
|---|---|

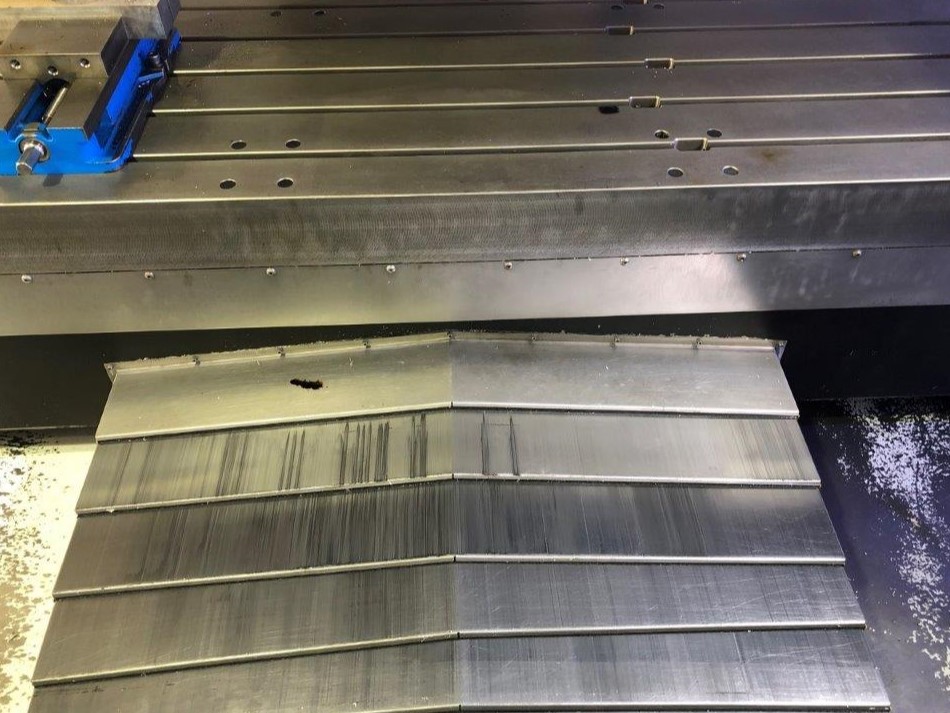

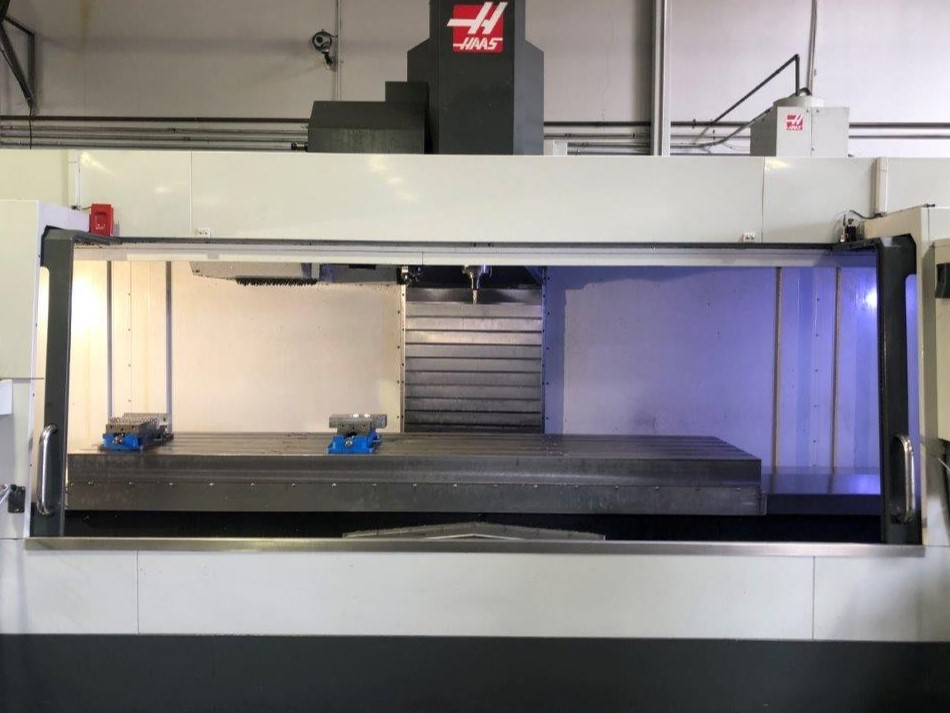

| TABLE WORKING SURFACE | 120" x 28" |
| TABLE LOAD CAPACITY | 4000 LBS. |
| TABLE TRAVELS X, Y, Z | 120" x 32" x 30" |
| RAPID TRAVERSE RATE | 360 IPM X, 600 IPM Y & Z |
| SPINDLE NOSE TO TABLE | 4" - 34" |

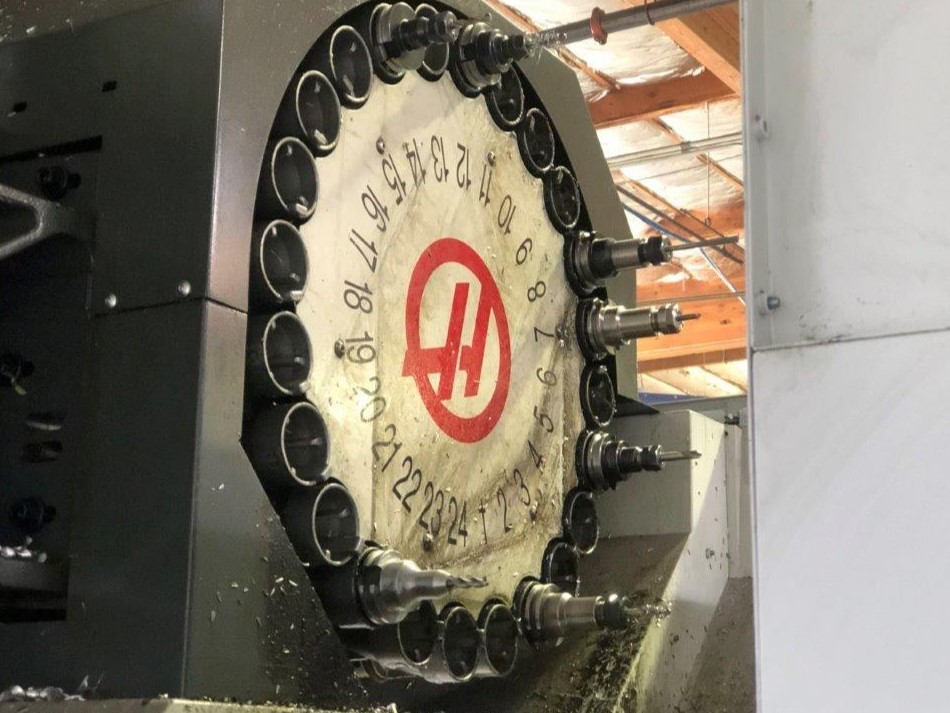

| TOOL STORAGE CAPACITY | 24 |
| SPINDLE HORSEPOWER | 30 HP |
| SPINDLE SPEEDS RANGE | 8100 RPM |
| SPINDLE TAPER | CAT-40 |
| TOOL CHANGE TIME (T-T) | 2.8 sec |
| WAY SYSTEM | LINEAR GUIDEWAY |
| APPROXIMATE WEIGHT - NET | 30,100 LBS. |
| DIMENSIONS | 288" x 102" x 130" |
EQUIPPED WITH:
