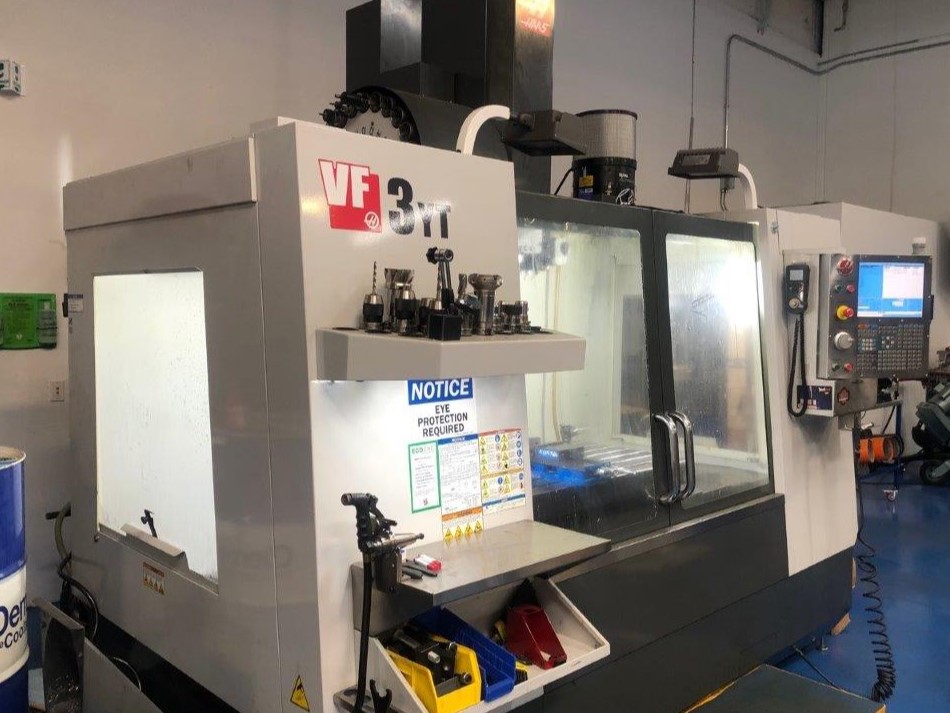

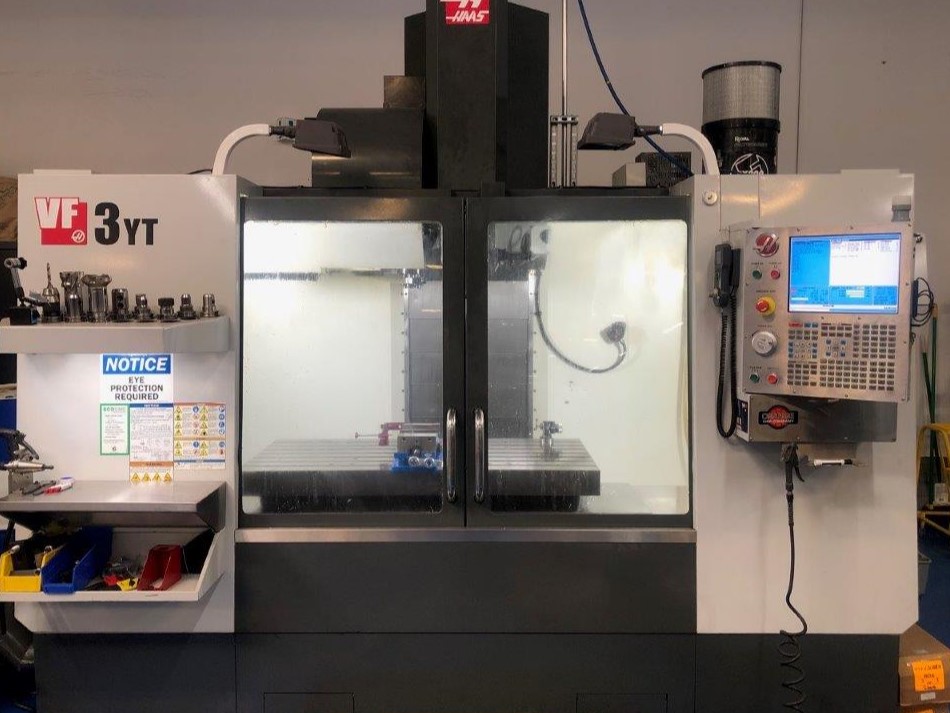

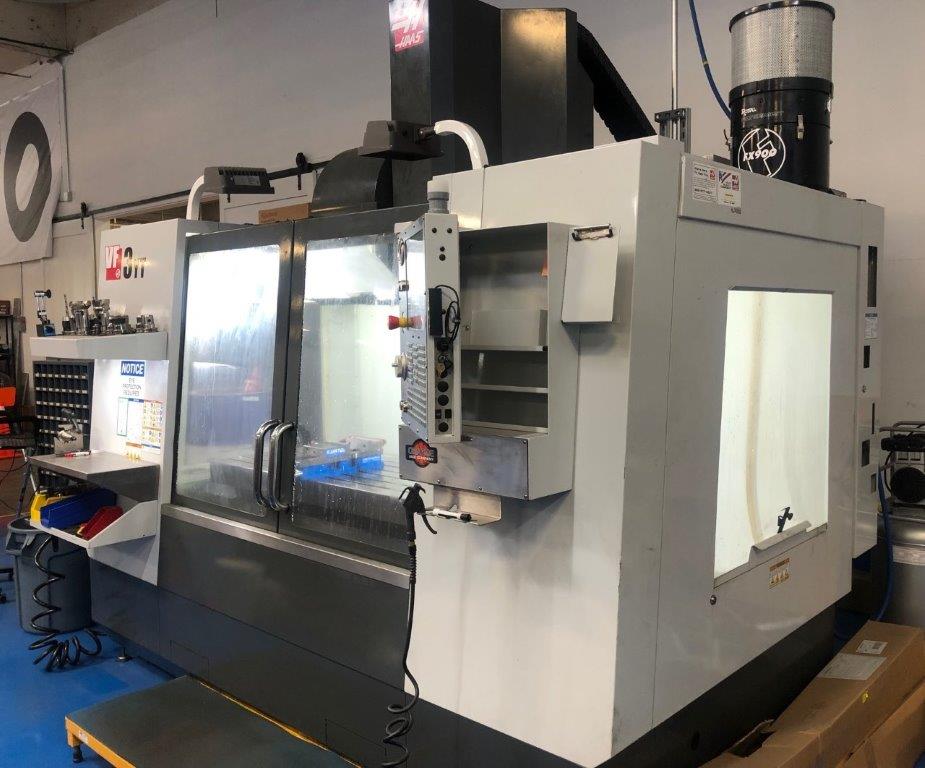

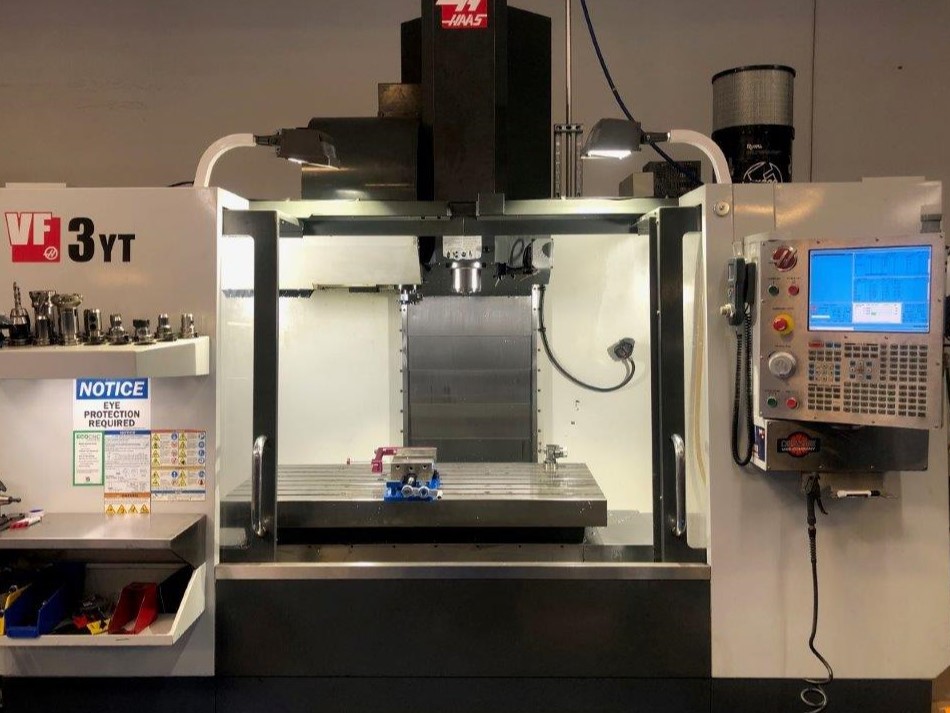

HAAS VF-3YT VERTICAL MACHINING CENTER - YEAR: 2010
Stock Number: 534
Mfg: HAAS
Click to view larger photo
| SPECIFICATIONS: |

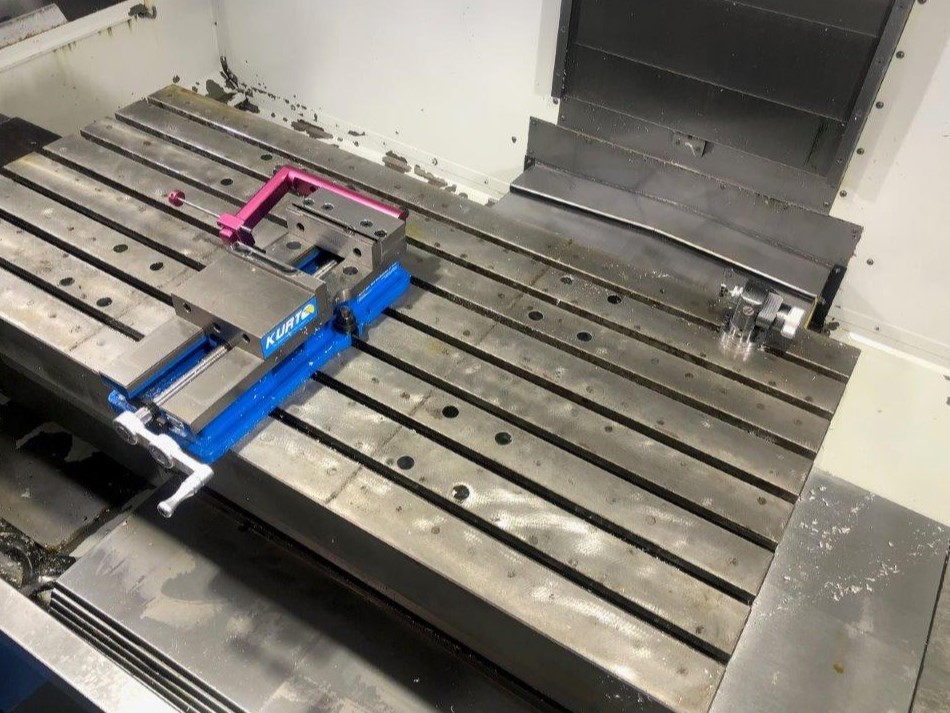

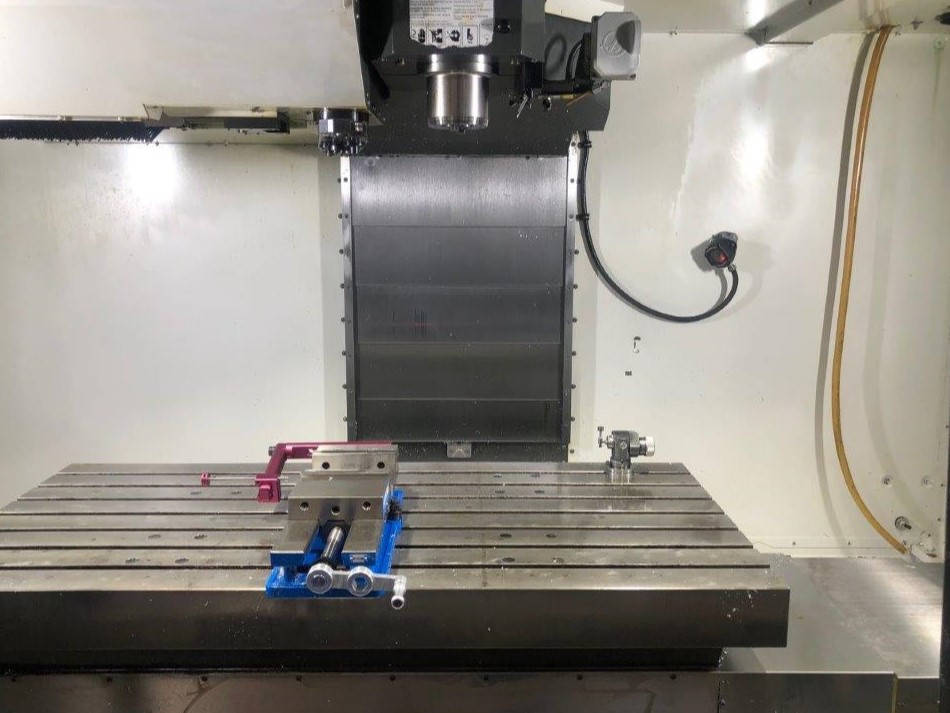

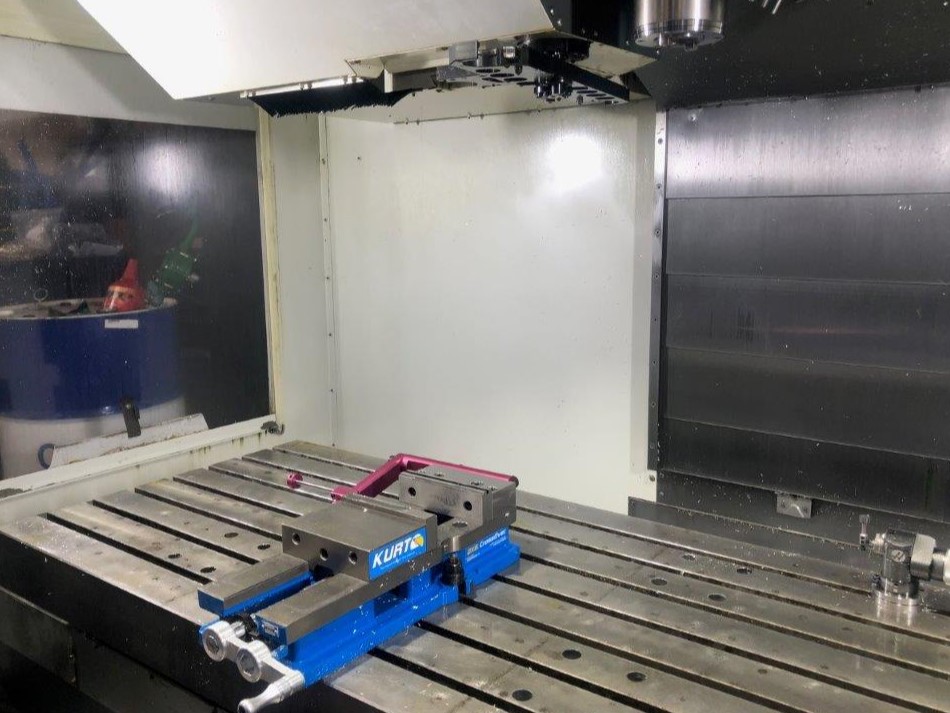

| TABLE WORKING SURFACE |
54" x 25" |
| TABLE LOAD CAPACITY |
3,500 LBS |
| TABLE TRAVELS X, Y, Z |
40" x 26" x 25" |
| RAPID TRAVERSE RATE, ALL AXES |
1000 IPM |
| SPINDLE NOSE TO TABLE |
4" - 29" |
| TOOL STORAGE CAPACITY |
24 |
| SPINDLE HORSE POWER |
20 HP |
| SPINDLE SPEEDS RANGE |
10,000 RPM (GEAR BOX) |
| SPINDLE TAPER |
CAT-40 |
| WAY SYSTEM |
LINEAR GUIDE WAY |
| APPROXIMATE WEIGHT - NET |
12,500 LBS. |
EQUIPPED WITH:

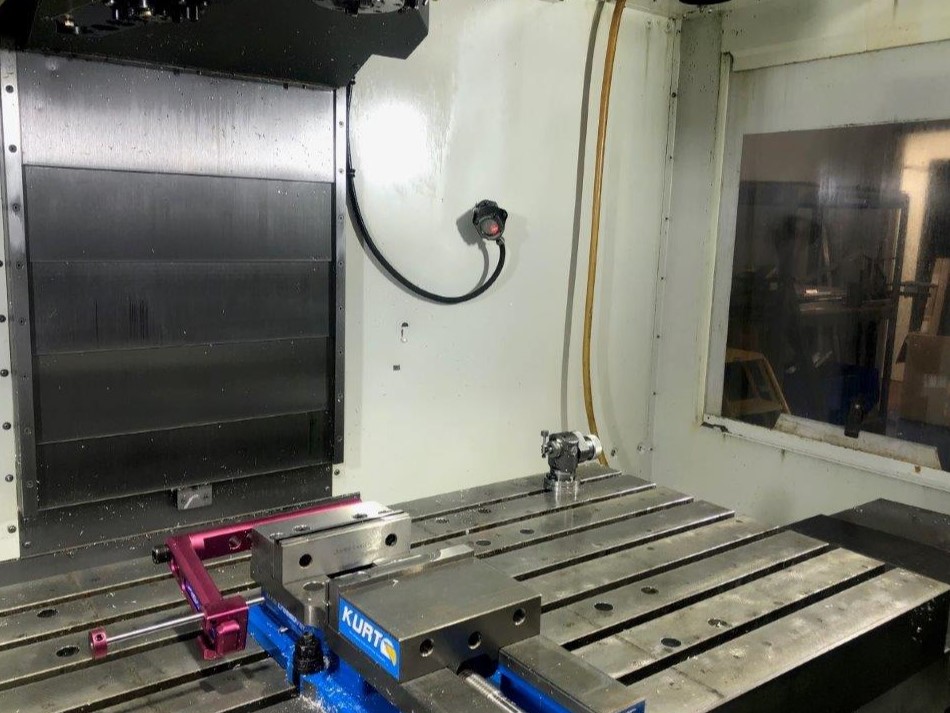

- WIPS ~ WIRELESS INTUITIVE PROBING SYSTEM: Spindle Probe and Tool Setting probe, optical machine interface
- RIGID TAPPING

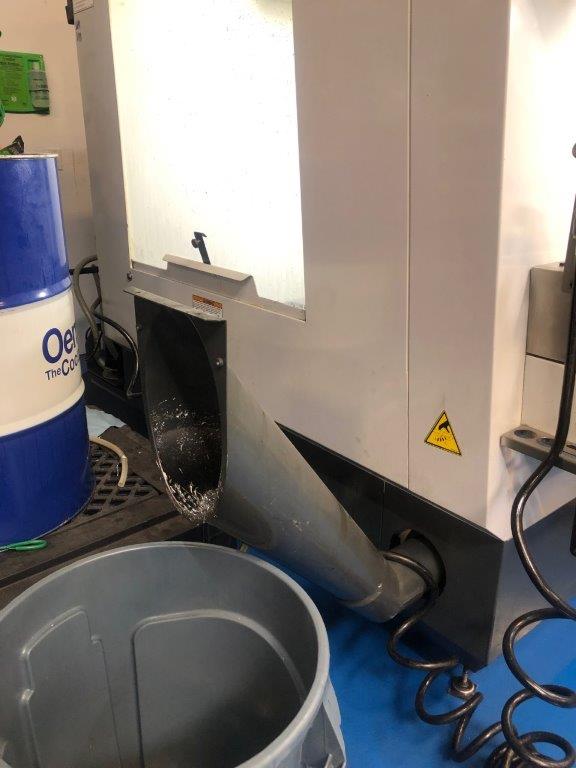

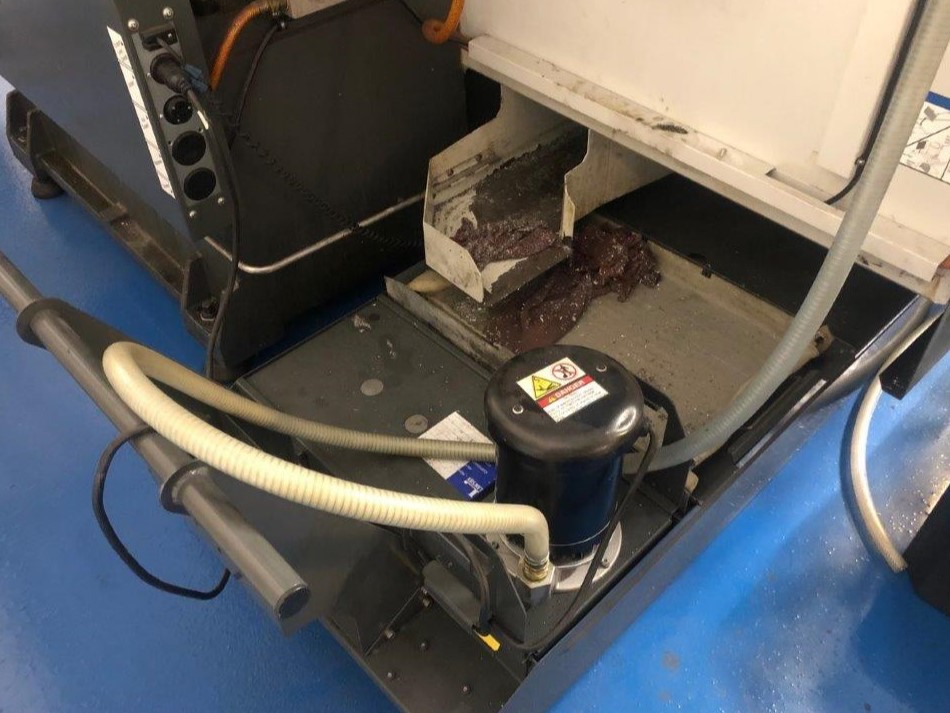

- CHIP AUGER

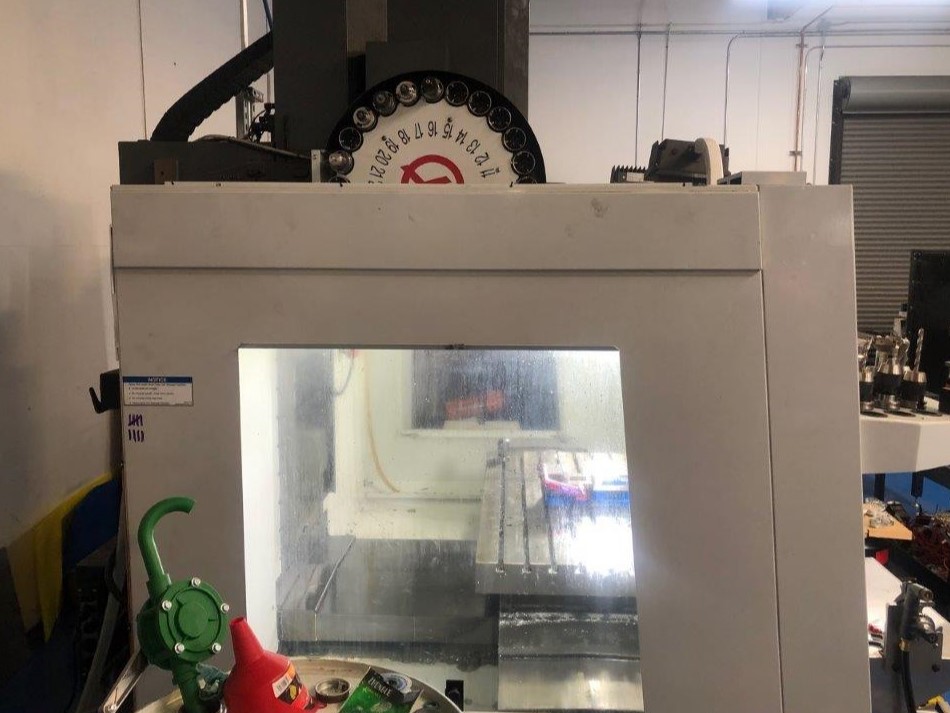

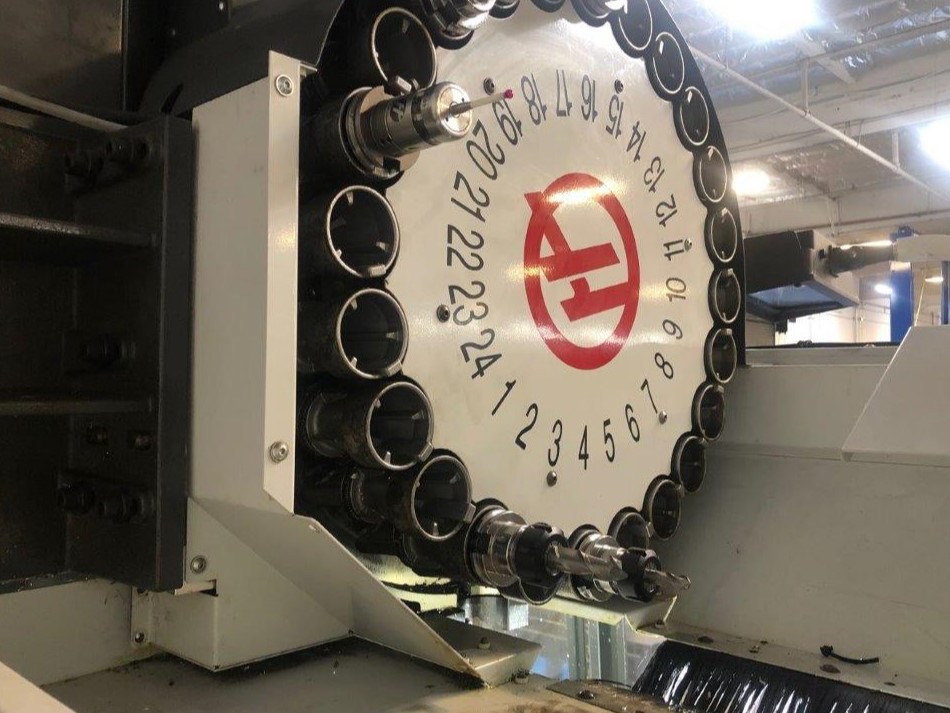

- 24 STATION TOOL CHANGER
- 10,000 RPM ~ GEAR BOX
- PROGRAMMABLE COOLANT NOZZLE
- HIGH INTENSITY LIGHTING
- EARLY POWER FAILUR DETECTION MODULE
- 1MB MEMORY / USB / memory lock switch
- 55 GALLON FLOOD COOLANT SYSTEM
- 15” COLOR LCD MONITOR

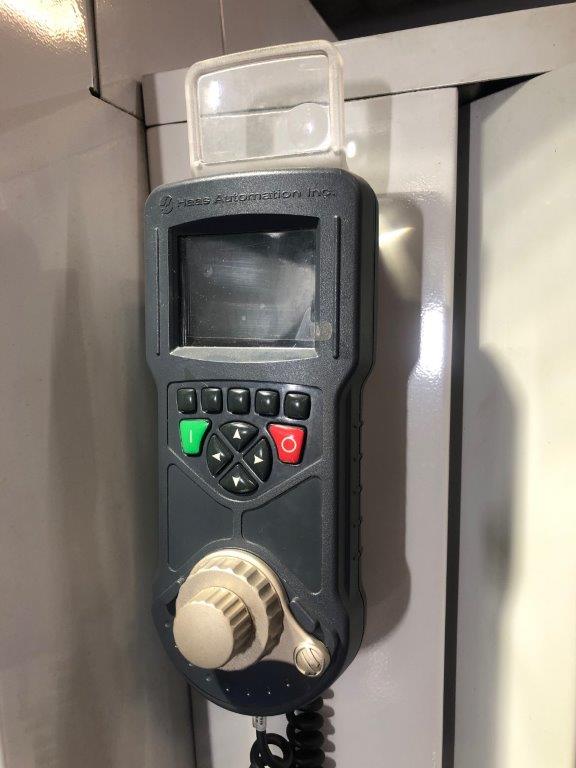

- REMOTE JOG HANDLE WITH COLOR LCD DISPLAY

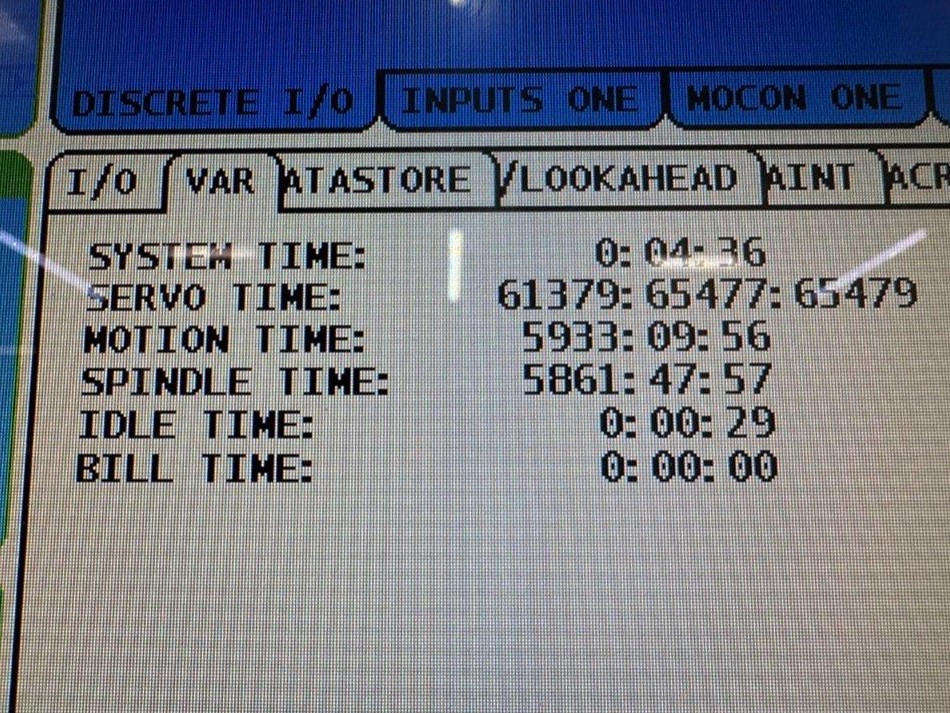

- HOURS. SERVO Time: 61,379. Motion Time: 5933. Spindle Time: 5861
