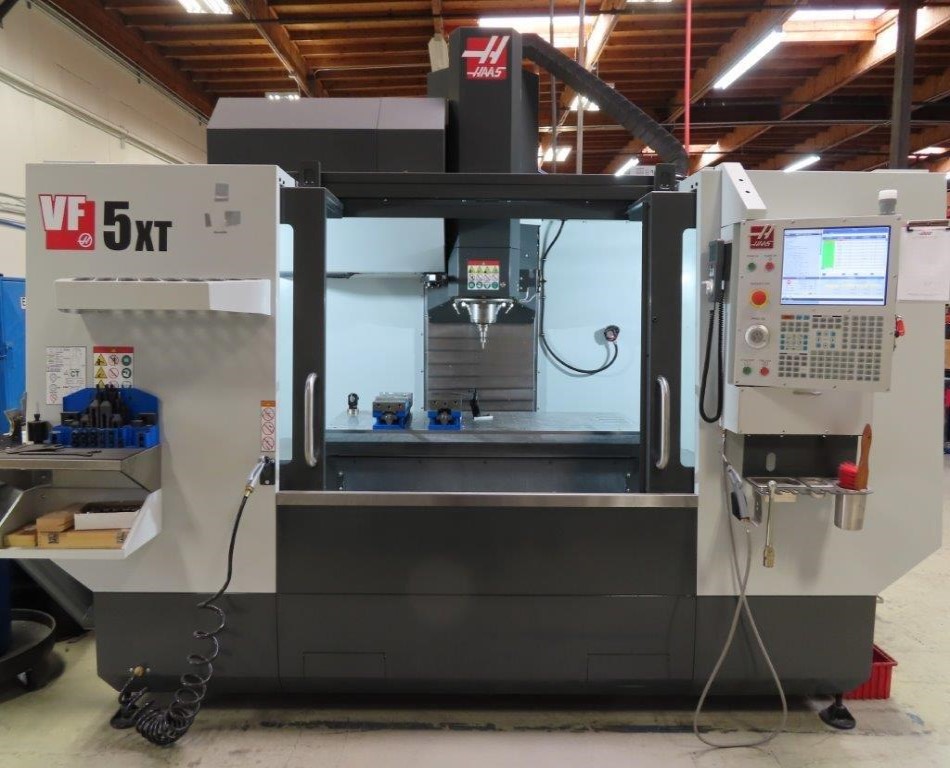

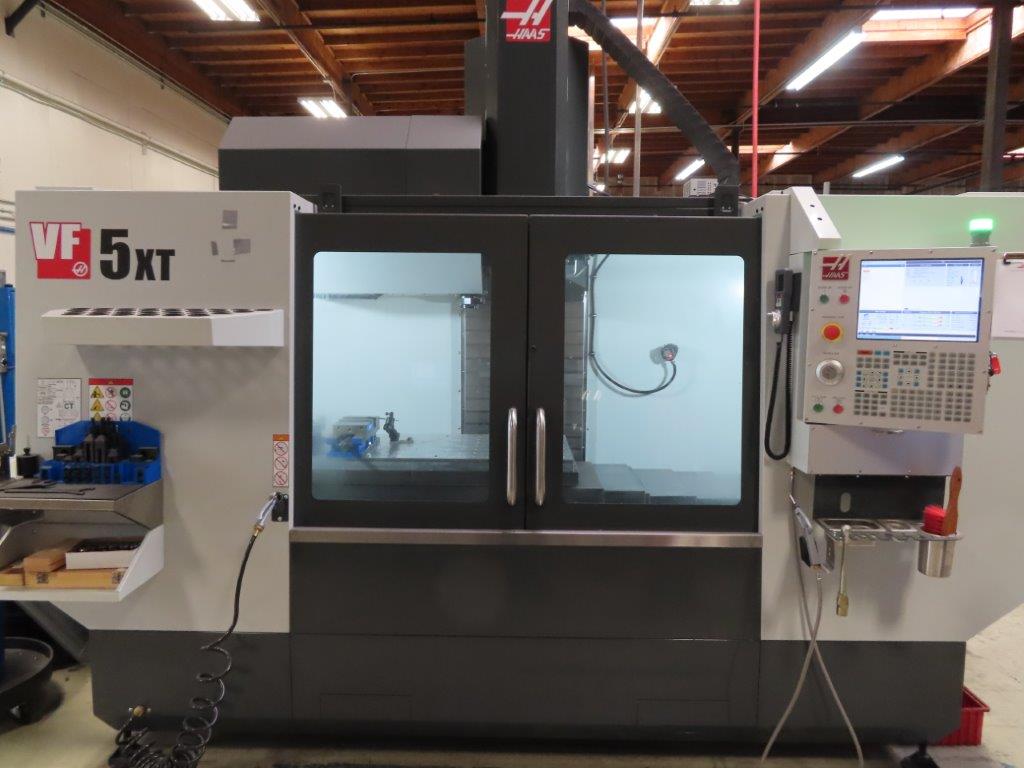

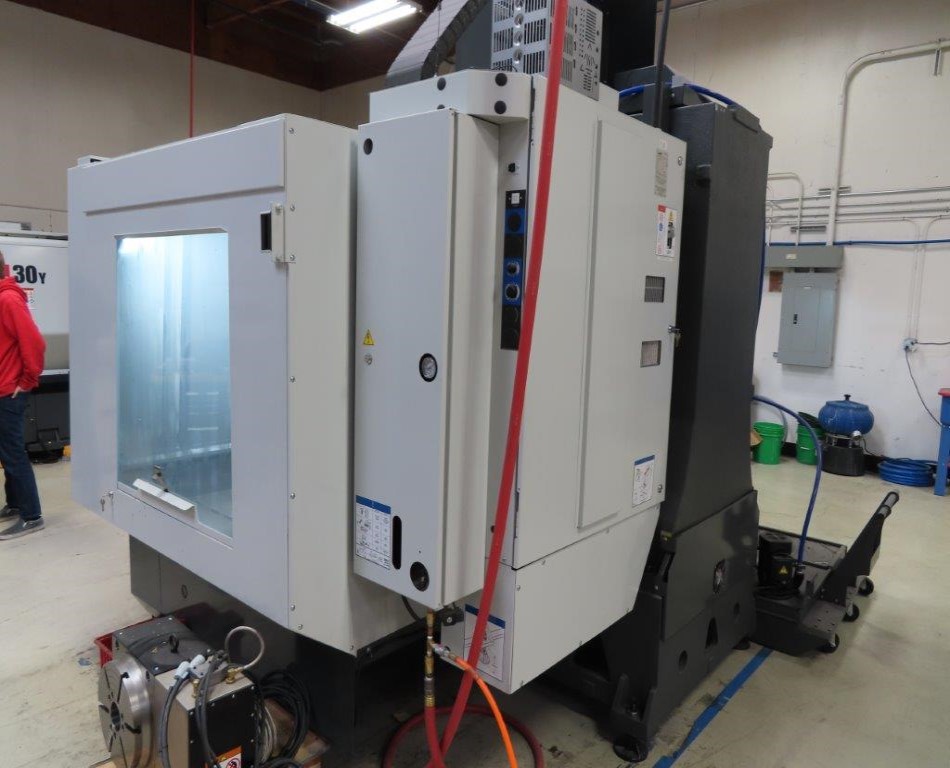

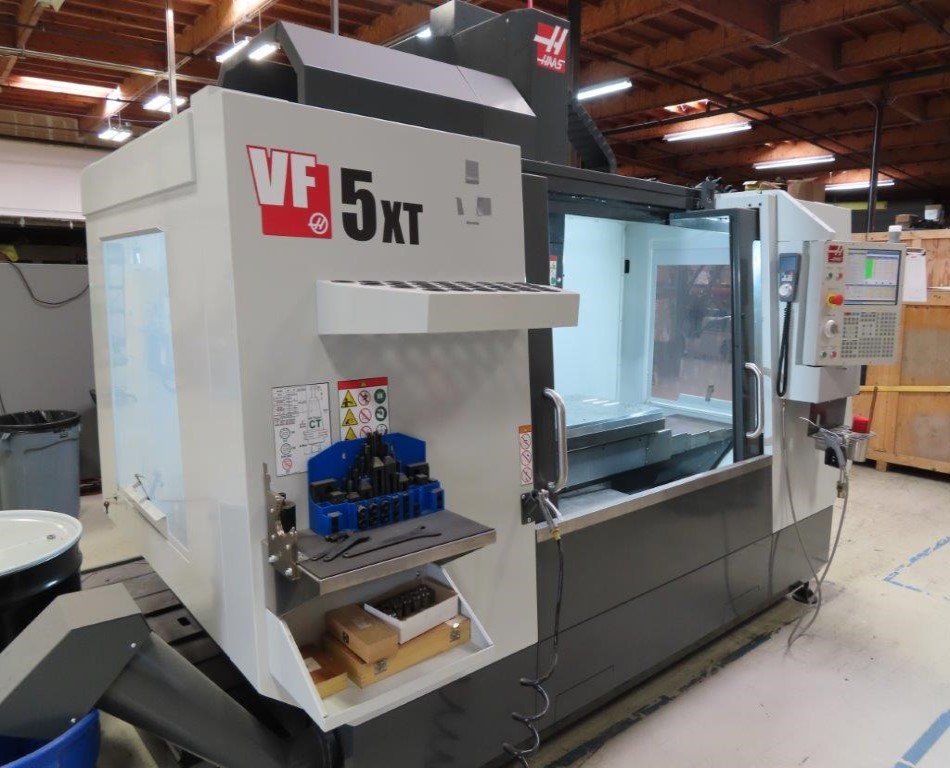

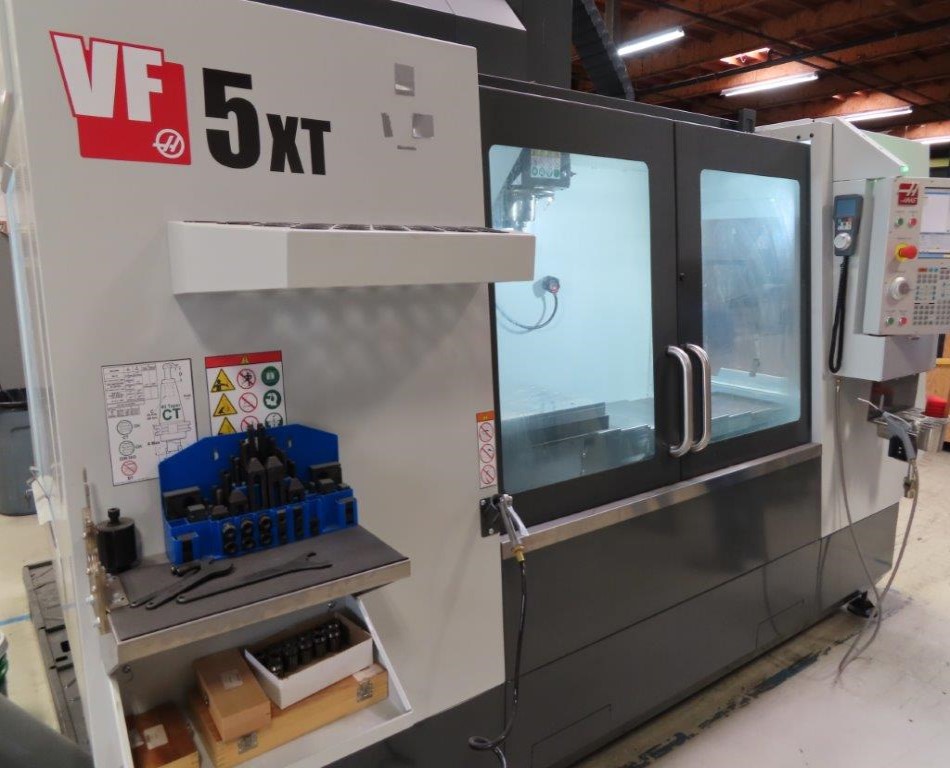

HAAS VF-5/40XT VERTICAL MACHINING CENTER

Stock Number: 1496

Click to view larger photo

SPECIFICATIONS:

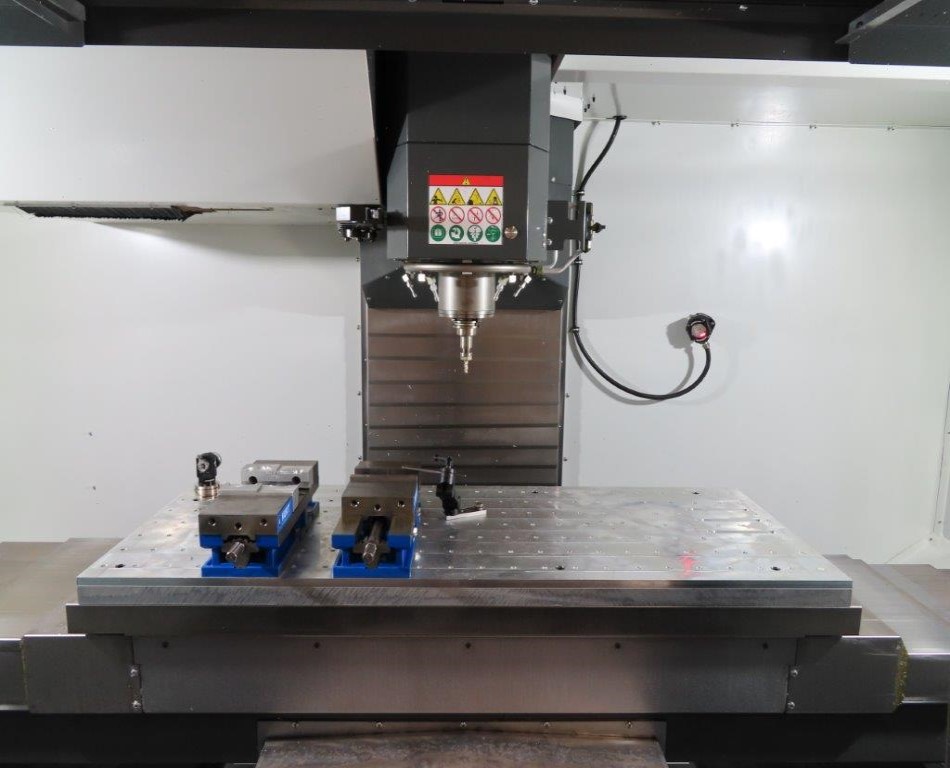

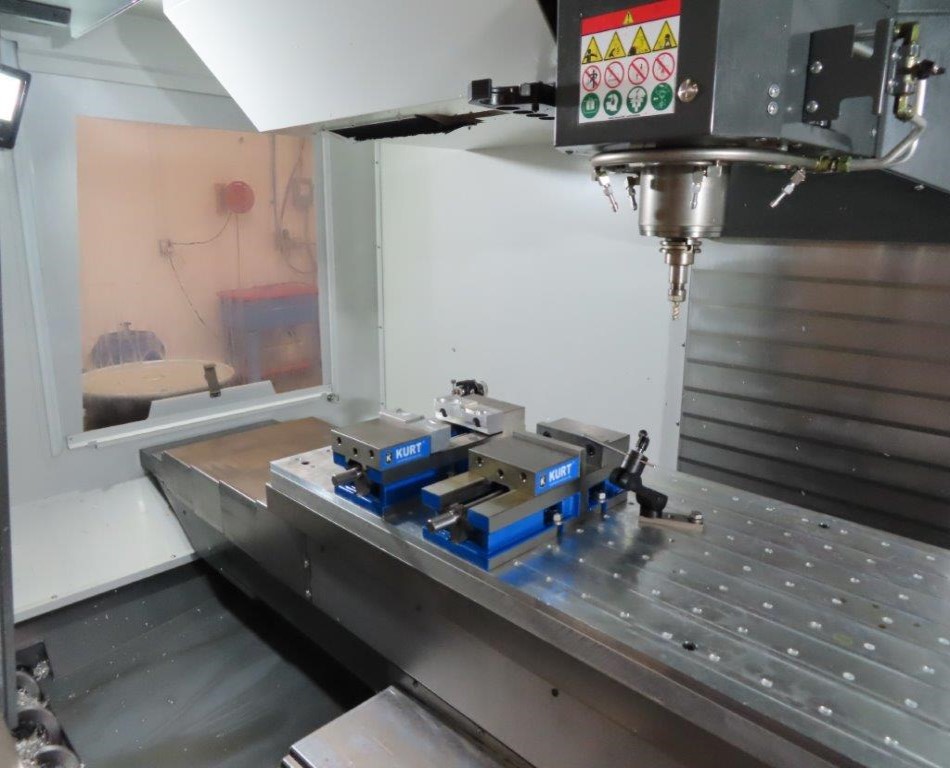

TABLE WORKING SURFACE	62" x 23"
TABLE LOAD CAPACITY	4,000 LBS.
TRAVELS (X, Y, Z)	60" x 26" x 25"
SPINDLE NOSE TO TABLE	4.2" - 29.2"
FEED RATE, ALL AXES	500 IPM
RAPID TRAVERSE RATE, ALL AXES	710 IPM
TOOL STORAGE CAPACITY	30 ARM TYPE
SPINDLE HORSEPOWER	30 HP
SPINDLE SPEED RANGE - INLINE DIRECT	10,000 RPM
SPINDLE TAPER	CAT-40
WAY SYSTEM	LINEAR GUIDEWAY
OVERALL DIMENSIONS	138" x 92" (+30" FOR AUGER)
APPROXIMATE WEIGHT - NET	15,600 LBS.

EQUIPPED WITH:

RIGID TAPPING
10K RPM Spindle, 30HP, Vector drive, inline direct drive

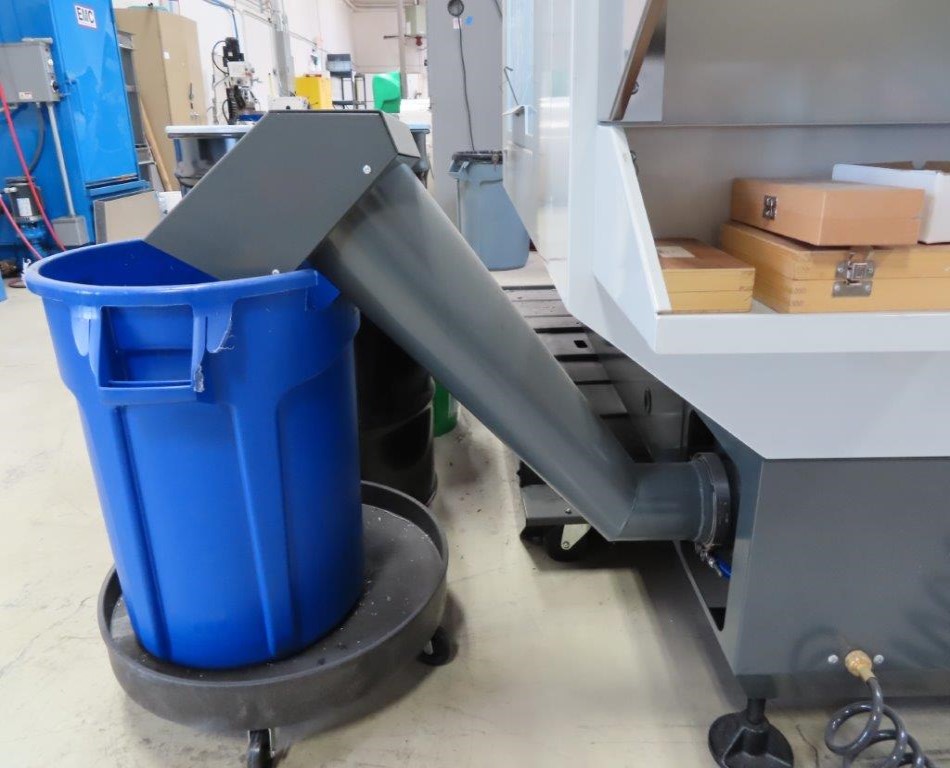

CHIP AUGER

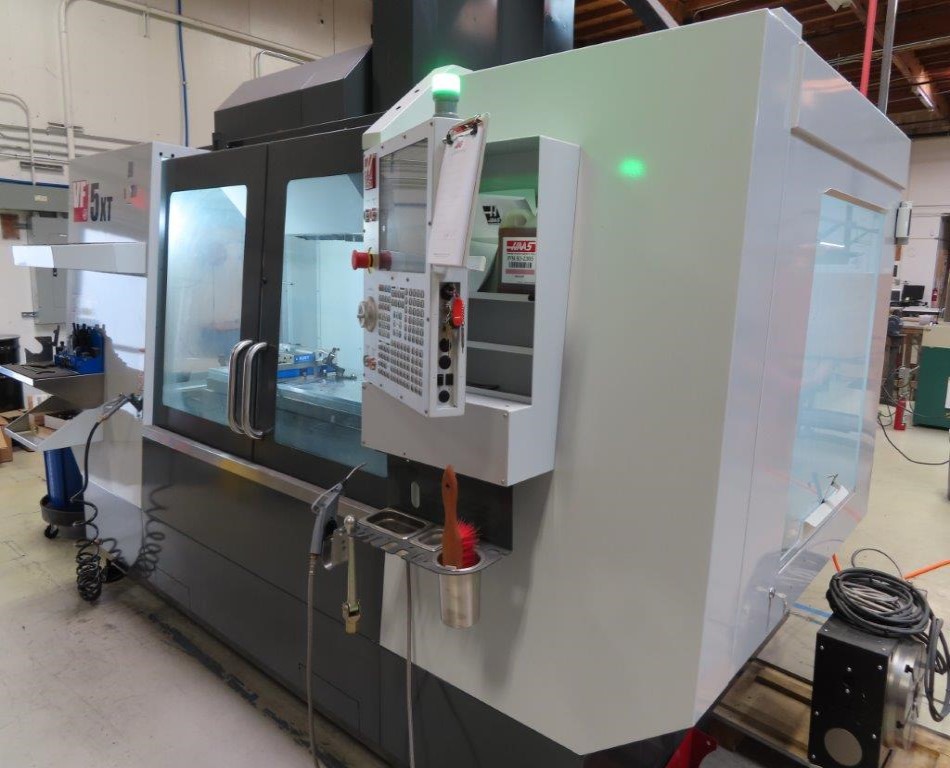

15” COLOR LCD MONITOR / USB / MEMORY LOCK keyswitch
4^th AXIS DRIVE and WIRING
REMOTE JOG HANDWHEEL w/ TOUCHSCREEN DISPLAY

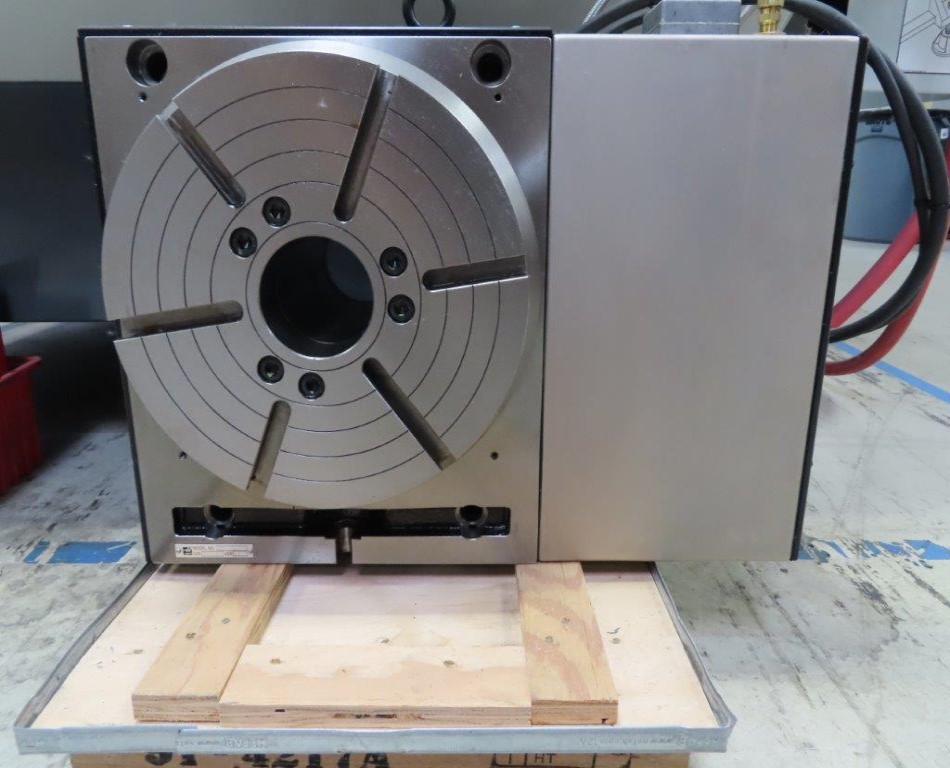

HRT-310 4^th Axis Rotary Table, 12” (never used)

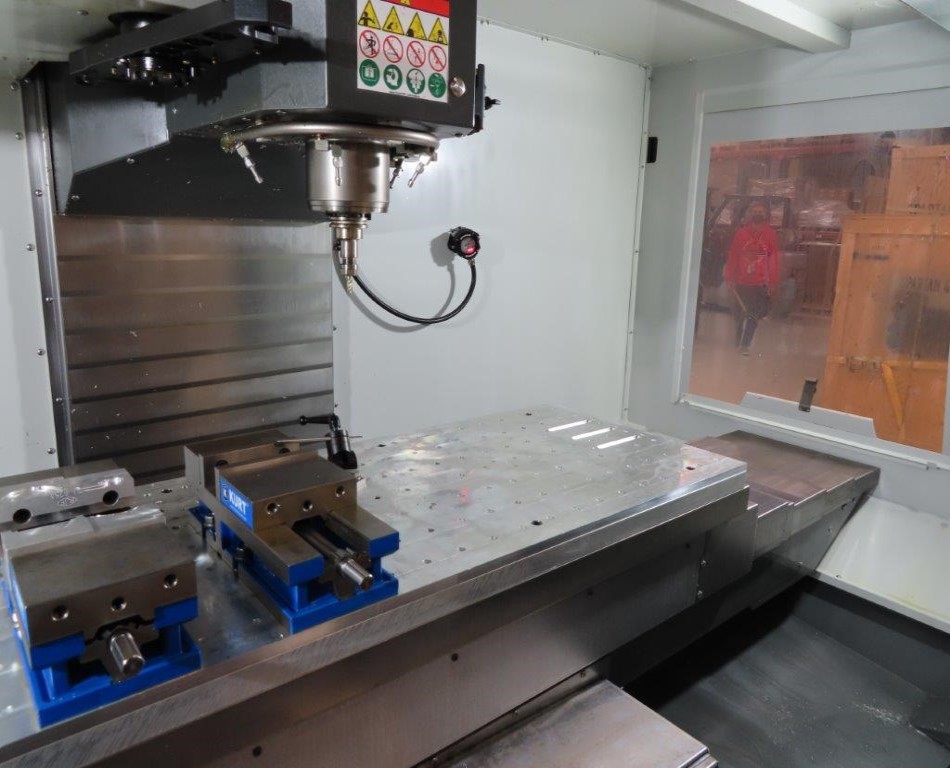

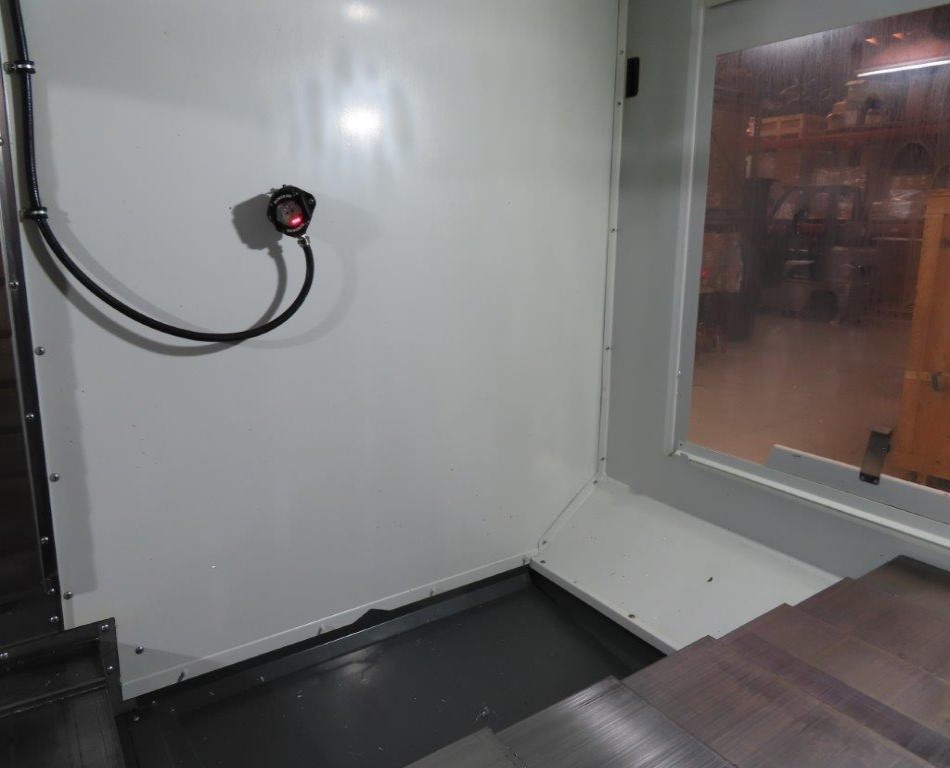

WIPS / Wireless Intuitive Probing system
64 GB EXPANDED MEMORY
COOLANT TANK (95 Gallon)
Spindle Orientation, User-Definable Macros, Coordinate Rotation & Scaling, Visual part programming system.
Tool storage Racks
Shipping dims: 138”x92” machine and 80”x50” for Tank.
NOTE: CURRENT REPLACEMENT COST – $155,000.
