| SPECIFICATIONS: | |
|---|---|

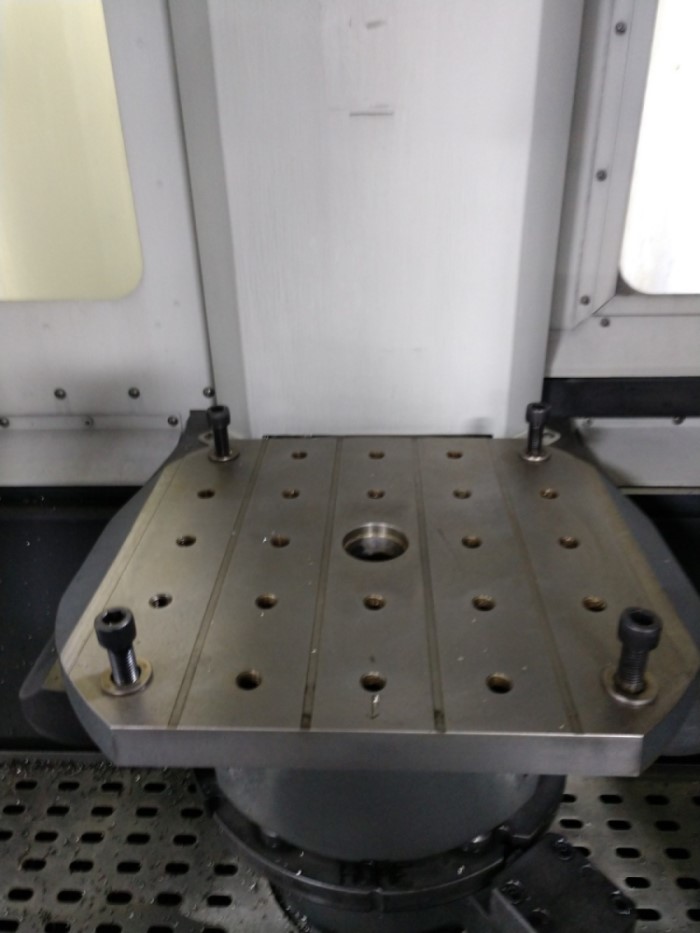

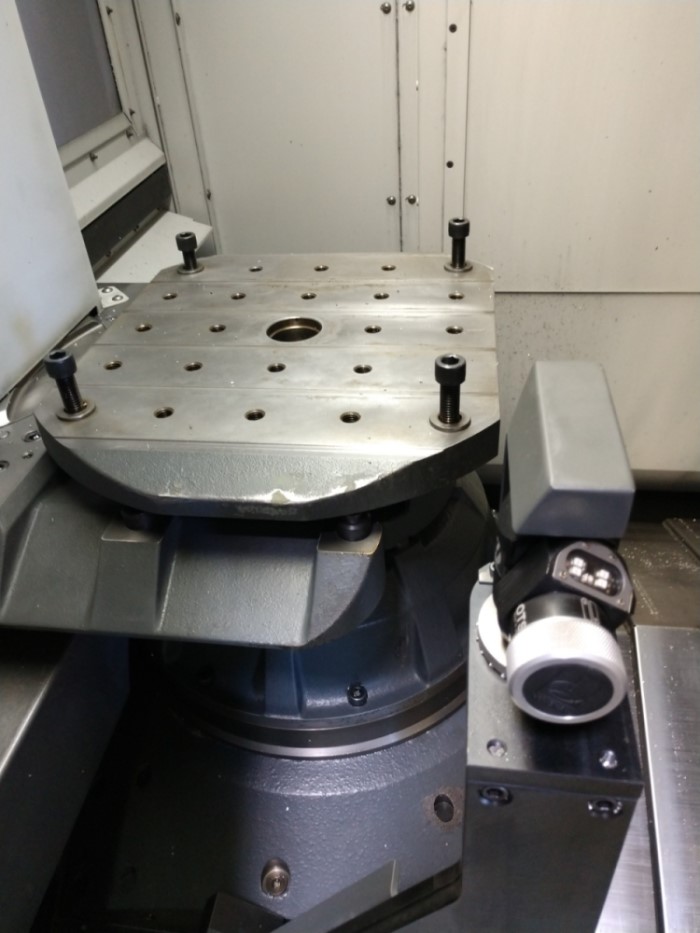

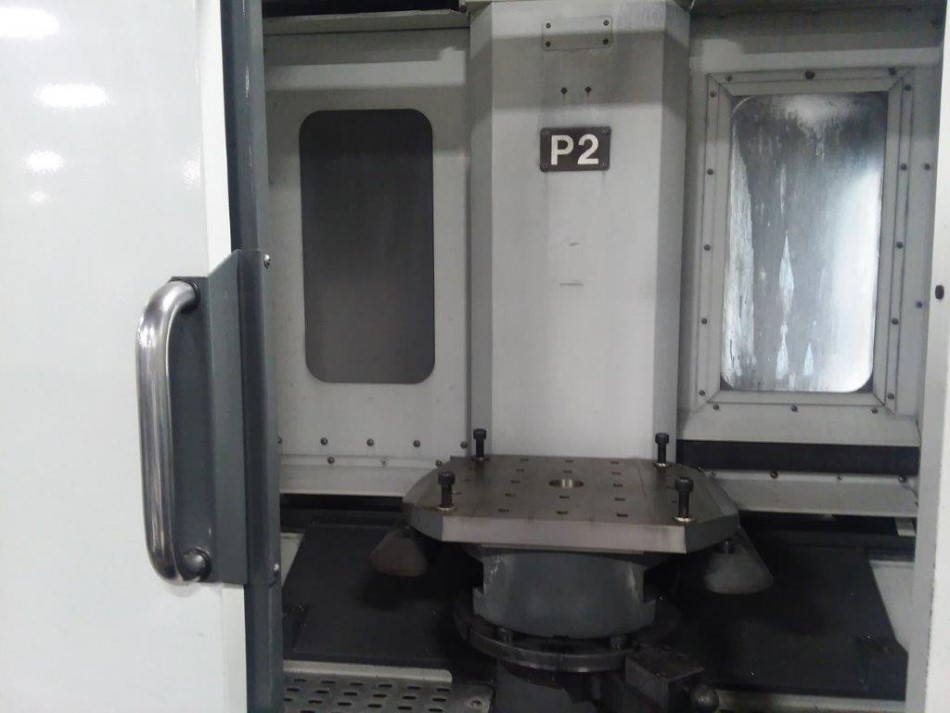

| PALLET SIZE | 15.75" x 15.75" |
| NUMBER / PALLETS | 2 |
| MAX TABLE LOAD CAPACITY | 1000 LBS |
| SPINDLE RPM | 12,000 RPM |
| X, Y, Z TRAVELS | 20" x 20" x 20" |
| RAPID TRAVERSE X, Y, Z | 1000 IPM |
| NUMBER OF TOOL STATIONS | 40 ATC |
| MAXIMUM TOOL DIAMETER | 2.5" |
| MAXIMUM TOOL DIA ADJACENT POCKET EMPTY | 5" |
| MAXIMUM TOOL LENGTH | 12" |
| MAXIMUM TOOL WEIGHT | 12 LBS |

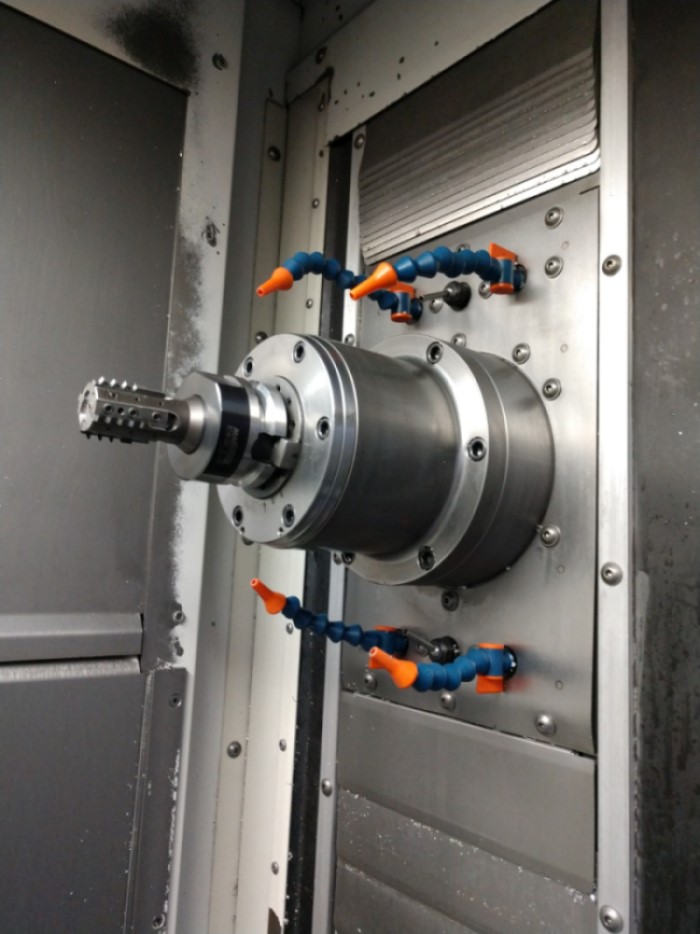

| SPINDLE TAPER | BT-40 VECTOR DRIVE, INLINE DIRECT |
| MAIN SPINDLE HP | 30 HP |
