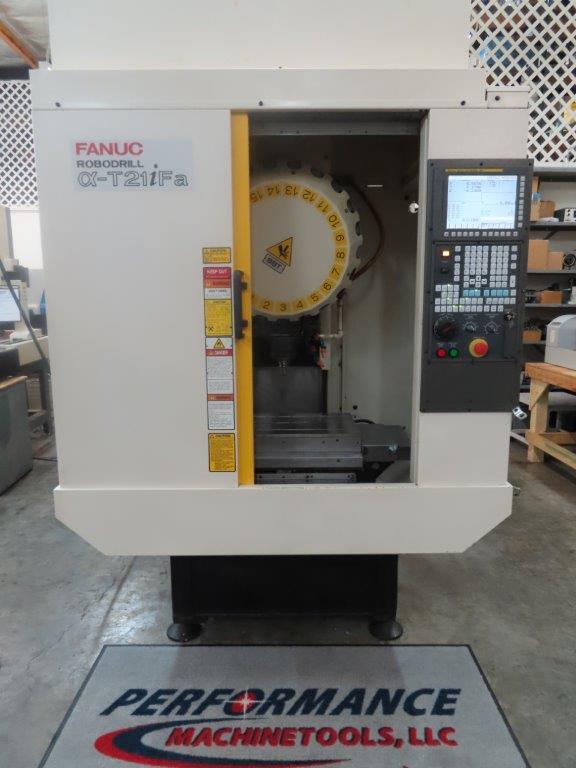

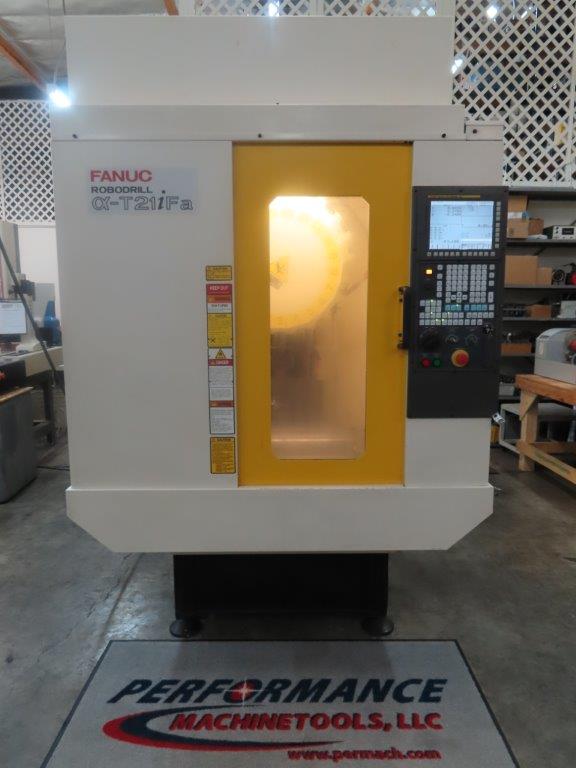

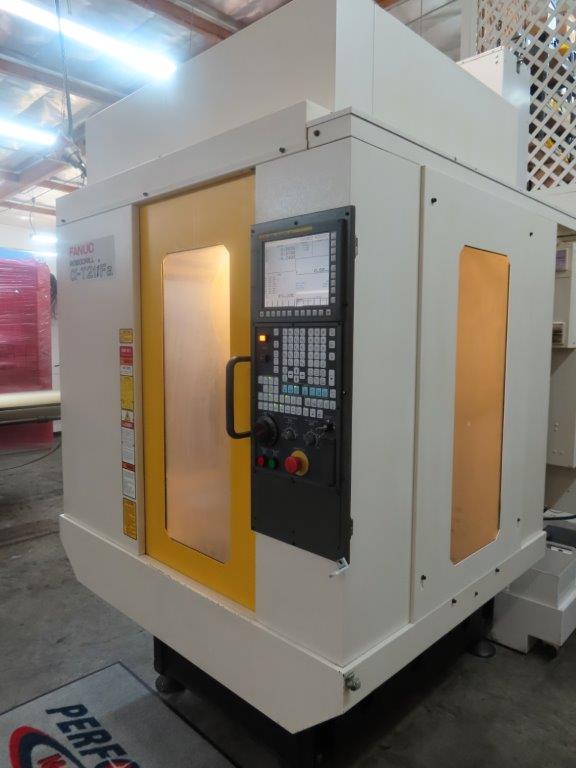

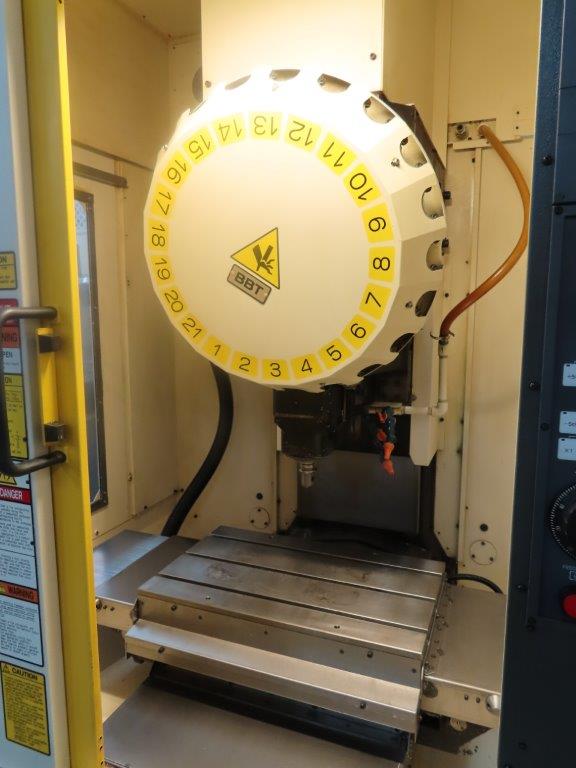

Click to view larger photo
| SPECIFICATIONS: | |
|---|---|

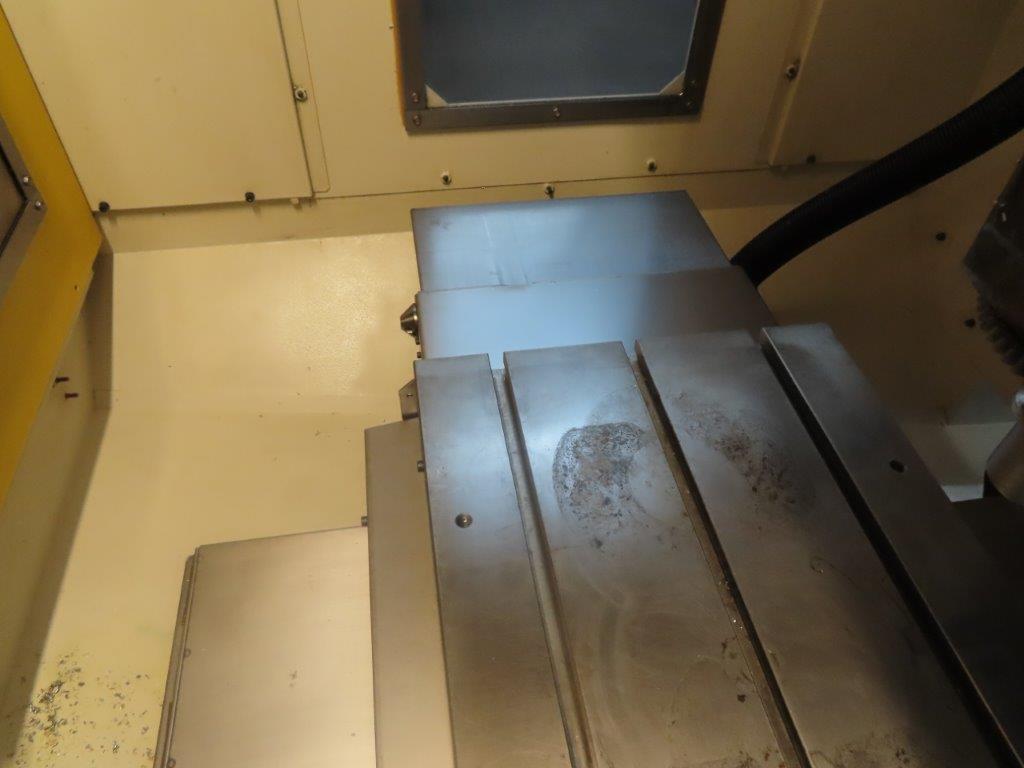

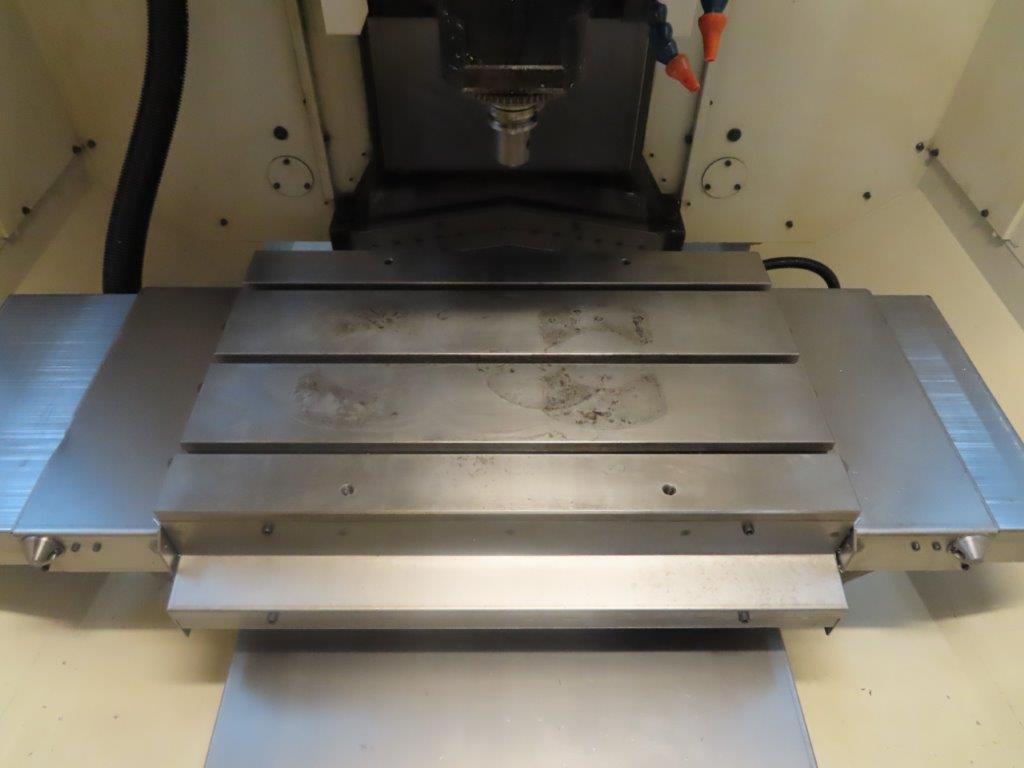

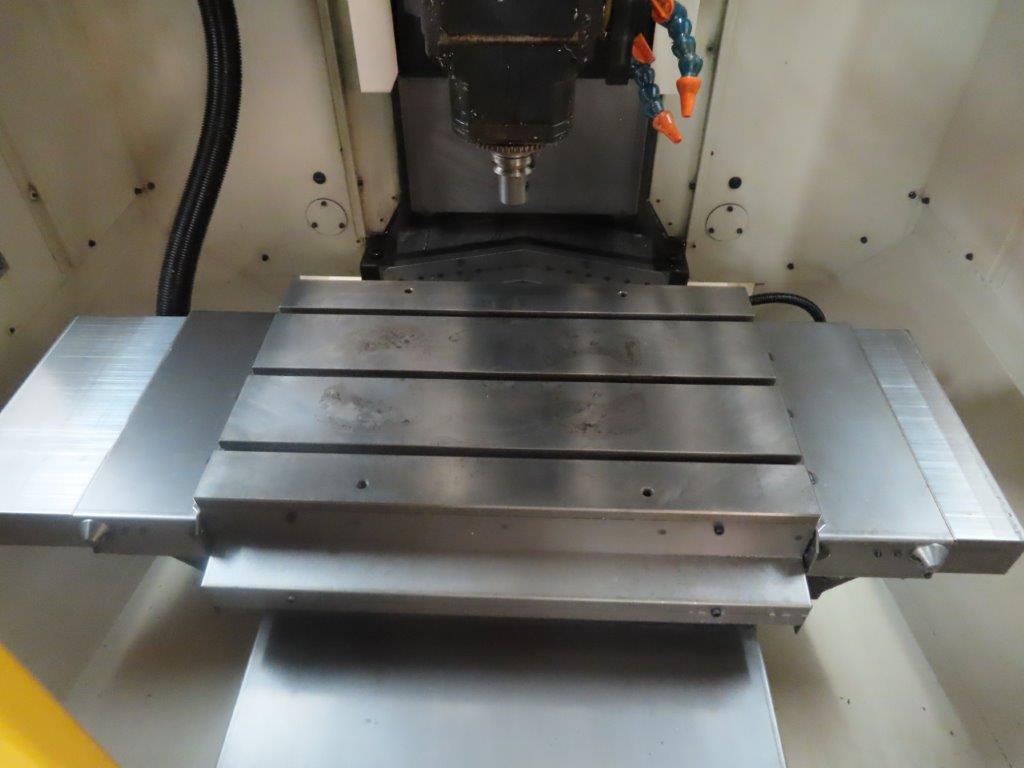

| TABLE WORKING SURFACE | 25.6" x 15.74" |
| TABLE LOAD CAPACITY | 660 LBS. |
| TRAVELS: X, Y, Z | 19.68" x 15.75" x 12.9" |
| RAPID TRAVERSE RATE, ALL AXES | 2126 IPM |
| CUTTING FEED | 1181 |

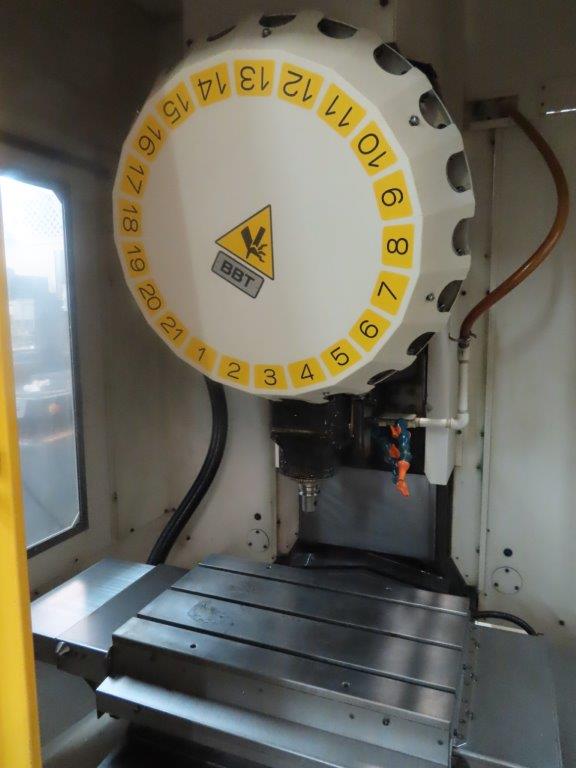

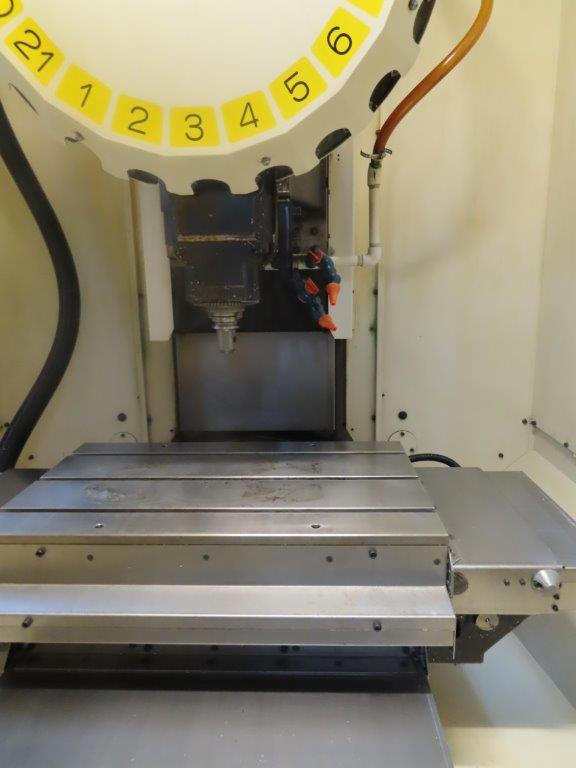

| TOOL STORAGE CAPACITY | 21 ATC (TURRET TYPE) |
| TOOL CHANGE TIME T-T | 1 SECOND |
| SPINDLE HORSEPOWER | 15 HP (30 MIN RATING) |
| SPINDLE SPEEDS RANGE | 24,000 RPM / HIGH TORQUE |
| SPINDLE TAPER | #BT-30 |
| OVERALL DIMENSIONS | 64" x 81" x 91" |
| APPROXIMATE WEIGHT - NET | 4,400 LBS. |
| POWER | 3 PHASE / 200 TO 220V-50/60HZ - 9KVA |
EQUIPPED WITH:
