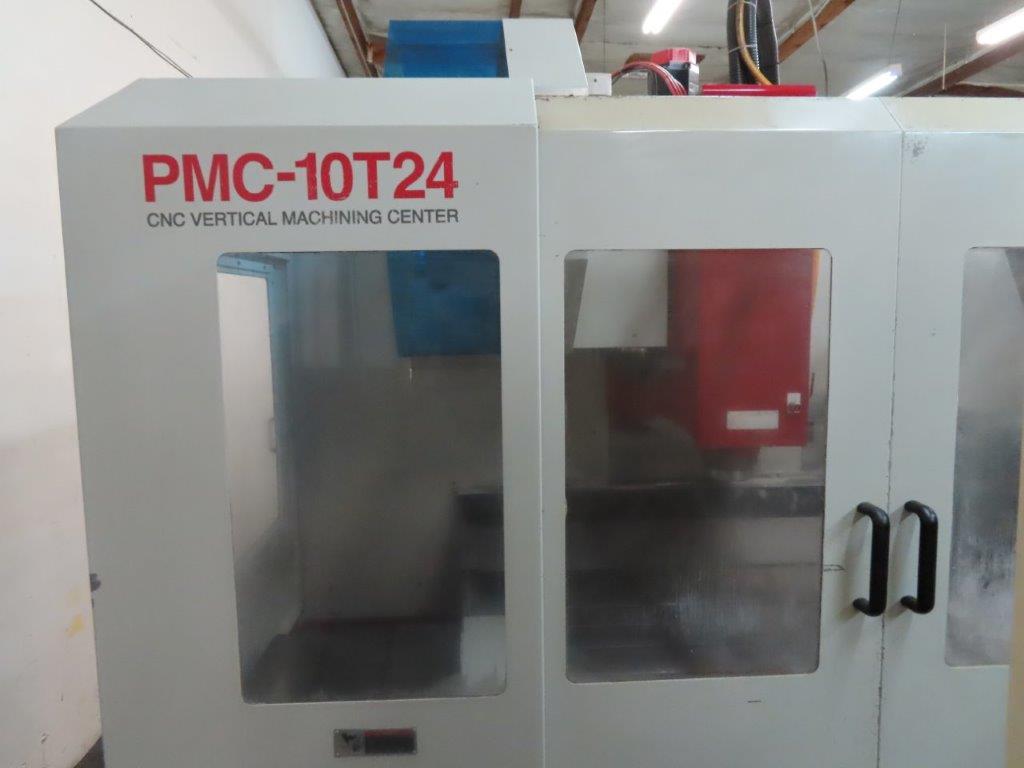

Click to view larger photo
| SPECIFICATIONS: | |
|---|---|
| LONGITUDINAL TRAVEL (X-AXIS) | 40" |
| CROSS TRAVEL (Y-AXIS) | 20" |
| Z AXIS TRAVEL | 22" |

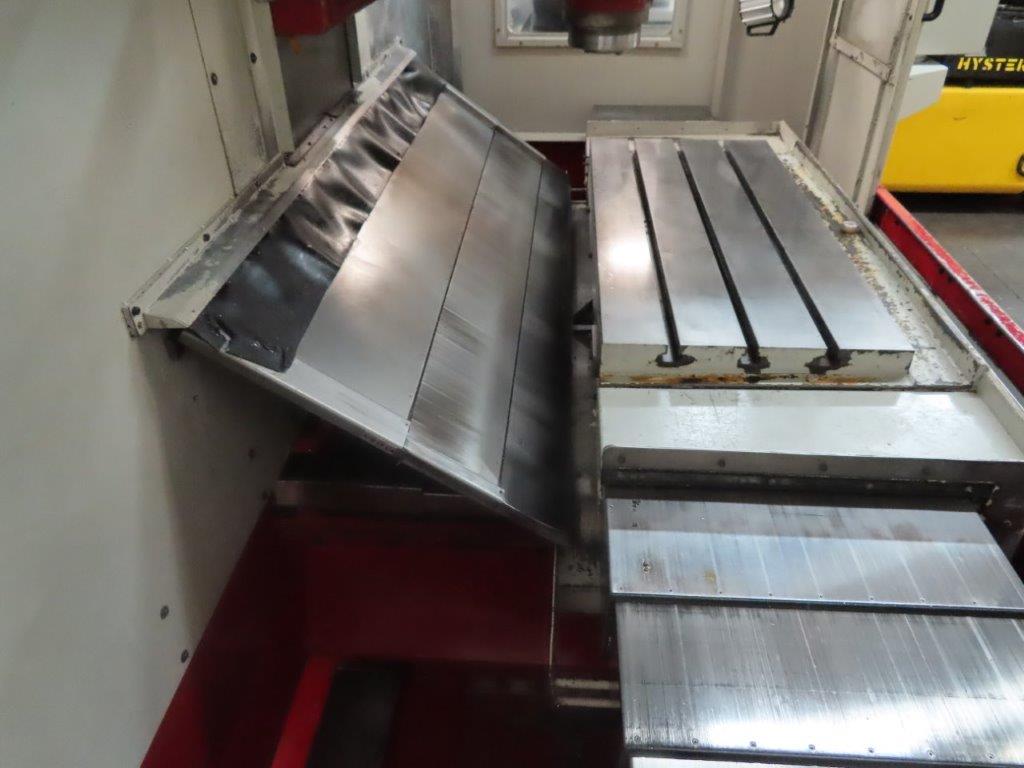

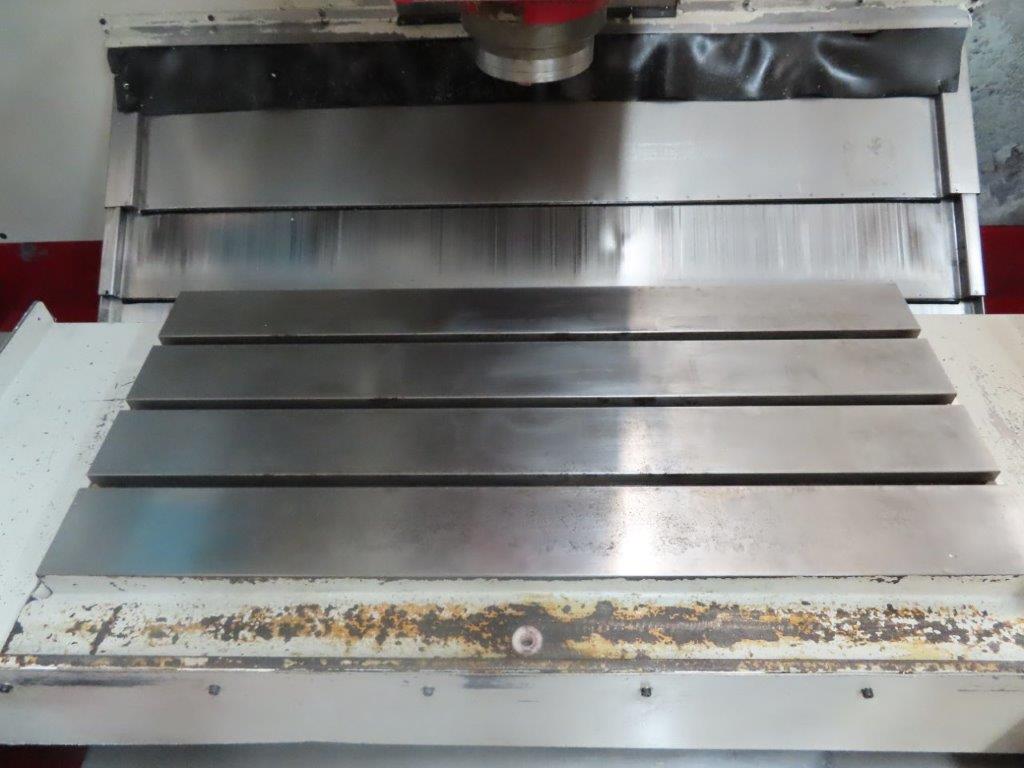

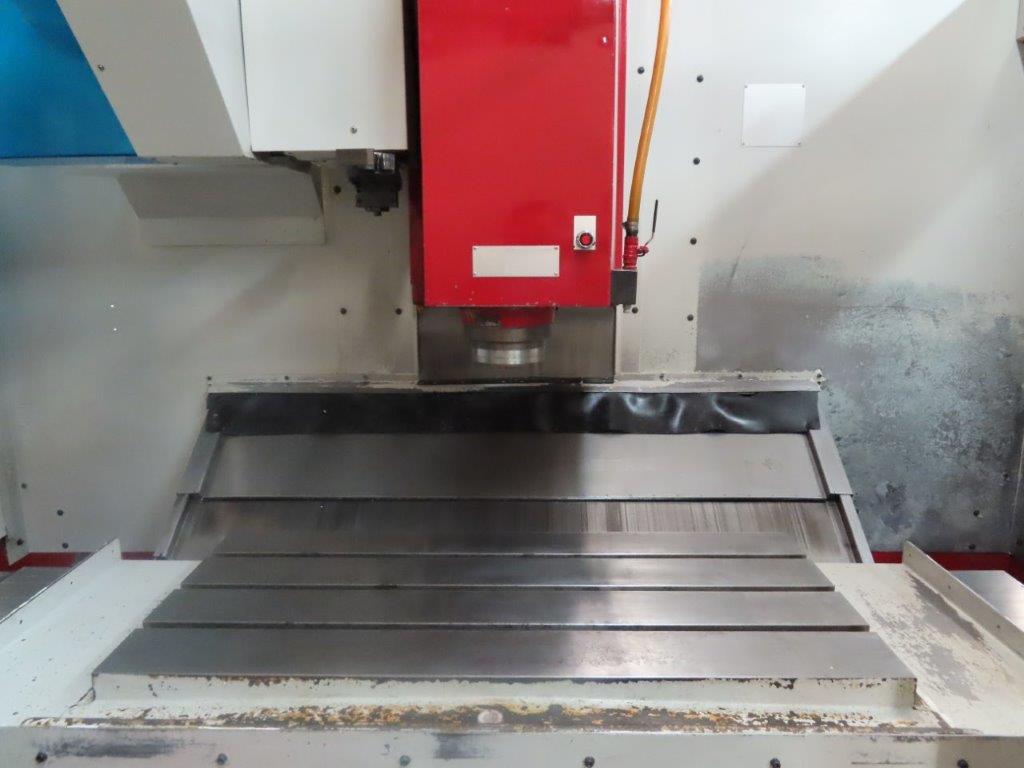

| TABLE SIZE | 43.3" x 19.3" |
| TABLE LOAD | 1760 lbs |
| SPINDLE NOSE to TABLE | 5.5" - 27.6" |
| RAPID TRAVERSE RATE, ALL AXES | 944 IPM |

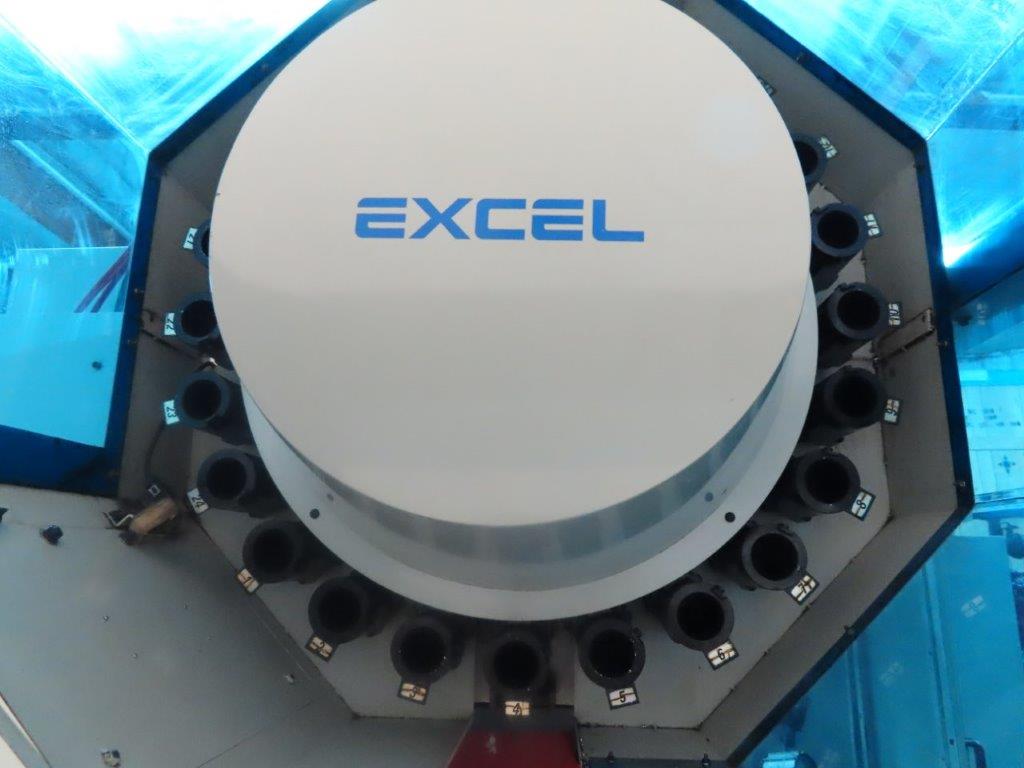

| TOOL STORAGE CAPACITY | 24 ARM |
| SPINDLE HORSEPOWER | 15 HP |
| SPINDLE SPEEDS RANGE | 8,000 RPM |
| SPINDLE TAPER | CAT-40 |
| OVERALL DIMENSIONS | 110" x 94" x 101" |
| APPROXIMATE WEIGHT - NET | 13,700 LBS. |
