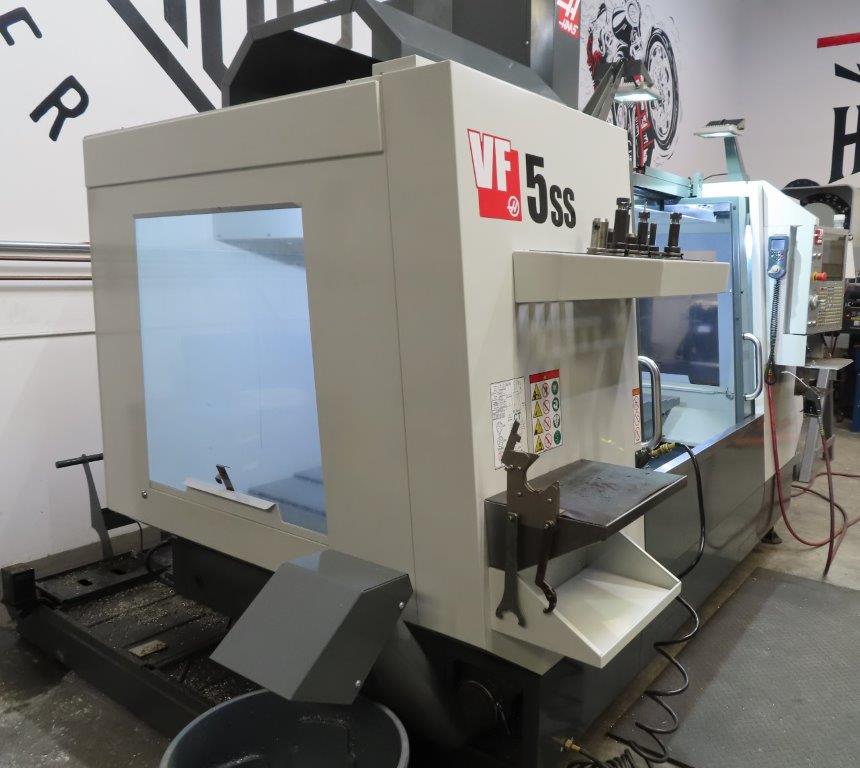

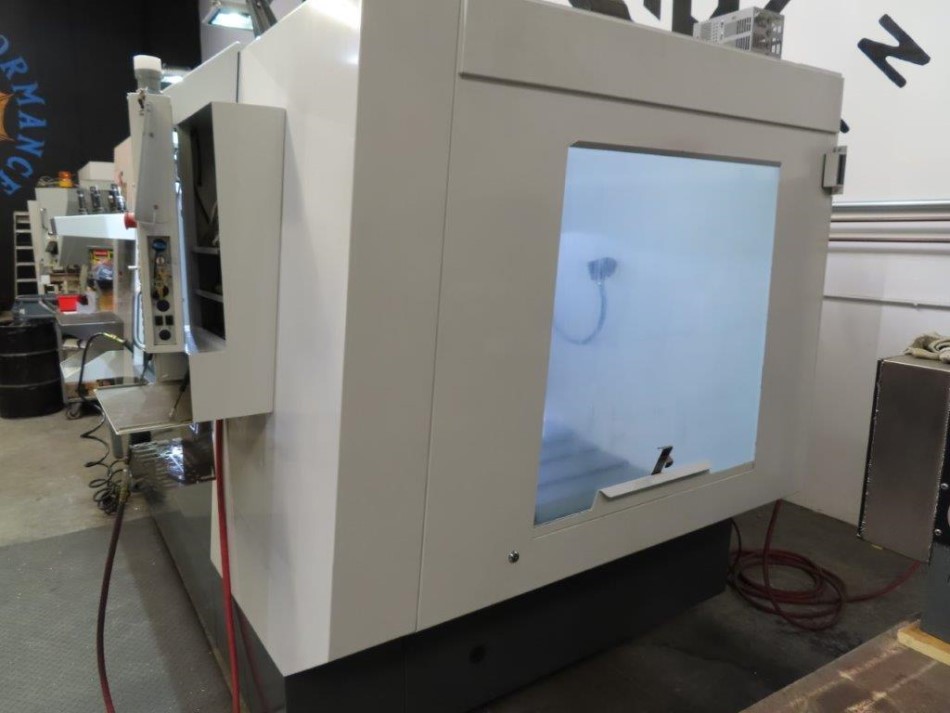

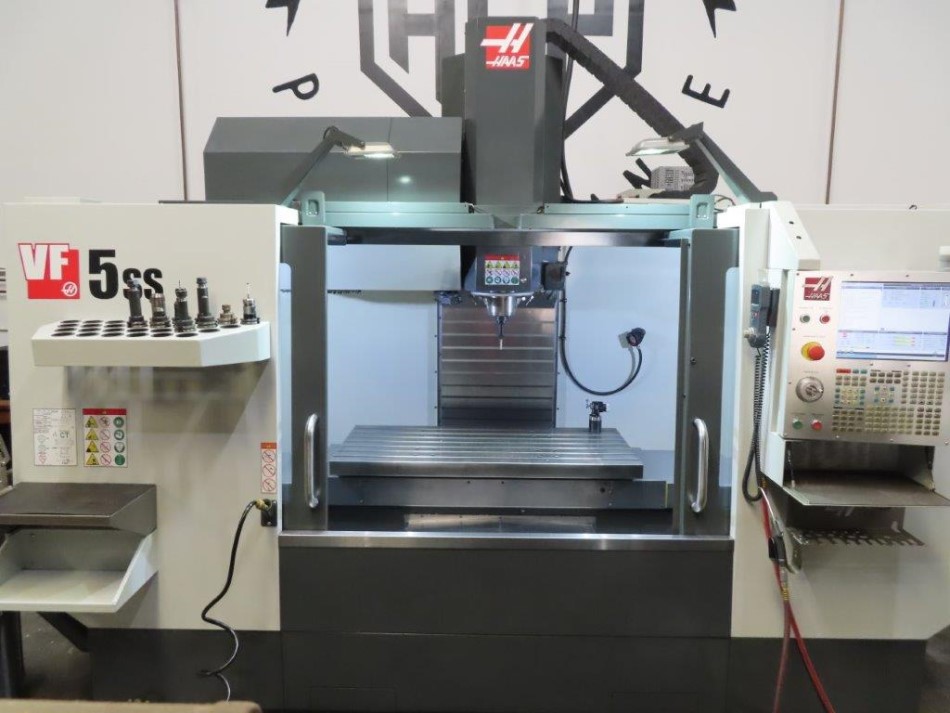

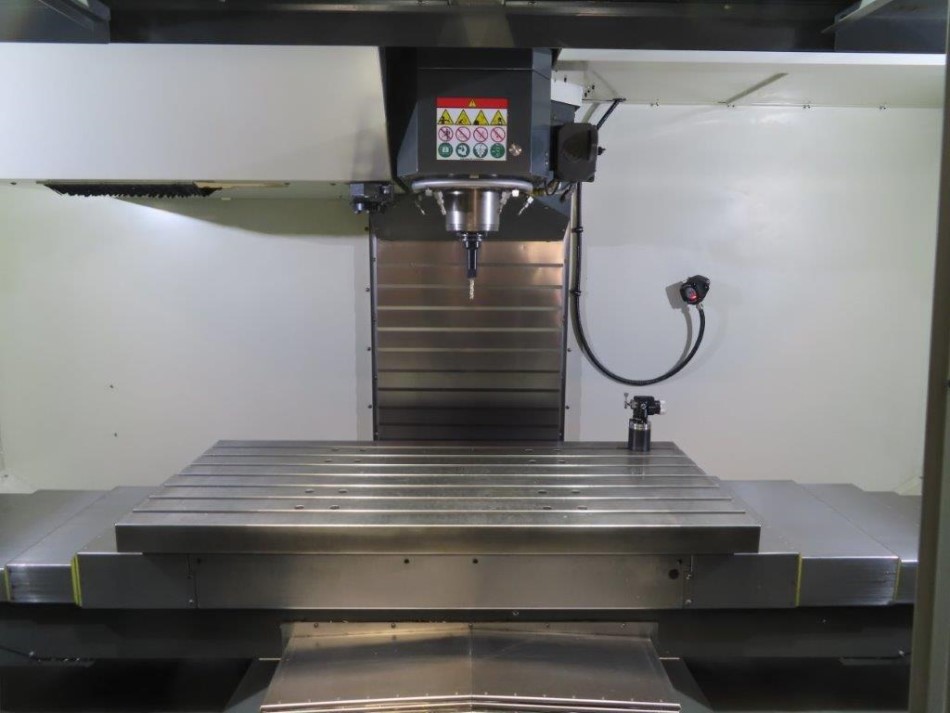

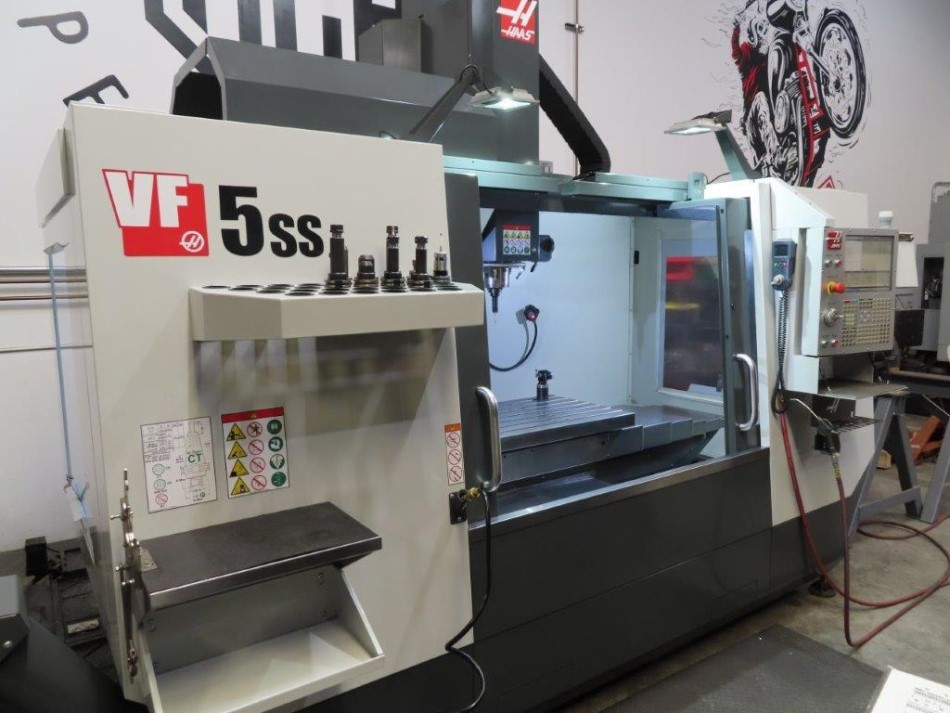

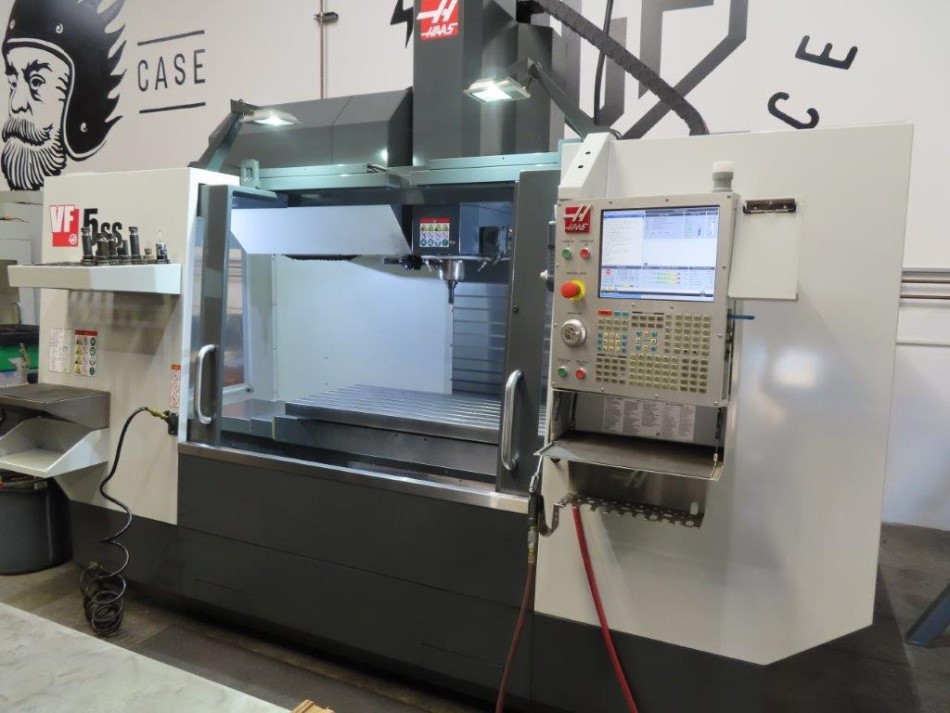

HAAS VF-5SS 5 AXIS VERTICAL MACHINING CENTER
Stock Number: 1142
Mfg: HAAS
Click to view larger photo
| SPECIFICATIONS: |

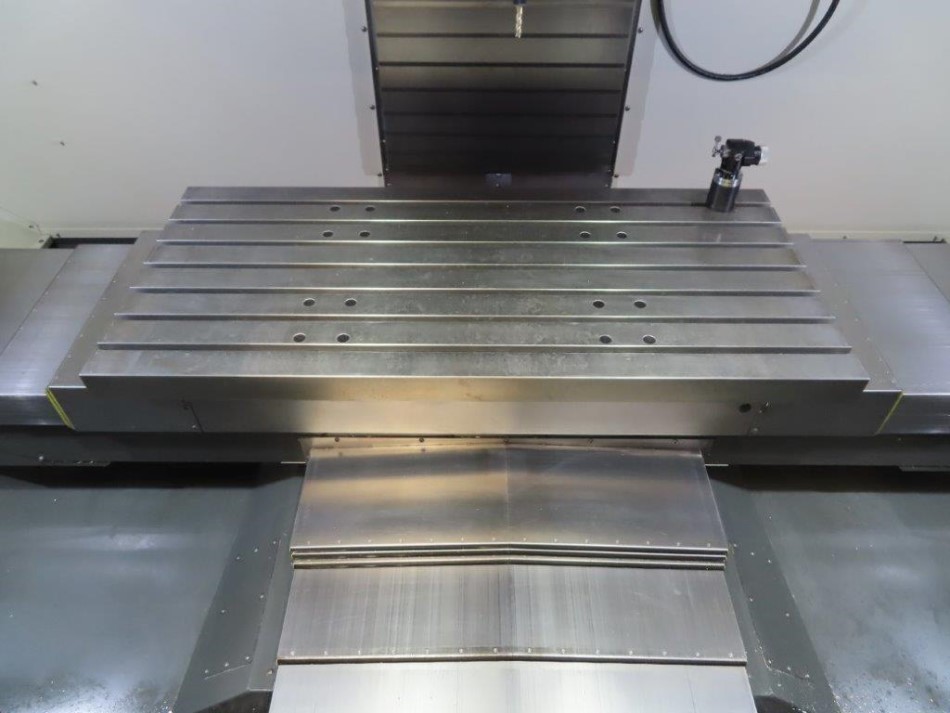

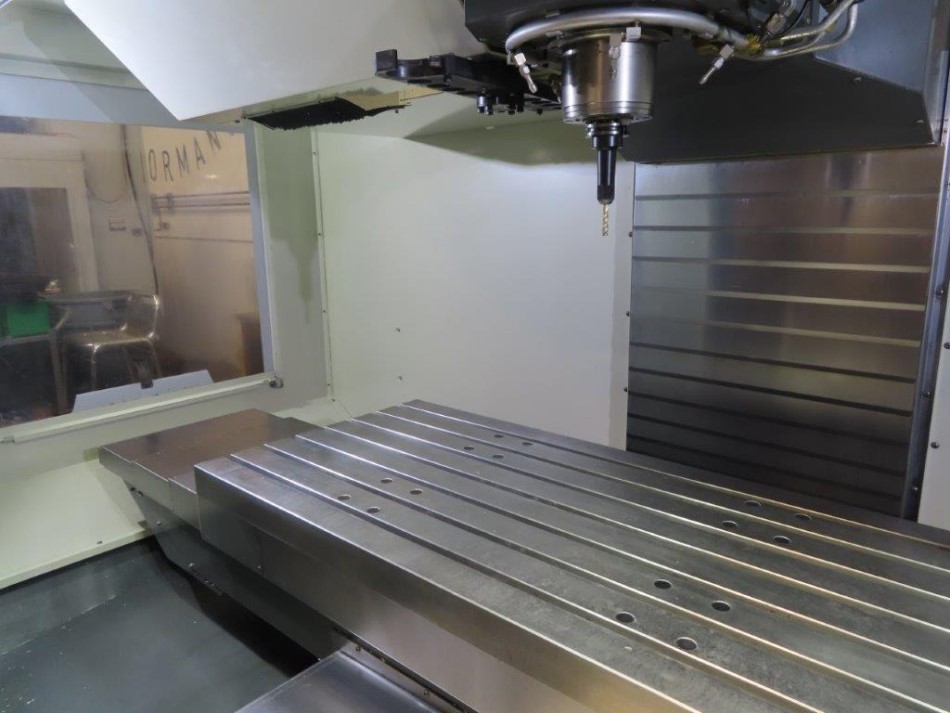

| TABLE WORKING SURFACE |
54" x 24" |
| TABLE LOAD CAPACITY |
1750 LBS. |
| TABLE TRAVELS X, Y, Z |
50" x 26" x 25" |
| RAPID TRAVERSE RATE, ALL AXES |
1200 IPM |
| SPINDLE NOSE TO TABLE |
4.2" - 29.2" |
| TOOL STORAGE CAPACITY |
30 |
| SPINDLE HORSEPOWER |
30 HP |
| SPINDLE SPEEDS RANGE |
12,000 RPM DIRECT DRIVE |
| SPINDLE TAPER |
CAT-40 |
| WAY SYSTEM |
LINEAR GUIDEWAY |
| APPROXIMATE WEIGHT - NET |
12,700 LBS. |
EQUIPPED WITH:

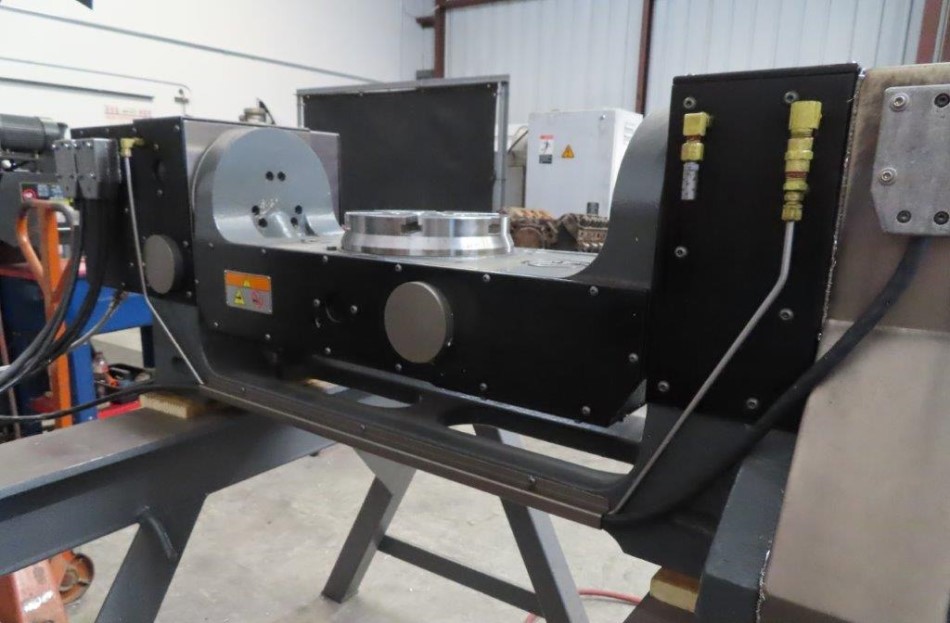

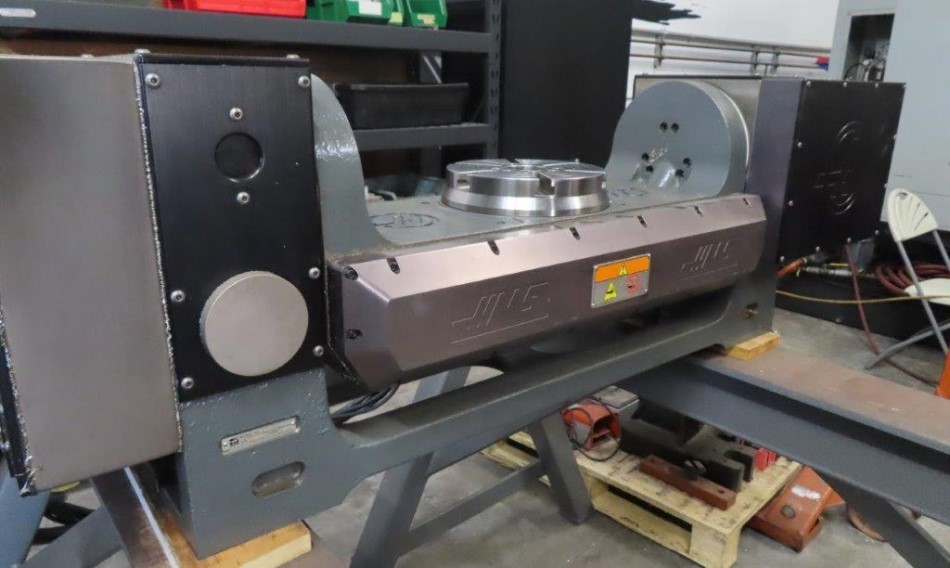

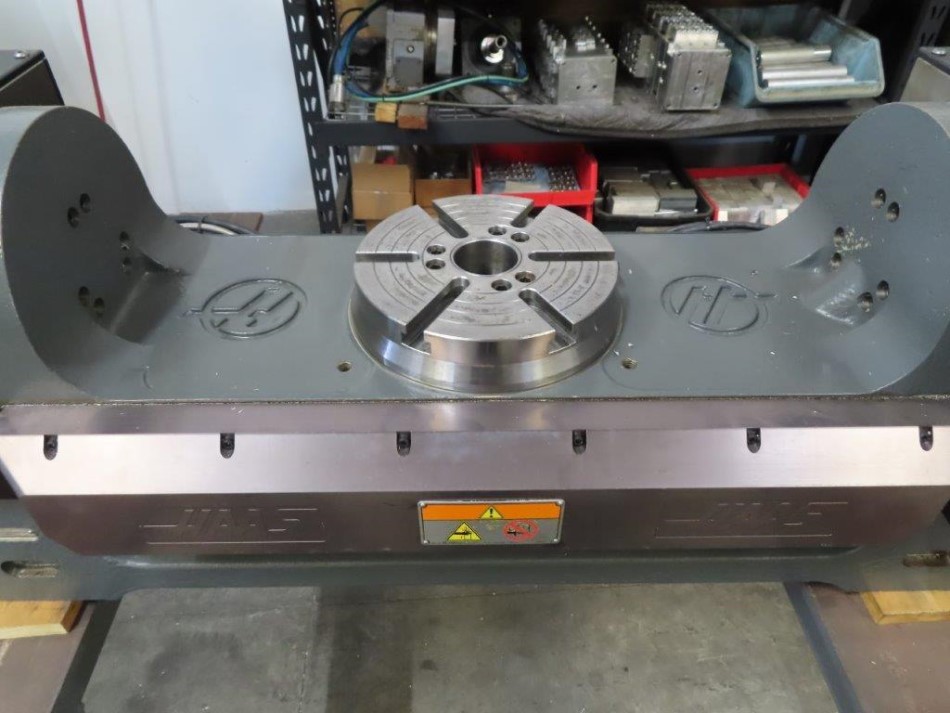

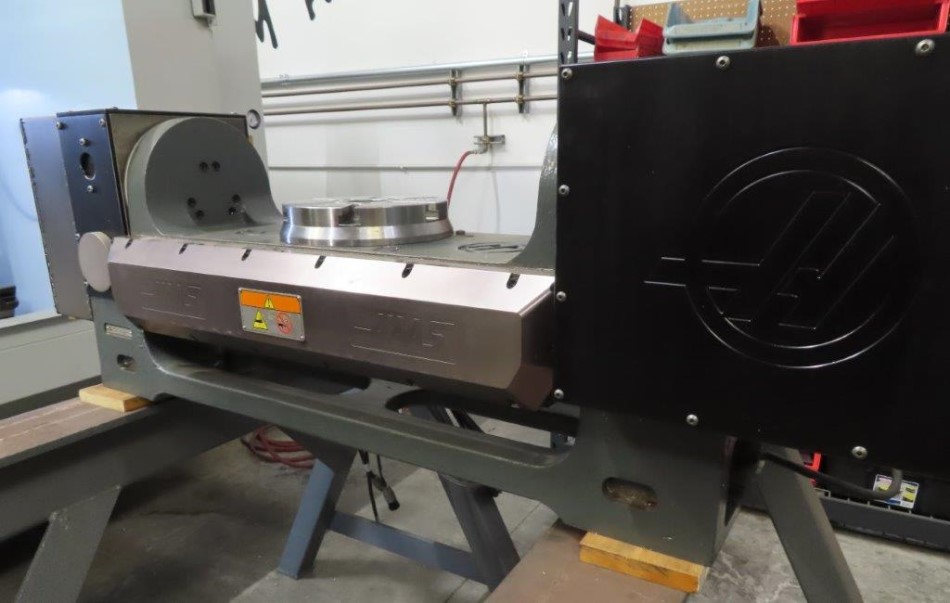

- TR210 FIVE AXIS TRUNION TABLE ($45,000 new today)

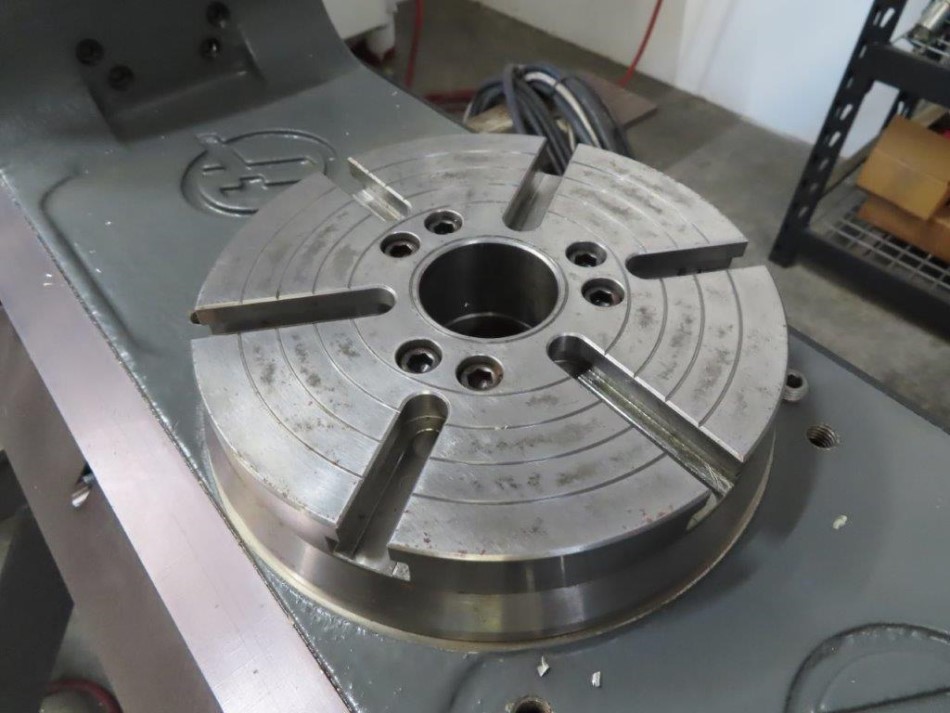

- ** 210MM (8.3”) Platter Size, 1 Spindle, 210 ft lb torque. 810 lbs.

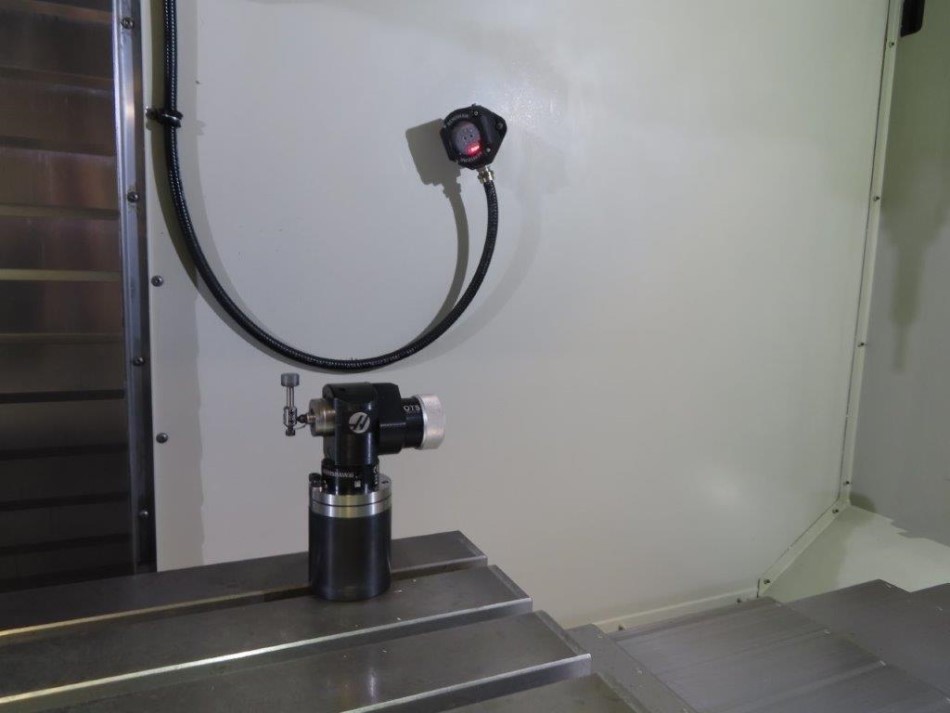

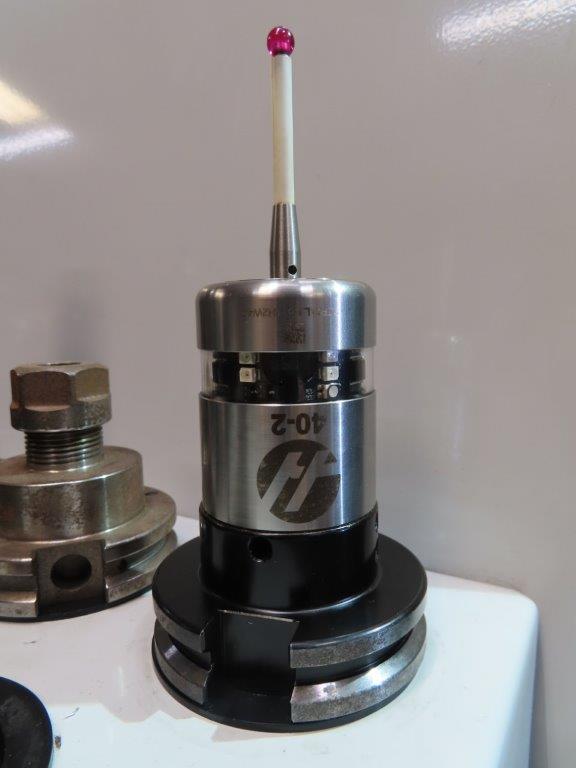

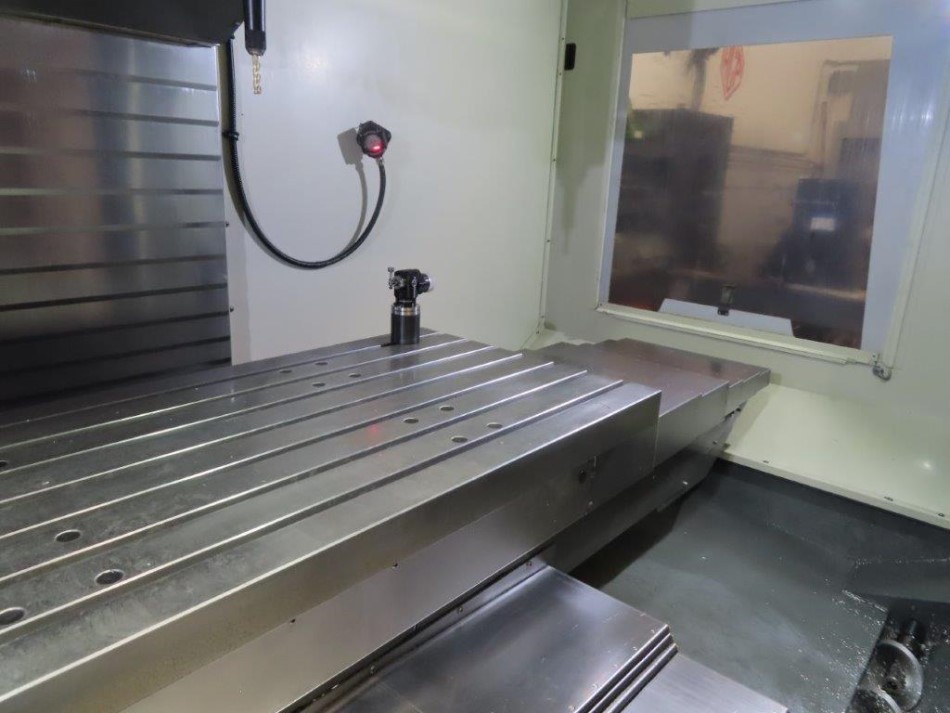

- WIPS ~ WIRELESS INTUITIVE PROBING SYSTEM: Spindle Probe and Tool Setting probe, optical machine interface
- RIGID TAPPING

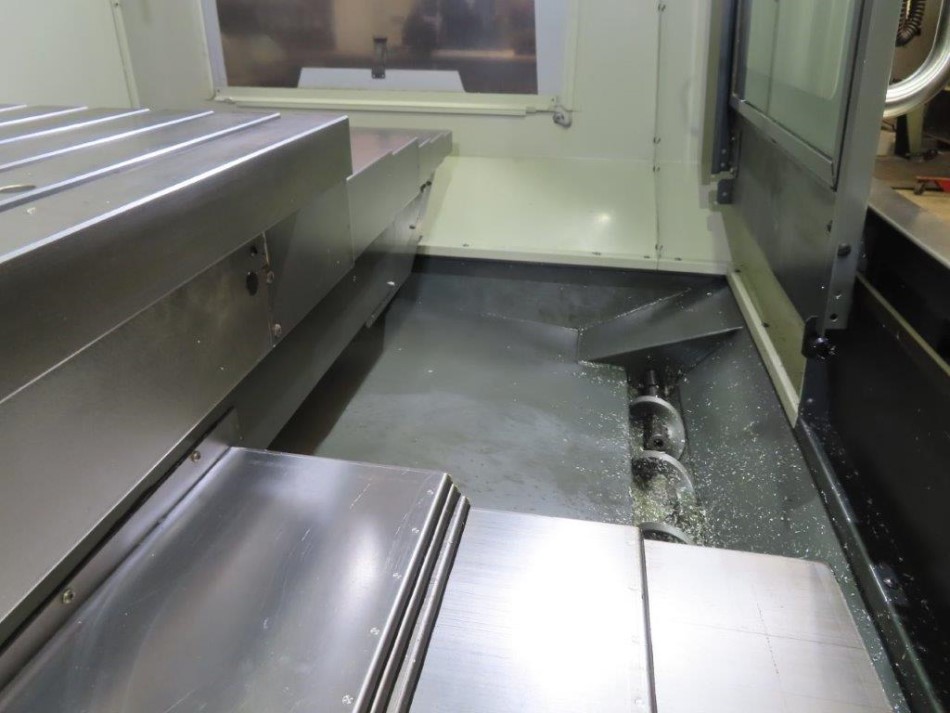

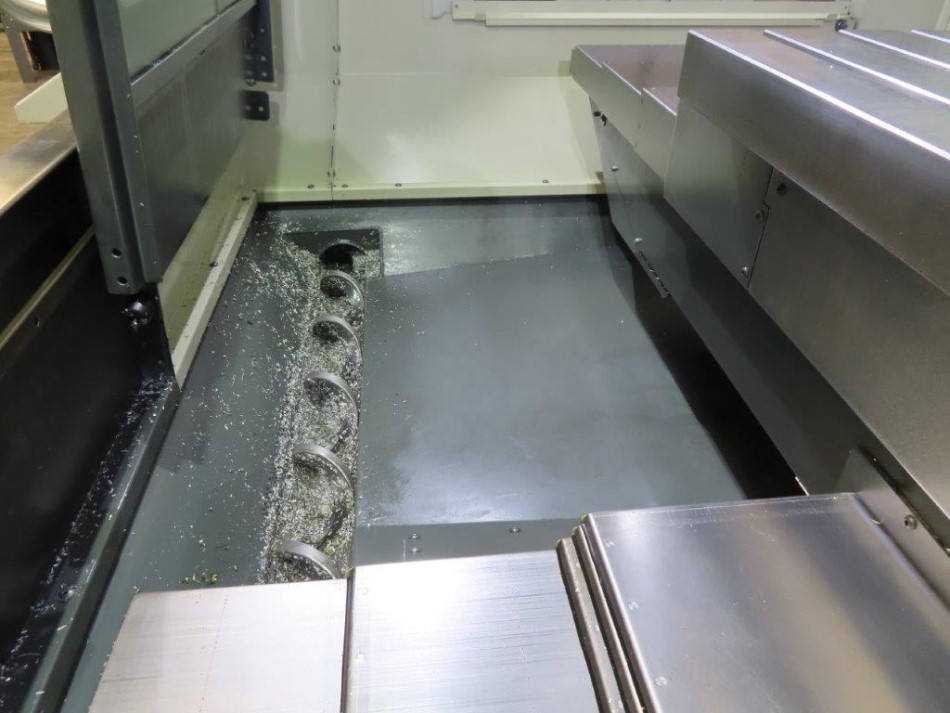

- CHIP AUGER

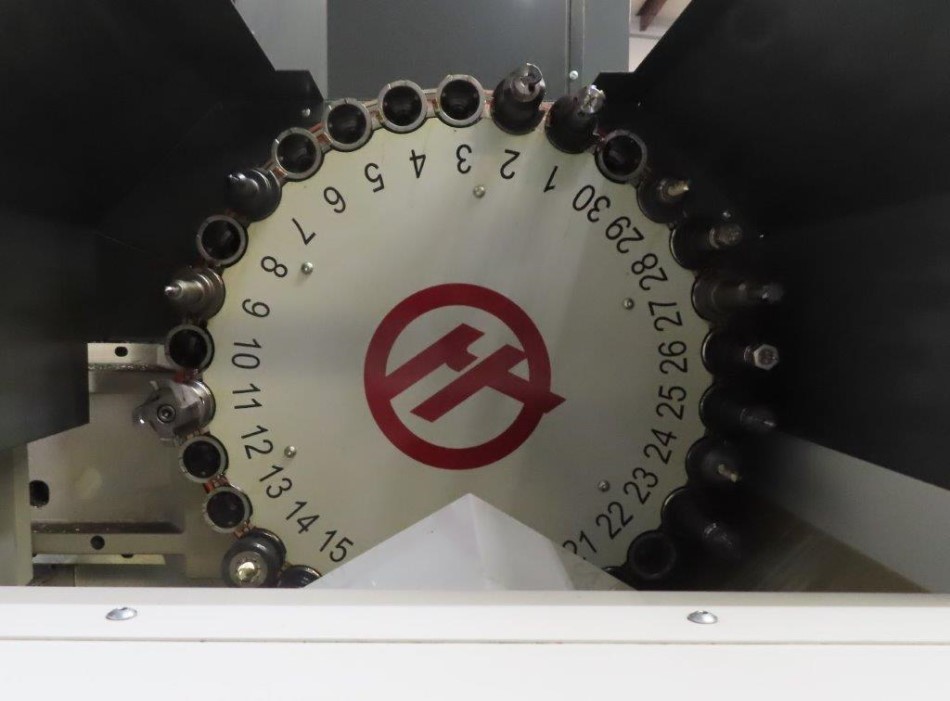

- 30 STATION TOOL CHANGER

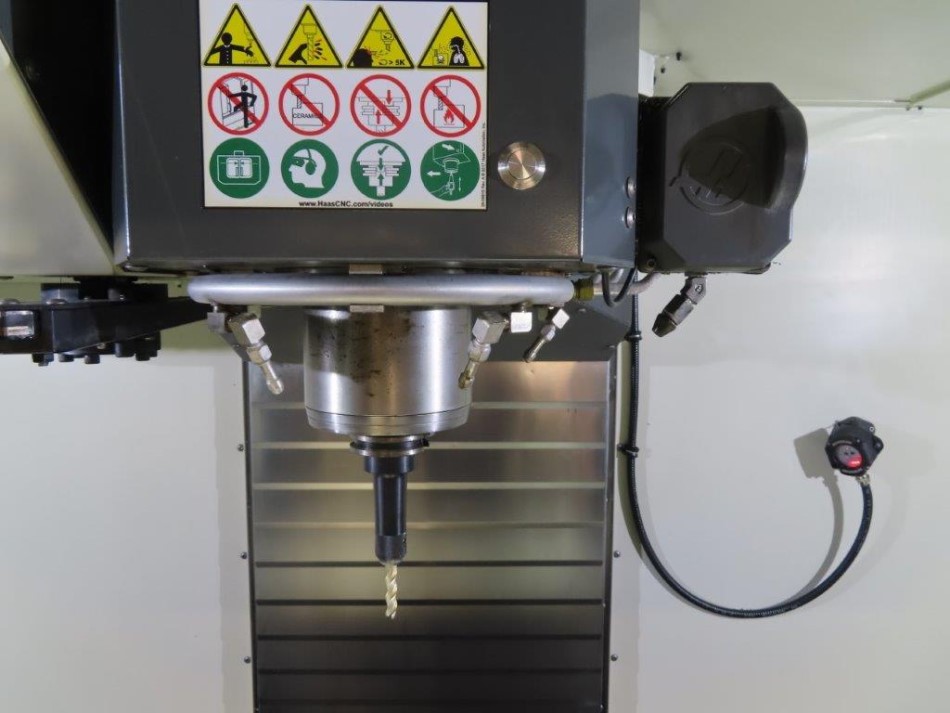

- 12,000 RPM DIRECT DRIVE SPINDLE
- PROGRAMMABLE COOLANT NOZZLE
- 4th and 5th AXIS DRIVES

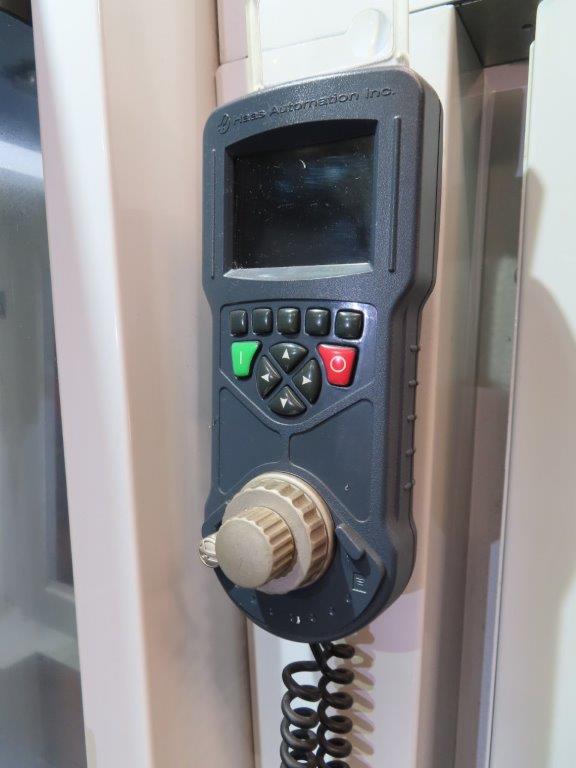

- REMOTE JOG HANDLE WITH TOUCHSCREEN DISPLAY
- Coordinate Rotation and scaling, Spindle Orientation, User definable macros
- USB / VISUAL PART PROGRAMMING SYSTEM
- HIGH INTENSITY LIGHTING
- HIGH SPEED MACHINING

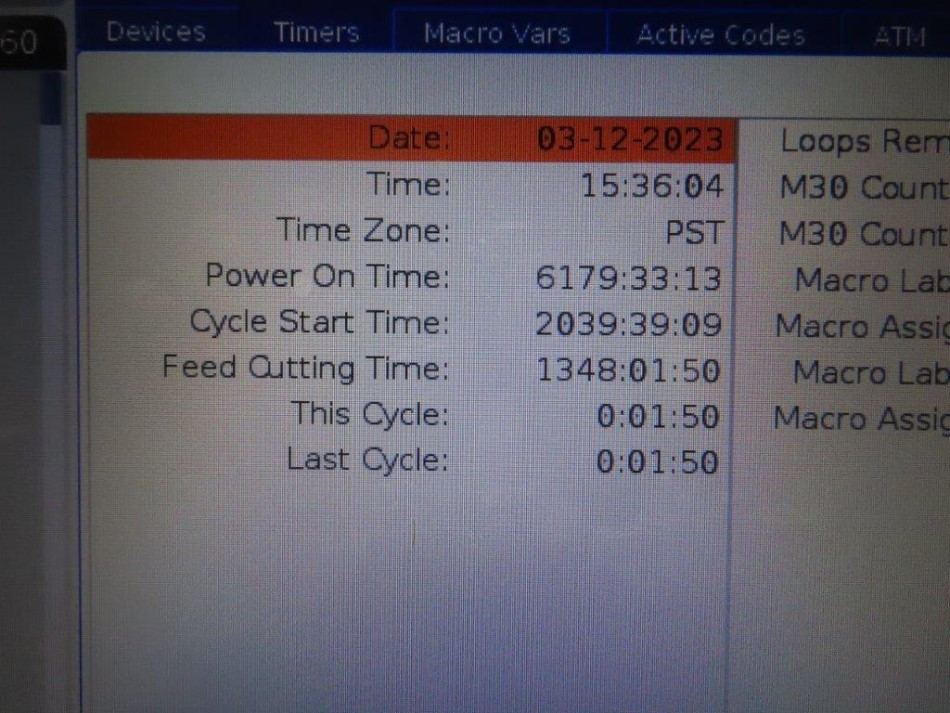

- HOURS. Power On: 6179. Cycle Start: 2039. Feed Cutting: 1348.
NOTE: New machine today equipped with these options at 180K.
