AKIRA SEIKI SV-1050 VERTICAL MACHINING CENTER

AKIRA SEIKI SV-1050 VERTICAL MACHINING CENTER

Stock Number: 1202

AKIRA-SEIKI SV-1050

Age: 2009




Click to view larger photo

SpecificationDescription
TABLE47" x 18.8"
TRAVELS41" x 21" x 22"
RAPID TRAVERSE1890 IPM
MAXIMUM WEIGHT ON TABLE2867 LBS.
SPINDLE NOSE TO TABLE3" - 25"
SPINDLE MOTOR42 HP
SPINDLE SPEEDS14,000 RPM
SIDE MOUNT ATC36
MAXIMUM TOOL DIAMETER2.6"
WEIGHT15,796 LBS.
FLOOR SPACE165" x 90" x 123" MAX HEIGHT
SPINDLE TAPERBT-40
CONTROLMITSUBISHI 645 (64 BIT CPU)

Equipped With:
OIL CHILLER FOR SPINDLE

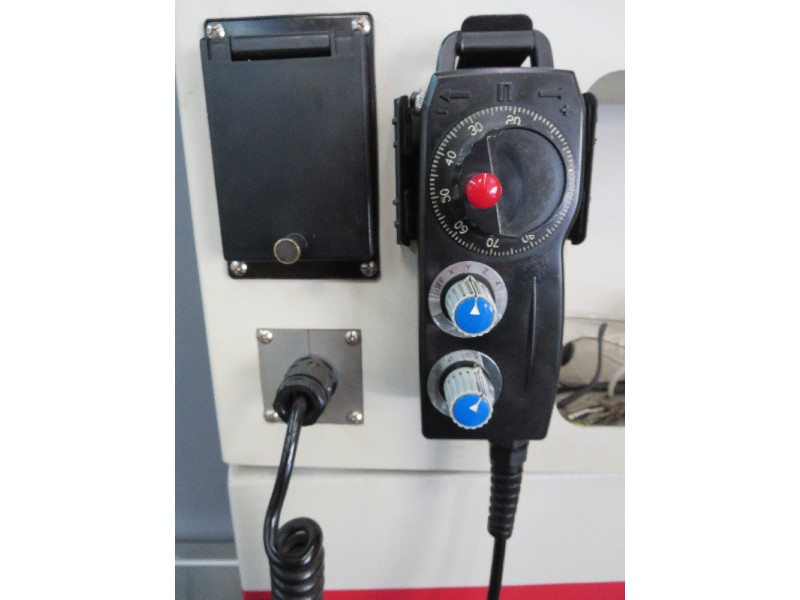

PORTABLE MPG PENDANT
LINEAR GUIDEWAYS ON X & Y AXIS. BOX WAYS ON Z AXIS
RIGID TAPPING
CHIP CONVEYOR
AIR BLOW FOR WORKPIECE
TOOL LIFE MANAGEMENT
DUALWORKLIGHTS INSIDE WORK AREA
HEAT EXCHANGER FOR ELECTRICAL CABINET
HIGH PRESSURE COOLANT FLUSH
WATER OIL SEPARATION
2MB MEMORY IN CONTROL
FULL GRAPHICS FUNCTION: SIMULATE RUN, TOOL PATH CHECK, GRAPHIC SCALING
