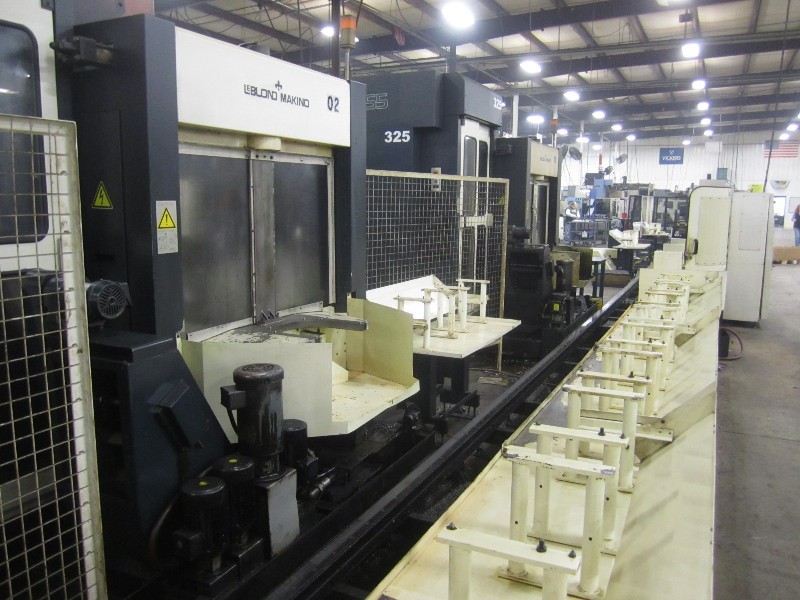

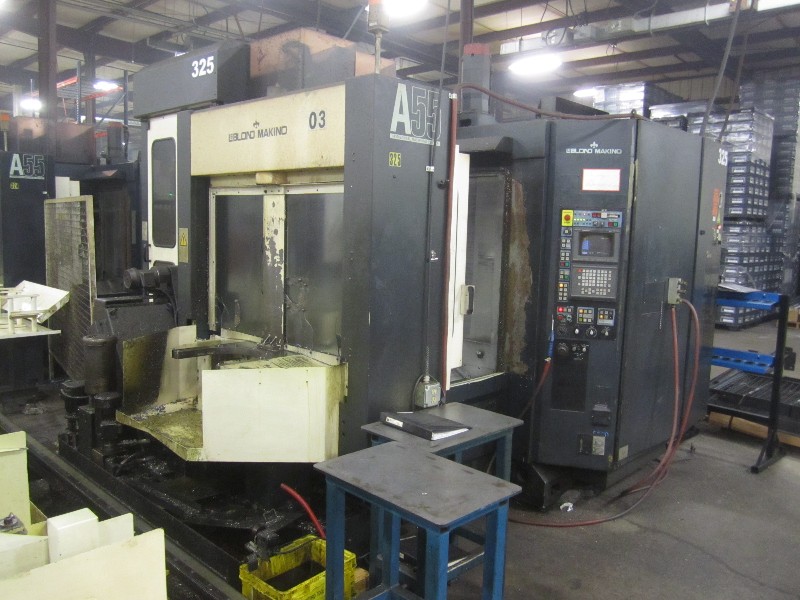

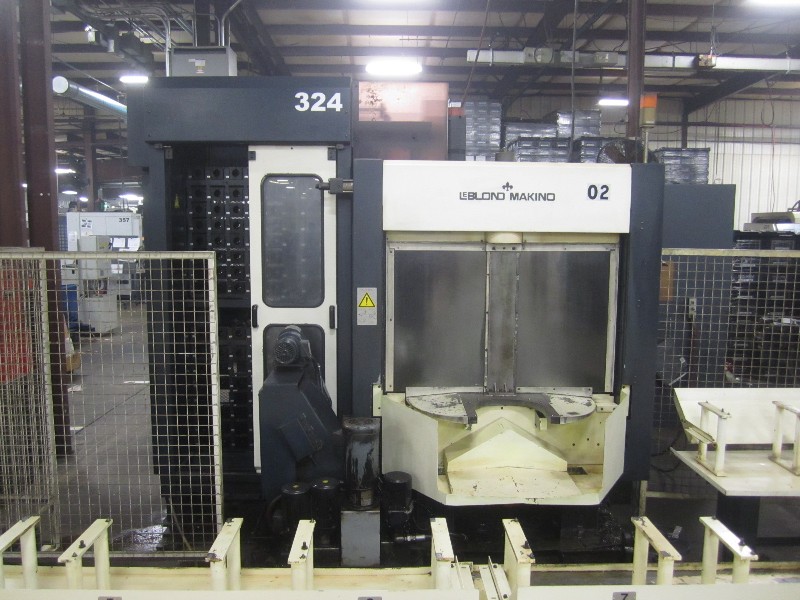

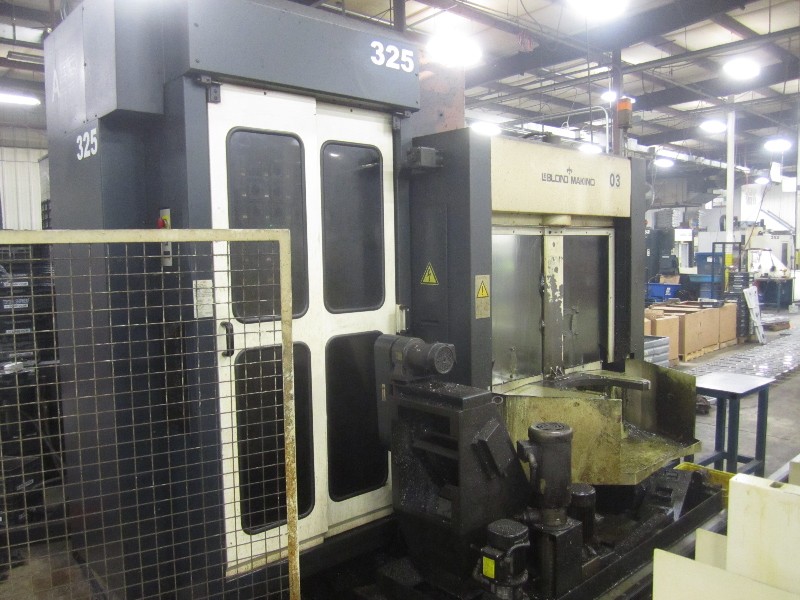

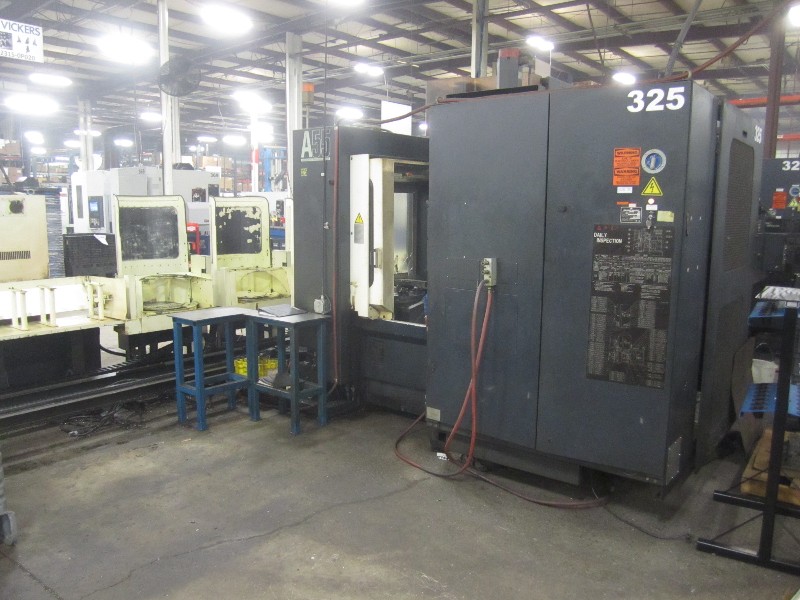

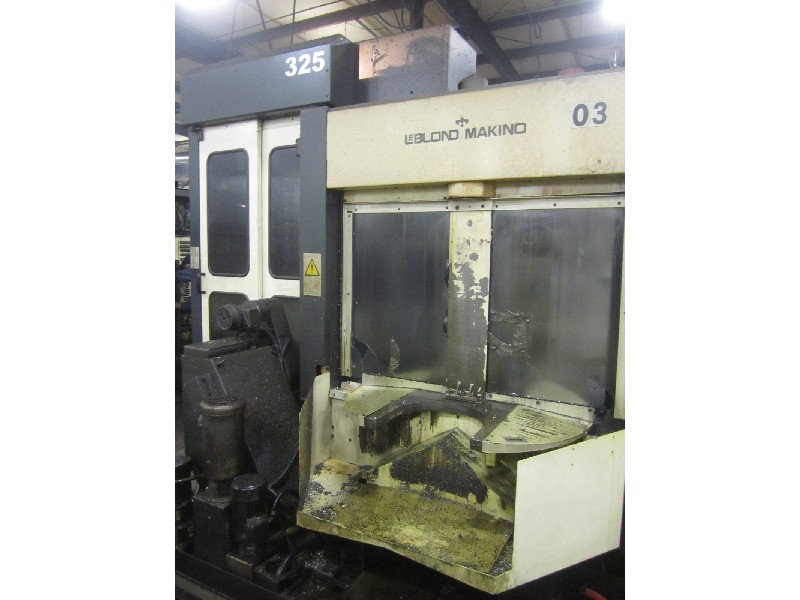

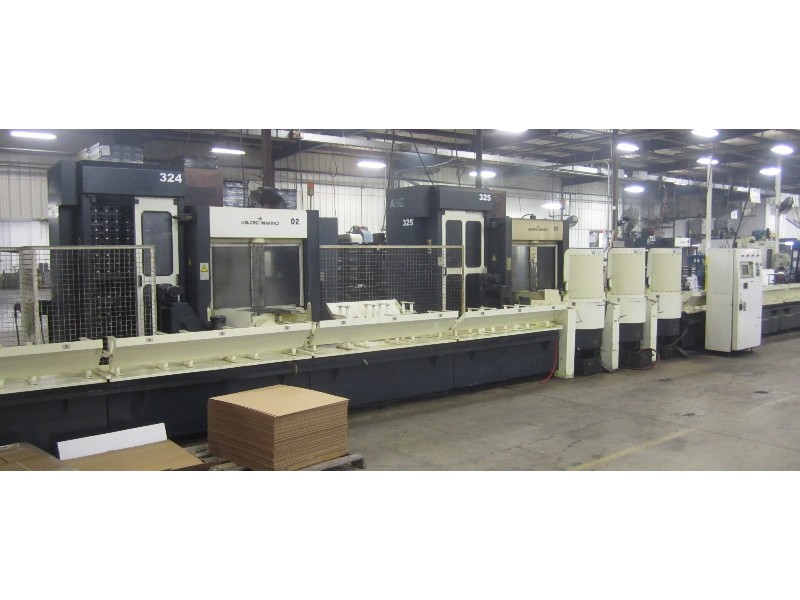

(2) MAKINO A55 HORIZONTAL MACHINING CENTER WITH 18 PALLET FMS SYSTEM

(2) MAKINO A55 HORIZONTAL MACHINING CENTER WITH 18 PALLET FMS SYSTEM

Stock Number: 1196

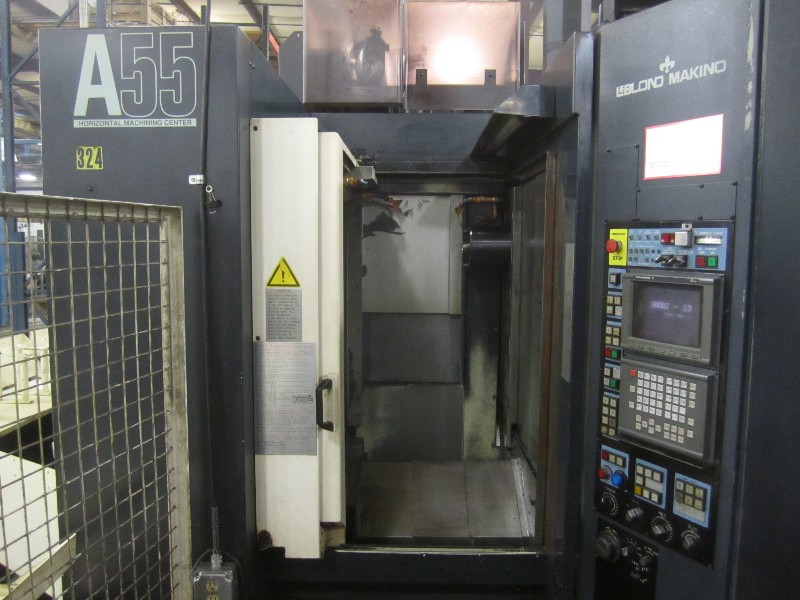

MAKINO A55

Age: 1994



                                                                                                                                                                               View a video of (2) MAKINO A55 HORIZONTAL MACHINING CENTER WITH 18 PALLET FMS SYSTEM
Click to view larger photo

SpecificationDescription
PALLET SIZE15.7" X 15.7"
PALLET INDEX1 Degree & Full 4th
PALLET CAPACITY18
NUMBER OF PALLETS12
X, Y, Z AXIS TRAVELS22" x 22" x 22"
SPINDLE SPEED10,000 RPM
SPINDLE TAPERCAT-40
MAIN MOTOR25 HP
RAPID TRAVERSE RATE945 IPM
TABLE SURFACE TO SPINDLE CENTER3.15" - 25.2"
TABLE CENTER TO SPINDLE NOSE5.9" - 27.95"
MAXIMUM TABLE LOAD880 LBS
TOOLS128 ON EACH MACHINE
TOOL CHANGE TIME2 SEC. TOOL/TOOL - 4 CHIP/CHIP
MAXIMUM TOOL DIAMETER2.76" STD. / 5.5" MAX
MAXIMUM TOOL WEIGHT17.6 LBS.
FLOOR SPACE ON EACH MACHINE96" x 138" x 111" HIGH
MACHINE WEIGHT18,480 LBS. EACH

Equipped With:

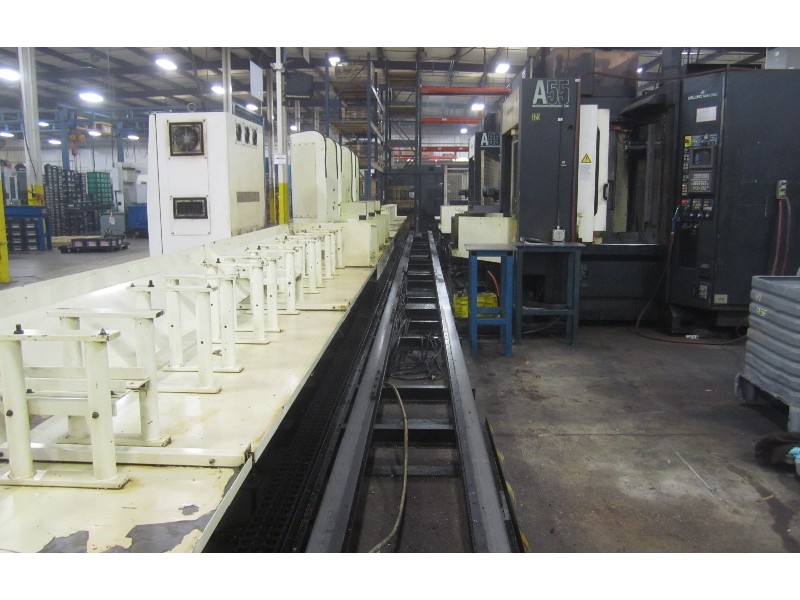

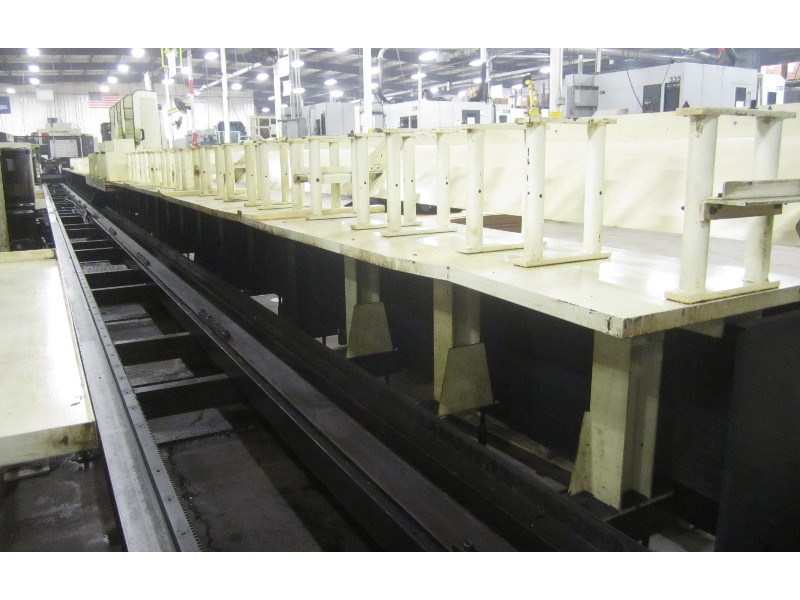

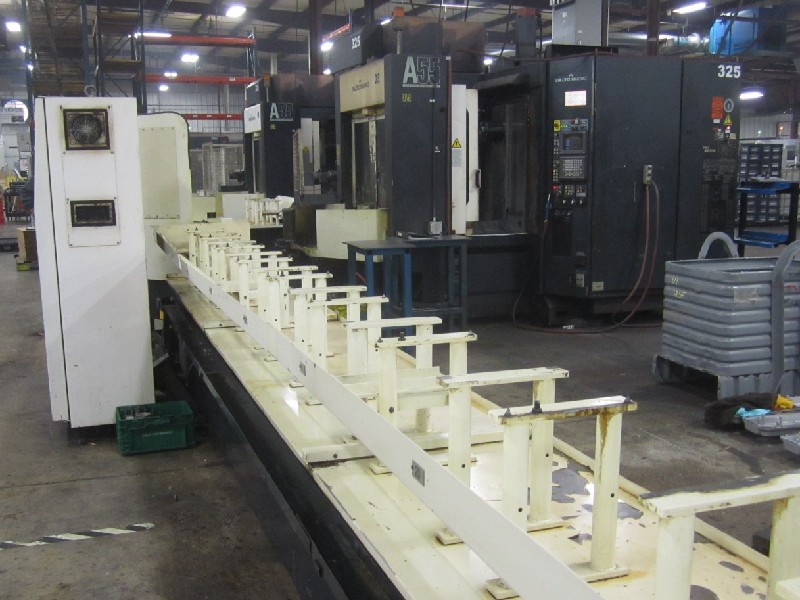

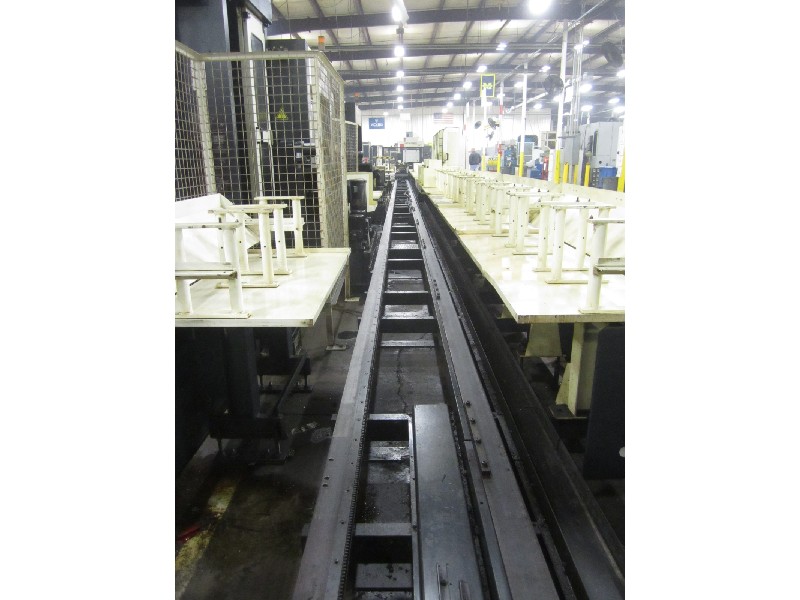

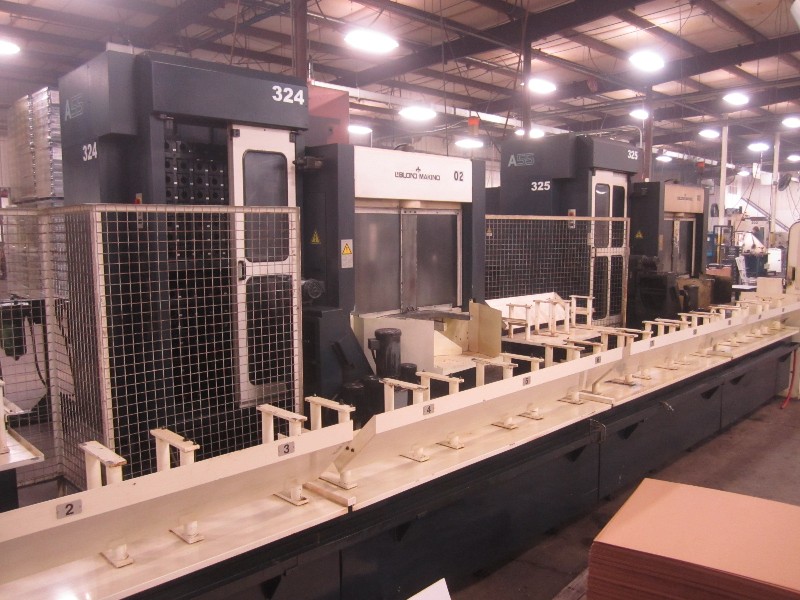

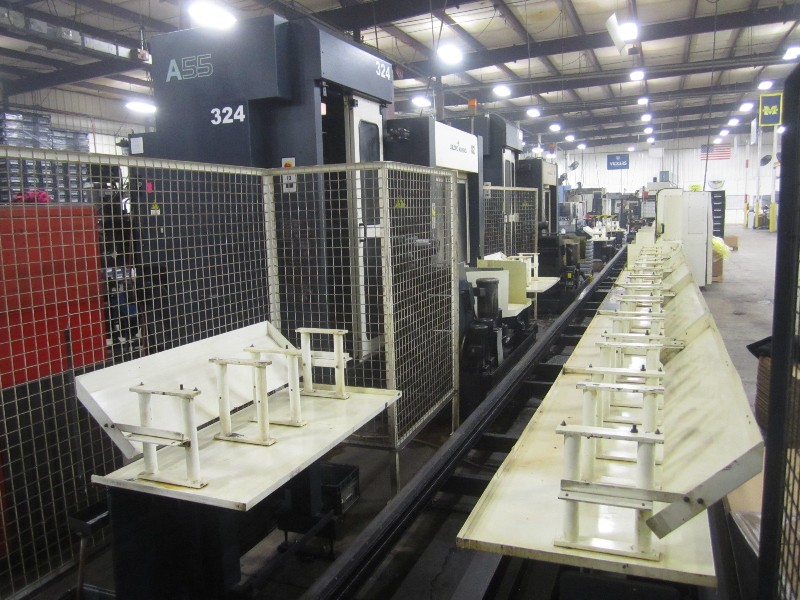

18 PALLET STOCKERS SYSTEM

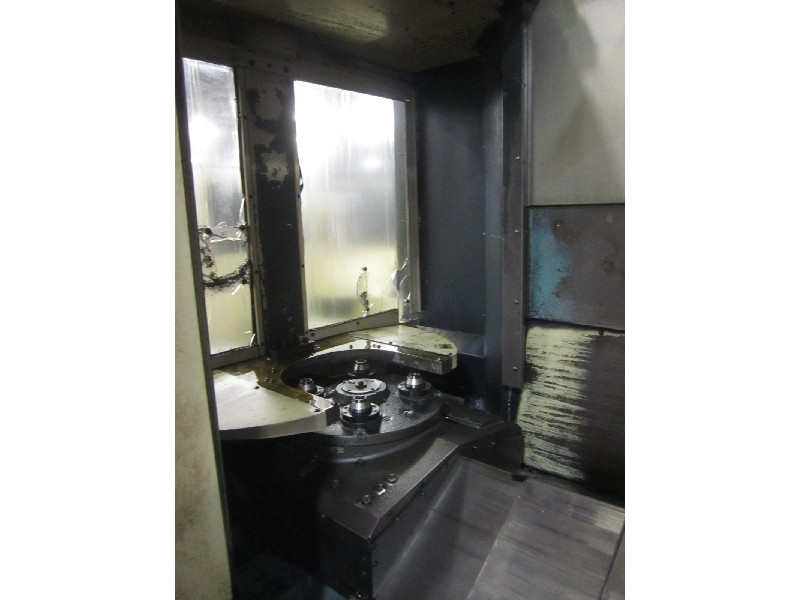

1 is Full 4th Rotary / Other is 1 Degree indexing

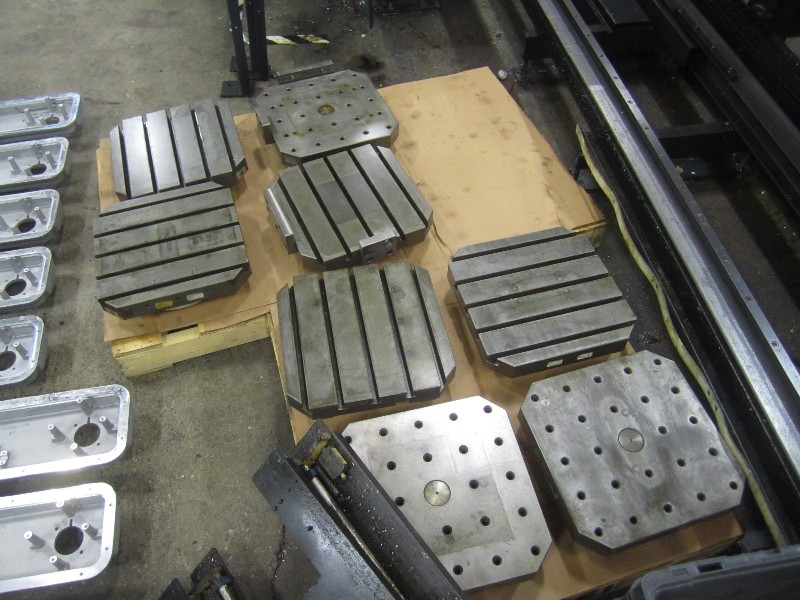

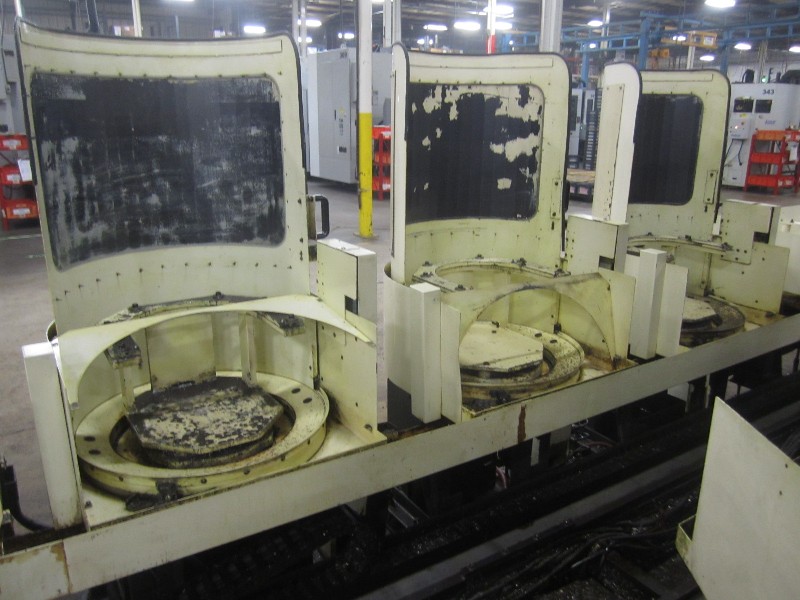

12 (400mm) PALLETS INCLUDED

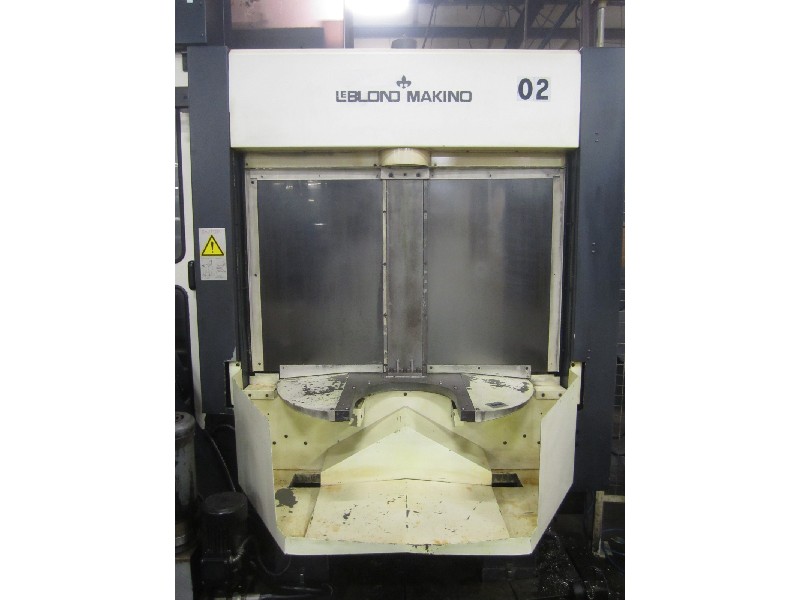

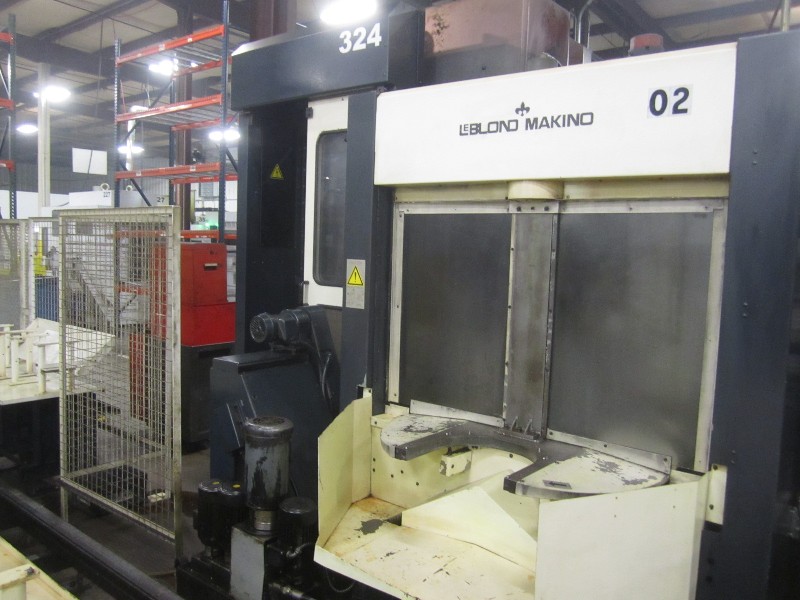

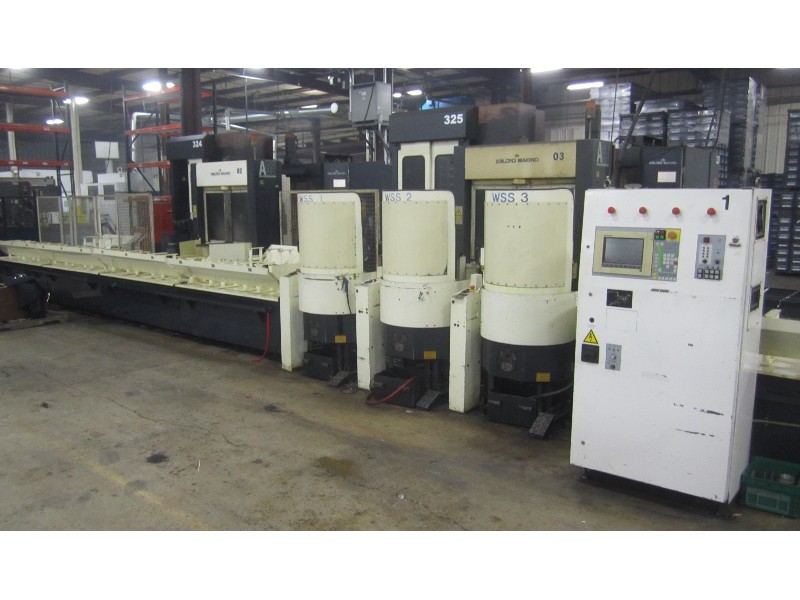

TWO LOAD / UNLOAD STATIONS

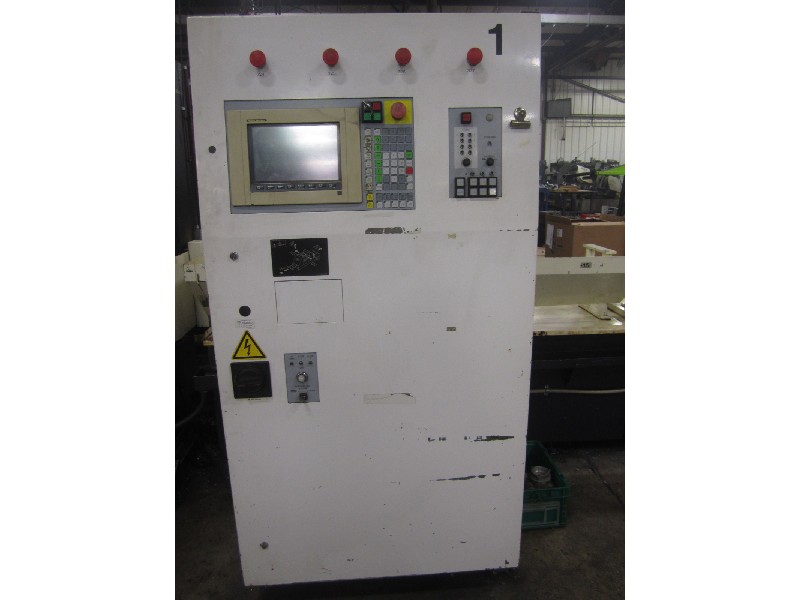

A2 CELL CONTROLLER FOR UNATTENDED MACHINING
COOLANT THRU SPINDLE 300 PSI

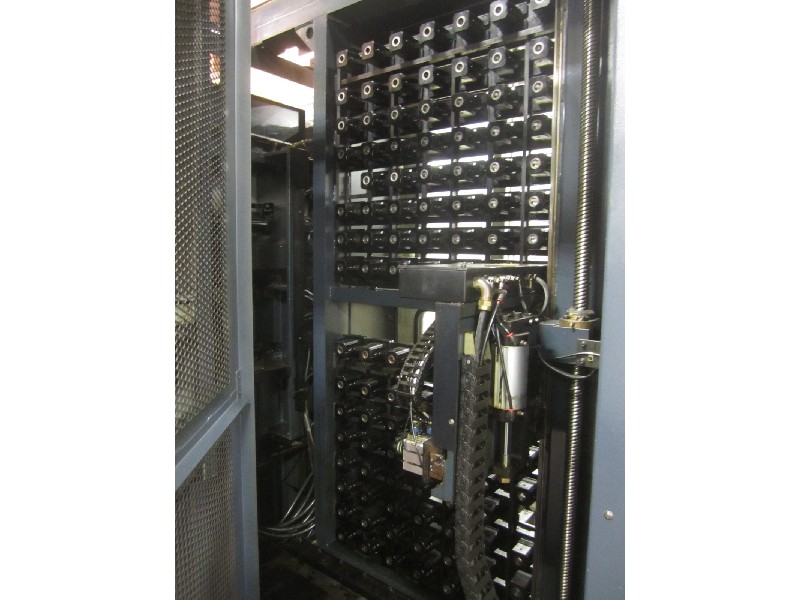

128 STATION TOOL MAGAZINE ON EACH MACHINE
RIGID TAPPING
CHIP CONVEYORS
RIGID BED WITH 3 POINT SUPPORT SYSTEM
