| Specification | Description |
|---|---|

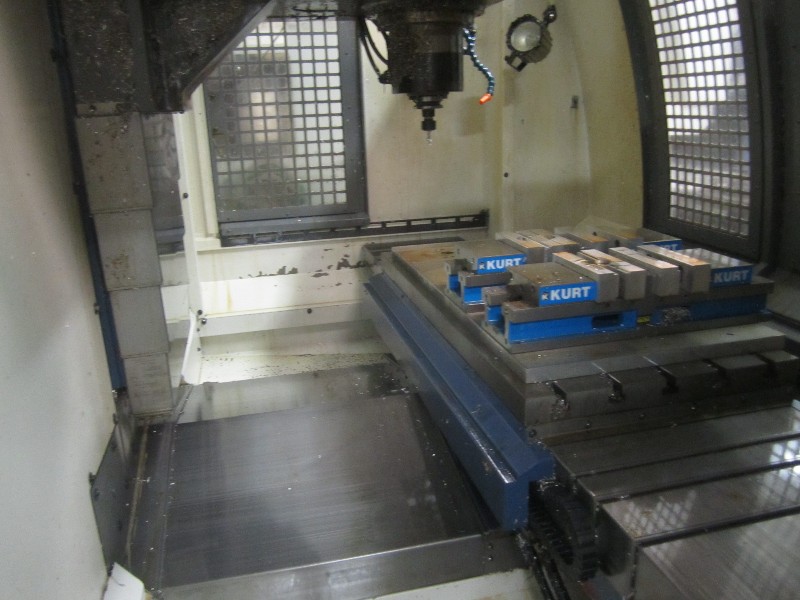

| TABLE WORKING SURFACE | 44" x 20" |
| TABLE LOAD CAPACITY | 1,100 LBS. |
| LONGITUDINAL TRAVEL (X-AXIS) | 40" |
| CROSS TRAVEL (Y-AXIS) | 20.4" |
| VERTICAL TRAVEL (Z-AXIS) | 21.2" |
| FEED RATES, ALL AXES | 590 IPM |
| RAPID TRAVERS RATE, ALL AXES | 1417 IPM |
| SPINDLE NOSE TO TABLE TOP | 5.9" - 27.2" |

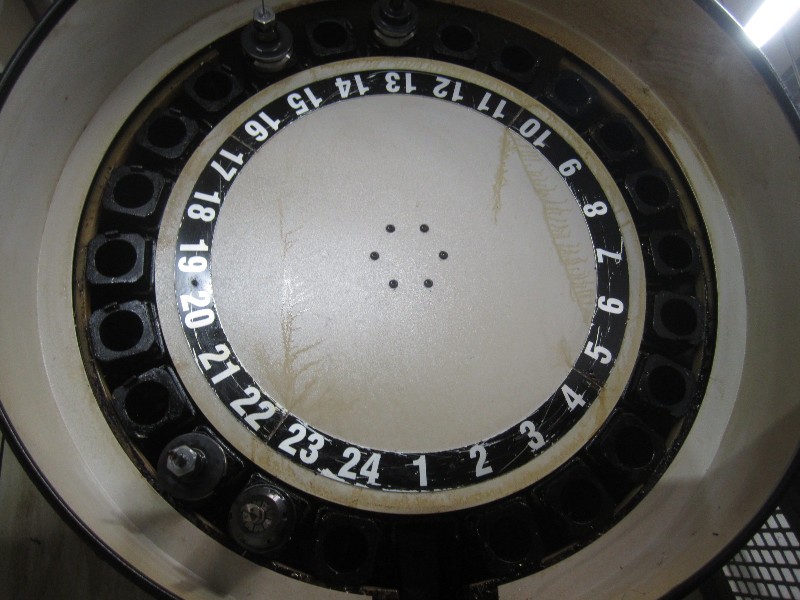

| TOOL CHANGER ARM STYLE | 24 |
| SPINDLE HORSEPOWER | 20 HP |
| SPINDLE SPEEDS RANGE | 10,000 RPM |
| SPINDLE TAPER | #40 BT |
| WAY SYSTEM | LINEAR GUIDEWAY |
| OVERALL DIMENSIONS | 119" x 116" |
| APPROXIMATE WEIGHT | 11,795 LBS. |
