MAZAK HTC-400 HIGH SPEED HORIZONTAL MACHINING CENTER

MAZAK HTC-400 HIGH SPEED HORIZONTAL MACHINING CENTER

Stock Number: 1184

MAZAK HTC-400

Age: 1996

Condition: EXCELLENT

TOMBSTONES WITH (4) CHICK 6" DOUBLE VISES AVAILABLE AT EXTRA COST.


Click to view larger photo

SpecificationDescription
PALLET SIZE15.7" x 15.7"
ROTARY TABLE360 POSITION
# OF PALLETS2
X-AXIS TRAVEL22"
Y AXIS TRAVEL20"
Z-AXIS TRAVEL20"
SPINDLE SPEED10,000 RPM
SPINDLE TAPER40 CT
MAIN MOTOR15 HP
RAPID TRAVERSE RATE1,180 IPM
TABLE LOAD CAPACITY660 LBS.
TOOLS30
TOOL CHANGE TIME2.5 TOOL-TOOL & 6 CHIP-CHIP
MAX TOOL DIAMETER3.5" / 5.9"
MAX TOOL LENGTH11.8"
MAX TOOL WEIGHT17.6 LBS.
MACHINE WEIGHT14,700 LBS APPROX.

Equipped With:

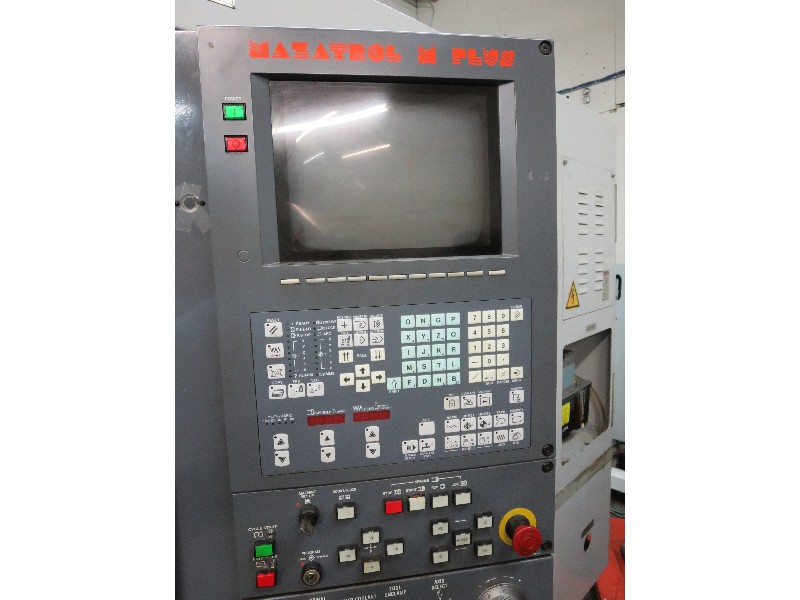

MAZATROL M PLUS CNC CONTROL
EIA INPUT FUNCTION
ROTARY TABLE - 360 POSITION
ADDITIONAL WORK COORDINATES
MULTI TAP EXTERNAL POWER TRANSFORMER
TOOL BREAKAGE PROBE
