| Specification | Description |
|---|---|

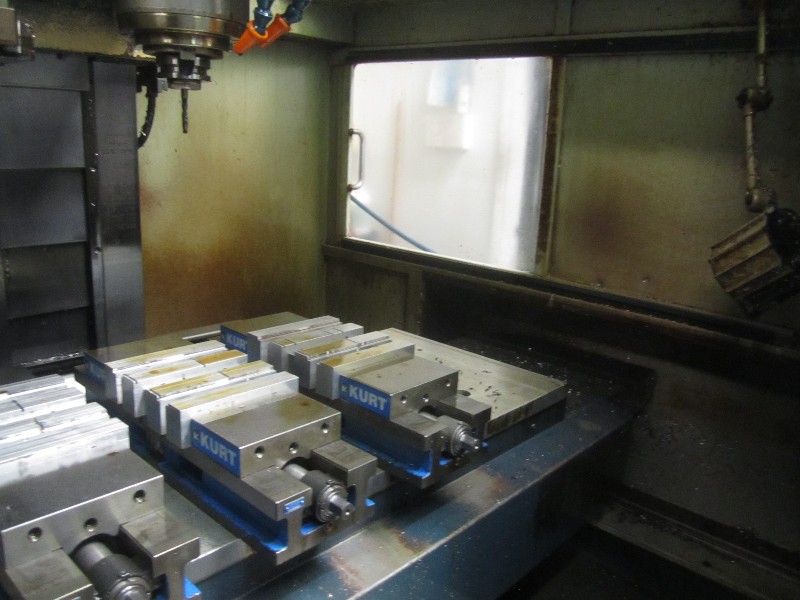

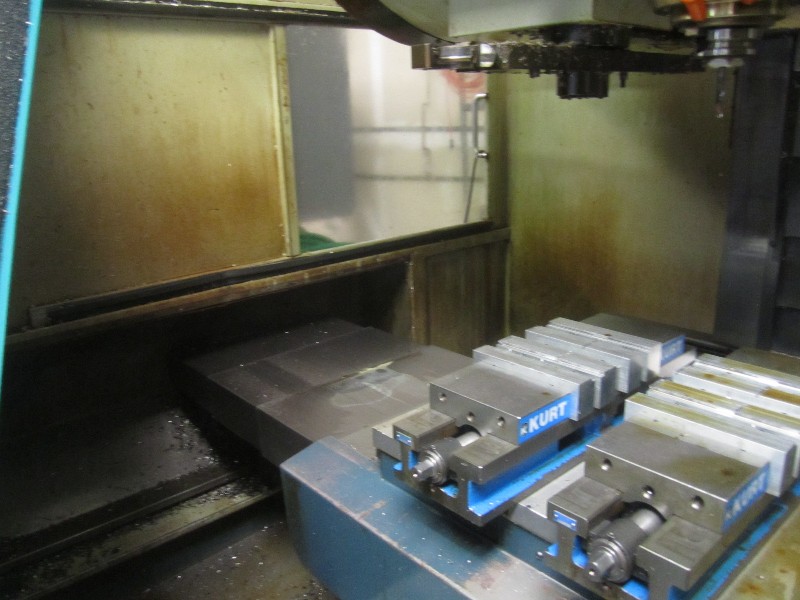

| TABLE | 45" x 18" |
| TRAVELS | 41" x 20" x 20" |
| RAPID TRAVERSE RATE | 1,000 IPM X & Y, 700 IPM Z |
| MAXIMUM WEIGHT ON TABLE | 2,500 LBS. |
| BALL SCREWS | 1.575" |
| SPINDLE NOSE TO TABLE | 4-24 |
| SPINDLE MOTOR | 18 HP PEAK |
| SPINDLE SPEEDS RANGE | 40 - 8,000 RPM |

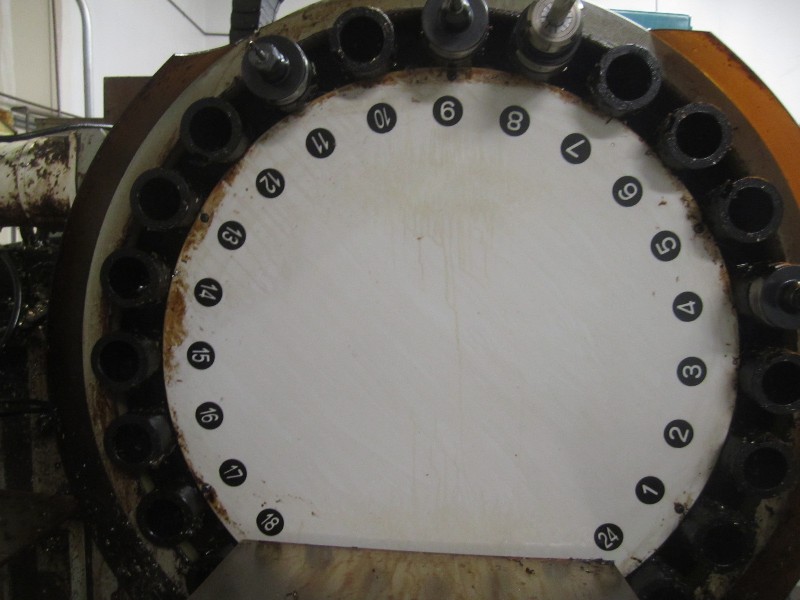

| ARM STYLE ATC | 24 TOOLS |
| MAX TOOL DIAMETER | 6" |
| MAX TOOL WEIGHT | 14 LBS. |
| WEIGHT | 12,000 LBS. |
| DIMENSIONS | 112" x 90" x 108" |
| SPINDLE TAPER | BT-40 |
| CONTROL | MITSUBISHI M64 |
