| Specification | Description |
|---|---|
| TABLE WORKING SURFACE | 53.5 x 23" |
| TRAVELS | 52" x 22" x 24" |
| RAPID TRAVERSE | 1,000 IPM X & Y / 700 IPM Z |
| MAXIMUM WEIGHT ON TABLE | 3,000 LBS. |
| BALL SCREWS | 1.575" |
| SPINDLE NOSE TO TABLE | 4.5" - 28.5" |
| SPINDLE MOTOR | 20 HP PEAK |
| SPINDLE SPEEDS | 40 - 8,000 RPM |

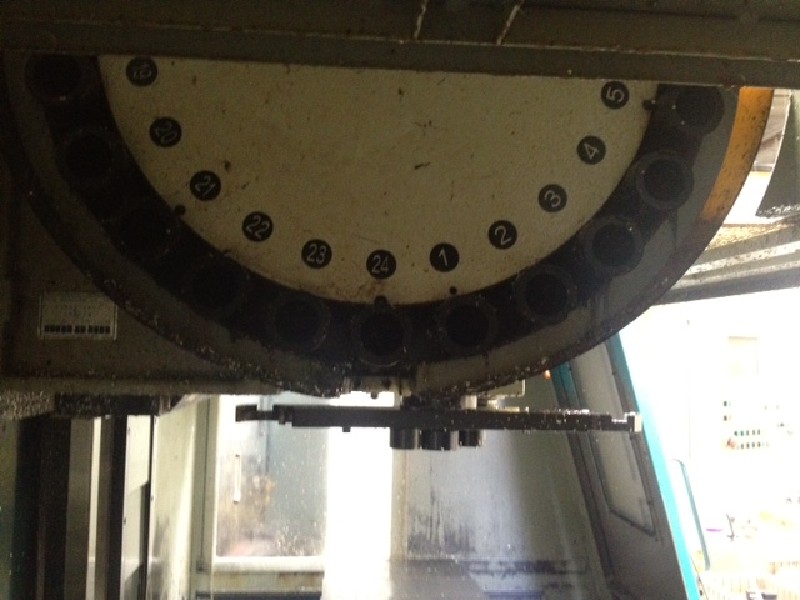

| ATC - SIDE MOUNT ARM TYPE | 24 TOOLS |
| MAXIMUM TOOL DIAMETER | 6 IN. |
| MAXIMUM TOOL WEIGHT | 14 LBS. |
| SPINDLE TAPER | CAT-40 |
| CONTROL | MITSUBISHI M64 |
| FLOOR SPACE | 138" x 108" x 118" |
| WEIGHT | 17,000 LBS. |
| POWER | 205-235V, 3 PH, 17 KVA, 50 AMP |
