MATSUURA ES-550V VERTICAL MACHINING CENTER WITH 15,000 RPM SPINDLE

MATSUURA ES-550V VERTICAL MACHINING CENTER WITH 15,000 RPM SPINDLE

Stock Number: 1170

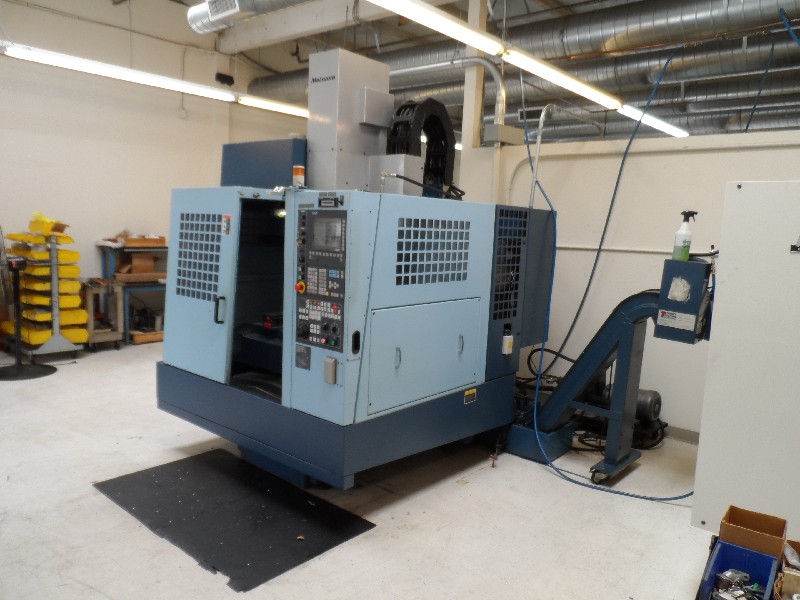

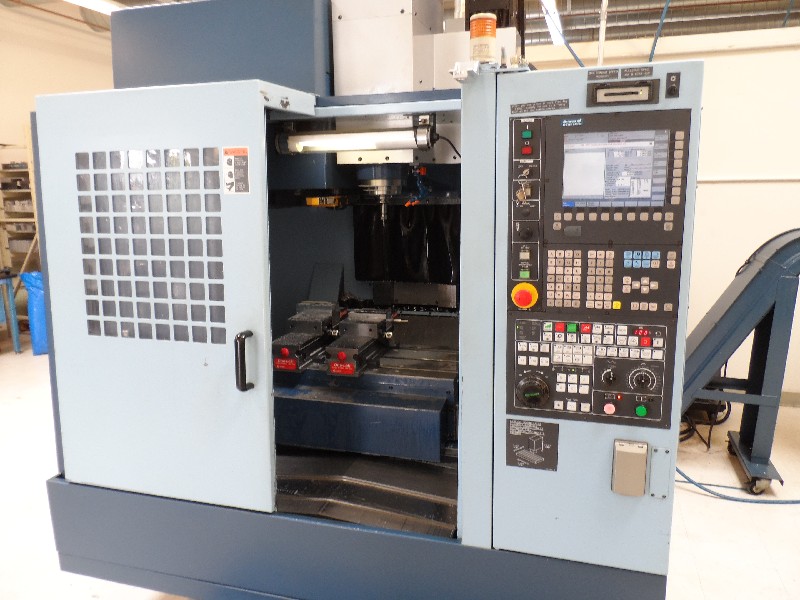

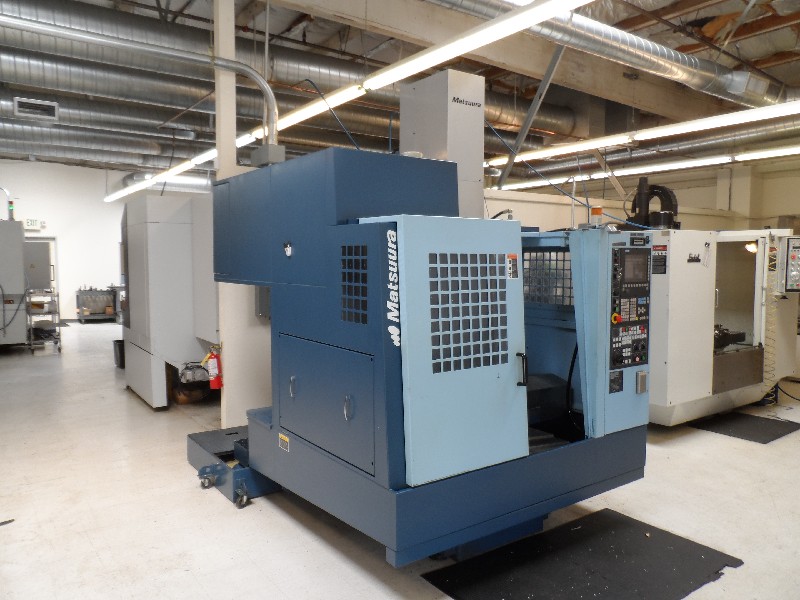

MATSUURA ES-550V

Age: 2005

NOTE: BRAND NEW SPINDLE INSTALLED


Click to view larger photo

SpecificationDescription
X-AXIS TRAVEL21.65"
Y-AXIS TRAVEL16.14"
Z-AXIS TRAVEL18.11"

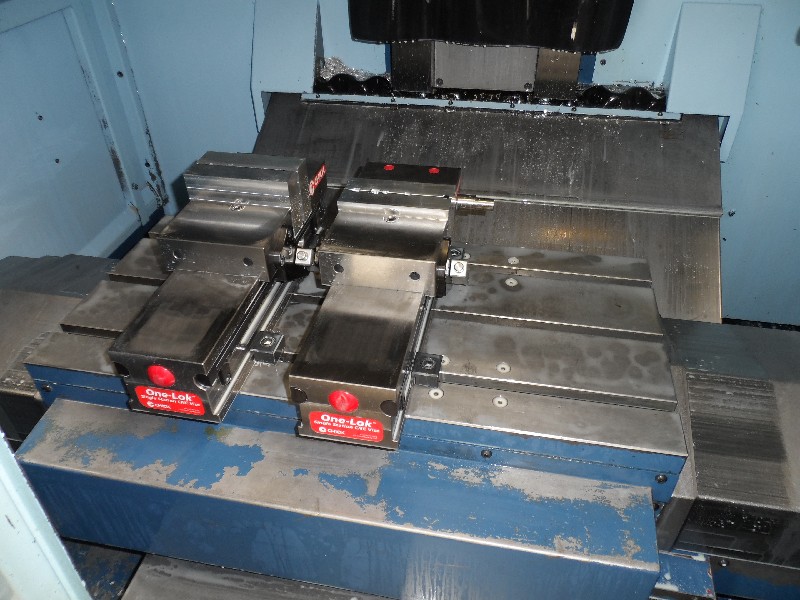

WORKING SURFACE33.85" x 15.74"
LOAD CAPACITY880 LBS.

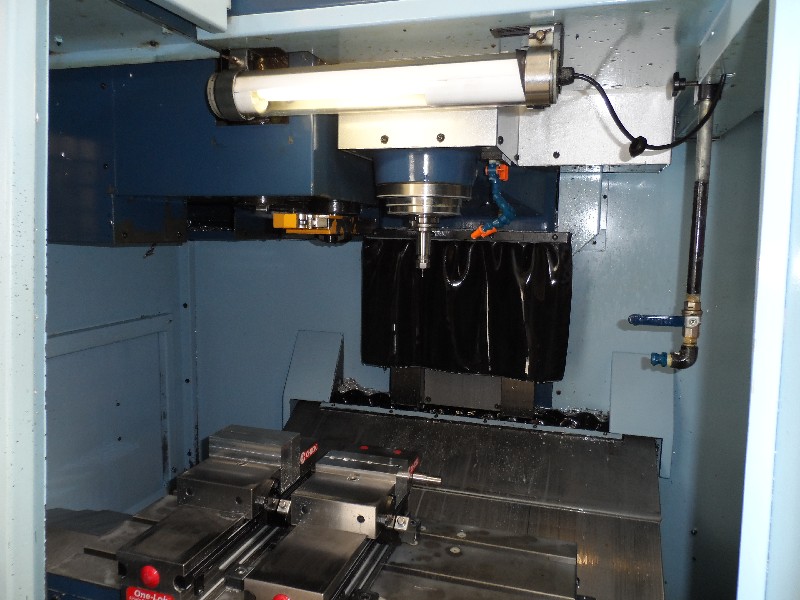

SPINDLE SPEEDS50-15,000 RPM
SPINDLE TAPERBT-40
BEARING INNER DIAMETER2.75"
BEARING LUBRICATIONAUTO GREASE SUPPLY
MOTOR POWER10 HP
MAX SPINDLE TORQUE65.1 Nm
RAPID TRAVERSE1,181 IPM
TOOL STORAGE CAPACITY - ARM TYPE30 ATC (SIDE MOUNT ARM STYLE)
MAX TOOL DIAMETER3.77"
MAX TOOL LENGTH11.81"
MAX TOOL WEIGHT13.2 LBS.
TOOL CHANGE TIME1.2 SEC
ELECTRICAL26 KVA
MACHINE WEIGHT8,500 LBS.

Equipped With:

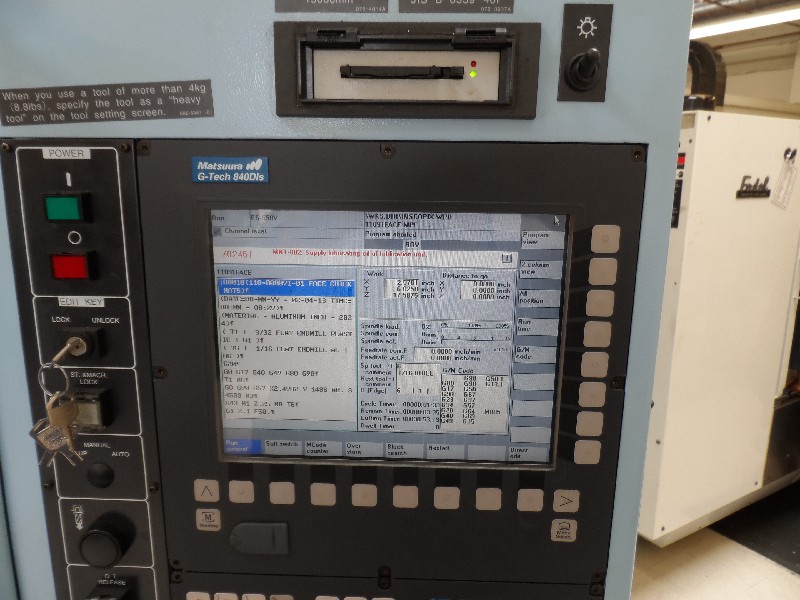

MATSUURA G-TECH 840 DIs CONTROL / HIGH SPEED BASED ON YASKAWA SIEMENS

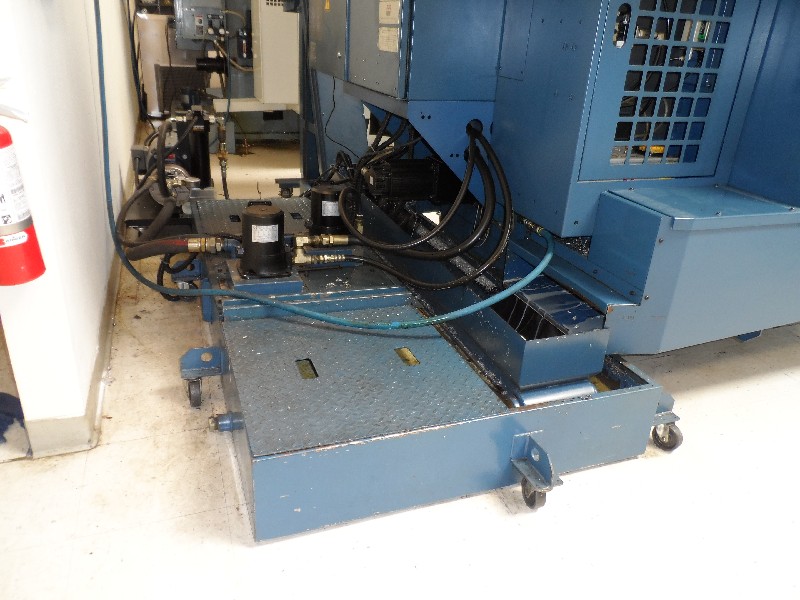

CHIP CONVEYOR - LIFT UP BELT TYPE
TOTAL ENCLOSURE GUARD & TOP SIDE COVER
SYNCHRONIZED TAPPING FUNCTION
IPC FUNCTION / SPINDLE OIL COOLER
COOLANT UNIT (CHIP REAR DISPOSAL) / AUTO LUBRICATION UNIT
SPINDLE OVERLOAD PROTECTION
WORK LIGHT / LEVELING PADS / COOLANT NOZZLE UNIT
HIGH PRESSURE COOLANT
