| Specification | Description |
|---|---|

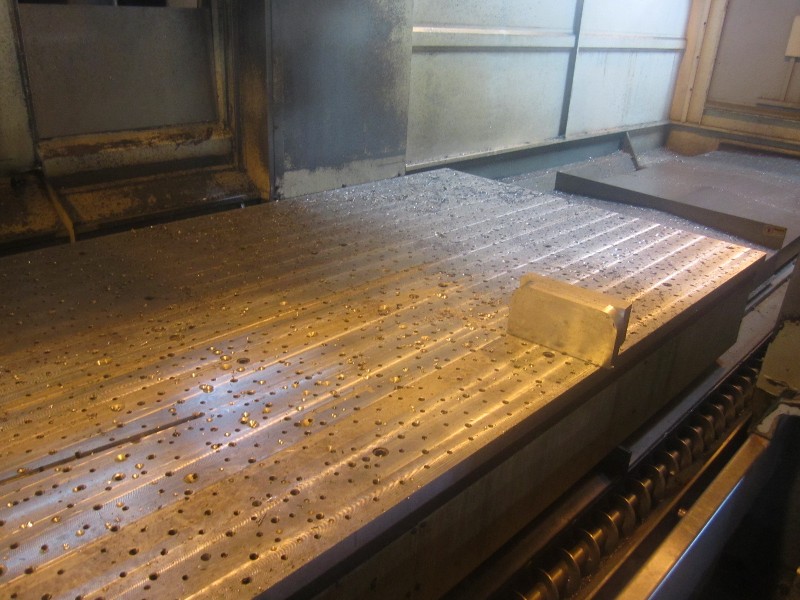

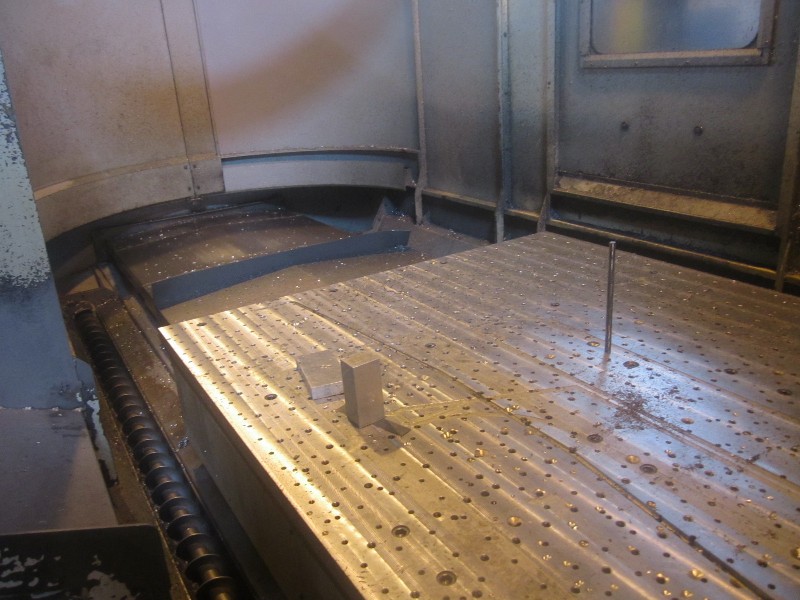

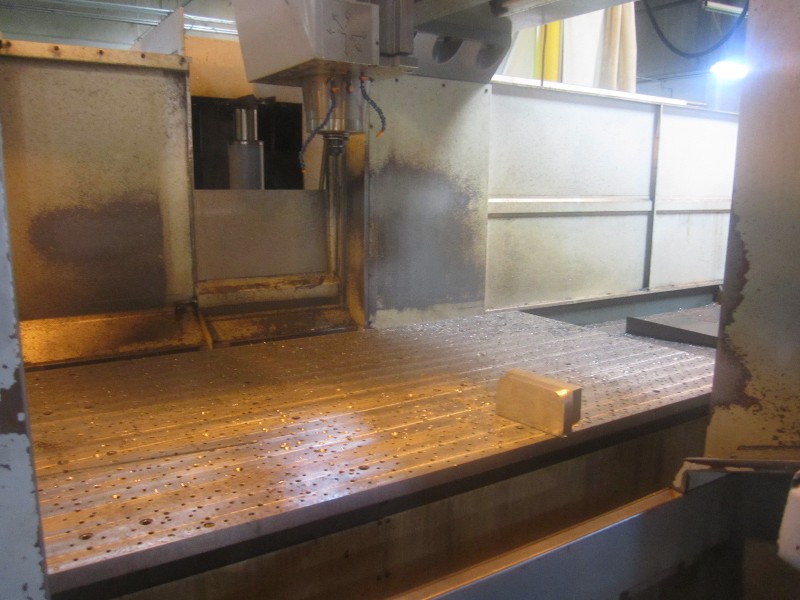

| TABLE WORKING SURFACE | 49.21" x 118" |
| TABLE LOAD CAPACITY | 15,400 LBS. |
| LONGITUDINAL TRAVEL (X-AXIS) | 127.16" |
| CROSS TRAVEL (Y-AXIS) | 63.11" |
| VERTICAL TRAVEL (Z-AXIS) | 33.46" |
| DISTANCE BETWEEN COLUMNS | 66.60" |
| DISTANCE SPINDLE NOSE TO TABLE TOP | 7.87" - 41.34" |
| CUTTING FEED RATES, ALL AXES | 196 IPM |
| RAPID TRAVERSE RATE, ALL AXES | 472 IPM |
| TOOL STORAGE CAPACITY | 60 TOOLS |
| SPINDLE HORSEPOWER | 35 HP |
| SPINDLE SPEEDS RANGE | 6000 RPM / 2 SPEED GEAR BOX |
| SPINDLE TAPER | CAT-50 |
| OVERALL DIMENSIONS | 320" x 185" x 167" |
| APPROXIMATE WEIGHT - NET | 47,960 LBS. |
