| Specification | Description |
|---|---|

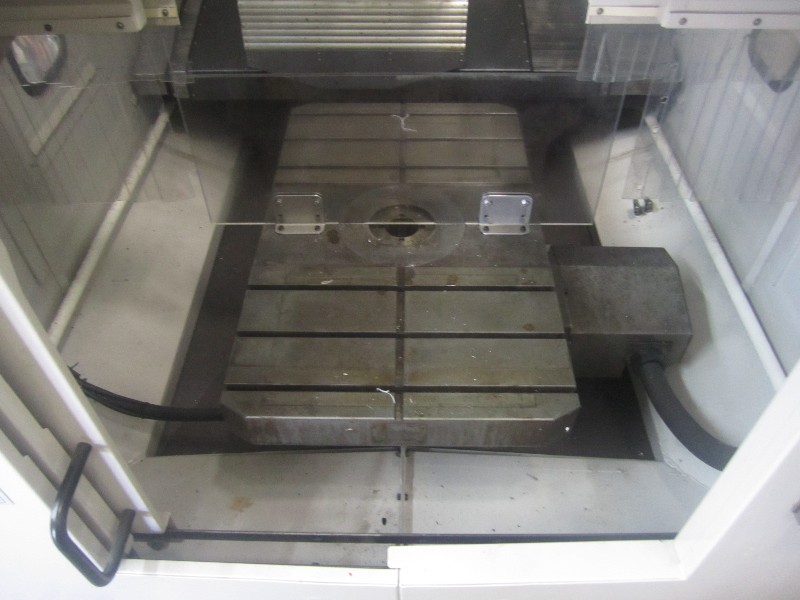

| PALLET SIZE (2) | 19.69" X 11.81" |
| TRAVEL: X- AXIS | 16.5 IN. |
| TRAVEL: Y-AXIS | 12.6 IN. |
| TRAVEL: Z- AXIS | 10.6 IN. |
| SPINDLE SPEEDS (10) | 10,000 RPM |
| MAX TAPPING SPEED | 6,000 RPM |
| SPINDLE TAPER | BT-30 |

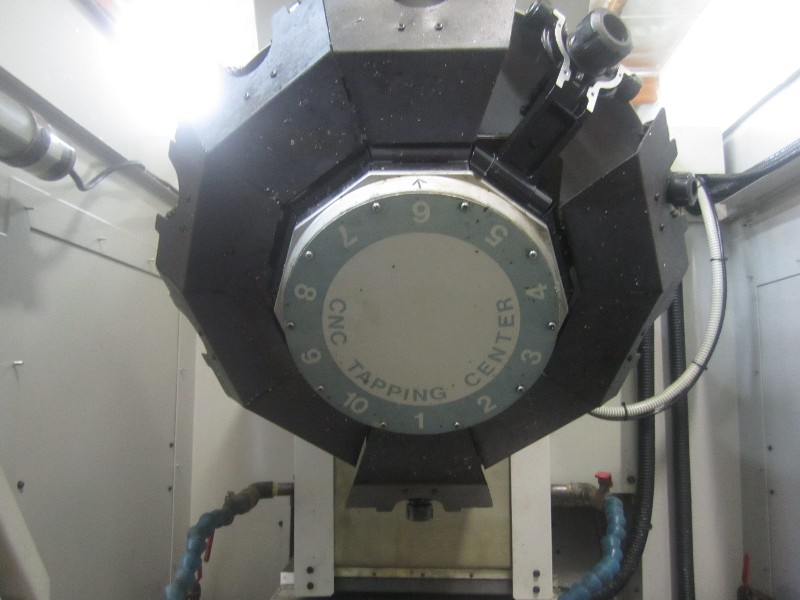

| # OF TOOL POSITIONS | 10 |
| SPINDLE NOSE TO TABLE: MIN | 7.48 IN. |
| SPINDLE NOSE TO TABLE: MAX | 17.71 IN. |
| TABLE LOAD CAPACITY | 388 LBS. |
| RAPID TRAVERSE RATES | 1,181 IPM |
| PALLET CHSNGE TIME | 2.8 SEC. |
| MAX TOOL DIAMETER | 3.1 IN. |
| MAX TOOL LENGTH | 3.15 IN. |
| MAX TOOL WEIGHT | 7.87 LBS. |
| APPROX, DIMENSIONS | 55.12 IN X 120.79 IN. |
| APPROX. HEIGHT | 94 IN. |
| APPROX. WEIGHT | 6,173 LBS |
