| Specification | Description |
|---|---|

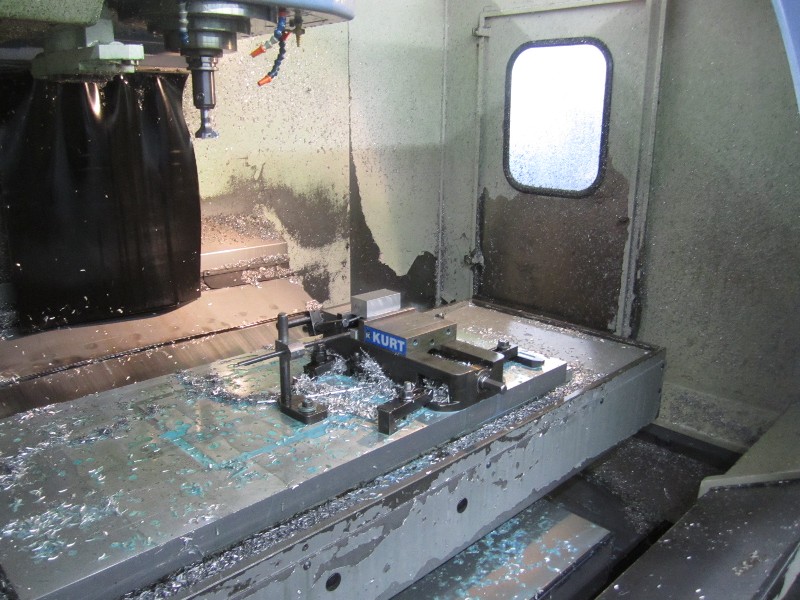

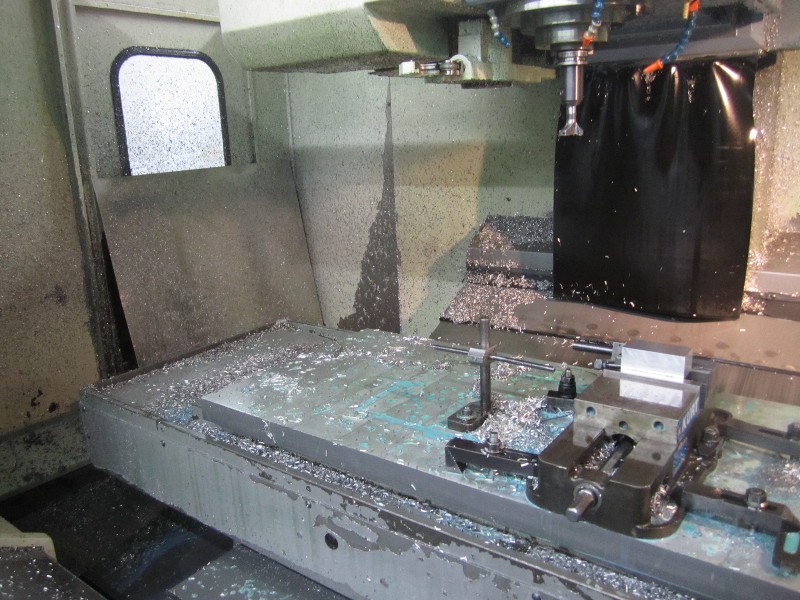

| TABLE WORKING SURFACE | 52" X 20" |
| TABLE LOAD CAPACITY | 2200 LBS |
| LONGITUDINAL TRAVEL (X-AXIS) | 41" |
| CROSS TRAVEL (Y-AXIS) | 20 " |
| VERTICAL TRAVEL (Z-AXIS) | 20" |
| RAPID TRAVERSE RATES, ALL AXES | 787 IPM |

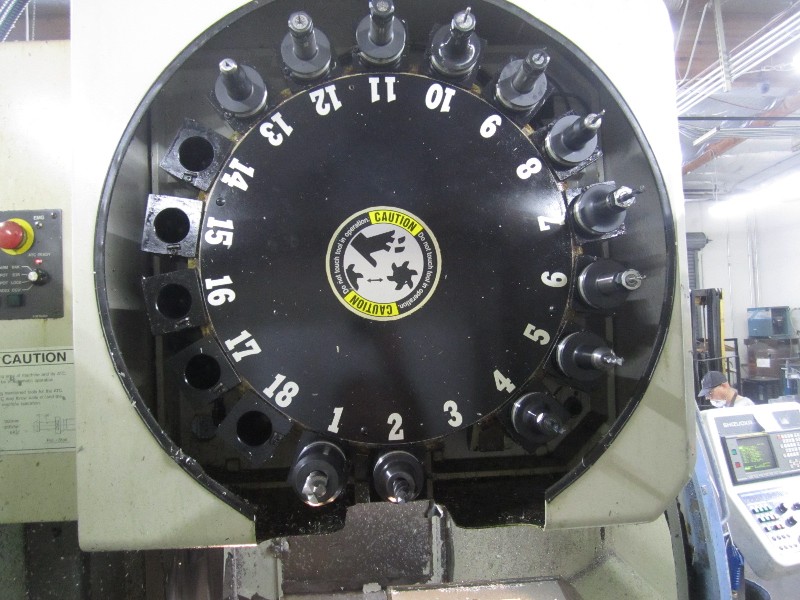

| TOOL CHANGER ARM STYLE | 18 |
| SPINDLE HORSEPOWER | 20HP |
| SPINDLE SPEEDS RANGE | 10,000 RPM |
| SPINDLE TAPER | #40 BT |
| WAY SYSTEM | BOX WAYS |
| OVERALL DIMENSIONS | |
| APPROXIMATE WEIGHT- NET | 16,500 LBS |
