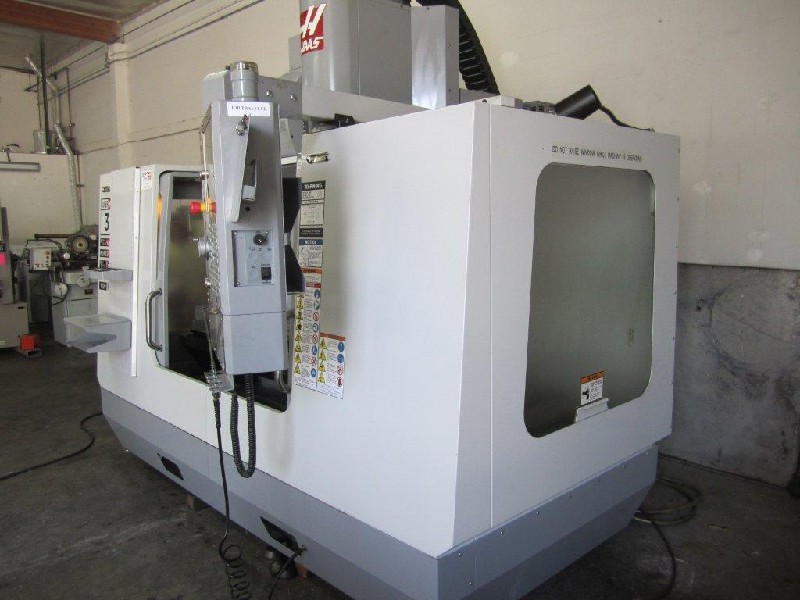

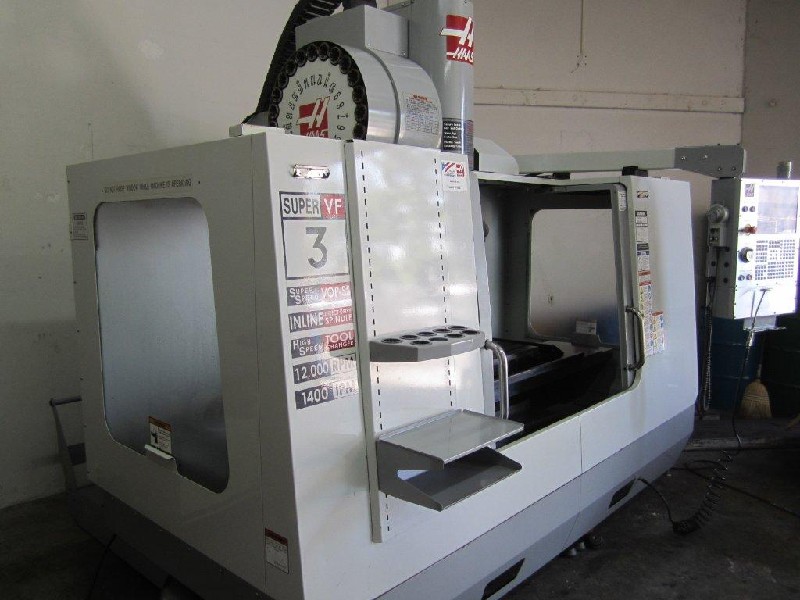

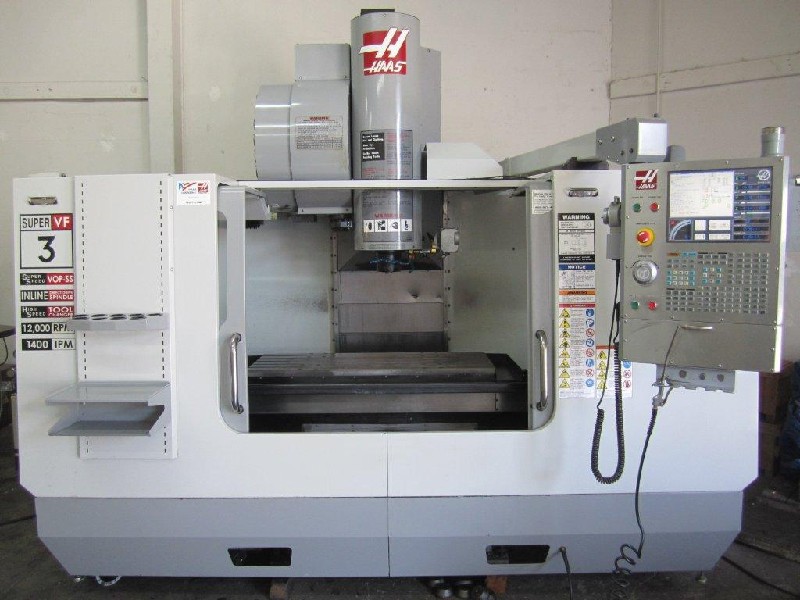

HAAS VF-3SS VERTICAL MACHINING CENTER

HAAS VF-3SS VERTICAL MACHINING CENTER

Stock Number: 1001

HAAS VF-3SS

Age: 2006

Condition: EXCELLENT




Click to view larger photo

SpecificationDescription

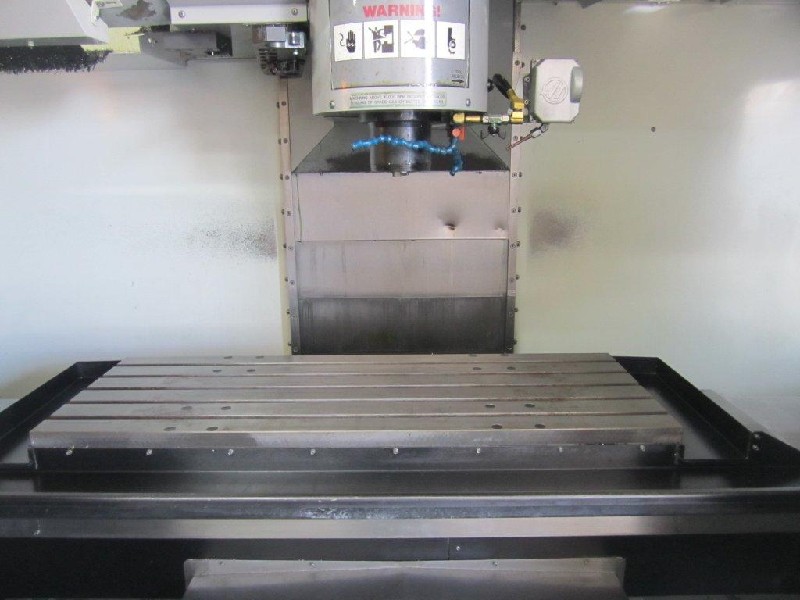

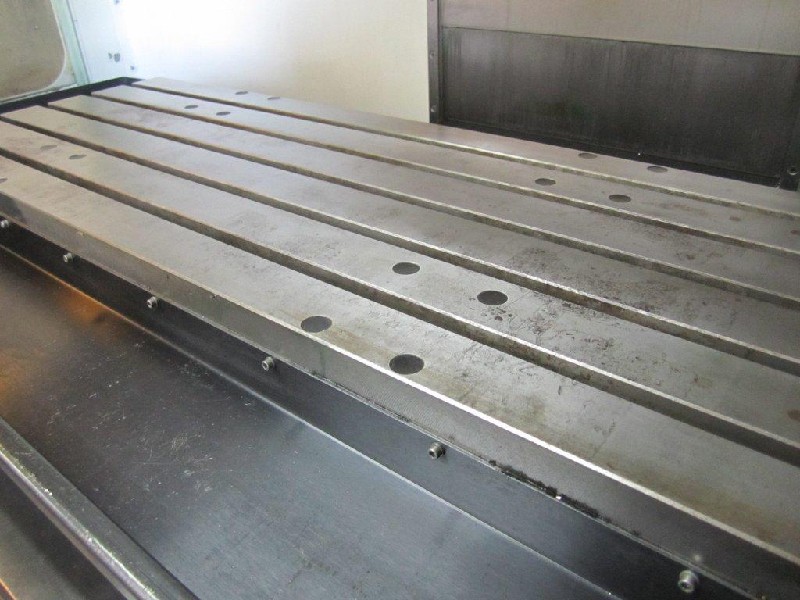

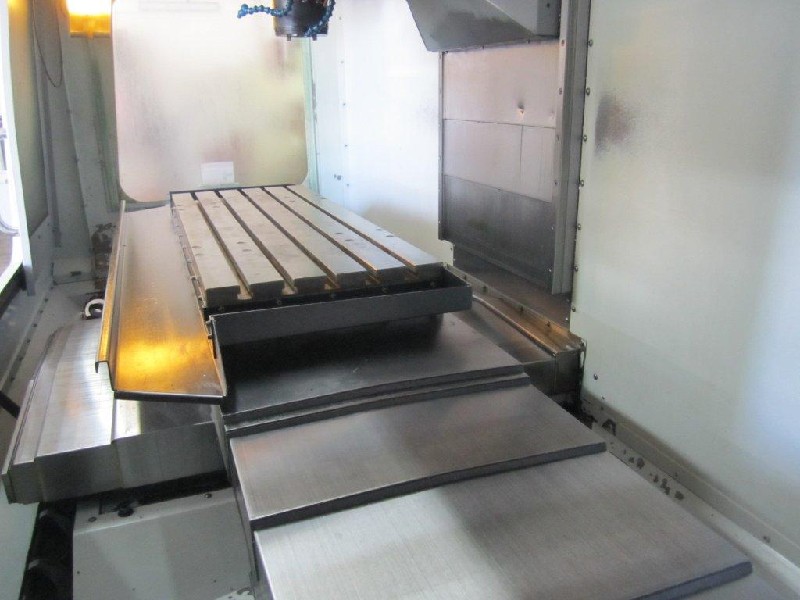

TABLE WORKING SURFACE48" X 18"
TABLE LOAD CAPACITY1,750 LBS.
TABLE TRAVELS40" X 20" 25"
FEED RATES, ALL AXES833 IPM
RAPID TRAVERSE RATE, ALL AXES1,400 IPM
SPINDLE NOSE TO TABLE4" - 29"

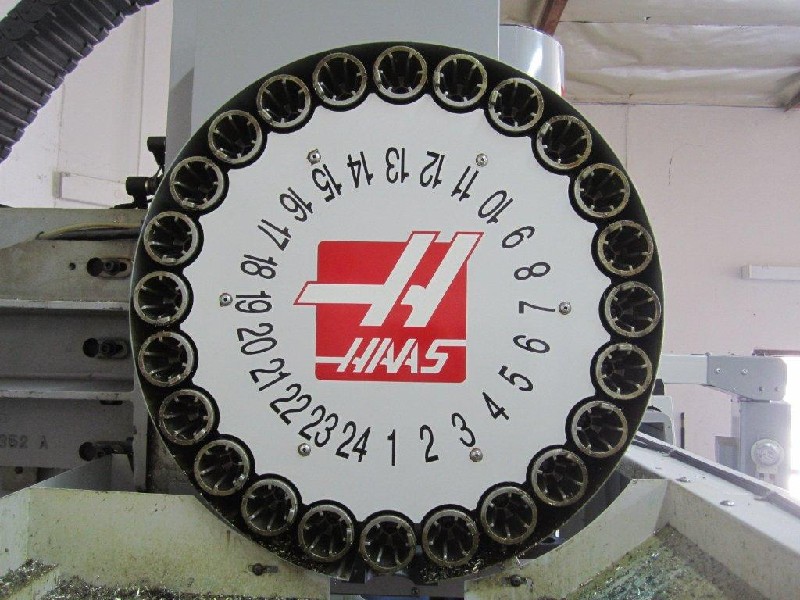

TOOL CHANGER ARM STYLE24 + 1
CHIP TO CHIP TOOL CHANGE2.2 SECONDS (AVG)
SPINDLE HORSEPOWER30 HP
SPINDLE SPEEDS RANGE12,000 RPM/INLINE DIRECT DRIVE
SPINDLE TAPER#40 BT
WAY SYSTEMLINEAR GUIDEWAY
OVERALL DIMENSIONS110" X 118" X 117"
APPROXIMATE WEIGHT - NET12,500 LBS.



Equipped With:

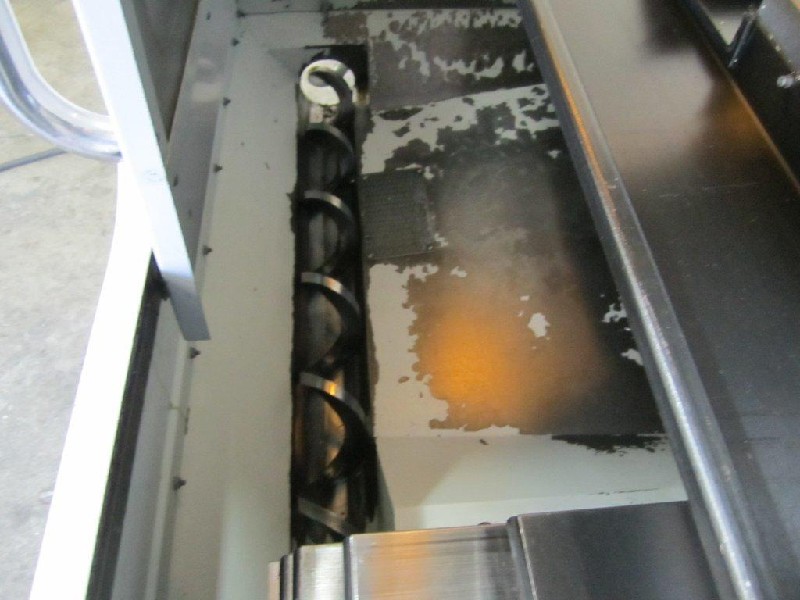

4TH AXIS DRIVE AND WIRING RIGID TAPPING USB PORT CHIP AUGER PROGRAMMABLE COOLANT NOZZLE USER DEFINABLE MACROS REMOTE JOG HANDLE 16 MEG MEMORY HIGH SPEED SOFTWARE VISUAL QUICK CODE SPINDLE ORIENTATION REMOTE JOG HANDWHEEL COORDINATE ROTATION & SCALING Note: subject to......
