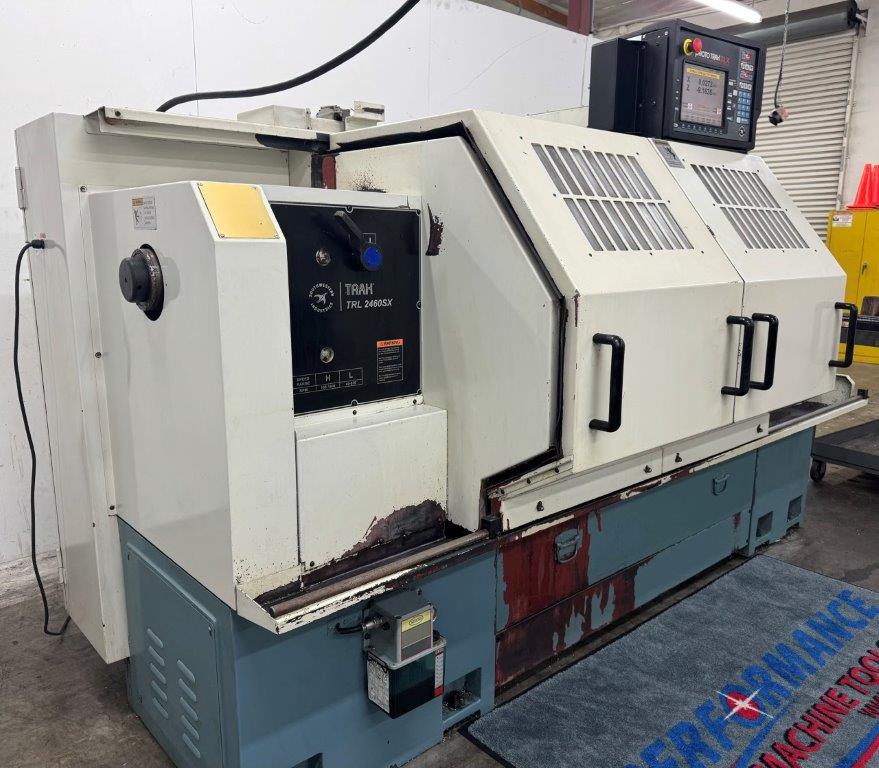

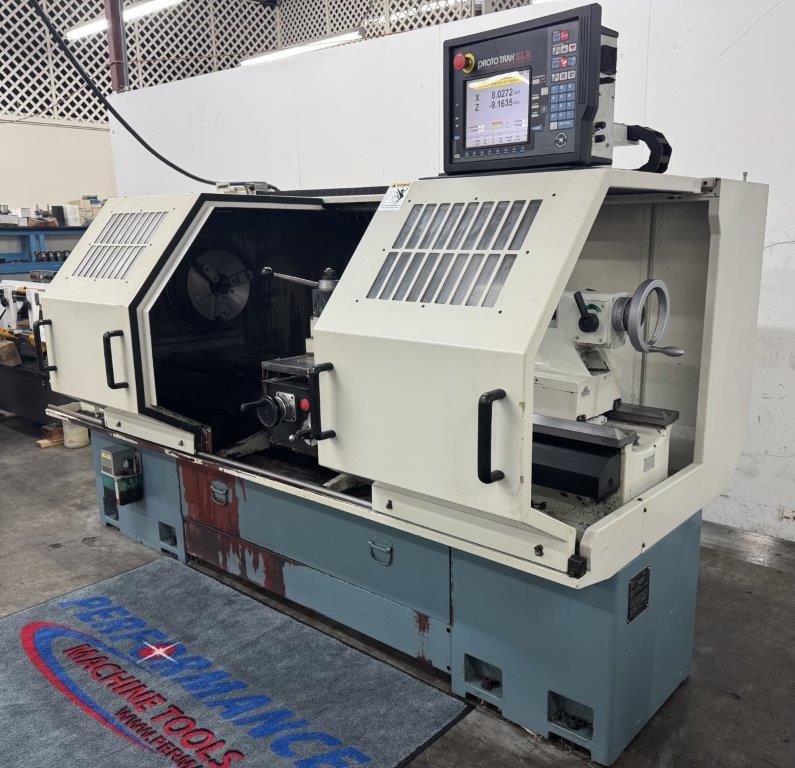

TRAK TRL 2460SX CNC LATHE ~ ProtoTRAK SLX CONTROL - YEAR: 2014
Stock Number: 622
Mfg: TRAK
Click to view larger photo
| SPECIFICATIONS: |
| SWING OVER BED |
24" |
| DISTANCE BEWTWEEN CENTERS |
60" |
| SWING over CROSS SLIDE |
14.5" |
| SPINDLE MOTOR |
15 HP |
| CROSS SLIDE TRAVEL |
12.5" |
| ALL GEARED HEAD |
|
| SPINDLE NOSE |
D1-8 |
| SPINDLE BORE |
4.09" |
| SPINDLE SPEEDS |
40 – 1800 RPM |

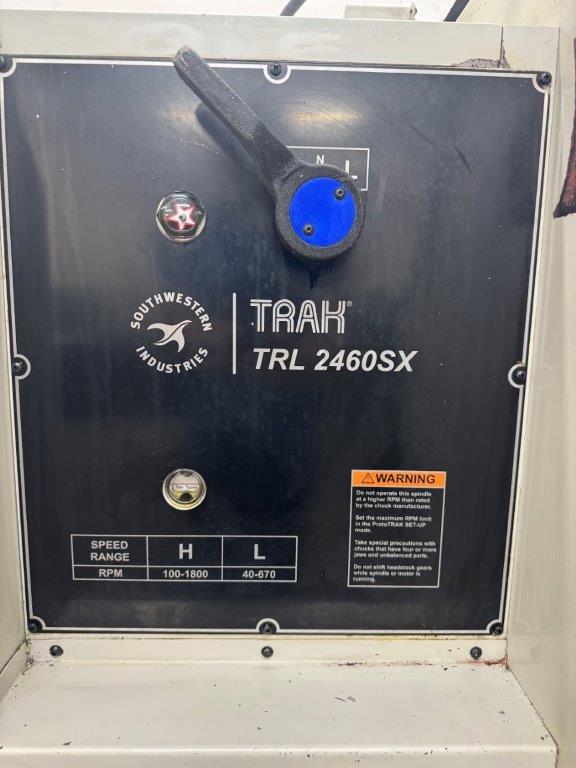

| 2 SPEEDS |
LOW 40-670 / HIGH 100-1800 |
| TAILSTOCK |
MT5 |
| FLOOR SPACE |
114" x 65" x 77" |
| WEIGHT |
6,200 LBS |
| POWER |
220V / 3 PHASE |
INCLUDED:

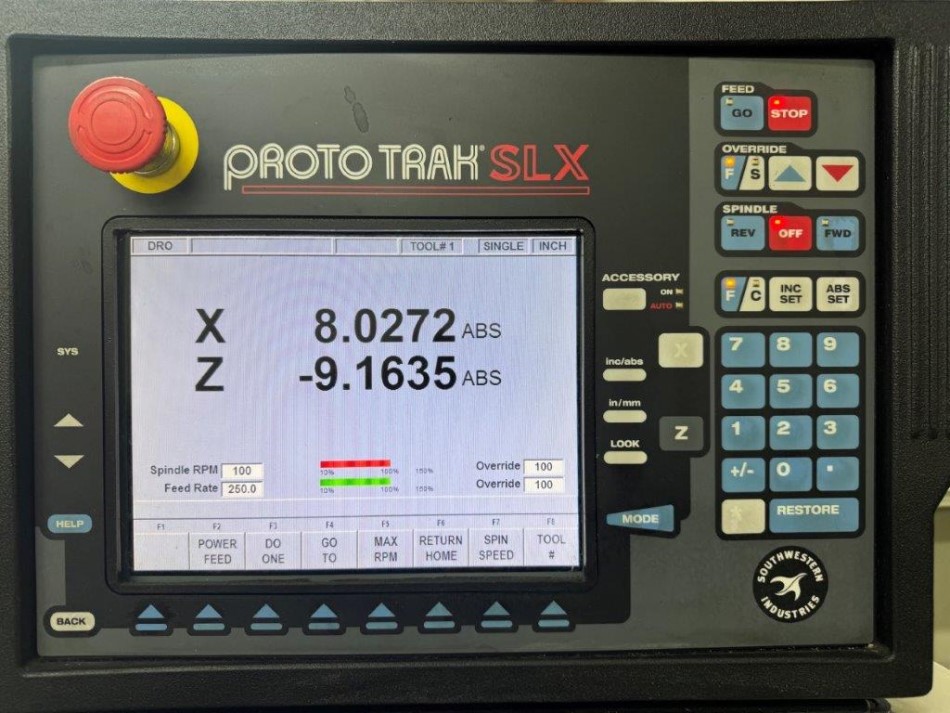

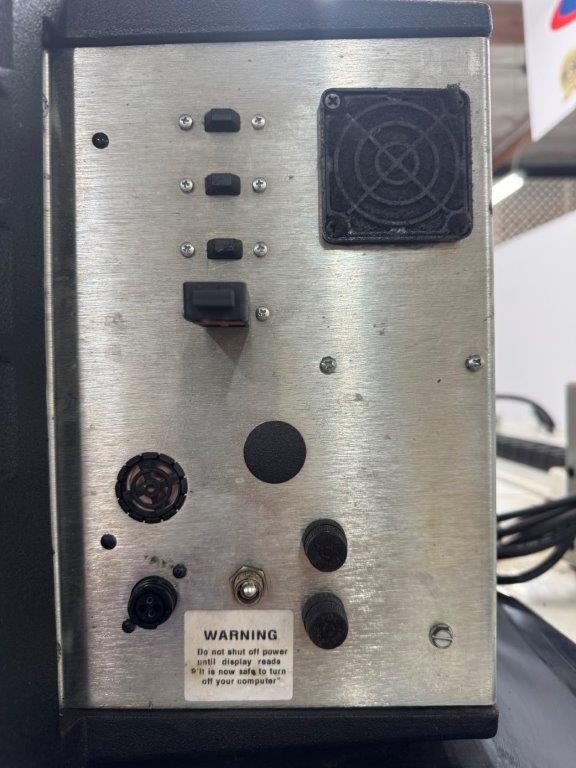

- PROTOTRAK SLX CONTROL: CONVERSATIONAL PROGAMMING, GRAPHICS, DRO MODE, TRACKING FEATURE, TOOL SET UP and LIBRARY THAT STORES TOOL OFFSETS EASILY, 10.4” COLOR MONITOR
- ELECTRONIC HANDWHEELS and JOG STICK for INTUITIVE MANUAL MACHINING

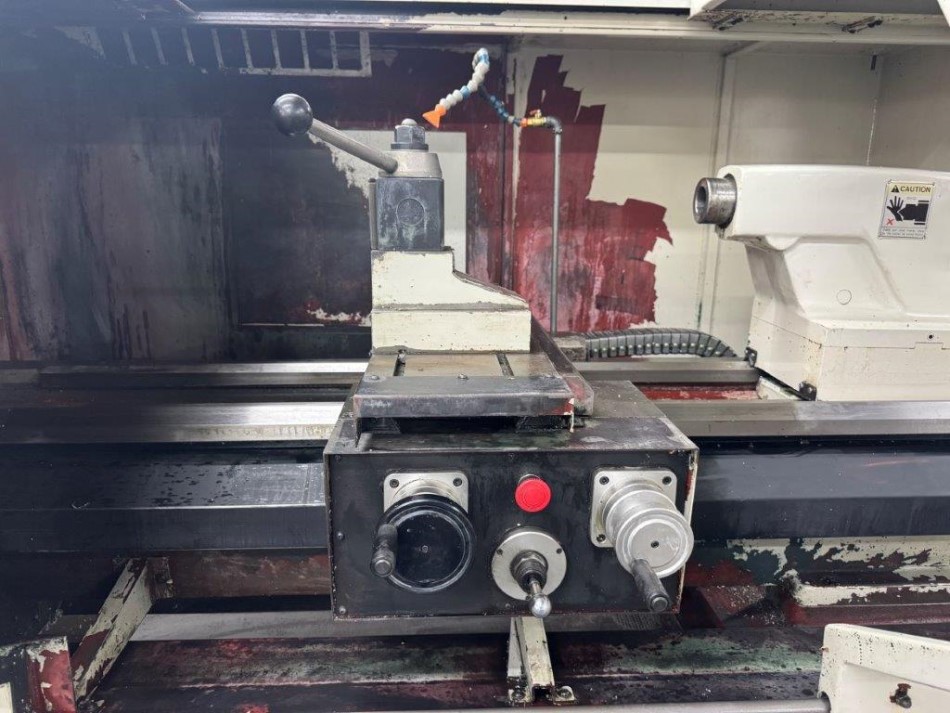

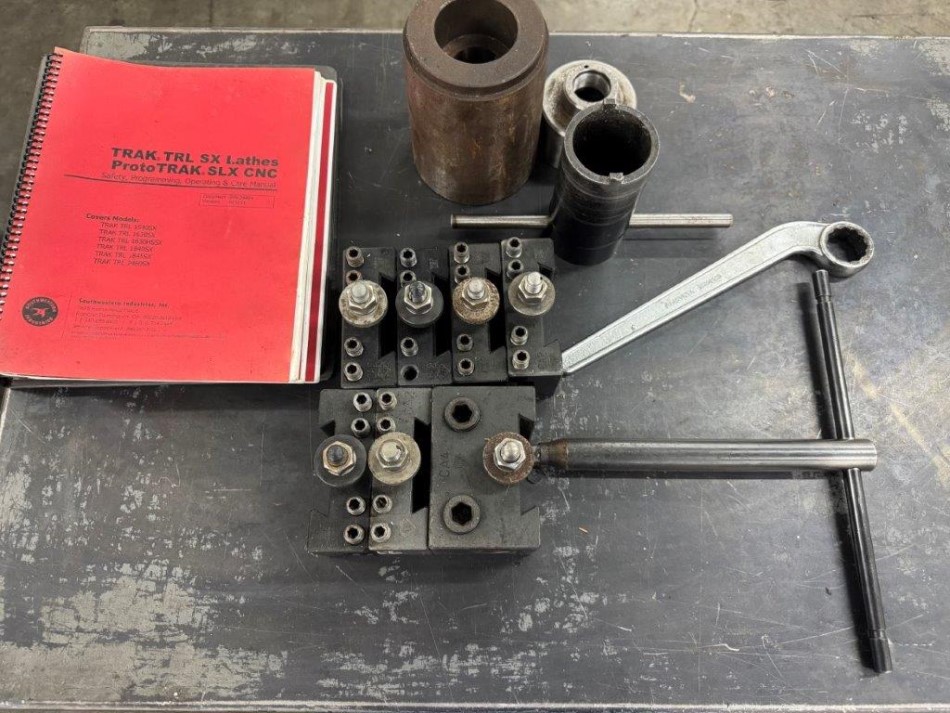

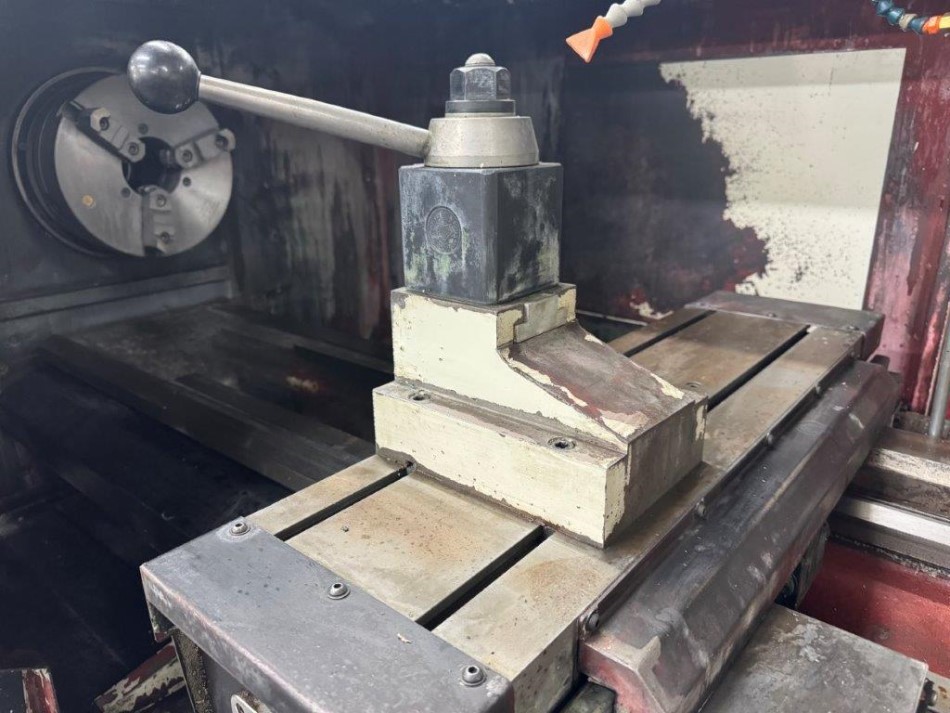

- QUICK CHANGE TOOL POST and 7 HOLDERS

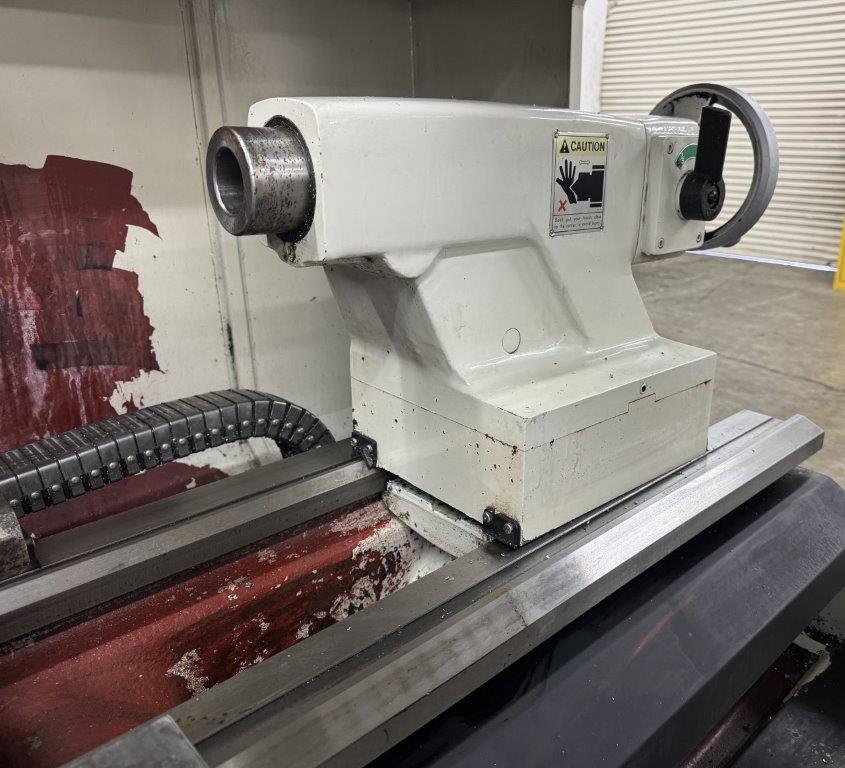

- TAILSTOCK MT#5

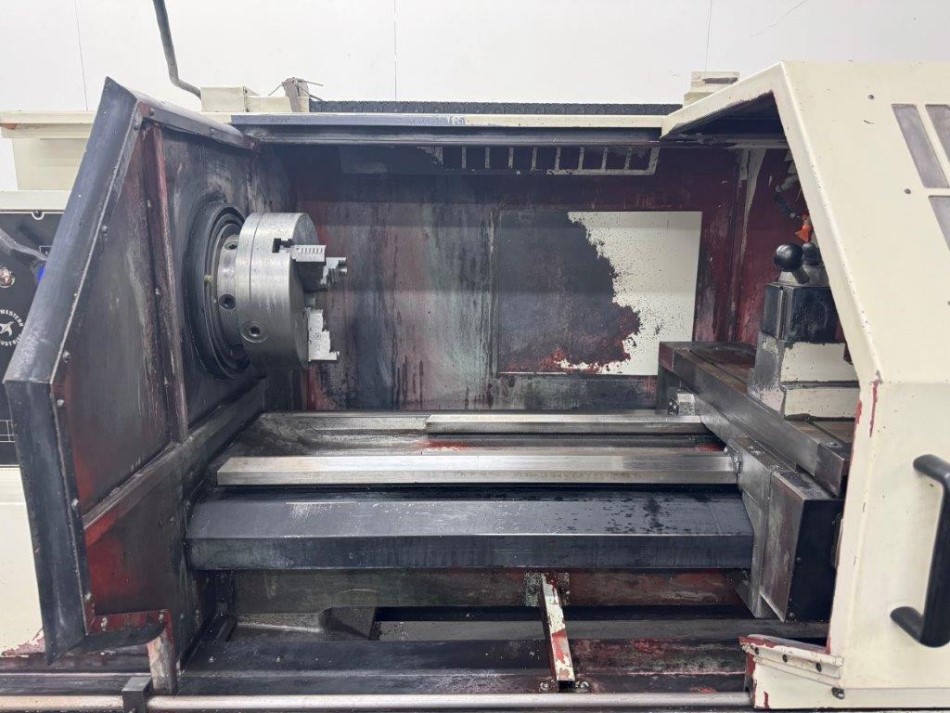

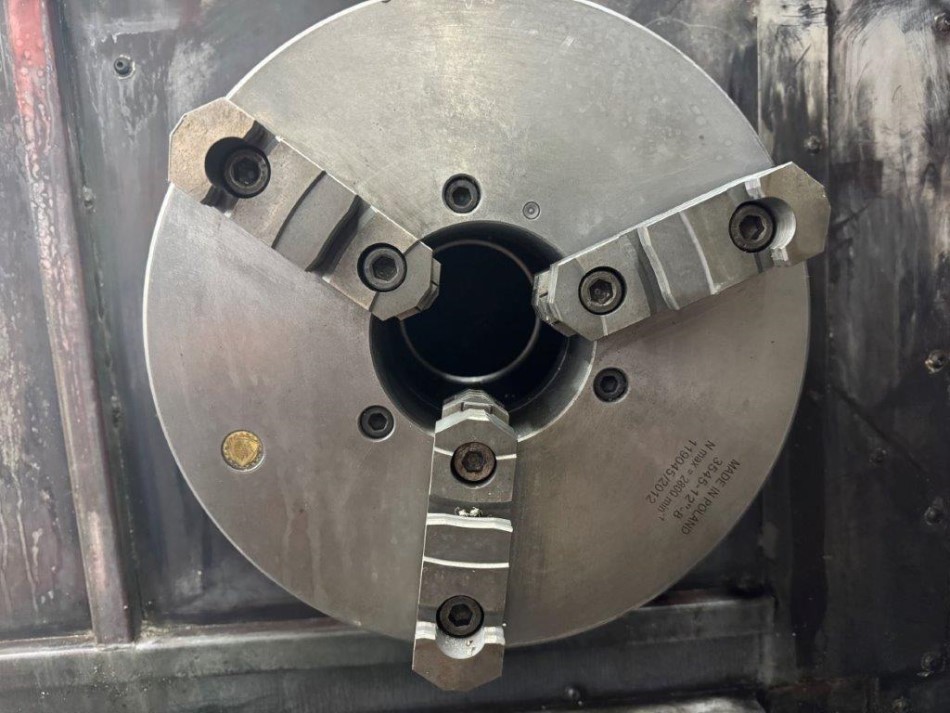

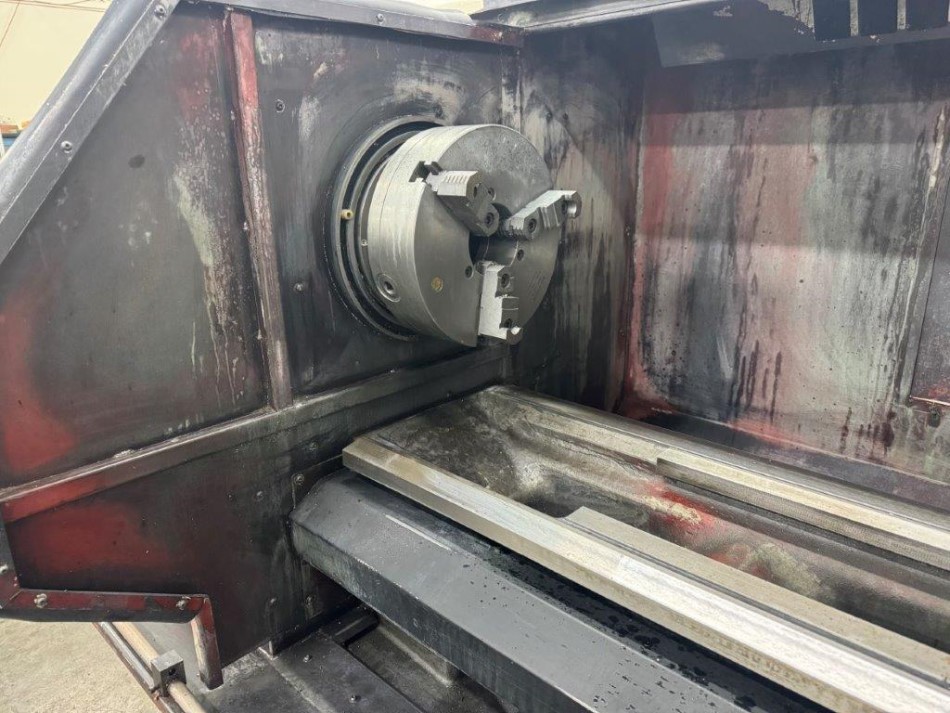

- 12" 3 JAW Self Centering Scroll CHUCK (BISON BRAND)
- TAILSTOCK QUILL STROKE: 6.88”

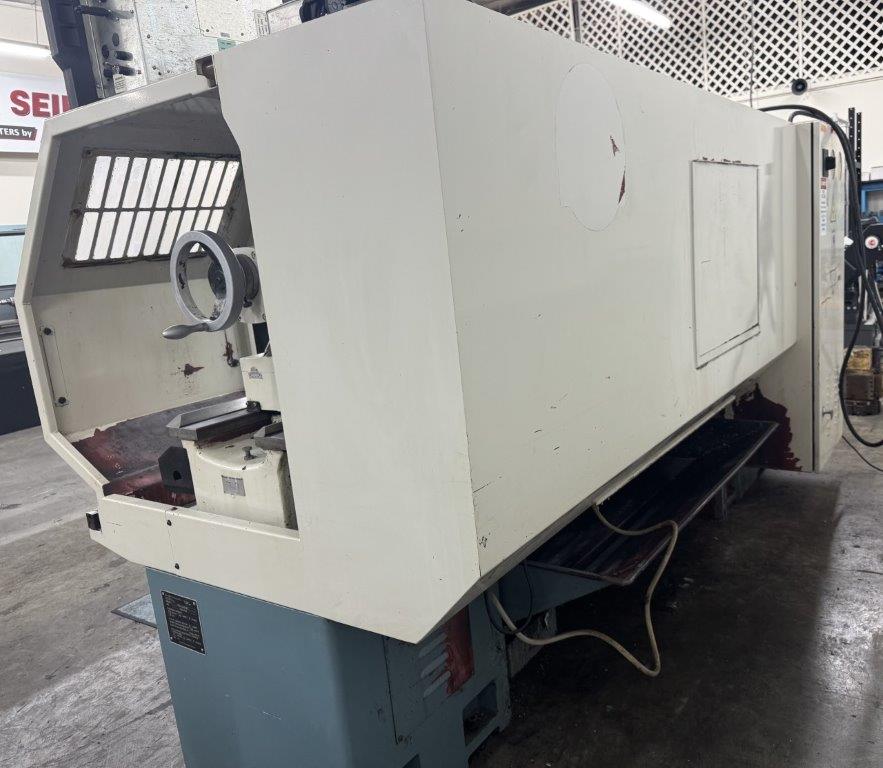

- SLIDING DOOR ENCLOSURE
- WORKLIGHT / FLOOD COOLANT
- REMOTE STOP GO SWITCH
- PULL OUT CHIP PAN
- MACHINE MANUALS
