| Specification | Description |
|---|---|

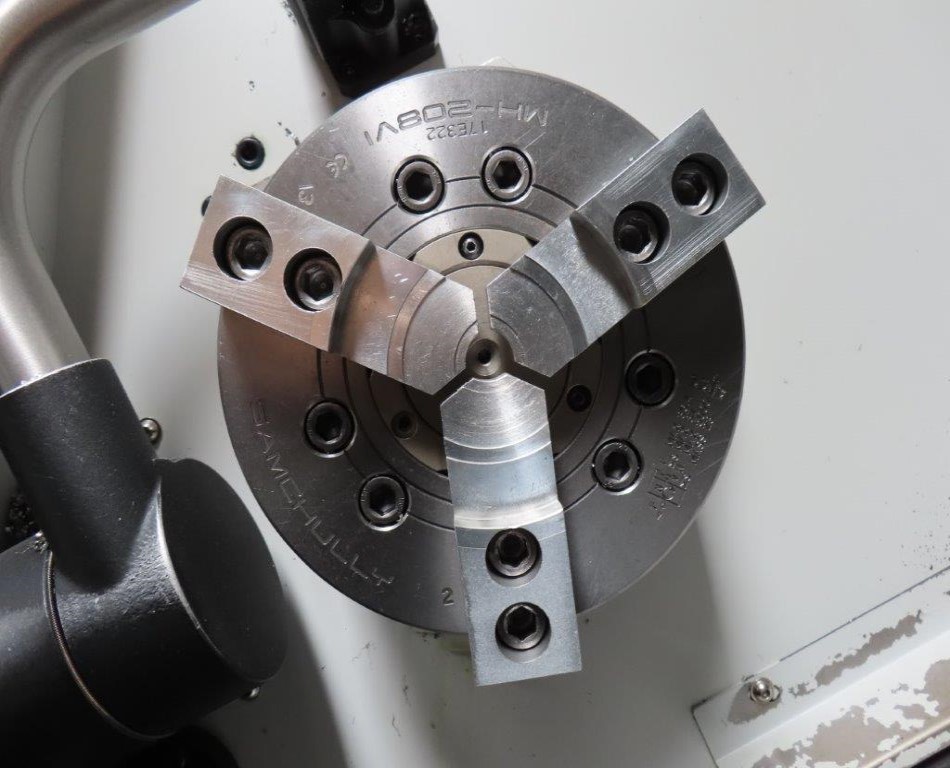

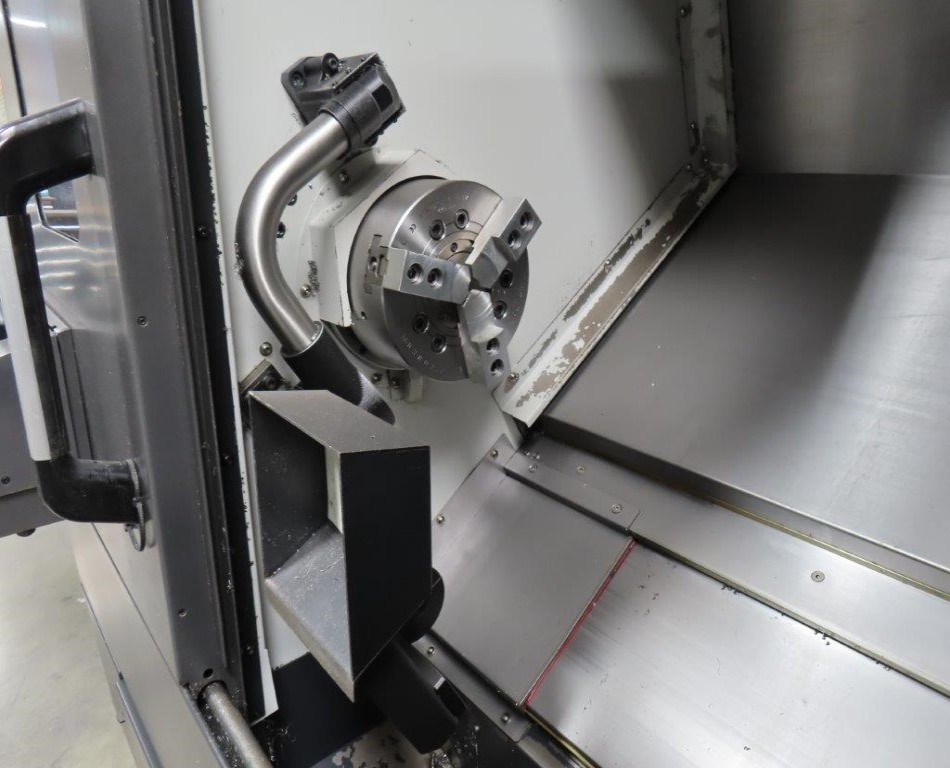

| CHUCK SIZE | 8 in. |
| SPINDLE BORE | 2.6 in. (66mm) |
| MAXIMUM SWING OVER SADDLE | 15.7 in. |
| MAXIM SWING OVER BED | 23.6 in. |
| MAXIMUM TURNING DIAMETER | 13.8 in. |
| MAXIMUM MACHINING LENGTH | 21.6 in. |
| MAIN MOTOR | 20 HP |

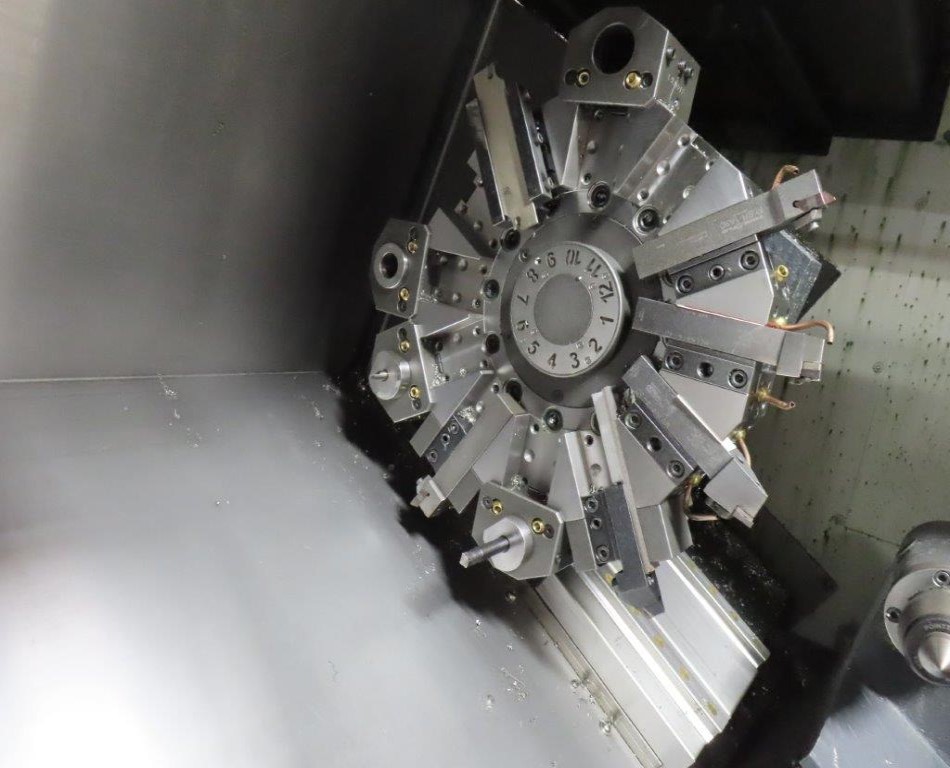

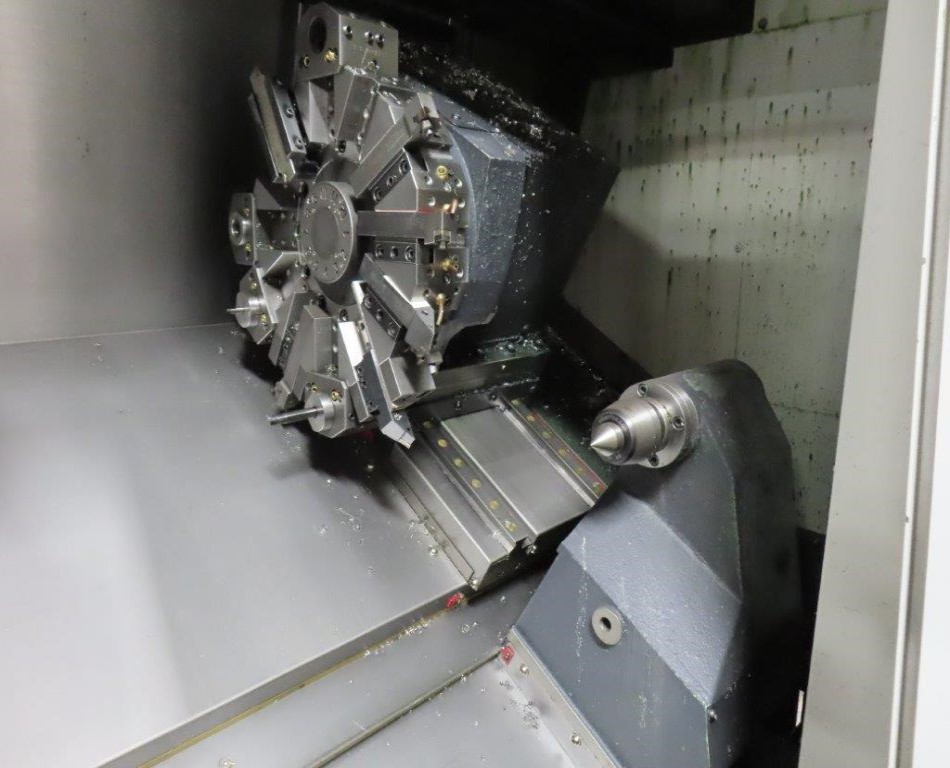

| TURRET STATIONS | 12 |
| BORING BAR DIAMETER | 1.5 in. |
| SPINDLE SPEED | 4500 RPM |
| SPINDLE NOSE | A2-6 |
| SPINDLE TORQUE | 70.4 LBS. |
| X-AXIS RAPID TRAVERSE RATE | 1181 IPM |
| Z-AXIS RAPID TRAVERSE RATE | 1147 IPM |
| Z-AXIS TRAVEL | 8.1" |
| Z-AXIS TRAVEL | 22 in. |
| TURRET INDEX (SINGLE STEP) | 0.15 sec. |

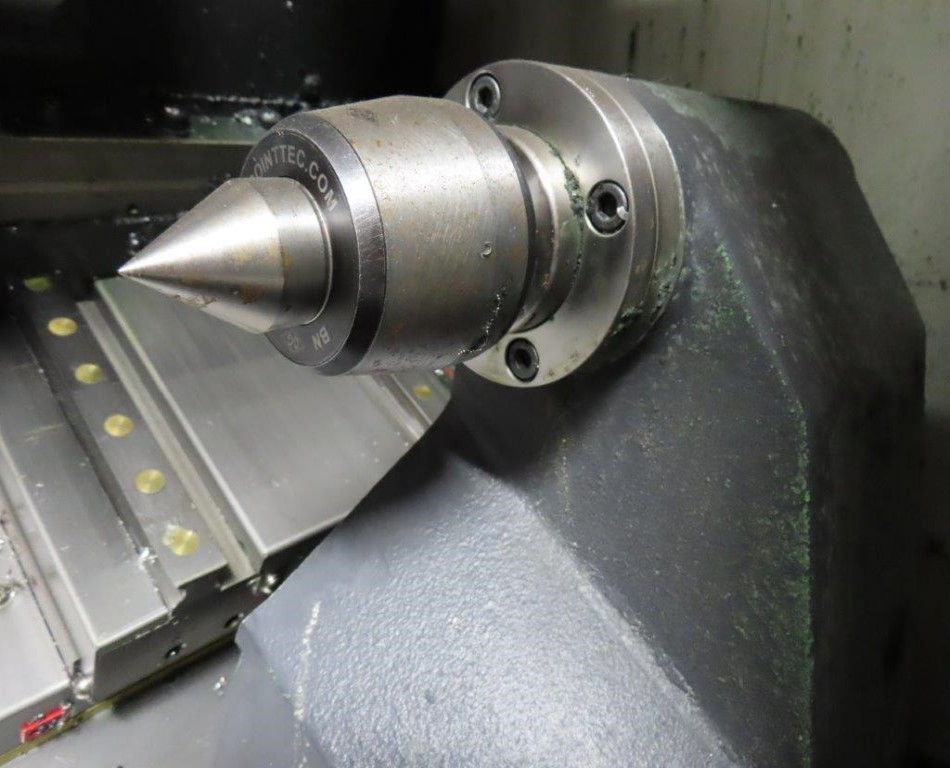

| TAILSTOCK TAPER | 4MT |
| DIMENSIONS | 101 in. x 66 in. x 63 in. |
| WEIGHT | 7500 LBS |
Equipped With:
