| Specification | Description |
|---|---|
| SWING OVER BED | 36.4" |
| MAXIMUM TURNING DIAMETER | 14" |
| MAX TURNING LENGTH | 28.7" |
| X / Z TRAVELS | 10.2" / 31.3" |
| Y AXIS TRAVEL | +/- 2" |
| SPINDLE MOTOR | 25HP |
| SPINDLE NOSE TYPE | A2-8 |

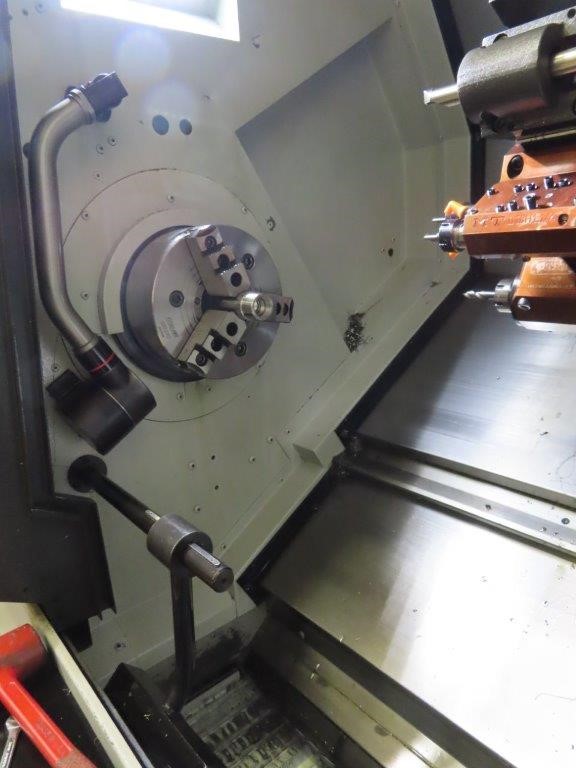

| CHUCK SIZE | 10" |
| SPINDLE BORE DIAMETER | 3.5" |
| MAX BAR CAPCITY | 3.1" |
| SPINDLE SPEED | 4000 RPM |

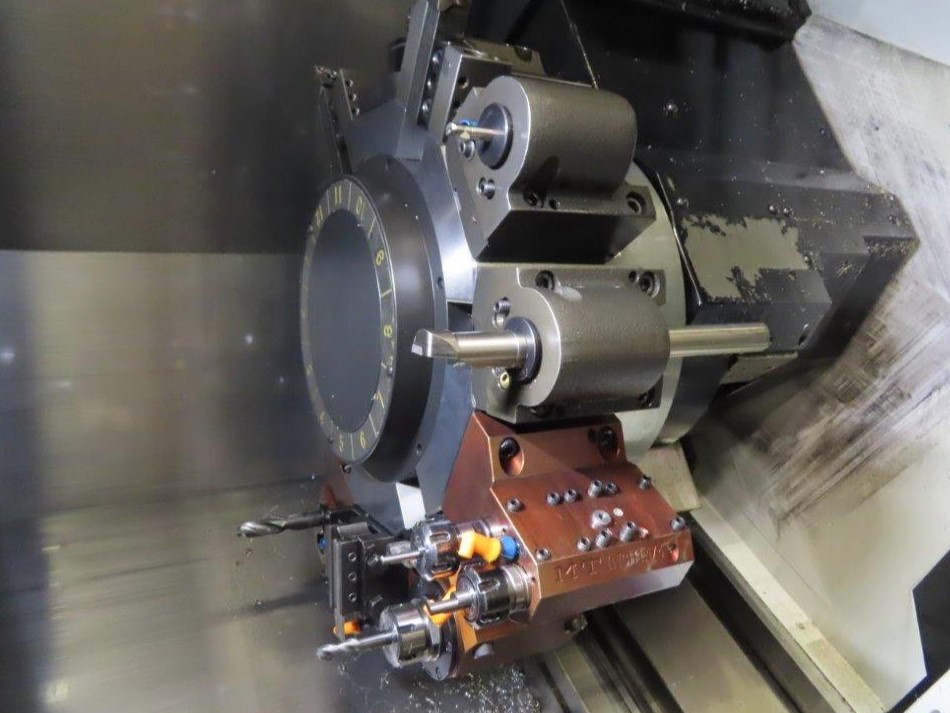

| TOOL TURRET POSITIONS | 12 |
| LIVE TOOL RPM | 6000 RPM |
| RAPID TRAVERSE X/Z | 1181 IPM |

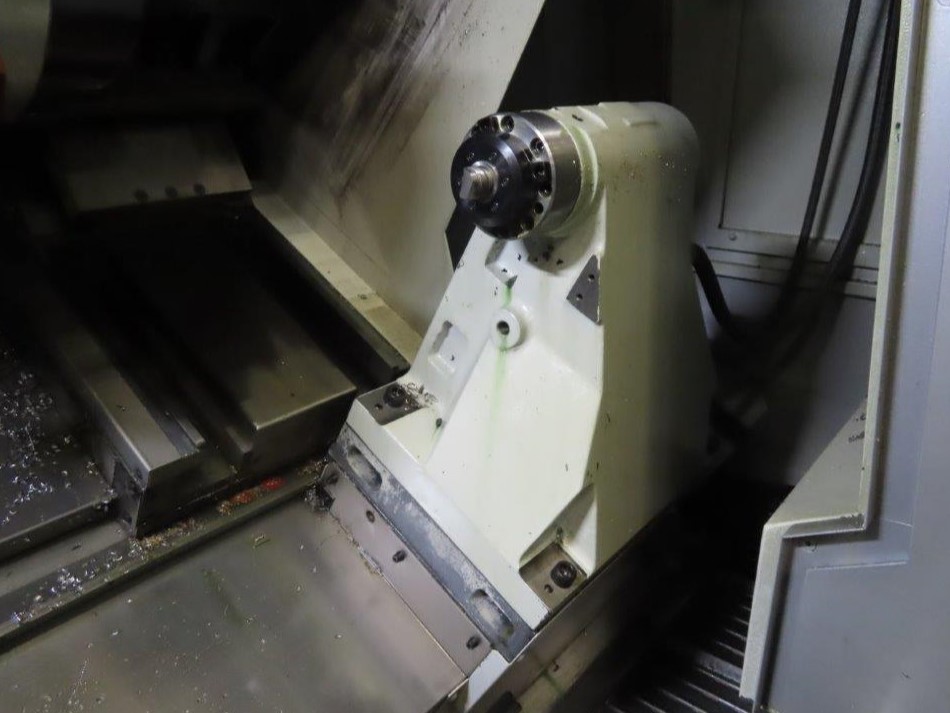

| TAILSTOCK QUILL DIAMETER | 3.15" |
| TAIL STOCK TRAVEL BODY / QUILL | 22.2" / 4.7" |
| TAIL STOCK QUILL TAPER | #5MT |
| MACHINE WEIGHT | 13,640 LBS. |
| POWER | 220V / 3 PHASE |
| MACHINE DIMS | 135" x 83" x 87" |
Equipped With:
