Year: 2010
| Specification | Description |
|---|---|
| MAX TURNING DIAMETER | 7.87" |
| MAX SWING OVER SLIDE | 8.07" |
| DISTANCE BETWEEN CENTERS | 38.58" |
| MAX TURN LENGTH | 30" |
| SLIDE TRAVEL (X1/X2) | 22.4" / 5.13" |
| SLIDE TRAVEL (Z1/Z2) | 51.10" / 25.90" |
| SLIDE TRAVEL -Y | 3.93" |
| SLIDE TRAVEL -B2 | 30.31" |

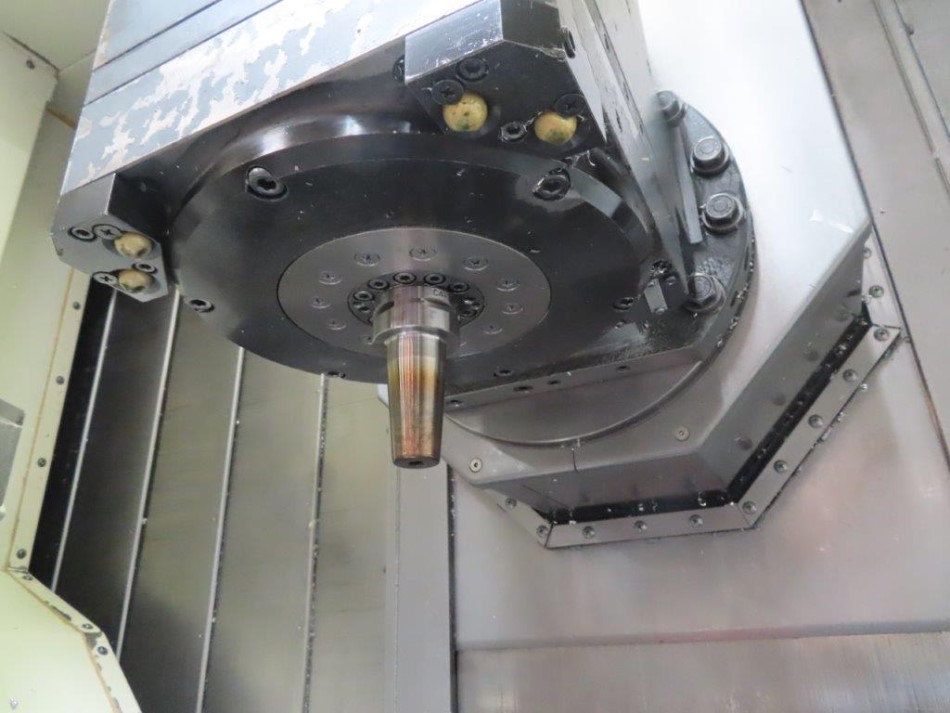

| MILLING SPINDLE SPEED | 12000 RPM |
| MILLING SPINDLE MOTOR | 10HP |
| MILLING SPINDLE B AXIS INDEXING RANGE | 190 DEG (+/-95 DEG) |
| TOOL CHANGER, DUAL ARM | 24 x 2 (UPPER TOOL SPINDLE) |

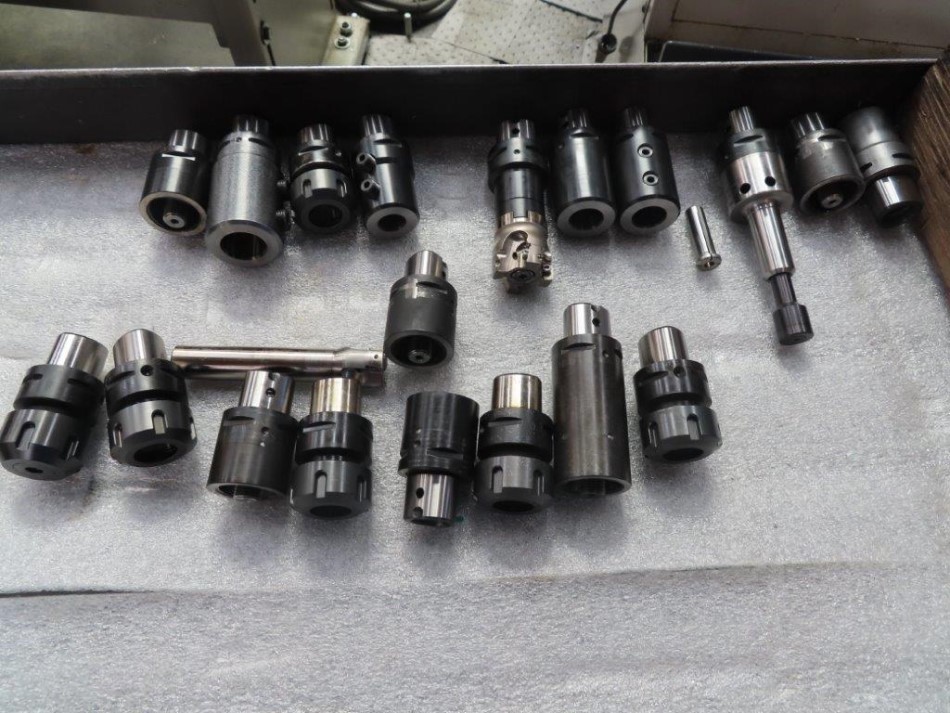

| MILLING SPINDLE TAPER | CAPTO C4 |
| TURNING SPINDLE NOSE | A2-5 (L, R) |

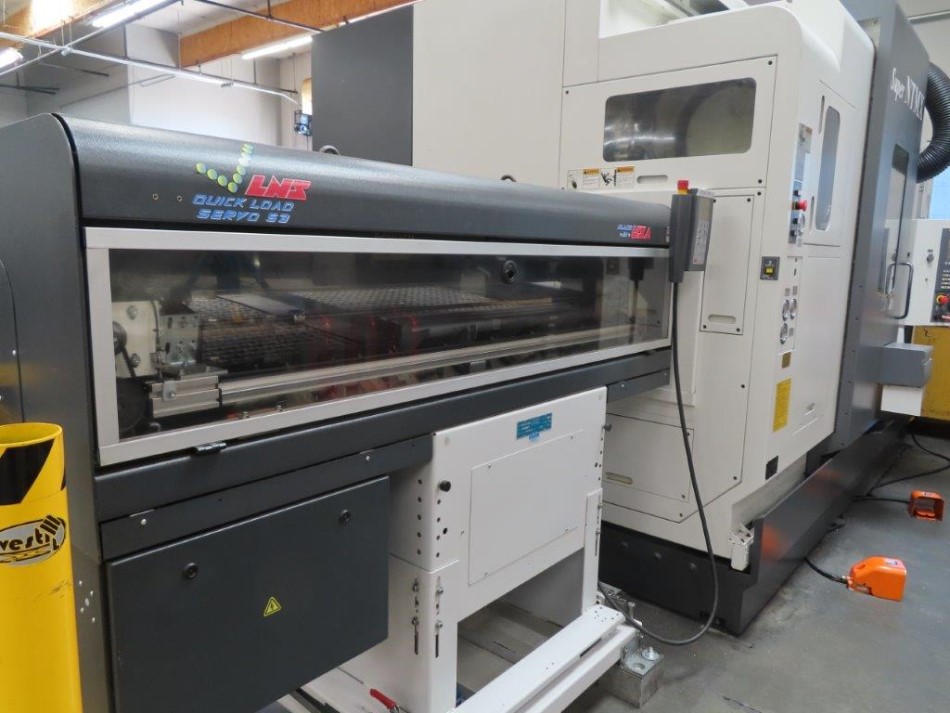

| BAR CAPACITY | 2" (L, R) |
| TURNING SPINDLE MOTORS | 15HP (L, R) |

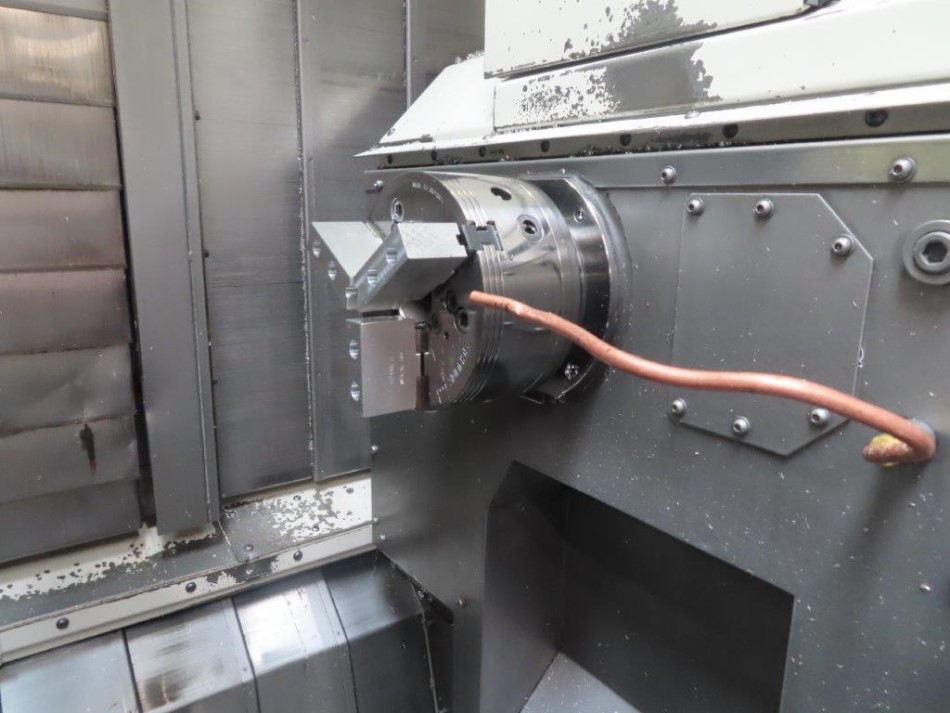

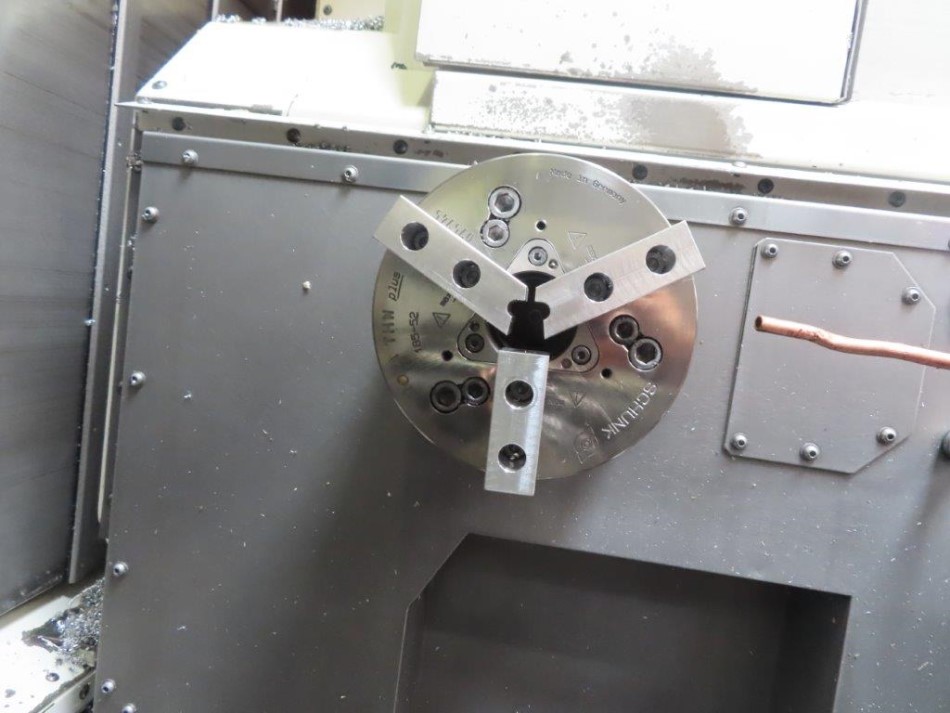

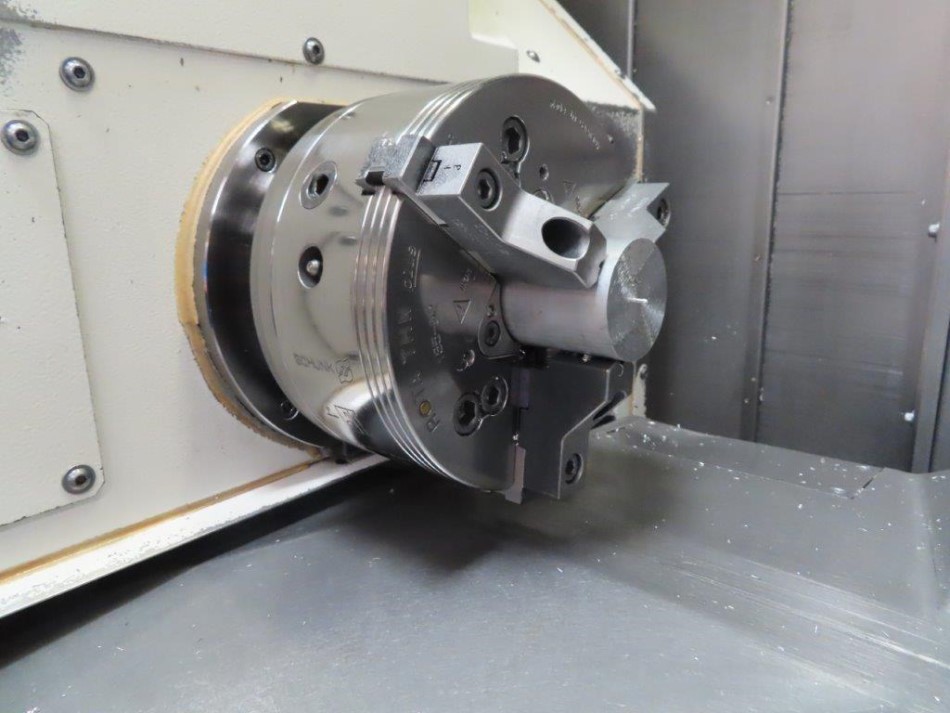

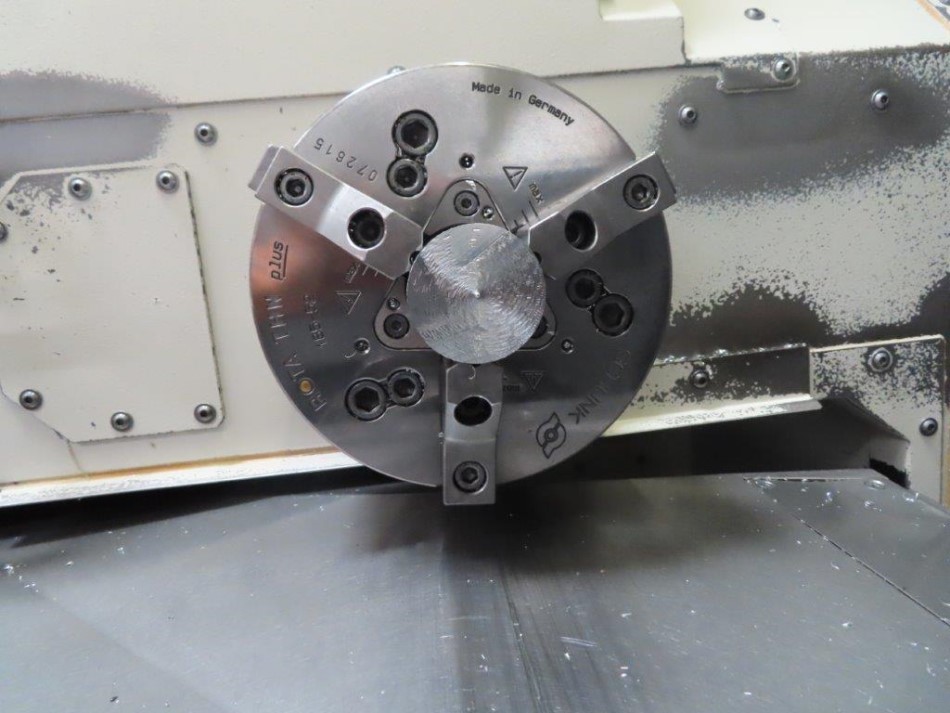

| CHUCK SIZES | 7.2" (L, R) |

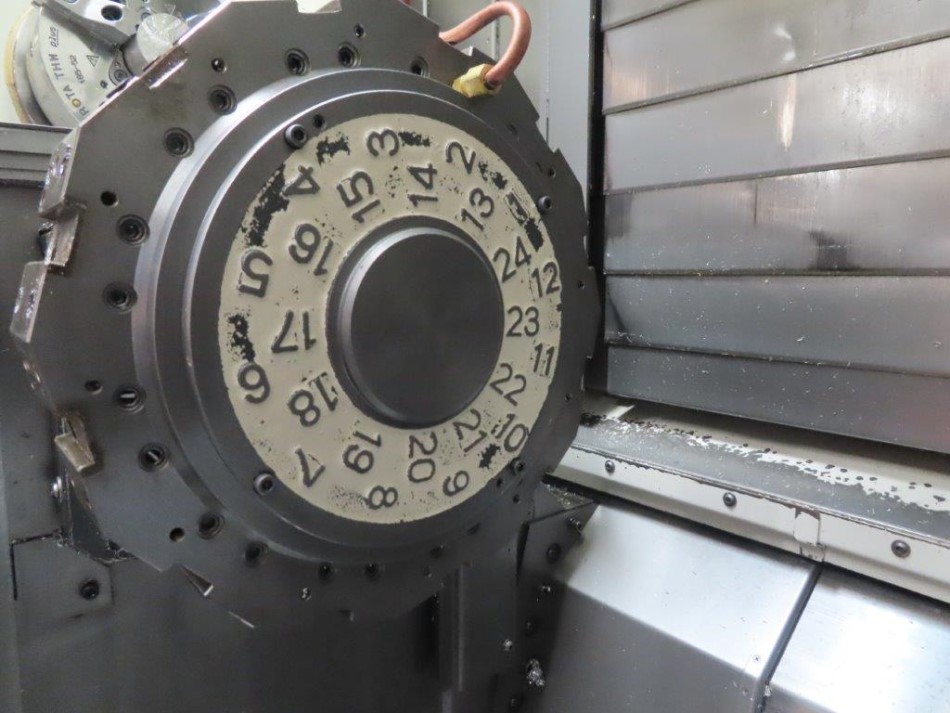

| TURRET | 24 STATION |
| WEIGHT | 31,972 LBS |
| FLOOR SPACE WITH CHIP CONVEYOR | 190" x 165" |
Equipped With:
Note: Machine is under power and ready for inspection
