| Specification | Description |
|---|---|
| SWING OVER BED | 18" |
| MAXIMUM TURNING DIAMETER | 12" |
| MAXIMUM WORK LENGTH | 12" |
| BAR CAPACITY | 2.5" |
| SPINDLE NOSE | A2-6 |
| SPINDLE SPEEDS | 3500 RPM |
| CROSS SLIDE TRAVEL | 9.25" |
| LONGITUDINAL TRAVEL | 14.6" |
| RAPID TRAVERSE RATES (X / Z) | 472 / 590 IPM |

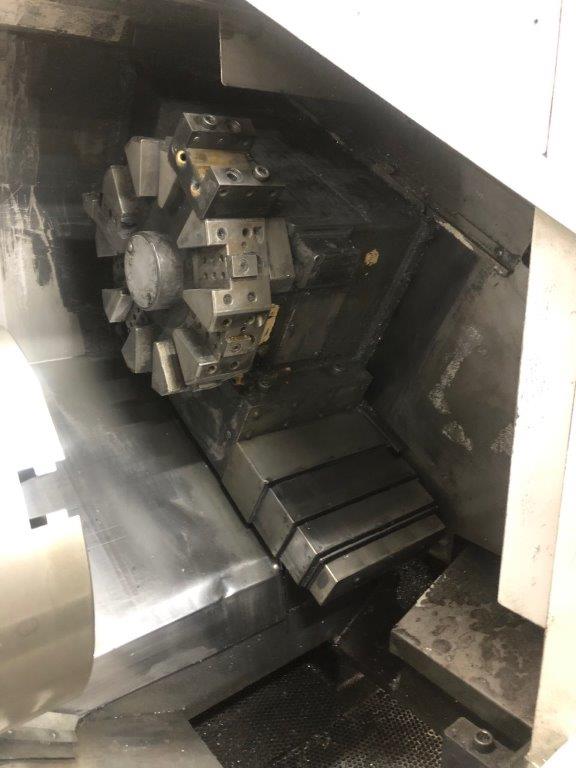

| TURRET TOOL STATIONS | 10 |
| MAIN MOTOR | 20 HP |
| FLOOR SPACE | 70" x 70" (ADD 55" FOR CC) |
| APPROXIMATE WEIGHT | 5,400 LBS |

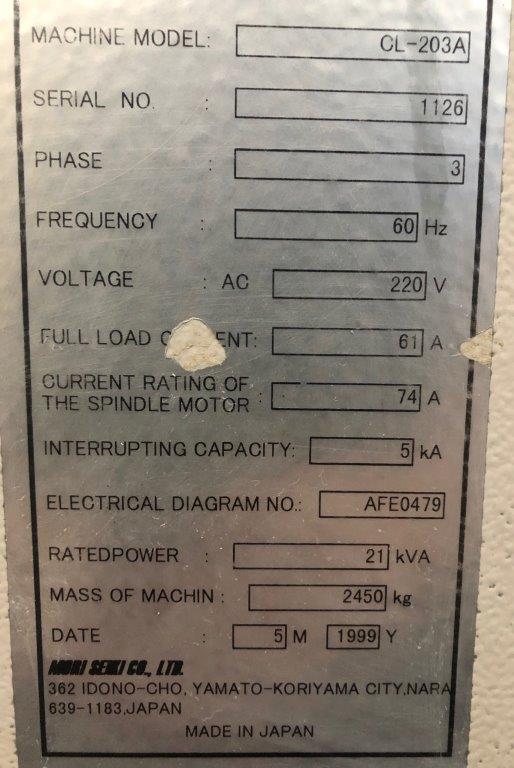

| POWER | 220V / 60HZ / 3 PHASE |
Specification:
